TRENDnet TV-H400 User manual

TV-H400
V3.0R
Quick Installation Guide

Table of Contents
Version 01.08.2011
English 1
1. Before You Start
2. Hardware Installation 2
1
Troubleshooting 15

ENGLISH
1. Before You Start
Package Contents
Ÿ
ŸQuick Installation Guide
ŸPower Adapter (12V DC, 0.6A)
Ÿ4 x Enclosure Mounting Brackets
(BR001, BR002, BR003, BR004)
1 x Wall Mounting Bracket
1 x Ceiling Mounting Bracket
Ÿ Allen wrench (1/4”L=6mm)
Ÿ Screws and lock washers
(Bags: Q1, Q2a, Q2b, Q3, Q4, Q5, Q6)
Ÿ Rubber seal (Bag: Q7)
TV-H400
Ÿ
Ÿ
System Requirements
1
The following items below are not included. Users must provide the items
themselves. Make sure to have each item on hand before installation.
Ÿ
Ÿ Mounting screws and screw Anchors
ŸDry Wall or Wood surface
ŸPhillips screwdriver
ŸRJ-45 cable
Pan and tilt Internet camera (e.g. TV-IP410, TV-IP600, TV-IP612)

ENGLISH
2. Hardware Installation
2
Note: Configure your Internet Camera Server to match your network before installing
the device.

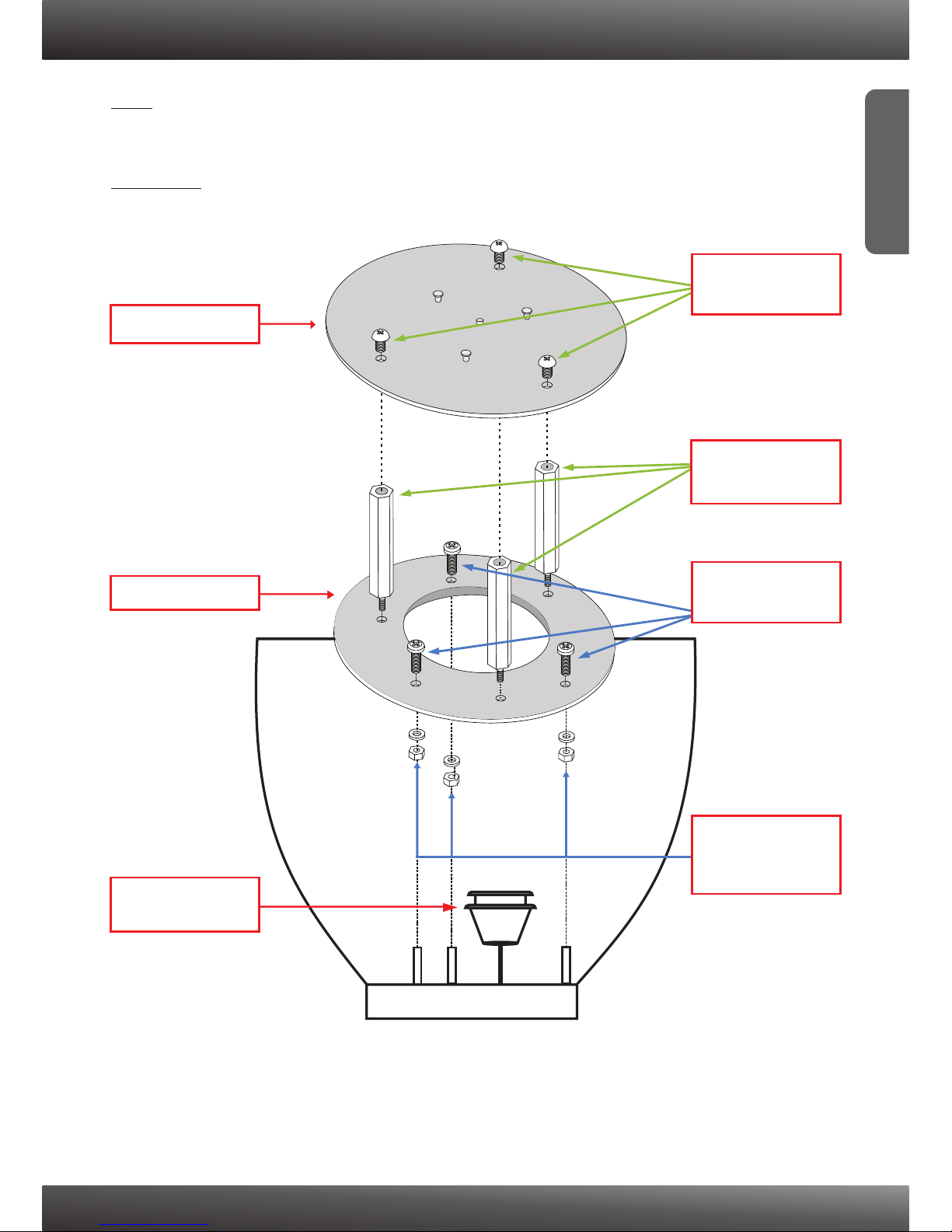

TV-IP612P
:
Bracket: BR001
Q7: Rubber Seal x 1
PCS
Q6: Round Head
Screw x 3 pcs
Bracket: BR004
Q1: Flathead screw
x 3 pcs
Q5: Washer x 3 pcs
Hex Nut Top
x 3 pcs
Q3: 5cm Hex Screw
x 3 pcs

ENGLISH
3

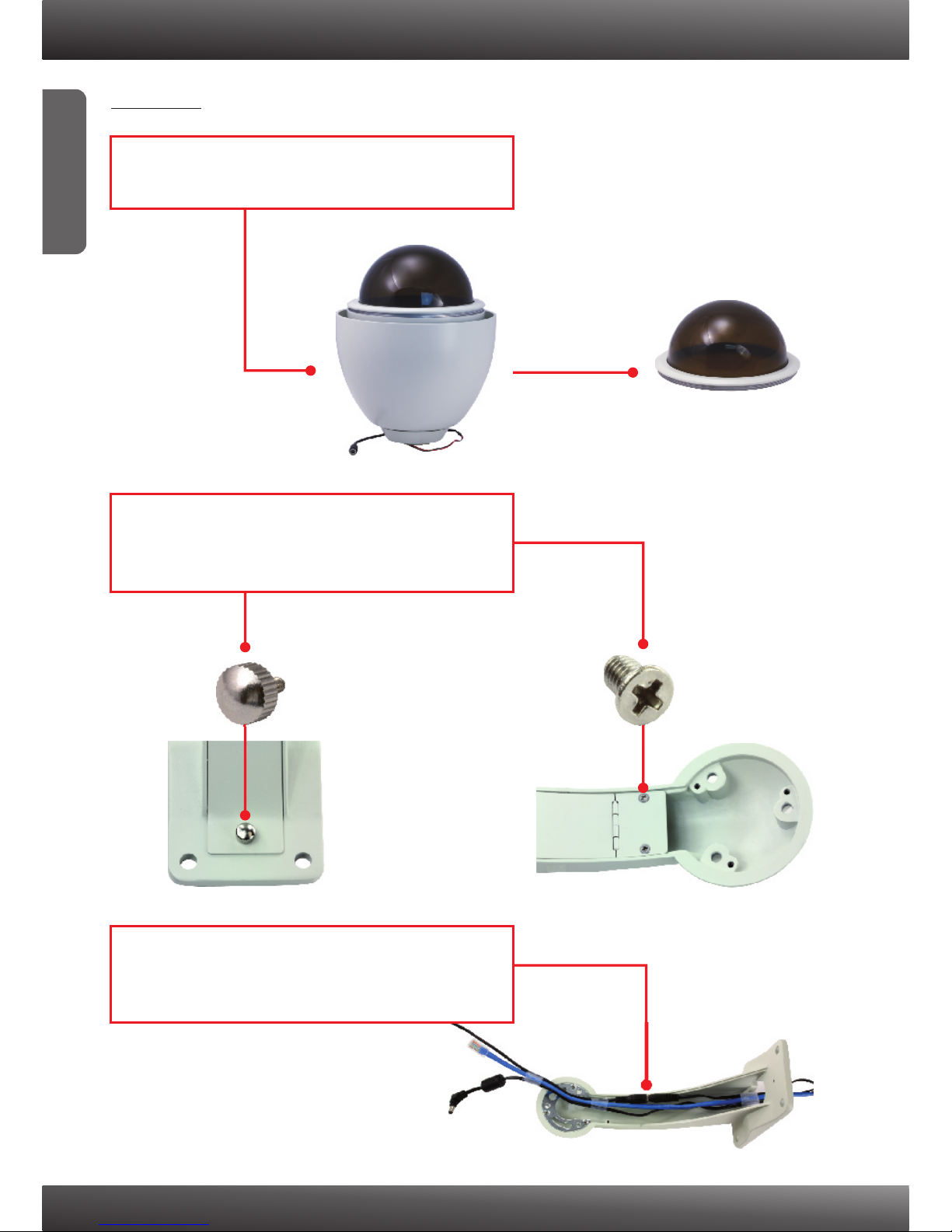

1. Rotate the TV-H400's cover counter clockwise
and remove the cover.
2. Remove three screws and remove the
protective plating from the TV-H400. Save these
screws. You will need to use these screws later.
TV-IP612P
3. Run all necessary cables (network cable,
Power Adapter cable, and the power terminals)
through the wall mount.

ENGLISH
4
4. Connect the power terminal to the provided
12V DC, 0.6A power adapter. Adjust the cable
so that this connection is enclosed in the
bracket.
6. After inserting the appropriate cables, extend
each cable to 6 inches for camera installation.
7. Use the provided rubber seal to seal the
housing.
5. Run the Ethernet cable and the IP Camera's
power adapter cable through the opening
located at the top of the TV-H400.

ENGLISH
5

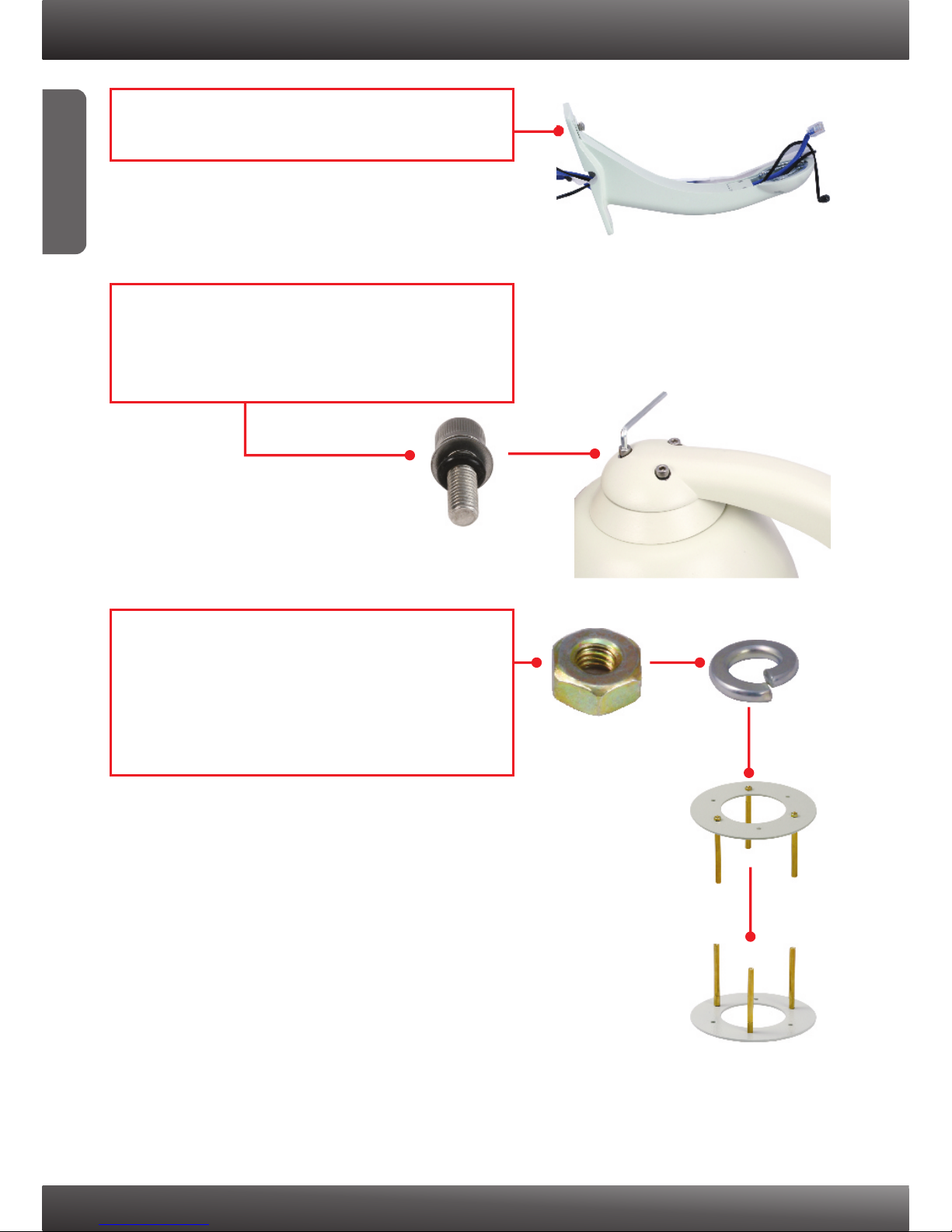

8. Secure the protective plating into the wall
mount bracket using the thumb screw.

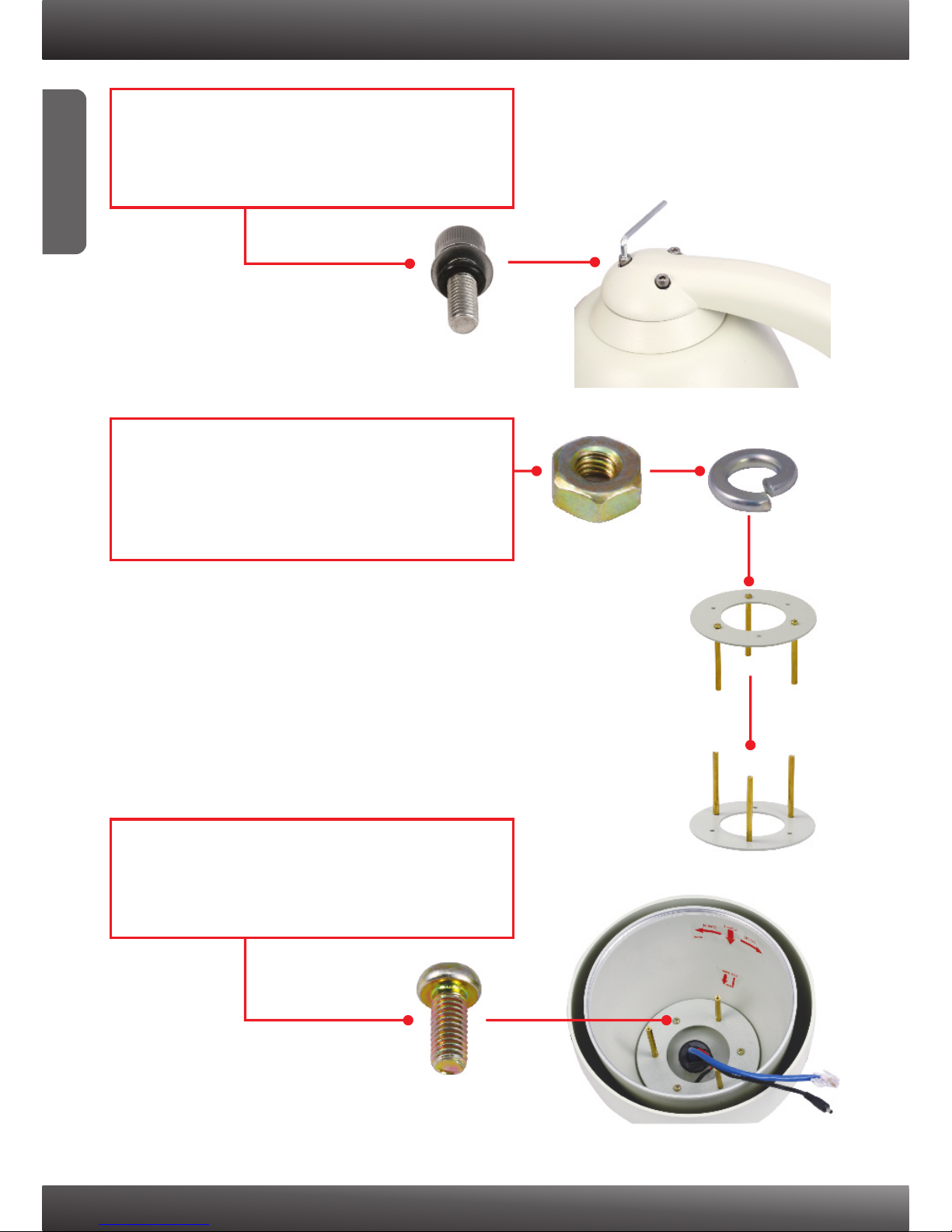

9. Screw the wall mount bracket on top of the
TV-H400 with the provided Allen wrench and
three hexagon socket screws. The screws are
in the plastic bag labeled Q2B.
10. Connect the three 5 cm Hex screws to the
circular base bracket. Secure the Hex screws
with the nuts and washers. The 5cm Hex
screws are in the plastic bag labeled Q3.
The nuts and washers are in the plastic bag
labeled Q5.

ENGLISH
6

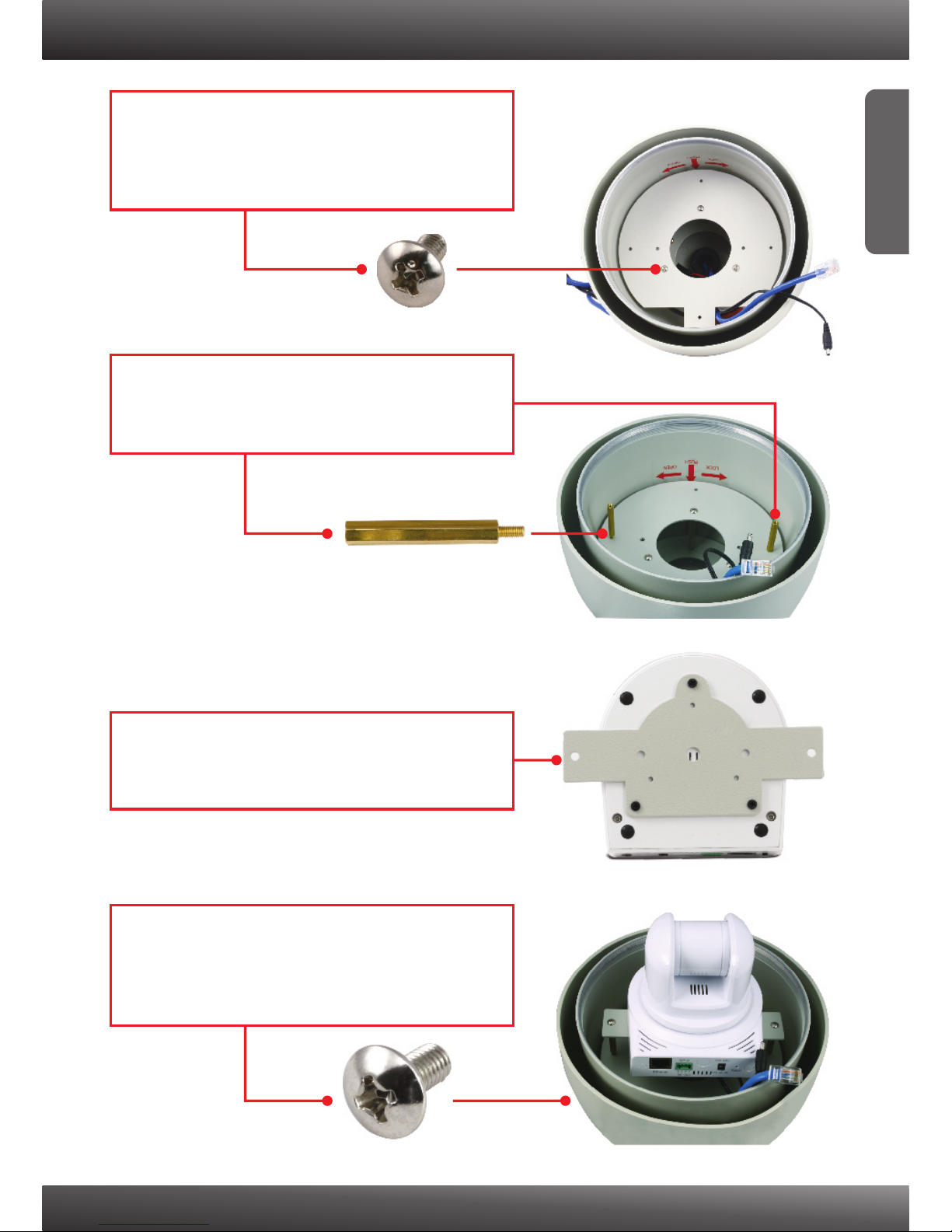

11. Mount bracket BR003 to the camera
enclosure using the three flat head screws.
These screws are in the plastic bag labeled
Q1.
13. Align the holes on the bottom of the TV-IP612
with the locking posts on the metal bracket.
12. Use three round head screws to mount the
metal bracket BR004 on top of the 3 Hex
screws. The three round head screws are in
the plastic bag labeled Q6.
15. adapter
to the IP Camera.
Connect the network cable and power
14. To secure the TV-IP612, push down and turn
the IP Camera clockwise.

ENGLISH
7
17. Plug the power to the IP Camera and the
camera enclosure into an available power
outlet.
16. Place the TV-H400's cover over the camera
and rotate the cover clock-wise.

ENGLISH
8

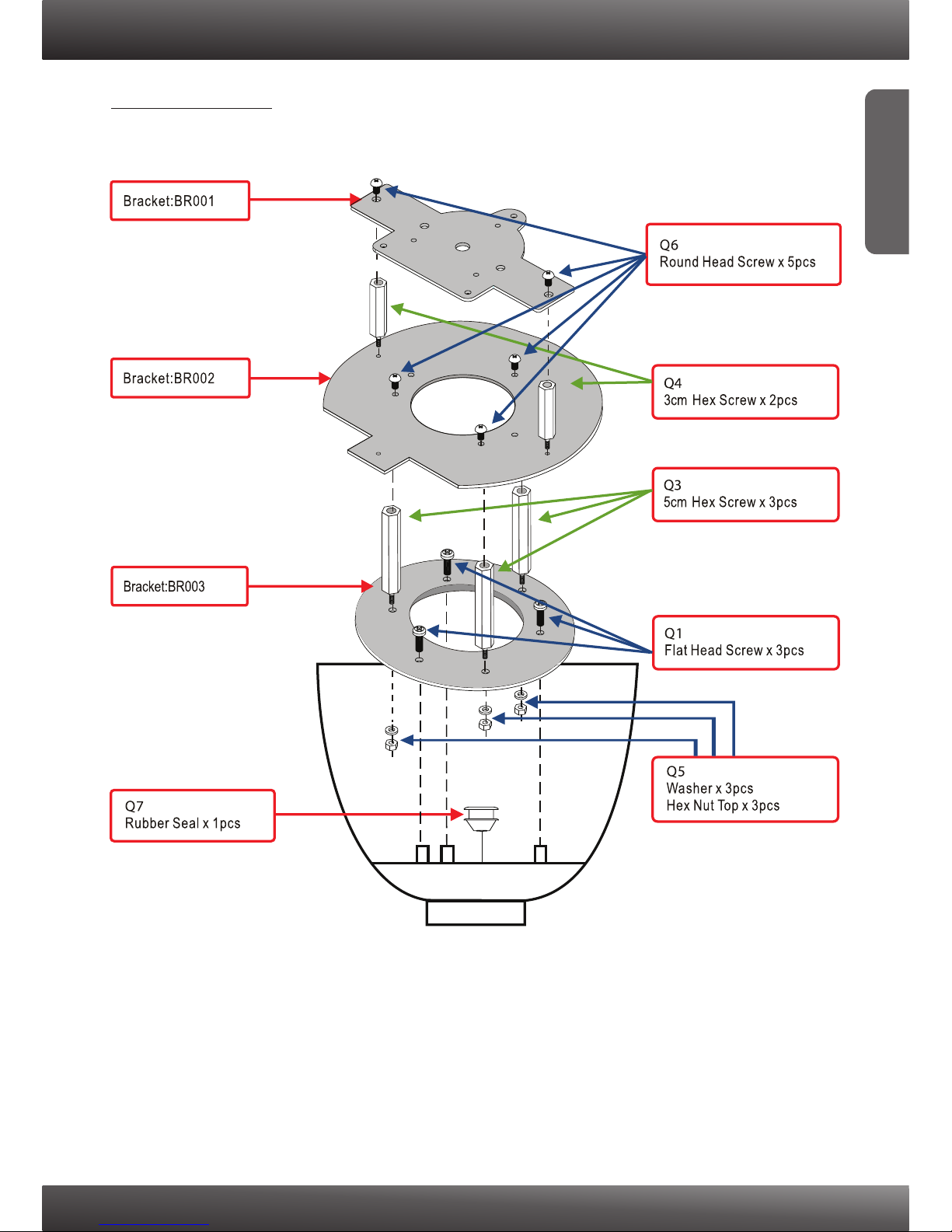

TV-IP410/TV-IP600
