Introduction
Please read and follow these instructions carefully and operate the machine
accordingly. This booklet provides important guidelines for safe installation, use,
maintenance and some useful advice for best results when using your machine.
Keep all documentation in a safe place for future reference or for any future
owners.
3
Note: this machine is solely for domestic use, i.e. to
wash, rinse and spin dry household textiles and
garments.
Notes on disposal
All packaging materials used are environmentally-friendly and recyclable. Please
help dispose of the packaging via environmentally-friendly means.
Your retailer or local council will be able to give you
details of current means of disposal.
Appliances that have reached the end of their useful life are not worthless
rubbish! Valuable materials can be salvaged from an old appliance via scrap
reprocessing.
Note: to ensure safety when disposing of an old
washing machine disconnect the mains plug from the
socket, cut the mains power cable and destroy this
together with the plug. To prevent children shutting
themselves in the machine break the door hinges or
the door lock.
40000731ENG.qxd 31/10/2003 17:34 Page 3

General delivery notes
Please check that the following items are delivered with the appliance:
– Instruction manual
– Guarantee certificate
– Blanking plug
– Inlet hoses & bracket
– Base panel
– x2 push clips
Check that no damage has occurred to the machine during transit. If it has, call
the manufacturer’s service by GIAS, Hoover service or an authorised Hoover
dealer. Please see Customer Service.
4
Safety notes
Note: before carrying out any cleaning or maintenance
of the washing machine please read the following
safety notes.
A) Disconnect the plug from the mains supply.
B) Turn off the water supply.
C) Hoover equips all its appliances with earthing. Ensure that the mains power supply
is earthed, if not, seek assistance from a qualified electrician.
D) Do not touch the appliance when hands or feet are wet or damp. Do not use the
appliance when bare-footed.
E) The use of adapters, multiple connectors and/or extensions is not recommended.
F) Caution: water temperature can reach 90°C during
the whites wash cycle and as a result the door
glass may get very hot.
G) Check there is no water visible in the drum before opening the door.
H) Do not allow children or unauthorised persons to use the appliance without
supervision.
I) Do not pull the power cable or the appliance itself to remove the plug from the
socket.
J) The appliance must not be exposed to weather conditions (rain, direct sun, etc...)
K) When moving the appliance never lift it by the controls, the detergent drawer, the
hoses or the power cable.
To avoid damaging the door when moving the appliance never rest the door
against objects e.g a trolley.
40000731ENG.qxd 31/10/2003 17:34 Page 4

5
After washing
– Wait about two minutes for the door locking
device to disengage. The BLOQUEO PUERTA
neon will go out
– Switch off the washing machine by pressing the
MARCHA/PARADA button
– Open the door and remove the laundry
L) IMPORTANT!
If the appliance is installed on a carpeted floor ensure that the ventilation through
the base of the appliance is not obstructed.
M) When lifting the machine always use two people to help avoid injuries.
N) If the appliance is not running properly or breaks down, switch it off, disconnect the
plug from the socket, turn off the water supply and do not tamper with the
appliance.
Consult GIAS Service or Hoover Service for possible repair. Failure to comply with
the above can compromise the safety of the appliance.
O) If the appliance’s power cable is damaged it must be replaced by a special cord
which is only available from GIAS Service.
P) After the machine has been installed, ensure that the mains plug and water supply
valves are easily accessible.
Q) Glass fibre curtains should never be put into this machine.
R) Lint or fluff must not be allowed to collect on the floor around the outside of this
machine.
S) Always ensure that the bloqueo puerta indicator neon has switched itself off before
opening the door. By doing so the machine is allowed to cool down before the
laundry is handled.
T) Always ensure to fit the base panel to the machine.
Quick Start
Washing
– Open the door by pressing the APERTURA PUERTA button
– Select the laundry and put it in the machine
– Close the door
– Put detergent in the dispenser compartments, in accordance with the
programme guide table in this manual.
– Select programme by turning the programme knob
– Select any function buttons required and then press the MARCHA/PARADA
button. The “MARCHA” button is selected when the button is pressed in.
There may be a short time delay from pressing the MARCHA/PARADA button to
the start of the programme, while the machine senses the water required and sets
the parameters for the programme.
40000731ENG.qxd 31/10/2003 17:34 Page 5

Remove the machine from the packaging - close to where it will finally
be positioned - and proceed as follows:
On the back of the machine
1) Remove the central screw A and
side screws B and pull out the transit
bracket C along with the red locator.
2) Tilt the machine forward and remove
the polystyrene spacers.
3) Cover the central hole using the cap
enclosed in the instructions bag.
4) Adjust the two feet at the front to
level the machine.
5) Tilt the machine forward and locate
the base panel by (1) removing the
paper backing from the adhesive tape,
(2) locate the base panel in the front of the
machine, (3) offer the base panel up to the
machine and locate the two push clips.
6
Installation & testing
40000731ENG.qxd 31/10/2003 17:34 Page 6

7
Note: we recommend you keep the transit bracket and
screws to protect the machine for future transit.
The Manufacturers will not be responsible for any
damage to the machine caused by not following the
instructions relating to releasing the transit protection.
The user is responsible for all installation costs.
Connecting the fill hose
This machine has an inlet hose with 19 mm (3/4”) threaded ferrules fitted to the
ends to attach between the threaded connector on the appliance and the water
supply.
Only use the new hose supplied to connect the machine and ensure that the
sealing washers are in place inside the hose connectors.
Do not re-use old hoses which are attached to existing installations.
Do not over-tighten the connections. Hand tight is sufficient.
Do not trap or kink the hoses.
Connect the straight end of the hose to the stop taps.
Acqua-stop (fitted to certain models)
The fill hose supplied with this machine has a double skin
and incorporates a water valve (A). If the inner hose
bursts the valve will automatically shut off the water
supply to prevent flooding. The indicator turns red (B).
Should this happen, turn off the water supply immediately
and have a new fill hose fitted by Hoover Service.
If the inlet hose’s connection point is changed, check that
the 3/4” threaded ferrule on the inlet hose is firmly
attached to the electrovalve connector.
WARNING: DO NOT LEAVE THE PACKAGING IN THE
REACH OF CHILDREN AS IT IS A POTENTIAL SOURCE
OF DANGER.
40000731ENG.qxd 31/10/2003 17:35 Page 7

Water supply requirements
Connect the machine to the drainage system used by household sinks.
8
THIS MACHINE MUST BE CONNECTED IN
ACCORDANCE WITH THE WATER SUPPLY
REGULATIONS.
No other appliance should be plumbed into the standpipe.
There are two possible arrangements which can be seen below :-
DRAIN HOSE
HOSE SUPPORT
CROOK
12-15cm
32mm
min
60-80cm
HOSE SUPPORT CROOK
ATTACH HOSE
SECURELY TO
WASTE OUTLET
DRAIN HOSE
FIX SECURELY
ABOVE OVERFLOW
OUTLET OF SINK
For the washing machine to function properly the outlet end of the drain
hose must be at a minimum of 60 cm and a maximum of 80 cm from the
ground.
40000731ENG.qxd 31/10/2003 17:35 Page 8

Testing the installation
Refer to the programme guide for details of how to select programmes.
1. Turn on the water supply and check for leaks from fill hoses.
2. Switch on the electricity supply.
3. Select a spin programme and then press the MARCHA/PARADA button to
start the machine.
Allow the programme to continue for one minute and then switch off the
machine via the MARCHA/PARADA button. This will remove any water
remaining in the machine from factory testing.
4. To check for cold water filling to the machine:
Select a rinse programme and press the MARCHA/PARADA button to start the
machine.
Allow the tumble action to continue until the water has pumped out.
Check that the drain outlet is not leaking or overflowing.
5. Switch off the machine via the MARCHA/PARADA button at the end of the
cycle.
6. Select a spin programme and press the MARCHA/PARADA button to switch
the machine on. If the machine takes longer than one minute to empty check
the drain hoses for kinks.
Installation testing is now complete.
9
40000731ENG.qxd 31/10/2003 17:35 Page 9

To ensure the drum is thoroughly clean after testing and storage, select
programme 2 and run the machine for a complete cycle using only wash
detergent and water.
If the machine is not to be used immediately, switch off the mains power supply
and remove the plug from the power socket. We also recommend that the water
stop taps are turned off.
10
Note: it is advisable to isolate the washing machine
from the water and electricity supplies after each wash.
Electricity supply and safety advice
Washing machines are supplied to operate at a voltage of 220 V-230 V, 50 Hz
single-phase. Check that the conductor is powerful enough to supply at least
3.0 kW, then connect the plug to an earthed socket.
Electricity can be extremely dangerous. This washing machine must be earthed.
The socket outlet and the plug on the appliance must be of the same type.
It is not advisable to use multiple adapters and/or extension leads.
The wires in the mains lead are coloured in accordance with the following codes:
Blue – NEUTRAL
Brown – LIVE
Green & Yellow – EARTH
If the mains cord on this appliance is damaged, it must be replaced by a special
cord which is only available from the Hoover spares service or an authorised
Hoover dealer.
40000731ENG.qxd 31/10/2003 17:35 Page 10

11
Useful washing advice
Tips on using your appliance in the most environmentally-friendly and economical
way.
Loading your washing machine
To make further reductions of energy, water and detergent consumption, we
recommend that you put a full load into your machine. Energy savings of up to
50% can be achieved by washing one full load compared to two half loads.
When is prewashing really needed?
Only with particularly dirty loads! Energy savings of 5 to 15% are made by not
selecting the prewash option for less dirty laundry.
Which wash temperature should you choose?
Using stain removers before machine washing reduces the need to wash at
temperatures over 60°C. Energy savings of up to 50% can be made by using a
40°C wash temperature.
Heavily soiled laundry
To ensure the best performance when washing a particularly dirty load, we
recommend that you reduce the amount of items to be put into the machine. If the
drum is not crammed full, the items will circulate more freely and will wash
cleaner.
ARIEL - Chosen and recommended by Hoover
When we produce a new washing machine we subject it to every test possible.
And one of the most important tests is the one that enables our experts to identify
the most suitable detergent for solving laundry problems. Ariel was able to meet
our needs: to make the washing machine function efficiently, not compromise the
machine’s lifespan and produce the best wash results. Consistently excellent
results, which was the main aim of the test we carried out, determined our choice
and our recommendation. The prime function of a detergent that answers all
washing requirements is to work with the water to remove dirt from fabrics,
holding it in suspension until it is removed when the water is pumped out, and to
control the amount of foam forming in the washing machine, without damaging the
fibres of the items being washed. Ariel fully satisfies all these requirements, as it
contains high quality elements, the result of the most advanced research,
ensuring excellent results under all conditions.
40000731ENG.qxd 31/10/2003 17:35 Page 11

Description of Controls
All the controls on your product’s control panel are listed as follows. The function
buttons are selected when the buttons are pressed in. Carefully read the relevant
descriptions detailed below:
MARCHA/PARADA
After selecting the programme press the MARCHA/PARADA button to start the
machine. At the end of the cycle press again to reset the button and switch off the
appliance.
Power on Power off
12
Apertura Puerta
A special safety device prevents the door from being opened immediately
after the end of the cycle.‘Bloqueo Puerta’ indicator light is illuminated when
the door is fully closed. Wait for 2 minutes after the wash cycle has finished
and the ‘Bloqueo Puerta’ neon has gone off before opening the door. As a
safety measure check that there is no water evident in the drum.
Intensivo
On selecting the intensive wash option prior to selecting your desired wash
programme, this allows approximately an additional 90 minutes of gentle wash
action at 35°C to the start of the selected programme, thus enabling an intensive
wash. For biological detergents, this option is available on cottons and synthetics
wash programmes.
Lavado Rápido
This option can be utilised on cottons and synthetic programmes. By selecting the
express wash option, the wash time may be reduced by up to 50 minutes,
depending on the programme selected.
Super Aclarado
This option causes more water to be added at the rinsing stage. This can help to
avoid skin irritation from detergent residues for people with particularly sensitive
skin. Selecting the Super Aclarado button is also recommended when washing
heavily soiled fabrics, requiring the use of a lot of detergent, or when the wash
load contains items made of towelling whose fabrics have a greater tendency to
retain detergent.
40000731ENG.qxd 31/10/2003 17:35 Page 12

Planchado Rápido
This option is available on cottons, synthetics, delicates, woollens and the “Lavado
a Mano” special programme. When this option is selected for cottons, woollens
and the “Lavado a Mano” programmes, the machine will stop in the final rinse
stage and the load will be held within the water in the drum. This reduces the
creasing thus enabling easier ironing. To continue with the wash cycle, press the
“Planchado Rápido” button and the programme will re-start.
When the option is selected for synthetics programmes, the selected programme
is completed by a short, very low speed spin. The laundry may be left in the drum
in this condition without the risk of excessive creasing. If a spin cycle is required
please select the appropriate spin (see Programme guide).
When the option is selected for delicates programmes, the machine stops in the
final rinse stage and the load will be held within the water in the drum. Thus
reducing creasing and enabling easier ironing. Press the “Planchado Rápido”
button to continue with the programme. The machine will then pump out the
remaining water and the programme will conclude with a low speed spin for
approximately 15 seconds.
13
PROGRAMME Selector
Note: never turn the knob anti-clockwise (Turn it
clockwise and do not press the Marcha/Parada button
before selecting the programme).
Can be turned in either direction
Should it be noticed after commencing the wash cycle that the incorrect
programme has been selected, switch off the machine for a few seconds. After the
time has passed you may then continue to select the desired programme and
resume with the wash cycle.
TEMPERATURA
The washing machine is equipped with a Wash Temperature selector which can
be set at the temperature you require. We recommend that the temperature
shown on wash care garments should never be exceeded. The most suitable
temperature and cycle for each type of fabric is also shown in the programme
guide table within this manual.
To protect fabrics in the case where variable temperature has been accidentally
set higher than those within each programme (see programme guide table), the
machine will lower the temperature automatically.
40000731ENG.qxd 31/10/2003 17:35 Page 13

Centrifugado
By adjusting the control it is possible to reduce the maximum speed to suit your
needs and help reduce creasing of fabrics.
Turn the spin speed selector knob until the
● aligns with the required spin.
The tables in the washing section describe the various programmes and illustrate
the number or symbol to select for them.
14
Note: this model is fitted with an electronic “sensor”
device that checks the load is balanced correctly. If the
load is slightly unbalanced the machine will re-balance
it automatically to then carry out the normal spin.
If, after several attempts, balance is not restored a
reduced spin speed will be used.
If loads are seriously unbalanced the spin stage will be
cancelled.
This helps limit vibration, reduce noise and improve
the washing machine’s reliability and life.

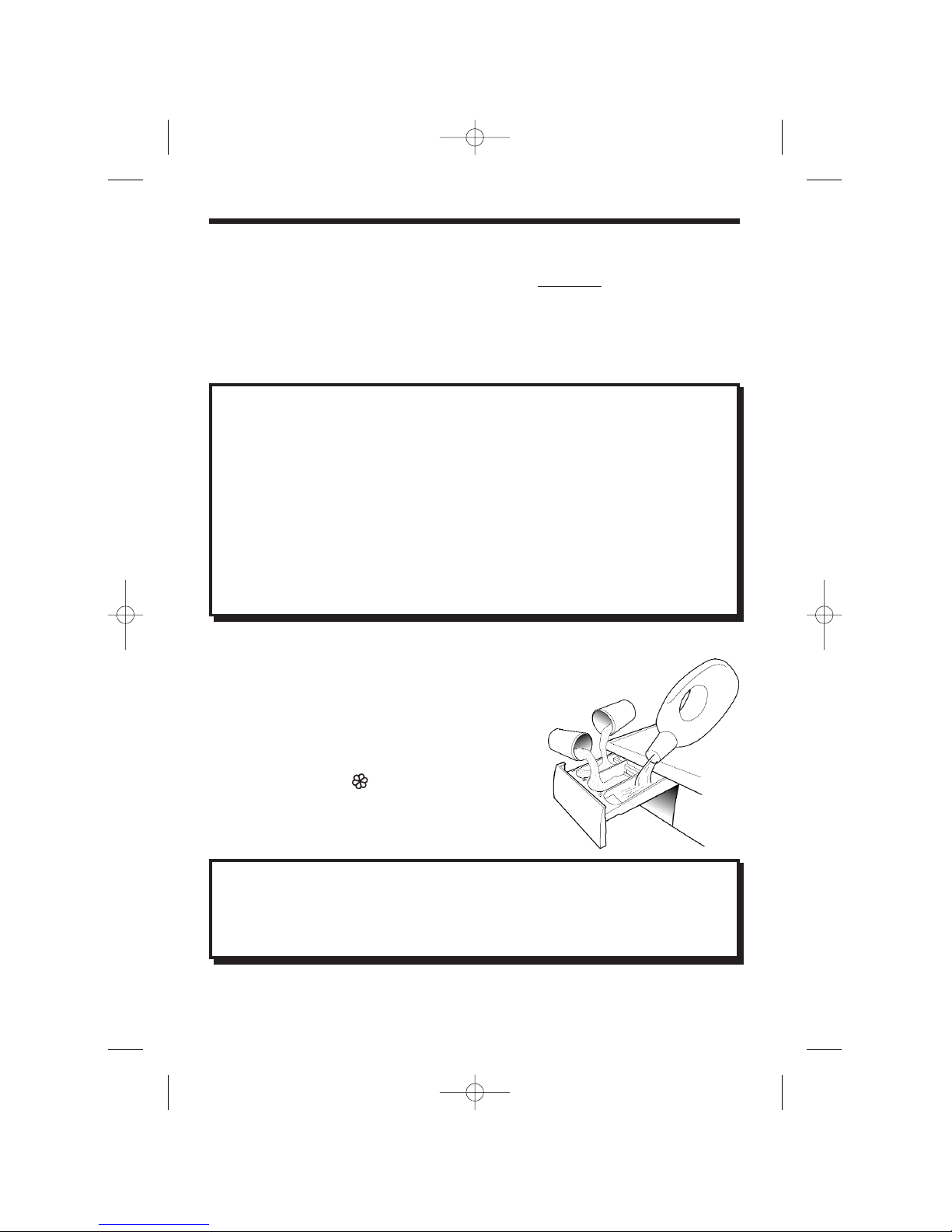

Detergent drawer
The detergent draw is split into 3 compartments:
– the first, labelled “I”, is for detergent utilised
during Prewash.
– the second, labelled “II”, is for detergent
utilised during the main wash.
– the third, labelled “ ” is for special
additives, fabric softeners, fragrances,
starch, brighteners etc.
Note: some forms of detergents are difficult to
dispense from the drawer e.g. concentrated powders.
For these, we suggest you use the recommended
dispenser which is placed inside the drum.
This ensures that the liquid detergent is dispersed in the drum only when needed.
Fabric conditioner
Pre-wash
powder
Main wash
powder
40000731ENG.qxd 31/10/2003 17:35 Page 14

The machine is programmed to automatically take up additives during the final
rinse stage for all wash cycles.
15
Note: only put special additives, fabric softeners,
fragrances, starch, brighteners, etc., in the third
compartment.
Detergents, washing aids and amounts to
use
Choice of detergent
General purpose detergents
–Powder detergents, for a thorough wash, with bleaching agents, are
particularly suitable for use in hot wash programmes (60°C and over), for
heavily soiled and stained laundry.
–Liquid detergents, are particularly suitable for grease stains, such as greasy
skin marks, cosmetics and oil.
These detergents are not suitable for washing stained laundry, as they do not
contain bleach.
–Biological detergents, not all the products available give a really thorough
wash.
Special detergents
–Detergents for coloureds and delicates, without added bleach, also often
without any optical brightening agents, to preserve the colour.
–Detergents for a thorough wash, without added bleach or enzymes,
particularly suitable for handling woollen fibres.
–Detergents for curtains with optical brightening agents, resistant to light, to
prevent yellowing from sunlight.
–Special detergents for programmed use of chemical substances, depending
on fabric type, degree of soiling and water hardness.
Here basic detergents, softeners, bleaches/stain removers can be added
separately.
40000731ENG.qxd 31/10/2003 17:35 Page 15

Additional laundry aids
–Water softener, means less detergent can be used where water hardness is
classed as hard to very hard.
–Prewash substances, for the programmed treatment of stains prior to the
main wash.
Using them means the subsequent wash can be at a low temperature or with
bleach-free detergents.
–Fabric softener, prevents static build-up in synthetic fabrics and softens
fabrics.
If you own a tumble dryer, clothes are softened even without the use of a fabric
softener.
Do not put solvents in the washing machine!
Keep detergents and other laundry products out of children’s reach.
Before pouring in the detergent check that there are no foreign bodies in the
detergent drawer.
Dosage details are usually shown on the detergent packaging. Follow those
instructions!
Dosages
Only use detergents which are suitable for use in a washing machine.
You will obtain the best results from your wash with the minimum use of chemical
products and the best care for your laundry if you take into consideration the
degree of soiling as well as the type of detergent to choose.
The amount of detergent to use depends on:
- water hardness, depending on the hardness of the water and the type of
detergent used, it is possible to reduce the amount of detergent. The softer the
water supply, the less detergent is required.
- the degree of soiling, it is possible to reduce the amount of detergent used
depending on the degree of soiling. Use less detergent for less soiled items.
- amount of laundry, it is possible to reduce the amount of detergent when
washing only a small amount of laundry. For smaller loads use less detergent.
The amounts shown on pack for detergents for washing delicates often already
refer to a reduced wash size.
Follow the dosage instructions!
16
40000731ENG.qxd 31/10/2003 17:35 Page 16

Dosage for powder detergent
For normal and low concentration detergents: for normally soiled laundry
choose a programme without prewash.
Put the detergent in compartment II of the drawer.
For heavily soiled laundry, choose a programme with prewash.
Put 1/4 of the detergent in compartment I, 3/4 in compartment II of the drawer.
When using water softeners, first put in the detergent, then add the softener to
compartment II.
For highly concentrated detergents not in single dose format, follow exactly what
is shown on pack with regards to type and amount of dosage.
To avoid the difficulty of checking if the detergent has been taken up, use the
dosage aids provided in the detergent packaging.
Liquid detergent dosage
Liquid detergents may be used in accordance with the instructions on the relevant
packaging, for all programmes without prewash, by using the recommended
dispenser which is placed in the drum.
17
40000731ENG.qxd 31/10/2003 17:35 Page 17

18
Programme selector
The washing machine has 4 different programme groups according to type of
wash, temperature, spin speeds and duration for handling the various types of
fabric and their level of soiling (see wash programme guide).
1. ALGODÓN
The programmes are designed for maximum washing and rinsing. With spin
cycles in between, they guarantee the laundry is rinsed perfectly. The final
spin cycle ensures laundry is spun dry as much as possible up to the
maximum speed.
2. SINTÉTICOS
Washing and rinsing performance is optimised through drum rotation speeds
and water levels. The delicate action spin (at 400 rpm) minimises creasing.
3. DELICADOS
This is a new concept in washing, with a cycle that comprises of alternate
periods of activity and pauses, particularly suitable for washing very delicate
fabrics, such as Pure New Wool.
Wash and rinsing are carried out using a high water level to provide the best
results.
4. PROGRAMAS ESPECIALES
LAVADO A MANO
This washing machine also has a gentle Lavado a Mano programme cycle
(programme 10). This programme allows a complete washing cycle for
garments specified as ‘Hand Wash only’ on the fabric care label.
The programme has a maximum temperature of 30°C and concludes with 2
rinses, one for fabric conditioner and a slow spin.
RÁPIDO
This washing machine also has a RÁPIDO programme option (Programme R).
This programme allows a complete washing cycle to be carried out in
approximately 29 minutes, with a maximum load of 3kg and is recommended
for lightly soiled items. When selecting the RÁPIDO programme, please note
that we recommend you use only 20% of the recommended quantities shown
on the detergent pack. Do not use fabric conditioner with this programme.
40000731ENG.qxd 31/10/2003 17:35 Page 18

19
Main wash
Auto half load
The washing machine is fitted with a self adjusting water level system. This
system enables the machine to use the optimum amount of water needed to wash
and rinse the laundry in relation to the particular load. This results in a reduction
of the water and electricity used without in any way compromising the washing
and rinsing performance.
In fact, the amount of water and electricity used will always be appropriate for the
clothes load.
The washing machine automatically ensures excellent washing results at
minimum cost whilst respecting the environment.
19
Sorting the laundry
– It is recommended you wash only items which are washable with water and
detergent and not dry-clean items.
– If you need to wash rugs, bedspreads or other heavy items, it is best not to
spin them.
– Sort the laundry according to fabric type, degree of soiling and wash
temperature: follow the labelling on the garments.
Examples:
Laundry for hot wash
Coloured, easy-care materials
Delicates and wool
– Items labelled with the following symbols are not suitable for machine washing:
40000731ENG.qxd 31/10/2003 17:35 Page 19

Note: when sorting laundry
– check there are no metal objects in the
laundry (such as paper clips, safety pins,
pins, coins etc...); In the event of a machine
failure during the warranty period and foreign
objects are found to be the cause of the
failure a labour charge may be made for the
call out of an engineer.
– button up pillowcases, fasten zips, hook &
eye fasteners, belts and long dressing gown
cords;
– remove curtain hooks;
– pay close attention to the labels on items
– if you notice stubborn stains whilst sorting
the laundry, remove them using a special
detergent or a special stain remover.
20
– We do not recommend washing a full load of just towelling items as they
absorb a lot of water and may become too heavy for the drum.
The correct way to wash
Preparing the laundry
A) Select and sort the laundry according to the wash care labels found on each
garment. Always check the care labels.
Loading the laundry
B) Open the door.
Dry clean
For very delicate items, such as net curtains, underwear, tights etc., you are
advised to use a laundry net or wash bag.
– Woollen items must be labelled with the “Pure New Wool” symbol if they are to
be washed in the machine, and must also be labelled “non-matting” or
“machine washable”. Please check the laundry item for the label.
– Colour often leaks from new coloured items.
This can then colour other lighter items being washed.
We therefore recommend that coloured items should be washed for the first
time separately.
For future washes, non colourfast items can only be washed with white laundry
up to 40°C.
Do not wash
40000731ENG.qxd 31/10/2003 17:35 Page 20
