Trimco 9 Series User manual

INSTALLATION GUIDE# DATE: 12/8/2020 | REV: 01
TRIANGLE BRASS MANUFACTURING
1351 ROCKY POINT DRIVE, OCEANSIDE, CA 92056
WWW.TRIMCOHARDWARE.COM
[e-mail]
323.262.4191
OVERVIEW
PART LIST
STEP 1
STEP 3
STEP 2
INSTALLATION GUIDE FOR 9 SERIES,
ESCUTCHEON TRIM LOCK SETS. FOR TEMPLATES
ON MORTISE LOCKS, SEE TEMPLATE# 21761.
FOR TEMPLATES ON STRIKES, SEE TEMPLATE#
21690. FOR THE LATEST INSTALLATION GUIDES
AND TEMPLATES, SEE OUR WEBSITE. FOR MORE
HELP, PLEASE CONTACT CUSTOMER SERVICE.
COMPLETE PART LIST WILL VARY DEPENDING ON
WHAT FUNCTION OF 9 SERIES YOU HAVE.
POSSIBLE PARTS INCLUDE:
•INTERIOR LEVER
ASSEMBLY
•EXTERIOR LEVER
ASSEMBMLY
•MORTISE LOCK
•LEVER MOUNTING
SCREWS
•INDICATOR
ASSEMBLY
•MORTISE LOCK
COMPONENTS
•LOCK FACE PLATE
•LOCK MOUNTING
SCREWS
•THUMB TURN
•COIN TURN
•CYLINDER
ASSEMBLY

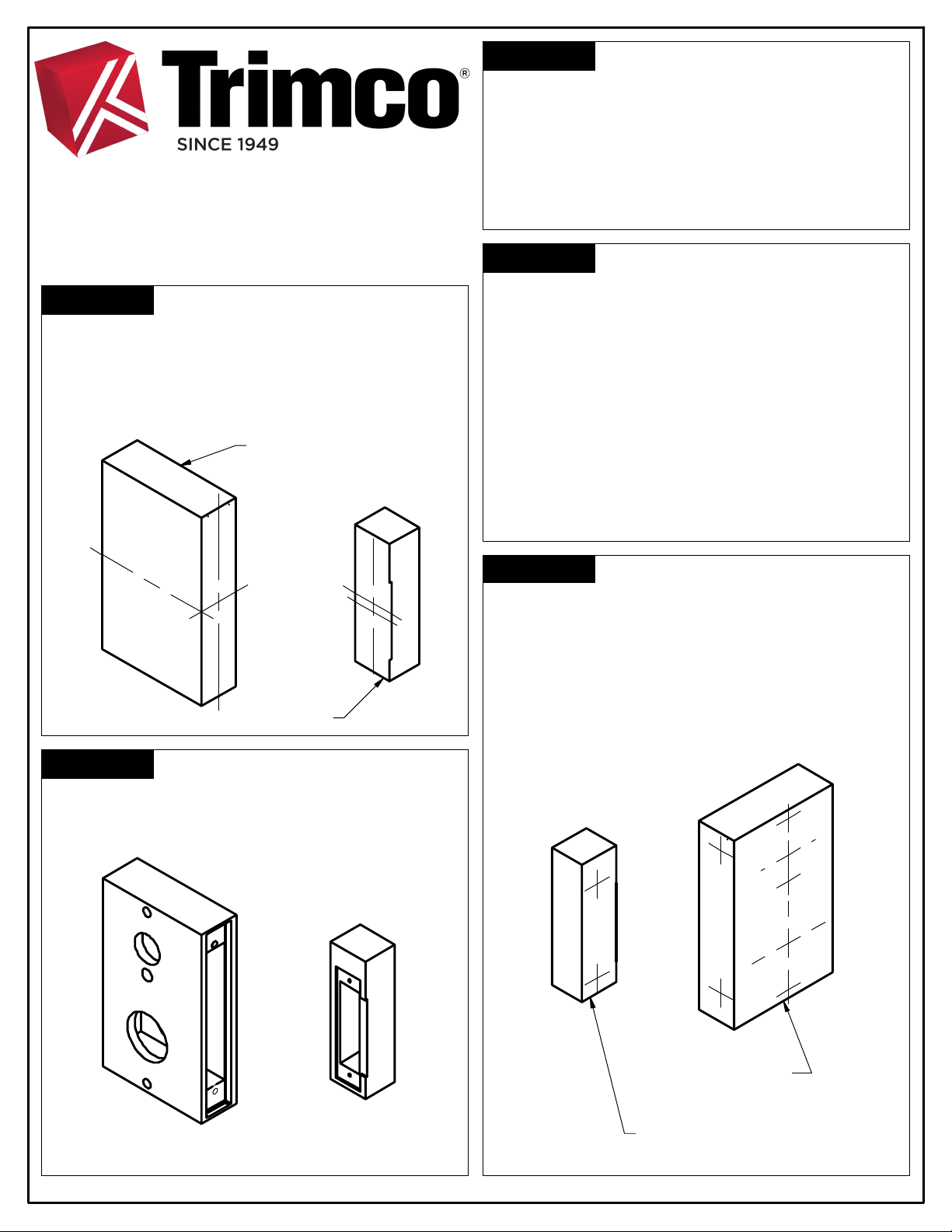

MARK THE HORIZONTAL CENTERLINE OF THE
LOCK ON BOTH SIDES OF THE DOOR AND ON
DOOR'S EDGE. DO THE SAME FOR THE STRIKE
FRAME.
POSITION THE APPLICABLE TEMPLATE ON THE
EDGE AND THE SIDES OF DOOR. MARK HOLES
FOR EACH SIDE AND TOP AND BOTTOM HOLES
OF MORTISE WHERE APPLICABLE. APPLY STRIKE
TEMPLATE TO FRAME AND MARK HOLES NEEDED.
MAKE SURE TO NOTE HANDING.
DRILL APPLICABLE HOLES AND MORTISE FOR
BOTH LOCK AND STRIKES
DOOR
FRAME
DOOR
FRAME

INSTALLATION GUIDE# DATE: 12/8/2020 | REV: 01
TRIANGLE BRASS MANUFACTURING
1351 ROCKY POINT DRIVE, OCEANSIDE, CA 92056
WWW.TRIMCOHARDWARE.COM
[e-mail]
323.262.4191
STEP 4
STEP 6
STEP 5
NOTE
STEP 7
INSTALL LEVERS ON DOOR. HANDLE FACES AWAY
FROM LATCH. SCREW SIDE IS ALWAYS ON THE
INTERIOR SIDE.
INSTALL INDICATOR, CYLINDER ASSEMBLY, OR
ANY OTHER ACCESSORIES THAT MAY COME
WITH THIS LEVER SET. NOTE - THIS MAY BE
SKIPPED OR BE DIFFERENT DEPENDING ON THE
FUNCTION YOU HAVE.
INSTALL STRIKE USING
STRIKE SCREWS.
THIS TEMPLATE IS PROVIDED FOR USE ON THE JOB FOR WHICH IT WAS REQUESTED. TRIMCO
RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. TRIMCO WILL NOT BE
RESPONSIBLE FOR ERRORS OR DAMAGE CAUSED BY USE OF OUT-OF-DATE TEMPLATES.
INSTALL MORTISE LOCK WITH FACE PLATE.
FRAME
STRIKE
STRIKE SCREWS
LEVERS SCREWS
PREPPED DOOR
MORTISE LOCK
LOCK
SCREWS
FACE PLATE
