Trimco 8100 User manual

3528 Emery Street
PO BOX 23277
Los Angeles, CA 90023-0277
[phone]
www.trimcobbw.com
8100, URBAN LEVER,
FULL DUMMY TEMPLATE
PRODUCT
rimco
TEMPLATE NO.
19583
SHT 1 OF 1
This template is provided for use only on the job for which it was requested.
Trimco reserves the right to make design changes without notice. Trimco will
not be responsible for errors or damage caused by the use of out-of-date templates.
T
DATE
10/08/13
NOTE:
Foldondottedline.-Layoveredgeofdoor.
Foldondottedline.-Layoveredgeofdoor.
Center Line
IMPORTANT: READ ALL INSTRUCTIONS
CAREFULLY BEFORE PREPARING DOOR
(OF THIS TEMPLATE AND TEMPLATE NO. 19633)
2-3/4" BACKSET
Revision Record: Released 04/04/13, SGH/JG
Added 1.563 and .781, 10/08/13, SGH/JG
.875 DIA X .250 DEEP
2 SIDES
11/32" HOLE THRU
2 PLACES
.781
1.563

3528 Emery Street
PO BOX 23277
Los Angeles, CA 90023-0277
[phone]
www.trimcobbw.com
8100, URBAN LEVER,
FULL DUMMY TEMPLATE
PRODUCT
rimco
TEMPLATE NO.
19633
SHT 1 OF 1
This template is provided for use only on the job for which it was requested.
Trimco reserves the right to make design changes without notice. Trimco will
not be responsible for errors or damage caused by the use of out-of-date templates.
T
DATE
10/08/13
NOTE:
Cut template where indicated. Fold
enclosed latch template on dotted line and
locate on door at desired height. If door is
beveled (See Diagram A). Place folded edge
on shorter side of bevel as shown above.
Tape latch template in place.
Diagram A
Door Template
Mark appropriate drill points on
door to correspond with points on
template.
Point No. 1 Point No. 2
Point No. 1
Using 7/8" dia hole saw, drill perpendicular
to door and drill 1/4"deep both sides.
Using 11/32" dia hole saw, drill 2 holes
thru perpendicular to door.

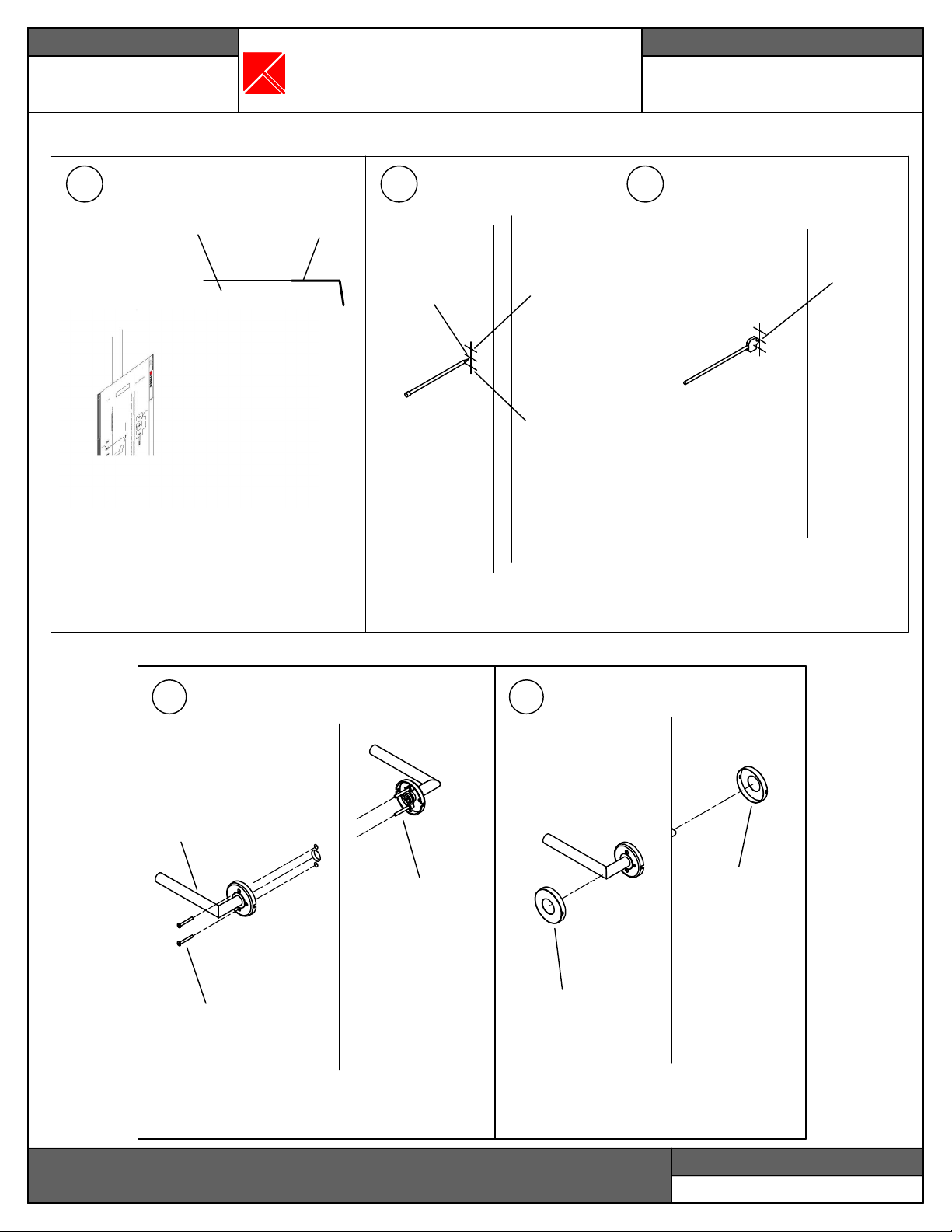

1 POSITION TEMPLATE 2 MARK DOOR 3 DRILL 7/8" FACE BORES
AND 11/32" DIA HOLES
DOOR AND FRAME PREPARATION TEMPLATE INSTRUCTIONS
INSTALLATION TEMPLATE
2 INSTALL ROSES
1 INSTALL LEVER ASSEMBLIES
Install lever assemblies by aligning posts with
corresponding holes in door.
Attach assemblies by fastening two (2) screws.
mounting
screws
Install roses.
rose
Point No. 3
inside
lever assembly
outside
lever assembly
rose
