TruTech TCR1276 User manual

AM/FM DIGITAL LED CLOCK RADIO
MODEL TCR1276

The Lightning flash with arrowhead
symbol, with an equilateral triangle
is intended to alert the user of the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point within an
equilateral triangle is intended to
alert the user of the presence of
important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
CAUTION : TO PREVENT ELECTRIC SHOCK,
MATCHWIDEBLADEOFPLUG
TOWIDESLOT,FULLYINSERT.
WARNING : TO REDUCE THE RISK OF FIRE
ORELECTRICSHOCK,DONOT
EXPOSE THE APPLIANCE TO RAIN
ORMOISTURE.
SAFETY INSTRUCTIONS
THESE IMPORTANT SAFETY INSTRUCTIONS ARE
INCLUDED, AS APPLICABLE TO THE APPLIANCE,
CONVEYING TO THE USER THE INFORMATION
ITEMIZED BELOW
1. Read instructions - All the safety and operating instructions should be read before the
appliance is operated.
2. Retain instructions - The safety and operating instructions should be retained for future
reference.
3. Head Warnings - All warnings and cautions on the appliance and in the operating
instructions should be adhered to.
4. Follow instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water, e.g. near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool or the
like.
6. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.

7. Ventilation - The appliance should be situated so that its location or position does not
interfere with its proper ventilation. For example, the appliance should not be situated on a
bed, sofa, rug or similar surface that may block the ventilation openings, or placed in a
built-in installation, such as a bookcase or cabinet, that may impede the flow of air through
the ventilation openings.
8. Heat - The appliance should be situated away from neat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat..
9. Power Sources - The product should be operated only with the type of power supply
indicated on the marking label. If you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For products intended to operate from
battery power, or other sources, refer to the operation instructions.
10. Grounding Polarization - This product may be equipped with a polarized alternating
current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way this is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
11. Power-Cord Protection - Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the point where they exit from the
appliance.
12. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
13. Nonuse periods - The power cord of the appliance should be unplugged from the outlet
when left when left unused for a long period of time.
14. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are
not spilled into the product case through product openings.
15. Damage Requiring Service - Unplug this product from the wall outlet and take it to
qualified service personnel under the following conditions.
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled into, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate when used according to the operating instructions.
Adjust only those controls that are covered by the operating instructions as an improper
adjustment of other controls may interfere with the product’s normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance-this indicates a need for
service.
16. Servicing - The user should not attempt to service the product beyond that described in
the operating instruction. All servicing should be referred to qualified service personnel.
17. Power Lines - An outside antenna system should not be located in the vicinity of overhead
power lines, or other electric light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system, extreme care should be taken to
keep from touching power lines or circuits as contact with them might be fatal.

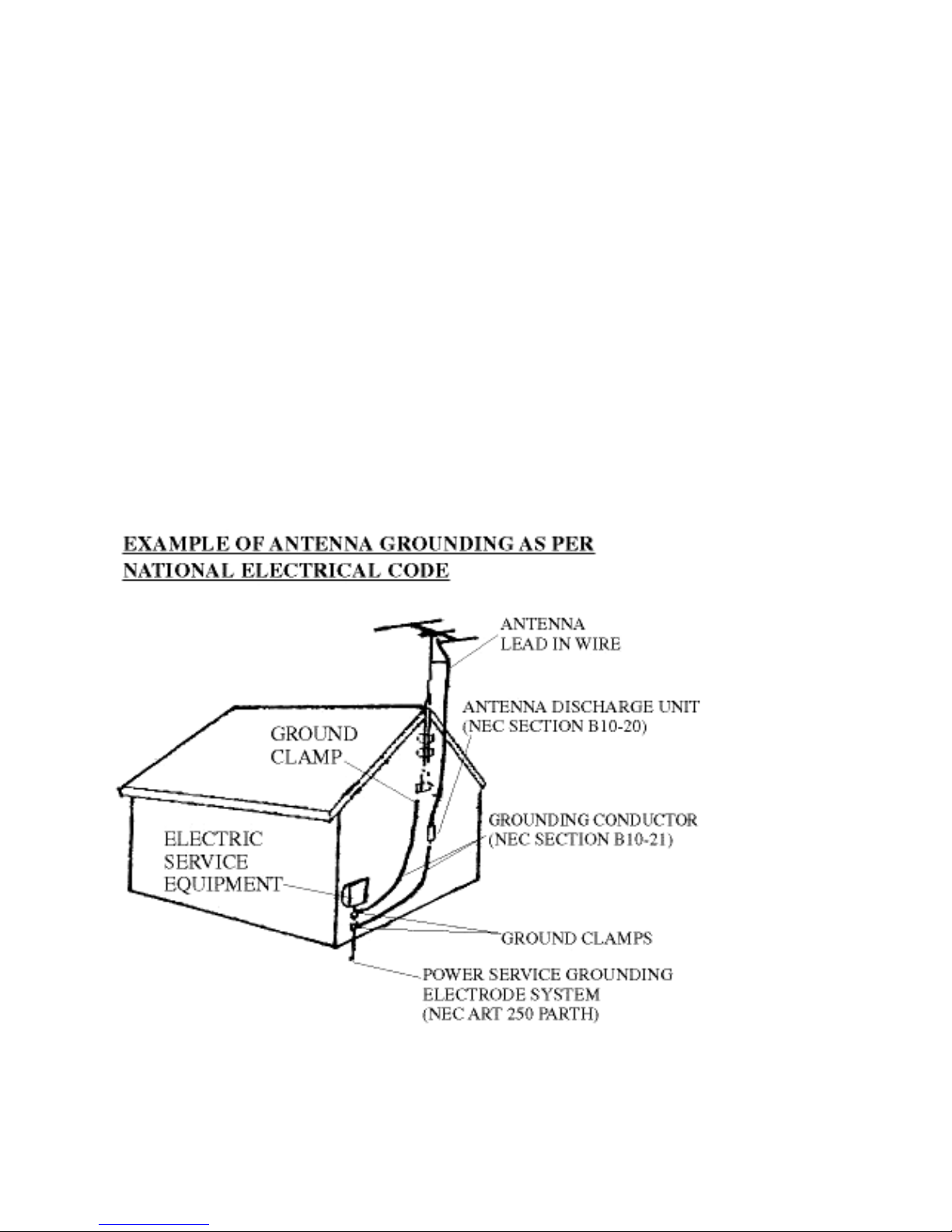

18. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure
the antenna system is grounded so as to provide some protection against voltage surges
and built up static. Section 810 of the National Electrical Code ANSI/NEFA 70 provides
information with respect to proper grounding of the mast and supporting structure,
grounding conductress, location of antenna-discharge unit, size of grounding electrodes,
and requirements for the grounding electrode (see figure).
19. Cleaning -Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
20. Lightning - For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the product due to
lightning and power-line surges.
21. Safety Check-Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operation
condition.
22. Overloading-Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fir or electric shock.
NEC NATIONAL ELECTRICAL CODE
Do not apply oil or petroleum products to this product.

CAUTION
Invisible laser radiation will be emitted when the product is
open and interlocks are defeated. Do not defeat the safety
interlocks.
GRAPHIC SYMBOLS WITH SUPPLEMENTARY MARKINGS
ARE LOCATED ON THE BOTTOM OF THE UNIT.
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE
PROCEDURE HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
1. TIME SET BUTTON
2. HOUR SET BUTTON
3. MINUTE SET BUTTON
4. ALARM SET/OFF BUTTON
5. SLEEP BUTTON
6. VOLUME/BUZZER SWITCH
7. AM/FM BAND SELECTOR
8. TUNING KNOB
9. SNOOZE BUTTON
10. RED LED DISPLAY
11. BATTERY COMPARTMENT
12. AUTO/OFF/ON SWITCH
POWER SOURCE
Plug the AC line cord into AC 120V 60Hz power outlet. The unit is now working and the
display figures will blink to show you it is operating, but not yet set.
OPERATING INSTRUCTIONS
1. AUTO/OFF/ON/SWITCH… slide the switch to turn radio “ON”, “OFF” or to
“AUTO” position. When the switch is in the “AUTO” position, it will permit
automatic turning “ON” and “OFF” of the radio according to the sleep and alarm
settings.
2. TIME SET BUTTON… press this button simultaneously with the HOUR or
MINUTE button to set the desired time.
3. ALARM SET BUTTON… Press this button simultaneously with the HOPUR or

MINUTE button to set the desired wakeup time.
4. SLEEP SET BUTTON… Press this button to display the number of minutes (59 or
less) where the radio will sound for 59 minutes and will automatically turn off after
then.
5. HOUR AND MINUTE button… Use these buttons to set the time, while pressing
the Alarm set button or Sleep button.
6. AM/FM band selector… Slide this selector to either AM or FM to select the desired
radio band.
7. VOLUME KNOB CONTROL… To regulate the loudness of the radio, rotate the
CONTROL clockwise to desired position. If you wish to be awakened preset time by
the “Buzzer” rotate the CONTROL counter-clockwise until a “click sound is heard.
8. TUNING KNOB… Turn this knob to the desired radio station.
9. SNOOZE BUTTON… When you are awakened by music or buzzer but wish to sleep
a few to sleep a few minutes more, simply touch the “snooze” button and it will shut
off the music or buzzer for approximately 5 to 10 minutes before the music or buzzer
sounds again. This can be repeated several times.
TO SET THE TIME
Step 1 Press the Time set button together with the HOUR or MINUTE button to set the
correct time.
Note: Repeat the above steps if you run past the correct time.
A glowing dot appears in the lower left hand corner of the display, indicating that the
time shown is PM time.
TO SET THE ALARM
Step 1 Press the Alarm set button to check the alarm time.
Step 2 Press the Alarm set button together with the HOUR or MINUTE button to adjust
the alarm time, paying close attention on the PM indicator.
NOTE: A glowing dot appears in the lower left hand corner of the display indicating that
the alarm has been set to operate.
TO PLAY THE RADIO
Step 1 Slide the AUTO/OFF/ON switch to the “ON” position.
Step 2 Slide AM/FM band switch to desired band.
Step 3 Select the desired radio station by turning the Tuning knob.
Step 4 Adjust the Volume to the desired listening level.
TO WAKE TO RADIO
Step 1 Set the alarm as previously instructed.
Step 2 Turn the radio on and select the desired radio station
and volume setting as previously instructed.
Step 3 Slide the AUTO/OFF/ON switch to “AUTO” position.
Your units is now set to turn on automatically at the pre-selected

alarm time.
TO WAKE TO BUZZER
Step 1 Follow step 1 to step 3 under “TO WAKE TO RADIO”.
Step 2 Rotate the VOLUME/BUZZER switch to the “BUZZER”
position. You will be awakened at the pre-selected alarm time by the buzzer tone.
To turn the Buzzer off, slide the AUTO/OFF/ON switch to the “OFF”
position or press ALARM SET/OFF Button.
ALARM OFF
Slide the AUTO/OFF/ON switch to “OFF” position if you wish to turn off the radio or
buzzer after the radio or buzzer has sounded in the Wake to Radio or Wake to Buzzer
operation. The alarm will not sound again until the next day unless you switch back to
“AUTO” position or use alarm button to shut off alarm, then the radio or buzzer will
automatically sound again in 24 hours at the same alarm setting.
SLEEP CONTROL
Step 1 Turn the AUTO/OFF/ON switch on the “AUTO” or “OFF” position.
Step 2 Press the SLEEP button to display the sleep time. The display will indicate 59
minutes. If you wish the radio to play for a shorter period simply press the SLEEP button
together with the MINUTE button to set the desired time period, or if you wish to play
longer, press SLEEP button along with HOUR button top play for 1 hour and 59 minutes
(MAX).
Step 3 Press the SLEEP button. The radio will turn on automatically and will turn itself
off when the pre-set time has passed.
NOTE: The maximum sleep time is 1 hour and 59 minutes.
The radio will be switched off automatically when the sleep time expires. To turn the
radio off before expiration of sleeping time, simply press the “SNOOZE BUTTON”.
BATTERY BACK-UP
Your clock has a battery back up feature in case of power failure. A 9 volt battery (not
included) is required. You must put in a battery to ensure the battery back up feature is
ready in case of power failure. If power fails, the back up battery will automatically
continue operation of the clock and maintain actual time. However, the display will not
be lighted. During actual power failure the alarm function will not be operational. When
electrical power is restored, the display will light up again and alarm time set previously
is restored. The battery will maintain timekeeping for approximately 8 hours during
power failure or interruption.
NOTE: Remove the battery if the clock is to be unplugged for a long time avoid
unnecessary battery drain.

SPECIFICATIONS
Power Source : AC 120V / 60 Hz
Output Power : 500Mw
Power Consumption : AM 530 – 1700 KHz
FM 88 – 108 MHz
Clock Display : 0.6” LED Display
