TruYard MT 50 Guide

MT50 Mower/Trimmer
Safety, Operations & Maintenance Instructions

2
INTRODUCTION
This manual contains information concerned with safe practices when operating the
machine, safety precautions that are necessary during operation, maintenance
instructions and troubleshooting.
Before operating the machine it is imperative to have read and understood this
manual. The instructions of this manual are intended to be read and followed to
ensure the proper running of the MT50 Mower/Trimmer and the safety of the user.
In the case of sale or transfer of the machine, this manual must be handed over. In
the event that this manual is damaged or lost, the owner must ask the manufacturer
or the former owner for a copy. This manual is to be considered as an integral part of
the machine.
The information conveyed in this manual is reflective of the machine at point of sale.
The manufacturer has the right to modify the machine for technical or commercial
reasons and this does not make the manual unsuitable for use.
The copyright for this manual belongs to the manufacturer. The technical texts,
images and pictures within this manual cannot be published or used, completely or in
part, without written consent from the manufacturer.

3
Contents
INFORMATION ABOUT THE MACHINE..................................................................................................................... 4
INTENDED USE OF MT50 MOWER/TRIMMER..................................................................................................... 4
MACHINE DESCRIPTION .......................................................................................................................................... 4
IDENTIFICATION OF MAIN PARTS..................................................................................................................... 5
SPECIFICATIONS........................................................................................................................................................ 6
SPECIFICATIONS........................................................................................................................................................ 6
SAFETY PRECAUTIONS ............................................................................................................................................... 7
ACCIDENT PREVENTION MEASURES.................................................................................................................. 7
SAFETY LABELS AND DESCRIPTIONS................................................................................................................ 8
AFTER A PERIOD OF INACTIVITY.......................................................................................................................... 9
OPERATING INSTRUCTIONS..................................................................................................................................... 10
BEFORE USE ............................................................................................................................................................. 10
DURING OPERATION............................................................................................................................................... 10
AFTER USE................................................................................................................................................................. 10
GENERAL MAINTENANCE......................................................................................................................................... 11
ADJUSTMENT OR REPLACEMENT OF THE NYLON CORD.......................................................................... 11
TYRE PRESSURE...................................................................................................................................................... 13
STORAGE.................................................................................................................................................................... 13
CLEANING .................................................................................................................................................................. 13

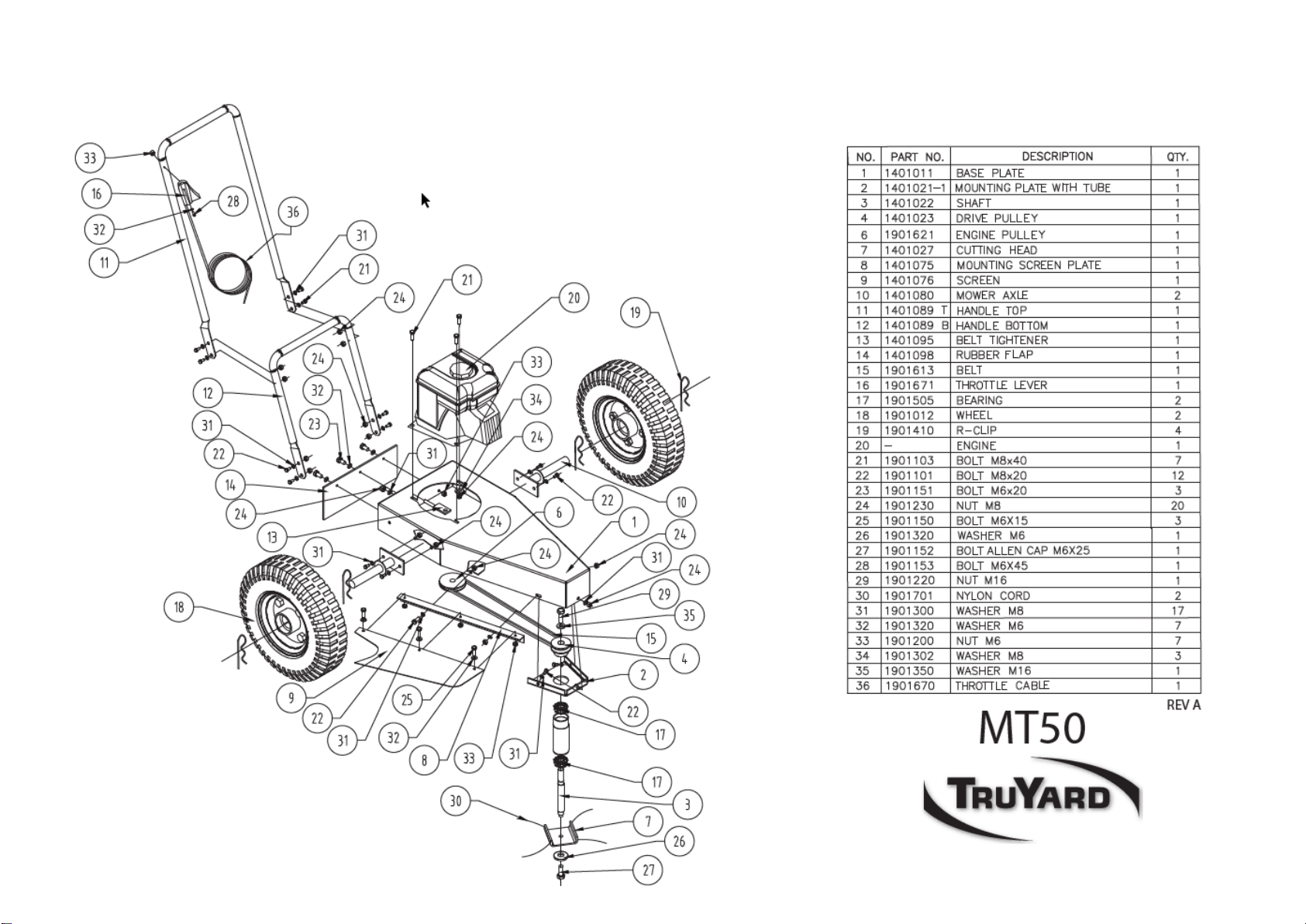

PARTS LIST.................................................................................................................................................................... 14
WARRANTY POLICY.................................................................................................................................................... 15
MACHINE MAINTENANCE SCHEDULE................................................................................................................... 15
NOTES.............................................................................................................................................................................. 16

4
INFORMATION ABOUT THE MACHINE
INTENDED USE OF MT50 MOWER/TRIMMER
The Truyard MT50 Mower/Trimmer is designed to mow and brush cut grass and
weeds up to 1m high.
MACHINE DESCRIPTION
The Truyard MT50 Mower/Trimmer consists of the following features:
A pair of pneumatic wheels to manoeuvre the machine
An engine
A foldable handle
A cutting head

5

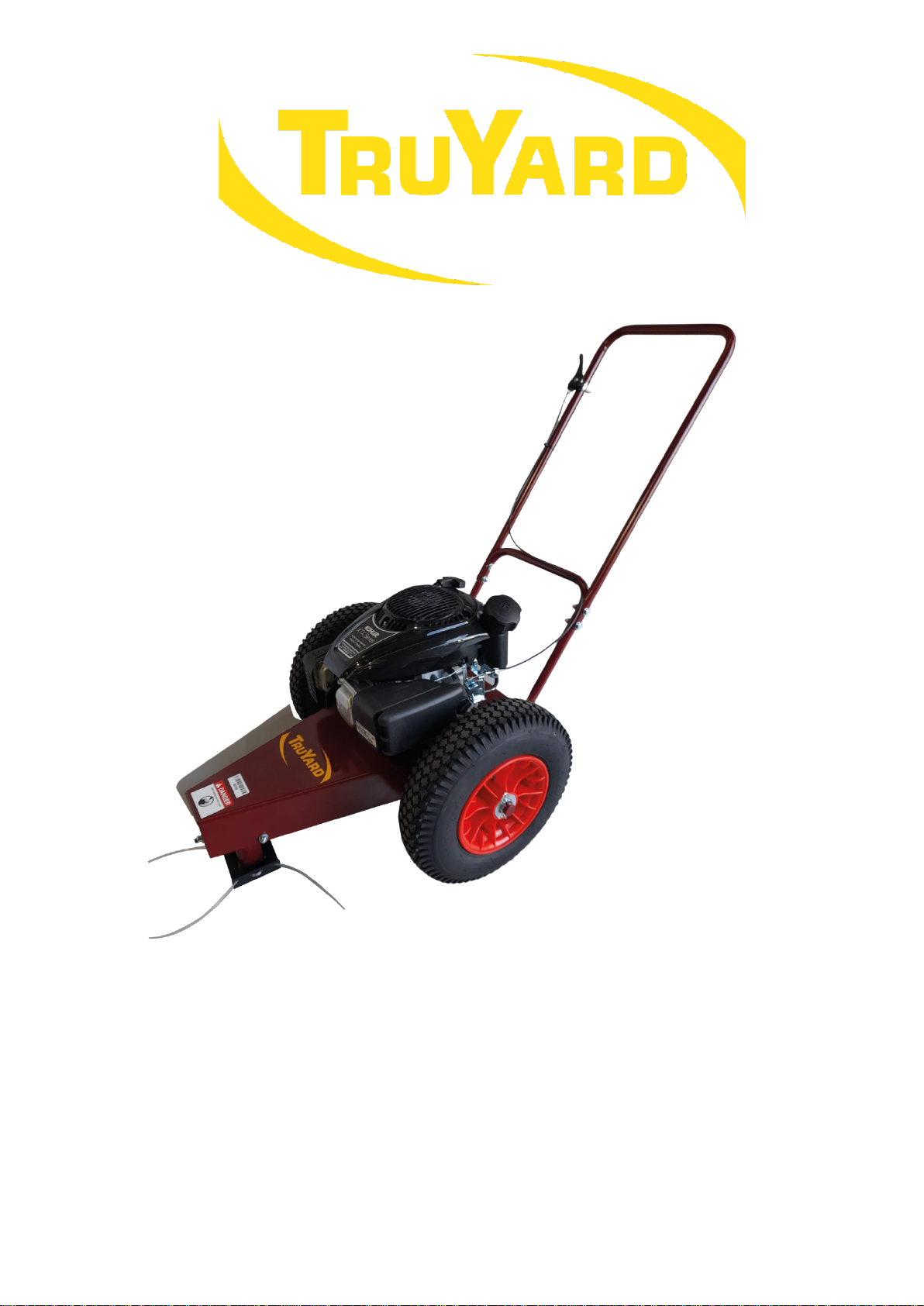

IDENTIFICATION OF MAIN PARTS
Pneumatic
Wheels
Handle
Cutting head
Engine

6
SPECIFICATIONS
MT50173
Engine Specifications
Transmission
Engine
KohlerXTX775
Belt Drive
V Belt A section
Engine Type
Petrol
Pulleys
Cast iron
Special Features
Machine Construction
Warranty
Domestic Application 2
years, Commercial
Application 3 Months
Weight
52kg
Chassis
Steel construction
Wheels
Pneumatic 210mm
with steel ball bearing
SPECIFICATIONS
MT50161K
Engine Specifications
Transmission
Engine
Briggs & Stratton 725
Series OHV Electric Key
Start
Belt Drive
V Belt A section
Engine Type
Petrol
Pulleys
Cast iron
Special Features
Machine Construction
Warranty
Domestic Application 2
years, Commercial
Application 3 Months
Weight
52kg
Chassis
Steel construction
Wheels
Pneumatic 210mm
with steel ball bearing

7
SAFETY PRECAUTIONS
ACCIDENT PREVENTION MEASURES
1) Ensure that the operator of the machine has read and understood fully this
manual and the engine manual
2) Always wear suitable footwear. Do not use in bare feet
3) Always stop the engine and disconnect the sparkplugs when guards are not in
place
4) Do not allow children to come near the MT50. Always ensure that the children
are at a safe distance and are well away from the machine
5) Do not put hands whatsoever inside the machine or near the belt or blade while
the machine is running
6) Read the engine manufactures operating instructions carefully. Do not alter
governor settings or over speed the engine
7) Carefully follow the refuelling safety instructions when refuelling the engine:
Always refuel the MT50 outdoors in a well ventilated area
Ensure the engine is turned off and cooled before beginning refuelling
process.
Keep all ignition and heat sources clear of the refuelling area.
If spillage occurs mop up immediately and wait a suitable time so the
fumes disappear
When storing fuel make sure it is in a suitably designed container
(AS/NZS 2906:2001) and it is stored in a cool dry place.
8) Use your MT50 only in daylight when visibility is good
10) When using the MT50 slopes should be treated with caution. Never
aaaaaplace the MT50 Chipper on uneven ground
11) Never leave the MT50 unattended whilst engine is running
12) Do not use MT50 in confined spaces with no ventilation
13) It is advisable to wear safety glasses and hearing protection whilst operating
aaaaathe MT50 Chipper
14) Always operate with all guards in place
15) Check that the areas to be mowed are free of all foreign debris. This includes
and is not limited to nails, wipe role etc.
16) Do not look into the mower while machine is running.
17) Clean built up debris around the engine and machine at each refuelling or
sooner if needed. Clean more often under dusty conditions or when airborne debris
is present or when cutting tall dry grass.
18) Do not let grass or other debris build up around the MT 50 whatsoever.
STRICT ADHERANCE TO THE FOLLOWING RULES, PRECAUTIONS
AND SAFETY MEASURES LISTED HERE MUST BE CONDUCTED TO
AVOID THE DANGER OF ACCIDENT AND DAMAGE TO PEOPLE
AND THE MACHINE.

8
SAFETY LABELS AND DESCRIPTIONS
CAUTION –keep hands and feet
away from the discharge and inlet
openings on the machine as this
could cause injury
CAUTION –the operating of the
engine, its maintenance and starting
must be done after having read the
manual to prevent any harmful
incidents and misuse of the engine
from occurring
CAUTION –ensure that the operator
has read and understood this manual
before operating the machine to
prevent injury

9
CAUTION –keep hands and feet
away from openings on the machine
to prevent injury
CAUTION –ensure you or anyone
around you does not touch the hot
muffler after use of the machine to
prevent injury
CAUTION –when operating, make
sure that the operator has fully read
and understood the engine manual,
do so in an open area and only refuel
the machine once cool
AFTER A PERIOD OF INACTIVITY
Ensure the following checks have been done on the MT50 before operation after a
long period of inactivity:
Check that the machine is undamaged and all guards are attached
Check all the mechanical parts of the machine are not rusty and are in working
condition
Ensure that the engine has sufficient oil and fuel
Check all nuts and bolts are tight
Check that the air filter is clean
Check that the muffler does not have a build up of grass or debris

10
OPERATING INSTRUCTIONS
BEFORE USE
Before operating the machine it is important to ensure the following to use the
machine to its full capability and to keep the operator and the surrounding area safe.
Make sure that the operator has read and understood how to use the engine as
per the manufacturer’s instructions
Ensure that the oil and fuel in the engine are as per the engines manufacturers
instructions, use SAE 30 oil.
Check that all guards and parts are in place
Fuel the engine with unleaded fuel only
Check the air filter is clean
Ensure that the MT50 is located on flat, even ground and that there are no
people or animals in the vicinity of its working function.
Ensure that the operator has read and understood this manual, including how to
control the machine
Wear the prescribed safety equipment
Check that the area of operation MT50 does not contain nails, ropes or any
metal object that can damage the machine.
DURING OPERATION
Once satisfied that the above criteria have been met, turn on the engine as per the
manufactures instructions. Once running:
Set the handles in a comfortable mowing position
Slightly raise the cutting head off the ground
The taller the grass the more you with need to lift the head off the ground.
AFTER USE
When you have finished operation of the machine and have turned the engine off:
Allow machine to cool down
Check the machine over to see if there are any irregularities that could impede
your next use
Check fuel and oil levels for next use

11
GENERAL MAINTENANCE
For the servicing of the machine it is strongly recommended, for safety and quality of
the maintenance, for this to be conducted by authorised professionals from Truyard
authorised dealers who know the machine. Before you remove any guards or parts
ensure the machine is completely disabled by making sure the engine has stopped
and removing the spark plug lead.
ADJUSTMENT OR REPLACEMENT OF THE NYLON CORD
Disconnect the spark plug to
ensure that the machine will not
receive power whilst you are
changing the cord.
Gently lean the MT50
backwards, cut 2 lengths of cord
550mm.
DO NOT TIP THE MT50 BACK
MORE THEN 30 DEGREES.
Fold one length in 2 and push
each end through the holes in
the middle. Then put the end of
each of the nylon cord through
the end holes. Repeat for the
other side.

12
TIGHTENING THE DRIVE BELT
From time to time you will need
to tighten or replace
the drive belt. Loosen the
bolts holding the engine. On the
back of the machine
there is a belt tensioner nut. Turn
this nut in a clock
wise direction until the belt is
moderately tight. Do
not over tighten as this could
cause damage.
CLEANING THE MT50
Because of the general nature of what you are cutting with the MT50 it is very
important to clear the MT 50 of all debris built up around the machine. Very regularly
remove grass and debris that builds up around the engine and the rest of the MT50.
Regularly clean the cooling system. See engine manufacturers operating
manual on cleaning the cooling system and internal cooling ins.
Keep the air filter clean, The MT50 is
supplied with different motors refer to
your motors operating manual on how to
maintain the motor. In some conditions
your air filter will need to be cleaned
every time your refuel.
Regularly remove a build up
of debris and grass around the muffler
whilst operating this machine.
FAILURE TO KEEP THE MUFFLER
CLEAN CAN CAUSE A FIRE

13
TYRE PRESSURE
The maximum tyre pressure for the pneumatic tyres is 20psi. Over inflation of the tyre
can cause injury.
STORAGE
In the case that the MT50 Mower/trimmer will not be used for an extended period, it is
important to store the machine in a location that is sheltered from the weather to
avoid damages to the machine.
The storage temperate recommended is between 0°C and 50°C.
Before this period in storage, it is recommended to:
Properly clean the machine
Ensure that the area in which the machine is to be stored is sheltered is a flat
and compact surface
Perform a check of the machine to detect possible damages or irregularities
and to ensure that the safety labels are undamaged and clearly visible
CLEANING
Regularly clean the machine using only compressed air, blowing away wood dust and
green was residue. For this operation ensure that you wear protective gloves and
eyewear.

14
PARTS LIST

15
WARRANTY POLICY
Under the warranty your MT50 is warranted for 2 years from the date of purchase
against mechanical defects, faulty workmanship or material. 90 days for commercial
use. This warranty covers only the replacement, repair or adjustment of any part
which fails as a result of a fault in manufacture or assembly. Defective parts will be
repaired or replaced without charge for labour or materials subject to the conditions
detailed below.
Warranty Exclusions, Limitations and Rights:
1) Any failure that results from accident, abuse or neglect is not covered by this
warranty
2) Transport of the MT50 to and from the manufacturer, their agents or dealers, to be
paid for by the owner
3) Proof of purchase date must be provided prior to the commencement of the
warranty work
4) Any failure of parts or material that is contributable to fair wear
5) Any indirect or consequential loss, damage, costs or expenses suffered by the
consumer that may result either directly or indirectly from the failure or malfunction
of the product
6) Any repairs carried out other than those by authorised Truyard agents or dealers
cancel this warranty
7) Engine warranty is separate and is in accordance with the Engine manufacturers
express warranty.
MACHINE MAINTENANCE SCHEDULE
Bolt tightening
check
Inspect every 5 hours of use
Belt adjustment
or replacement
Inspect belts every 10 hours of use looking for cracks and tightness.
If cracks appear replace the belts
Bearings
Inspect bearing every 10 hours of use for movement. If movement,
replace
Engine oil and
other
respective
parts
Consult the manufacturers manual for these specifications

16
NOTES
…………………………………………………………………………………………………
…………………………………………………………………………………………………
…………………………………………………………………………………………………
…………………………………………………………………………………………………
…………………………………………………………………………………………………
…………………………………………………………………………………………………
…………………………………………………………………………………………………...
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
........................................................................................................................................
