Tsunami SE-408N User manual

SAFETY .............................................................. 2
FEATURES ........................................................ 3
SPEAKER CONNECTIONS ............................. 4
FRONT PANEL CONTROLS
Mic/Stereo/Echo ch. ................................. 5
Master ch. .................................................... 6
REAR PANEL CONTROLS ............................. 7
TROUBLESHOOTING .................................... 8
SPECIFICATIONS ............................................. 9
BLOCK DIAGRAM ....................................... 10
WARRANTY ................................................ 11
Owner s Manual
POWERED MIXING AMPLIFIER
SE-408N

SAFETY
SE-408N POWERED MIXING AMPLFIFIER - 2 -
CAUTION: RISK OF ELECTRIC SHOCK, DO NOT OPEN
The lightning flash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTIONS: To prevent electrical shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade exposure.
ATTENTIONS : Pour preevenir les chocs electriques ne pas utiliser cette fiche polarisee avec un prolongateur, une prise de
courant ou une autre sortie de courant, sauf si les lames peuvent etre inserees a fond sans en laisser aucune partiie a
decouvert.
FOR YOUR SAFETY PLEASE READ!
THANK YOU!
Please read all the safety and operation instructions in manual before operation.
Keep this manual for future reference. Also, keep the carton and packing material in case the unit needs to be
returned for service.
Avoid water, moisture, and heat.
Power sources should be as described in the manual and/or marked on the chassis.
Exercise caution to avoid situations where power supply cords may be walked upon or pinched.
Please exercise reasonable caution; do not drop objects onto your unit or spill liquid into it.
SERVICING
Users should not attempt to service beyond those means described in this manual.
All other servicing should be referred to an authorized service agent.
Typical situations requiring service
Obvious mechanical damage from rough handling
Liquid has spilled on or into the unit.
Exposure to rain.
Unit does not appear to operate normally.
Ground integrity has been compromised, service unit to prevent electric shock.

FEATURES
SE-408N POWERED MIXING AMPLFIFIER - 3 -
6 mono channels (balanced) & 2 stereo channels (unbalanced) inputs
Full 250W 4ohm per channel stereo output, 1/4" or binding posts
Input overload LED indication for each channel with attenuator pads on mic/line inputs
Three band EQ each channel
Effects send on 1-6 inputs to onboard digital stereo echo, or may be patched to external stereo effects
Monitor mix control each channel
Output/Input insert patch to L/R master for external EQ or Effects
Spectral Surround Sound "3S" switchable processor in one stereo input channel
7-band stereo graphic equalizer
Switchable 48-volt phantom power
10-segment LED bar graph, peak reading (left, right, monitor out)
Line output
Tape/CD player input/tape recording output (-10dB)
Monitor line output
Built in protection against overload & DC detection
Available in 19" rack mount configuration

SPEAKER CONNECTIONS
SE-408N POWERED MIXING AMPLFIFIER - 4 -
BEFORE CONNECTION
Connect all inputs and outputs before turning power on. This device is capable of very high audio output levels. Making
connections with power up can cause loudspeaker damage.
This is a full stereo system, be sure left and right inputs on stereo inputs are connected accordingly for proper stereo
reproduction and accurate panning of signal.
Be certain that all connectors are clean and firmly connected. Loose or dirty connections generate excessive noise and
distortion and may generate popping noise that can damage loudspeakers.

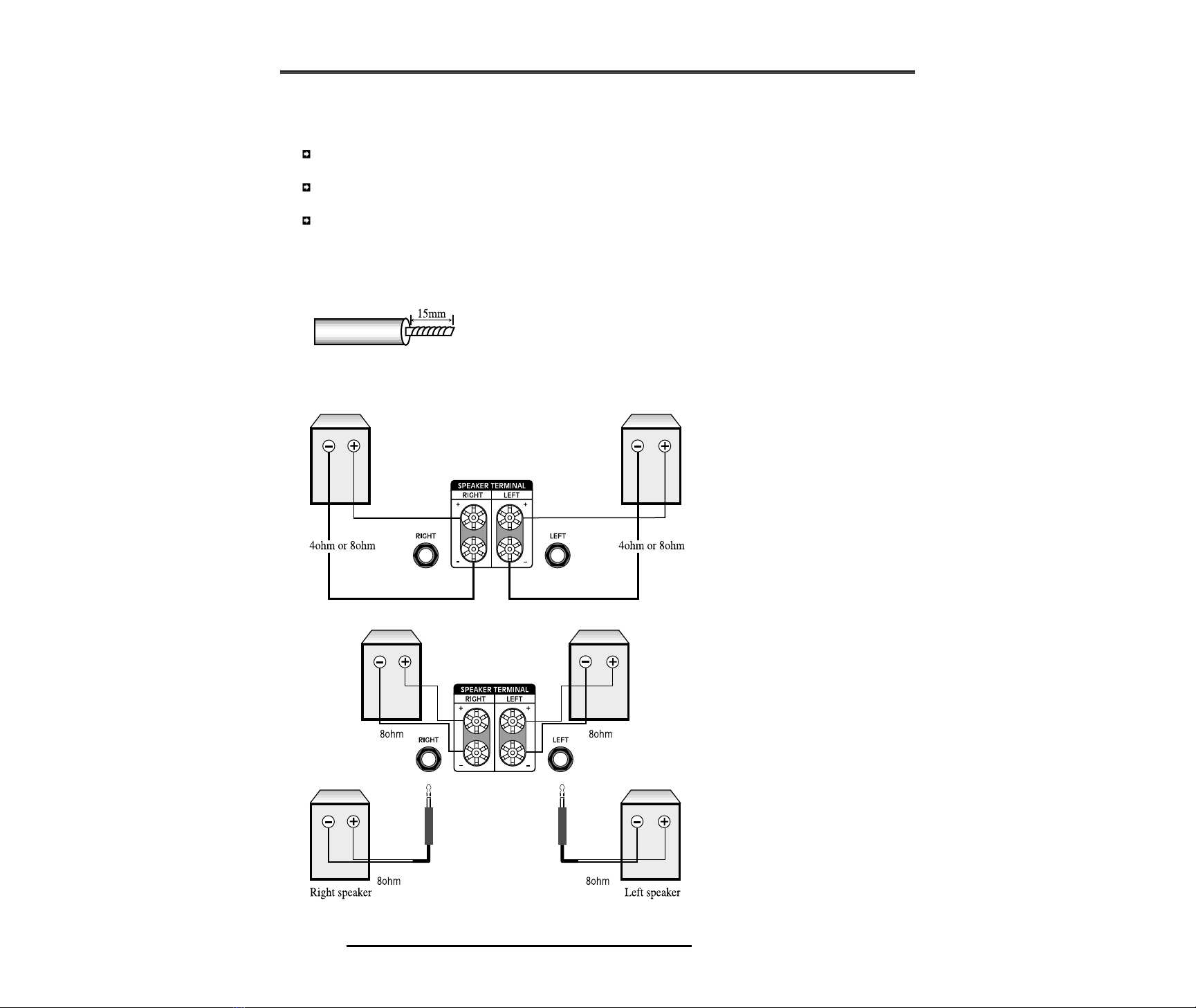

<HOW TO CONNECT SPEAKER WIRING>
Strip each wire back evenly, about 3/8-inch for connection. The amount of exposed
wire must be minimal because significant power levels are present.
Each channel will accept one 4-
ohm speaker or two 8-ohm
speakers.
Additional speakers could cause
thermal protective shut down of
the amplifiers.

FRONT PANEL CONTROLS
SE-408N POWERED MIXING AMPLFIFIER - 5 -
<MIC CHANNELS> CH1~CH6
1. HIGH: Shelving type tone control adjusts channel frequencies above 10KHz ±15dB.
2. MID: Peaking type tone control adjusts channel frequencies centered around 1KHz ±15dB.
3. LOW: Shelving type tone control adjusts channel frequencies below 60KHz ±15dB.
4. EFF: Sends channel signal to on-board digital reverb effect and external effects patch for use of
external effect device.
5. MON: Monitor volume control for mixing monitor output to patch panel for feed to external
monitor amplifier.
6. PAN: This control positions the channel signal from left to right for stereo imaging.
7. VOL: Channel volume control mix to master.
8. PEAK LED: Illuminates with excessive input signal level. Excessive signal results in significant
audible distortion.
9. GAIN ATTENUATION SWITCH(-20dB): "In", when peak LED flashes, reduces input level
which reduces the distortion that results from excessive input level.
10. MIC INPUT JACK: 1/4" unbalanced
11. XLR BALANCED LO-Z MIC INPUT JACK (Pin-1,
gnd; Pin-2, high; Pin-3, low)
<STEREO CHANNELS> CH7/8~CH9/10
12. HIGH: Shelving type tone control adjusts channel
frequencies above 10KHz +15dB.
13. MID: Peaking type tone control adjusts channel
frequencies centered at 1KHz +15dB.
14. LOW: Shelving type tone control adjusts channel
frequencies below 60KHz +15dB.
15. MON: Monitor mix level adjustments to adjust
volume of individual input to monitor master output.
16. BAL: Balancing left & right volume control of stereo
channel.
17. VOL: Channel volume control mix to master.
18. PEAK LED: Illuminates with excessive input signal
level. Excessive signal results in significant audible
distortion.
19. SSS (Spectral Surround Sound): When selected this
switch routes stereo signals through a proprietary
digital spectral surround sound processor for
enhanced surround stereo presence. This is not part
of the effects processor system.
20. 1/4" STEREO INPUT JACK: -10dB (300mV)music
source.
21. RCA-TYPE STEREO INPUT JACK : Stereo input jack for music source of -
20dB.
<ECHO CHANNELS>
22. DLY: Echo time delay control.
23. RPT: Repeat echo control.
24. HIGH: High tone control of effect.
25. LOW: Low tone control of effect.
26. MON: Effect to monitor mix volume control.
27. VOL: Channel volume control of effects mix to master.
28. SELECTOR: Selects between stereo or mono.
29. EFF/RTN: External echo return volume control. This controls effects return
volume when external device is used.

FRONT PANEL CONTROLS
SE-408N POWERED MIXING AMPLFIFIER - 6 -

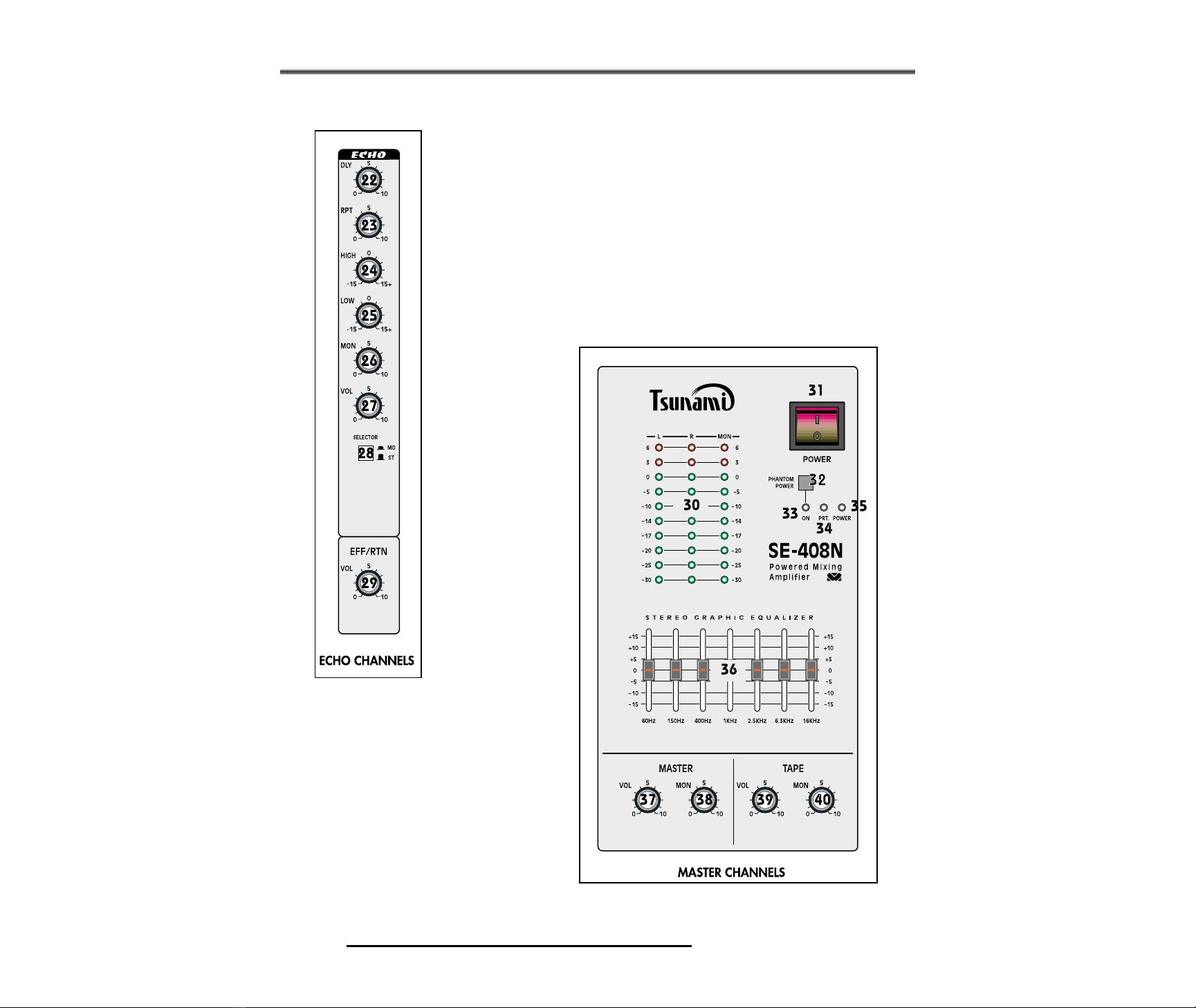

<MASTER CHANNELS>
30. LEVEL LED: Displays output levels of L-ch, R-ch and Monitor. Reduce appropriate
master volume control if system is operating in red zone. Excessive output levels result
in excessive distortion and risk of loudspeaker damage
31. POWER: Power on/off switch.
32. PHANTOM POWER: Connects +48V equally to pins 2 and 3 of each mic input XLR
connector to provide power to condenser microphones, where applicable. Yellow LED
indicates when phantom power is on. Condenser mics and dynamic mics may normally be
used at the same time without damage but to avoid possible problems, switch phantom
power on only when condenser microphones are being used.
33. PHANTOM POWER ON: When illuminated.
34. PROTECTION: Protection circuit indicator. LED lights when unit has shut down to
protect itself
from damage as a
result of
overheating
which is
generally caused
by output short
or DC voltage.
Be certain to
correct the
problem before
turning system
back on or
damage may
result. Check
ventilation,
speaker wiring
and speaker load.
Speaker load
should not be be
less than 4 ohms,
loads less than 2
ohms will cause
the protection
circuit to operate.
35.EXTERNALEFFECT RETURN- VOLUME
CONTROL.
36. STEREO 7-BAND GRAPHIC EQUALIZER:
Adjusts tonal quality of amplifier output.
37. MASTER-VOLUME: Stereo output volume
control.
38. MASTER-MONITOR: Volume control for send
to external monitor amplifier.
39. TAPE-VOLUME: Input level of tape/CD input
connection on rear panel.
40. TAPE-MONITOR: Adjusts level from tape/CD
in on back panel to monitor mix for playback of
Tape/CD signal to monitors for sing-along with
music source monitor.

REAR PANEL CONTROLS
SE-408N POWERED MIXING AMPLFIFIER - 7 -
1. EFFECT SEND/RETURN: 1/4" TRS (Tip-Ring-Sleeve) insert-type connection. Patches (inserts) external effect
(compressor, processor etc) or graphic EQ between mixer and power amplifier sections. See diagram for connection..
2. EXTERNAL ECHO RETURN: Unbalanced 1/4" phone jack, stereo return from external effect device.
3. EXTERNAL ECHO SEND: Unbalanced 1/4 " phone jack sends signal to
external effect device from "EFF" mix. Using this output disconnects the
internal effects.
4. MONITOR OUTPUT: 1/4" phone jack send from "MON" mix to external
monitor amplifier.
5. TAPE RECORD: RCA-Type jacks send pre-master fade output to external
recorder.
6. TAPE PLAY: RCA-Type inputs for signal from
external music source such as cassette player, CD
player, keyboard or drums. If source is a cassette
recorder, output and record in should not be
connected at the same time.
7. LINE OUTPUT: 1/4" phone patch to external
amplifier(s) for additional power.
8. FUSE: Holder with 125V 10A FUSE
9. GROUND: If other devices are not grounded as the
SE unit is, grounds must be connected here. To
avoid ground loop noise and oscillation only ground
devices at this point that are not grounded elsewhere.
10. POWER CORD: Nominal 115 VAC verify that the
curcuit is grounded before use.
11.SPEAKER OUTPUT: Consists of 12 AWG binding-
post/banana type connectors and 1/4" phone jacks.
Connect as indicated above.

TROUBLESHOOTING
SE-408N POWERED MIXING AMPLFIFIER - 8 -
Problems occasionally occur, very often they are due to a simple operational oversight or the like. Performing the
following checks will enable you to rectify a number of problems without difficulty. If the problems cannot be
remedied after performing the following checks, please consult an authorized service agent.
The user should not attempt to check the unit beyond that which is described in this owner's manual. All other
servicing should be referred to qualified service personnel. In the event of warrantable malfunction, please contact
Tsunami Technologies directly for referral to an authorized service agent.
The warranty period for this product is three years. In the event that failure is a result of faulty or defective
materials or workmanship, or for any other problems or questions that occur as a result of normal use during this
period, we offer you our 'After Service' assistance at no additional charge. However, if a malfunction is caused by
user's misuse or abuse, the warranty shall be void and all evaluation and repairs will be chargeable.
SYMPTOM CAUSE SOLUTION
- The power cord is not plugged in. - Plug in the power cord.
- The power switch is not turned on - Turn switch on.
- The volume level is on min. - Adjust volume level.
- Speaker cables are not connected. - Connect speaker cables.
- Inappropriate adjustment on input sources. - Re-adjust input levels, channel gain
Settings and channel EQ's.
- Incorrect line voltage or grounding - Verify that main voltage is correct
and properly grounded.
- Bad connection of input jack in rear panel - Recheck the connection of the input
jack but no music
- Possible incorrect adjustment of the - Recheck setting and readjust all the
echo switch. controls switches to the 12 o’clock
position and readjust
-Power cord is unplugged or fuse is blown. - Check the power cord and fuse. If
necessary unplug unit and replace fuse
POWER IS NOT
ON
NO SOUND
DISTORTED
SOUND
HUM NOISE
MIC OUTPUT
OK
MIC OUTPUT OK
BUT
NO ECHO SOUND
NO LIGHT ON IN
THE
POWER LAMP

SPECIFICATIONS
SE-408N POWERED MIXING AMPLFIFIER - 9 -
INPUT CONNECTION NOMINAL LEVEL MAX LEVEL IMPEDANCE
MIC XLR(BAL) -56dBu -35dBu 1.5Kohms
STEREO 1/4 (UNBAL) -10dBu +10dBu 30Kohms
STEREO RCA(UNBAL) -20dBu 0dBu 30Kohms
TAPE RCA(UNBAL) -10dBu +10dBu 47Kohms
OUTPUT CONNECTION NOMINAL LEVEL MAX LEVEL IMPEDANCE
LINE RCA(UNBAL) -10dBu +10dBu 600ohms
MONITOR 1/4 (UNBAL) 0dBu +20dBu 600ohms
RECORDING RCA(UNBAL) -10dBu +10dBu 600ohms
MASTER SEND 1/4 (UNBAL) 0dBu +20dBu 600ohms
<Input/Output Specifications>
Mic input to master output 20Hz~20KHz( 1.0dB)
High EQ. 10KHz, ±15dB Shelving
Mid EQ. 1KHz, ±15dB Peaking
Low EQ. 60Hz, ±15dB Shelving
65dB
Mic input to main output 70dB
60Hz, 150Hz, 400Hz, 1KHz, 2.5KHz, 6KHz, 16KHz ±12dB
Line output signal level -3dB before clipping
SSS switch on surround system.
10 segment LED bargrph, peak reading
+48 Vdc is supplied to electrically balanced inputs for powering condenser
microphone via 6.8Kohms current limited/isolating resistors
800watts
20.4(W) 10.3(H) 13.2(D)inches (with wooden case)
19(W) 8.7(H) 9.1(D)inches (without wooden case)
54LBS(with wooden case)
40LBS(without wooden case)
FREQUENCY RESPONSE
CHANNEL PARAMETRIC EQ
CROSS TALK MIC INPUT TO MAIN OUTPUT
SIGNAL TO NOISE RATIO
GRAPHIC EQUALIZATION
CHANNEL PEAK LED
STEREO INPUT CHANNEL SSS
LEVEL INDICATION LEDS
PHANTOM POWER
POWER CONSUMPTION
DIMENSIONS(W HD) INCHES
WEIGHT (LBS)
<General Specifications>
<Power Amplifier Specifications>
TYPE TWO CHANNEL POWER AMPLIFIER
RATED OUTPUT POWER (at 1KHz) 250watts + 250watts(4ohms load)
INPUT SENSITIVITY 0dBu(0.775Vrms)
FREQUENCY RESPONSE 20Hz~20KHz( 1dB)
TOTAL HARMONIC DISTORTION
@RATED POWER OUTPUT 0.1%
HUM & NOISE ≥100dB
PROTECT LED

BLOCK DIAGRAM
SE-408N POWERED MIXING AMPLFIFIER - 10 -

WARRANTY
SE-408N POWERED MIXING AMPLFIFIER - 11 -
3-Year Limited Warranty
Tsunami Technologies warrants that the Tsunami product you have purchased shall be free of any
defects in the materials and or workmanship under normal operating conditions, as stated in the
operating manual, for a period of three (3) years, except for bulbs, fuses, or meters which are
warranted for ninety (90) days from the original date of purchase. If malfunction occurs, the
product, at our option, will repaired or replaced without charge, provided that it has been
delivered to Tsunami Technologies or an authorized Tsunami service center, freight pre-paid,
accompanied by the original sales receipt or proof of purchase. Any repair, modifications
or service performed by a person or entity other than Tsunami or an authorized Tsunami
service center is not covered by this limited warranty. This limited warranty also does
not apply to: (a) exterior finish or appearance, (b) malfunction resulting from the
misuse or abuse of the product as determined by Tsunami Technologies, (c)
malfunction resulting from operation other than specified in the owner's
manual. This warranty applies to the retail purchaser, and gives specific
legal rights which may vary from state to state or province to province.
For more information on warranty repair, please contact:
Tsunami Technologies
459 Geary Street
San Francisco, CA 94102
Tel: [phone]
Fax: [phone]
Email: [email protected]
3-Year Limited Warranty
3-Year Limited Warranty

Tsunami Technologies
459 Geary Street San Francisco, CA 94102
E-mail : [email protected] Tel : [phone]
http://www.tsunamitechnologies.com Fax : [phone]
