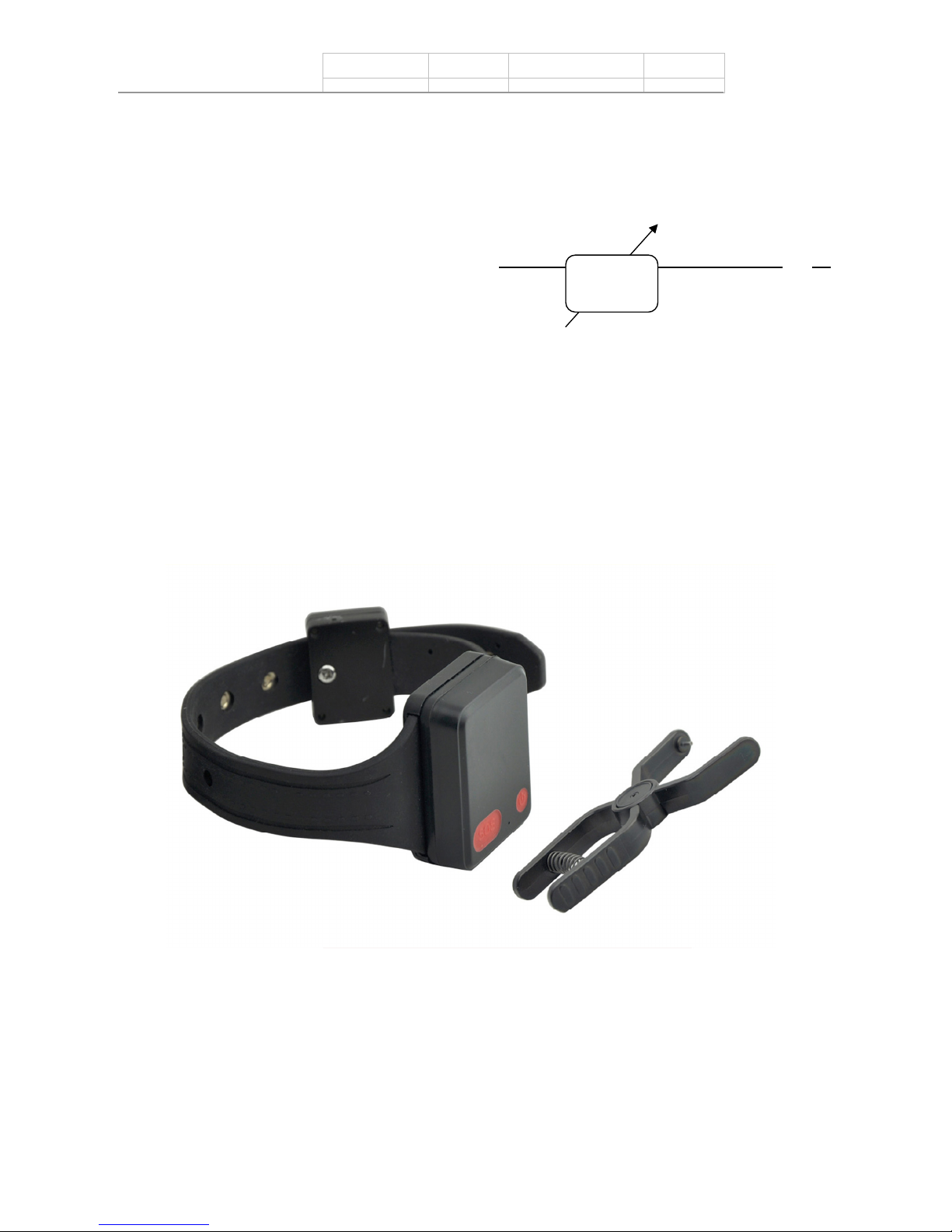

Twin Mask MT-100 User manual

Version Number
Modified by
Change Content Type
Date
V1.0 Amy create 2014.06.23
GPS Vehicle and personal location tracker User Manual
GPS
Vehicle and personal location tracker
_______________________________________ ___
User Manual

1
Contents
1. Product overview ................................................................................................................................................... 2
2. Safety instruction ................................................................................................................................................... 2
3. Specification and parameters ................................................................................................................................. 2
4. Getting started........................................................................................................................................................ 3
4.1 Hardware and accessories ...................................................................................................................................... 3
4.2 How to use the belt ................................................................................................................................................ 4
4.3 Function key and port ............................................................................................................................................ 5
4.4 First use6
5. Change password ................................................................................................................................................... 7
6. Authorized number ................................................................................................................................................ 8
6.1 Set the authorized number by SMS.......................................................................................................... 8
6.2 Easy authorized phone no. setup by calling ............................................................................................. 8
6.3 Monitoring function ................................................................................................................................. 9
6.4 Real time tracking .................................................................................................................................... 9
7. SOS emergency calling.......................................................................................................................................... 9
8. Tracking regularly by GPRS.................................................................................................................................. 9
9. GPRS data logger................................................................................................................................................. 10
10. Acquire APN automatically ................................................................................................................................. 10
11. Three kinds of tracking mode .............................................................................................................................. 10
12. Geo-fence............................................................................................................................................................. 10
13. Time zone setting ................................................................................................................................................. 11
14. Low battery alarm................................................................................................................................................ 11
15. Power on/off automatically.................................................................................................................................. 11
16. LED indications for battery level......................................................................................................................... 11
17. Belt on/off alarm .................................................................................................................................................. 12
18. APP for smart phone ............................................................................................................................................ 12
19. GPS tracking and monitoring platform................................................................................................................ 12
20. Problems & Diagnostics ...................................................................................................................................... 13

2
1. Product overview
Welcome to purchasing our product!
Tracker has the advantages of waterproof IP67, low power consumption, small size, easy to
use and 10-12 days standby without charging. It is a GPS/GPRS personal location tracker.
It specially applies for Alzheimer’s patient tracking, prisoner/parolee management, pet
tracking, etc.
Can’t be flooded
Can be showered
Tracker has built-in terminals of GPS (global positioning system) module and GSM
communication module, which used for getting location data and send it to authorized phone
number via SMS, and tracking through free maps Google Earth or Google Map; If your mobile
phone is smart phone and opened with GPRS service, it is more convenient to see location of
the tracker on smart phone by setting the SMS location format to be Google Link. At the
same time, the GPRS data can be sent to the internet server, which can achieve the checking,
monitoring and managing of the tracker on computer.
The tracker supports three working modes: personal mode, smart mode, vehicle mode.
The tracker supports the following features:
◆Waterproof: IP67 ◆Query APN automatically
◆Easy authorized phone number setup by
calling
◆3 kinds of tracking mode
◆Geo-fence
◆Real time tracking ◆Time-zone setting
◆Remotely monitoring ◆Low battery alarm
◆SOS emergency calling ◆Auto power on/off
◆Belt-on/off alarm
◆Tracking regularly by GPRS
GPRS◆data logger

2
2. Safety instruction
Read these simple guidelines. Not following them may damage the tracker, put you in danger
or break the law.
Switch on safely
Do not switch the tracker on when wireless phone use is prohibited or
when it may cause interference or danger.
Switch off in
hospitals
Follow any restrictions. Switch the tracker off near medical equipment.
Switch off in
aircraft
Follow any restrictions. Switch the tracker off on the plane.
Switch off when
refueling
Do not use the tracker when at a refueling point.
Switch off near
blasting
Follow any restrictions. Do not use the tracker when blasting is in
progress.
Qualified service Only qualified personnel can repair the tracker.
Water resistance IP67.
3. Specification and parameters
Items Specification
Charging Voltage DC 4.5-5.5V/750mA (Mini USB)
Internal Battery Rechargeable 750 mAh battery(3.7V)
Dimension 55*43*13mm
Weight 147.5g
Operating Temperature -20 ～+55 °C
GSM Module Quad Band GSM 850/900/1800/1900 MHz
GPS Chipset Newest Ublox chipset
GPS Sensitivity -160Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 50 Channels
Position Accuracy <10 M, 2D RMS
Velocity Accuracy 0.1 M/S
Time Accuracy Satellite Time: 1 millisecond time synchronization
Update Time Average 0.1 second
Hot Start up Average 1 second

3
Warm Start up Average 3 second
Cold Start up Average 27 second
Max. Altitude 18,000m (Max. 60,000 ft)
Max. Speed 500 m/s (Max. 1000 knots)
Max. Acceleration less than 4g
Working time 10-12 days of standby time in personal mode; 12 hours of standby
time in vehicle mode
LED LED for showing states of power, GPS, GSM and battery level
Button 2 buttons. 1 SOS button, 1 power switch
4. Getting started
This section will describe how to use the tracker.

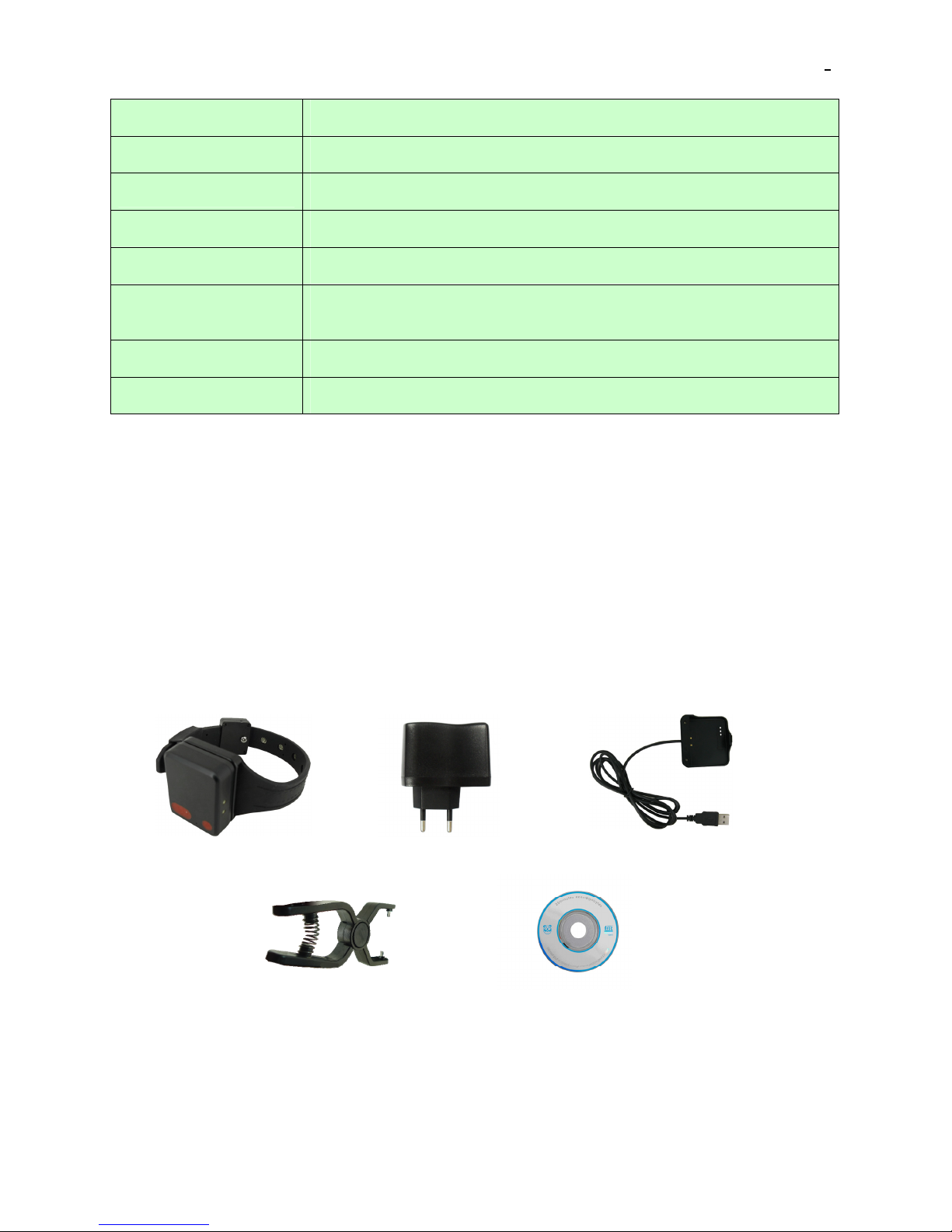

4.1 Hardware and accessories
AC adapter Charger
CD
Device
Tool for unlock

4

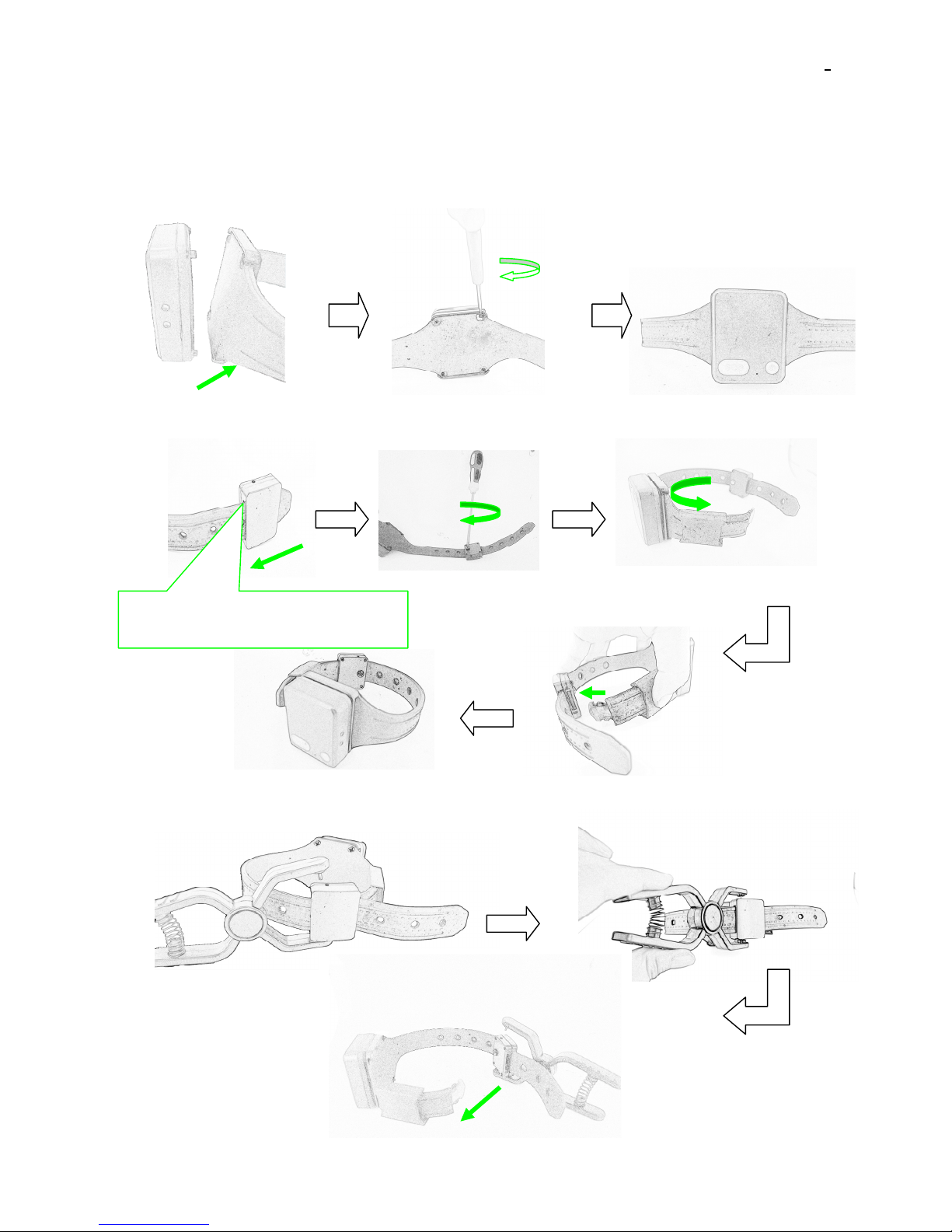

4.2 How to use the belt
——fixed device on the belt with screw.
——adjust to suitable size and fixed the belt.
Note: to fix screw, align calibration
mark with edge of the lock.
——unlock the belt.

5
——belt size:
21 mm 50 mm
90 mm 260 mm
385 mm
【Warranty Statement of Device Belt 】
Under normal usage, the warranty time is 12 months from the date of purchasing.
Please note the device belt belongs to consumable item. Any extreme usage, externality
damage and other causes may result in material aging and cracking, thereby decrease
working lifetime. In view of this, the warranty does not cover the following:
1) Any damages by externality.
2) Any breakdown by extreme usage.
3) Any broken by inappropriate physical environment.
4.3 Function key and port
Charging contact 1
Charging contact 2
SOS emergency button Power switch
Microphone

6
Red/green – Power indication
The red light is always on Power charging
The green light is always on Power charging finished
Blue – GSM indication
0.3s on and 0.3s off GSM module is initializing or calling in
Always on GSM network is not registered
1s on and 3s off GSM network is registered
0.1s on and 3s off GSM network is registered and connected to the server by
GPRS
Always off GSM in power save mode
Yellow – GPS indication
0.3s on and 0.3s off
GPS module is initializing or waiting for the SOS button
press to confirm the calling in number as the authorized
number
Always on Button being pressed
1s on and 3s off GPS module is working normally but hasn't fixed position
0.1s on and 3s off GPS module is working normally and has fixed position
Always off GPS module stops working
Switch
Power switch Press 1s to check battery level; Long press 5s for turn on
/off tracker
Button
SOS Button Press SOS button for 3 seconds so tracker will send an
emergency SMS to the authorized number and dial it
Others
Belt Belt-on/off alarm
4.4 First use
Please read this manual before using tracker.
4.4.1 Remove the back cover
- Use the mini screwdriver to remove the four screws to release the back cover
Note: please be careful the battery wires.

7
4.4.2 Insert the SIM card

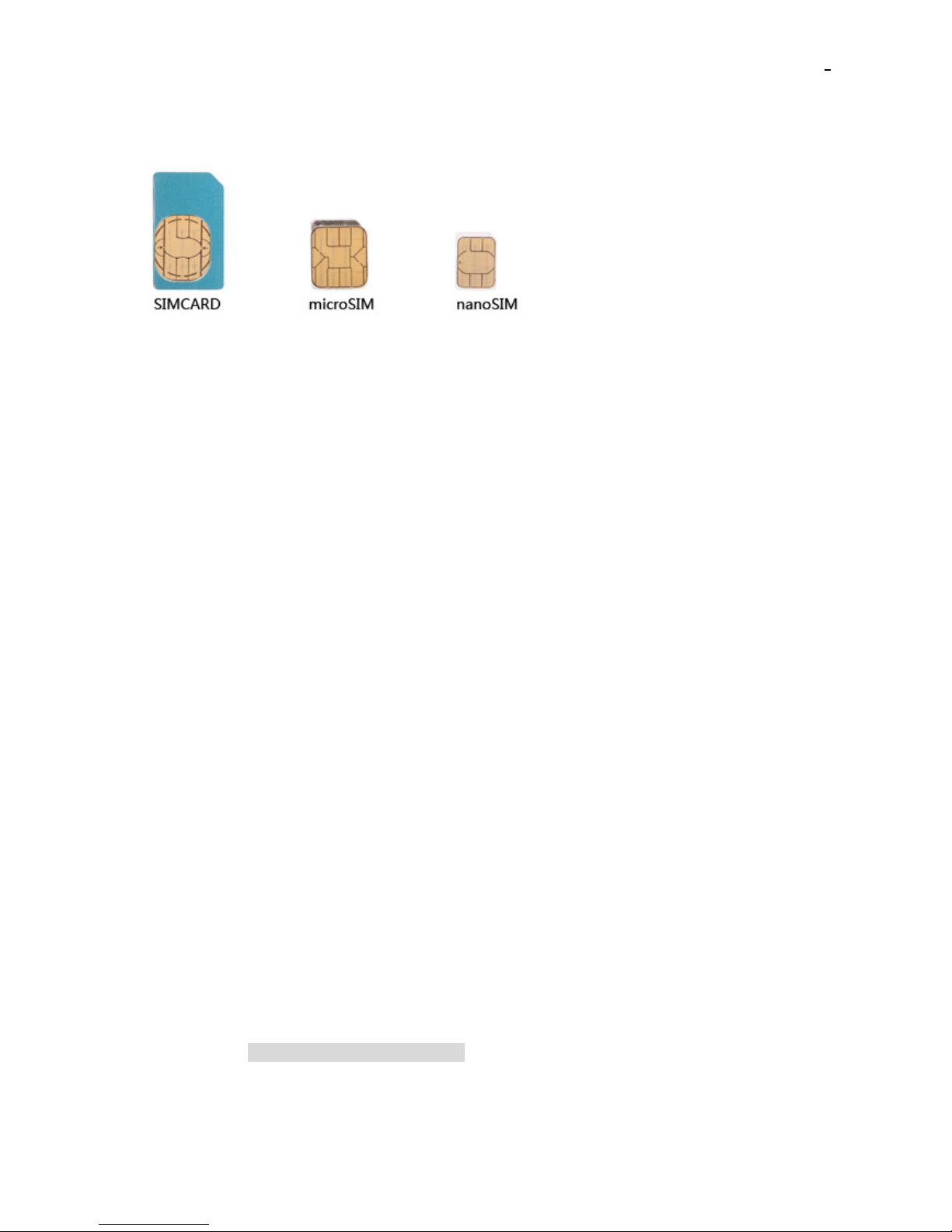

- Tracker only supports Micro SIM card (Do not cut it to nano SIM card)
√
- Check the SIM card has not run out of credit money
(Test the SIM card in a phone to make sure it can be makes a phone call or sends SMS)
- Check the lock code of the SIM card is turned off
- If you require the function of real time tracking or easy authorized phone number setup by
calling, please make sure the SIM card installed supports displaying caller ID.
4.4.3 Fixed the back cover
- Please do not let the gasket come out when you turn of the screw.
4.4.4 Charging
- Use AC adapter, the charge time is about 2.5-3 hours.
4.4.5 ON/OFF
-Press the power switch for 5 seconds and tracker will turn on/off.
Note: after connected with the belt, tracker only can be turned on and can not be turned off!
4.4.6 Parameters setup
-Tracker only supports APP setup software by smart phone or by sending command via SMS.
After setup, please turn the tracker on and positioning in an open environment, please do
it every time after turn the tracker on.
5. Change password
SMS Command: $SMS,******;W001,######;!
Description: change user’s password
Explain:
******: user password, the range of 6 digits, default password is 000000

8
Note: please switch to the English input method when you input a command by smart phone;
tracker will only accept commands from a user with the correct password. Command will be
ignored if with wrong password.
######: new password, the range of 6 digits.
Example:
$SMS,000000;W001,123456;!
6. Authorized number
6.1 Set the authorized number by SMS
SMS Command: $SMS,000000;W010,NO.,Phone Number,ABC;!
Description: Set authorized phone number and its related functions
Explain:
NO.: authorized number’s serial number, range of: 1~3
Phone Number: authorized number, range of: 0~19 characters
A: range of: 0~1; when the parameter ‘A’ is 0, it means disable Geo-fence alarm, otherwise it
means enable Geo-fence alarm. Default is 0
B: range of: 0~1; when the parameter ‘B’ is 0, it means disable monitoring function,
otherwise it means enable monitoring function. Default is 0
C: range of: 0~1; when the parameter ‘C’ is 0, it means disable SOS emergency calling
function, otherwise it means enable SOS emergency calling function. Default is 0
For example:
Set the 1st authorized number is 13800000000 and enable monitoring function.
$SMS,000000;W010,1,13800000000,010;!
6.2 Easy authorized phone no. setup by calling
Tracker only supports three authorized numbers; we can set the authorized number by phone
call if there are not set authorized number fully (this function only supports to set the
authorized number, not included its related functions).
Set as follows:
Any non-authorized number calls to the tracker over than 10 seconds, the tracker will hang up
the line automatically and the yellow light will blink for 30 seconds. During these 30 seconds,
press SOS button less than 3 seconds, and then successfully set this call-in number as a new
authorized number and send an SMS to this number to inform the setting is OK.
