Tytan DM-135 User manual

1
DM-135
DRUM
MOWER
USER’S
MANUAL

2
DM135 DRUM MOWER INSTRUCTIONS
CHAPTER 1 SAFE OPERATION
Do not attempt to operate the mower until you have read the operator’s manual
and all the safety signs on the mower.
NOTE: The words Danger, Warning or Caution on the safety signs indicate a
hazard or unsafe practice, which could result in injury or death if proper
precautions are not taken.
Do not attempt any unauthorized modifications to the mower as this
could affect the function or the safety of the mower.
DO NOT OPERATE WITHOUT ALL SAFETY STICKERS IN PLACE ON
THE DRUM MOWER！
Following is the safety stickers:

3
CAREFULLY READ OPERATORS MANUAL BEFORE HANDLING MOWER
A．Keep a sufficient protection distance from the drum knife when the engine
is in operation.
B．Do not touch any moving part. Wait until all parts of the mower are at rest
when you want to check and maintenance the mower.
C．Keep a safe distance when the engine is in operation.
SAFETY INSTRUCTIONS
This symbol is used throughout this manual to call attention to
the safety instructions. These instructions are of great
importance and must be read carefully and obeyed.
CAUTION: BEFORE ATTEMPTING TO OPERATE THIS
MACHINE, CAREFULLY READ ALL INSTRUCTIONS
CONTAINED WITHIN THIS MANUAL. ALSO READ THE
INSTRUCTION MANUAL PROVIDED WITH YOUR
TRACTOR.
BEFORE OPERATING
1. Read all instructional and safety decals provided with your machine.
2. Allow only responsible, properly instructed individuals to operate your
machine. Carefully supervise inexperienced operators.
3. Use a tractor that meets the tractor requirements contained within this
manual. Additional tractor weights may be necessary.
4. Make sure the machine is in good operating condition and that all
protective shields and curtains are in place and in proper working order.
5. Be sure all bystanders and other workers are clear before starting
machine.
6. Make no modifications to the machine.
DURING OPERATION
1. Always disengage power take-off, shut off tractor engine, place
transmission in park or set park brake, and wait for blade rotation to stop

4
before working on or near mower for any reason including cleaning,
inspecting or servicing machine.
2. The tractor Power take-off must be equipped with an over-riding clutch or
one must be added to the mower PTO shaft.
3. Keep hands and feet away from rotating blades and other moving parts.
4. Never allow riders on the mower.
5. Insist that all bystanders and other stay clear of work area when mower is
operating.
6. Exercise extreme care when operating on rough and/or steep terrain.
Avoid operation on terrain that is excessively rough or steep.
7. Use a tractor equipped with 540-rpm power take-off.
DURING SERVICE AND MAINTENANCE
1. Before removing pins from flotation assembly, consult instructions in this
manual. Flotation assembly will spring back quickly if proper safety
precautions are not taken.
2. Use only replacement parts that are recommended by Manufacturing
Company.
3. If it is necessary to operate the tractor indoors for more than a few
seconds, be sure to provide enough ventilation to remove the toxic
exhaust fumes.
DURING TRANSPORT
1. Secure the mower in transport position to reduce transport width.
2. Use good judgment and drive slowly over rough or uneven roads.
3. Be courteous and obey all applicable laws governing road use.
4. Drive carefully and, if possible, avoid starts, stops or turns. Turn corners
slowly.
WARNING: FAILURE TO COMPLY WITH THE ABOVE SAFETY
INSTRUCTIONS OR THOSE THAT FOLLOW WITHIN THIS MANUAL
COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH.
THIS MOWER IS NOT TO BE USED FOR ANY PURPOSE OTHER THAN
THAT FOR WHICH IT IS INTENDED AS EXPLAINED IN THE OPERATOR’S
MANUAL.
SAFETY DECALS
The safety decals located on your machine contain important and useful
information that will help you operate your equipment safely.
To assure that all decals remain in place and in good condition, follow the
instructions given below.
1. Keep decals clean. Use soap and water—not mineral spirits, adhesive
cleaners and other similar cleaners that will damage decal.
2. Replace all damaged or missing decals. When attaching decals, surface
temperature of the machine must be at least 40 degrees Fahrenheit, The
surface must also be clean and dry.
3. When replacing a machine component, to which a decal is attached be
sure to also replace the decal.

5
4. Replacement decals can be purchased from your dealer
CHAPTER 2 SPECIFICATIONS
TRACTOR SPECIFICATIONS
CAUTION: Do not operate mower with a tractor that does not
comply with the following requirements:
Ⅰ.Horsepower-27(minimum)Ⅱ.Counter balance weight :It
may be necessary to add weight to the front end and/or left rear wheel of your
tractor to maintain adequate tractor stability and weight of your tractor and the
conditions in which you are operating your tractor. Front tractor wheels must
remain firmly on the ground at all times. Contact between front, wheels and
ground must be firm enough to provide good steering control.
CAUTION: Regardless of tractor weight and size, it in
always necessary to exercise reasonable care during tractor
operation to avoid tractor rollover and/or loss of steering
control.
MOWER SPECIFICATIONS
Model
DM 135
Length
2630
Width
935
Cutting width
1350
Weight
310 Kg
PTO speed
540 rpm
CHAPTER 3 OPERATING INSTRUCTIONS
PREPARING YOUR MOWER FOR FIELD OPERATION
1. Check to be sure there are three blades on each drum. These blades
should be new or showing approximate equal wear.
2. A damaged or worn-out blade should be replaced immediately.
3. Damaged or worn out blade holders should be replaced immediately.
4. Be certain that PTO speed does not exceed 450rpm.
NOTE: It is very important that the machine be balanced. The high speed
of the drums (1720rpm) makes it imperative that the drums are equally
heavy on all sides so they are in balance. Both the drums and saucers
have been dynamically balanced at the factory and this balance should

6
not be disturbed when the mower is operating. Imbalance may cause
excessive vibration, which in turn may cause damage to the machine.
If you notice abnormal vibration in the machine or a change in the noise
that the machine produces, stop immediately and inspect the machine.
CAUTION: Disengage PTO, stop tractor engine, set park brake and wait
for blade rotation to stop before working on blades, drums or saucers.
5. Be sure all bolts and nuts are tight, especially the bolts securing the
gearbox lid.
6. Use original joints. For example, after a repair job, a new rubber joint
should be fitted between the gearbox and lid. This joint should be glued
in the lid its exactly the same location as the old one.
NOTE: The gearbox is subject to heavy strain when the mower is operating;
consequently, the lid is rigid and fitted with several bolts, these bolts must be
kept tight at all times. The joint that is glued to the interior of the lid should be
replaced carefully so that a metal contact is made between the lid and the box.
SAFETY BREAKAWAY
This machine is equipped with an automatic safety breakaway device. If the
drums meet an obstruction, the mower automatically swings back. Disengage
power take—off, when mower stops check the PTO for profile tube alignment.
To re—engage mower into mowing position, you simply back up the tractor,
while the mower is contacting the ground, until the mower swings back into
mowing position and the breakaway has reset. Do not operate the mower in
the tripped position.

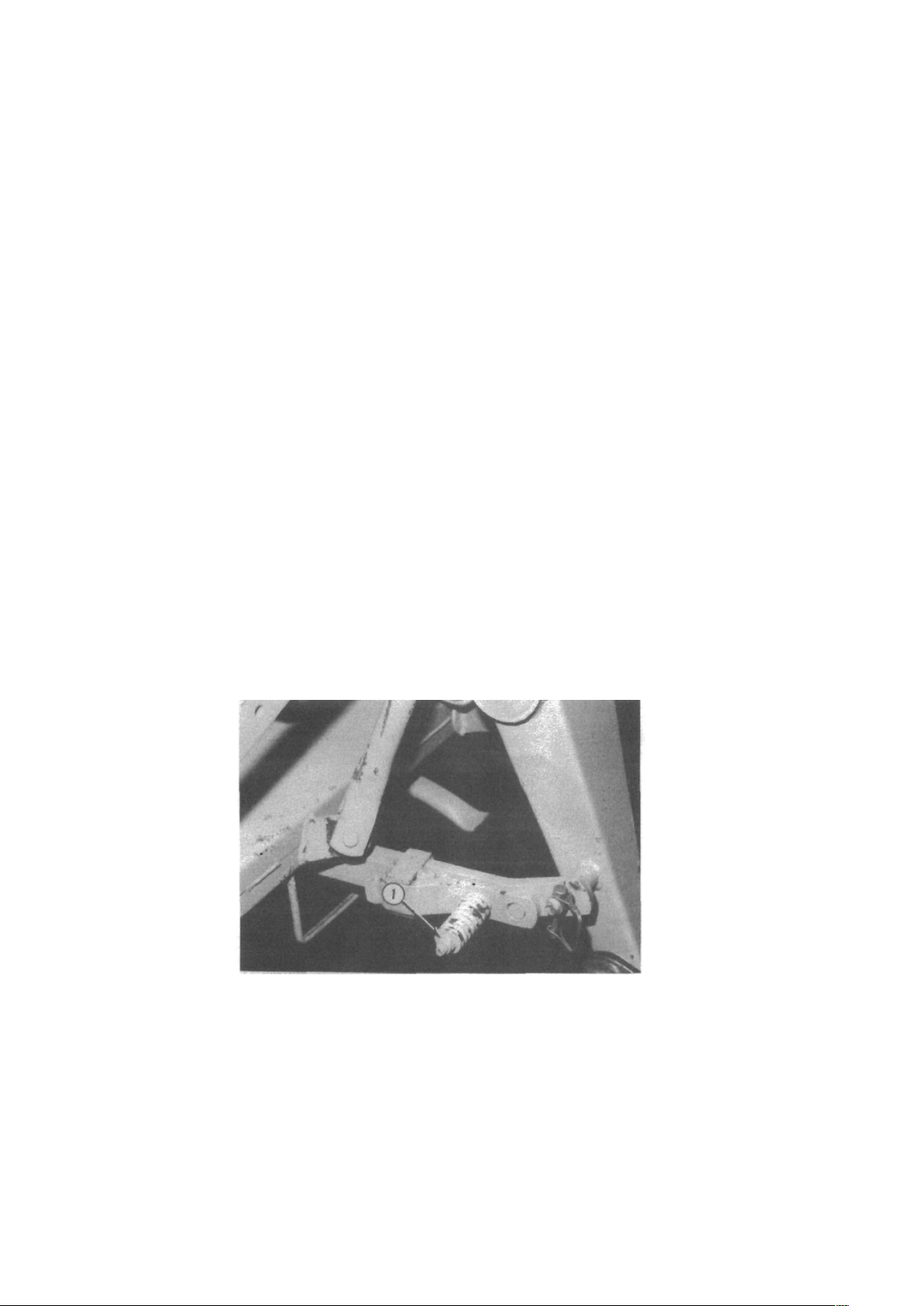

Figure A
If for any reason, the breakaway device releases without the mower
encountering an obstruction, the adjusting nut #1, Figure A on the breakaway
should be tightened.

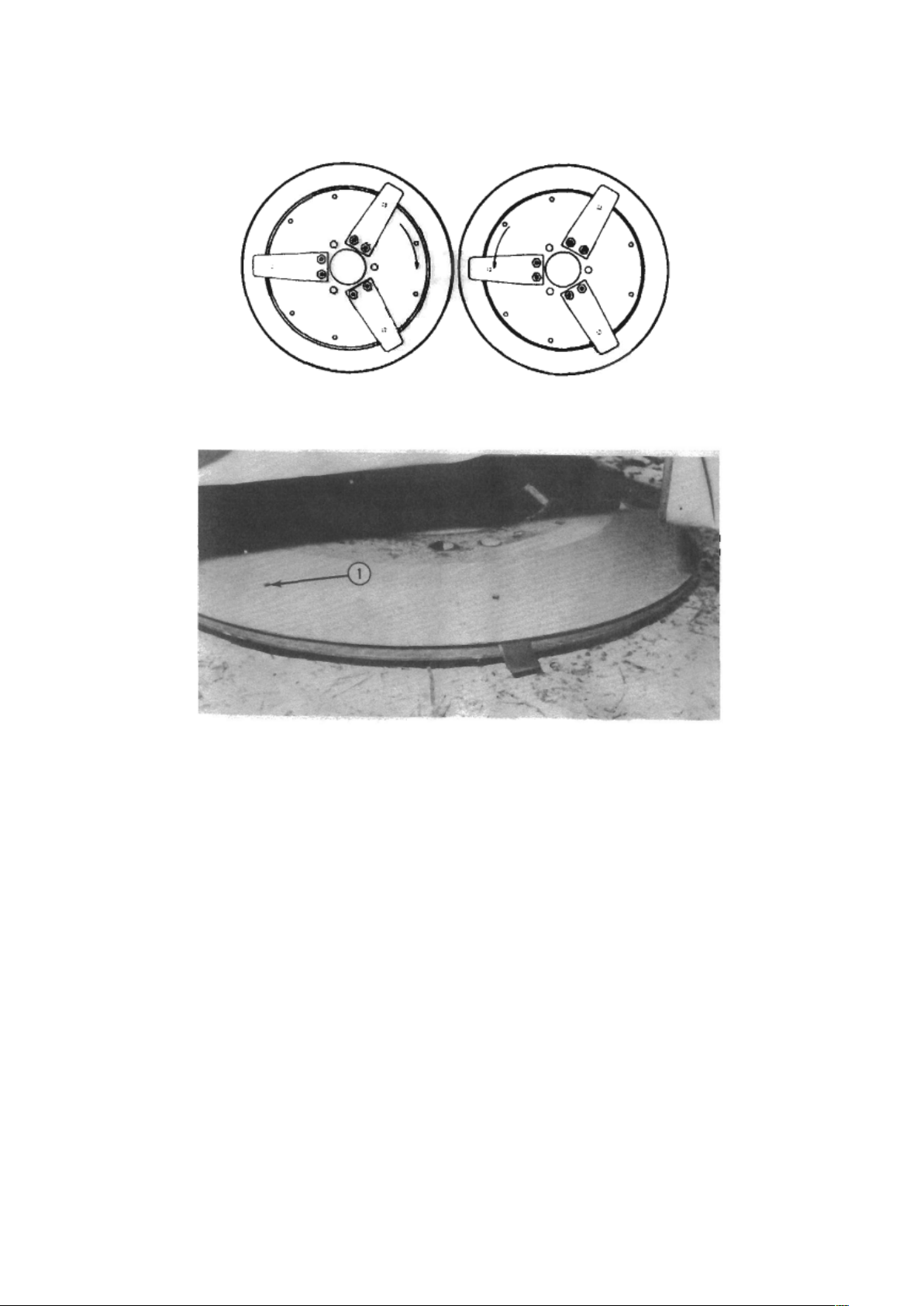

7. In case of wear to the bottom skirts of the drums above the blades, it is
possible to rotate the drum 40 degrees in relation to the blade holders by

7
removing the saucers and the blade holder. Figure B (40 degrees).
Figure B
8. Tighten Allen screws of saucers securely and recheck after a few working
hours.
9. The PTO drive shaft may have to be shortened to fit your particular tractor.
The shaft should be shortened a minimum amount only. A freewheeling
clutch must be fitted PTO shaft if the tractor does not have an internal
freewheeling clutch. Always use stabilizers or sway bars when attaching
the machine to the tractor to prevent side movement of the machine. To
put the mower into mowing position after transport, the transport tube is
placed in the upper position and the safety break away is fitted to the
upper pin of the hitch frame. Depending on the length of the top link, either
the front or the near holes in the hitch frames can be used. If the machine
leans too far forward when lifting in working position, use lower top link
pinhole.

8

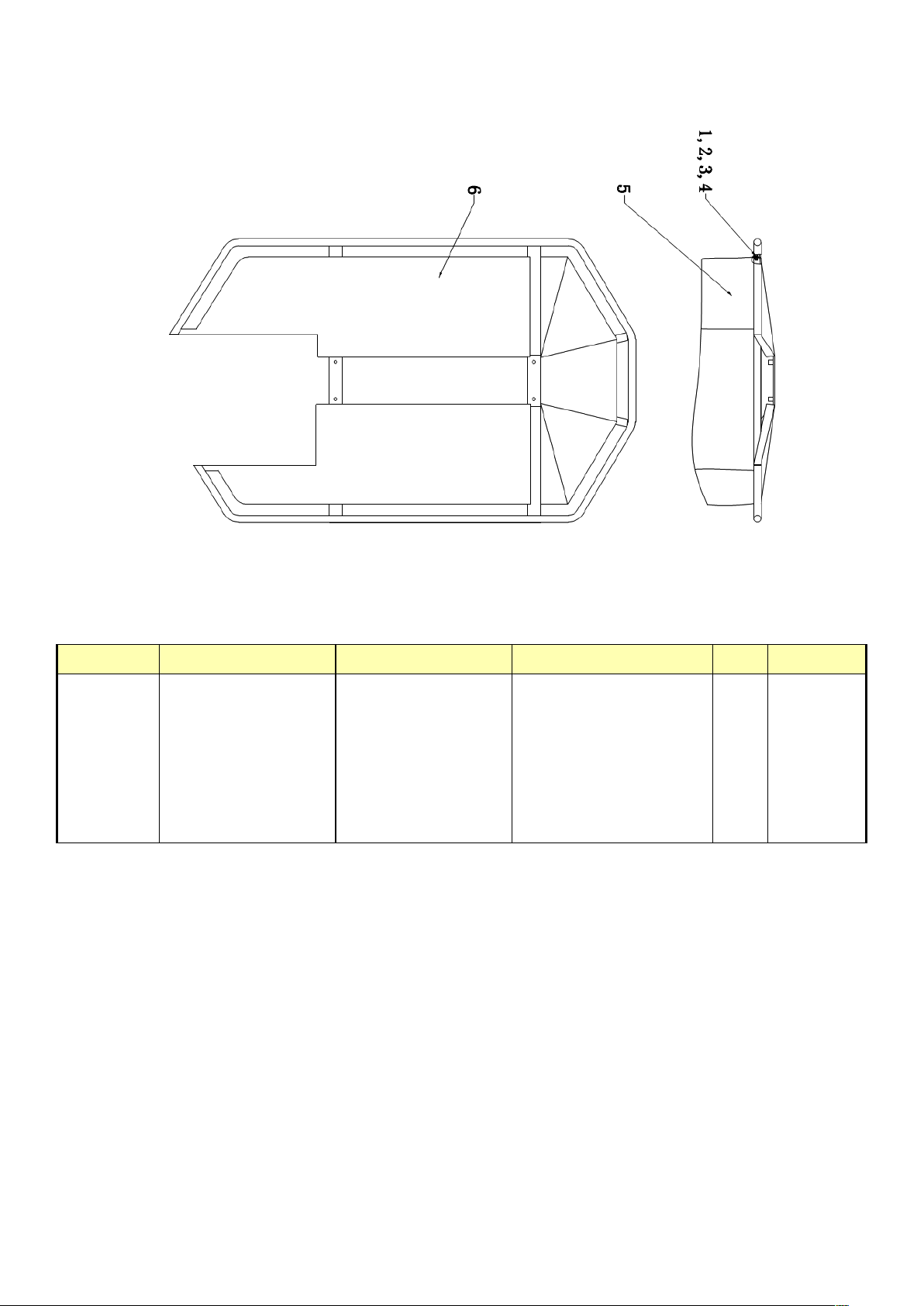

10. Be sure protective curtains and shields are in place and in good condition.
Adjust the lower arms of the tractor 3-point in such a way that the mower
will be raised horizontally in mowing position.
CUTTING HEIGHT ADJUSTMENT
The cutting height may be adjusted slightly be means of the top link. Best
results are obtained by tilting the mower slightly backward in rocky conditions.
In order to prevent the re-cutting of the stubble, the mower should never be
tilted backwards beyond 5 degrees. In rocky conditions tilting backwards
extends blade life but not mowing quality.
INSTRUCTIONS FOR MOWING
1. Start the tractor and build up to correct drum speed (1720 rpm
--PTO 540rpm) before entering the crop.
2. Select the gear that allows your tractor to run easily. This will depend
on the crop the ground conditions.
3. Always use sharp blades since these will be more economical than
blunt ones.
4. The sub-frame has to be positioned horizontally; this enables the
machine to follow and ground contour correctly.
TENSION OF DRIVE BELTS
During the first few working hours, the drive belts may shows some stretch. A
spring attached to the belt tension device will maintain the correct tension of
the belts. Instructions for tightening the drive belts;
FIGURE C
1．Loosen lock nut 1, Figure C, of the tension belt .
2．Tighten the nut #2 ，until the spring tension indicator #3 ,just

9
touches the stop #4.
3．Relock the nut #1. Tensioning of the V belts is only necessary if belts are
slipping. Maximum tension in when the indicator is about 1/8” clearance
from the bottom.
If a V belt breaks or comes off, the whole set of belts should be replaced.
NOTE: If the V belts are over tensioned, damage will occur to the
gearbox input shaft bearings and main drive shaft bearings. If the V belts
slip, check the V belt tension. If this is correct and the belts still slip, you
should reduce the forward speed of the tractor.
CAUTION: Never tighten the nut so far that the compression spring
becomes in operative.

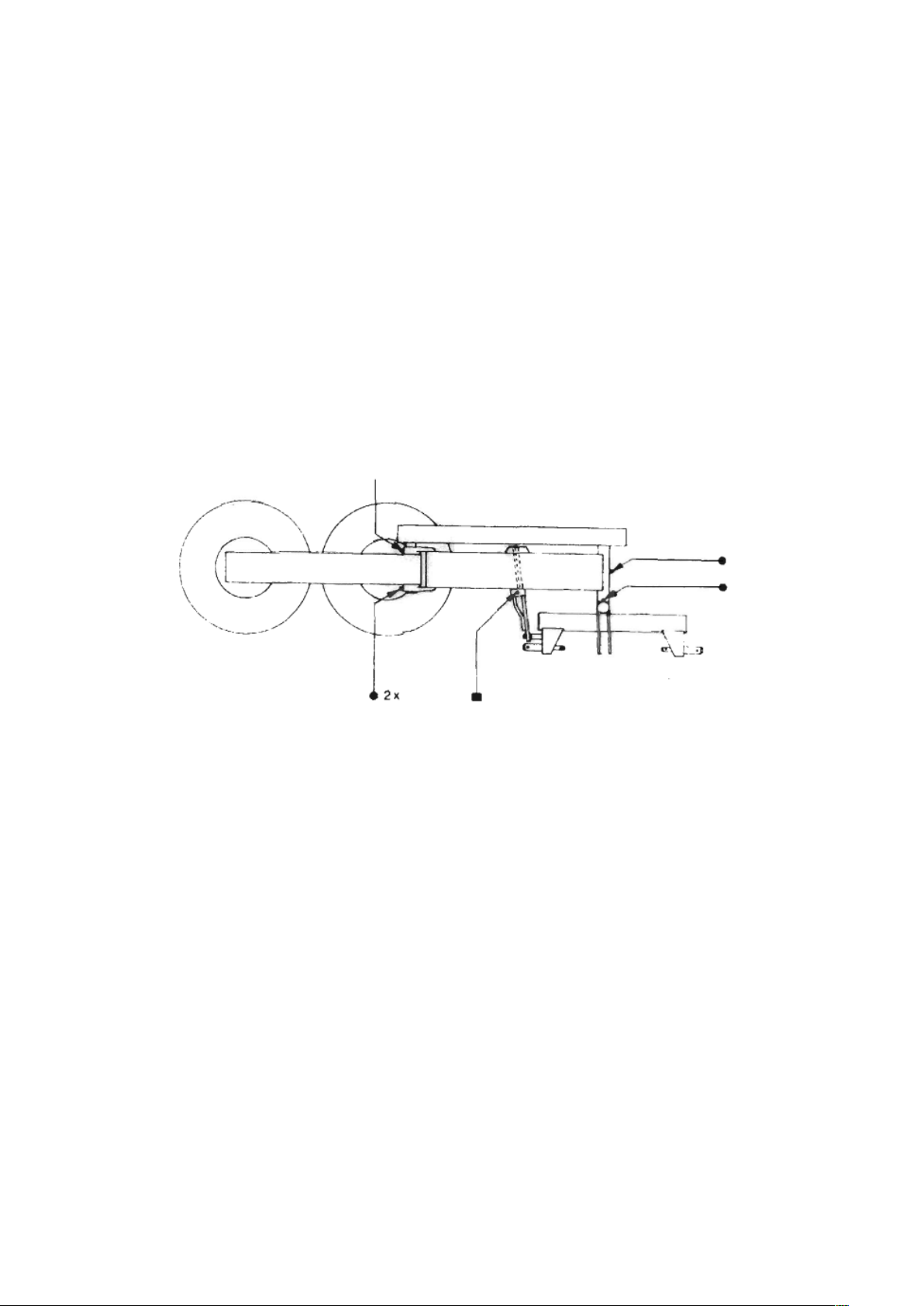

CHAPTER4 MAINTENANCE AND LUBRICATION INSTRUCTIONS
●=Grease
■=Oil every 5 hours of work
Figure G
The gearbox is filled with EP—0 mulligan grease. Refilling is only necessary
after repair; Grease level should come to the lower side of the horizontal shaft.

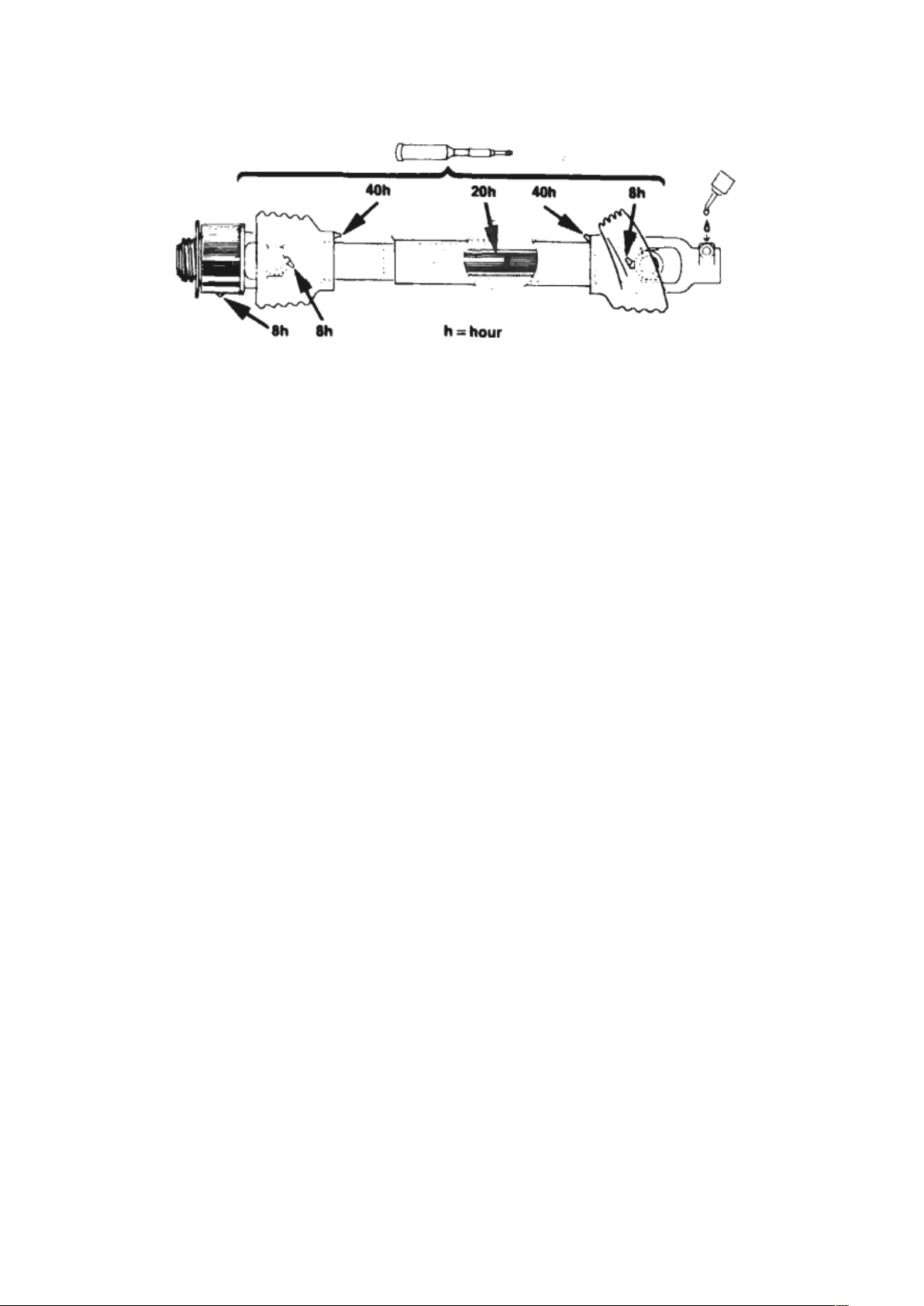

PTO MAINTENANCE & LUBRICATION INSTRUCTIONS

10

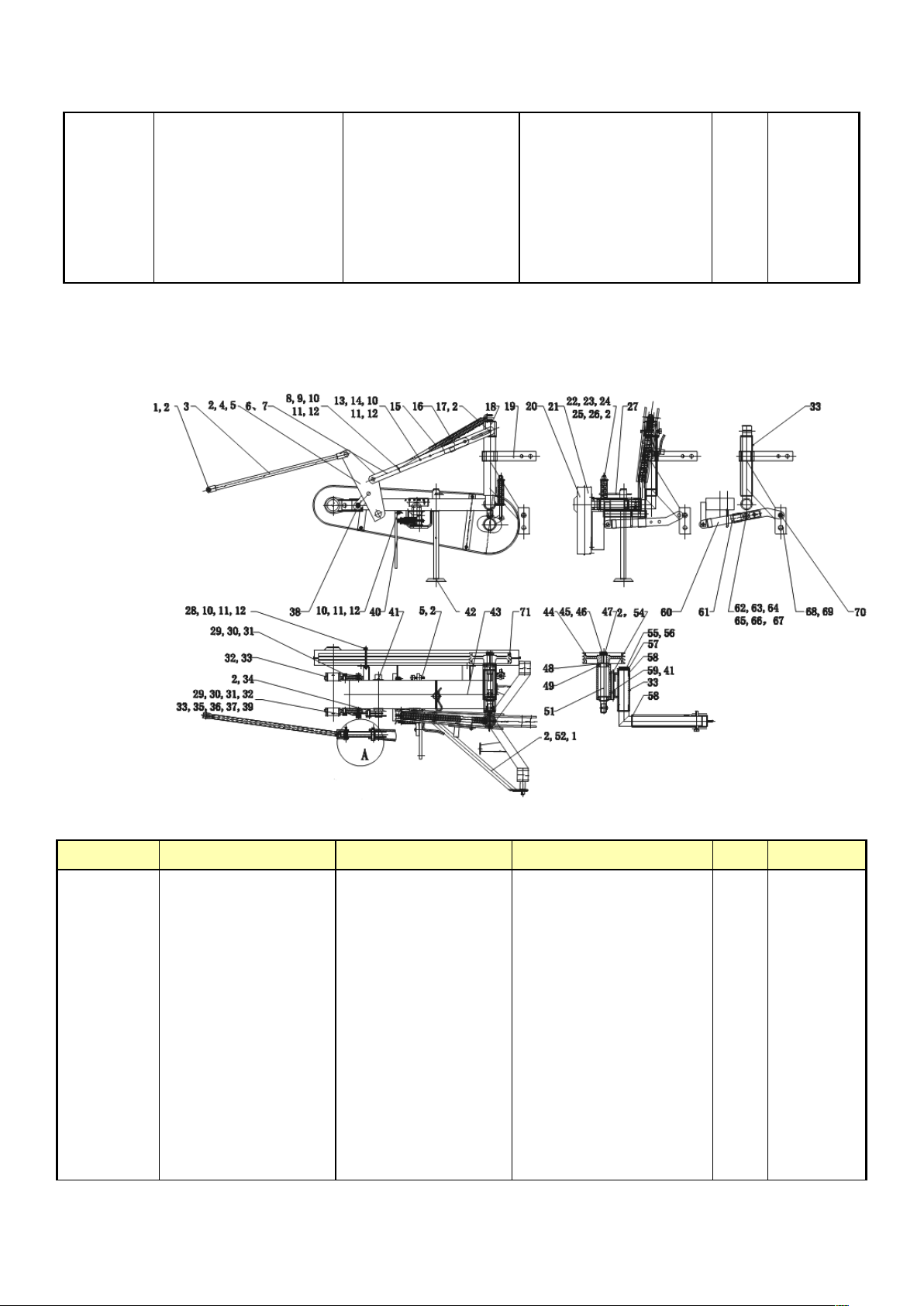

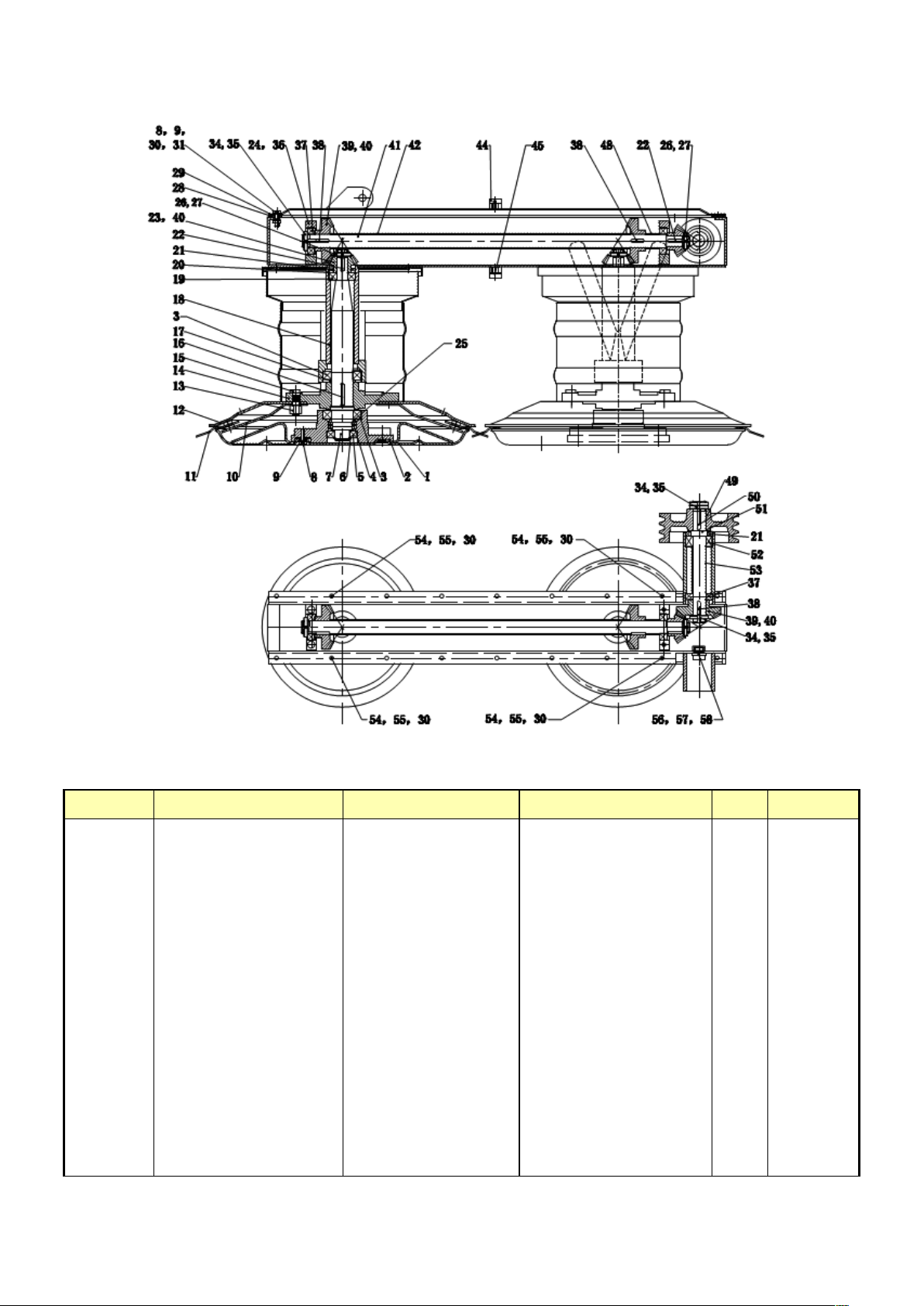

CHAPTER5 PARTS LIST

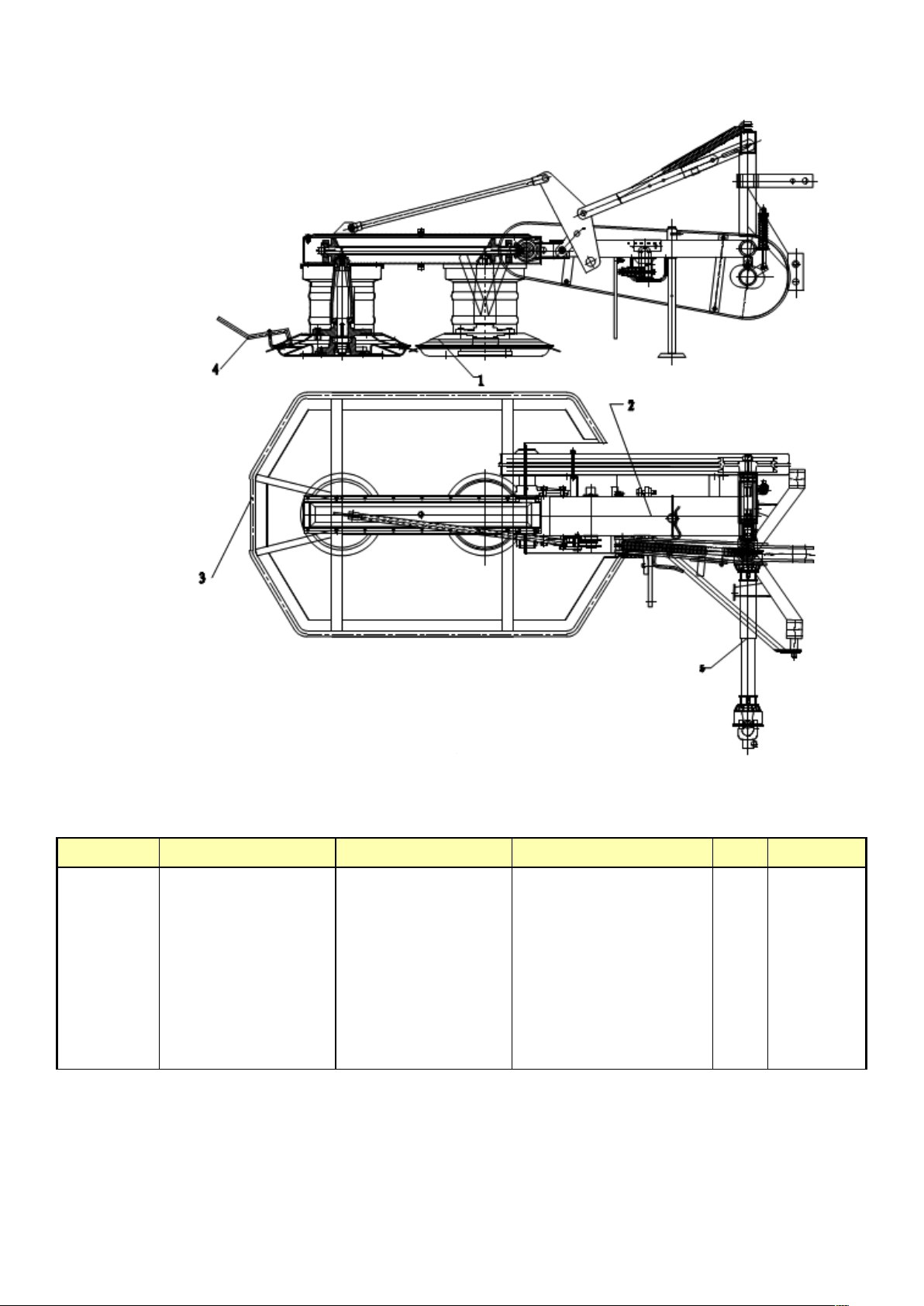

The DM135 mower is a two—drum mower. Each drum has three knives, which
can be changed quickly with a simple tool. The hay cut by the knives is carried
between the drums and put in a loosely laid swath. Three V—belts transmit
power to the input gear shaft, then to the main drive shaft, which in turn drives
the drums through the bevel gears.
A breakaway device is incorporated on this machine, which automatically
operates when the mower hits an obstruction. This protects the drums from
damage.
A complete part list section is also contained in the manual for easy reference
to parts. The use of this section will provide a fast, accurate way to order parts.
We recommend that this manual be readily available for reference at all times.
Manufacturing Company reserves the right to make changes in engineering,
design, and specifications; add improvements, or discontinue manufacture at
any time without notice or obligation.

11
ITEM NO.
Part NO。
零件名称
DESCRIPTIONS
QTY
REMARK
1
DM135.10.001
割草机割草器
MOWERING
ASSEMBLY
1
2
DM135.20.001
皮带传动部分
TRANSMISSION
ASSEMBLY
1
3
DM135.30.001
割草机罩壳
COVER
1
4
DM135.40.001
割草机卸刀架
HANDLE, BLADE
REPLACEMENT
1
5
DM135.50.001
动力输出轴
PTO SHAFT
1

12
ITEM NO.
Part NO。
零件名称
DESCRIPTIONS
QTY
REMARK
1
DM135.10.010
滑板焊合件
Saucer
2
2
DM135.10.101
滑板连接座
Saucer holder
2
3
GB/T276-1994
轴承6210 2RZ
Bearing 6210 2RZ
4
4
GB/T301-1995
轴承51109
Bearing 51109
2
5
GB/T276-1994
轴承6207 2RZ
Bearing 6207 2RZ
2
6
GB/T8941.1-1986
轴用挡圈 35
Retaining ring 35,shaft
2
7
DM135.10.102
主轴
Drum shaft
2
8
GB5783-2000
螺栓M10X30
Bolt M10X30
18
9
GB/T93-1987
弹垫 10
Lock washer 10
18
10
DM135.10.011
刀座组合件
Blade holder
6
11
DM135.10.103
刀片
Blade
6
12
DM135.10.012
鼓形焊合件
Drum, weldment
2

13
13
GB/T889.2-2000
防松螺母 M16X1.5
Lock Nut M16x1.5
12
14
DM135.10.104
驱动盘
Hub, driving
2
15
DM135.10.105
驱动盘防松螺栓
M16X1.5
BoltM16X1.5
12
16
GB1096-2003
平键 8X7X55
Key 8X7X55
2
17
DM135.10.106
调整垫圈1
Gasket
2
18
DM135.10.013
箱体焊合件
Main frame
1
19
GB/T276-1994
轴承6305 2RZ
Bearing 6210 2RZ
2
20
GB893.1-1986
挡圈62
Circlip 62
2
21
GB9877.1-1988
密封圈FB40X62X8
Ring FB40X62X8
2
22
GB1096-2003
平键 8X7X35
Key 8X7X35
3
23
DM135.10.107
齿轮1
Pinion
3
24
GB/T70.1-2000
内六角圆柱头螺钉
M10X80
Screw M1ox80
4
25
DM135.10.108
小隔套
Short spacer
2
26
GB/T810-1988
小圆螺母M24X1.5X8
Round nut M24X1.5X8
3
27
GB/T858-1988
圆螺母止动垫圈 24
washer 24
3
28
DM135.10.109
密封垫
Gasket
1
29
DM135.10.014
箱体盖焊合件
Cover, main frame
1
30
GB/T97.1-2002
平垫10
Washer 10
22
31
GB6170-2000
螺母M10
Nut M10
18
34
GB/T858-1988
圆螺母止动垫圈30
washer 30
3
35
GB/T810-1988
小圆螺母M30X1.5X8
Round nut M30X1.5X8
4
36
DM135.10.111
上轴承座
Bearing seat
2
37
GB/T276-1994
轴承6206 2RZ
Bearing 6206 2RZ
3
38
GB1096-2003
平键 8X7X32
Key 8X7X32
3
39
DM135.10.112
齿轮2
Bevel gear
3
40
DM135.10.113
齿轮调整垫圈
Gasket, adjustment
1
41
DM135.10.114
齿轮传动轴
Drive shaft
1
42
DM135.10.115
长定位隔套
Long spacer
1
44.
DM135.10.117
带孔螺栓M16X15
Vent bolt M16x15
1
45
DM135.10.118
螺栓M16X15
Plug M16x15
1
48
DM135.10.119
短齿轮隔套
spacer
1
49
DM135.10.120
小带轮
Pulley
1
50
GB1096-2003
平键 8X7X45
Key 8X7X45
1
51
DM135.10.121
小带轮轴
Shaft
1
52
GB/T296-1994
双列角接触球轴承
3206RZ
Bearing 3206RZ
1
30X62X2
3.8

14
53
DM135.10.123
小带轮轴定位隔套
Spacer
1
54
GB5782-2000
螺栓M10X60
Bolt M10X60
4
55
GB/T889.1-2000
防松螺母M10
Nut M10
4
56
JB/ZQ4450-1986
外六角螺塞M20X1.5
Plug M20X1.5
1
57
GB6173-2000
六角薄螺母M20X1.5
Nut M20X1.5
1
58
JB/ZQ4454-1986
铜垫20
Copper gasket 20
1
ITEM NO.
PART NO.
零件名称
DESCRIPTIONS
QTY
REMARK
1
DM135.20.101
销轴16
Pin 16
2
2
GB/T91-2000
开口销4X25
cotter 4X25
9
3
DM135.20.010
拉杆焊合件
Extension bar
1
4
DM135.20.011
连接座焊合件
Lift bracket
1
5
DM135.20.102
销轴16X75
Pin 16X75
2
6
DM135.20.012
固定架焊合件
Lift plate
1
7
DM135.20.147
固定架
Link plate
1
8
DM135.20.103
短套管
Spacer
1
9
GB5782-2000
螺栓M10X90
Bolt M10X90
1
10
GB/T93-2000
弹垫10
washer 10
7
11
GB/T97.1-2002
平垫10
Washer 10
7

15
12
GB/T6170-2000
螺母M10
Nut M10
7
13
DM135.20.104
长套管
Spacer
1
14
GB5782-2000
螺栓M10X100
Bolt M10X100
1
15
DM135.20.105
热卷拉伸弹簧
Extension spring
1
16
DM135.20.013
联板焊合件
Linkage
1
17
DM135.20.106
销轴16X112
Pin 16X112
1
18
DM135.20.014
连接套焊接件
Cap
1
19
DM135.20.015
悬挂架焊合件
Hitch frame
1
20
DM135.20.107
带轮外罩
Cover, outside
1
21
DM135.20.108
带轮内罩
Cover, inside
1
22
DM135.20.109
连接螺栓M16
Connecting bolt M16
1
23
DM135.20.110
导向套
Guide bush
1
24
GB/T889.1-2000
锁紧螺母M16
Lock nut M16
1
25
DM135.20.111
压缩弹簧1
Compression spring
1
26
GB/T97.1-2002
平垫16X40X3
Washer 16X40X3
1
27
DM135.20.112
快速挡销
Spring clip
1
28
DM135.20.113
方形螺栓M10
Rod M10
4
29
GB5783-2000
螺栓M16X30
Bolt M16X30
3
30
GB/T93-1987
弹垫16
Washer 16
4
31
DM135.20.114
防松垫板1
Lock plate
1
32
DM135.20.115
轴连接块
Connecting block
1
33
JB/T7940.1-1995
直通式压注油杯M6
Zerk M6
4
34
DM135.20.116
销轴19X42
Pin 19X42
1
35
GB5783-2000
螺栓M16X45
Bolt M16X45
1
36
DM135.20.117
防松垫板2
Lock plate
1
37
DM135.20.118
连接套
Link bush
1
38
DM135.20.119
连接板
Link plate
1
39
DM135.20.123
轴连接块1
Connecting block
1
40
DM135.20.022
防护板焊合件
Protective plate
1
41
GB/T91-2000
开口销4X50
Cotter 4X50
1
42
DM135.20.016
撑脚焊合件
Stand leg
1
43
DM135.20.017
机架焊合件
Sub-frame
1
44
DM135.20.122
大带轮
Pulley
1
45
GB/T810-1988
小圆螺母M30X1.5X8
Round nut
M30X1.5X8
2
46
GB/T858-1988
圆螺母止动垫圈30
Round washer 30
1
47
GB1096-2003
平键8X7X50
Key 8X7X50
1
48
DM135.20.124
调整垫圈
Adjustment washer
2

16
49
GB/T276-93
轴承6207
Bearing 6207
2
51
DM135.20.127
花键轴
Spline shaft
1
52
DM135.20.018
固定杆焊合件
Transport bar
1
54
DM135.20.129
长销子15.8
Pin
1
55
DM135.20.128
快速挡销1
Pin
1
56
DM135.20.019
连接轴焊合件
Pivot
1
57
DM135.20.121
调整垫圈
Adjustment washer
1
58
DM135.20.125
尼龙衬套
Nylon bush
4
59
DM135.20.020
输入轴套焊合件
Housing
1
60
DM135.20.021
滑块拉杆焊合件
Slide plate, breakaway
1
61
DM135.20.130
卡爪
Clamp
1
62
DM135.20.131
压缩弹簧2
Compression spring 2
1
63
DM135.20.132
螺栓M12X150
Bolt M12X150
1
64
GB/T6170-2000
螺母M12
Nut M12
1
65
GB/T93-1987
弹垫12
Lock washer 12
1
66
DM135.20.133
导向套1
Bush
1
67
GB/T96.2-2002
大垫圈12
Large washers 12
1
68
DM135.20.134
销轴25
Pin 25
2
69
DM135.20.135
锁销12
Locking pin 12
2
70
DM135.20.136
锁销8
Locking pin 8
1
71
GB/T11544-1997
V形带B17X2650
V—belt B17X2650
3

17
ITEM NO.
PartNO。
零件名称
DESCRIPTIONS
QTY
REMARK
1
GB5783-2000
螺栓M6X16
Bolt M6X16
25
2
GB/T97.1-2002
平垫6
Plain washer 6
25
3
GB/T93-2000
弹垫6
Lock washer 6
25
4
GB/T6170-2000
螺母M6
Nut M6
25
5
DM135.30.101
篷布
Tarpaulin
1
6
DM135.30.010
罩壳焊合件
Frame, weldment
1
