AVL301 V1.0.1 Aug 20 , 2014
5. Track by SMS and GPRS....................................................................................8
5.1 Track by SMS..............................................................................................8
5.2 Track by GPRS between Server and Tracker........................................... 10
6. Main function.................................................................................................... 12
6.1 Other useful function................................................................................12
7. The format of the GPRS....................................................................................12
8. SMS instruction list...........................................................................................12
9. Q&A..................................................................................................................15
10.Update the firmware of the AVL...................................................................... 16
Update User Guide.........................................................................................16

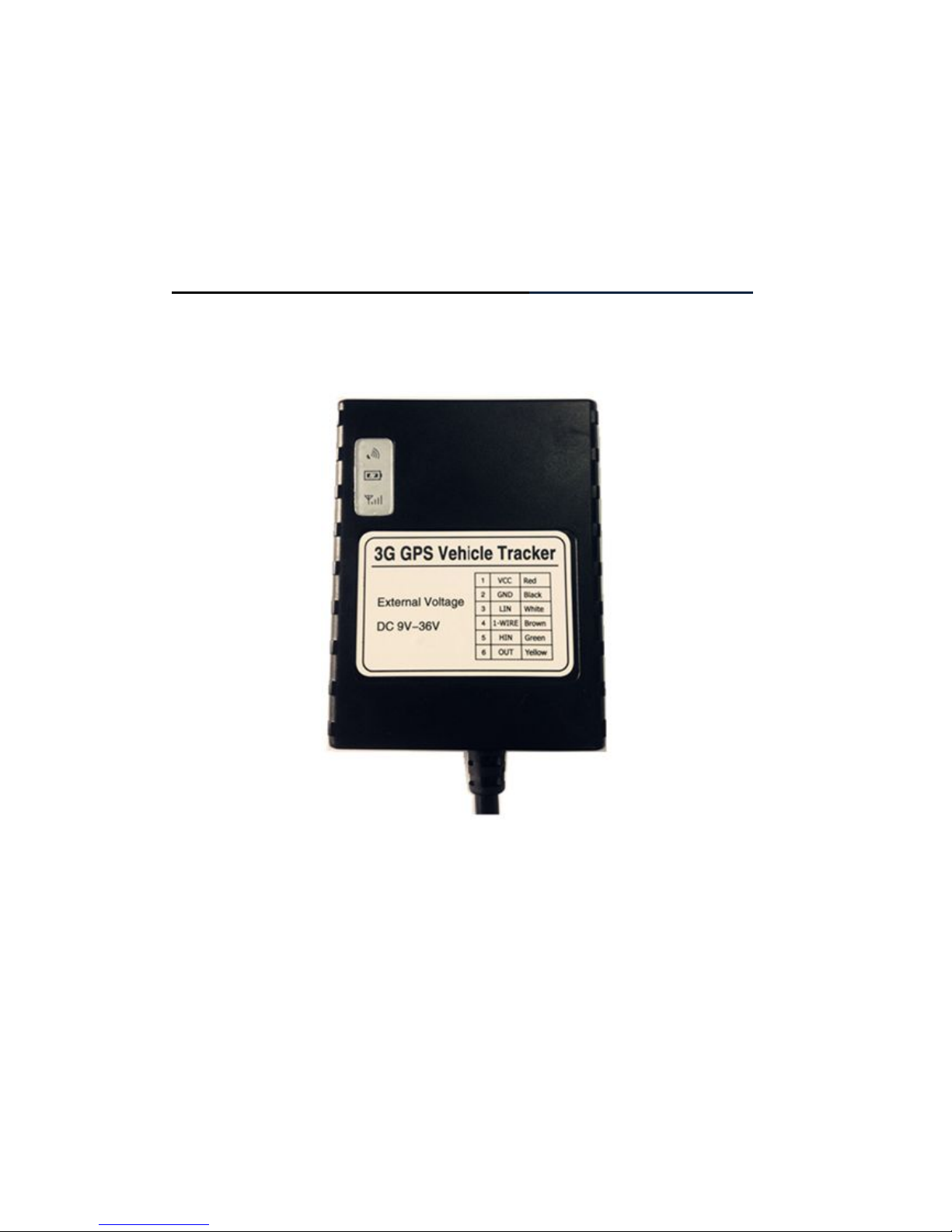

1 MAIN FEATURES
Track your remote object (trucks,cars)quickly and easily.
The device supports the following 3G/GSMbearers:
UMTS/HSDPA
- Max.3.6Mbps(DL),
WCDMA
- Max.384Kbps(DL),Max.384Kbps(UL)
GPRS
- Max.85.6Kbps(DL),Max.42.8Kbps(UL)
SMS
Dual-Band UMTS/HSDPA 900/2100MHZ
Quad-Band GSM 850/900/1800/1900MHZ.
On demand internal rechargeable battery with charge controller.

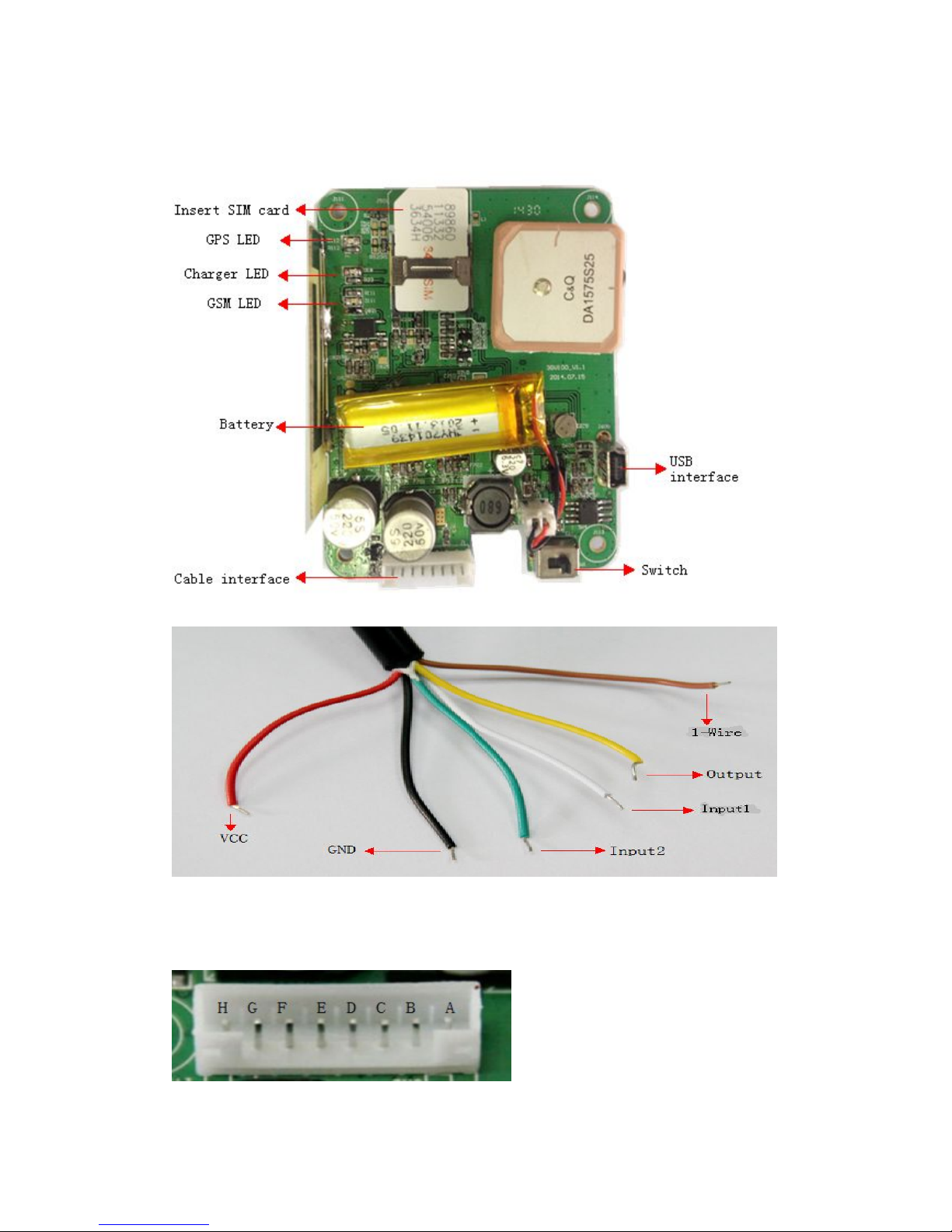

AVL301 has 2 digital input, 2 digital outputs, 1 analogue input, which could be used
for performing of various tasks on remote object, such as monitoring fuel tank level,
engine status, detection car door etc.
AVL301 has 1-Wire I/O protocol integrated for key identification.
3 LED indicators:” charge status ”,”GSM status ”,”Navigate”
Waterproof :IP65
2. For Your Safety
Read these simple guidelines. Not following them may be dangerous or illegal.
Read the full user manual for more information.
Switch on safely
