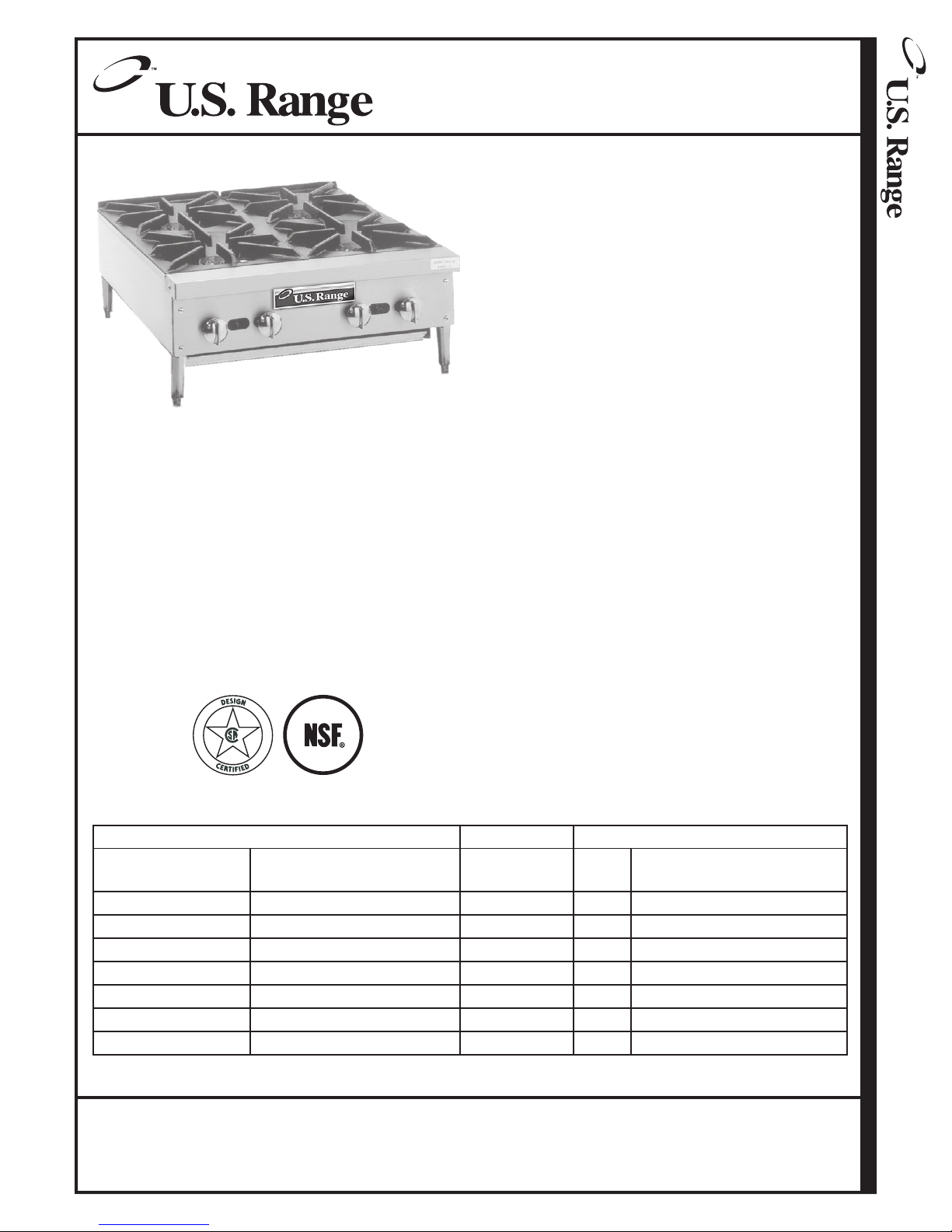

Item #:______________________________
Model: RHPA
Product Name: Regal Series Hot Plates
Heavy Duty
Specification:
Shall be U.S. Range Regal Hot Plate, Model _______
with total BTU/hr rating of _______ when used
with natural/propane gas. Finish is to be stainless
steel front and sides.
Standard Features:
• Heavy-dury, removable drip pan
• 20,000 BTU/hr. per burner - natural gas
• 17,500 BTU/hr. per burner - propane gas
• Individual burner controls
• Standing pilot for instant lighting
• 3/4" gas regulator
• 4" (102mm) legs with adjustable feet
• Exterior finish - stainless steel front sides, landing
ledge and valve cover
Optional Features:
❏Stainless steel stand with intermediate shelf
❏Casters on stand - swivel type
Model RHPA-424A
Regal Series Hot Plates Heavy Duty Model #: RHPA
AVAILABLE MODELS: TOTAL BTU SHIPPING INFORMATION
Model No. US Range
(Garland) Description Natural/
Propane
Lbs/
Kg
Cube Dimensions
(LxDxH) In(mm)
RHPA-112A (GXHP11) 1 Open Burner - 12"W × 16"D 20,000/17,500 50/23 30 (762) × 13 (330) × 16 (406)
RHPA-212A (GXHP21) 2 Open Burners - 12"W × 28"D 40,000/35,000 73/33 30 (762) × 13 (330) × 16 (406)
RHPA-224A (GXHP22) 2 Open Burners - 24"W × 16"D 40,000/35,000 81/37 30 (762)× 30 (762) × 16 (406)
RHPA-336A (GXHP33) 3 Open Burners - 36"W × 16"D 60.000/52,500 123/56 42 (1067) × 40 (1016)× 26 (660)
RHPA-424A (GXHP42) 4 Open Burners - 24"W × 28"D 80,000/70,000 135/61 30 (762) × 30 (762) × 16 (406)
RHPA-636A (GXHP63) 6 Open Burners - 36"W × 28"D 120,000/105,000 191/87 42 (1067) × 40 (1016) × 26 (660)
RHPA-848A (GXHP84) 8 Open Burners - 48"W × 28"D 160,000/140,000 247/112 54 (1372) × 40 (1016) × 26 (660)

Regal Series Hot Plates Heavy Duty Model #: RHPA
Model # US Range
(Garland)
Dimensions No. of
Burners
Total Nat.
Gas BTU
Total Pro.
Gas BTU
Width Depth Height
RHPA-112A (GXHP11) 12"(305mm) 16"(406mm) 10"(254mm) 1 20,000 17,500
RHPA-212A (GXHP21) 12"(305mm) 28"(711mm) 10"(254mm) 2 40,000 35,000
RHPA-224A (GXHP22) 24"(610mm) 16"(406mm) 10"(254mm) 2 40,000 35,000
RHPA-336A (GXHP33) 36"(914mm) 16"(406mm) 10"(254mm) 3 60,000 52,500
RHPA-424A (GXHP32) 24"(610mm) 28"(711mm) 10"(254mm) 4 80,000 70,000
RHPA-636A (GXHP63) 36"(914mm) 28"(711mm) 10"(254mm) 6 120,000 105,000
RHPA-848A (GXHP84) 48"(1219mm) 28"(711mm) 10"(254mm) 8 160,000 140,000
Operating Pressure All Models
Natural Gas Propane
5" WC (12.5 Mbar) 10" WC (25 Mbar)
Gas Manifold 3/4" NPT
Garland/U.S. Range products are not approved or authorized for home or residential use, but are intended
for commercial applications only. Garland / U.S. Range will not provide service, warranty, maintenance
or support of any kind other than in commercial applications.
Form # RHPA (01/06) US Range reserves the right to change specifications without notice. Printed in USA
Item #:______________________________
Model: RHPA
Product Name: Regal Series Hot Plates
Heavy Duty
6"
[152mm]
28-1/2”
[724mm]
22-1/2"
[572mm]
10"
[254mm]
4
[102mm]
6"
[152mm]
1"[25mm]
AIRSPACE
27-1/4"
[692mm]
3/4"N.P.T
[19mm]
REARGAS
INLET
2"
[51mm]
1-1/4"
[32mm]
24-1/2"
[622mm]
2-3/4"
[70mm]
12"
[305mm]
24"
[610mm]
RHPA-424A
36"
[914mm]
RHPA-636A
48"
[1219mm]
RHPA-848A
6"
[152mm]
17-1/4"
[438mm]
12-7/16"
[316mm]
10"
[254mm]
6"
[152mm]
4"
[102mm]
12"
[305mm]
1"[25mm]
AIRSPACE
16"
[406mm]
36"[914mm]
RHPA-336A
3/4"N.P.T
[19mm]
REARGAS
INLET
2"
[51mm]
1-1/4"
[32mm]
3-3/4"
[95mm]
24"[610mm]
RHPA-224A
12-1/4"
[311mm]
RHPA-212A
RHPA-112A
Many local codes exist and it is the responsibility of
the owner and installer to comply with those codes.
