UBCO 2X2 SE 2023 User manual

2✗2 Electric
Adventure
Motorbike
USER MANUAL
MODEL: 2✗2 SE 2023
2✗2 Electric
Adventure
Motorbike
QUICK START GUIDE
MODEL: 2✗2 SE 2023
FLIP BOOK OVER TO
READ USER MANUAL

Congratulations on your uniquely
numbered, limited edition bike.
For the  Special Edition, our product design
team has created a fresh twist on the classic
 Adventure bike. The Special Edition has been
designed to intertwine both outdoor and urban
worlds, catering to the everyday adventurer.
Accessorized, ready to go, and carefully craed to
provide a comfortable, yet tough and durable riding
experience, whether you’re running essential errands
or tackling the great outdoors. Enjoy.
Welcome to your
2023 Special
Edition 2✗2
XSEV.


1. INTRODUCTION
First things first:
Register your information at www.ubco.com/register
This ensures we know about your purchase;
registration is required for any future warranty
claims. Keep your receipt of purchase somewhere
safe, such as stapled to this manual, and record your
VIN, which is engraved on the right-hand side of the
frame head tube.
Next:
Scan this code with your
smartphone to download
the UBCO App. Keep the app
updated and it will keep your
bike up to date.
Enable Bluetooth and location services on your phone
and ensure your  is turned on and in range before
opening the app.
Then:
Read this manual carefully. Pay special attention to
the safety messages that appear throughout. This
manual should be considered a permanent part of
the  and should remain with your bike if resold.
IMPORTANT: When you see this symbol,
the information following is important
for safety and proper function of the
. Please take care to read text with
this warning.
SPECIAL EDITION MODEL 2023
2✗2 S E
User Manual
CONTENTS
1. INTRODUCTION 3
2. ASSEMBLY 4
3. TECHNICAL INFORMATION 8
4. YOUR KEYS 10
5. HANDLEBAR CONTROLS 12
6. LCD DISPLAY 15
7. ADJUSTABLE SUSPENSION 17
8. ACCESSORY LUGS 20
9. YOUR BATTERY 21
10. RIDING SAFETY 25
11. LOADING THE 2✗2 28
12. ALERT CODES 30
13. FAQ 32
14. MAINTENANCE 34
15. LIMITED WARRANTY 38

 
Once the handlebars are straight, retighten the stem
bolts, alternating as you go to prevent damage to the
clamp. Align the marking on the bolt head to achieve
the correct tightness. Torque to Nm, if a torque
wrench is available.
2. ASSEMBLY
Before You Start
Under your seat in the Field Kit, you'll
find all the tools to assemble your
 . Feel free to contact us for help
assembling the bike or scan the QR
code to watch our "How to" video.
2.1 Align the handlebars
Loosen the side bolts on the stem with a mm Allen
key. Straighten the handlebars perpendicular to the
front wheel.
2.2 Fit the rear indicators
Unpack the rear indicator lights. Install indicators to
their respective side on the rear light bracket. Check
the orientation – the indicator with a long cable is
fitted to le side, the short cable goes to right side.
Insert the thread through the mount, ensuring the
nut and two washers are on the inside. Lights should
face straight back. Use a mm spanner to tighten
the fastening nuts.
2.3 Fit the mirrors
Remove the mirrors from their box. Screw the base
of the mirror arm clockwise into the handlebar
mount approximately mm and into the correct
position, but do not tighten.
Using a mm spanner, tighten the locking nut to
secure the mirror arm. Slide down the rubber booty.
Repeat for the other mirror. Adjust the mirror angle
from a sitting position to provide maximum visibility.

 
DO NOT ride the bike if it is materially
defective, damaged, or missing safety-
related equipment. Physically check each
of these items before you ride.
1
2
3
4
Le Bar Right Bar

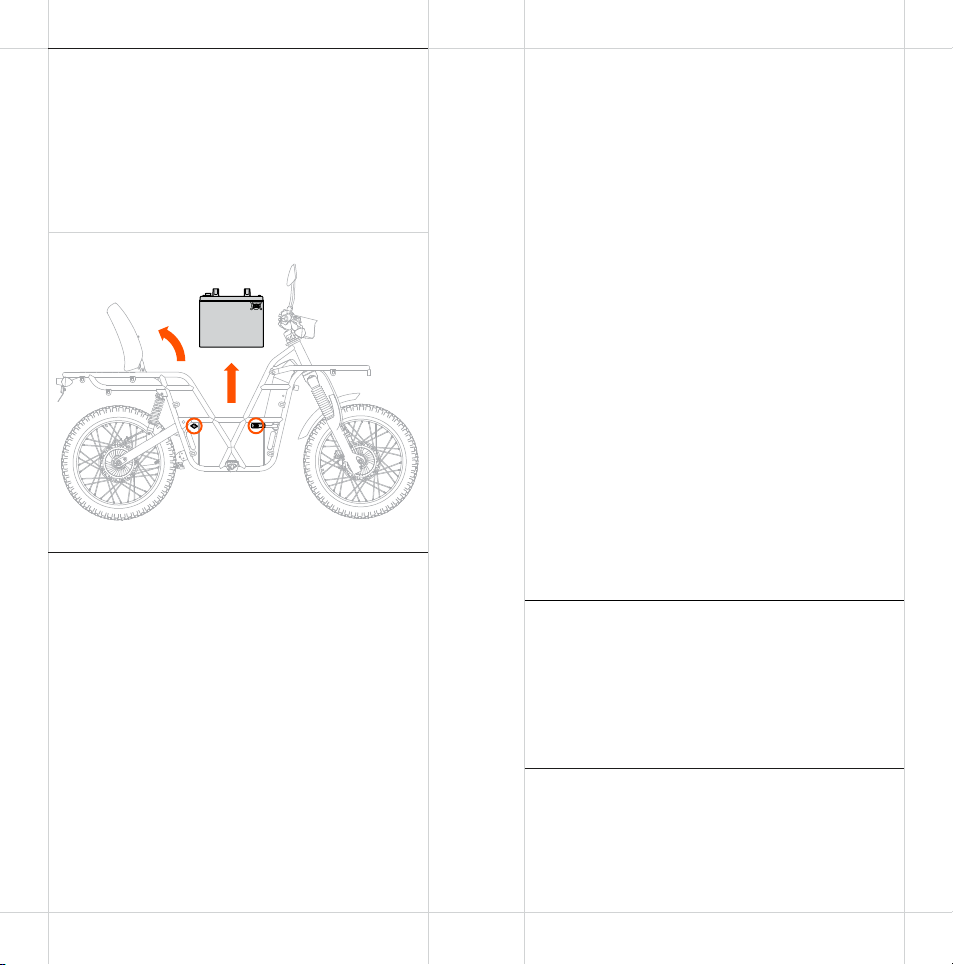

2.4 Install the battery
IMPORTANT: Inspect the battery; contact UBCO
if there is any damage from transit.
If the battery is not already in place, remove the
battery strap from the frame and set aside. With
the power socket on the right-hand side of the bike,
carefully lower the battery into place with two hands.
Plug the bike power plug (B) into the battery power
socket (A) and use the securing key to lock the
battery in place (C).
A
BC
2.6 Pre-Ride Checklist
1. Battery
Ensure there is enough
charge to carry out your
work or journey. Check
that the battery strap is
secured tightly.
2. Brakes
Check the brakes are
working and inspect their
brake pads for wear.
3. Lights
Ensure the headlights,
rear light, brake light, and
turn signals are working.
4. Kickstand
Check the kickstand is
functional, especially if
the bike is loaded up, and
check it stays up when
retracted. Retract the
kickstand before riding.
5. Mirrors
Check they are properly
fastened and adjusted
for proper viewing.
6. Horn
Sound the horn to ensure
it's working.
7. Tires
Check the condition and
pressure of the tires.
8. Loose Fixings
Ensure all the fixings
(nuts & bolts)are done
up correctly and securely.
9. Load
Ensure all functional
parts of the bike are not
obstructed by any load
you may be carrying.
10. Safety Wear
For your safety, please
wear a helmet and
appropriate riding gear.
11. Keys
Remember to take your
key fob with you (unless
you've turned security
mode o).
2.5 Secure the battery strap
Velcro side down, tuck the end of the battery strap
under the le hand bar, central to the battery. Carry
the strap over the battery and tuck it under the right
hand bar. Feed the strap back through the clip and
center the clip. Tighten the strap and secure closed.

 
SPECIFICATIONS METRICS IMPERIAL
Drive Train  x kW motors
Weight (ex Battery).kg lbs
Height ,mm in
Seat Height mm .in
Width (Handlebars mm .in
Length ,mm in
Wheelbase ,mm .in
Payload (incl Rider)kg lbs
Suspension - Front mm adjustable .in
Suspension - Rear mm adjustable .in
Range (Max Tested)km mi
Max Speed km/h mph
(EU km/h limited)
Charge time -% -hr
LED Headlight High: ,lm; Low: ,lm
Max Submersion Depth
Do not submerge the  in water above the
axles. This could damage the motors and void
the warranty.
! !
!
VEHICLE CLASS
NZ: LA (Moped)
AU: LA (Moped)
US: Motor Driven Cycle/Moped
EU: Le-B
UK: Le-B
LICENSE REQUIREMENTS
NZ: Learner license or higher.
AU: State dependent; provisional or
motorcycle license.
US: Dependent on state laws.
EU: Dependent on country laws.
UK: Category AM, CBT required.
3. TECHNICAL INFORMATION
Real-life variables such as speed, drive settings,
weight, and terrain will impact range.
Laws vary by region. Check your local licensing laws to
determine license requirements.
All information in this publication is based on the latest
production information available at the time of approval
for printing. UBCO Ltd reserves the right to make
changes at any time without notice.

 
4.1 Powering the Bike
The key fob will turn the  on but the kill switch is
used to change between Neutral and Drive.
Neutral: The screen will turn on, throttle is inactive.
Drive: Throttle is activated and the lights turn on.
• Hold the key fob button . seconds to turn the
bike on in Neutral. The display will turn on and N is
illuminated.
• If you're ready to ride, straddle the bike and
retract the kickstand, then press the kill switch to
enable Drive. The headlight will turn on.
• Twist the throttle towards you to go.
• Once stopped, press the kill switch to turn the bike
back to Neutral. To turn bike o from Neutral,
hold the key fob button for  second or hold the
kill switch for  seconds.
• To turn bike o from Drive, press either the key
fob button or the kill switch button for  seconds.
The  is very quiet due to its electric
motors and will not rev when it is turned
to Drive or when the throttle is turned.
4.2 Steering Security Lock
The  has a steering lock on the head tube, which
will fix the steering angle of the parked bike. This
makes the  dicult to wheel away as it will only
turn in circles.
The steering lock is located on the right side of the
steering tube just below the handlebars.
Use the securing key to activate/deactivate the
steering lock:
A. B.
It is important to ensure the steering
lock is disengaged and the securing key is
removed before starting the .
A. Turn the handlebars counter-clockwise (to the
le)until the lock body lines up with the securing
ring on the head tube.
B. Put the securing key in and turn clockwise to lock.
C. Unlock the steering by turning the key counter-
clockwise; use the steering as per normal.
The same key can be used to lock the battery in place.
4. YOUR KEYS
The  comes with two types of keys: a key fob and
a securing key. The key fob is used to turn the bike on
or o, while the securing key activates the steering
lock and the battery lock.

Control
switch
LCD display
Steering
lock
Kill
switch
Throttle
Rear brake Front brake
 
Turning o Security Mode will allow
anyone with access to the bike to turn it
on and use it.
5. HANDLEBAR CONTROLS
5.1 Control Switch
On the le side of the handlebar you will find a
control switch with buttons for the headlight,
indicators, & horn.
The headlight and tail lights automatically come on
when the  is in Drive. To turn o the headlight,
either switch to Neutral using the key fob or kill
switch, open settings in the UBCO Rider's App and
turn lights o, or hold the low beam switch until it
turns o (repeat to turn back on).
Holding the high beam switch will activate the
headlight in Neutral for when temporary lighting is
required while the throttle is inactive. Do not use the
high beam against oncoming trac.
5.2 Kill Switch
On the right side of the handlebar, next to the
throttle, is the kill switch for the motors. When the
kill switch is activated, the bike will change to Neutral
and N shows on the LCD display.
To switch into Drive, retract the kickstand and press
the kill switch to deactivate it.
5.3 Security Mode
Security Mode determines whether the key fob is
required to turn the bike on.
Security Mode ON: The key fob is required to turn the
bike on.
Security Mode OFF: Enables the bike to be powered
without the key fob; the bike is turned on using the
kill switch.
To turn security mode on or o, follow the steps
below. (Note, this process can only be performed
using a fob that is already paired to the bike.)
1. Turn off the bike. Press and hold both the key fob
button and the kill switch for  seconds.
2. The bike will beep a few times while the buttons
are held and then give one final long beep to
indicate programming is complete.
5.4 Phone Mount
The bike comes fitted with a Peak Design phone
mount featuring vibration isolation to protect your
phone and magnetic locking technology to enable
one-handed phone attachment and removal.
Simply attach the Universal Adapter to your phone
case following the instructions provided or use a
compatible Peak Design phone case. Then, to attach
your phone, simply hold the back of your phone over
the mount and it will click into place. Press one of the
tabs on either side to release your phone.

 
5.5 Throttle
To accelerate, twist the throttle towards you. There
are no gears or clutch, so the throttle controls all
acceleration from start to top speed (excluding
gravity). To maintain a constant speed, hold the
throttle in a constant position. If you let go of the
throttle, the  will start to decelerate.
Note: Do not continuously power the throttle when
the  is held stationary.
6. LCD DISPLAY
Speedometer
Mileage
Clock
Motor temp
Power
Charge
Right buttonLe button
Neutral Drive / Headlight on
Le indicator
Charge required
Lights on / Lo beam
Lights on / Hi beam
Right indicator
Warning
Odometer displayed
Trip meter displayed
5.6 Brakes
Bedding in the brakes: For optimum brake
performance with new bikes or brake pads, we
recommend performing a series of  sequential
firm braking eorts from kph / mph to kph /
mph in a controlled environment. This will ensure
that the brake pad material is suciently deposited
onto the rotor, improving the total braking force
available, as well as resistance to overheating.
Regenerative braking system: To slow down, release
the throttle to neutral position and then apply the
brakes: le = rear, right = front. The UBCO drive
system incorporates a progressive regenerative
braking system, where the motors themselves apply
controlled braking prior to the mechanical brakes
taking eect in two discrete steps.
• Step  is a gentle "engine braking" eect when the
throttle is released.
• Step  kicks in when the brake levers are initially
pressed, just prior to the mechanical brake pads,
adding more motor braking when the brake levers
are engaged fully.
This system not only saves brake pad wear, but also
transfers energy back into the bike's battery, to
maximize range. It’s a win-win! The magnitude of
regen braking is adjustable in the UBCO Rider's App
to suit the rider’s preferences and use case.
Tip: The brake lever angle can be adjusted using
the screws on the brake lever mount. Ensure they're
retightened to Nm torque setting.

 
6.1 Warning Light
If there is a system issue, the warning light will flash
and an alert code will be displayed in the odometer
area. Find more information in the UBCO App or
contact your local UBCO support line.
Some basic alert codes are provided on page .
6.2 Charge Level
Accurate state of charge (SOC)is displayed on
the le side of the display, split into  segments.
The charge level is split up into  segments with a
halfway indicator. The charge required indicator will
light up when battery SOC is getting low.
6.3 Power Output Meter
This displays the real-time power output to the
motors. Any bars shown above the  mark represent
power output to the motors and any bars shown
under the  mark represent power input to the
battery through regenerative braking.
6.4 Odometer and Trip Meter
To select between odometer (ODO)and trip meter
(TRIP)view, press the le button. To reset the trip
meter, press the le button for  seconds while TRIP
is showing.
6.5 Switch from Metric to Imperial
To select between metric and imperial units for
the speed, odometer, and trip meter, while ODO is
showing, hold down the le button for  seconds. To
change between Celsius and Fahrenheit, press the
right button.
6.6 To Change the Clock
1. Hold down the right button until the time
numbers start flashing.
2. Press the right button to change between hours
and minutes.
3. Press the left button to cycle through numbers.
4. Hold the right button until the numbers stop
flashing to set the time.
7. ADJUSTABLE SUSPENSION
The front and rear suspensions have adjustable
rebound controls that change the rate at which the
suspension re-extends aer an impact. They also
feature spring preload adjustment that are helpful
for setting the loaded ride height of the vehicle and
help determine the suspension's ability to prevent
bottoming out (AKA setting the Sag).
These adjustments allow the rider to set the loaded
ride height for various use cases and terrains to
improve the handling and capability of the vehicle.
For more demanding terrain, or higher load carrying
capacity, we recommend increasing the preload to
prevent harsh bottom out forces. See page  for
recommendations for various riding situations.
7.1 Front:
Rebound speed is adjusted on the right-hand side of
the fork crown. Twist the dial clockwise to slow the
rebound; counter-clockwise to speed it up. On the
le side of the fork, the spring preload is adjusted.
Twist the dial clockwise to increase the spring force;
counter-clockwise will lessen the spring force.
