Ubiquiti UniFi G3 User manual

IRRangeExtender
AccessoryforUVC-G3
Model:UVC-G3-LED

Introduction
Thank you for purchasing the Ubiquiti Networks® IR Extender
for the UniFi® Video Camera G3. This Quick Start Guide is
designed to guide you through installation and includes
warranty terms.

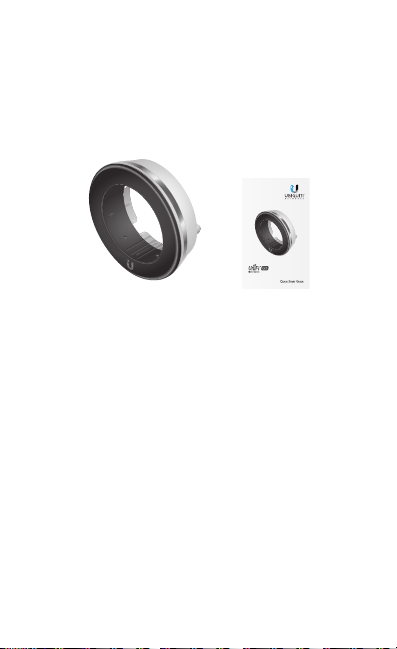

Package Contents
IR Range Extender
Accessory for UVC-G3
Model:UVC-G3-LED
UVC-G3-LED Quick Start Guide
Installation Requirements
• UniFi Video Camera G3, model UVC-G3
• Phillips screwdriver

Hardware Overview
Accessory
Connector
LED Ring
Screws
LED Ring Houses six high-intensity infrared LEDs for
extended night vision range.
Accessory Connector Connects to the UVC-G3 for power and
IR control.
Screws Pre-installed screws that secure the LED Ring to the
UVC-G3 camera during the installation.
WARNING: Do not connect anything to the Accessory
Connector other than the UVC G3 camera, as it may cause
damage to the device. The Accessory Connector is designed
for use with the UVC G3 camera only.

Hardware Installation

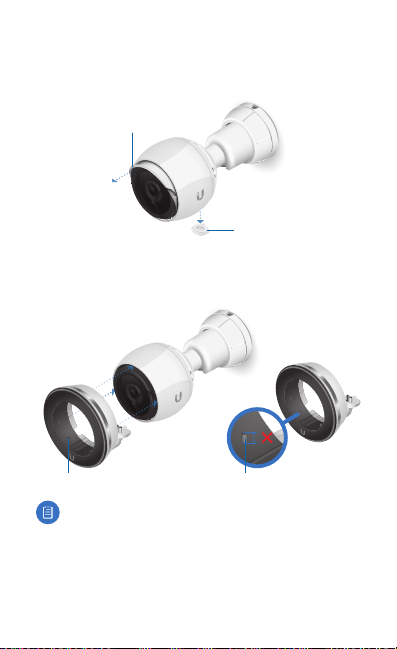

1. Pull out the sun visor and remove it. Then remove the
accessory port cover located on the bottom of the UVC-G3.
Accessory
Port Cover
Sun Visor
2. Hold the UVC-G3-LED with the Accessory Connector at
the bottom. Place the LED Ring over the front face of the
camera and insert the LED Ring until it locks into place.
Non-Protruding Protruding
Note: If the pre-installed screws protrude into the open
space of the LED Ring, use a phillips screwdriver to
turn each of the two screws counterclockwise until the
perimeter is clear. This will provide proper clearance and
allow the LED Ring to slide onto the UVC G3 camera.

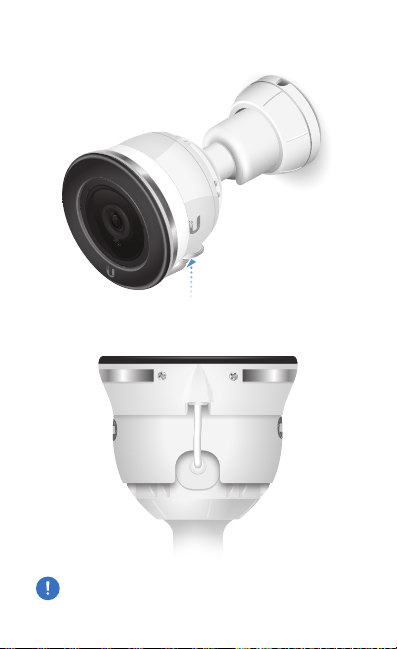

3. Insert the Accessory Connector into the accessory port until
it locks into place.
4. Secure the UVC-G3-LED to the camera by tightening the
two screws located underneath the LED Ring.
Important: Do not over-tighten the two screws. Excessive
torque may damage the LED Ring and/or the UVC-G3.

Enabling the External IR LEDs
The UVC-G3-LED may be enabled using UniFi Video or directly
through the camera UI. Once enabled, the UVC-G3-LED will
automatically turn on under low light conditions.
UniFi Video
1. Launch UniFi Video and log in.
2. On the Cameras page, locate the UVC-G3 with the installed
UVC-G3-LED, and click the name of the camera.

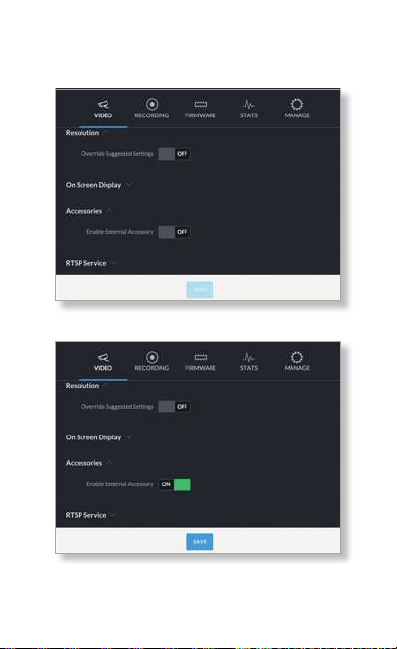

3. The camera configuration panel will appear on the right
side of the window. Click Accessories, and then click the
toggle box next to Enable External Accessory.
4. Click Save.

Camera UI

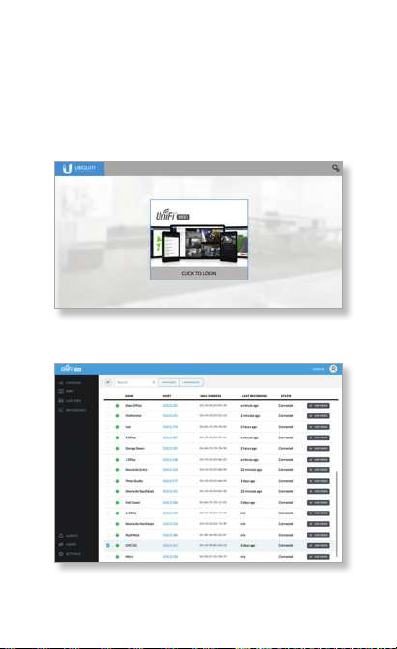

Access the camera UI using the Ubiquiti® Device Discovery
Tool. The utility is available as a stand-alone application and as
a Chrome extension (Chrome browser required). The utility is
available for download at:
www.ubnt.com/download/utilities
Note: If you know the IP address of the UVC-G3, you may
access the camera UI directly by entering the IPaddress
in a web browser, and skip to step 3.
1. Launch the Ubiquiti Device Discovery Tool.
2. A list of Ubiquiti devices on the network will appear. Locate
the UVC-G3 with the installed UVC-G3-LED. Click the
IPaddress of the camera in the Host column.
3. The UniFi Video Camera UI portal will appear in a new
browser window. Enter your Username and Password to
log in.

4. On the Configure window, check the box next to Enable
External Accessory.
5. Click Save Changes.

*640-00206-03*
640-00206-03
Specifications
UVC-G3-LED
Dimensions Ø80 x 26 mm
(Ø3.15 x 1.02")
Weight 75 g (2.65 oz)
LEDs (6) Infrared LEDs
IR Range Up to 25 m (82 ft)
Power Method Accessory Connector
Power Supply UVC-G3
Max. Power Consumption 7.5W
Operating Temperature -30 to 70° C
-22 to 158° F
Operating Humidity 20 to 90% Noncondensing

Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Hot Surface. Do not touch.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
