1. Raspberry Pi Start Kits
A. Generation Introduction:
The Raspberry Pi 3 Starter Kit is a great way to gain a solid introduction to the small,
credit-card sized computer. The starter kit make the Raspberry Pi intuitive and easy to
learn.
With this kit, you will be able to get your Raspberry Pi 3 as your own credit card sized
computer, getting started with programming and coding, setting-up the Raspberry Pi as
a game player. So, if you are looking for a new challenge or a way to get in on the RPi
craze, check out the Raspberry Pi 3 Starter Kit!
UCTRONICS team has carefully done the compatibility test for all components, and offer
the plug and play boot operation system like Raspbian. Users only need additional HDMI
monitor and keyboard/mice to use this kit as a standard PC desktop.
B. Package including:
1pcs 16GB Micro SD – Kingston Pre-Loaded with Raspbian
1pcs Power Supply Adapter Charger 5V 2.5A (US)
1pcs USB cable with ON/OFF switch
1pcs ABS Protective Case Enclosure
1pcs Premium High Speed HDMI Cable
3pcs Heatsink kit with Thermal Pad
1pcs T type 40pin GPIO Board
1pcs 20cm FC40 40pin GPIO cable
1pcs 830 Tie Point Solderless Breadboard
40pcs M/M Jumper Wires(20cm)
20pcs M/F Jumper Wires(20cm)
1pcs RGB LED
2pcs Red LEDs
2pcs Green LEDs
2pcs Yellow LEDs
2pcs Blue LEDs

www.uctronics.com
3
2pcs Push Button Switches
10pcs 220 Ohm Resistors
5pcs 10K Ohm Resistors

www.uctronics.com
4
2. Assembly:
A．16GB Micro SD – Kingston Pre-Loaded with Raspbian
This Micro SD Card Bundle for the Raspberry Pi consists of a Micro SD card pre-loaded
with the system like Raspbian.
Specification:
Capacity: 16GB
Weight: approx 0.2g
Simply plug this SD card into your Raspberry Pi
Fully tested to work with the Raspberry Pi 3 Model B
Pre-Loaded with pre-loaded with the Raspberry Pi Raspbian image
Superior Random-Access Performance - Perfect for the Raspberry Pi

www.uctronics.com
5
B. Power Supply Adapter Charger 5V 2.5A (US)
These have a standard USB ‘A’ connector for the output so you can power your Arduino,
Raspberry Pi, etc. through a USB cable. Any device that uses a USB cable for charging or
power can be powered with this supply.
Specification:
Input Voltage: AC100-240V 50/60Hz
Output: DC 5.0V 2500mA (2.5A)
Consistent fixed switching voltage
Internal Fuse for Extra Safety
Adapter plug type: US

www.uctronics.com
6
C. USB cable with ON/OFF switch
This USB to Micro USB Cable with switch is 1.5m long and is the perfect hard on/off power
switch for your Raspberry Pi.
Specification:
Tested for Compatibility with the Raspberry Pi
On/Off switch
1.5m Long
Color: Black
Connector Type A: USB
Connector Type B: Micro USB

www.uctronics.com
7
D. ABS Protective Case Enclosure
This enclosure case is elegant, beautiful, and functional for Raspberry Pi Model B.
Made of ultra-durable, super-glossy polycarbonate, it is both good looking and tough
enough to toss into your bookbag or toolbox. It has slim openings for all your cables, an
easy-to-remove beveled slot for your Micro SD card, slots for both your Pi Camera and
upcoming Display, and a space for your GPIO cable to extend out from the Pi.
Specification:
Durable two part ABS plastic case
Vents on three sides double as fly-through cable ports
Two-section breakout on A/V side for break-out board I/O
Micro SD card access port
Mounting option 1: two M3.5/M3/#6 screws slide into wall mounts for easy removal,
horizontal orientation with A/V side down, 40mm spacing
Mounting option 2: four M3.5/M3/#6 screws through feet from inside for secure
mounting in any orientation, 68.3 x 38.8mm spacing
External dimensions: 96 x 66 x 41mm
Internal volume for breakout boards:
Length: 90.0mm
Width: 60.0mm

www.uctronics.com
8
E. Premium High Speed HDMI Cable
The 1.5m Gold Plated HDMI to HDMI cable is the perfect low cost solution to connecting
your Raspberry Pi to your HDMI monitor or TV.
This is the latest high speed version V1.4 with Ethernet, 3D support!
Specification:
1.5m Long
Flat "Noodle" Type Cable
Tested for Compatibility with the Raspberry Pi
HDMI Male (19 Pin) to HDMI Male (19 Pin)
24k Gold-Plated Contacts Prevents Corrosion for Life-Long Optimum Signal
Transfer
Fully Ethernet and 3D over HDMI enabled (V1.4 Connection)
Supports 4K*2K, 1080p Resolutions

www.uctronics.com
9
F. Heatsink kit with Thermal Pad
The Raspberry Pi Heat Sink Kit consists of three high quality aluminum heat sinks, each
selected to perfectly match the size of the main heat out-put components on your
Raspberry Pi board. The heatsinks are designed to fit on top of the Broadcom and
Ethernet SOC's. Keep your Raspberry Pi super cool with this Raspberry Pi Heat Sink Kit in
stunning silver! Extend the life of your Raspberry Pi and reduce the risk of hardware failure.
Specification:
3 x Silver Aluminum Heat Sinks.
Compact, and Able to Fit in Most Raspberry Pi Cases.
High quality Thermal Adhesive Tape for Easy Application.
Thermal Resistance 25°C/W.
1pcs 9x9x5mm Heat Sink, Floor Thinness:1.6mm, Vane Thickness:0.8mm.
2pcs 14x14x6mm Heat Sink, Floor Thinness:1.1mm, Vane Thickness:0.6mm.

www.uctronics.com
10

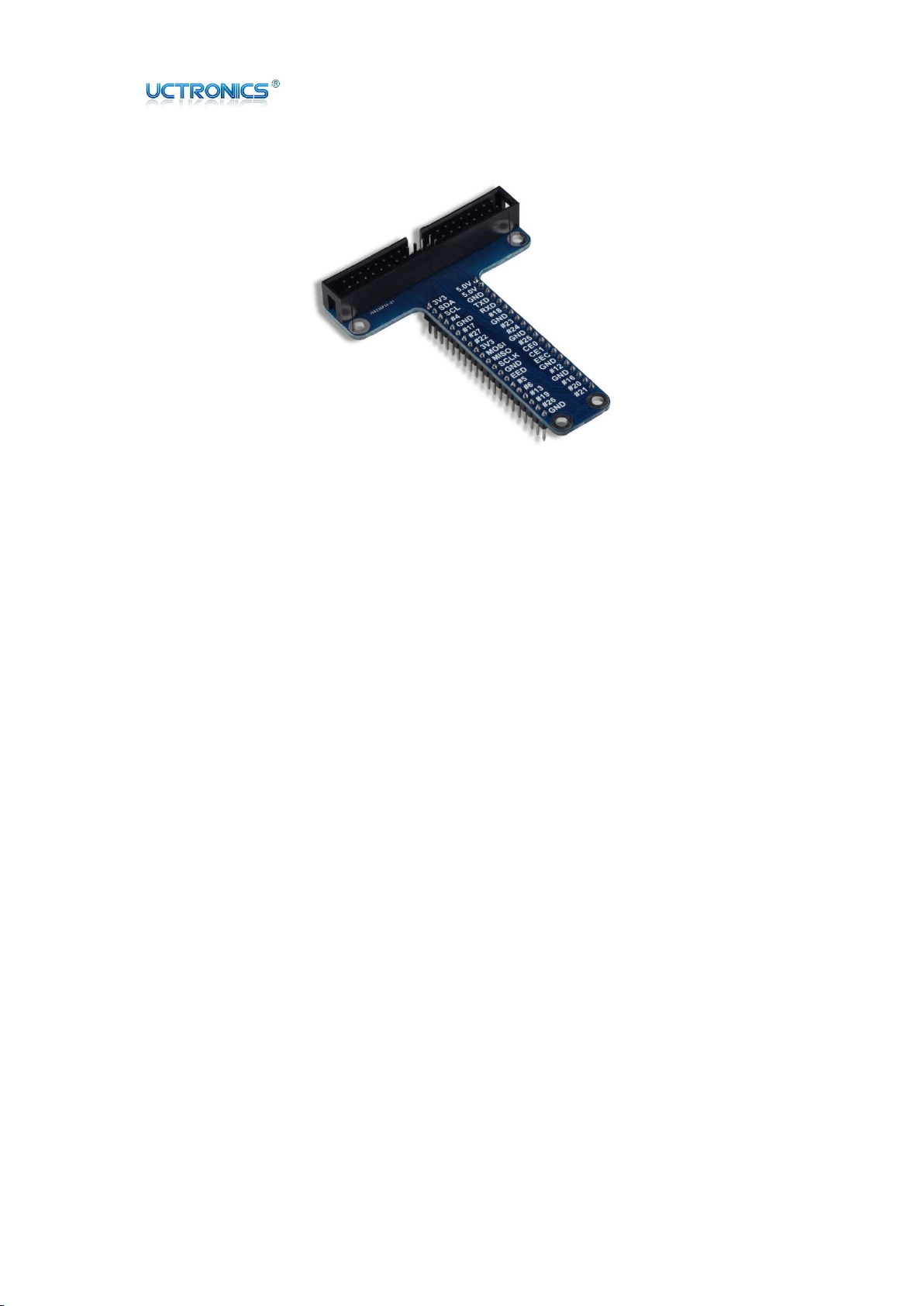

G. T Type 40pin GPIO Board
T Type 40pin GPIO Board is a small board that connects to the 40-pin GPIO connector
on the Raspberry Pi and breaks the pins out to breadboard-friendly arrangement and
spacing.
It is in a fancy T-shape, which is not as compact, but is much easier to read the labels.
Specification:
Break out all those tasty power, GPIO, I2C and SPI pins from the 40-pin header onto a
solderless breadboard
This GPIO expansion board is in a fancy T-shape, which is not as compact, but is a little
easier to read the labels
Each order comes with a 40 pins ribbon cable and assembled T Type Plus GPIO Expansion
Board

www.uctronics.com
11
H. 20cm FC40 40pin GPIO cable
This 2x20 flat ribbon-cable fits the GPIO headers on the Raspberry Pi 3, 2, and B+ so you
can easily connect to the low-level peripherals.
You can plug the 40-pin GPIO cable between the Pi computer and the T Type Plus GPIO
expansion board.
Specification:
Cable Length:20cm
40Pin FC cable
Female to Female

www.uctronics.com
12
I. 830 Tie Point Solderless Breadboard
This is true full size solderless breadboard! It has 2 split power buses, 10 columns, and 63
rows - with a total of 830 tie in points. All pins are spaced by a standard 0.1". The two
sets of five columns are separated by about 0.3", perfect for straddling a DIP package
over. The board accepts wire sizes in the range of 20-29AWG.
Specification:
MB-102 Breadboard:
Voltage: 300V
Current: 3A to 5A
ABS Housing
Nickle Phosphor Bronze Contact Clips
Solderless Breadboard with 830 Tie-points
Material: ABS plastic material, Phosphor bronze nickel plated spring clips
Accepts a variety of wire sizes (20-29 AWG)
Dimensions: 16.5x5.4x0.9cm
Colored coordinates for easy component placement

www.uctronics.com
13

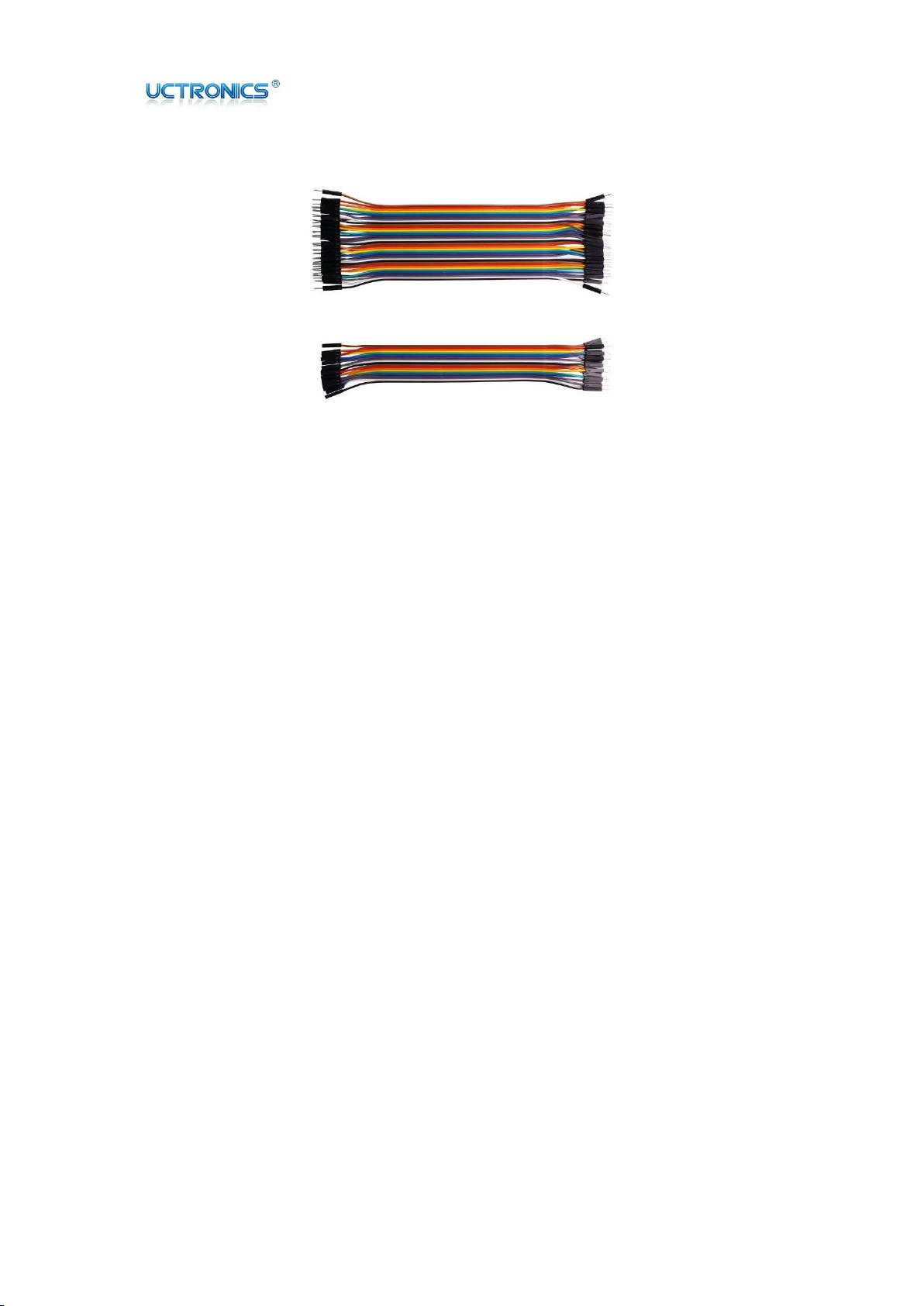

J. 40pcs M/M and20pcsM/F Jumper Wires（20cm）
These are Male to Male Jumper Wires.
These are Male to Female Jumper Wires.

www.uctronics.com
14
K. RGB LED
The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light
Emitting Diode. The Blue source color devices are made with InGaNLight Emitting Diode.
The Green source color devices are made with InGaN on Sapphire Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically grounded.

www.uctronics.com
15
L. Red, Green, Yellow, Blue LEDs
Light Emitting Diode (LED) LEDs are solid state devices that emit light when electricity
passes through them. They are directional and need to go in the circuit the right way
around.
Once a certain “on” threshold voltage is reached (about 2V for a red LED) the current
through an LED rises very quickly with the voltage. In most applications, a resistor is
needed to protect the LED from being overloaded due to this effect.

www.uctronics.com
16
M. Push Button Switches
Specification:
Standard, Flat Plunger Type (without Ground Terminal)
Contact material: Silver plated
Dimensions (Unit: mm)
PCB Processing Dimensions (Reference Only)
(Top View) (PCB thickness, t=1.6)
Precautions:
Be sure to read the safety precautions common to all Tactile Switches for correct use.

www.uctronics.com
17

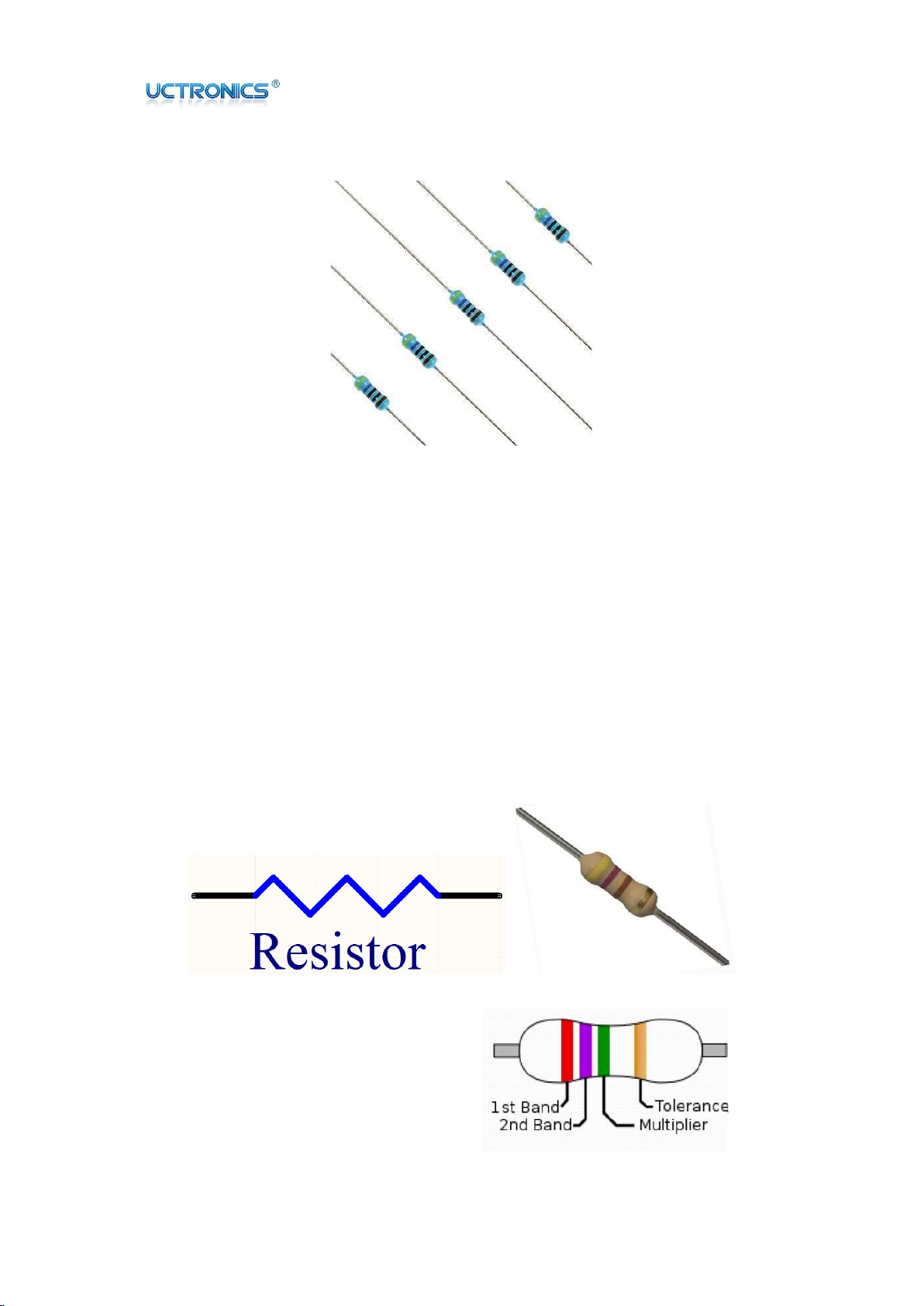

N. 220 and 10K Ohm Resistors
Resistors limit the flow of electricity through part of the circuit. This can be used to control
timing circuits, divide voltages in to smaller portions or protect devices that are sensitive
to too much current.
Resistance is measured in Ohms (Ω), kilohms (1,000Ω=1kΩ) or Megohms (1,000,000Ω
=1MΩ) Resistors can go in the circuit either way round.
The value is marked on the device with a color code (see right), or it can be measured
with almost any multimeter.
A shorthand is often used to write the value of a resistor. For example: “100R”=100Ω
“10k”=10kΩ “4k7”=4.7kΩ
Some resistors used in these experiments: 220R – Red, Red, Brown 1k – Brown, Black, Red
10k – Brown, Black, Orange 100k – Brown, Black, Yellow.
Specification:
Resistor color codes:
1st band = 1st number
2nd band = 2nd number
3rd band = 3rd number
4th band = #of zeros/multiplier

www.uctronics.com
18
5th band = tolerance
Tolerance:
Gold = within 5%
Black: 0
Brown: 1
Red: 2
Orange: 3
Yellow:4
Green: 5
Blue: 6
Violet: 7
Gray: 8
White: 9

www.uctronics.com
19
3. Installation diagram:
Figure1.
Figure2.
