INTRODUCTION
Congratulations on choosing your New UM®MAX
RS. By purchasing a new UM®, you become a part
of worldwide family of satisfied customers; people
who appreciate UM's commitment for building
quality into every product.
Your MAX RS was designed as a street motorcycle.
before riding, take time to get acquainted with you
motorcycle and how it works. To protect your invest-
ment, we request to you to take responsibility for
keeping your motorcycle well maintained. Schedu-
led service is a must, of course.
But it is just importan to observe the brake-in guide-
lines, and perform all the pre ride and other periodic
checks detailed in this manual. The next 1000 kms
are the most important for the life of your motorcy-
cles engine. The proper usage during the first
kilometers will achieve maximum life and maximum
performance of your motorcycle. It is especially
important that you do not operate the motorcycle in
a manner that will cause engine over heating. We
also recommend that you read the owners manual
carefully before you ride. It is full of facts, instruc-
tions, safety information, and helpful tips.
If you have any questions, or if you ever need a
special service or repairs, remember that your UM®
dealer knows your motorcycle best and is dedicated
to your complete satisfaction. Please report any
change of address or ownership to your dealer so
that we are able to contact you.
This manual should be considered a permanent part of the motorcycle and should
remain with the motorcycle when it is resold.
This publication includes the latest production information available before printing.
United Motors International reserves the right to make changes at any time without
notice and without incurring any obligation.
5
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200

THANK YOU AND WELCOME
TO THE WORLD OF UM®

8USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
IMPORTANT POINTS
Your safety, and the safety of others, is the most
important. Operating this motorcycle safely is an
important responsability.
To help you to get informed about safety decisions,
we have provided operating procedures and other
information in this manual. This information alerts
you to potential ha ards that could hurt you or hurt
others. It does not and could not warn you about all
hazards associated with operating or maintaining a
motorcycle. thus you musy ese your own good
judgment. You will find important safety information
in a variety of forms, inclluding:
> Safety Labels - on the motorcycle.
> Safety Messages - preceded by a safety alert
symbol and one of the three signal words:
DANGER, WARNING, or CAUTION.
> Safety Headings - such as Important Safety
Reminders or Important Safety Precautions.
> Instructions - how to use this motorcycle correctly
and safely - This entire book is filled with important
safety information. Please read it carefully.
A FEW WORDS ON SAFETY
CAUTION
DANGER
if you dont follow instructions.
WARNING
You will be killed or seriously hurt
if you d follow instructions.
instructions.

CONTENTS
3
5
8
10
12
17
18
19
20
27
28
29
30
31
33
36
43
44
9
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
MAX RS
INTRODUCTION
IMPORTANT POINTS
VEHICLE IDENTIFICATION
IMPORTANT SAFETY INFORMATION
MODIFICATIONS
FUEL-SAVING TIPS
COMPONENT LOCATION & FUNCTION
INSTRUMENT PANEL
READY TO RIDE?
PRE-RIDE INSPECTION
BASIC OPERATION AND RIDING
ENGINE OIL
TECHNICAL SPECIFICATIONS PERIODIC
PERIODICAL MAINTENANCE & LUBRIOCACTION CHART
TROUBLE SHOOTING
RECOMMENDATIONS
WARRANTY POLICY

10 USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
VEHICLE IDENTIFICATION

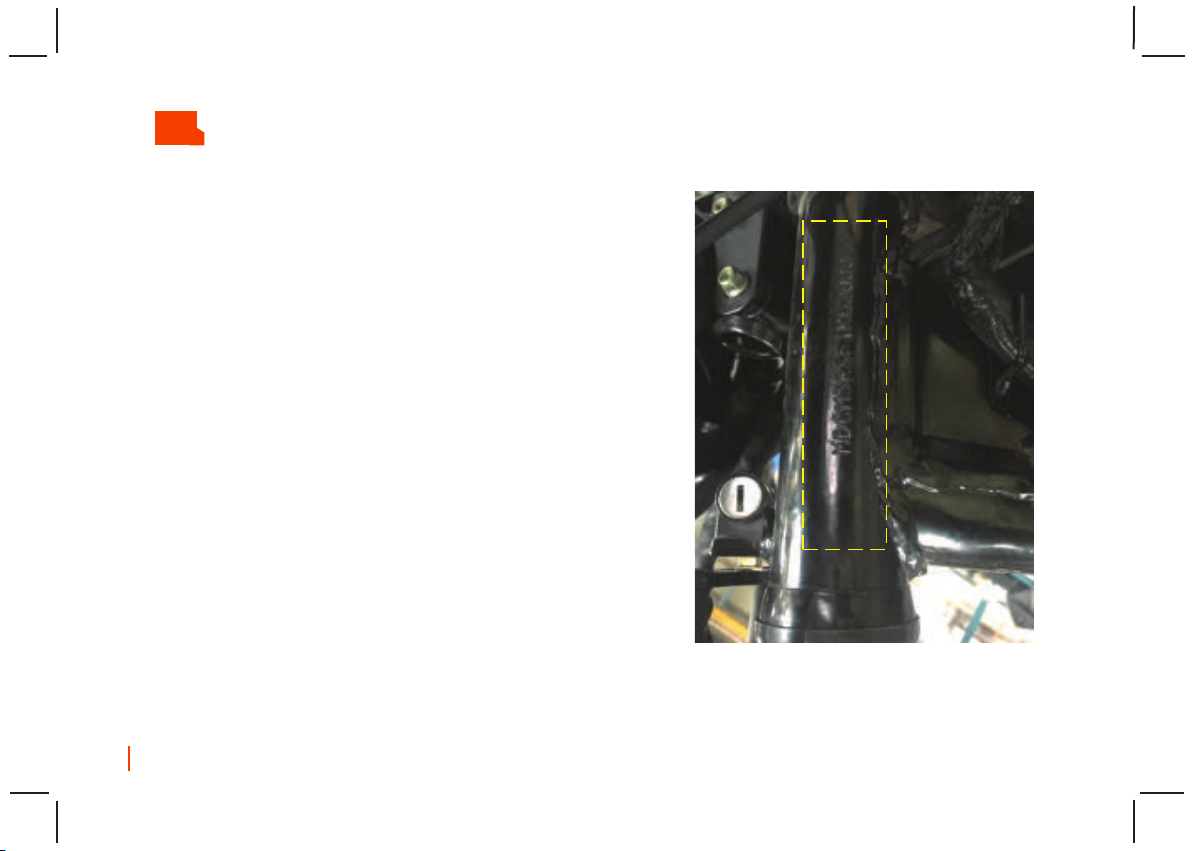

This number completely identifies your vehicle. This
number is used by all state, district, federal and
government entities, for regulation, emission purpo-
ses and registration. This identification number is
stamped on the chassis, and is located on the
steering column. Furthermore, our warranty system
is based on this identification number and the
engine number.
Your engine number will be used by a UM®authori-
zed dealer for vehicle identification purposes only.
This number is stamped on the left engine case,
below the shift pedal.
It is a crime to remove or tamper with the identifica-
tion numbers. If there is any issue with either of
these numbers, contact UM®. You need to
safeguard the VIN number (vehicle identification
number), as you may need it in case of registration
issues, warranty claims, theft, or if there is a service
bulletin or campaign.
VEHICLE IDENTIFICATION NUMBER

11
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
DIMENSIONS
2000mm
1280mm
850mm
750mm
1170mm

12 USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
IMPORTANT SAFETY INFORMATION
Your safety is very important. Your motorcycle can
provide many years of service and pleasure, if you
take responsibility for your own safety and unders-
tand the challenges while riding. There is much you
can do to protect yourself when you ride. Please
read through the following instructions before riding
your motorcycle the first time.
> Be sure you read this owner’s manual completely
and understand all operating features.
> Take sufficient time training with safe and proper
riding technique.
> Practice until you are knowledgeable take
sufficient time training with safe and proper riding
technique.
Failure to follow any safety instructions could cause
severe injury or even death to the motorcycle opera-
tor, passenger or pedestrians, Before riding
each time, make sure of the following:
Riding a motorcycle leaves the rider exposed.
Therefore, wearing appropriate protective gear can
prevent or diminish injuries from accidents.
Helmet - The majority of serious motorcycle injuries
and deaths are direct result of a head injury. There-
fore, drivers and passengers should always wear a
helmet to prevent or reduce the chance of head
injury.
Eye and Face Protection - A plastic face shield can
help prevent accidents by guarding the face and
eyes from debris, allowing the rider to devote full
attention to the road. Goggles or glasses can
protect the eyes in the same manner.
Clothing - Bright clothing should be worn by the
driver so as to be seen easily by other motorists.
Avoid loose clothing that could catch on the levers,
chain or wheels which could result in an accident.
Gloves give you a better grip and help protect your
hands.
WEAR PROTECTIVE GEAR

13
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
Before getting on your motorcycle, make sure:
> You have not consumed alcohol or taken drugs.
> You are in good physical and mental condition.
> You have done the recommended pre-ride inspec-
tion.
> Start the engine in a well-ventilated area. The
exhaust emits toxic and poisonous carbon monoxi-
de.
> Always follow the inspection and scheduled
maintenance procedures described in this manual.
> Test your brakes after operating in wet conditions.
> Never attempt wheelies, jumps and other stunts,
as these could cause damage to the motorcycle and
cause loss of control.
> Always keep both hands on the handelbar and
feet on the foot pegs during operation.
> Never consume alcohol or drugs before or while
riding your motorcycle.
> Limit the travel distance to avoid fatigue taht can
affect performance and awareness from the
elements.
> Do not touch the engine or exhaust after riding as
they will be extremely hot right after the engine has
been turned off.
> Park the motorcycle away from fuel or flammable
materials.
DO NOT RIDE WHILE UNDER THE INFLUENCE
DO NOT RIDE WHILE UNDER THE INFLUENCE
> Keep enough distance with the other vehicles
around you, this gives to you time to react.
> Always observe the rules of the road. Observe the
posted speed limit, and signal your turns well in
advance.
> Know your limits. Do not go faster than you are
able to control. Always travel at a speed that is
proper to the operating conditions, your ability and
experience.
> Always inspect your motorcycle each time you use
it to make sure it is at safe operating condition.

14 USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
Many motorcycle accidents are caused by car
drivers who do not see motorcycle riders on the
road. Therefore you need to follow these guidelines:
> Wear bright clothing to increase visibility. Bright
orange, yellow or green jackets or vests and a
brightly colored helmet can help others see you.
> Always use turn signals when you are planning to
turn or merge to main roads, and turn it off after you
have made your turn.
> Flash brake lights whenever you are going to slow
down quickly or where others may not expect you
are going to slow down.
> Stay out of blind spots of other motorists.
> When you come to an intersection, move to the
portion of your lane that will bring you into another
driver’s field of sight at the earliest possible moment.
BEING SEEN
The equilibrium and stability of your motorcycle are
affected by the manner in which you load it. It is very
important that you do not install accessories that
change the design and concept of the motorcycle.
Doing so could alter the safety of your motorcycle.
HOW TO KEEP YOUR MOTORCYCLE SAFE
You should avoid carrying passengers or large loads
until you have gained sufficient experience riding
alone. Extra weight changes handling, stability,
braking performance, turns, acceleration and
deceleration. The load you carry on the motorcycle
has an important effect on your safety, as well as the
life of the motorcycle; therefore, apart from driver
and passenger, it is advised to keep load to a
minimum. If you decide to carry any load, take the
following into account:
LOADING & CARRYING PASSENGERS

15
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
> Make sure the loads is as light and as small as
possible.
> Make sure the load does not interfere with any
moving parts.
> Make sure the load does not interfere with your
ability to move around in order to maintain proper
equilibrium.
> Put the load as close as possible to the center of
the motorcycle.
> Put only light load on read rack, if installed.
> Do not attach anything to handelbars, steering,
headlight or front forks.
> Strap everything properly.
> Inflate tires properly.
> Keep the load low and distribute the load evely. An
uneven load can cause the motorcycle to drift to one
side.
Carrying excess load on your motorcycle can cause
an accident or crash resulting in severe injury or
even death to the motorcycle operator, passenger
or pedestrians.
To carry passengers safely, you must instruct
the passenger before you start to:
> Wear a helmet.
> Get on the motorcycle after you have started the
engine.
> Sit as far forward as possible without crowding
the driver.
> Hold firmly to your waist, hips, belt or passenger
handles.
> Keep both feet on the pegs at all time, even when
the motorcycle stopped.
> Keeps legs away from hot and moving parts.* Stay
directly behind you, leaning as you lean.* Avoid any
unnecessary motion.
LOADING & CARRYING PASSENGERS
> Go slower.
> Start slowing earlier as you approach a stop.
> Maintain a large cushion of space ahead and to
the sides.
> Wait for large gaps when you want to across,
enter or merge into traffic.

16 USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
PETROL AND EXHAUST FUMES
Petrol is highly flammable and exhaust fumes are
poisonous:
> Turn off engine before refueling.
> Do not spill any Petrol on the engine, exhaust
system or the plastic parts.
> Do not refuel while smoking or near any open
flame.
> Do not operate your motorcycle in a closed area
as the exhaust fumes may cause loss of conscious-
ness or death within a short time.
> Do not park the motorcycle near a flame source.
> If you swallow Petrol, inhale Petrol vapor or spill
Petrol in your eyes, see a doctor immediately or go
to the nearest hospital.
> If you spill Petrol om your clothes, change and
wash the affected area immediately with soap.

17
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
MODIFICATIONS
Any modifications to this motorcycle, removal of
original equipment or use of unapproved acces-
sories, may cause it to be unsafe for use and may
trigger severe accidents. Some modifications may
also make your motorcycle illegal to use on public
roadways, and will void all warranty coverage.
Your dealer is familiar with all recommended acces-
sories for your motorcycle, and should be consulted
before installing any accessories. The owner of the
motorcycle is responsible for the safety, installation
and usage of any accessories not approved by UM®.
Before installing new accessories, make sure they
do not interfere with moving parts, reduce ground
clearance, and do not interfere with the operating
controls.
WEAR PROTECTIVE GEAR
The long term wear and duration of your motorcycle
depends of the way you treat it during the first days
of operation and the first 1000 kilometers. During
this period, limit full throttle operation, and avoid
driving at high speeds and any condition that may
result in engine overheating. Do not exceed 65 Km
during the initial running-in period

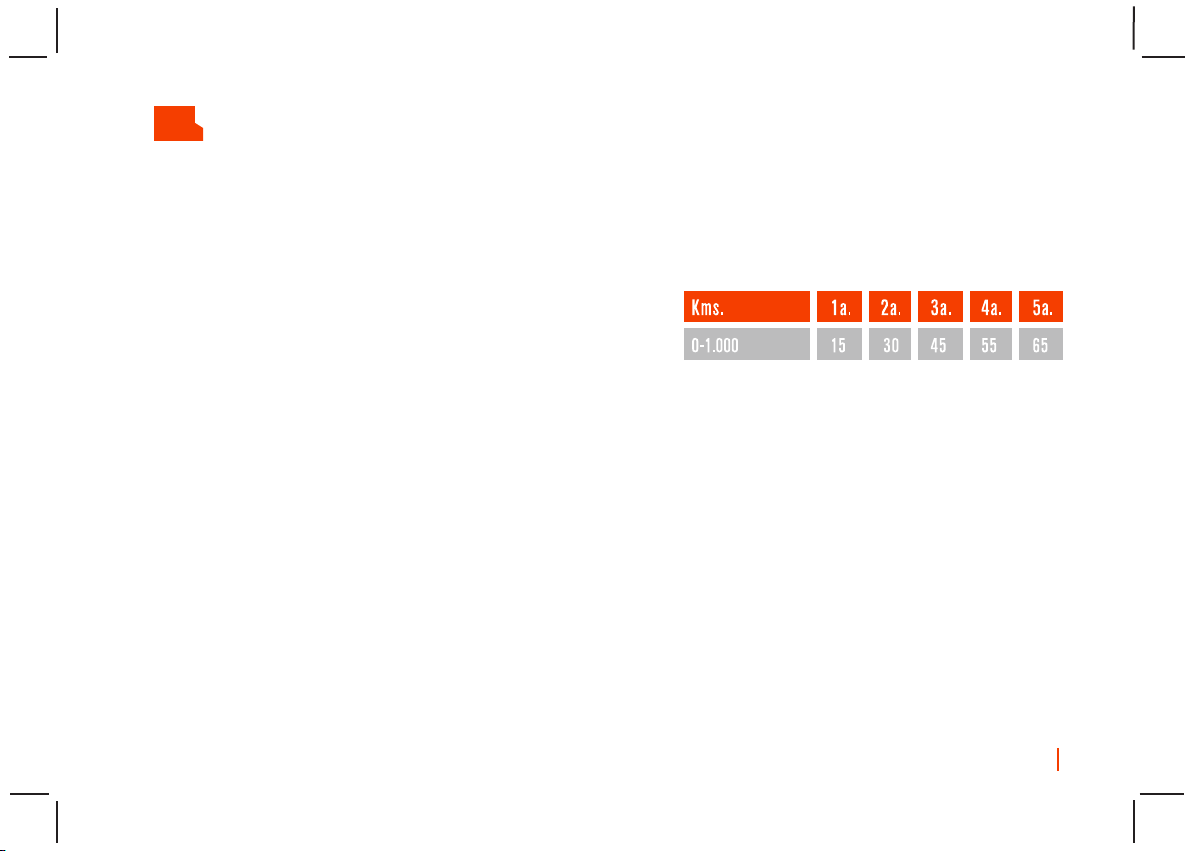

The recommended maximum speeds in kilometers
per hour during the initial running in period, and the
next 1000 kms are the following :
> Always stay within these limits during the break-in
period.
> Do not accelerate the engine excessively.
> Do not move the motorcycle immediately after
starting the engine. Allow the engine to warm up fpr
a minute at low rpm so that proper lubrication
reaches the top end of the motor.
> Avoid letting the engine stall. Downshift before to
maintain proper engine revolutions.

18 USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
FUEL SAVING TIPS
The way you drive your motorcycle will have a direct
impact on your fuel consumption.
> Driving at appropriarte speed and avoiding
sudden acceleration or braking, is not only important
for your safety and fuel economy, but also to extend
the usable life of your motorcycle and to achieve a
smoother operation.
> Driving within allowed limits inside the city will
yield surprising fuel economy.
> Always maintain tires at recommended pressure.
Check pressure weekly.
> Have your motorcycle inspected and serviced
according to the periodic service and maintenance
table.
> Check that brakes are not dragging and preven-
ting the wheels from turning freely. Avoid riding with
the rear brake pedal pressed.
> Turn off the engine if waiting for more than a few
minutes.
> Do not fill up fuel tank above cap neck.

19
USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200
COMPONENT LOCATION & FUNCTION
1
5
24
3
1
2
3
4
LEFT CONTROL RIGHT CONTROL
Clutch Lever
Horn Button
High and low beam switch
Turning Lights
Passing light switch
1
2
3
4
5
Engine kill switch
Start switch
Front brake lever
Throttle grip
Light on / off switch
1
2
3
4
5
5

20 USER MANUAL
UM MOTORCYCLES MAX RS 125 - 150 - 200

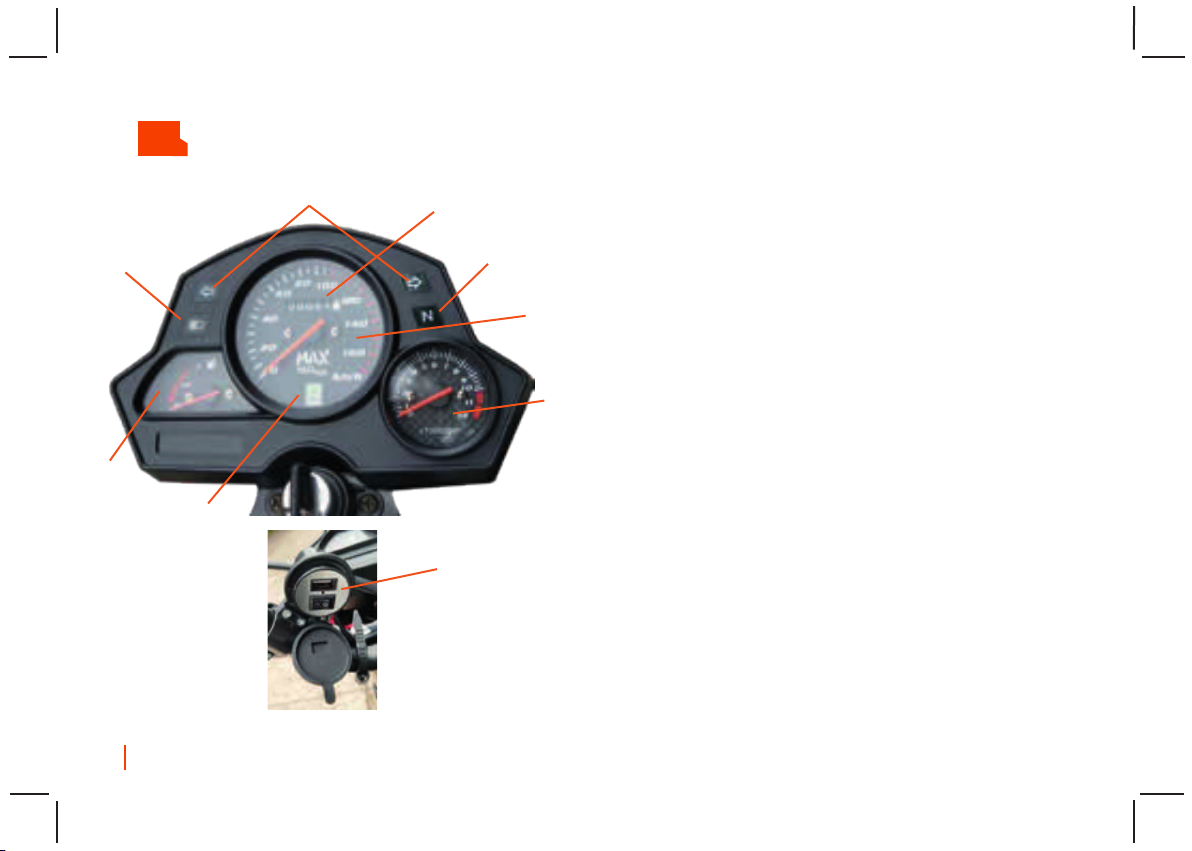

INSTRUMENT PANEL
Directional Light: It will turn on when move the
directional switch to the left or to the right.
Neutral light: Indicates when engine is in neutral and
there is no gear engaged.
High Beam Indicator: It will turn on when the head
light is in high beam position.
Spedometer: Indicates the instantaneousn speed of
the motorcycle.
Odometer: Indicates accumulated distance.
Gear Position: Indicates the engine's gear position.
Fuel gauge: Indicates fuel level on.
Tachometer: Device that measures the rotational
speed of a shaft, usually the rotational speed of a
motor.
USB charger
15
32
9
4
6
7
8
1
2
3
4
5
6
7
8
9
