Welcome Guide •English
Contents:
Before getting started, ensure the package contains the following components:

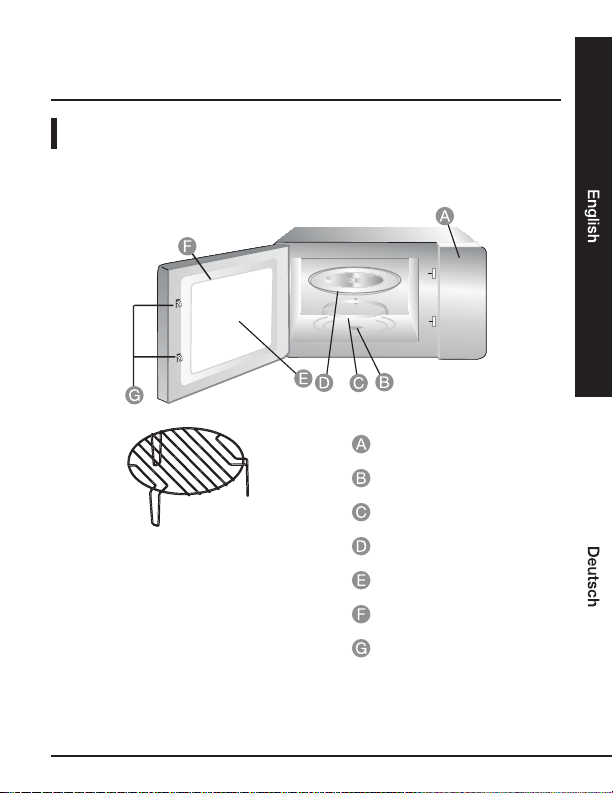

Control panel
Turntable shaft
Turntable ring assembly
Glass tray
Observation window
Door assembly
Safety interlock system
Grill Rack (Cannot be used in microwave mode
and must be placed on the glass tray)

4
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed
to a third party, these instructions must be included.
When using electrical appliances, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and/or injury to persons including the following:
• Read and follow the specifications: ”PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY”.
• This appliance can be used by children of ages 8years and above and by persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instructions regarding the safe use of the appliance and understand the
hazards involved. Children may not play with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8years old and are supervised. Children less
than 8 years of age must be kept away unless continuously supervised.
• Keep the appliance and its cord out of reach of children younger than 8 years old.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons.
Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.
It is hazardous for anyone other than a competent person to carry out any
service or repair operation that involves the removal of a cover that gives
protection against exposure to microwave energy.
Liquids and other foods must not be heated in sealed containers since they are
liable to explode.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility
of ignition.
• Only use utensils that are suitable for use in microwave ovens.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to
stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling; therefore, care must be
taken when handling the container.
• The contents of feeding bottles and baby food jars must be stirred or shaken and the
temperature checked before consumption in order to avoid burns.
• Eggs in their shells and whole hard-boiled eggs should not be heated in microwave ovens since
they may explode, even after microwave heating has completed.
• The oven should be cleaned regularly and any food deposits should be removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface which
could adversely affect the life of the appliance and possibly result in a hazardous situation.
WARNING
WARNING
WARNING

5
• The appliance must not be installed behind a decorative door in order to avoid overheating.
(This is not applicable for appliances with decorative door.)
• For ovens that provide the ability to use temperature-sensing probes, only use temperature
probe recommended for the oven.
• The microwave oven must not be placed in a cabinet unless it has been tested in a cabinet.
• The microwave oven must be operated with the decorative door open. (This is for ovens with a
decorative door.)
• This appliance is intended to be used in household and similar applications such as:
–Staff kitchen areas in shops, offices and other working environments;
–By clients in hotels, motels and other types of residential environments;
–farm houses;
–Bed-and-breakfast environments.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury,
ignition or fire.
• Metallic containers for food and beverages are not allowed during microwave cooking.
• The appliance shall not be cleaned with a steam cleaner.
• The appliance is intended to be used freestanding.
• The rear surface of the appliances should be placed against a wall.
• The appliances are not intended to be operated by means of an external timer or separate
remote control system.
• The temperature of accessible surfaces may be high when the appliance is in operation.
When the appliance is operating in the combination mode, children should only
use the oven under adult supervision due to the temperatures generated.
Precautions to Avoid Possible Exposure to Excessive
Microwave Energy
• Do not attempt to operate this oven with the door open since this can result in harmful
exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the front face and the door of the oven or allow soil or cleaner
residue to accumulate on sealing surfaces.
If the door or door seals are damaged, the oven must not be operated until it
has been repaired by a competent person.
Addendum
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface which
could adversely affect the life of the appliance and possibly result in a hazardous situation.
WARNING
WARNING

6
To Reduce the Risk of Injury to Persons Grounding Installation
Electric Shock Hazard Touching some of the internal components can cause
serious personal injury or death. Do not disassemble this appliance.
WARNING
• Electric Shock Hazard Improper use of the grounding can result in electric shock.
• Do not plug into an outlet until appliance is properly installed and grounded.
• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current.
• This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed and grounded.
• Consult a qualified electrician or serviceman if the grounding instructions are not completely
understood or if doubt exists as to whether the appliance is properly grounded.
• If it is necessary to use an extension cord, use only a 3-wire extension cord.
1. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
–The marked electrical rating of the cord set or extension cord should be at least as great
as the electrical rating of the appliance.
–The extension cord must be a grounding-type 3-wire cord.
–The long cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
SAVE THESE INSTRUCTIONS
DANGER

7

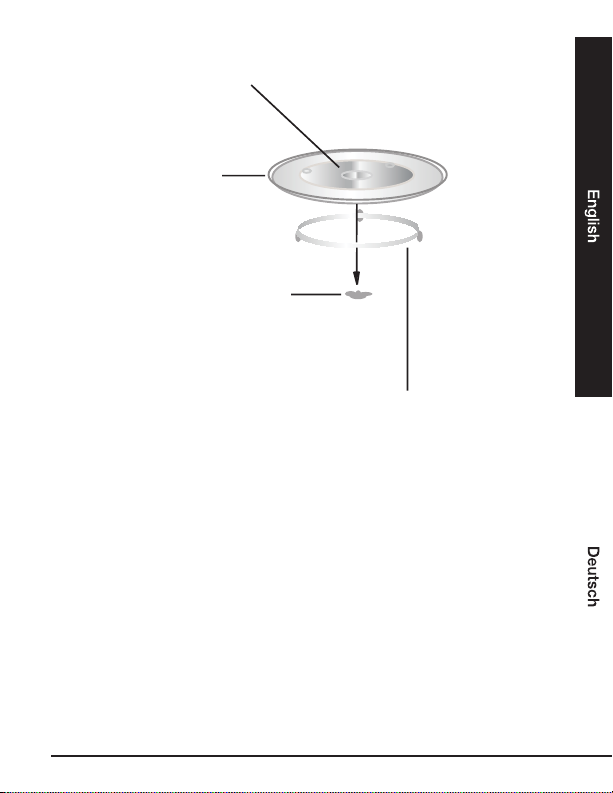

Turntable Installation
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly
• Never place the glass tray upside-down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must always be used during cooking.
• All food and containers of food are always placed on the glass tray for cooking.
• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized
service centre.
Countertop Installation
• Remove all packing material and accessories.
• Examine the oven for any damage such as dents or a broken door. Do not install if the oven is
damaged.
• Cabinet: Remove any protective film found on the cabinet surface of the microwave oven.
• Do not remove the light brown Mica cover that is attached to the oven cavity in order to protect
the magnetron.

8
Installation
1. Select a level surface that provides enough open space for the intake and/or outlet vents.
Min. 85cm
20cm
0cm 30cm
20cm
a. The minimum installation height is 85 cm.
b. The rear surface of the appliance should be placed against a wall.
Leave a minimum clearance of 30 cm above the oven. A minimum clearance of 20 cm is
required between the oven and any adjacent walls.
c. Do not remove the legs from the bottom of the oven.
d. Blocking the intake and/or outlet openings can damage the oven.
e. Place the oven as far away from radios and TVs as possible. Operation of the microwave
oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Make sure the voltage and the frequency are
the same as the voltage and the frequency on the rating label.
Do not install the oven over a range, cooktop, or other heat-producing
appliances. If installed near or over a heat source, the oven could be damaged
and the warranty would be void.
WARNING The accessible surface may be hot during operation.
WARNING

9
Operation
This microwave oven uses a modern electronic control to adjust cooking parameters in order to
better meet your cooking needs.
1. Setting the Clock
When the microwave oven is electrified, the oven will display “0:00” and the buzzer will sound once.
• Press “Clock/Preset”. The hour digits will flash.
• Turn “ ” to adjust the hour digits. Input time should be within 0-23.
• Press “Clock/Preset”. The minute digits will flash.
• Turn “ ” to adjust the minute digits. Input time should be within 0-59.
• Press “Clock/Preset” to finish setting the clock. “:” will flash.
If the clock is not set, it will not work properly when powered.
During the process of setting the clock, if no operation is made for 1 minute,
the oven will automatically return to previous settings.
2. Microwave Cooking
• Press the “Micro./Grill/Combi.” key once, and “P100” will display.
• Press “Micro./Grill/Combi.” repeatedly or turn “ ” to select the microwave power. “P100”,
“P80”, “P50”, “P30”, “P10” will display in order.
• Press “Start/+30Sec./Confirm” to confirm.
• Turn “ ” to adjust the cooking time. (The time set should be between 0:05 - 95:00.)
• Press “Start/+30Sec./Confirm” to start cooking.
The step quantities for the adjustment time of the coding switch are as follow:
0-1 min : 5 seconds
1-5 min : 10 seconds
5-10 min : 30 seconds
10-30 min : 1 minute
30-95 min : 5 minutes
Microwave Power Chart
Microwave Power 100% 80% 50% 30% 10%
Display P100 P80 P50 P30 P10
NOTICE
NOTICE

10
3. Grill Cooking
• Press the “Micro./Grill/Combi.” key once, and “P100” will display.
• Press “Micro./Grill/Combi.” repeatedly or turn “ ” to select the grill power.
• Press “Start/+30Sec./Confirm” to confirm when the LED displays “G”.
• Turn “ ” to adjust grill time. (The time set should be between 0:05 - 95:00.)
• Press “Start/+30Sec./Confirm” to start cooking.
When the grill time is halfway completed, the oven will sound twice. In order
to have better grilling results, you should flip the food over, close the door, and
then press “Start/+30Sec./Confirm” to continue cooking. If no action is taken,
the oven will still continue cooking.
4. Combination Cooking
• Press the “Micro./Grill/Combi.” key once, and “P100” will display.
• Press “Micro./Grill/Combi.” repeatedly or turn “ ” to select the combination power.
“C-1(55%microwave+45%grill)” and “C-2(36%microwave+64%grill)” will display in order.
• Press “Start/+30Sec./Confirm” to confirm.
• Turn “ ” to adjust the cooking time. (The time set should be between 0:05 - 95:00.)
• Press “Start/+30Sec./Confirm” to start cooking.
5. Speedy Cooking
• When in waiting state, press “Start/+30Sec./Confirm” key to cook at 100% power level for
30 seconds. Each press on the same key will increase the cooking time by 30 seconds. The
maximum cooking time is 95 minutes.
• During the microwave, grill and combination cooking, along with the timed defrost processes,
press “Start/+30Sec./Confirm” to increase the cooking time.
• When in waiting state, turn “ ” left to directly choose the cooking time. After setting the time,
press “Start/+30Sec./Confirm” to start cooking. The microwave power is 100%.
During weight defrost and auto menu function, cooking time cannot be
increased by pressing “Start/+30Sec./Confirm”.
6. Weight Defrost
• Press “Weight/Time Defrost” once. The screen will display “dEF1”.
• Turn “ ” to select the food weight. The weight range is 100-2000g.
• Press “Start/+30Sec./Confirm” key to start defrosting.
NOTICE
NOTICE

11
7. Time Defrost
• Press “Weight/Time Defrost” twice. The screen will display “dEF2”.
• Turn “ ” to select the cooking time.
• Press “Start/+30Sec./Confirm” key to start defrosting.
8. Multi-Stage Cooking
A maximum of two stages can be set. If one of the stages is used for defrosting, it should be put in
the first stage. After each stage completed, the buzzer will ring once and the next stage will begin.
Auto menu cannot be set as one of the stages.
Example: You want to defrost the food for 5 minutes, then cook it at 80% microwave power for
7 minutes. The steps are the following:
• Press “Weight/Time Defrost” twice. The screen will display “dEF2”.
• Turn “ ” to adjust the defrost time to 5 minutes.
• Press “Micro./Grill/Combi.” once.
• Turn “ ” to choose 80% microwave power until “P80” is displayed.
• Press “Start/+30Sec./Confirm” to confirm.
• Turn “ ” to adjust the cooking time to 7 minutes.
• Press “Start/+30Sec./Confirm” to start cooking.
9. Preset Function
• Set the clock first. (Refer to the instructions regarding setting the clock)
• Input the microwave cooking programme. Only a maximum of two stages can be set.
Defrosting should not be set as preset function.
Example: You want to cook at 80% microwave power for 7 minutes.
–Press “Micro./Grill/Combi.” once.
–Turn “ ” to choose 80% microwave power until “P80” is displayed.
–Press “Start/+30Sec./Confirm” to confirm.
–Turn “ ” to adjust the cooking time to 7 minutes.
After the steps above have been done, please do not press “Start/+30Sec./Confirm”. Do the
following:
• Press “Clock/Preset”. The hour digits will flash.
• Turn “ ” to adjust the hour digits. Input time should be within 0--23.
• Press “Clock/Preset”. The minute digits will flash.
NOTICE

12
• Turn “ ” to adjust the minute digits. Input time should be within 0--59.
• Press “Start/+30Sec./Confirm” to finish setting the time. “:” will light up. The buzzer will ring
twice when the time arrives and cooking will start automatically.
The clock must be set first. Otherwise, the preset function will not work.
10. Auto Menu
• When in waiting state, turn “ ” right to choose the menu from “A-1” to “A-8”.
• Press “Start/+30Sec./Confirm” to confirm the menu you chose.
• Turn “ ” to choose the food weight.
• Press “Start/+30Sec./Confirm” to start cooking.
• After cooking is completed, the buzzer will sound five times.
Menu Weight (g) Display Power
A-1
REHEAT
200 200
100%400 400
600 600
A-2
VEGETABLE
200 200
100%300 300
400 400
A-3
FISH
250 250
80%350 350
450 450
A-4
MEAT
250 250
100%350 350
450 450
A-5
PASTA
50 (with 450 g of water) 50 80%
100 (with 800 g of water) 100
A-6
POTATO
200 200
100%400 400
600 600
NOTICE

13
Menu Weight (g) Display Power
A-7
PIZZA
200 200 100%
400 400
A-8
SOUP
200 200 80%
400 400
11. Child Lock-out Feature
• Lock: When in waiting state, press “Stop/Clear” for 3 seconds. There will be a long “beep”
notifying that the appliance is entering the child-lock mode and the screen will display
“ ”.
• Cancelling the child safety lock feature: In locked state, press “Stop/Clear” for 3 seconds.
There will be a long “beep” notifying you that the lock has been released.
12. Inquiry Function
• When in the microwave, grill or combination cooking states, press “Micro./Grill/Combi.”. The
current power will be displayed for 3 seconds.
• In preset state, press “Clock/Preset” to ask the time set for delay-start cooking.
The preset time will flash for 3 seconds and the oven will go back to displaying the clock time.
• During cooking state, press “Clock/Preset” to check the current time. It will be displayed for
3 seconds.
13. Specifications
• The buzzer will sound once when the knob is first turned.
• “Start/+30Sec./Confirm” must be pressed to continue cooking if the door is opened during
cooking;
• Once the cooking programme has been set, and “Start/+30Sec./Confirm” is not pressed in a
matter of 1 minute, the current time will be displayed and the settings will be cancelled.
• The buzzer sounds once with every successful button press. Unsuccessful presses will yield no
response.
• The buzzer will sound five times to remind you when cooking is completed.

14
Utensils
Personal Injury Hazard. It is hazardous for anyone other than a competent
person to carry out any service or repair operation involving the removal of a
cover that gives protection against exposure to microwave energy.
• See the instructions on “Materials you can use or avoid using in the microwave oven”. There
may be certain non-metallic utensils that are not microwave-safe. If in doubt, you can test the
utensil in question following the procedure below.
• Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in
question.
2. Cook at maximum power for 1 minute.
3. Carefully feel the utensil. If the utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in the microwave oven
Utensils Remarks
Aluminium foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Browning dish Follow the manufacturer’s instructions. The bottom of the browning dish
must be at least 3/16 inch (5mm) above the turntable. Incorrect usage
may cause the turntable to break.
Dinnerware Microwave-safe only. Follow the manufacturer’s instructions. Do not use
cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat-resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags Follow the manufacturer’s instructions. Do not close with metallic twist
tie. Make slits to allow steam to escape.
Paper plates and
cups
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision
for short-term cooking only.
CAUTION

15
Utensils Remarks
Parchment paper Use as a cover to prevent splattering or as a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be
labelled microwave-safe. Some plastic containers soften, as the food
inside gets hot. “Boiling bags” and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not let the plastic wrap touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Utensils Remarks
Aluminium tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal or utensils
with metallic trims
Metal shields the food from microwave energy. Metallic trims may cause
arcing.
Metallic twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood Wood will dry out when used in the microwave oven and may split
or crack.

16
Cleaning and Maintenance
Make sure to unplug the appliance from the power supply.
• Clean the cavity of the oven after use with a slightly damp cloth.
• Clean the accessories with soapy water.
• The door frame and seal, along with their surrounding parts, must be cleaned carefully with a
damp cloth whenever they are dirty.
• Do not use harsh and abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
• Cleaning Tip---For easier cleaning of cavity walls that foods being cooked might touch: Place
half a lemon in a bowl, add 300ml (1/2 pint) water, and heat at 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
Troubleshooting
Normal
Microwave oven interfering with TV
reception
• Radio and TV reception may be interfered when
the microwave oven is being operated. It is similar
to the interference of small electrical appliances,
such as, mixers, vacuum cleaners, and electric
fans. It is normal.
Dim oven light • When using low microwave power to cook, oven
light may become dim. It is normal.
Steam is accumulating on the
door, with hot air coming out of the
microwave vents
• During cooking, steam may come out of food.
Most of the steam will come out from the vents.
But some may accumulate on cool places, such
as, the oven door. It is normal.
Accidentally started oven with no
food in it.
• It is forbidden to run the unit without any food
inside. It is very dangerous.
WARNING

17
Problem Possible Reason Solution
Oven won’t
turn on
• Power cord is not
properly plugged in.
• Blown fuse or tripped
circuit breaker.
• Problem with the
electrical outlet.
• Unplug. Then plug again after 10 seconds.
• Replace the fuse or reset the circuit breaker.
(Repair should be done by professional
personnel of our company.)
• Test outlet with other electrical appliances.
Oven does not
heat up
• Door is not properly
closed.
• Test outlet with other electrical appliances.
Specifications
Rated Voltage: 230 V~ 50 Hz
Rated Input Power (Microwave): 1050 W
Rated Output Power (Microwave): 700 W
Rated Input Power (Grill): 1000 W
Oven Capacity: 20 L
Turntable Diameter: Ø255 mm
External Dimensions: 440 x 350 x 259 mm
Net Weight: Approx.12.5 kg

18
Disposal
The Waste Electrical and Electronic Equipment (WEEE) Directive aims to minimize the
impact of electrical and electronic goods on the environment, by increasing re-use and
recycling and by reducing the amount of WEEE going to landfill. The symbol on this
product or its packaging signifies that this product must be disposed separately from
ordinary household wastes at its end of life. Be aware that this is your responsibility
to dispose of electronic equipment at recycling centers in order to conserve natural
resources. Each country should have its collection centers for electrical and electronic
equipment recycling. For information about your recycling drop off area, please contact
your related electrical and electronic equipment waste management authority, your local
city office, or your house hold waste disposal service.

19
Warranty Information
To obtain a copy of the warranty for this product:
Visit amazon.co.uk/basics-warranty
— or —
Contact Customer Service at 1-866-216-1072
Feedback
Love it? Hate it?
Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven products that live up to your high
standards. We encourage you to write a review sharing your experiences with the product.
Please visit: amazon.com/review/review-your-purchases#
For further services:
Visit amazon.com/gp/help/customer/contact-us
— or —
Contact Customer Service at 1-866-216-1072

20
Bedienungsanleitung •Deutsch
Inhalt:
Bevor Sie beginnen, prüfen Sie, ob die Verpackung die folgenden Teile enthält:
Bedienfeld
Drehplatten-Achse
Drehplatten-Ringelement
Glasteller
Sichtfenster
Türelement
Sicherheits-Sperrsystem
Grillrost (kann nicht im Mikrowellen-Modus
verwendet werden und muss auf dem Glasteller
positioniert werden)
