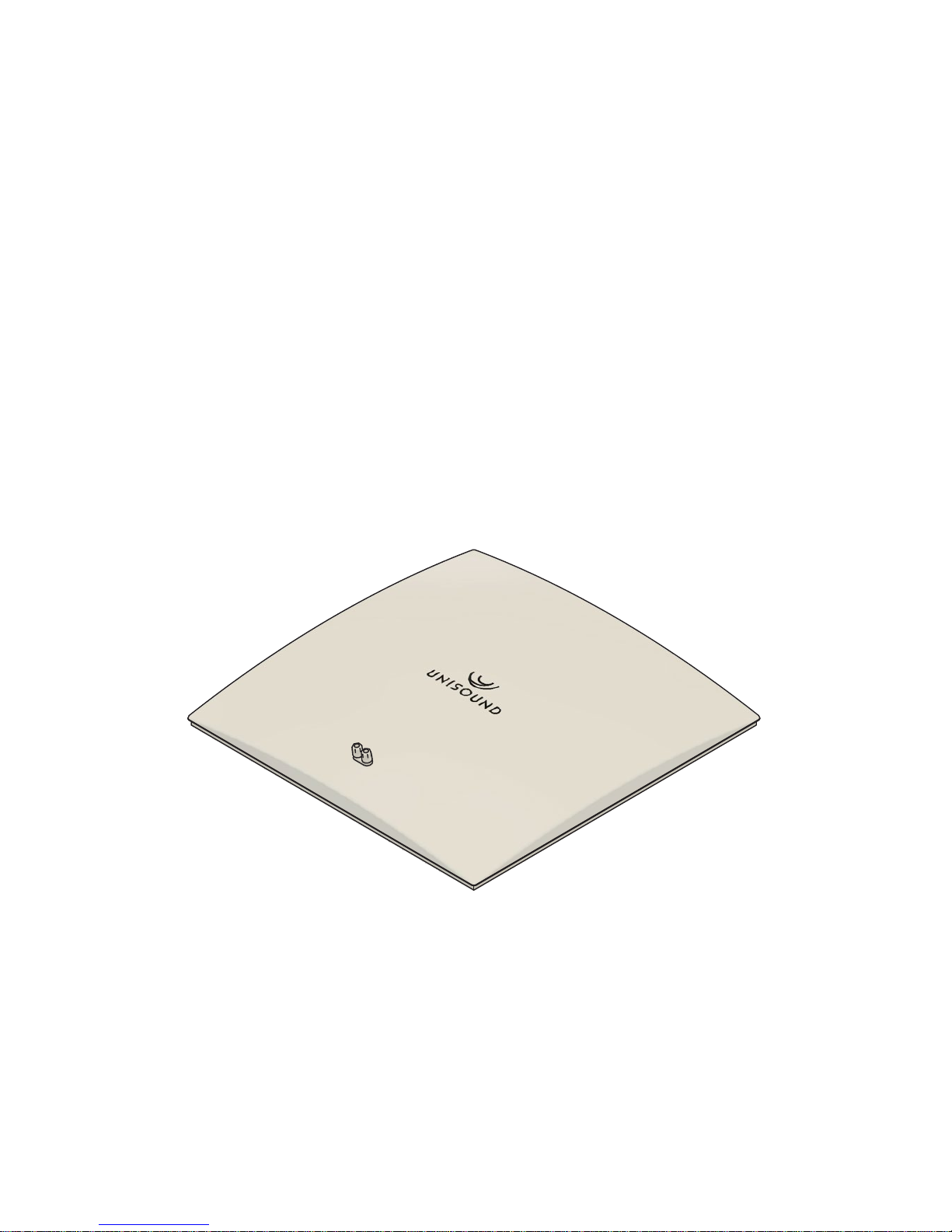

Unisound SPEAKER User manual

1
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
25.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
UNISOUND SPEAKER
Installation Manual

2
Important Safety Instructions
Please read the user manual thoroughly before use and
save for future reference.
WARNINGS:
• Do not place uncovered ame sources such as
candles near or on the product.
• All Unisound products must be used in accordance
with local, federal and industry regulations. It
is the responsibility of the installer to ensure
that installation of product and mounting is in
accordance with applicable building codes and
regulations.
• Unsafe mounting or overhead suspension may
cause injury, death and/or equipment damage.
• It is the responsibility of the installer to ensure
that any mounting technique applied is reliable.
CAUTIONS:
• These speakers are not designed nor
recommended for installation in or on walls
or in ceilings of masonry. To ensure optimal
performance and safety, please install in dropped
ceiling as per the installation instructions (p. 4).
• See product enclosures for safety-related
markings.
• Make no modications to product or accessories.
Alterations not authorized or recommended by
Unisound may result in injury, product damage
and poor system performance.
• These speakers are not designed nor
recommended for use outdoors, in recreational
vehicles or on boats.
• The speaker should not be placed in damp
rooms, or rooms with excess of water or steam.
WARNING:
Contains small parts that may be a choking hazard.
Not suitable for children under 3 years of age.
WARNING:
Product contains magnetic material. Consult your
physician if you have questions whether this may
affect any implantable device.
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions, and keep them for future reference.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use product near or in water.
5. Install in total accordance with manufacturer’s instructions.
6. Do not install near or on any heat sources, such as
radiators, stoves etc.
7. Use only accessories/attachments recommended by
Unisound.
This symbol means the product must not be discarded
as household waste, and should be delivered
to an appropriate collection facility for recycling.
Proper disposal and recycling helps protect natural
resources, human health and the environment. For
more information on disposal and recycling of this
product, contact your local municipality or disposal
service.
Unisound hereby declares that this product is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC and all
other applicable EU directive requirements.
PLEASE RETAIN FOR YOUR REFERENCE:
Model number: ________________________
Serial Number: ________________________
Date of Purchase: ______________________
Date of manufacture:
The year of manufacture is indicated by the serial number on the
product. Please review any information printed on the product.

3
Contents
Introduction..............................................................................................................................................................4
About..........................................................................................................................................................................4
Unpacking..................................................................................................................................................................4
Recommended Tools....................................................................................................................................................4
Speaker Wire Requirements.........................................................................................................................................4
Placement Guidelines...................................................................................................................................................4
Installing the Speaker.................................................................................................................................................5
Preparing the dropped ceiling and routing wires........................................................................................................5
Connecting the speaker wire.......................................................................................................................................5
Installing the speaker...................................................................................................................................................6
Connecting to Amplier................................................................................................................................................6
Care and Maintenance................................................................................................................................................7
Troubleshooting...........................................................................................................................................................7
Customer Service.........................................................................................................................................................7
Warranty......................................................................................................................................................................7
Technical Information....................................................................................................................................................7
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke

4
INTRODUCTION
About your Unisound Dropped-Ceiling Speaker
The Unisound Dropped-Ceiling Conference Speaker provides
superior dispersion of sound, delivering clear and present audio
for your conferencing, PA and music needs. It is unique in its
coverage and ease of installation.

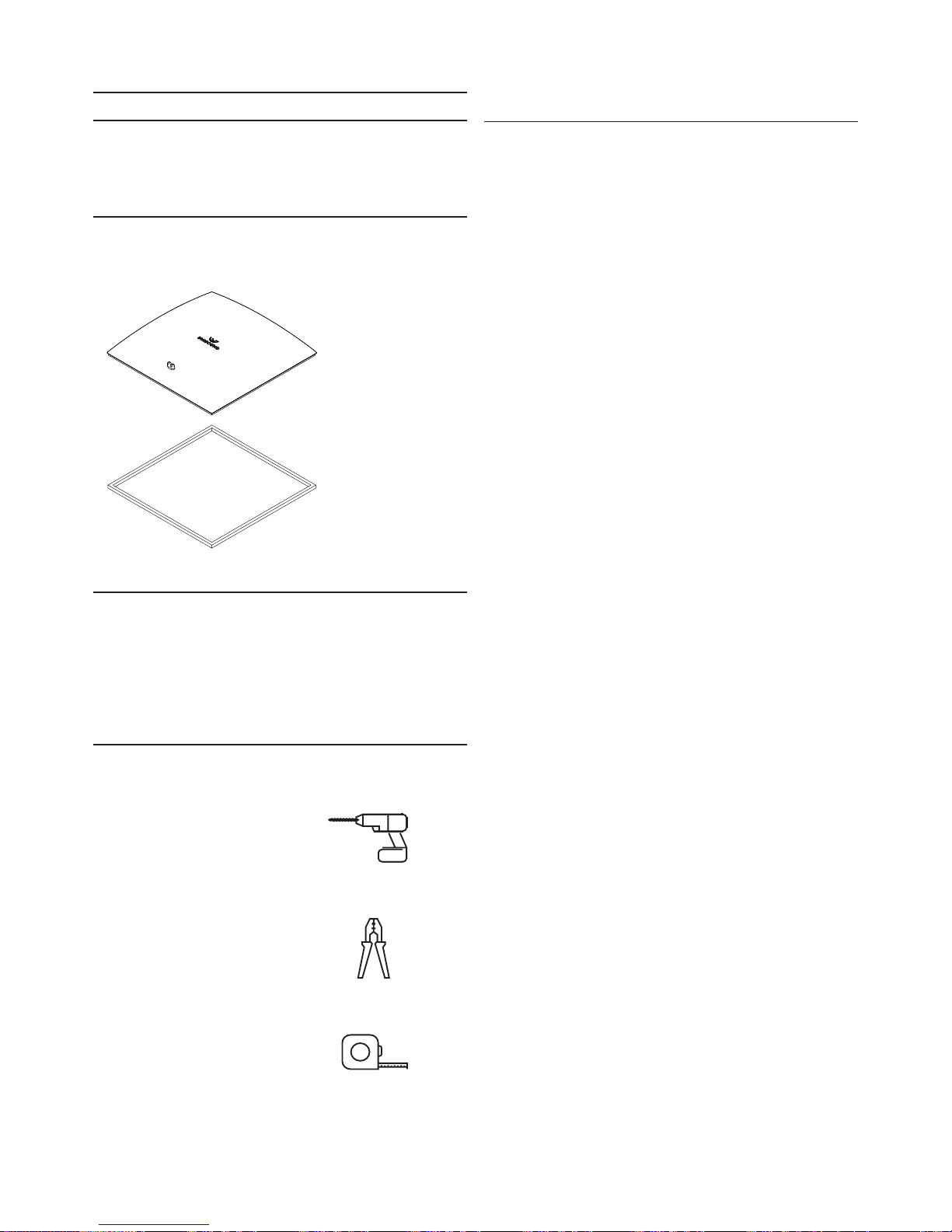

Unboxing

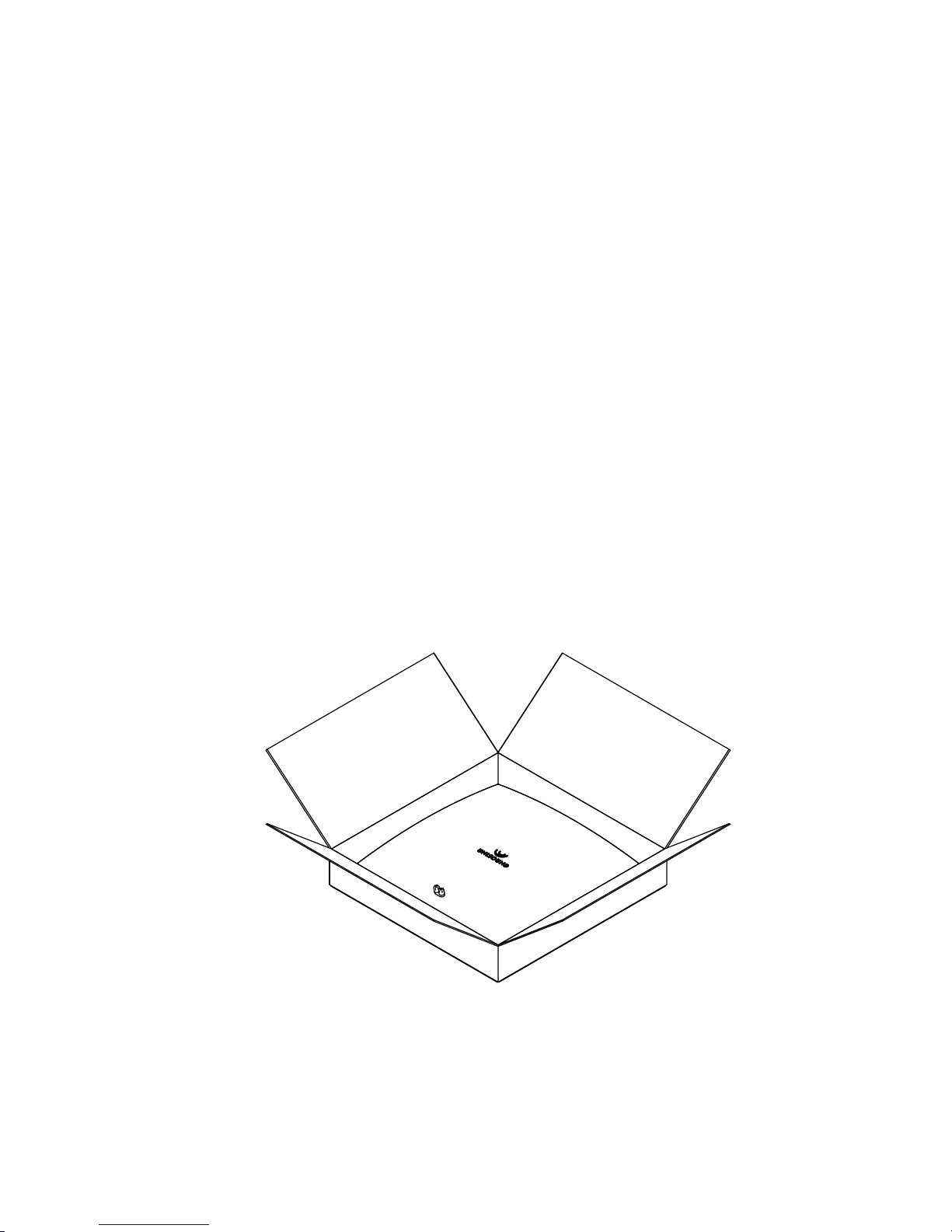

Open the cardboard box that your speaker was delivered
in, and make sure that all following part are included and in
acceptable condition (if not, contact Costumer Service, see p. 7)
Lift all parts carefully out of the packaging.
Speaker Wire Requirements
• Allow enough wire from the amplier to the speaker, with a
margin of at least 40 cm.
• Please check your local building codes for the correct wire
required for in-ceiling installation.
• Make sure that you are condent in installing speaker wires
before starting the installation.
Recommended Tools
The following tools may be required to complete your
installation.
Wire Routing Equipment
Wire Strippers
Measuring Tape
Placement Guidelines
For optimal performance, install the speakers in positions
similar to the diagrams shown in separate placement sheet. Be
aware of the suggested maximum distances.
570
598
570
598
15
SELF ADHESIVE,
ONE SIDE ONLY
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
SHEET 1 OF 1
10/26/16
OSCAR HARO
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MM
SCALE: 1:5
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
TOLERANCES ARE:
APPV'D
DESIGNED
DRAWN
FINISH
MATERIAL
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
UNISOUND
ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION
OF UNISOUND IS PROHIBITED.
A
DO NOT SCALE DRAWING
OSCAR HARO
10/26/16
10/26/16
REV
DESCRIPTION
DATE
APPVD
10/16
PRELIMINARY RELEASE
1.0
3.0
THIRD ANGLE PROJECTION
DECIMALS
X
.8 XX .3
ANGULAR: MACH
.5° BEND 1°
ITEM
QTY'
P/N
DESCRIPTION
MATERIAL
SCP-XB1-FL5
FOAM LINING FRAME
NOTED
NOTED
NOTES: UNLESS OTHERWISE SPECIFIED
UNISOUND
MAT: 15MM THICK SELF ADHESIVE BACK POLYURETHANE FOAM 1.
OPEN CELL, SMOOTH TEXTURE, DENSITY 2 LBS/CU FT.
COLOR: BLACK
ADHESIVE TYPE: RUBBER, TEMP 0° TO 140° F
2.0
REVISED NOTES
12/16
2. DIMENSIONS ARE GIVEN IN MM, GENERAL TOLERANCES ARE +/- 1MM
ADDED NOTE 2 3.0 12/16
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
Unisound Speaker
Foam Liner with
Adhesive

5
INSTALLING THE SPEAKER - DROPPED CEILING
Preparing the speaker
Remove any protection from the adhesive on the upper side of
the foam liner. Carefully align the liner with the frame of the
speaker, and press to glue the foam to the frame. The foam
prevents vibrations from dispersing into the ceiling frame.

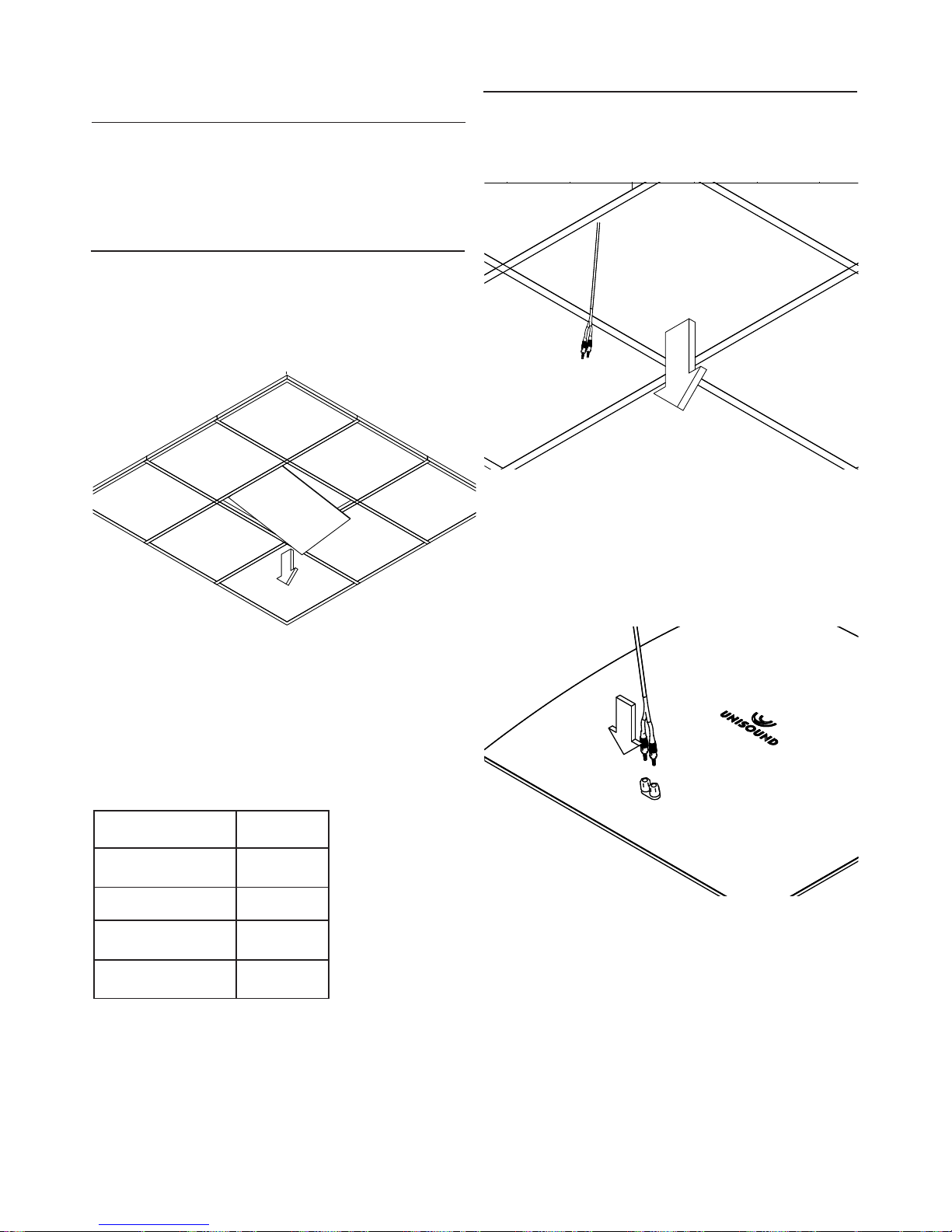

Preparing the dropped ceiling and routing the wires
NOTE: For installation with any applicable Unisound
accessories, please refer to the user manual of the relevant
accessory.
1. Remove the plate from the frame in the ceiling grid where the
speaker is intended to be installed.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
2. Always check with current building regulations and rules
before routing new cables. Make sure you use the right
thickness of cable, see table below, or ask your authorized
Unisound distributor.
Make sure the frame and the space immediately above in the
plenum is free of any traversing wires or other obstacles.
Gauge Max. Length
18 AWG (0.82 mm) 6 m
16 AWG (1.3 mm) 9 m
14 AWG (2.1 mm) 15 m
12 AWG (3.3 mm) 27 m
Place the speaker at the correct distance from the amplier/
receiver and measure thoroughly before cutting your cable to
length. Route the cable through to the back of the ceiling grid
through the plenum.
Connecting the speaker wire
1. Pull out at least 40 cm of the speaker wire through the ceiling
panel. Allow enough wire to connect to the speaker from where
you are standing.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
WARNING: In no case should the wire be directing current or
signal at the time of installation. If the wire is already connected
to an amplier on the other end, make sure the amplier is
turned off or not connected to power.
2. Connect the positive terminal of the wire to the red marked
terminal on the back cover of the speaker. Tighten the
connection if possible.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
3. Connect the negative terminal of the wire to the black marked
terminal on the speaker.
NOTE: While it is possible to daisy-chain multiple Unisound
speakers via series or parallel connection, Unisound does
NOT recommend this and will not be held responsible for any
equipment damage resulting from this.

6
INSTALLING THE SPEAKER
Installing the speaker
1. When the cable has been routed, connected and is securely
connected to the speaker, lift the speaker to the ceiling.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
WARNING: Do not push excessively on the front panel of the
speaker, as this may damage the membrane. Lift by the edges.
2. Tilt the speaker to such an angle that it goes through the
dropped ceiling frame.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
3. Readjust the speaker and lower it so that in rests rmly upon
the foam lining in the frame of the ceiling. The surface should be
horizontal and even. Make sure the speaker is secure.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
26.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
CAUTION: Make sure that nothing, including cables, is lying
directly on the back cover of the speaker, as these may cause
inconsistencies in system performance such as unwanted
noise.
CAUTION: Certain forms of insulation and other material you
may nd in the ceiling plenum may pose a risk of ignition.
Make sure that no such material is in contact with the speaker
terminals and wires.
Connect to amplier
1. Make sure all previous steps have been completed according
to this manual, and that the wire is securely fastened to the
speaker.
1
A
2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
27.07.2017
1/1
SCP-XB1 Rev 1
Torstein Bakke
NOTE: Illustration may not reect actual conditions.
2. Verify that the amplier is turned off or not connected to
power. Connect the free end of the wire to the speaker terminals
of your amplier.
CAUTION: Refer to the user manual of your amplier for proper
connection of the speaker wire and operation of the amplier.
Be sure to consider the specications of the particular speaker
and compatibility before connecting (see p. 7).

7
CARE AND MAINTENANCE
Troubleshooting
Problem What to do
No sound coming from speaker • Make sure you have power.
• Make sure the amplier/
receiver is turned on.
• Disconnect any headphones
or other connected to the
amplier.
• Make sure your amplier/
receiver is NOT set to MUTE
• Check your amplier’s User
Manual.
• Double check the connection
between amplier/receiver and
speaker.
• If your speaker is connected
as a complementary speaker,
make sure the amplier/
receivers output B is activated.
• Double check amplier inputs
and sound source.
• Try another speaker
Very low bass or treble • Check the settings on your
receiver.
• Adjust the equalizer on the
receiver.
• Double check that the positive
wire is connected to the
red marked terminal on the
speaker, and that the negative is
connected to the black marked
terminal on the speaker.
Sound in one speaker only • Make sure your receivers
balance controls are centered.
• Double check the connection
to the silent speaker.
• Disconnect the speakers, and
switch the outputs. If the silent
speaker now plays, there might
be an issue with the receiver.
• Connect the cable of the
working speaker to the silent
speaker. If the silent speaker
still does not play, there is a
problem with the speaker.
Static/noise from speaker • Ensure the wires are in good
condition, are rmly connected
to the speaker and receiver/
amplier and are not touching
across terminals.
• Connect the music source to
the receiver/amplier properly.
• See “Sound from one speaker
o n l y ”.
Customer Service
Unisound will go to great lengths to assist our customers.
For further assistance, please contact Unisound customer
service:
www.unisound.no
Email: [email protected] (globally)
Telephone: [phone], Europe
Telephone: [phone] or [phone], USA
Warranty
Twelve (12) months standard warranty applies to this product.
An extended warranty may be purchased on request; contact
Customer Service (see above)
Technical Information
Connectivity Banana plugs
Compatability Compatible with ampliers or
receivers rated
10-40W per channel/rated 8
ohms
Dimensions 586mm X 586mm X 75mm
Weight 3.7 kg

8
