Univa U600SCG User manual

600mm / 900mm
Chimney
Cooker Hood
Instruction Manual
U600SCG /
U900SCG

Introduction
Dear Customer
Thank you for choosing this quality, Univa Chimney Cooker Hood.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.
ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
IMPORTANT!
Keep this Instruction Manual safe for future reference
CONTENTS
SAFETY WARNINGS………………………… 3
INSTALLATION………………………………. 5
OPERATION………………………………….. 9
CLEANING & MAINTENANCE…………….. 10
TROUBLE SHOOTING………………………12
WARRANTY…………………………………..13

Electrical Information
Mains electrical voltage: 220-240V~50Hz
Total rated power consumption:
122W
SAFETY AND WARNINGS
To reduce the risk of fire, electric shock or injury when using your appliance,
follow basic precautions, including the following:
1. Intended for indoor and domestic use only!
2. Adequate ventilation of the room is required when the cooker hood is used at the
same time as appliances burning gas or other fuels.
3. WARNING! Refer to the instruction sheet for operating the appliance when air is
discharged from the room
4. Regulations regarding the discharge of air must be adhered to.
5. Do not check the status of the filters while the cooker hood is in operation.
6. To avoid injury, do not touch the light bulb within half an hour after use.
7. Do not flambe under the cooker hood.
8. Avoid opening the gasometer when there is no pan on the stove as this will
damage the filters and is also a fire hazard.
9. Hot oil is a fire hazard! Constant supervision is required when frying food.
10. Disconnect the electrical plug prior to cleaning, maintenance, or repairs.
11. The cooker hood must be installed above a hob with no more than four plates or
burners
12. When the range hood and other appliances supplied by energy, other than
electricity, are in operation simultaneously, the negative pressure in the room must
not exceed 4 Pa (4x10¯5 bar)
3

13. This appliance can be operated by anyone older than 8 years of age, except
persons with reduced physical, mental capabilities, or lack of experience and
knowledge who may operate this appliance under supervision and/or have been
given instructions concerning the safe operation of this appliance and the potential
hazards that may arise from improper use.
Children must not play with the appliance. Cleaning and user maintenance must
not be carried out by children unless they are older than 8 years of age and under
adult supervision. Children younger than 8 years of age must be kept away unless
continuously supervised.
14. WARNING: The appliance must be switched off before replacing the lamp to
avoid the possibility of electric shock.
15. WARNING: Do not allow anyone other than qualified service personnel to carry
out maintenance or repairs as this will void the warranty.
16. WARNING: Fire Risk if cleaning instructions are not followed as stipulated in the
manual.
17. WARNING: To avoid the risk of electrical hazards, install the screws or fixing
device as per the instructions set out in this manual.
18. To avoid damaging the connecting wires, only use the screws supplied with the
unit and the pre-drilled holes to install.
19. The installation height of the hood must NOT be less than 65cm.
20. WARNING: Fire Hazard! Clean the filter screen regularly
21. Damaged supply cords must be replaced by the manufacturer, approved service
agents or a qualified electrician.
4

INSTALLATION
Mounting your extractor
When the extractor is installed above a
hob, the minimum distance between the
hob and the extractor must exceed
550mm.
Note: The height should be measured
from the top of the burners
.
The width of any hob must not be
greater than the width of the
extractor installed above it.
Ducting and ventilation
For best performance and lowest noise output we recommend the use of 150mm
ducting. 125mm ducting may be used but this will reduce performance and increase
the noise of the extractor.
Wherever possible, use the rigid circular pipe which has a smooth interior rather than
the expanding concertina style ducting.
The lengths of ducting without affecting performance are as follow:
• 4 metres with 1 x 90° bend
•
3 metres with 2 x 90° bends
•
2 metres with 3 x 90° bends
5

Installation
The metal casing of this appliance has been coated with a preservative to protect it during
transport and storage. This should be removed during installation by using a non-abrasive
stainless-steel cleaner. Always follow the instructions given with the cleaner being used.
RISK! Ensure the appliance is not connected to power supply during this cleaning process.
When correctly installed, your product meets all safety requirements laid down for this
type of product. However, special care should be taken around the rear of the appliance
as these areas are not designed nor intended to be touched and may contain sharp or
rough edges that could cause injury. Always wear adequate Personal Protective
Equipment (PPE).
Note:
• Two people are required to install the chimney hood
• The fixings supplied are suitable for most installations. It is the responsibility of the installer to
ensure that the fixings are suitable for the ceiling type in the property
• Cover any hob or surface below the area in which the extractor is to be installed, to avoid
any damage to it
6

Drill holes
Fig. 7
Fit wall fixings and top screws -
Ensure that any fixings you use are
appropriate for the wall type.
10mm
Fig. 8
Secure hood (tighten all screws)
Fig. 9
IMPORTANT !
Only use the screws provided with the extractor to mount the ducting adaptor. The use of longer
screws may cause damage to the internal wiring which will not be covered by the warranty.
Mark out wall as required, see Fig 4.
Fig. 6
Tools required
8
Fig. 5
7

Mount chimney brackets.
Fig. 10
Fix ducting (seal joint)
Fig. 11
Mount the chimney.
Fig. 12
Adjust and secure
the chimney.
Fig. 13
Note: If using the supplied ducting adaptor to reduce the diameter from 150mm to
125mm, secure this in before continuing to
Fig. 11
8

A B C
OPERATION
For best performance, switch on the extractor 15 minutes before starting to cook and leave
it to run for approximately 15 minutes after the end of cooking.
Control Panel
A – Power off Button
B - Speed level buttons
C - Light button
To switch the extractor light On or Off
• Press button “C”
To switch on the extractor or to change the speed at any time when the extractor
is running
• Press the relevant “B” button for the first, second or third speed level as required.
To switch the extractor off
• Press the “A” button.
9

CLEANING AND MAINTENANCE
IMPORTANT: Do not perform maintenance or
cleaning of the extractor without first switching
off the electricity supply.
Cleaning
Only use a non-abrasive cleaner. Any abrasive
cleaner will scratch the surface and could
erase the control panel markings.
Clean the extractor effectively by using a diluted solution of water and mild
detergent and drying to a shine with a clean macrofibre cloth.
Cleaning the grease filter
The grease filter should be kept clean to minimize the risk of fire.
At least once a month remove and clean the grease
filter with hot soapy water. The
grease filter can also be washed in a dishwasher, ensuring it is placed in an upright
position to prevent damage from other items in the dishwasher.
To remove the grease filter, push in the button on the handle and then pull outwards on
the filter as shown in Fig. 2. When it has been
released at the front, pull the filter out
completely.
After rinsing and drying, reassemble the grease filter to the hood by reversing the
removal process.
Fig.4
Fig. 2
Cleaning Tip:
-Remove the metallic filter
from the cooker hood.
-Wash in a solution of water
and neutral liquid detergent,
leaving to soak
-Rinse thoroughly with
warm water and leave to dry
-The metallic filter may also
be washed in the
dishwasher.
The metallic filter may
discolor after several
washes. This is not cause
for customer complaint nor
replacement of metallic
filter.
10

Important:
Cleaning the grease filter in the dishwasher may lead to discolouration. This is normal and
does not constitute a fault with the appliance
Changing the charcoal filter (re-circulating only)
To ensure the best performance of the extractor, it is recommended to replace the charcoal
filter every four to six months, depending on the use.

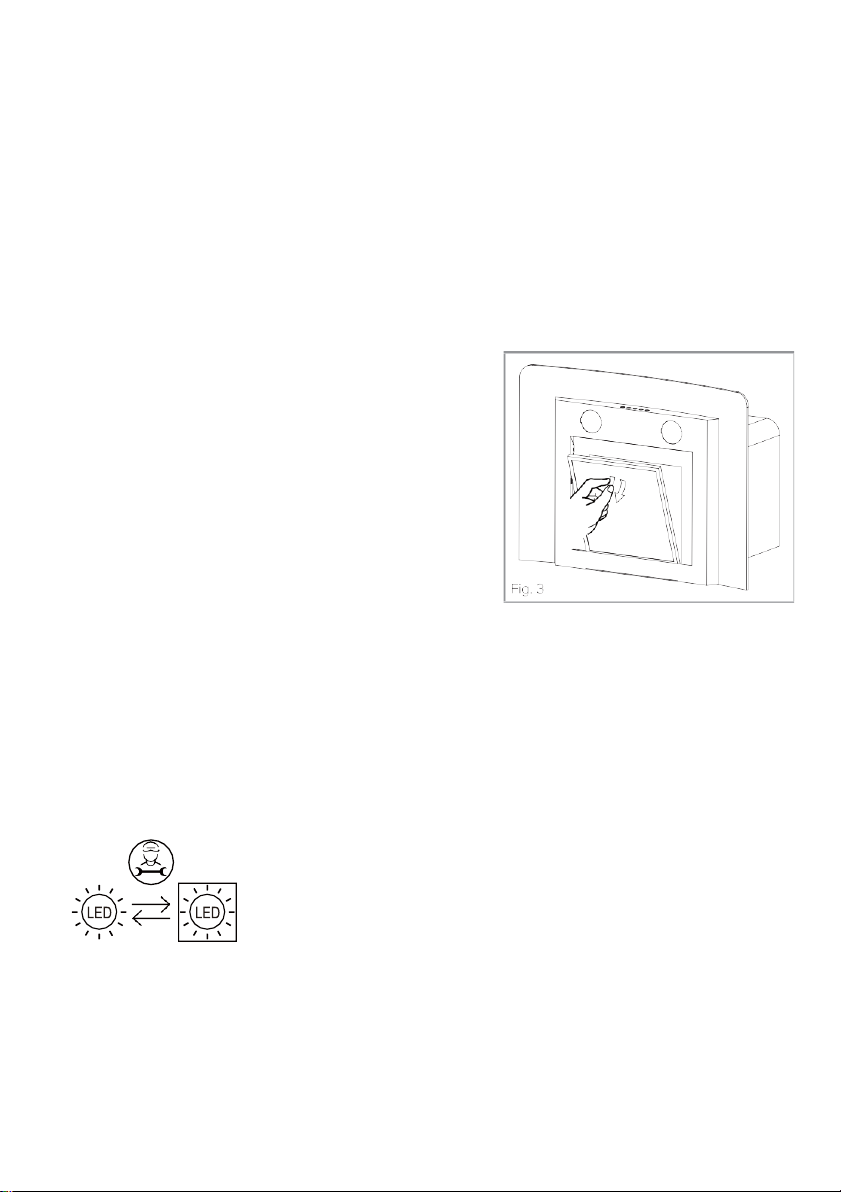

To attach a new charcoal filter, first remove the grease filter as described in Fig.4
To attach the charcoal filter
Offer up the charcoal filter as shown in Fig.3 so
that the magnetic pins are facing upwards one to
the rear and one to either side.
The filter will be held in place by magnetic force.
Finally replace the grease filters.
LED lighting
In case of malfunction of the illumination system contact an approved service agent or
qualified electrician.
11

Troubleshooting
Please note:
The extractor is equipped with a motor protection device that will switch off the
motor to prevent damage from overheating. This may happen during cooking
when most, or all of the zones/burners are being used simultaneously, or if the
extractor is installed incorrectly, lower than the recommended height.
This is normal, and the extractor will work again once the motor has cooled
sufficiently.
If your extractor is not working:
1. Check that the mains supply has not been switched off.
2. Check that the fuse in the spur has not blown.
DISPOSAL
This product must not be disposed with other household waste.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse material resources.
12

UNIVA WARRANTY
This guarantee is issued by Univa in respect of all products manufactured and
sold by Univa. The liability to Univa is limited to the following conditions:
1. This guarantee operates in favour of the original purchaser of new
appliances only and cannot be ceded, assigned or transferred. Univa shall
have no liability in respect of second hand goods or to second or
subsequent purchasers of any appliances.
2. This guarantee shall operate for a period of Two Years from the date of
original purchase of the appliance which date shall be proved to the
reasonable satisfaction of a Univa authorized service Agent or consultant.
3. The liability of Univa shall be limited to the repair or replacement by a Univa
authorized service dealer in its sole discretion of the defective parts of the
appliance at its sole cost. Univa shall not be liable for any loss or damage
suffered by the customer or any other party or caused to the appliance
arising from negligent use.
4. Should the defective appliance be situated further than 50 km from the
nearest Univa service centre or authorized service agent, Univa shall be
entitled to charge its customer a travelling rate for such distance in excess
of 50 km.
5. The liability of Univa shall be limited in respect of defective parts or material or
in respect of defective workmanship only. Univa authorized service agent
shall have no liability if, in its opinion, the defect or fault was caused through
faulty installation, accidental damage, incorrect usage, misuse or abuse,
failure to follow the operating instructions, fire, flood, civil disturbances or any
Act of God. The company shall not be responsible for damages caused by
insect and/or animal infestation. Univa shall not be obliged to replace filters,
light bulbs, fuses, vitreous enamelware, and any other items which Univa, in
its sole discretion, determines that the life of such item depends on the
amount of use and care taken in respect of such item.
6. The guarantee shall become void and cease to operate if the appliance is
dismantled by or any repairs to the appliance are affected by any persons not
duly authorized by Univa, or if any non-genuine Univa parts are used in the
appliance, or if the serial number of the appliance is removed.
7. The product has been designed and manufactured for normal domestic use
and the warranty will accordingly become void and cease to operate if the
product is not used for domestic purposes.
8. If the customer is unable to prove the date of purchase of the appliance to the
reasonable satisfaction of the representative of a Univa authorized service
agent or if no fault or defects are found in the appliance, a Univa authorized
service agent shall be entitled to charge for the work done and travelling
expenses incurred.
13

Details of Head Office
➢ Howick Mews, Waterfall Park, Bekker Road, Vorna
Valley, Midrand, Gauteng, South Africa
➢ P.O. Box 1482, Halfway House, Gauteng, 1685
➢ Sales and Marketing Tel: [phone]
Email: [e-mail]
➢ Service and Spares: Tel: [phone]
Email: [e-mail]
www.univa.co.za
