1 Overview

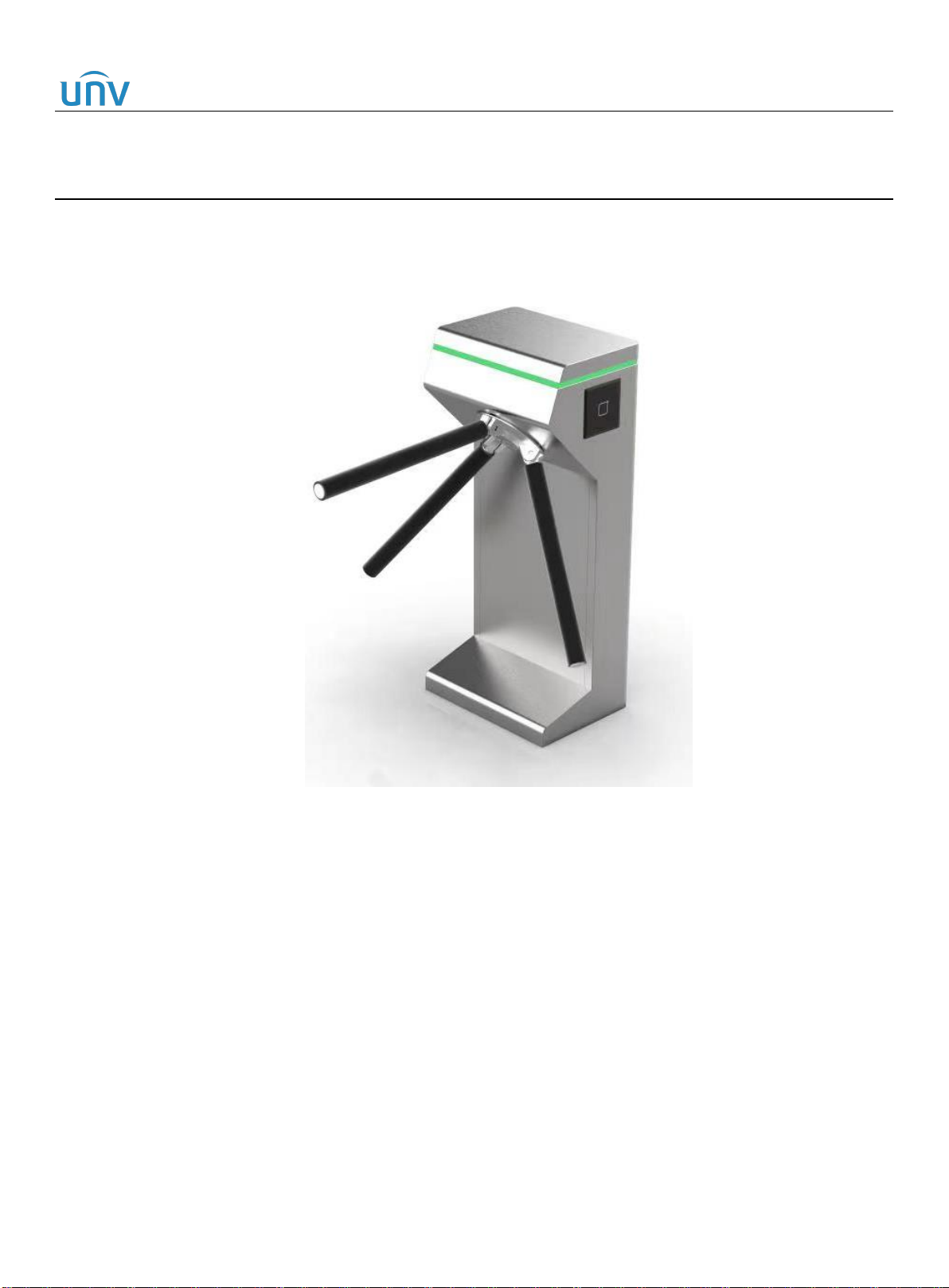

Figure 1-1 OFG5312 Tripod Turnstile

OFG5312 Installation Guide V1.0.0 Internal Use Only
3
2 Site Survey
Before the site survey, you need to have a comprehensive understanding of the project, including
background, scale, quality objectives, cycle, bidding documents, contracts, design plans, and drawings.
Then you can conduct a survey on site based on the above information, and combine the survey results
with the customer’s needs to decide the exact installation location of the device.
2.1 Site Requirements
1. Confirm the number of pedestals required according to the flow of people on site.
2. Reserve space for people queuing to avoid congestion.
3. Check whether a logistics lane is required.
4. If the device is installed outdoors, equip it with a shade and take effective measures to prevent it from
being immersed in water. Be sure to power off the device when flooding occurs on a heavy rainstorm.
5. The device is for pedestrian traffic only, motor vehicles and non-motor vehicles are prohibited.
6. The foundation surface shall be smooth and flat.
7. Make sure that there is accessible power and network at the installation site, and protect them during
underground wiring.
8. For installation on tile and marble floors, check whether the floor is repairable after being grooved.
9. Avoid underground pipelines such as electricity, water, and communication during construction.
2.2 Ground Requirements
1. The ground must be level (check it with a spirit level). To install the device on a slope, pour a new
foundation or platform to make the ground level.
2. The ground must be smooth, flat, and free of foreign objects such as small stones, otherwise it may
cause the device to shake and the motor to make abnormal noise.
3. A new foundation is required if the ground is made of dry cement and sand, as expansion screws
cannot be fixed on such ground.
4. If the ground is covered by marble or tiles laid with dry cement and sand, check what material the
ground is first. If the ground is cement concrete, then you need to use expansion screws that are long
enough to reach the cement concrete layer to secure the device.
5. If the ground does not allow drilling and cement pouring, use a base to complete the installation.
2.3 Site Survey Report
After the site survey is complete, you need to make a site survey schematic diagram, including
environmental information (installation width, whether a shade, shading plate, illuminator or logistics lane is
required), installation location, and direction. With this schematic diagram, you can determine the cable

OFG5312 Installation Guide V1.0.0 Internal Use Only
4
length/type and the number/type of devices required, estimate the number of technicians required, and
produce a site survey report.
3 Safety Instructions
1. Ensure that the device is placed or installed firmly and reliably.
2. Ensure that the device is installed properly before you connect it to power, otherwise it may cause
personal injury and device failure.
3. Disconnect the power before moving the device, otherwise it may cause electric shock.
4. Keep the device away from liquid of any kind, it may damage the device and cause fire or electric shock.
5. Take waterproof measures for devices installed outdoors.
6. Use a ground-protected power outlet.
7. Ensure that the device is grounded properly if grounding is required.
8. Be sure to strictly observe local electrical safety codes.
9. Ensure that the power supply meets the device requirements. The power supply shall be greater than
the sum of the power consumption of all devices.
10. Ensure that the temperature, humidity, dust, corrosive gas, electromagnetic radiation indicators of the
site where the device is placed or installed meet the requirements.
4 Preparations
4.1 Installation Tools

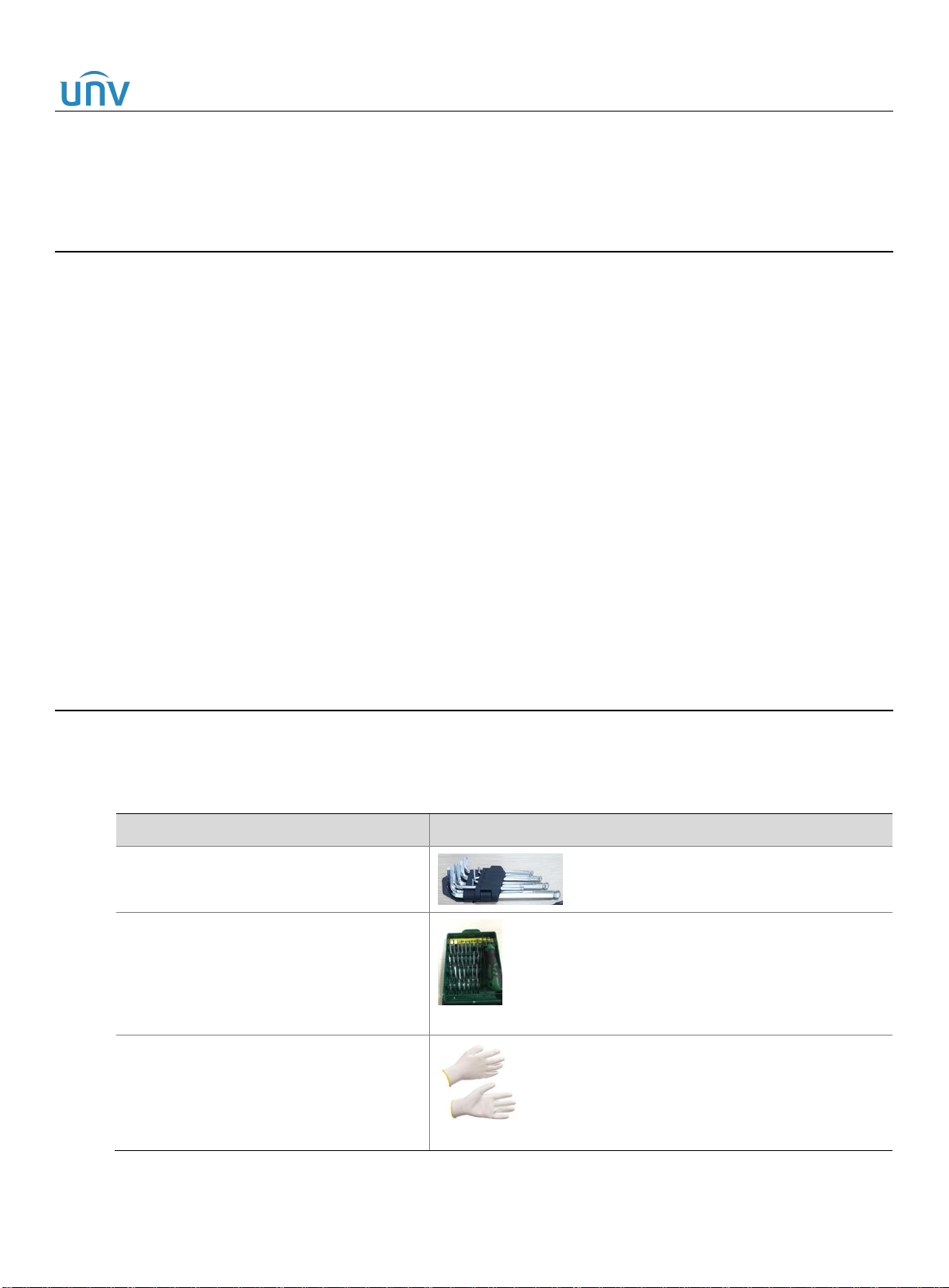

Table 4-2 Tools
Tool
Description
L-key
Screwdriver set
33-piece set and above for cable wiring.
ESD wrist strap or gloves
High-quality products are recommended for security.

OFG5312 Installation Guide V1.0.0 Internal Use Only
5

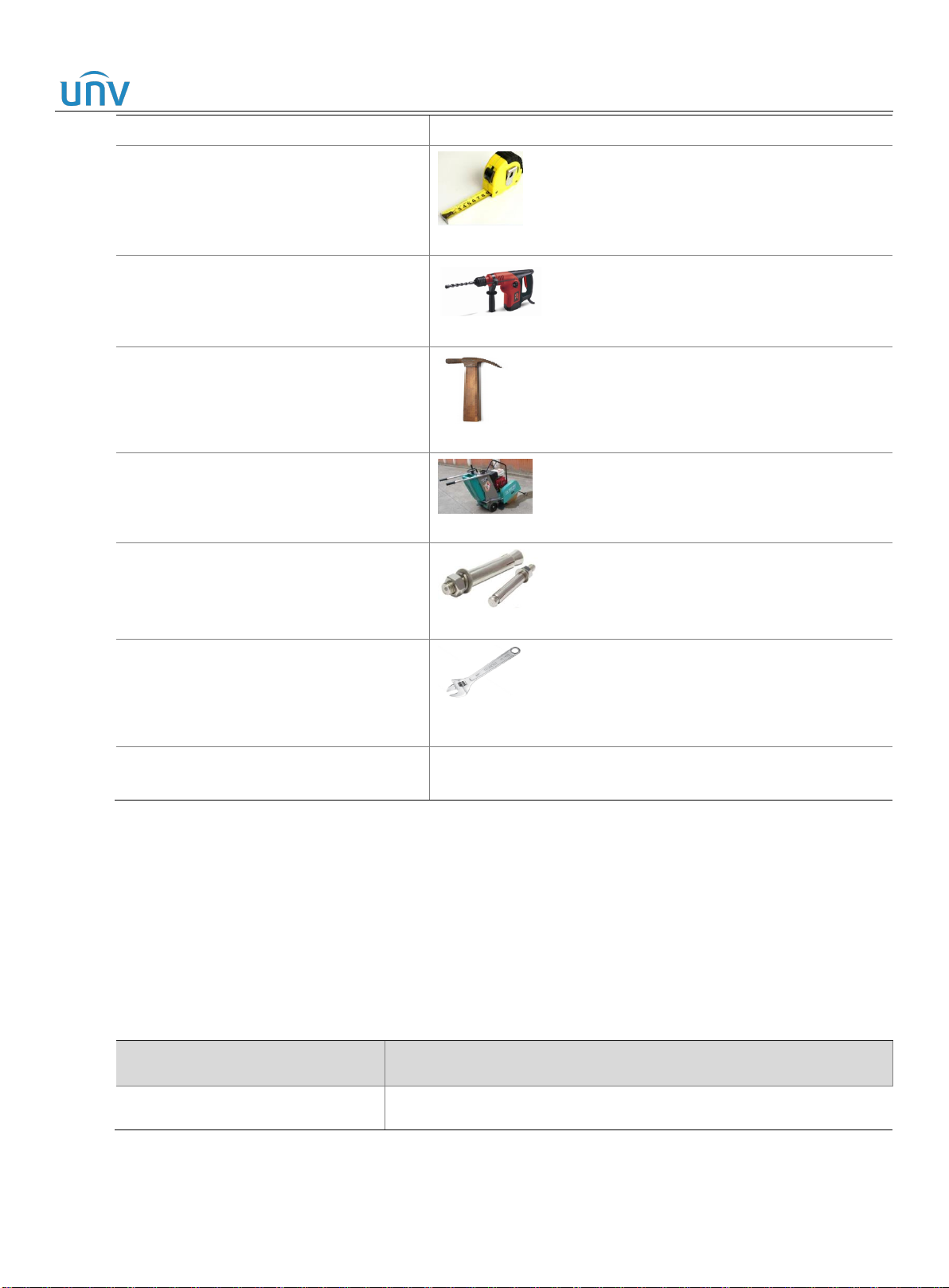

Marker
Used to mark mounting holes.
Tape measure
Used to measure dimensions.
Electric hammer drill
(14mm drill bit is recommended)
Used to drill holes.
Hammer
Used to hammer expansion screws into the ground.
Cutter
Used to make grooves in the ground.
Expansion screw
(M12*100mm)
Used to secure pedestals.
Wrench
Used to fix expansion screws. Select the wrench according to the
expansion screw size.
Network cables
Used to connect face recognition terminals to network.
Cat5e network cables are recommended.
4.2 Installation Environment
The installation can be divided into new installation and renovation installation.
4.2.1 New Installation
Determine the device model and lane width. The lane width is subject to actual measurement (Changing
the lane width arbitrarily is not allowed).
Table 4-2 Lane Width
Model
Standard Width
OFG5312
550mm

OFG5312 Installation Guide V1.0.0 Internal Use Only
6
1. Install Power Cables
Install power cables at the appropriate location according to the design layout of the device. See the table
below for power cable specifications.
Table 4-3 Power Cable Requirements
Number of Lanes
Power Cable Requirements
≤ 5
RVV3*1.5
Three 1.5 mm²copper core wires with a protective sheath
5 < number of lanes ≤ 10
RVV3*2.5
Three 2.5 mm²copper core wires with a protective sheath
> 10
If the number of lanes is close to 10, refer to the power cable requirements for
the number of lanes within 5 to 10.
If there are many lanes (for example, 20), it is recommended to provide a
power supply for every 10 lanes.
2. Install Network Cables
Determine the location of the computer room and install network cables for communication between the
computer room and the front end (high-quality Cat5e and above network cables are recommended, and the
distance between the computer room and the front end shall not be too far).
3. Reserve Installation Location
If you plan to lay brittle materials such as tiles on the floor, install the device first before you start. Otherwise,
it will result in additional trenching and repair costs.
4.2.2 Renovation Installation
In a decorated environment, you need to pour a new foundation or install a base to secure the device. The
device does not have interconnection cables, so there is no need to consider grooving.
1. Pour a New Foundation
1. For installation on sloping ground, pour a new foundation to ensure that the device is installed
horizontally.
2. Install a Base
For installation on irreparable floors, such as tiles and marble, use a base to secure the device.
1. Locate the pedestals according to the site survey diagram, and then install bases at the pedestal
locations.
2. Fix the pedestal to the base with the foundation bolts, and then tighten the bolts to secure the pedestal
(the spring hooks and gasket should be installed correctly).
4.3 Cable Wiring Requirements
1. Mark and label the defined cables at both ends before wiring to facilitate future maintenance.
2. Separate the signal cables and power cables to prevent interference from high voltage to signal
transmission.

OFG5312 Installation Guide V1.0.0 Internal Use Only
7
3. An extender or a fiber optic cable is required if the network communication distance exceeds 80m.
4. Prepare RVV2*1.0 cables (1 for each lane) on the main controller, and connect the cables to the nearest
security booth, monitoring room or management center through the pre-buried cable conduits to realize
the control of a lane by the corresponding lane switch.
5. Prepare RVV2*1.0 cables (1 for each lane) on the main controller, and connect the cables to the nearest
security booth, monitoring room or management center through the pre-buried cable conduits to realize
the control of all lanes by the fire button.
6. Do not pull cables excessively, otherwise the cables may be damaged.
7. To ensure cable threading and heat dissipation, the cross-sectional area of all cables in the conduit
shall not exceed 50% of the cross-sectional area of the conduit.
8. All devices shall be grounded properly.
5 Installation
5.1 Pedestal Installation
1. Open the side panel with the supplied key.
Figure 5-1 Open Side Panel
2. Move the pedestal to the desired installation location. Mark the expansion bolt holes on the ground with
a marker (as shown in figure 5-2 below).
Figure 5-2 Mark Mounting Holes

OFG5312 Installation Guide V1.0.0 Internal Use Only
8
3. Move the pedestal, and drill holes at the marked points.

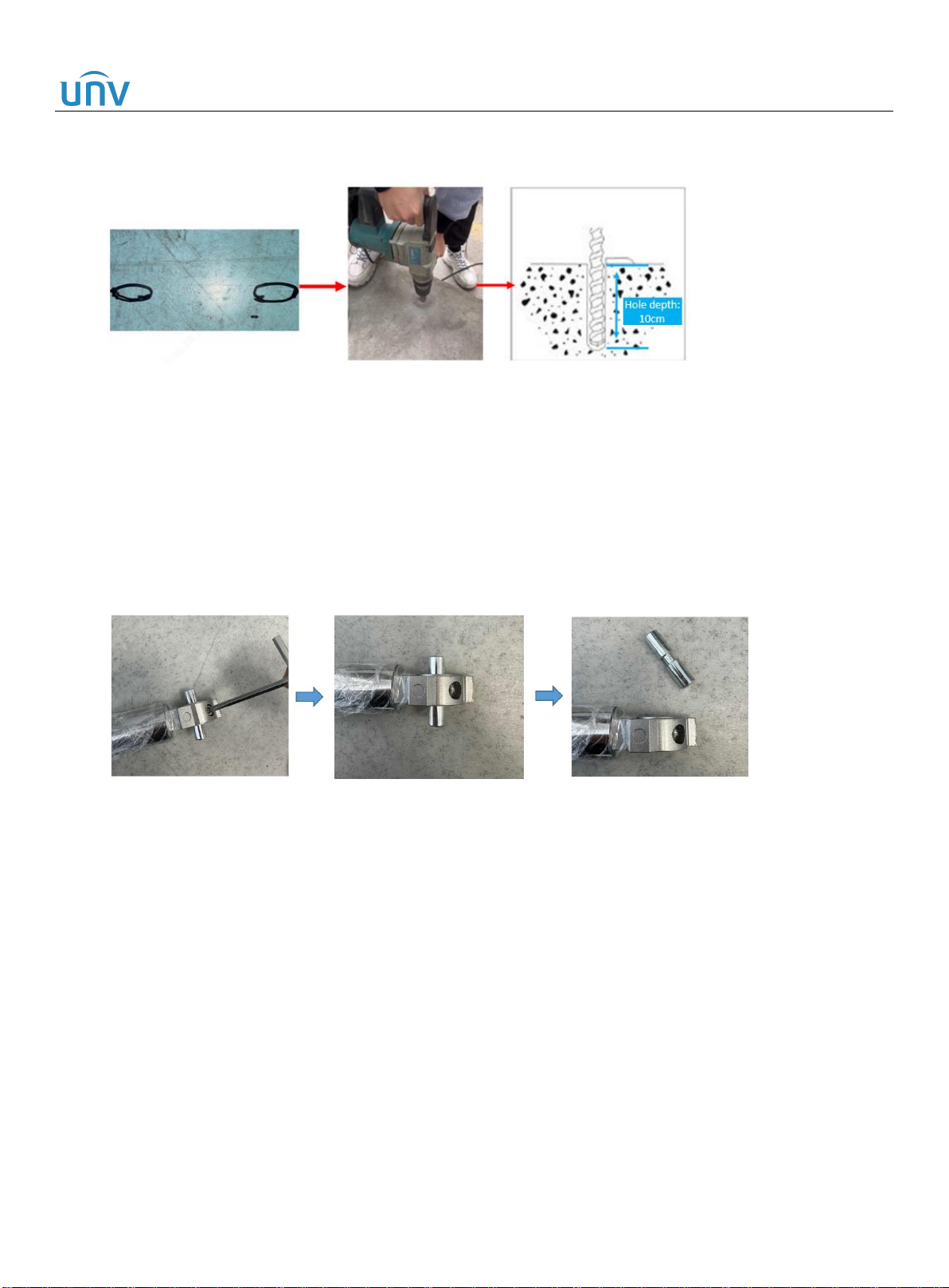

Figure 5-3 Drill Holes
4. Align the mounting holes at the bottom of the pedestal with the expansion bolts on the ground, and then
tighten the bolts to secure the pedestal.
5.2 OFG5312 Arm Bar Installation
For the tripod turnstile, one arm bar has been installed at factory, the other two arm bars need to be installed
as below.
1. Unscrew the hex nut with a hex L-key, and remove the stud from the arm bar.
Figure 5-4 Remove Fixing Stud
2. Install arm bars.
(1) Rotate the turnable part and point the uninstalled slot to the lower left or right side (take the
installation on the lower left side as an example). Before rotation, the device must be powered on.
(2) Flip the inner paddle in the fixing slot to the right to expose the arc-shaped surface.
(3) Keep the screw hole of the arm bar facing outward and the curved side facing the arc-shaped
surface of the mounting slot, and then insert the part marked with number into the right gap of the
paddle.
(4) Insert the fixing stud into round holes of the fixing stub and arm bar to fix them.
(5) Power on the device, rotate the newly installed arm bar to the top, and the power off the device. If
the arm bar automatically falls, it indicates that the arm bar is installed correctly. Then fix the arm
bar with a screw.

OFG5312 Installation Guide V1.0.0 Internal Use Only
9
Figure 5-5 Install Arm Bars
5.3 OFG5312 System Wiring
5.3.1 System Wiring
Connect the AC220V mains supply to the air circuit breakers in the right and middle pedestals. Connect the
L (live wire) and N (neutral wire) wires to the air circuit breaker and connect the PE wire (yellow and green
wire) to a grounding terminal (as in figure 5-6 below).
Figure 5-6 System Wiring (power cables are user-supplied)

OFG5312 Installation Guide V1.0.0 Internal Use Only
10
5.3.2 Control Board Wiring
1. The device has no interconnection cables, while the rest of the mainboard cables are already connected
at factory.
2. The IN and OUT terminals separately control the gate opening in the IN direction and OUT direction.

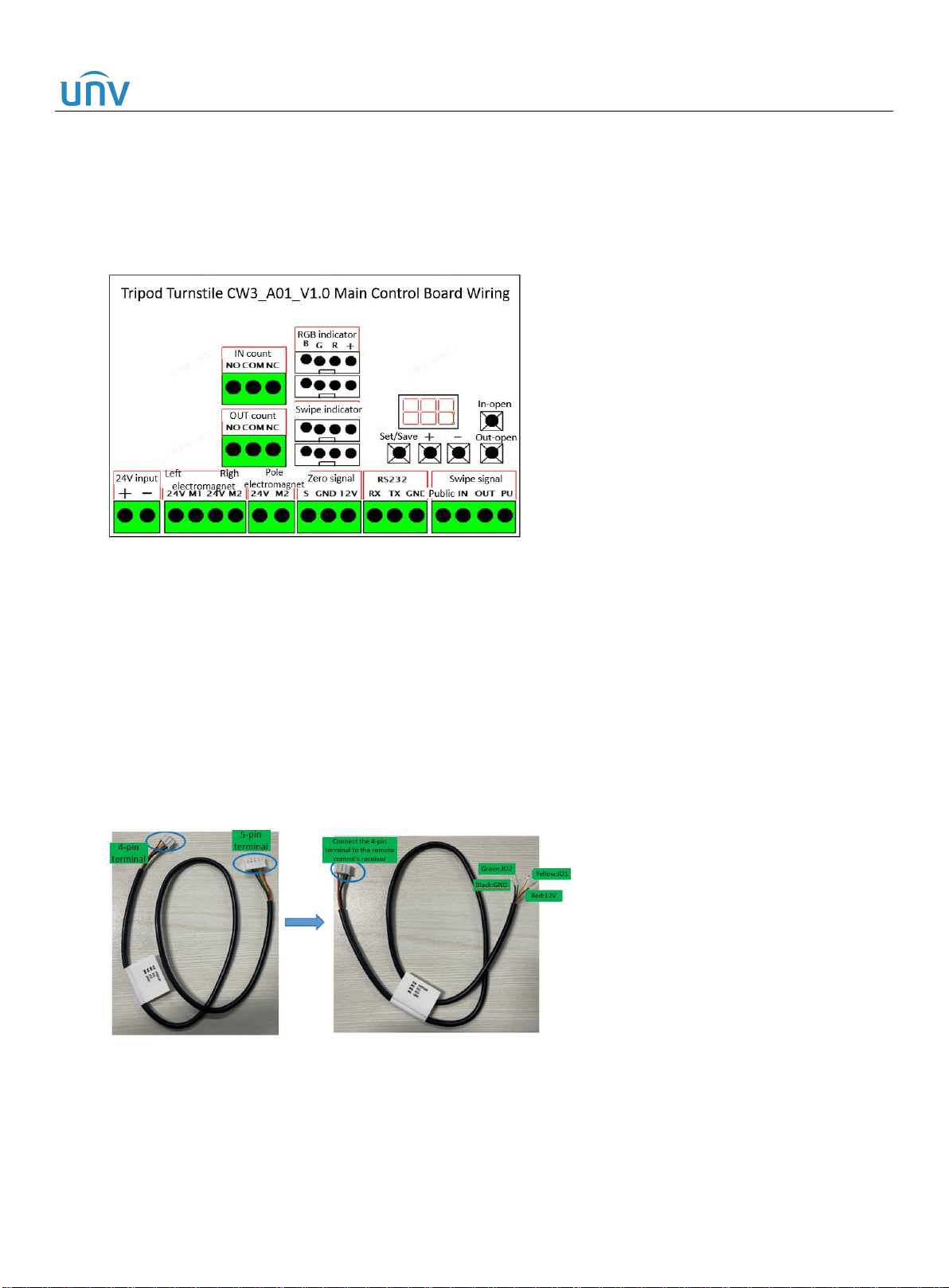

Figure 5-7 Control Board Wiring
5.3.3 Remote Control Wiring
To open the turnstile gate with the remote control’s joy mode, the P07 of the main board needs to be set
to 0.
To open the turnstile gate with the remote control’s keep on mode, the P07 of the main board needs to
be set to 1.
Take B53 remote control as an example:
1. Connect the 4-pin terminal to the remote control’s receiver and cut off the 5-pin terminal (as in figure 5-8
below).
Figure 5-8
2. Wire as follows.

OFG5312 Installation Guide V1.0.0 Internal Use Only
11
Figure 5-9 Remote Control Wiring
5.3.4 Face Recognition Terminal Wiring
Figure 5-10 Face Recognition Terminal Wiring
6 Parameters Settings
No.
Parameter
Type
Function
Value
Range
Function Description
Default
1
F01
Passing
time
0-255s
Set the passing time. If a person passes through the gate
within the set time, the time will be automatically reset; if no
one within the set time, the gate will automatically close
when the time is up.
5
2
F02
Keep
open.
1-3
1: Only keep the left electromagnet open.
2: Only keep the right electromagnet open.
3: Keep both left and right electromagnets open.
3
3
F03
Operation
mode
0-1
0: Free access
1: Automatic door opening for unobstructed access in case
of power failure (default)
1

OFG5312 Installation Guide V1.0.0 Internal Use Only
12
4
F04
Memory
/
It is generally used for gate control by card authentication.
Choose to allow or forbid the gate control system to
remember the card swiping information of the previous
person when other person is entering or exiting the gate. 0:
The memory is disabled, and the gate only allows one
person to pass at a time. The second person should swipe
the card again after the first person has passed through the
gate. 1: The memory is enabled, and the gate allows
multiple authenticated people to pass consecutively at a
time.
0
5
F05
Repeatedly
open and
close
/
Control board stability test and aging test. Note: Press
MENU to exit the test mode.
/
6
F06
Zero signal
0-1
0: The gate closes immediately when it detects a zero
signal
1: The gate closes after the detected zero signal
disappears (commonly used in full-height turnstiles).
0
7
F07
Keep open
for turnstile
/
Used to detect continuous open signals. If the received
open signal lasts longer than the set time, the gate will
consider it a continuous signal and keep open (F2
determines which side opens, both sides open by default);
when the signal disappears, the gate returns to standard
mode.
1 by default: keep
open on; 0: keep
open off
8
F08
Open
delay
/
It is available after the memory function is enabled. When
enabled, the opening delay for multiple consecutive people
can prevent the gate from opening again while the previous
person has not passed through the gate.
0 by default: no
delay. The value
range is 0 to 20,
corresponding to
a delay of 0 to 2
seconds, with an
increment of
100ms.
9
F09
Restore
factory
defaults
/
Restore all parameters of the main board to factory
defaults.
