UPC 1463 User manual

ASSEMBLY INSTRUCTIONS
PARTS LIST
PARTS LIST UPC #1463 - 4' Slotwall Gondola
Page 1 of 3
Revised 10/29/2020
F
G
AB
CD
E
Finished Display
Thank you for your purchase of one of many fine products designed & manufactured by UPC.
We have made every effort to make your assembly easy, clear & hassle free. For more information
or if you have any questions contact customer service at 1-800-859-7442.
upcdisplays.com
PART Quantity Reference
End Panel 2 C
Slotwall Top 1 D
Slotwall Bottom 1 E
Base Deck 1 F
Kick 2 G
Base Support 1 H
PART Quantity Reference
Connector Bolt 19 (1 extra) A
Hex Key 1 B
H
2 people are required for this assembly!!

Page 2 of 3
ASSEMBLY
1
2
F
F
F
A
A
C
C
upcdisplays.com
H
G
GH
G
G
Some finesse may be required.

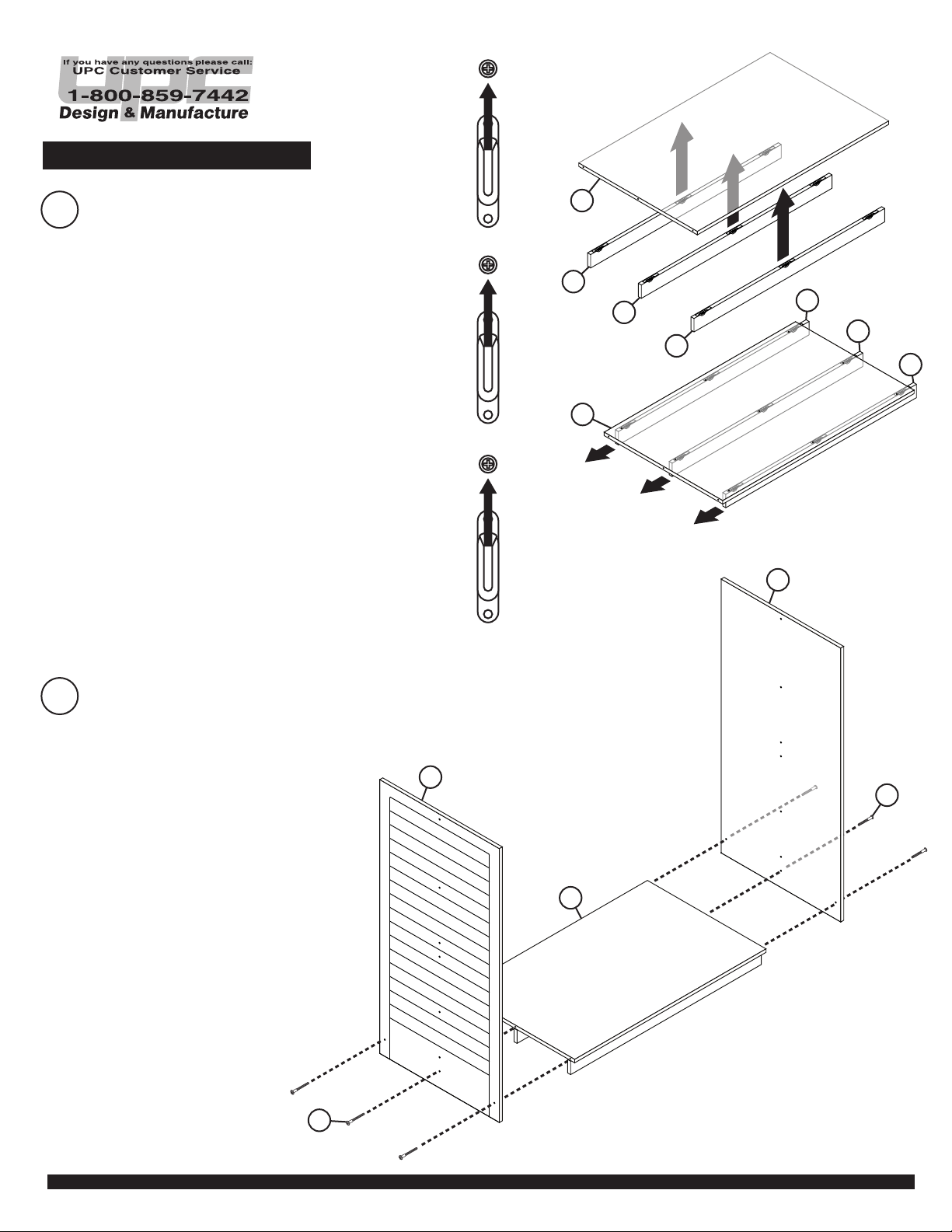

Attach (2) Kicks (G) and Base Support (H)
by linking together the (3) Clips from
(2) Kicks (G) and Base Support (H) to the
(3) Screws from bottom of Base Deck (F).
To secure (2) Kicks (G) and
Base Support (H) to Base Deck (F),
PUSH INTO (3) Screws so that (3) Clips
catch.
Screw (2) End Panels (C) to Base Deck (F)
with (6) Connector Bolts (A) using Hex Key (B).

3
4
A
C
C
Page 3 of 3
ASSEMBLY
upcdisplays.com
E
E
D
D
F
A
Screw Slotwall Bottom (E) and Slotwall Top (D)
through (2) End Panels (C) with
(12) Connector Bolts (A) using Hex Key (B).
Slide Slotwall Bottom (E) in between (2) End Panels (C)
to Base Deck (F), then Slotwall Top (D) slides on top of
Slotwall Bottom (E).
