UPSONIC POWER Tower UPS 6KS User manual

Tower / RT 6-10K
User Manual
Web: www.upsonic.com.au
Copyright © 2022 UPSONIC POWER PTY LTD
All Rights Reserved.
Address: 9/20 Duerdin Street
Clayton VIC 3168
Phone: [phone]
Fax: [phone]
RELIABLE POWER SOLUTIONS FOR A NON-STOP WORLD

SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. This manual contains important instrucons that
should be followed during installaon and maintenance of the UPS and
baeries.
The UPS models that are covered in this manual are intended for installaon in
an environment within 0 to 50°C, free of conducve contaminant.
Cerficaon standards
• Safety: EN 62040-1
• EMC: IEC/EN 62040-2
• IEC 61000-4-2 (ESD): level 3.
• IEC 61000-4-3 (Radiated field): level 3.
• IEC 61000-4-4 (EFT): level 4.
• IEC 61000-4-5 (Fast transients): level 4.
• IEC 61000-4-6 (Electromagnec field): level 3.
• IEC 61000-4-8 (Conducted magnec field): level 4.
• Performance: IEC/EN 62040-3
Special symbols
The following are examples of symbols used on the UPS or accessories to alert you
to important informaon:
RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric
shock symbol.
Important instrucons that must always be followed.
Do not discard the UPS or the UPS baeries in the trash.
This product contains sealed lead acid baeries and must be disposed as it's explain
in this manual. For more informaon, contact your local recycling/reuse or
hazardous waste center.
The crossed-out wheeled bin symbol indicates that waste electrical and electronic
equipment should not be discarded t ogether with unseparated household waste,
but must be collected separately. The product should be handed in for recycling in
accordance with the local environmental regulaons for waste disposal.
By separang waste electrical and electronic equipment , you will help reduce the
volume of waste sent for incineraon or land-fills and minimize any potenal
negave impact on human health and environment.
Informaon, advice, help.
Refer to the user manual.

Safety of persons
⚫ RISK OF VOLTAGE BACKFEED. The system has its own power source (the
baery). Isolate the UPS and check for hazardous voltage upstream and
downstream during lockout-tagout operaon. Terminal blocks may be
energized even if the system is disconnected from the AC power source.
⚫ Dangerous voltage levels are present within the system. It should be opened
exclusively by qualified service personnel.
⚫ The system must be properly grounded.
⚫ The baery supplied with the system contains small amounts of toxic
materials. To avoid accidents, the direcves listed below must be observed:
- Servicing of baeries should be performed or supervised by personnel
knowledgeable about baeries and the required precauons.
- When replacing baeries, replace with the same type and number of
baeries or baery packs.
- Do not dispose of baeries in a fire. The baeries may explode.
- Baeries constute a danger (electrical shock, burns). The short -circuit
current may be very high.
⚫ Precauons must be taken for all handling:
- Wear rubber gloves and boots.
- Do not lay tools or metal parts on top of baeries.
- Disconnect charging source prior to connecng or disconnecng baery
terminals.
- Determine if baery is inadverte ntly grounded. If inadvertently grounded,
remove source from ground. Contact with any part of a grounded baery
can result in electrical shock. The likelihood of such shock can be reduced if
such grounds are removed during installaon and maintenance (ap plicable
to equipment and remote baery supplies not having a grounded supply
circuit).
Product safety
⚫ The UPS connecon instrucons and operaon described in the manual must
be followed in the indicated order.
⚫ CAUTION - To reduce the risk of fire, the unit connects only to a circuit
provided with branch circuit overcurrent protecon for :
63A rang, for 6kVA models,
100A rang, for 10kVA models
The upstream circuit breaker for Normal AC/Bypass AC must be easily
accessible. The unit can be disconnected from AC power source by opening this
circuit breaker.

⚫ An addional AC contactor is used for backfeed protecon and must comply
with IEC/EN 62040-1 (the creep age and clearance distances shall meet the
basic insulaon requirements for pollution degree 2).
⚫ Disconnecon and overcurrent protecon devices shall be provided by others
for permanently connected AC input (Normal AC/Bypass AC) and AC output
circuits.
⚫ Check that the indicaons on the rang plate correspond to your AC powered
system and to the actual electrical consumpon of all the equipment to be
connected to the system.
⚫ For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the
equipment and shall be easily accessible
⚫ Never install the system near liquids or in an excessively damp environment.
⚫ Never let a foreign body penetrate inside the system.
⚫ Never block the venlaon grates of the system.
⚫ Never expose the system to direct sunlight or source of heat.
⚫ If the system must be stored prior to installaon, storage mus t be in a dry
place.
⚫ The admissible storage temperature range is -25°C to +60°C with baery(-15°C
to +40°C without baery).
Special precauons
⚫ The unit is heavy: wear safety shoes and use vacuum lier preferenally for
handling operaons.
⚫ All handling operaons will require at least two people (unpacking, lif ng,
installaon in rack system).
⚫ Straps are provided only for unpacking manually the unit from the carton;
don’t use the straps to carry the unit around. The unit can slip from the straps
during handling (risk of injury and product damage):
- keep 12in / 30cm minimum distance between the straps
- li the unit carefully and keep it at low height
- keep the unit horizontal during unpacking.
⚫ Before and aer the installaon, if the UPS remains de-energized for a long
period, the UPS must be energized for a period of 24 hours, at least once every
6 months (for a normal storage temperature less than 25°C). This charges the
baery, thus avoiding possible irreversible damage.
⚫ During the replacement of the Baery Module, it is imperave to use the same
type and number of element as the original Baery Module provided with the
UPS to maintain an idencal level of performance and safety.

Contents
1. Introducon ....................................................................................................1
1.1 Environmental protecon ...........................................................................1
2. Presentaon ....................................................................................................3
2.1 Front panel ................................................................................................3
2.2 Rear panels ................................................................................................4

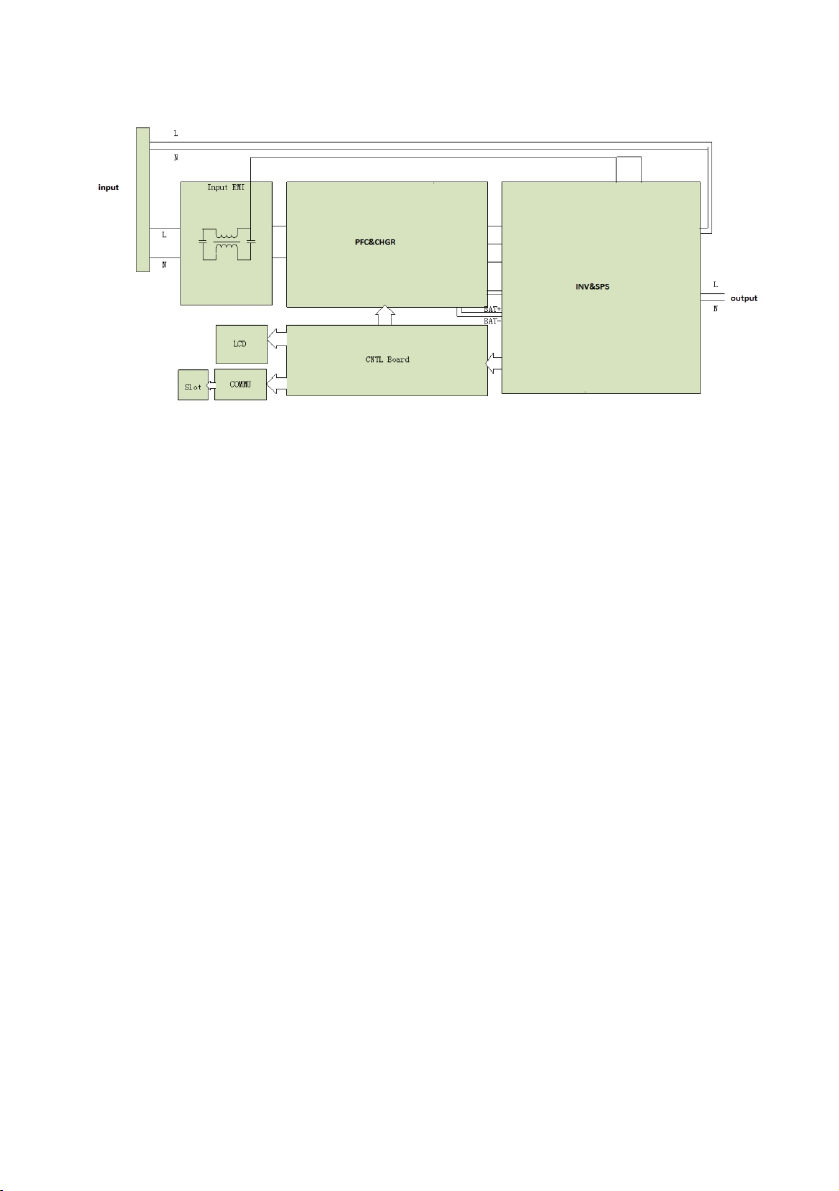

2.3 Circuit diagram...........................................................................................6
3. Installaon ......................................................................................................7
3.1 Inspecng the equipment...........................................................................7

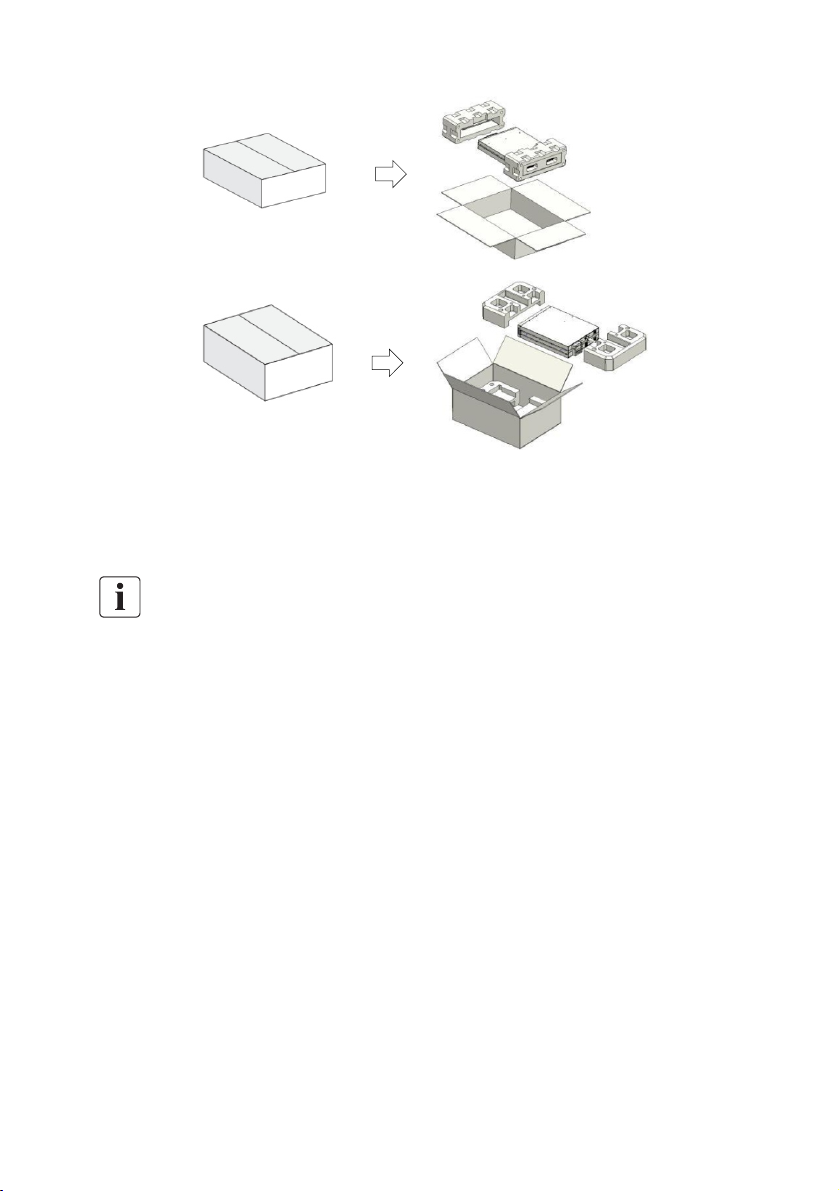

3.2 Unpacking the Unit ....................................................................................7
3.3 Checking the accessory kit ..........................................................................9
3.4 Install the unit ............................................................................................9
4. Power cables connecon ...............................................................................14
4.1 Access to terminal blocks(AC source to UPS) .............................................15
4.2 Access to terminal blocks(PDU source to R/T UPS)(Oponal) .....................16
4.3 Parallel Installaon and Operaon(Oponal) .............................................16
5. Operaon ......................................................................................................22
5.1 Control panel ...........................................................................................22
5.2 LCD descripon ........................................................................................24
5.3 Display funcons ......................................................................................27
5.4 User sengs ............................................................................................27
5.5 UPS startup and shutdown .......................................................................28
5.6 LCD operaon ..........................................................................................30
6. Communicaon .............................................................................................38
6.1 Communicaon ports ...............................................................................38
6.2 Network Management Card (Oponal) .....................................................39
6.3 UPS Management Soware ......................................................................39
7. UPS maintenance...........................................................................................40

7.1 Equipment care ........................................................................................40
7.2 Transporng the UPS ................................................................................40
7.3 Storing the equipment .............................................................................40
7.4 Replacing baeries ...................................................................................41
7.5Recycling the used equipment ...................................................................42
8. Troubleshoong.............................................................................................43
8.1 Typical alarms and faults ..........................................................................43
8.2 Silencing the alarm ...................................................................................47
9. Specificaons.................................................................................................48
9.1 Model specificaons ................................................................................48
10 Glossary........................................................................................................53

1
1. Introducon
Thank you for selecng UPS to protect your electrical equipment. The UPS has
been designed with the utmost care.
We recommend that you take the me to read this manual to take full
advantage of the many features of your UPS (Uninterrupble Power System).
Before installing your UPS, please read the booklet presenng the safety
instrucons. Then follow the indicaons in this manual.
1.1 Environmental protecon
Products are developed according to an eco-design approach.
Substances
This product does not contain CFCs, HCFCs or asbestos.
Packing
To improve waste treatment and facilitate recycling, separate the various
packing components.
• The cardboard we use comprises over 50% of recycled cardboard.
• Sacks and bags are made of polyethylene.
• Packing materials are recyclable and bear the appropriate idenficaon
symbol
Materials Abbreviaons Number in
the symbol s
Polyethylene terephthalat PET 01
High-density polyethylene HDPE 02
Polyvinyl chloride PVC 03
Low-density polyethylene LDPE 04
Polypropylene PP 05
Polystyrene PS 06
Follow all local regulaons for the disposal of packing materials.

2
Product
The product is made up of recyclable materials.
Dismantling and destrucon must take place in compliance with all local
regulaons concerning waste. At the end of its service life, the product must be
transported to a processing center for electrical and electronic waste.
Baery
The product contains lead-acid baeries that must be processed according to
applicable local regulaons concerning baeries.
The baery may be removed to comply with regulaons and in view of correct
disposal.
1.2 Electronic equipment protecon
The uninterrupble power system (UPS) protects your sensive electronic
equipment from the most common power problems, including power failures,
power sags, power surges, brownouts, line noise, high voltage spikes,
frequency variaons, switching transients, and harmonic distoron.
Power outages may occur unexpected, and the power quality will be errac.
These power problems have the potenal to corrupt crical data, destroy
unsaved work sessions, and damage hardware - causing hours of lost
producvity and expensive repairs.
With the UPS, you can safely eliminate the effects of power disturbances and
guard the integrity of your equipment. Providing outstanding performance and
reliability, UPS’s unique benefits include:
⚫ True online double-conversion technology with high power density, ulity
frequency independence, and generator compability.
⚫ Selectable High Efficiency mode of operaon.
⚫ Standard communicaon opons: one RS232 communicaon port, one
USB communicaon port, one dry in port and dry out port.
⚫ Oponal connecvity cards with enhanced communicaon capabilies.
⚫ Firmware that is easily upgradable without a service call.

3
2. Presentaon
2.1 Front panel
Tower model:
Tower UPS 6KS/10KS Tower UPS 6K/10K Tower EBM
RT model:
RT UPS 6K/6KS/10K/10KS UPS RT EBM

4
2.2 Rear panels
Tower model:
Tower UPS 6KS Tower UPS 10KS
Tower UPS 6K Tower UPS 10K Tower EBM
1. Intelligent slot
2. USB
3. RS232
4. RJ11 (only for RT model)
5. EPO
6. Parallel card (oponal)
7. Dry IN/OUT
8. Input /Output terminal
(Standard model 5pole, IPL, IPN, P E,
OPL, OPN; long backup model has 2
version , one is 5 Pole. Another is 7pole.
7pole add bat+, bat-, and no external
baery connector #10.)
9. Input switch
10. External baery connector
11. Maintenance bypass switch (oponal)
12. EBM connector
13. EBM connector
14. Fuse board cover (replace EBM fuse)

5
RT model:
RT UPS(6K/6KS/10K/10KS)
RT EBM
1. Intelligent slot
2. USB
3. Dry IN/OUT
4. RS232
5. EPO
6. RJ11 (connect to PDU, only
for RT model)
7. Parallel card (oponal)
8. Output breaker
9. Output socket
10. Input/Output terminal
(4pole IPL, IPN, OPL, OPN.
PE is screw)
11. Input breaker (oponal)
12. EBM connector
13. Fuse board cover (replace
EBM fuse)
14. EBM plug
15. EBM connector

6
2.3 Circuit diagram

7
3. Installaon
It is recommended to move the equipment to the installaon site by using a
pallet jack or a truck before unpacking.
The system may be installed only by qualified electricians in accordance with
applicable safety regulaons.
The cabinet is heavy, please install it with at least two peoples.
3.1 Inspecng the equipment
If any equipment has been damaged during shipment, keep the shipping
cartons and packing materials for the carrier or place of purchase and file a
claim for shipping damage. If you discover damage aer acceptance, file a claim
for concealed damage.
3.2 Unpacking the Unit
⚫ Unpacking the unit in a low-temperature environment may cause
condensaon occurred in and on the cabinet. Do not install the unit unl
the inside and outside of the unit are absolutely dry (hazard of electric
shock).
Remove the packing materials and li the unit out with two people at least.
◆ Tower 6KS/10KS
◆ Tower 6K/10K
◆ Tower EBM

8
◆ RT UPS
◆ RT EBM
Note:
The cabinet is heavy, please see spec weight provided on the carton/label.
Do not li the unit’s front panel and rear panel.
Discard or recycle the packaging in a responsible manner, or store it for future
use.
Packing materials must be disposed in compliance with all local regulaons
concerning waste. Recycling symbols are printed on the packing materials to
facilitate sorng.

9
3.3 Checking the accessory kit
Verify that the following addional items are included with the unit:
Tower
UPS
6K/10K
Tower
UPS
6KS/10KS
Tower
EBM
RT UPS
6K/10K
RT UPS
6KS/10KS
RT EBM
Baery power
cable
V *
USB cable V V V V
RS232 cable O O O O
Parallel cable O O O O
Dry contractor V V V V
EPO contractor * * * *
Stabilizer
bracket
V V V V
Extension plate
of Stabilizer
bracket
V
Ear bracket V V V
Rail kit O O
User manual V V V V V
V: standard configuraon
*: assembled to unit
O: oponal configuraon
If you ordered other accessories, please contact with local sale center.
3.4 Install the unit
3.4.1 Tower model
◆ UPS model
To keep air-flowing freely, it is recommended to keep a clearance with 500mm
space both for front and rear side.
1. Place the unit on a flat, stable surface in its final locaon,
2. Install ‘Stabilizer bracket’ (oponal): remove side’s screw from the unit, then
install ‘Stabilizer bracket’ to the unit.

10
3. Install the unit to a surface (oponal): place 4pcs bolts (M8 is recommended)
to the final locaon previously, bolt’s posion please refer to below, then fix
the unit to the bolts.
◆ EBM model
1. Install the EBM model----Refer to UPS model installaon as above.
2. Connect EBM to UPS with ‘Baery power cable’.
Note:
This ‘Baery power cable’ may have different plug according to the number of
baery inside of this unit, please check the ‘Voltage ’ parameter on rear-panel if it
matches the UPS before connecon.
The baery number can be adjusted from ‘16pcs*2 strings’ to ‘20pcs*2 strings’ for
this unit, if you ordered other type EBM, please contact with local sale center.
If installing addional unit, place it next to the previous unit in their final locaon.

11
3.4.2 RT model:
Rack posion installing
This procedure is suitable for 19 inch rack cabinet installaon with a minimum
of 800mm depth.
◆ UPS model
Idenfy the final posion and keep ‘2U’ space for this installing.
Note that you already installed a ‘rail kit’ to rack cabinet for this operaon, and
‘1U’ rail kit is recommended to be selected.
1. Install ‘Ear bracket’ to the unit by the M4 screws (flat head).
2. Slide the unit into ‘rail kit’ and make sure ghten the ‘rack mounng screw’.
◆ EBM model
Idenfy the final posion and keep ‘3U’ space for this installing, and it is
recommended to be installed below to UPS.
Note that you already installed a ‘rail kit’ to rack cabinet for this operaon, and
‘2U’ rail kit is recommended to be selected.
1. Install ‘Ear bracket’ to the unit by the M4 screws(flat head).
2. Slide the unit into ‘rail kit’ and make sure ghten the ‘rack mounng screw’ .

12
3. Connect EBM to UPS with ‘Baery power cable’.
Note:
This ‘Baery power cable’ may have different plug according to the number of
baery inside of this unit, please check the ‘Voltage ’ parameter on rear-panel if it
matches the UPS before connecon.
The baery number can be adjusted from ‘16pcs*1 strings’ to ‘20pcs*1 strings’ for
this unit, if you ordered other type EBM, please contact with local sale center.
If installing addional unit, place it next to the previous unit in their final locaon.
Tower posion installing
◆ UPS model
To keep air-flowing freely, it is recommended to keep a clearance with 500mm
space both for front and rear side.
1. Rotate the LCD model to tower direcon.
2. Set up the ‘Stabilizer bracket’, then take the unit into ‘Stabilizer bracket’.

13
◆ EBM model
1. Set up the ‘Extension plate’ as below and install to ‘Stabilizer bracket’ from UPS.
2. Take the UPS& EBM into ‘Stabilizer bracket’ individually.
3. Connect to UPS with ‘Baery power cable’--- Refer to rack posion installing.
Note:
This unit is recommended to be installed to UPS’s right side.
If installing addional unit, place it next to the previous unit in their final locaon.

14
4. Power cables connecon
Recommended protecve devices and cable cross-secons
Recommended upstream protecon
UPS power rang Upstream circuit breaker
6000VA D curve – 63A
10000VA D curve – 100A
G N(L2) L1
Read the Safety instrucons page 3 regarding backfeed protecon requirements.
Recommended cable cross-secons
Model 6K 10K
Protecve earthing conductor
Min cross secon 6mm^2 (8AWG) 10mm^2 (6AWG)
Input L, N, G
Min conductor cross secon 6mm^2 (8AWG) 10mm^2(6AWG)
Input fuse 80A 100A
Output L,N,
Min conductor cross secon 6mm^2 (8AWG) 10mm^2(6AWG)
Baery cable* 6mm^2 (8AWG) 10mm^2 (6AWG)
Note *: It suggests to use standard baery cable in package when connects baery pack with
UPS. If addional baery cable needed for installaon, it must follow cable specificaon and
the maximum length of baery cable 10 meters for applicaon.
If a length of baery cable over 10 meters requests, please contact distributors/agents for
details.
It is recommended that an external isolang device should be installed between
the mains input and UPS as shown in Figure
AC Contactor: 208-240V, 63A (RT 6 kVA)
208-240V, 100A (RT 10 kVA)
N(L2) to UPS Normal AC / Bypass AC source
