USB SmileCAM SU-320H User manual

1
 Please refer to FAQ in the last part of the manual before requesting service.
 In order to get the best results, please read the manual carefully before use.
 As this product complies with the guidelines of CE, FCC Rules and EMC Registration, it can
be used in all residential and other areas.
 All right are reserved. Copying in whole or in part this manual is prohibited by law.
The information contained herein is subject to change in order to improve reliability, design,
or function without prior notice.
Manual
SU-320H
®
SmileCAM

2
Thank you for purchasing SmileCAM.
Please read the following before using the camera.
※Before using the SmileCAM
 Do not connect SmileCAM to PC before you install the Driver.
 Do not unplug USB Port while using application program.
 Do not force to turn the camera head by hand when adjusting it.
 Do not attempt to disassemble the camera by yourself
(warranty is invalid if disassembled).
 Do not clean the camera with flammable substances such as oil or thinner.
 Do not drop the camera, or it will cause operational problems.
 Please make sure the lens cap is on when the camera is not in use.
※Please, install ezWebCam21 software and USB Driver first and then connect
USB PORT and SERIAL PORT of the camera to your PC.
※In case of using notebook (laptop), be sure not to use SmileCAM with
battery power only. The power supplied from your laptop PC battery is
not enough for SmileCAM running.
※Package Contents
SmileCAM
Quick Installation Guide
Software CD
Serial Number

3
TABLE OF CONTENTS
Cautions 2
Package Contents 2
Specifications 4
System Requirements 4
Software (ezWebCam21) Install 5
Driver Install (USB Driver)
Windows 98/SE 8
Windows ME 13
Windows 2000 15
Windows XP 18
Windows 2003 21
Function
ezWebCam21 (Server) 26
Image Viewer 31
ezWebCam21 (Client) 32
FAQ 34

4
Specifications
Design and Specifications of product are subject to change without notice depending on the
situation of manufacturer.
Image Sensor COLOR 1/3” CMOS
Resolution 320 K
Effective Resolution VGA(640x480)
CIF(352x288)
Frame Rate VGA:15fps
CIF:30fps
Minimum Illumination 5.0 Lux @ F2.0
Lens F=2.0 / 4 Glass, 1 Filter / Fl=6.0mm
Field of View 60˚
Focal Length 30cm ~ ∞
Exposure Automatic / Manual
White Balance Automatic / Manual
S/N Ration > 48dB
Interface Universal Serial Bus (USB1.1) & RS-232C Serial
Left / Right (Pan) 300˚
Up / Down (Tilt) 60˚
Pan / Tilt Speed 90˚/sec
Power Supply DC 5V ±5% USB Power
Dimensions 110(W) × 112(H) × 106(D)
Weight 410g
Cable Length 3.1M
System Requirements
□Windows 98/SE, ME, 2000, XP, 2003
□Over Pentium II (Over 266Mhz) or higher
□Over 64Mb memory or higher
□ADSL, Cable Modem or LAN above 128Kbps
□Windows compatible sound card, speaker and microphone
□CD-ROM Driver
□Graphic card with 8MB memory or more
□PC with available USB Port and Serial Port
□800 x 600, 16bit Color display (1024 x 768, 24bit recommended)

5
Software (ezWebCam21) Installation
Please insert CD into CD-ROM before connecting SmileCAM / Applications
(USB) to your PC.
Install the ezWebCam21 firstly and then USB Driver After finishing
Installation of USB Driver, please connect SmileCAM to your PC.
To install the ezWebCam21 software please use the following steps:
1) Insert the Installation CD into CD-Rom Drive.
2) The CD should auto-run and display the SmileCAM / Applications screen.
※If your CD does not auto-run, you can install manually clicking.
My computer CD-ROM AutoSetup.exe
3) Click on the ezWebCam21 icon to begin the installation. This will start the Install-
Shield Wizard which will guide you through the process.

6
4) Appoint a folder for setting up the program. By clicking on the “Next” button,
the program will automatically set up in the appointed folder.
5) If the installation is set up like the screen below, click “Finish” button.

7
6) Simple registration allows you to obtain web broadcasting service, without
additional setup.
Type in your user ID, password, country, channel, e-mail address and
Serial key.
You are connected to http://www.smilecam.com automatically and then the
information will be registered.
* Once you registered your ID on the screen below, the registered ID cannot be
changed, so please enter ID cautiously and memorize it. If you close the
widow or click the “Cancel” button, you could not use webcam broadcasting
service.
7) Click the “OK” button, after successful completion of registration, the pop-up
message window will show as below.
After clicking “Finish” button, please wait for 2~5 seconds. A window for
simple registration will appear.

8
Driver Install (Windows 98/SE, ME, 2000, XP, 2003)
Windows 98 / SE
1) Click “USB Driver”
2) Click “Next” to continue.

9
3) If the installation is set up like the below screen, click “Finish” button.
(If you do not reboot your PC, program may not work properly, so please reboot
your PC)
Computer system will be restarted.
If the computer system come back to normal condition after rebooting, the
SmileCAM CD does not run any more.
4) After rebooting your computer, connect USB cable and RS232 Serial cable to
each USB Port and Serial Port on your computer.
USB PORT
SERIAL PORT

10

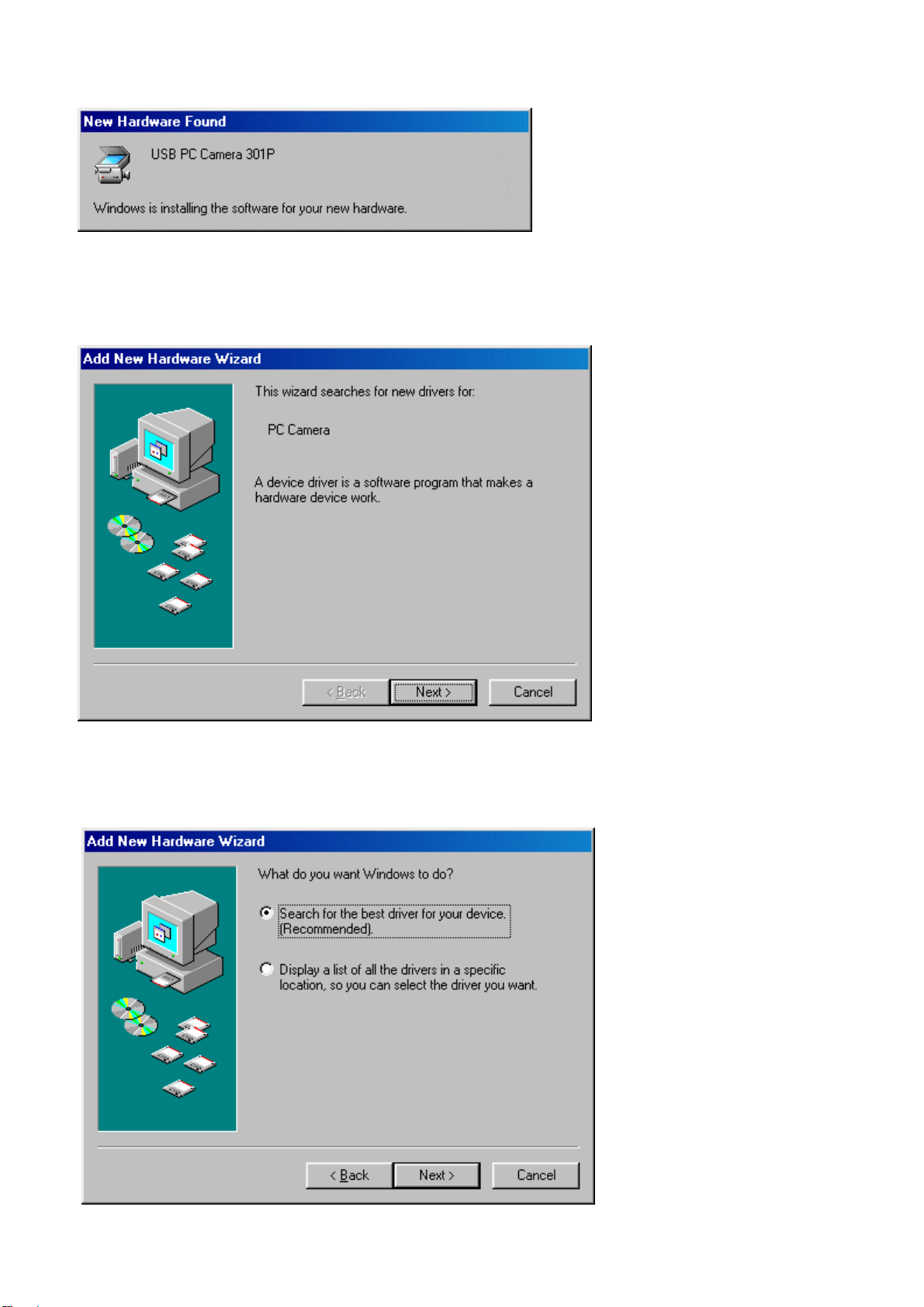

5) New Hardware found.
6) Hardware wizard detects automatically SmileCAM as newly added hardware.
Click “Next”.
7) Select “Search for the best driver for your device (recommended)” and click
“Next”

11
8) Select “specify a location” and click “Next”.
9) Click “Next” to continue.
10) Insert Windows 98 CD.

12
11) After designate of path clicking “Browse..”, please click “OK”.
12) After designate of path, please click “OK”.
In case of your OS is “Window 98”, select “kstvtune.ax” file which is in
“\Win98\System” of the install CD.
In case of your OS is “Window 98 SE”, please select “ks.sys” file which is in
“\Win98\System32\Drivers” of the install CD.
13) Click “Finish”. (PC reboot is recommendable)

13
Windows ME
1) Click “USB Driver”
2) Click “Next” to continue.
3) Click “Finish” and PC will automatically restarted.(Rebooting is recommended)

14
4) After rebooting your computer, connect USB cable and RS232 Serial cable to
each USB Port and Serial Port on your computer.
USB PORT
SERIAL PORT
5) New hardware found
6) Installing…
※After installing Driver, above window will disappear.
Restarting PC is recommended.

15
Windows 2000
1) Click “USB Driver”
2) Click “Next” to continue.
3) Digital signature dialogue box for “Unknown software package” will appear. Click
“Yes” to continue.

16
4) If the installation is set up like the screen below, click “Finish” button.
5) After rebooting your computer, connect USB cable and RS232 Serial cable to
each USB Port and Serial Port on your computer.
USB PORT
SERIAL PORT
6) Please wait…

17
7) Digital signature dialogue box for “ USB PC Camera 301P” will appear. Click
“Yes” to continue.
8) Installing…
9) Click “Finish” and PC will automatically restarted.(Rebooting is recommended)

18
Windows XP
1) Click “USB Driver”.
2) Click “Next” to continue.
3) Windows will then display a warning screen that the driver has not passed
Windows Logo Testing.
SmileCAM has tested the camera thoroughly on Windows XP and has found no
problems. Click the “Continue Anyway” button.

19
4) Click the “Finish” button.

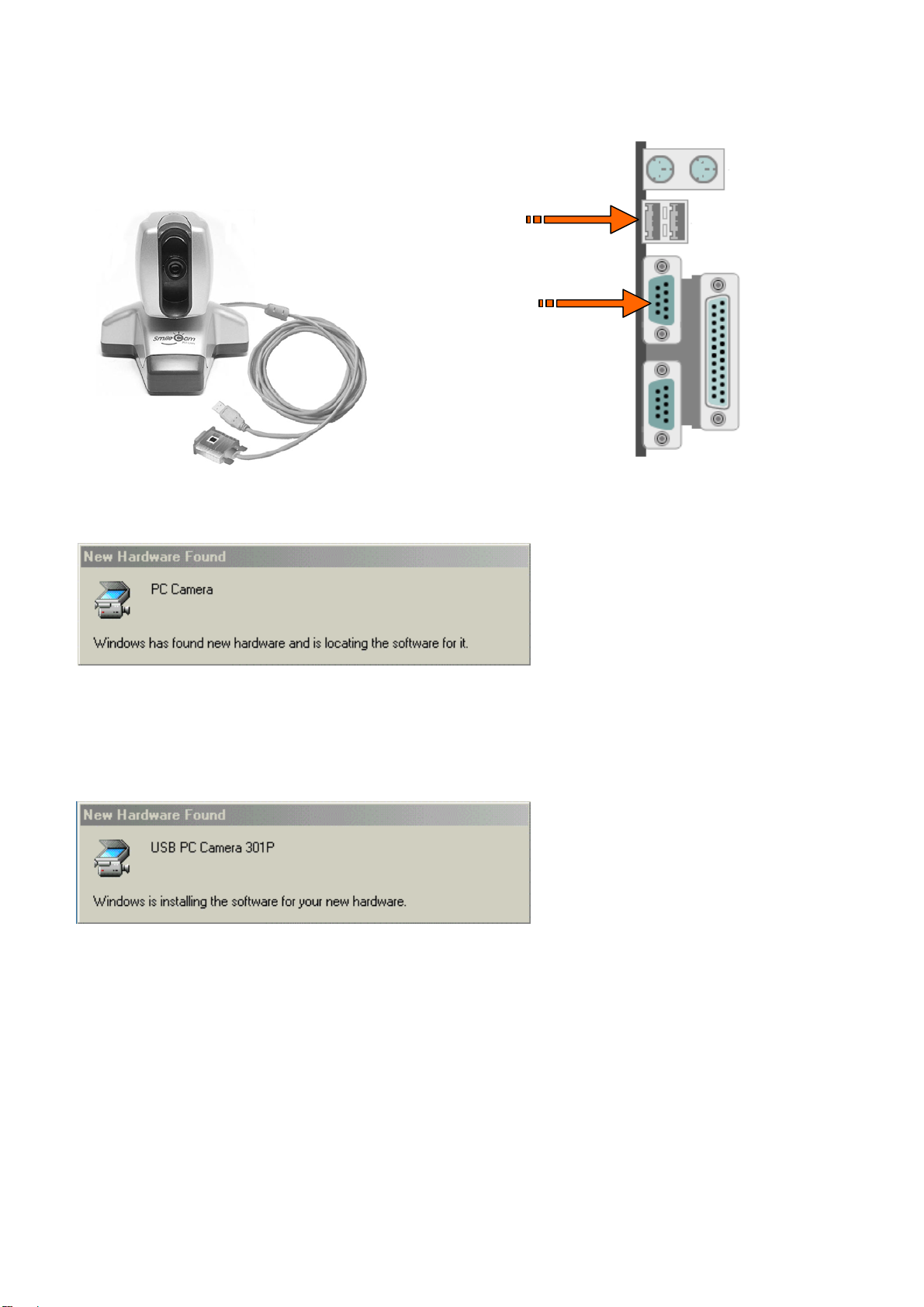

5) After rebooting your computer, connect USB cable and RS232 Serial cable to
each USB Port and Serial Port on your computer.
USB PORT
SERIAL PORT
6) New hardware found (PC Camera) (USB PC Camera 301P)

20
8) Click “Next” to continue.
9) Click the “Continue Anyway” button.
10) The installation will complete and when prompted click the “Finish” button.
