USECO AFCP Series User manual

1
MAX FRESH
USECO
735 FLORENCE RD
SAVANNAH, TN 38372
1-800-251-3398
OPERATION MANUAL
AFCP-SERIES
DROP-IN
REFRIGERATED
COLD PANS
AFCP-MODELS
AFCP-1 AFCP-1-7
AFCP-2 AFCP-2-7
AFCP-3 AFCP-3-7
AFCP-4 AFCP-4-7
AFCP-5 AFCP-5-7
AFCP-6 AFCP-6-7
INCLUDES (ST) SLOPED UNITS
INCLUDES (SL) SLIM LINE UNITS
INCLUDES 4/3 UNITS
INCLUDES
INSTALLATION
USE & CARE

2
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be a part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your USECO dealer.
THIS MANUAL MUST BEREAD AND UNDERSTOOD BY ALL PERSONS USING
OR INSTALLING THIS APPLIANCE. Contact your USECO DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
1. Resetting of safety thermostats, circuit breakers, overload protectors, and/ or fuse replacement are not
covered by this warranty unless warranted conditions are the cause.
2. All problems due to operation at voltages or phase other than specified on equipment nameplates are not
covered by this warranty. Conversion to correct voltage and/or phase must be the customer’s
responsibility.
3. All problems due to electrical connections not made in accordance with electrical code requirements
and wiring diagrams supplied with the equipment are not covered by this warranty.
4. Replacement of items subject to normal wear, to include such items as knobs, light bulbs, and normal
maintenance functions including adjustments of micro switches and replacement of fuses and indicating
lights are not covered by warranty.
5. Damage to electrical cords and/or plug due to exposure to excessive heat are notcovered by this warranty.
6. Full use, care, and maintenance instructions supplied with each machine. Noted maintenance and preventive
maintenance items, such as servicing and cleaning schedules, is customer responsibility. Those
miscellaneous adjustments noted are customer responsibility. Proper attention to preventive maintenance and
scheduled maintenance procedures will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an Authorized Service Agency or one of its sub-service
agencies.
8. All labor shall be performed during regular working hours. Overtime premium will be charged to the buyer.
9. All genuine AFC replacement parts are warranted for ninety (90) days from date of purchase on non-warranty
equipment. This parts warranty is limited only to replacement of the defective part(s). Any use of non-
genuine AFC parts completely voids any warranty.
10. Installation, labor, and job checkouts are not considered warranty and are thus not covered by this warranty.
11. Charges incurred by delays, waiting time or operating restrictions that hinder the service technician’s ability
to perform service are not covered by warranty. This includes institutional and correctional facilities.
SERVICE POLICY AND PROCEDURE GUIDE
ADDITIONAL WARRANTY EXCLUSIONS
LIMITED WARRANTY STATEMENT
USECO equipment is warranted to be free of defects in material and workmanship for a period of 12 months from the date of shipment from the
factory. Warranty applies to the contiguous 48 states, to the original commercial end user and is not transferable.
Warranty applies only to properly installed equipment under conditions of normal use in standard commercial foodservice operations and
receiving proper preventative maintenance. Normal wear & tear is not covered.
Warranty does not apply to failure from poor or inadequate water supply, improper cleaning, exposure to corrosive and harsh chemicals or acids
and does not apply to defects from misuse, neglect, improper installation, freight damage or accidents, fire, flood, riot or acts of God.
USECO’s warranty does not include any coverage for loss of business, loss of use, loss of time, loss of profits or income, loss of food products or
labor cost and is limited to USECO manufactured products and does not apply to equipment connected to or installed with USECO products.
Enough access must be available for service technicians to adequately service equipment. Equipment built into cabinets, tables or structures by
others with insufficient access is not covered under labor warranty
Warranty is void if the equipment has been modified, if parts have been substituted, if the name/ model plate is missing or has been defaced or if
the equipment has been repaired or altered by anyone other than an authorized USECO agent.
Warranty work must be authorized in advance by the USECO factory. Claims for work performed without pre-authorization are subject to
rejection. For warranty authorization call USECO technical service department at 800-251-3398. A service technician will diagnose, and trouble
shoot with the end user to find a service solution. If a solution can not be resolved over the phone, USECO will determine how best to resolve the
issue, which may include dispatching a service agent, shipping a part or another method to provide a solution.
When calling USECO for warranty service please have the following information ready: name and address of business location, contact
information, model and serial number, date of purchase, name of dealer where purchased, credit card information and a description of the
service issue.
Warranty covers parts and labor performed during normal business hours. Labor performed after hours, on weekends or holidays are not
covered and are at the discretion and expense of the end user and not paid by USECO. Travel mileage is covered up to 100 miles round trip or up
to 2 hours round trip. Additional time and travel will be at the end users’ expense.
USECO’s sole obligation is to repair or replace the product at USECO’s option. This warranty is in lieu of all other warranties expressed or
implied, including any warranty of merchantability, and fitness for a particular purpose

3
SHIPPING DAMAGE CLAIM PROCEDURE
NOTE: For your protection, please note that equipment in this shipment was carefully inspected and packaged by
skilled personnel before leaving the factory. Upon acceptance of this shipment, the transportation company assumes
fully responsibility for its safe delivery. IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight bill or
express receipt, and that the note of loss or damage is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELTY: Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: If damage is unnoticed until the merchandise is unpacked, notify the
transportation company or carrier immediately, and file “CONCEALED DAMAGE” claim with them. This
should be done within fifteen (15) days from the date the delivery was made to you. Be sure to retain the
container for inspection.
USECO cannot assume liability for damage loss incurred in transit. We will, however, at your request, supply you with
the necessary documents to support your claim.

4
INTRODUCTION
Thank you for purchasing this USECO appliance.
Proper installation, professional operation and consistent maintenance of this appliance will
ensure that it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and
care for the appliance in a manner which will ensure its optimum performance.
ELECTRICAL & REFRIGERATION SPECIFICATIONS
CORD-CONNECTED MODELS
MODELS
AFCP-1, -2, -3
AFCP-1-7, -2-7
AFCP-4
AFCP-3-7
AFCP-5, -6
AFCP-4-7
VOLTAGE
115 VAC 60 Hz.
115 VAC 60 Hz.
115 VAC 60 Hz.
TOTAL AMPS
5.3 A
7.0 A
7.5 A
REFRIGERANT (AMOUNT / TYPE)
28 oz. / R-134A
24 oz. / R-404A
32 oz. / R-404A
PRESSURE (High Side / Low Side)
440 / 162 psig
500 / 174 psig
500 / 174 psig
PERMANENTLY CONNECTED MODELS
MODELS
AFCP-5-
7
AFCP-6-7
SINGLE PHASE VOLTAGE
115 VAC 60 Hz.
TOTAL AMPS
15.3 A
MCA / MES / LRA
21.0A / 30A / 59A
REFRIGERANT (Amount / Type)
54 oz. / R-404A
PRESSURE (High Side / Low Side)
500 / 174 psig

5

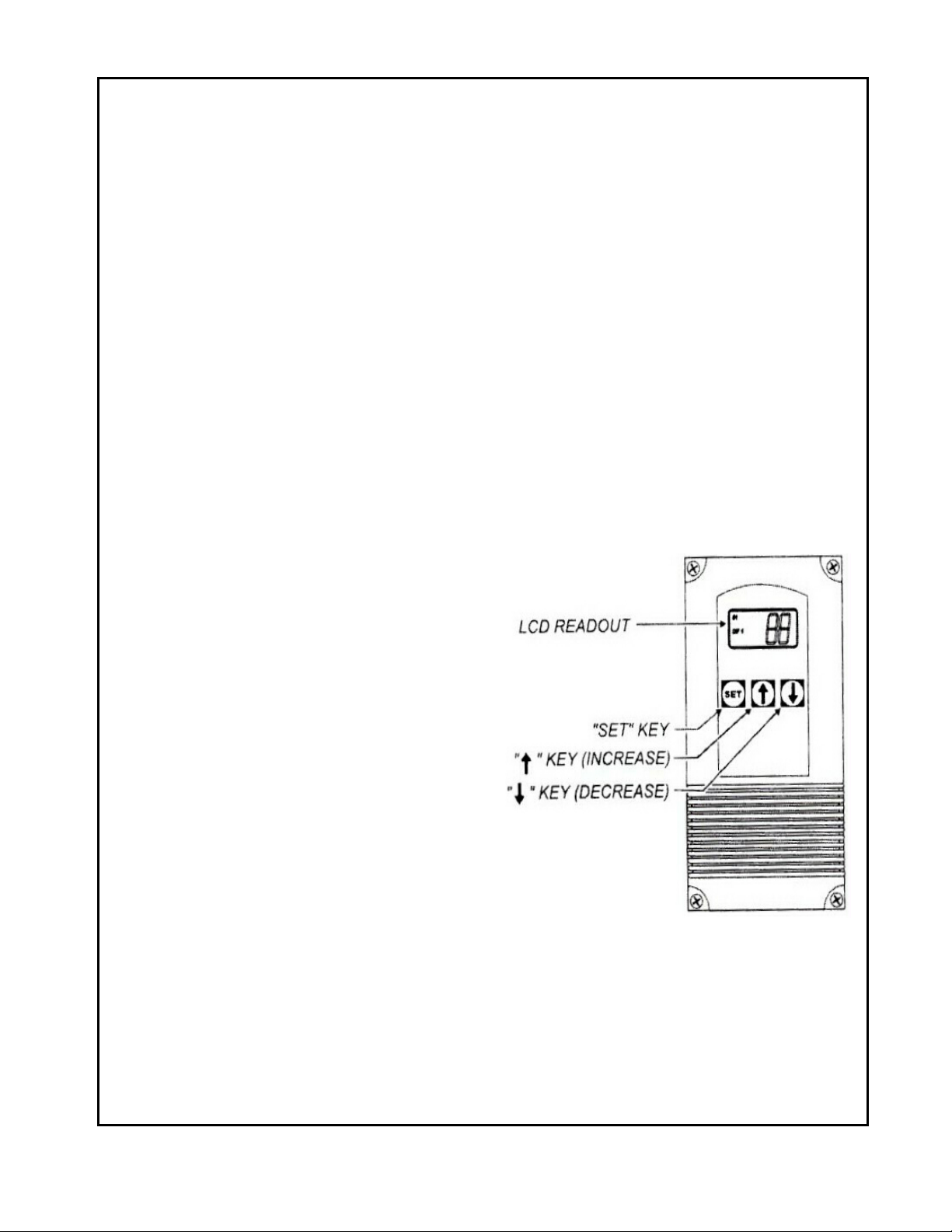

FEATURES & OPERATING CONTROLS
NOTE:
This is a general arrangement drawing only. Actual component positions may vary between
units.
TEMPERATURE CONTROL UNIT USED ONLY ON MODELS:
AFCP-1-7
AFCP-2-7
AFCP-3-7
AFCP-4-7
AFCP-5-7
AFCP-6-7

6
PRECAUTIONS & GENERAL INFORMATION
This appliance is intended for use in commercial establishments only and is intended to hold pre-chilled
prepared food for human consumption. No other use is recommended or authorized by the manufacturer or
its agents.
Operators of this appliance must be familiar with the appliance use, limitations and associated restrictions.
Operating instructions must be read and understood by all persons using this appliance.
Food must be kept in appropriate inserts. Never place food directly into the tank.
Cleanliness of this appliance is essential to good sanitation. Read and follow all included cleaning
instructions and schedules to ensure the safety of the food product.
Disconnect this appliance from electrical power before performing any maintenance or servicing.
This appliance is not jet stream approved. Do not direct water jet or steam jet at this appliance, or at any
control panel or wiring. Do not splash or pour water on, in or over any controls, control panel or wiring.
Do not wash floor around this appliance with water or steam jet.
The technical content of this manual, including any wiring diagrams, schematics, parts breakdown
illustration and/or adjustment procedures, is intended for use by qualified technical personnel.
Any procedure, which requires the use of tools, must be performed by a qualified technician.
This manual is considered to be a permanent part of the appliance. This manual and all supplied
instructions, diagrams, schematics, parts breakdown illustration, notices and labels must remain with the
appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this appliance has American sizes on all
hardware.
WARNING: CAUTION:
ELECTRIC RISK OF
SHOCK HAZARD DAMAGE
All servicing requiring access to non-insulated DO NOT connect or energize this
electrical components must be performed by a appliance until all installation
factory authorized technician. DO NOT open instructions are read and followed.
any access panel which requires the use of Damage to the appliance will result
tools. Failure to follow this warning can if these instructions are not followed.
result in severe electrical shock.
AGENCY LISTING INFORMATION
Models AFCP-1 thru AFCP-6 have been evaluated by NSF
International for sanitation requirements and not
performance tested for potentially hazardous foods.
NSF-7 Models AFCP-1-7 thru AFCP-6-7 have been
performance tested by NSF for potentially hazardous
foods and are intended for use in rooms having an
ambient temperature of 86°F or less.
AFCP units are Underwriters Laboratory listed.

7
INSTALLATION
NOTE: DO NOT discard
the carton or other packing
materials until you have
inspected the appliance for
hidden damage and tested it
for proper operation. Refer to:
SHIPPING DAMAGE CLAIM
PROCEDURE on the inside of this
manual.
WARNING:
RISK OF PERSONAL INJURY
Installation procedures must be
performed by a qualified technician
with full knowledge of all applicable
electrical and plumbing codes.
Failure can result in personal injury
and property damage.
IMPORTANT:
Unit must remain in an upright
position during installation to
prevent damage to the
refrigeration system.
IMPORTANT:
Refrigeration system is air-cooled.
Recommended louvered grills or
equivalent openings front and rear,
each with a minimum size of twice
the surface area of the condenser,
to provide adequate air circulation.
IMPORTANT:
Access is required for the operation
of the drain valve and for
maintenance of the refrigeration unit.
Provide adequate access to the drain
valve and refrigeration unit.
IMPORTANT:
Unit flange must be sealed to the
countertop. Damage caused by leaks
due to improper installation is NOT
covered by warranty.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective
plastic film, packing materials and accessories from the appliance before
connecting electrical power or otherwise performing any installation
procedure.
Carefully read all instructions in this manual and the Installation
Instruction Sheet packed with the appliance before starting any
installation.
Read and understand all labels and diagrams attached to the
appliance.
Carefully account for all components and accessories before
discarding packing materials. Store all accessories in a
convenient place for a later use.
USECO units must remain upright at all times (shipping &
installation) to prevent damage to the condensing unit. If the
unit is accidentally tipped, allow unit to sit upright for at least
24 hours before connecting to electric power.
COMPONENTS
1 ea. PAN RAIL
1-5 ea. PAN ADAPTER BAR(S) (qty differs with unit)
1 ea. DRAIN VALVE
1 ea. DRAIN SCREEN
PREPARATION
Cutout dimensions for tank units and control panels are listed on
the Installation Instructions provided with the unit.
Provide at least 1” clearance around the condensing unit chassis.
Countertop must be flat and level before the unit is installed.
After cutout is made, add stiffeners or bottom braces to counter
as required to support unit weight.
IMPORTANT:
Refrigeration system is air-cooled. Recommend louvered grills
or equivalent opening front and rear, each with a minimum size
of twice surface are of the condenser, to provide adequate air
circulation.
NOTE: The condenser fan is provided with a fan guard. DO
NOT remove the condenser fan guard.
Provide louvered grills and service access below control panel.
Provide access to the POWER SWITCH and TEMP CONTROL
UNIT located at the front of the condenser.
Verify that provided sealants are applied to the underside of the
top flange prior to setting the unit into the cutout.
After installation, apply a thin bead of food-grade silicone
sealant around the flange to seal it to the counter.
Avoid storing flammable or combustible materials in, on or near
the appliance.

8
INSTALLATION (continued)
ELECTRICAL INSTALLATION
1. Refer to the nameplate. Verify the electrical
service power. Voltage and phase must
match the nameplate specifications.
Wiring the unit to the wrong voltage can
severely damage the unit or cause noticeably
decreased performance.
2. Available electrical service amperage must
meet or exceed the specifications listed on
the specification sheet provided with the unit.
a. Cord-connected units are equipped
with a three-prong (grounding) plug
for your protection against electric
shock. This must be plugged into a
properly grounded matching receptacle.
b. AFCP-5-7 and AFCP-6-7 field-wired
units connect to the pigtail leads in the
control box. Wiring must be secured to
the control box with an appropriate
strain relief (provided by installer).
The green ground wire must be
connected to a suitable building ground.
IMPORTANT:
*BLACK wire = Power (HOT)
*WHITE wire = Neutral
*GREENwire = Ground
3. Tank and control must be connected to an
appropriate building ground. Ground
connection will always be marked.
NOTE: Field-wired units wire gauge, insulation type
and temperature rating, as well as type, size
and construction of conduit, must meet or
exceed applicable specifications of local
codes and of the National Electrical Code.
PLUMBING INSTALLATION
1. Plumb connections must be made in
Compliance with all Federal, State and
Local Plumbing Codes and Ordinances.
IMPORTANT: All drain plumbing must be
performed by a qualified plumber.
2. Install provided 1” drain valve on unit drain.
Plumb to an appropriate waste as required by
local plumbing and sanitation ordinances.
WARNING:
Electric Shock Hazard
All servicing requiring access to
non-insulated electrical
components must be performed by
a factory-authorized technician.
DO NOT open any access panel
that requires the use of tools.
Failure to follow this warning can
result in severe electrical shock.
CAUTION:
Risk of Damage
DO NOT connect or energize this
appliance until all installation
instructions are read and followed.
Damage to the appliance will result
if these instructions are not
followed.
CAUTION:
Electrical Shock Hazard
Cord-connected units are
equipped with a three-prong plug
for your protection against
electrical shock. Never cut the
large round prong from the plug,
or twist a blade to fit an existing
receptacle.
IMPORTANT:
Contact a licensed electrician
to install the correct circuit and
receptacle (cord-connected
units) or to install and connect
electrical power (field-wired
units).
IMPORTANT

9
OPERATION NOTES
1. Never place food directly in cold pans.
Always use inserts or food pans.
2. Use only pre-chilled products. Stir product
occasionally to maintain chilled
temperatures and prevent bottom freezing.
3. Use perforated bottom strainer plates when
operating units with ice. Perforated bottom
strainer plates are optional and must be
ordered separately.
4. Models AFCP-1-7 thru AFCP-6-7 are NSF-
7 listed for use with potentially hazardous
foods.
5. Periodically clean condensing coils to
remove accumulated dust and debris.
Failure to clean coils will decrease
performance and may void the warranty.
See CONDENSER CLEANING,
page 8.
DAILY START-UP
1. Turn POWER SWITCH (located on
condensing unit) ON. Allow unit to run for
approximately 30 minutes to reach operating
temperature.
2. Add necessary adapter bars or adapter
plates. Adapter bars provided with the unit
are designed to hold 12” x 20” food pans up
to 6” deep.
3. Install appropriate food pans or inserts.
Place pre-chilled product in food pans.
DAILY SHUT-DOWN
1. Turn POWER SWITCH OFF. Remove
product, food pans and adapters.
2. Allow unit to defrost before cleaning
See CLEANING INSTRUCTIONS, page 7
OPERATION
CAUTION:
Electrical Shock Hazard
DO NOT splash or pour water onto
control panel or wiring.
AFCP units are designed to hold
REFRIGERATED PRE-CHILLED
products at serving temperature.
AFCP units should not be used to chill
product, or to hold product for long-
term storage.

10
CLEANING INSTRUCTIONS
PREPARATIONS: TURN POWER SWITCH OFF.
Unplug unit or disconnect from
electric power. Allow unit to
defrost before proceeding.
Remove any inserts, pans and/or
adapter tops (if used). Drain
water from tank.
FREQUENCY: Daily
TOOLS: Warm Water and Mild Detergent
Solution: 10 Parts Warm Water
to 4 Parts Vinegar
Plastic Scouring Pad
Clean Cloth or Sponge
Food-Grade Silicone Sealant
IMPORTANT: DO NOT USE STEEL WOOL FOR CLEANING.
1. Remove pan adapter bars, pan rail and drain screen. Wipe interior of tank using a
clean cloth or sponge and mild detergent.
2. Use a plastic scouring pad to remove any mineral deposits.
3. Rinse tank thoroughly with a vinegar and water solution to neutralize all detergent
or cleanser residue.
4. Clean pan adapter bars and pan rail with a cloth or sponge dampened in clean
water. Dry thoroughly, then reinstall.
5. Check drain screen, clean if necessary and reinstall.
6. Periodically inspect warmer flange-to-counter seal. Reseal with food-grade
silicone sealant if necessary.
7. Inspect condenser. Clean if required.
8. Inspect cooling louvers in counter. Remove any lint or debris.
9. Reconnect to electric power. Turn POWER SWITCH ON when unit is to be
used.
Procedure is complete.
CAUTION:
Electrical Shock Hazard
DO NOT splash or pour water
onto control panel or wiring.

11
CONDENSER COIL CLEANING INSTRUCTIONS
The condenser coil must be kept clean to allow adequate
air flow for proper heat dissipation. Recommend this
procedure be performed monthly.
1. Turn POWER SWITCH OFF. Disconnect unit
from electrical power.
2. Remove louvers or access panel to allow coil to be
reached.
3. Using a stiff bristle brush, brush lint and debris from
the condenser fins. Brush vertically, top to bottom.
Collect and discard all lint and debris gathered from
this operation.
IMPORTANT: The fins of the condenser are
delicate and easily damaged. Use care to brush in a
vertical motion to avoid damaging the coil fins.
4. Wipe the fan blades to remove accumulated lint.
5. Reconnect to electrical power. Test for proper
operation.
CAUTION:
Personal Injury Hazard
Disconnect appliance from
electrical power before
cleaning condenser coil.
CAUTION:
Personal Injury Hazard
Condenser coil fins are sharp.
Use care to avoid cuts while
cleaning the condenser.

12
MAINTENANCE INSTRUCTIONS (continued)
CARE OF STAINLESS STEEL
1. The surface can be damaged by mechanical abrasion, hard water deposits and chlorine:
a. Never use steel wool, wire brushes or metal scrapers to clean the appliance.
These will damage the surface.
b. Hard water deposits left behind when water is evaporated will attack the surface
and allow the stainless steel to rust.
c. Chlorides from chlorinates cleansers, calcium / lie / rust removers (e.g. muriatic
acid), even heavily chlorinated city water will attack the surface and allow the
stainless steel to rust.
d. DO NOT use any highly caustic cleaners. Use of highly caustic cleaners will
damage the surface.
e. LIMIT USE of strong caustic on warmers. Rinse thoroughly with a vinegar and
water solution to neutralize any residue. Failure to do so may cause damage to
the surface and allow the stainless steel to rust.
f. Cleaners containing ammonia will attack the surface and allow the stainless steel
to rust.
2. Use the proper tools in the proper way to clean your USECO warmer:
a. Soft cloth and plastic scouring pads are safe to use on stainless steel surface.
b. Stainless steel pads may be used ONLY IF the scrubbing motion is in the
direction of the visible grain. DO NOT use a circular motion.
c. In the absence of visible grain, use only cloth or plastic pads. Scrub only in a
linear motion along the longest axis of the equipment.
3. Use only non-chloride and non-ammonia cleansers:
a. DO NOT use any cleanser listed as “chlorinated”.
b. DO NOT use any cleanser listing “ammonia” or “ammonium” in its contents.
c. Contact your cleaning materials supplier for suitable alkaline cleansers.
4. Keep your USECO hot and cold pan clean. Clean frequently to avoid build-up of hard,
stubborn stains and hard-to-remove deposits.
a. Rinse thoroughly with a vinegar and water solution to neutralize any residue.
b. For discoloration caused by using the warmer in dry operation, use a cleaner
made specifically for stainless steel.
c. Wipe dry with a soft, clean dry cloth
d. Restore the surface by using a polishing product specifically made for stainless
steel after each cleaning.
5. In areas where tap water has a high mineral content, warmers may develop lime deposits.
Use a non-chloride de-liming agent to remove line deposits. It is important to use Lime
and Scale for Warmer Pansoften to prevent a difficult-to-remove build-up of lime
deposits.
CAUTION:
Personal Injury Hazard
Disconnect appliance from electrical
power before cleaning.
USECO refrigerated cold pans are
constructed of high quality stainless steel.
As long as the stainless steel surface is
intact, the equipment will not rust or
corrode.
Recommendation:
A water softening device or a cartridge-
type filtration device may be used to
minimize lime and calcium build-up.

13
MAINTENANCE INSTRUCTIONS (continued)
IMPORTANT:
DO NOT adjust the differential settings of the refrigeration system. Field adjustments of
the differential settings must be made by qualified refrigeration personnel only.
Unauthorized adjustments of the differential settings will void the warranty.
The temperature setting of the NSF-7 Refrigerated Cold Pan has been pre-set at the
factory to meet most applications. An electronic temperature control maintains food
temperature between 33°F and 41°F.
TEMPERATURE ADJUSTMENT
AFC-1 thru AFC-6
1. The temperature has been preset at
the factory to meet most applications.
2. If temperature adjustments are
required, the pressure switch, located
on the condensing unit, is adjustable.
Temperature adjustment must be
performed by a qualified refrigeration
personnel only.
3. Normal temperature setting would be
1°F +/- 3°
AFC-1-7 thru AFC-6-7
The LCD Display provides a readout of the
sensor temperature during normal operation.
Use the following to change the set point
temperature:
1. To start programming, press SET key
once. This will access the Fahrenheit/
Celsius mode. The readout will show
the current status, either F (degrees
Fahrenheit) or C(degrees Celsius).
Press either “up arrow” or “down
arrow” to toggle between Fand C
designation.
2. Press SET again to access the setpoint.
The LCD will display the current setpoint,
and the S1 annunciator will blink off and
on to indicate that control is in the setpoint
mode. Press either ”up arrow” to increase
the setpoint, or “down arrow” to decrease
the setpoint to the desired temperature.
Factory setpoint is 21°F.

14
MAINTENANCE INSTRUCTIONS (continued)
3. Press the SET key again to access the differential. The LCD will display the
current differential, and the DIF1 annunciator will blink off and on to indicate that
control is in the differential mode.
IMPORTANT: DO NOT adjust the differential settings of the refrigeration
system. Field adjustments of the differential settings must be made by qualified
refrigeration personnel only. Unauthorized adjustment of the differential settings
will void the warranty.
Press either “up arrow” to increase the differential, or “down arrow” to decrease
the differential to the desired setting. Factory differential is 3°F.
4. Press the SET key again to access the Heating / Cooling mode. The LCD will
display the current mode. Either “C1” for cooling or “H1” for heating. The
control must be set to C1 for proper operation of the cold pan.
5. Press the SET key again to complete programming. Programming ends
automatically if no keys are pressed for 30 seconds. Any settings that have been
input to the control will be accepted at that time.
6. Control settings are stored in non-volatile memory. Loss of power to the unit will
not require reprogramming.
IMPORTANT: DO NOT adjust the differential settings of the refrigeration system.
Field adjustments of the differential settings must be made by qualified refrigeration
personnel only. Unauthorized adjustment of the differential settings will void the
warranty.
TROUBLESHOOTING SUGGESTIONS
SYMPTOM
POSSIBLE CAUSE
REMEDY
No power to unit
Circuit breaker tripped
Reset circuit breaker
Power switch OFF
Turn power switch ON
Food not kept cold enough
Food not chilled to start
Add only pre-chilled food
Food too thick
Stir thick food frequently
Setpoint too high
Set to desired temperature
Condenser cooling louver
s or
coil plugged
Clean condenser louvers and/ or coil
Refrigerant level low
Contact Authorized USECO Service
Agency for repairs
Internal damage
Contact Authorized USECO Service
Agency for repairs

15
PARTS & SERVICE
DESCRIPTION PART NO.
DRAIN SCREEN 21709
SOUP LADEL, 6 oz. 21764
ADAPTER BAR FOR 12” x 20” PANS 22016
PERFORATED BOTTOM PLATE STRAINER
FOR AFCP-1 (1PC) 22107
PERFORATED BOTTOM PLATE STRAINER
FOR AFCP-2 (1PC) 22108
PERFORATED BOTTOM PLATE STRAINER
FOR AFCP-3 (1PC) 22109
PERFORATED BOTTOM PLATE STRAINER
FOR AFCP-4 (1PC) 22110
PERFORATED BOTTOM PLATE STRAINER
FOR AFCP-5 (1PC) 22111
PERFORATED BOTTOM PLATE STRAINER
FOR AFCP-6 (1PC) 22112
PAN RAIL FOR AFCP-1-7 22696
PAN RAIL FOR AFCP-2-7 22697
PAN RAIL FOR AFCP-3-7 22698
PAN RAIL FOR AFCP-4-7 22699
PAN RAIL FOR AFCP-5-7 22700
PAN RAIL FOR AFCP-6-7 22701
IMPORTANT: Use only factory authorized service parts and replacement filters.
For factory authorized service, or to order factory authorized replacement part, contact
your USECO authorized service agency or call:

16
USECO
735 Florence Rd
Savannah, TN 38372
1-800-251-3398
CUSTOMER SERVICE DATA
Please have this information available if calling for service
RESTAURANT __________________________________ LOCATION _________________________
INSTALLATION DATE ____________________________ TECHNICIAN ______________________
SERVICE COMPANY __________________________________________________________________
ADDRESS _____________________________________ STATE ________ ZIP _________________
TELEPHONE NUMBER (______) ________-_____________
EQUIPMENT MODEL NO. _____________________
EQUIPMENT SERIAL NO. _____________________
VOLTAGE: (check one) [ ] 115 [ ] __220________ 13
USECO
735 Florence Rd
Savannah, TN 38372
1-800-251-3398
This manual suits for next models
12
Table of contents
Popular Refrigerator manuals by other brands

hestan
hestan KRB use and care manual

Maytag
Maytag Top Freezer Refridgerator Use & care guide

V-ZUG
V-ZUG Perfect 60i operating instructions

Viking Range
Viking Range 30" Professional VCFB304 installation instructions

Kenmore
Kenmore 461.99609 owner's manual

Jenn-Air
Jenn-Air JUD248CCCX00 Installation & use manual

Delfield
Delfield UC4048P Specifications, Installation, Operation & Maintenance Manual

Nordcap
Nordcap TK 400 CHR Installation and operating manual

U-Line
U-Line U-2224RGLINT-00A User guide & service manual

Tesla
Tesla RS2300H user manual

Norcold
Norcold Polar N7V Service manual

Summit
Summit SP6DS2D7 Dimensional drawing
