UWATEC Digital 330m - English
D
E
UWATEC Digital330m - English
Table of contents:
1 Introduction................................................21
2 Remarksaboutsafety.........................................22
3 DivingwiththeDigital330m....................................23
3.1 Switchingonthedevice ...................................23
3.2 Currentdepth...........................................24
3.3 Maximumdepth.........................................24
3.4 Divetime...............................................25
3.5 Temperature and average depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3.6 Ascentspeed............................................26
3.7 Divinginmountainlakes...................................27

20
UWATEC Digital 330m - English
D
E
4 Surfacefunctions ............................................28
4.1 Surfacemode...........................................28
4.2 Logbook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
4.3 Lowbatterywarning......................................30
5 Appendix ..................................................30
5.1 Maintenance and care of the Digital330m . . . . . . . . . . . . . . . . . . . . .30
5.2 Technicalspecifications....................................31
6 Warranty...................................................32
Digital 330m dive instrument is a personal protective equipment in compliance with the essen-
tial safety requirements of the European Union directive 89/686/EEC. RINA SpA, Via Corsica
12, I-16128 Genoa, notified body no. 0474, have certified the conformity with the European
Standard EN 13319:2000. EN13319:2000 Diving accessories - Depth gauges and combined
depth and time measuring devices - Functional and safety requirements, test methods.

21
UWATEC Digital 330m - English
D
E
1 Introduction
Digital 330m is an electronic depth gauge rated to 330m/1084ft. It offers accurate
information for carrying out dives with the use of dive tables. With features such
as continuously updated average depth and ascent speed display, it was designed
with the technical diver in mind. The Digital 330m is manufactured with state of the
art electronic components and is tested with highly sophisticated equipment.
The Digital 330m displays the following information during the dive:
• current dive depth
• maximum depth
• dive time
• temperature
• average depth (continuously updated)
• ascent speed and too fast ascent warning
On the surface, the Digital 330m shows the surface interval up to 24 hours and
has a logbook function showing the last 19 dives.

22
UWATEC Digital 330m - English
D
E
2 Remarks about safety
The Digital 330m is a valuable companion for safe diving as long as you observe
the following:
• the Digital 330m does neither replace diver training nor replace a diving partner;
• the Digital 330m does not calculate any decompression data. However, it pro-
vides accurate information for the calculation of decompression procedures us-
ing dive tables. A profound knowledge of these tables is absolutely necessary;
• during the dive, check the information displayed by the Digital 330m and com-
pare it to your dive plan;
• read this operating manual carefully and completely.
WARNING

23
UWATEC Digital 330m - English
D
E
log no. surface
h
ºF
ºC
TempSpeedAvg
mmin
ft min
S
L
O
W
3 Diving with the Digital 330m
3.1 Switching on the device
Automatically: upon submerging in water
Manually: by touching contacts Aand Bwith moistened fingers
After switching on, all the segments in the display
light up for 5 seconds (diagnostic mode): ensure that
all segments are lighting up correctly. Do not use the
Digital 330m if some segments do not light up.
After the 5 seconds in diagnostic mode, the Digital 330m switches into ready mode.
After 3 minutes without operation from the ready mode, the Digital 330m turns off
to preserve battery energy.
A
C B
Ready mode
DEPTH
MAX.DEPTH
DIVE TIME
ºC
Temp

24
UWATEC Digital 330m - English
D
E
3.2 Current depth
The current depth is displayed in the upper left corner of the screen, in either
meters or feet. The depth measurement is calibrated for fresh water according to
international standards. Therefore when diving in salt water, the Digital 330m will
show a depth slightly greater than actual (2-3% higher). Note that when imperial
units are chosen, depths deeper than 999 ft are shown without the leading “1”.
3.3 Maximum depth
Maximum depth is displayed in the lower left corner of the screen.
DEPTH
MAX.DEPTH
DIVE TIME
ºC
Temp
DEPTH
MAX.DEPTH
DIVE TIME
ºC
Temp

25
UWATEC Digital 330m - English
D
E
3.4 Dive time
In the upper right corner of the screen, the Digital 330m indicates the time the
diver has spent below a depth of 1.2 m / 4 ft. The dive time is indicated in hours
and minutes, up to 999 hours and 59 minutes. After 1000 hours, the display of
the dive time starts again from 0. The colon to the right of the minutes flashes
when the clock is running. If a diver surfaces briefly during a dive for orientation
purposes, the dive time continues to run including the time spent on the surface.
If the surface interval is longer than 5 minutes, the dive is closed and entered into
the logbook. Upon submerging in these conditions, the dive time would start
again from zero.
DEPTH
MAX.DEPTH
DIVE TIME
h
ºC
Temp

26
UWATEC Digital 330m - English
D
E
3.5 Temperature and average depth
In the lower right corner of the screen, the Digital 330m alternates the display
of the water temperature and the average depth. Each value is displayed for 4
seconds at the time. The average depth is continuously updated throughout the
dive, and represents the mean value of the depth since the beginning of the dive.
3.6 Ascent speed
During an ascent, the ascent speed is displayed in the lower right corner instead
of the temperature and average depth. The ascent speed is displayed in meters
per minute or feet per minute. As soon as the Digital 330m does not detect an
ascent anymore, temperature and average depth information appear again.
In addition, Digital 330m displays an arrow when it detects a higher than ideal
ascent speed. The latter varies with depth as shown in the table.
DEPTH
MAX.DEPTH
DIVE TIME
Avg
DEPTH
MAX.DEPTH
DIVE TIME
Speed
mmin
S
L
O
W

27
UWATEC Digital 330m - English
D
E
3.7 Diving in mountain lakes
The Digital 330m has an unlimited altitude range. Whereas mechanical depth gaug-
es are dependent on atmospheric pressure and become less accurate with altitude,
the Digital 330m accounts for variations in atmospheric pressure and maintains its
accuracy throughout.
You need special diving tables for dives at altitude higher than 1000 m / 3,000 ft!
depth (m) <6 <12 <18 <23 <27 <31 <35 <39 <44 <50 >50
speed (m/min) 7 8 9 10 11 13 15 17 18 19 20
depth (ft) <20 <40 <60 <75 <88 <101 <115 <128 <144 <164 >164
speed (ft/min) 23 26 29 33 36 43 49 56 59 62 66

28
UWATEC Digital 330m - English
D
E
4 Surface functions
4.1 Surface mode

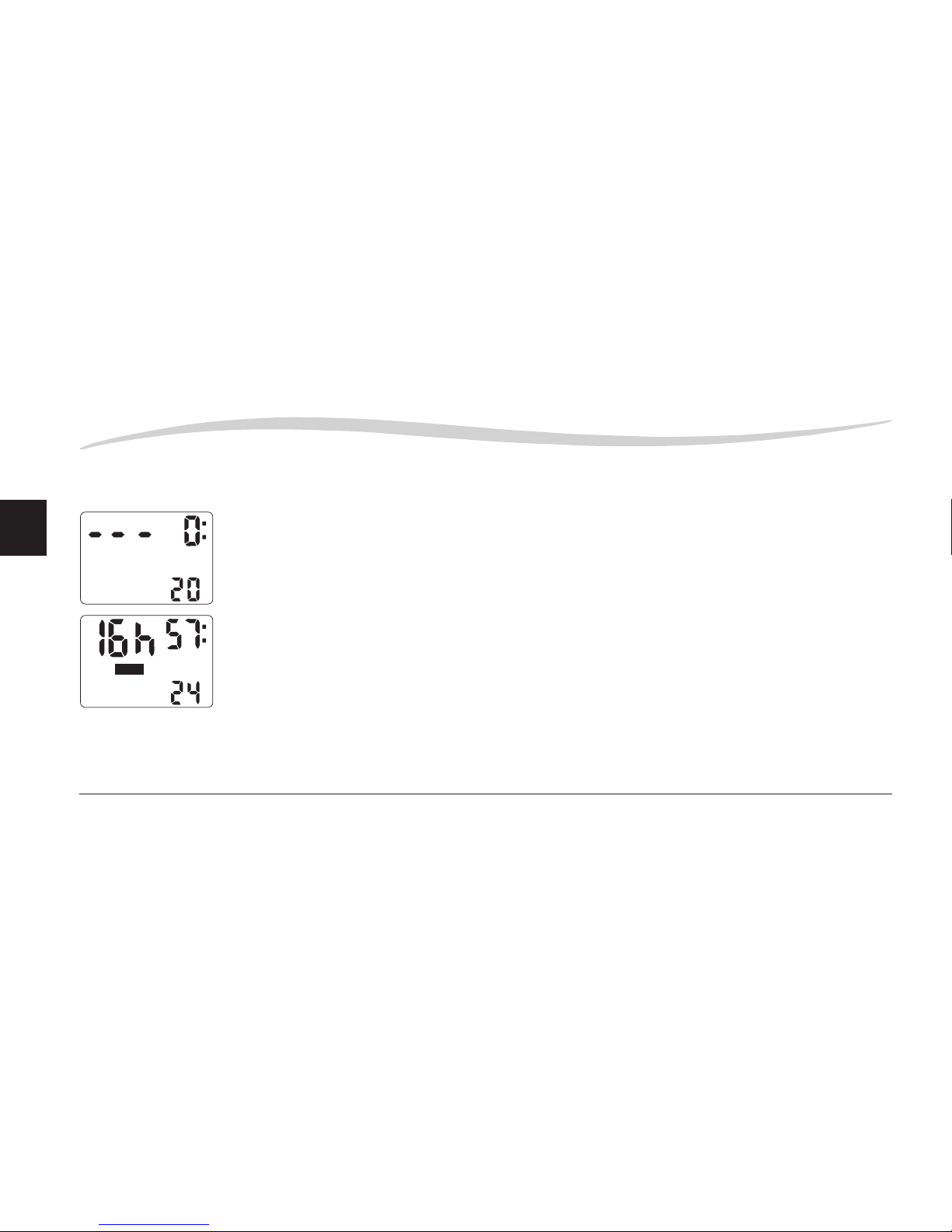

At a depth of 1.2 m / 4 ft or less, the display shows “---”. Upon completion of a
dive, this is displayed for 5 minutes after which the Digital 330m switches into
surface mode. In this mode, the Digital 330m shows SURFACE and the surface
interval on the screen. The surface interval will be indicated until it has reached
24 hours or until another dive is performed. In surface mode, the Digital330m
indicates air temperature.
After 3 minutes without operation, the Digital 330m switches off to preserve bat-
tery energy. However, the surface interval keeps running in the background.
ºC
Temp
ºC
Temp
surface

29
UWATEC Digital 330m - English
D
E
4.2 Logbook
Upon touching contacts Aand Cwith moistened fingers during surface
mode, the Digital 330m enters the logbook mode. The Digital 330m stores
the relevant data for the most recent 19 dives. A dive is only entered into the
logbook if it was deeper than 1.2 m / 4 ft and longer than 2 minutes.
In logbook mode, the display shows “log no.”, the dive number, dive time,
maximum depth, and alternating temperature and average depth as indi-
cated in the figure. The logbook starts from the most recent dive (no 1) and
for each subsequent contact of Aand Cscrolls through the next dive in
sequence. Keeping your fingers on contacts Aand Cwill call up all dives in
sequence. After the 19th dive, dive number 1 is shown again.
To exit the logbook mode, touch contacts Aand B. The logbook mode is
exited also after 3 minutes without operation.
log no.
h
ºC
Temp
S
L
O
W
C B
A

30
UWATEC Digital 330m - English
D
E
4.3 Low battery warning
During the start-up phase, the Digital 330m verifies the status of the battery. If the
remaining battery charge is 10% or less of the initial charge, the battery symbol
will appear on the display for 10 seconds. In this case, the unit must be replaced
immediately.
5 Appendix
5.1 Maintenance and care of the Digital 330m
The Digital 330m is an extremely robust instrument requiring little maintenance.
Simply rinse the Digital 330m with fresh water after each dive and store in a dry
and protected place away from direct sunlight. Sun, extreme heat or cold will
damage the instrument. Do not leave it in the trunk of the car, for example. Also,
do not store the Digital330m in a wet bag.
ºC
Temp

31
UWATEC Digital 330m - English
D
E
5.2 Technical specifications
Altitude range: unlimited
Depth range: 0-330 m (0-1080 ft)
Depth display resolution: up to 99.9m: 0.1m, >99.9m: 1m , the resolution in feet is always 1 foot
Depth accuracy: 0.1% ±0.1 m (±0,4 ft)
Time measurement: quartz clock, maximum displayed time 999 hours 59 minutes.
Temperature display resolution: 1 °C (1 °F)
Temperature accuracy: ±1 °C (±2 °F)
Operating temperature range: -10 °C to +50 °C (14°F to 122°F)
Battery life: Dives per year 50 100 200
Battery life 13 years 12 years 10 years

32
UWATEC Digital 330m - English
D
E
6 Warranty
Warranty conditions for the Digital 330m are as follows:
• damage and defects in the instrument which can be shown to be manufacturing defects will be
eliminated free of charge during the first 24 months after delivery to the end user;
• the warranty period is not extended as a result of any work carried out under warranty;
• to obtain warranty service, the device must be sent to an authorized SCUBAPRO UWATEC dealer,
together with proof of purchase and date of purchase;
• the warranty becomes null and void if the damage is caused by external agents or accidents or if there
has been intervention by unauthorized persons;
• pressure chamber tests must be carried out only in water. If the Digital 330m is subjected to pressure
under dry conditions, the warranty becomes null and void.
Your Uwatec dive instrument is manufactured with high-quality components, which can be recycled and reused. Customers
living in the European Union can contribute to the protection of environment and health, by returning old products to an appro-
priate collection point in your neighborhood according to EU Directive 2002/96/EC. Products marked with the recycling symbol
to the left must not be placed in the normal household waste.
