V-tech LS1500-B User manual

User’s manual
www.euphones.vtech.com
LS1500-B

1
1. IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of re, electric shock and injury, including the
following:
Read and understand all the instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water (for example, near a bath tub, kitchen
sink, swimming pool).
Do not expose the telephone to direct sunlight or extreme cold environment.
Do not put the telephone close to heating sources such as radiators,
cookers, etc.
Do not overload wall outlets and extension cords as this can result in the risk
of re or electric shock.
Unplug this product from the wall outlet and refer servicing to VTech/
distributor under the following conditions:
When the power supply cord or plug is damaged or frayed.
If the product does not operate normally by following the operating
instructions.
If the product has been dropped and the cabinet has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
Use only the supplied NiMH (Nickel Metal Hydride) batteries! The operation
periods for the handsets are only applicable with the default battery
capacities.
The use of other battery types or non-rechargeable batteries/primary cells
can be dangerous. These may cause interference and/or unit damages. The
manufacturer will not be held liable for damage arising from such
non-compliance.
Do not use third party charging bays. The batteries may be damaged.
Please note the correct polarity while inserting the batteries.
Battery should not be exposed to excessive heat such as bright sunshine or
re and immersed in water.
1.
2.
3.
4.
5.
6.
7.
•
•
•
•
8.
9.
10.
11.
12.
13.
14.

2
DISPOSAL WARNING
When this crossed-out wheeled bin symbol is attached to a
product, it means the product is covered by the European
Directive 2002/96/EC.
All electrical and electronic products/battery should be disposed
of separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities.
The correct disposal of your old appliance/battery will help prevent potential
negative consequences for the environment and human health.
For more detailed information about disposal of your old appliance/battery,
please contact your city ofce, waste disposal service or the shop where you
purchased the product.
If you have questions about this product, or having difculty with setup or
operation, contact our Customer Service Centre.
POWER ADAPTOR INFORMATION
Power adaptor VTech (Qingyuan) Plastics & Electronics Co. Ltd. - Model:
VT04EEU06045,
Input: 100-240V AC 50/60Hz 150mA, Output: 6VDC 450mA
(EU plug).
Ten Pao International Ltd. - Model: S003IV0600045,
Input: 100-240V AC 50/60Hz 150mA, Output: 6VDC 450mA
(EU plug).
Battery AAAx2, Ni-MH, 400mAh.
For pluggable equipment, the socket outlet shall be installed near the equipment
and shall be easily accessible.
1.
2.
3.

3
2.1 Package Contents
The package contains the following items:
1 Handset
1 Base station
1 Power adaptor for base station
1 Charger with power adapter
1 Telephone line cord
2 AAA NiMH rechargeable batteries
1 User’s manual
2.2 Connect the Corded Base Station
•
•
•
•
•
•
•
2. SET UP THE TELEPHONE
NOTE
Use only the supplied power adapter.•
1
2To wall power
outlet
To telephone
wall jack

4

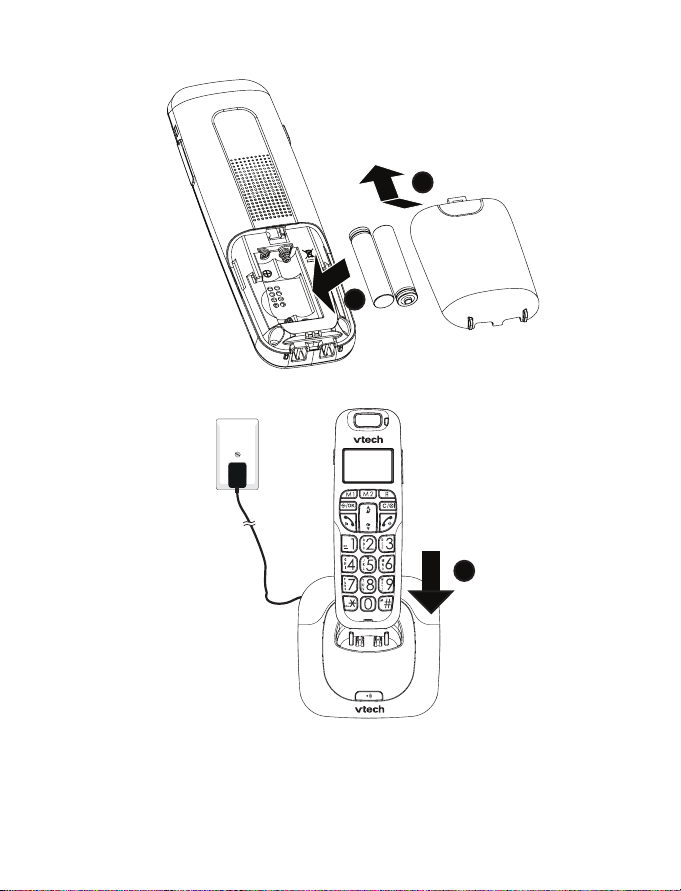

2.3 Install and Charge the Handset Battery
NOTES
Use only the supplied AAAx2, Ni-MH, 400mAh batteries.
If you do not use the handset for a long time, disconnect and remove the
battery to prevent possible leakage.
•
•
1
2
3

5
3. GET TO KNOW YOUR PHONE
3.1 Overview of the Handset
1
2
4
5
6
7
8
9
11
12
3
10
14
13

6
1. / – VOLUME UP/VOLUME DOWN
2. M1 / M2 – DIRECT MEMORY KEYS
Press and hold to dial the number stored in the memory key.
3. R – FLASH (RECALL)
In predial mode or during a call: Press to insert a Flash.
4. – CLEAR/BACK/MUTE/INTERCOM
5. – UP/CALL LOG
6. – TALK OFF
7. – DOWN/REDIAL LIST
8. ALPHANUMERIC KEYPAD, *, #
Press to insert a digit / character / */ #
1key in idle mode: Press and hold to access the voice mail.
*key in idle mode: Press and hold to enable or disable the keypad lock.
*key during a call (in Pulse mode): Press to switch to tone mode.
# key in idle mode: Press and hold to turn on / off the ringer.
0 key in predialing / number editing mode: Press and hold to insert a pause.
# key in Call Log mode: Press to review caller’s number if applicable.
9. MICROPHONE
10. – TALK/SPEAKERPHONE
11. – MENU/OK
12. – AMPLIFY
13. LED
Steadily on when the audio boost is turned on.
Flashes when there is an incoming call.
14. EARPIECE

7
3.2 Overview of the Base Station
PAGE
Press to page all registered handset(s). Handset(s) will ring for approximately
60 seconds.
Press and hold for 5 seconds to enter the registration mode.
2. CHARGING CRADLE
For charging the handset.
1.
2
1

8
3.3 Handset LCD Display Icons and Symbols
The LCD display gives you information on the current status of the telephone.
Display icons Icons can be Steadily on (visible), Flashing or Off (not visible)
Steadily on when there is a stronger reception signal.
Flashes when there is a weaker reception signal.
Off when there is no reception signal.
Steadily on when a call is in progress.
Flashes when there is an incoming call.
Steadily on when an intercom call is in progress.
Flashes when there is an incoming intercom call or the call is on
hold.
Steadily on when the speakerphone is turned on.
Steadily on when the answering machine (TAM) is turned on.
Flashes when new TAM message is received.
Steadily on when an alarm is set.
Flashes when the alarm time set before reaches.
Steadily on when there are new and unread voicemail messages.
Steadily on when the keypad is locked.
Steadily on when the ringer is switched off.
Steadily on when you have received missed calls.

9
Steadily on when there are more digits before the text currently
displayed.
Steadily on when there are more digits after the text currently
displayed.
Steadily on when the battery is two-third charged.
Steadily on when the battery is one-third charged.
Flashes when low battery is detected, indicating that it needs
charging.
Animates when battery is charging.

10
3.4 Menu Structure
When the handset is switched on and in idle mode:
1. Press .
2. Press to scroll to a menu option.
3. Press to select.
-OR-
Press to return to the previous screen.
-OR-
Press and hold to return to idle mode.
Main Menu CONTACTS CALL LOG
Sub menu Review contacts list
Under a Contacts entry:
ADD
VIEW
EDIT
DELETE
DEL ALL
CAPACITY
FASTDIAL
Review Call Log
Under a selected Call
Log entry:
STORE
DELETE
DEL ALL
DETAILS
Key Press
BS SET HS SET MEM KEY
DEL HS
DIALMODE
FLASH
BARGEIN
CHG PIN
RINGER
TONE
EQLIZER
SEL BASE
LANGUAGE
HS NAME
DISPLAY
AUTO ANS
MAILBOX
M1
M2

11
CLOCK ALARM REGISTER
DATE FMT
TIME FMT
SET TIME
SET DATE
ON
OFF
PIN?
DEFAULT
PIN?

12
4. USE YOUR PHONE
4.1 Switch On/Off the Handset
Press and hold .
4.2 Make a Call
Enter phone number.
Press .
4.3 Make a Call from Direct Access Memory
Press and hold M1 or M2 to dial the number pre-stored into the keys respectively.
NOTES
• You need to set the direct access number rst. See section 8.3.11.
4.4 Answer an Incoming Call
Press .
-OR-
If AUTO ANSWER is ON:
Lift the handset.
4.5 Adjust Listening Volume During a Call
To adjust listening volume during a call:
Press or on the right side of the handset.
4.6 Volume Booster Feature
The volume booster feature allows you to amplify the handset earpiece volume to
compensate for the ear’s limited sensitivity.
To turn on or off the volume booster feature during a call:
• Press .
4.7 Mute / end mute a Call (Microphone Off/On)
To mute or end mute the microphone during a call:
Press .
1.
2.

13
4.8 End a Call
Press .
-OR-
Place the handset on the charger.
4.9 Turn the Silent Mode On/Off
Press and hold .
4.10 Turn the Keypad Lock On/Off
Press and hold .
4.11 Redial the Last Number
4.11.1 Redial a Number from the Redial List
Press .
pq→ (a desired entry).
Press .
NOTE
If there is no number in the list, the display shows “EMPTY”.
4.11.2 Store a Redial Number into the Contacts
Press .
pq→ (a desired entry).
Press →pq→STORE.
Press → Enter name.
Press → Edit number.
Press →pq→(a desired melody).
Press .
•
•
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.

14
4.11.3 Delete a Redial Number
Press .
pq→ (a desired entry).
Press →pq→DELETE.
Press .
4.11.4 Delete the Entire Redial List
Press .
pq→ (a desired entry).
Press →pq→DEL ALL.
Press twice.
4.12 Find the Handset (Paging)
Paging is a useful way for nding lost handset(s).
To locate the misplaced handset(s):
• Press on the base station. All the registered and available handsets will
produce the paging tone and “PAGING” is displayed on the LCD.
To stop the paging tone:
• Press / / on any handset
-OR-
• Press on the base station again to stop paging.
NOTE
If there is an incoming call during paging, the phone will ring with the incoming call
instead of paging.
1.
2.
3.
4.
1.
2.
3.
4.

15
5CONTACTS
5.1 Add a New Contacts Entry
Press →pq→ CONTACTS.
Press .
NOTE
If there is no entry in the list, the display shows “EMPTY”.
3. Press →pq→ADD.
4. Press → Enter name.
5. Press → Enter number.
6. Press →pq→ (a desired melody).
7. Press .
5.2 Review a Contacts Entry
Press →pq→ CONTACTS.
Press →pq→ (a desired entry).
3. Press →pq→VIEW.
4. Press .
5.3 Dial a Contacts Entry
Press →pq→ CONTACTS.
Press →pq→ (a desired entry).
Press to dial out.
1.
2.
1.
2.
1.
2.
3.

16
5.4 Edit a Contacts Entry
Press →pq→ CONTACTS.
Press →pq→ (a desired entry).
Press →pq→EDIT.
Press → Edit name.
Press → Edit number.
Press →pq→ (a desired melody).
Press .
5.5 Delete a Contacts Entry
Press →pq→ CONTACTS.
Press →pq→ (a desired entry).
Press →pq→DELETE.
Press .
5.6 Delete the Entire Contacts Entries
Press →pq→ CONTACTS.
Press twice →pq→DEL ALL.
Press twice.
5.7 Check the Contacts Usage
You can check how many contacts entries have been occupied in your phone and
how many entries are available for you to store in the contacts.
Press →pq→ CONTACTS.
Press twice →pq→CAPACITY.
Press .
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.

17
5.8 Set the Fast Dial Numbers
After setting the fast dial numbers, you can dial to the pre-set numbers by pressing
and holding the respective digit keys from idle mode.
5.8.1 Add or Edit the Fast Dial Number
Press →pq→ CONTACTS.
Press twice →pq→FASTDIAL.
Press →pq→2- 9.
Press .
If there is no number stored in the selected key:
4. Press pq→ (a desired entry).
5. Press .
If there is already a number stored in the selected key:
4. Press →EDIT.
5. Press to select an entry from the contacts list.
6. Press to conrm the setting.
5.8.2 Delete the Fast Dial Number
Press →pq→ CONTACTS.
Press twice →pq→FASTDIAL.
Press →pq→2- 9.
Press pq→ The entry to be deleted.
Press →pq→DELETE.
Press .
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.

18
6 CALLER DISPLAY
(NETWORK DEPENDENT)
6.1 Call Log
This feature is available if you have subscribed to the Caller Line Identication
service from your telephone service provider.
If the caller number is disabled to send caller information, “WITHHELD“ will be
displayed.
In standby mode, if three unanswered calls are received, “3 CALLS” will be
displayed.
6.2 View the Call Log
Review the caller log history to nd out who called, to easily return a call, or to
save the caller’s name and number into your contacts. “EMPTY” appears if there
are no records in the call log.
1. Press to access the call log.
-OR-
Press → pq→ CALL LOG. Press .
6.3 Store a Call Log Number into the Contacts
1. Press to access the call log.
-OR-
Press → pq → CALL LOG. Press .
2. pq → (a desired entry).
3. Press → pq → STORE.
4. Press → Enter name.
5. Press → Edit number.
6. Press → pq → (a desired melody).
7. Press .
NOTE
If the contacts is full, “PB FULL” will be displayed. You need to delete some
entries from the contacts in order to save new ones.

19
6.4 Delete an Entry in the Call Log
1. Press to access the call log.
-OR-
Press →pq→ CALL LOG. Press .
2. pq→ (a desired entry).
3. Press →pq→ DELETE.
4. Press .
6.5 Delete the Entire List of the Call Log
1. Press to access the call log.
-OR-
Press →pq→ CALL LOG. Press .
2. Press →pq→ DEL ALL.
3. Press twice.
6.6 View the Details of the a Call Entry
1. Press to access the call log.
-OR-
Press →pq→ CALL LOG. Press .
2. pq→ (a desired entry).
3. Press →pq→DETAILS.
4. Press .
