Vacron VVA-CBE02A User manual

Full HD 1080P
Vehicle Video Recorder
User Manual
2013 FEB V1.0

Vehicle Video Recorder User Manual
i
Index
A. Feature Description .......................................................................1
B. Specification ..................................................................................2
C. Accessories ...................................................................................2
D. Schematic Diagram of The Installation Steps................................3
E. Product Function Introduction........................................................5
F. SD Card Installation.......................................................................6
G. Remote Controller Description.......................................................7
H. Operation Setting...........................................................................8
1. OSD List Menu......................................................................8
2. Setup Menu...........................................................................9
3. Camcorder Menu.................................................................14
4. Camera Menu......................................................................16
5. Motion Menu........................................................................17
I. Playback......................................................................................18
1. Direct playback on machine side.........................................18
2. Video modes .......................................................................18
3. Snapshot playback..............................................................20
J. Software operating instruction .....................................................22
K. Formatting memory card..............................................................28
L. Record Time Estimation (based on constant record mode
with 8GB card) ...................................................................................29
M. Appendix: The Indication of Bright and Dark Spot of LCD...........30

Vehicle Video Recorder User Manual
1
A. Feature Description
Built-in Full HD 5M CMOS Sensor. Viewing angle approx. 105
degrees.
Suitable for all types of vehicles use. Small Design, Easy
Installation。
Equipped with 3 inch TFT LCD screen to make the adjustment of
recording angle easily; also providing photo shooting manually.
During playback of video footage and photo, the built-in screen
direction sensor will detect screen side.
Video record outside driving conditions and audio record inside the
vehicle simultaneously.
SD card Class 10 or above recommend. MAX to 32GB
G-sensor sensitivity can be adjusted according to vehicles and
road situations. When detecting a strong shock, system will start
emergency recording and keep the files without being overwritten.
Motion detection recording function during car stopping (External
power source is needed)

Vehicle Video Recorder User Manual
2
B. Specification
Items Description
Chipset Ambarella H.264 image compression chip
Sensor Device Full HD 5M CMOS Sensor
View Angle Approx. 105 degrees
Display LCD 3 inch 4:3 monitor
Voltage Start at 5V±5%；650mA (5V/1A Power Adaptor)
Operating
Temperature -10℃~ +70℃
Storage Device For the performance issue, use SanDisk SD card Class 10 or above read/write speed 15MB/s recommend. (min
capacity 4G, Max 32G)
Recording Frame
and Content
1920x1080（Full HD1080P / 30F）; 1280x720 (HD720P /
30F). Auto recording when power up system.
Maximum Recording frame: 30fps (NTSC/PAL)
Camera Mode Resolution 3M, 5M, 8M
Photo Shooting by Manually/ G-Sensor/ Timer
Recording Content Date, Time, Image, Sound, G-Sensor data
Recording Format Specific format for exclusive player (Recording Mode)
Microphone Built-in Dual High Sensitivity Microphone.
Time Setup Built-in clock will be used.
G-Sensor Built in Internal 3D G-Sensor
C. Accessories
Standard:
1. 5V cigarette Power adapter 2. Remote controller
3. Product Disc 4. Suction cup bracket
5. Bracket holder 6. Quick user guide
Optional:
1. 16G _Class 10 SD card
2. 5M RCA Video output cable

Vehicle Video Recorder User Manual
3

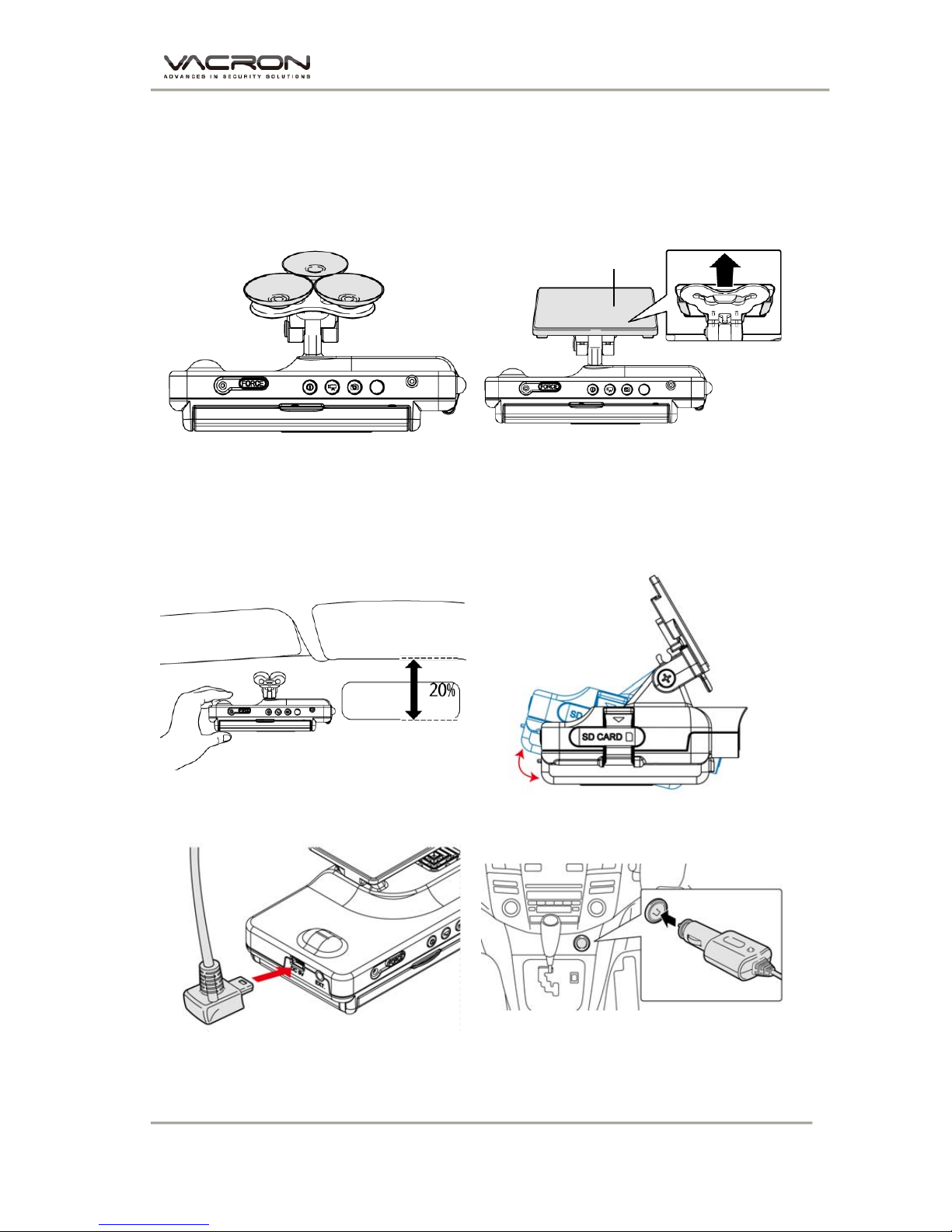

D. Schematic Diagram of The Installation Steps
1. To install the device on the windshield by “Suction Cups” or
“Stick-Holder” Type
Suction Cups Type Stick-Holder Type
2. The best position to install
the device on the windshield 3. To adjust the recording angle properly
4. Plug in DC5V Power Supply 5. Plug in the Cigarette Charger
Sticker Adhesive Spot

Vehicle Video Recorder User Manual
4
6. VVR installation
Description：
(a) Indicator Lighting Mode- Day and Night mode/Auto Detection.
(b) Mini-USB Port reserved for USB PC Link.
Notice
(1). This device should be installed in the area where the windshield will be
able to be cleaned.
(2). Formatting SD card on the device before beginning to use.
(3). NTSC or PAL setting through OSD.
(4). Electricity consumption: 650mA. If power supplied by PC, please use Y
Type USB Cable.
Best location
Cigarette adapter

Vehicle Video Recorder User Manual
5
E. Product Function Introduction
Light Indicator
Green light：Power
Red light：Recording
Yellow Light：Playback
1. Lens
2. USB cover / Reserved for USB PC Link
3. Force recording
4. Indicator
5. IR Receiver
6. Screen
7. SD card Slot
8. DC5V
9. AV OUT

Vehicle Video Recorder User Manual
6
F. SD Card Installation
(1). Open SD card cover on the device to insert of remove SD
card.
(2). Format memory card; please refer to the other chapter
“Formatting memory card” for more detail.
Remark: Memory Card is optional
Warning
(1). Recommend Memory Card “SanDisk” or “Transcend” Class 10 or
above. (Minimum of 4GB)
(2). If the memory card is not formatted by our exclusive player, the device
will automatically erase all the data inside of the memory card after
inserting it, start recording at default setting.
(3). Please don’t convert Micro SD to SD card to begin recording, to avoid
the damage during recording.
(4). Since memory cards have the writing endurance situation, we
recommend to inspect the memory card and use pc for playback
regularly, to ensure that the memory card can read and write

Vehicle Video Recorder User Manual
7
G. Remote Controller Description
Playback
Manual Force Recording
Volume Down
Stop Voice Recording
Menu
Confirm
Fast Forward
StopPlay
Pause
Fast Rewind
Up / Down /
Left / Right
Speaker On/Of
f
Volume Up
Camera/ Camcorder
/
Motion Mode Switch

Vehicle Video Recorder User Manual
8
H. Operation Setting
1. OSD List Menu
Setup Menu
1/2 2/2
Camcorder Menu Camera Menu
Motion Menu
Please use IR controller to select function
List Function Key on IR Controller
List Moving [LEFT OR RIGHT ]
Bar Moving [UP OR DOWN]
Confirmation [CONFIRM ]
Go to Previous Menu or Main Menu [MENU ]

Vehicle Video Recorder User Manual
9

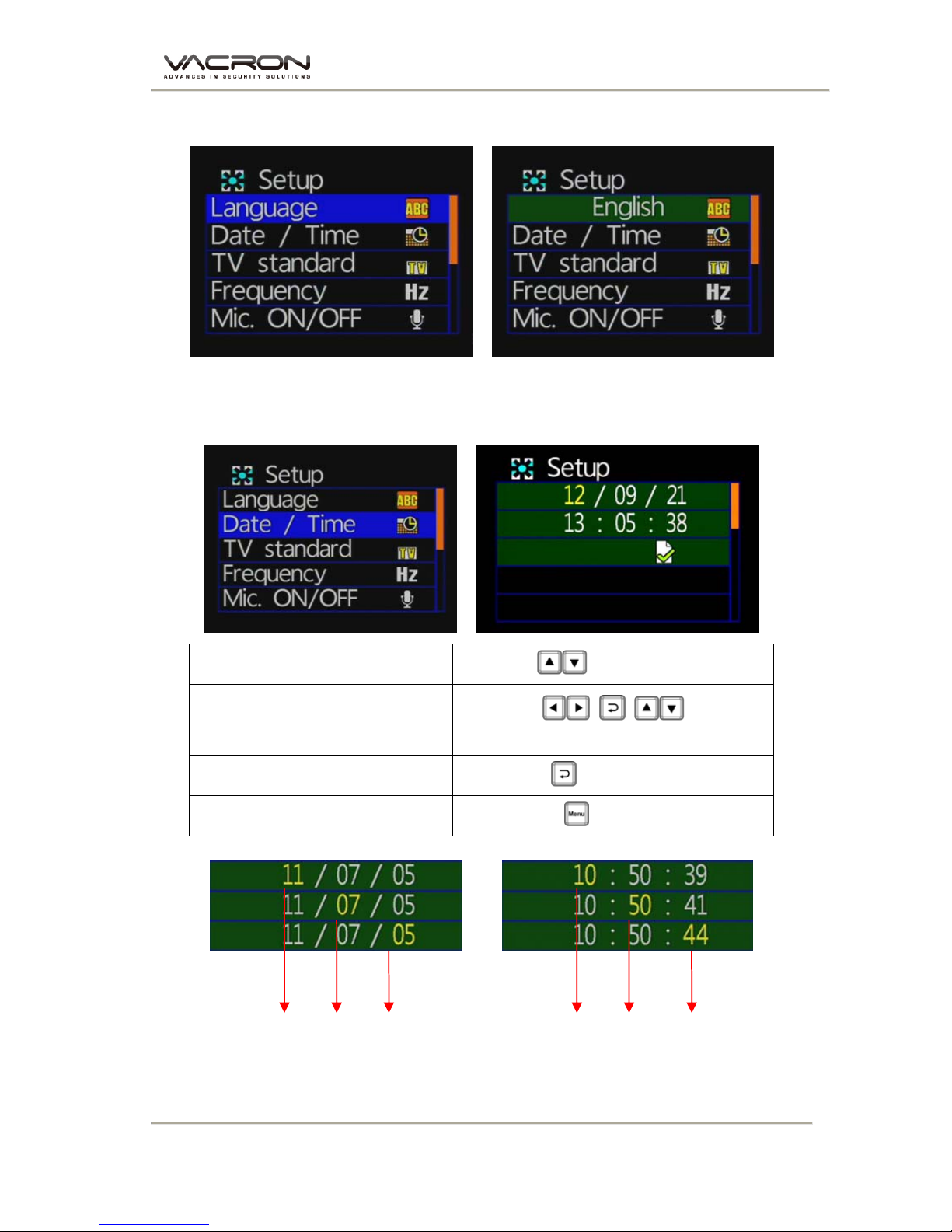

2. Setup Menu
◆ Language Setting
★English / French / German / Italian / Japanese / Korean / Portuguese / Russian /
Traditional Chinese / Spanish / Simplified Chinese / Turkish / Dutch…etc
◆ Date/Time Setting
LIST FUNCTION [UP/DOWN]
LIST MOVING + +
[R/L]+[CONFIRMATION]+[UP/DOWN]
CONFIRMATION [CONFIRM]
Go to Previous Menu [MENU ]
★Year: Last digits of year (11 means 2011).
Hour: 24 hour.
M D
Y H M S

Vehicle Video Recorder User Manual
10
◆ TV Standard Setting
★NTSC/ PAL for selecting
★TV output format, according to different national systems using
the input format for the TV set, the system is preset to NTSC
(Taiwan TV image is NTSC). When input the image causing TV
screen which appears black and white, beat, we can switch to
PAL TV screen to check returning to normal status.
◆ Frequency Setting
★km/h(kilometer) or mph(knot)
★Light frequency: according to different power frequency flicker
and, thus, the wavelength, the wavelength is caused by the
human eye brightness of the most important factor; general, the
higher the frequency of light, the brighter the ambient feel. As the
use of Taiwan's general power frequency 60HZ, 60HZ
recommended to set the frequency for the light source is more
suitable environment in Taiwan.

Vehicle Video Recorder User Manual
11
◆ Mic ON/OFF Setting
: Microphone off : Microphone on
★Microphone to record the sound of inside vehicle information, if
concern about personal privacy information, proposed close
microphone function (off microphone function, converting the
image files to video without sound state).
◆ WH Balance Setting
★Five ambient light option for selecting Auto / Daylight /
Cloudy / Fluorescent / incandescent light
★White balance mode is set, regardless of the state in the camera or
photography will open automatically.
★When take recording, suggest white balance set to automatic mode
in order to open the white balance automatically to avoid the screen
unclear.
The following table shows picture taken in various white balance mode.
Icon Description Picture Application instructions
Automatic mode
The machine set automatically.

Vehicle Video Recorder User Manual
12
Daylight mode
For fine weather.
Cloudy mode
For cloudy, dark or twilight.
Fluorescent mode
For warm white, cool white (3-
wavelength) fluorescent lighting
Incandescent mode
For incandescent lamps and bulb-type
3-wavelength fluorescent
◆ Effect Setting
★Color / B & W / Retro color
★Effects model setting, whether in photography or video mode it
will automatically open.
Icon Description Picture
Color mode
Black mode

Vehicle Video Recorder User Manual
13
Retro mode

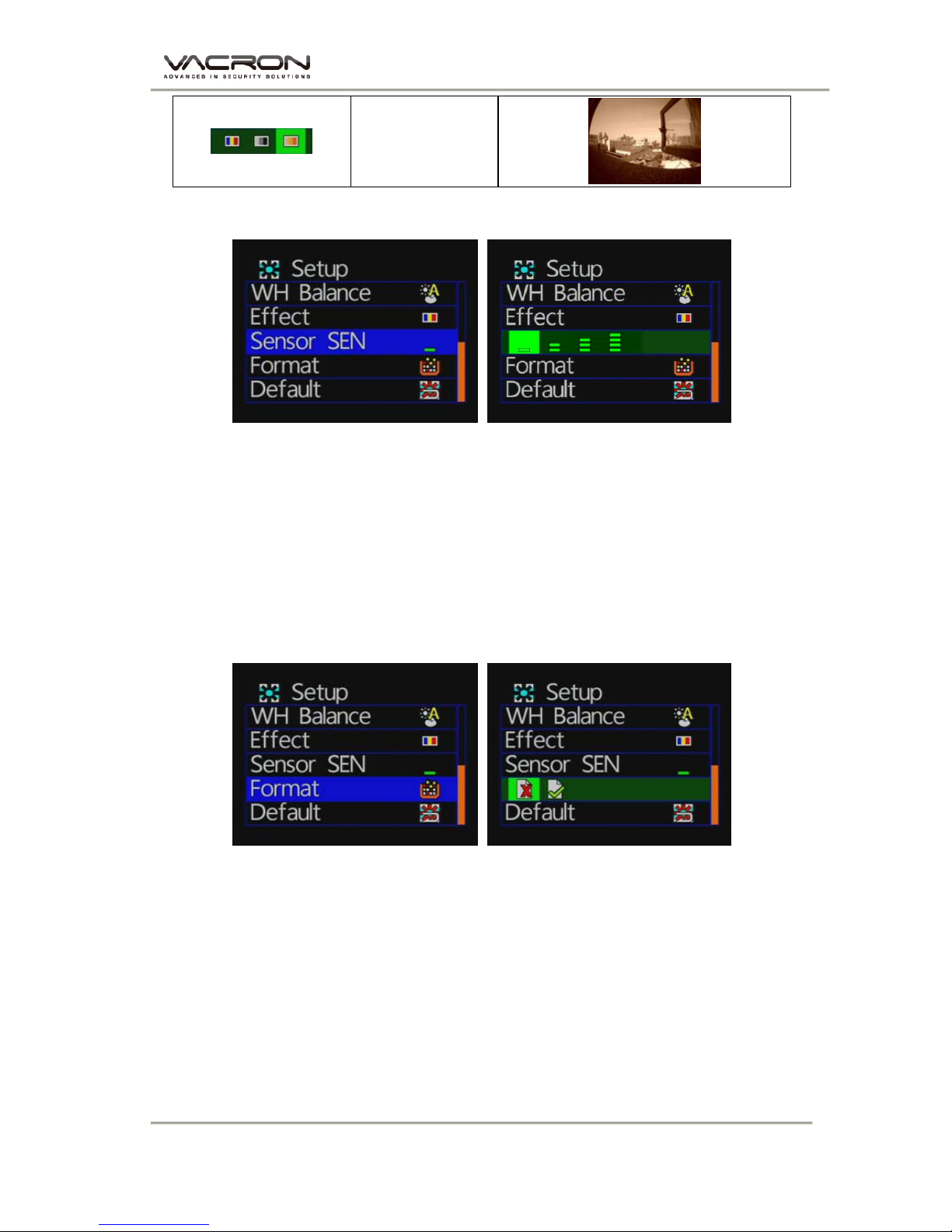

◆ Sensor SEN Setting
★Caution: You can adjust the sensitivity level (more number
of green bars stands for higher sensitivity)
★When vehicle drives through darker areas, “sensitivity” decides
whether “white balance” is going to be functioned or not. If
“sensitivity “ is set more sensitive, as vehicle drives into darker
areas, “ white balance” will automatically be on, and under the
situation, it may cause the video image too bright.
◆ Format Setting
★Cancel / Confirm Formatting
★When selecting “Cancel Formatting”, it goes to “Main Menu.”
★During formatting, existed data will be erased. Please backup the
needed data before the process
★Brand-new SD cards must be formatted before using.

Vehicle Video Recorder User Manual
14
◆ Default Setting
★Cancel Factory Default Setting / Confirm Factory Default Setting
★When selecting “Default”, it goes to “Main Menu”.
★When going to “Default”, it will automatically go to factory default
setting. For changing further setting, please go to main menu.
3. Camcorder Menu
Resolution Setting
★2 resolution: 1080P(30) / 720P(30)
Quality Setting
★Notice: More stripes appear; more video resolution does

Vehicle Video Recorder User Manual
15

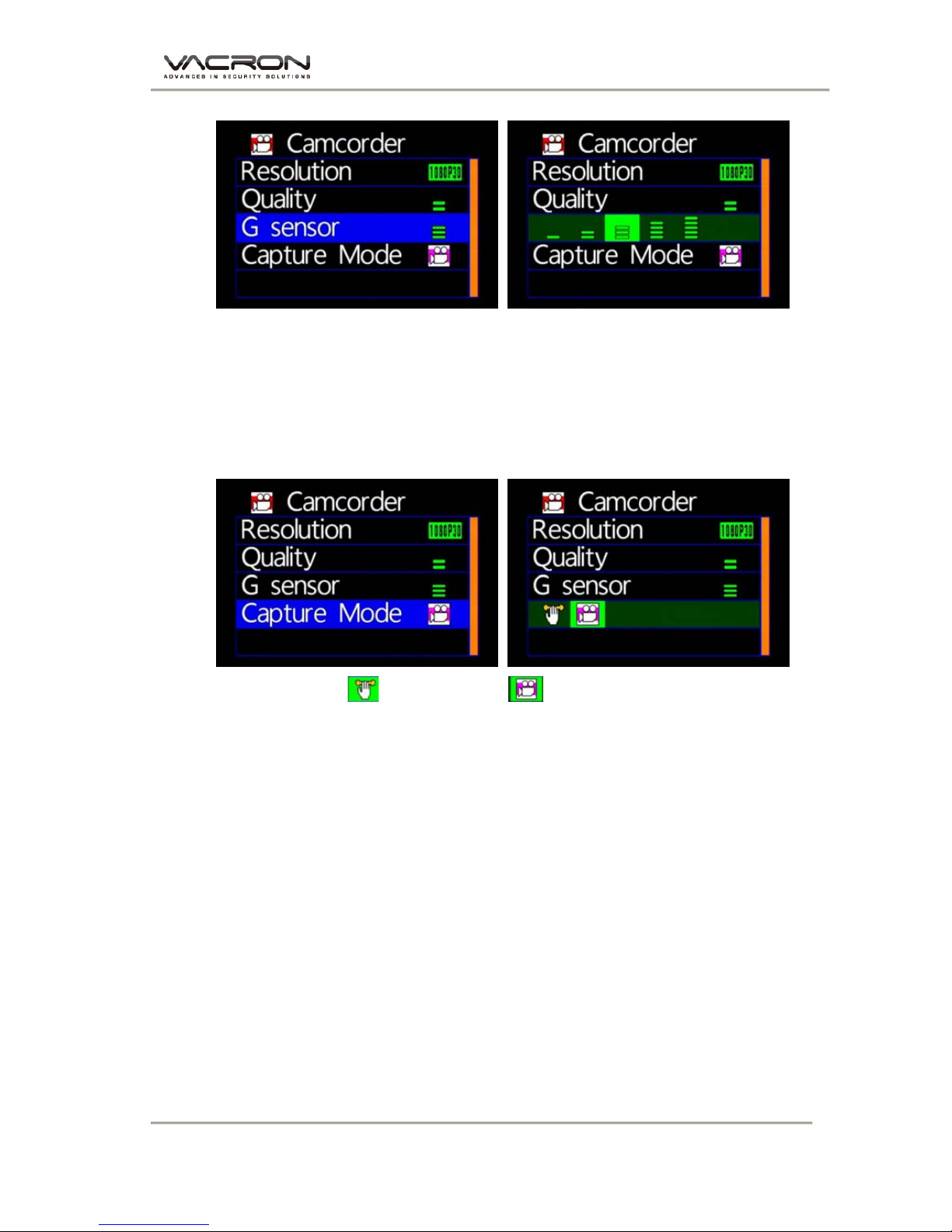

G-Sensor Setting
★NOTICE: More Stripes; More Sensitivity to trigger G-sensor easily for
forced recording.
★Each time for triggering force recording, it will be automatically
saving 3 more minutes before and after the accident.
Capture Mode Setting
:Motion mode / : Normal mode
★During Motion mode, it will be switched to normal recording
mode after restart
★To start the function of motion and LDWS recording, please
turn on this.

Vehicle Video Recorder User Manual
16
4. Camera Menu
Resolution Setting
★3 Resolution modes: 3M/ 5M/ 8M
Capture Mode Setting
★NOR: Normal, G-S: G Sensor mode, three continuous snapshots
Capture Frequency Setting
★Normal / 30sec /1 minute/5 minutes /30minutes

Vehicle Video Recorder User Manual
17

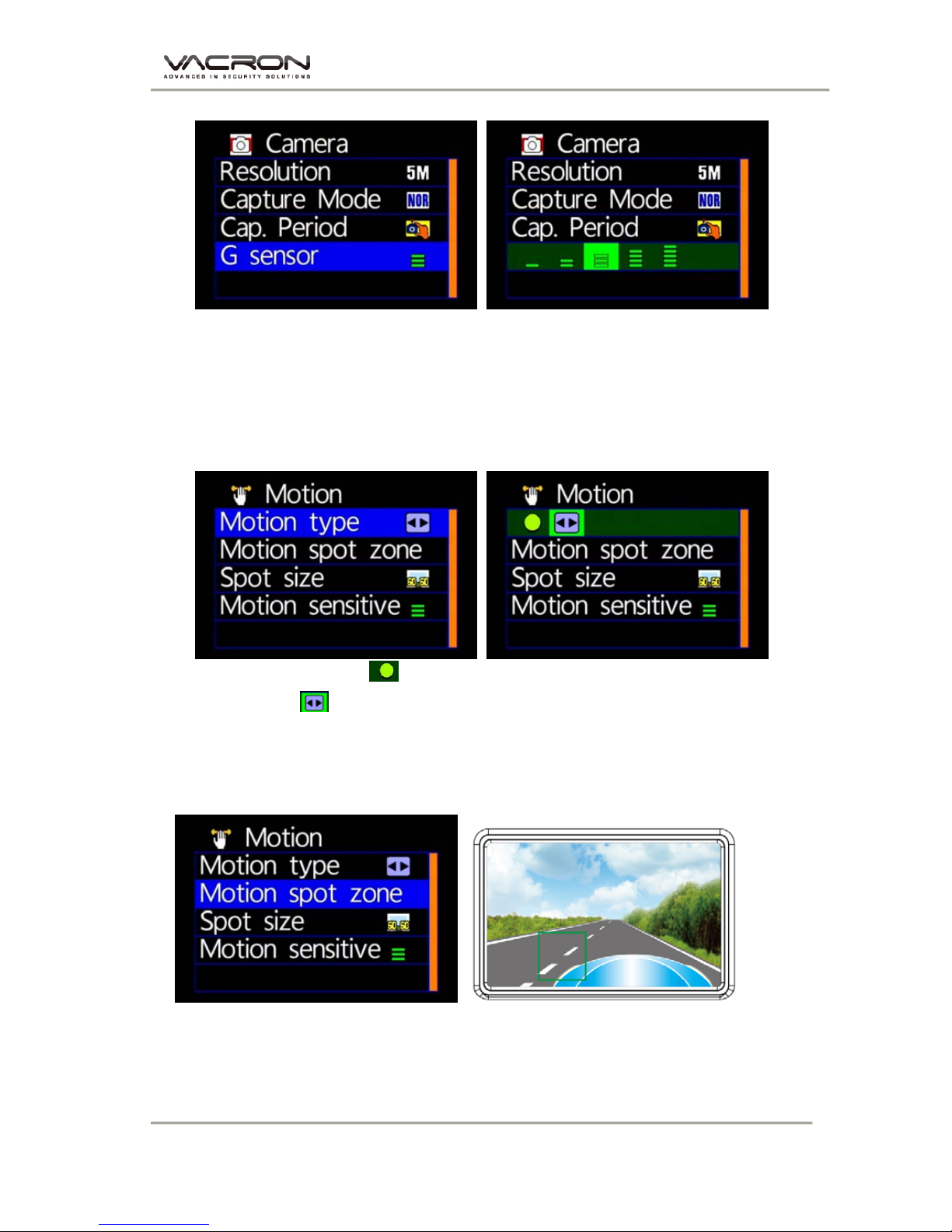

◆ G-sensor Setting
★Notice: Higher sensitive of G-sensor, Easier to trigger forcing video recording.
After force recording is triggered, 3 consecutive pictures will be taken
automatically.
5. Motion Menu
Motion Type Setting
★ : Constant Motion Recording.
★ :Full Screen Motion Recording. (For this setting,
it is not necessary to setup the motion detection areas)
Motion Sport Zone Setting
★Use remote controller to sense the movement location
★When setup for constant motion recording mode,
please select the designated areas for motion detection.

Vehicle Video Recorder User Manual
18
Spot Size Setting
★Sizes: 60x60 / 60x120 / 120x60 / 120x120 / 180x180
Motion Sensitivity Setting
★More Stripes, More Sensitivity
I. Playback
1. Direct playback on machine side
Build-in accelerometer, the system automatically determine the level
of the screen visualization, and make the screen self-rotated to
normal position.
2. Video modes
Press “ Playback” on remote controller into Playback modes. Select
the timing of the video by pressing “Play”
