VAST Technologies DMC-2513 User manual

DMC-2513
HD 720P Microscope

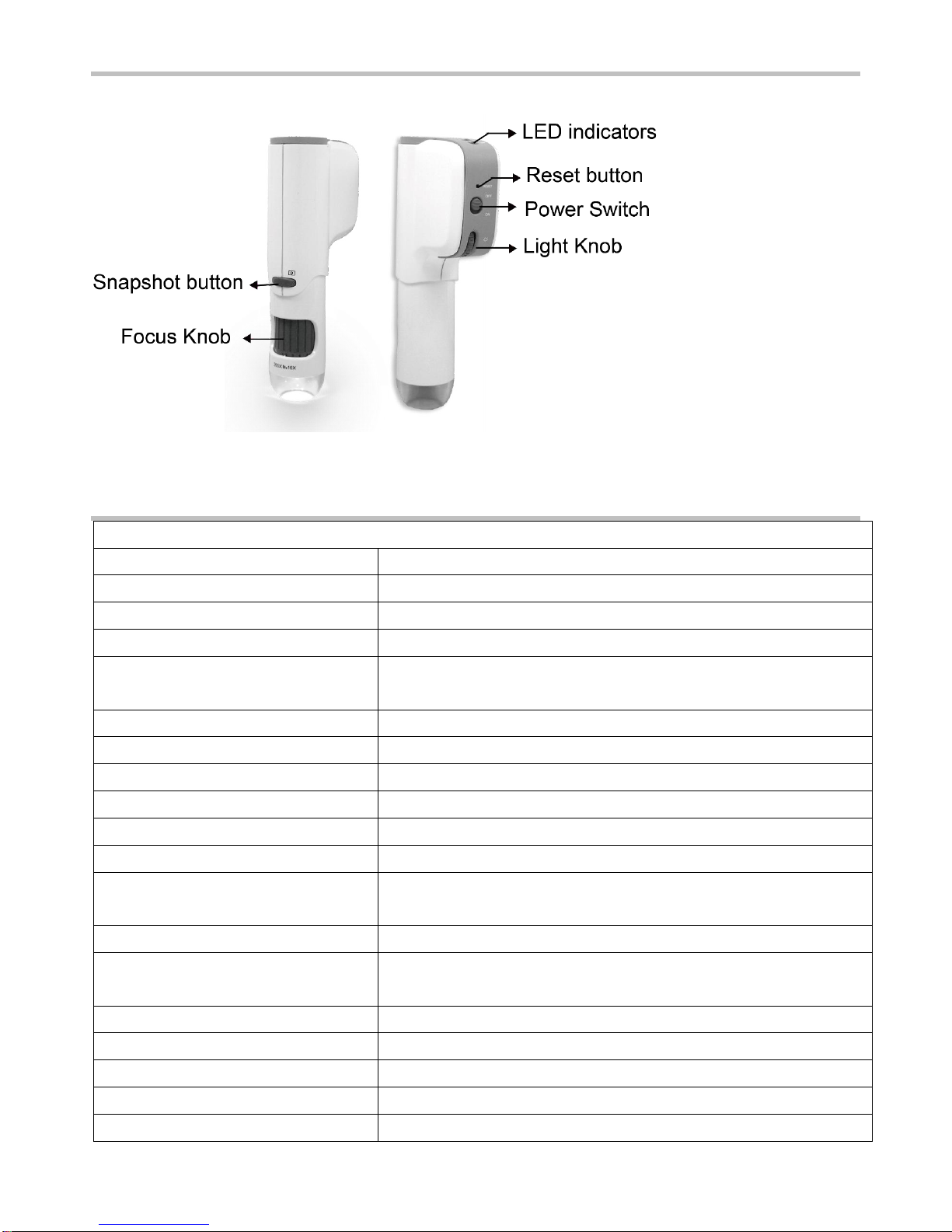

Product
Dimensions
Specification
Operating System Supported
iOS 8+ / Android 5.0+
Compatible Host Devices
Mobile Phone/ Pad
Image Sensor
1.0M Pixel Color CMOS
Resolution
HD 1280*720
Magnification
1X~80X (with 9.7" screen)
(Magnification varies depending on the monitor size)
Lighting
6 Adjustable LED Lights
Shutter Trigger
Hardware(Microscope)/ Software(APP)
Communication
2.4GHz Wi-Fi IEEE802.11b/g/n
Security
WEP
Wi-Fi Range
Up to 30 feet (Without obstructions)
Supported Media Format
.jpg / .mp4 (30fps, H.264)
Power source
3 AA batteries (Included)
(Rechargeable Ni-MH batteries are recommended.)
Power Consumption
3.6V/440mA
Battery Life
Approximately 3.5 hrs with Ni-MH 2500mA battery
(Depends on environment and battery capacity)
Exposure
Auto
Gain Control
Auto
White Balance
Auto
Dimensions
155mm x 75mm x 37mm (6.11" x 2.96" x 1.46")
Weight
140g/4.93oz (Without batteries)

Quick Guide to Connect Microscope with phone/pad
3. Go to “Setting” of your
phone/pad
4. Enter “Wi-Fi”
5. Choose
“SMARP_XXXXXXX”
1
6. Key-in the password
(Default: 12345678)
7. Make sure it is well connected and shows the
tick on left.
(“No Internet Connection” will just be fine)
1. Turn on the
device
2. Make sure
Power Indicator
lighting up. (Green)
9. Make sure SSID on the top
& Live View Window is
working. And we are good to
go.
8. Open the new APP,
“Wi-Viewer HD”.

Quick Guide to Operate Wi-Viewer Application
Main Page
A: SSID : The domain name of your microscope
B: Live View Window: shows real time live image
C: Library: Area to review Videos & Pictures in Wi-Viewer HD
(Click anywhere on Live View Window can open/fold Library)
D: Setting: Go to Setup page
E: Freeze:
1st Click: Pause & Snapshot Live View window
2nd Click: End pausing
F: Snap: Snapshot Live View window
G: Record:
1st Click: Start recording video of Live View window
2nd Click: End recording
Library
Photos Review/ Videos Replay: Click on any video/picture to open the mode.

H: Go back to Live View window
I: Name of video/ photo
J: Trash Can Icon: Delete photo/video
K: Y/N Poping Window: Click trash can icon, a Y/N window pops up and recheck if you want to delete the file.
Setting Page
L: Folder Name: Able to indicate the storage path for videos & photos
M: Domain Name: Wi-Fi SSID Name
N: Password: WiFi Connection password (Default value: 12345)

O: Preview Window
P: Image parameter adjustments
Q: Mirror: Horizontally flip image
R: Flip: Vertically flip image
S: About: App & Firmware version info.
T: Default Setting: Reset Wi-Fi SSID/Password & Image Parameters
Warning
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
‧Reorient or relocate the receiving antenna.
‧Increase the separation between the equipment and receiver.
‧Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
‧Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
RF EXPOSURE WARNING
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

NCC WARNING
Administrative Rules for Low-power Radio-Frequency Devices
Article 12:
For those low-power radio-frequency devices that have already received a type-approval,
companies, business units or users should not change its frequencies, increase its
power or change its original features and functions.
Article 14:
The operation of the low-power radio-frequency devices is subject to the conditions that no
harmful interference is caused to aviation safety and authorized radio and if interference
is caused, the user must stop operating the device immediately and can't re-operate it until
the harmful interference is clear.
The authorized radio station means a radio-communication service operating in accordance
with the Communication Act.
The operation of the low-power radio-frequency devices is subject to the interference caused
by the operation of an authorized radio station, by another intentional or unintentional
radiator, by industrial, scientific and medical (ISM) equipment, or by an incidental radiator.
Note: Specifications are subject to change without prior notice.
Note: We reserve the right to modify, to insert, and/or to withdraw any part of the rules specified herein.
