IntelliLink

4Introduction
Introduction
General information ....................... 4
Theft-deterrent feature ................... 5
Control elements overview ............ 6
Usage ............................................ 8
Basic operation ............................ 11
Tone settings ............................... 14
Volume settings ........................... 15
System settings ........................... 16
General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
Using the FM, AM or DAB radio
functions, you may register up to 35
stations on seven favourites pages.
For the AM, FM and DAB wavebands
the radio is equipped with fifteen
automatically assignable channel
presets. Furthermore, 35 channels
can be allocated manually
(waveband-independent).
You can connect external data
storage devices, e.g. iPod, USB
devices, or other auxiliary devices to
the Infotainment system as further
audio sources; either via cable or via
Bluetooth.
Using the controls and menus of the
Infotainment system, you can operate
approved smartphone applications,
e.g. a navigation app.
In addition the Infotainment system is
equipped with a phone portal that
allows for comfortable and safe use of
your mobile phone in the vehicle.
Optionally, the Infotainment system
can be operated using the controls on
the steering wheel.
The well-thought-out design of the
control elements, the touch screen
and the clear displays enable you to
control the system easily and
intuitively.
Important information on
operation and traffic safety
9Warning
The Infotainment system has to be
used so that the vehicle can be
driven safely at all times. If in doubt
stop your vehicle and operate the
Infotainment system while the
vehicle is stationary.

Introduction 5
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to
■ changes in distance from the
transmitter,
■ multipath reception due to
reflection,
■ shadowing.
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft deterrent.
The Infotainment system therefore
functions only in your vehicle and is
worthless to a thief.

6Introduction
Control elements overview
Control panel

Introduction 7

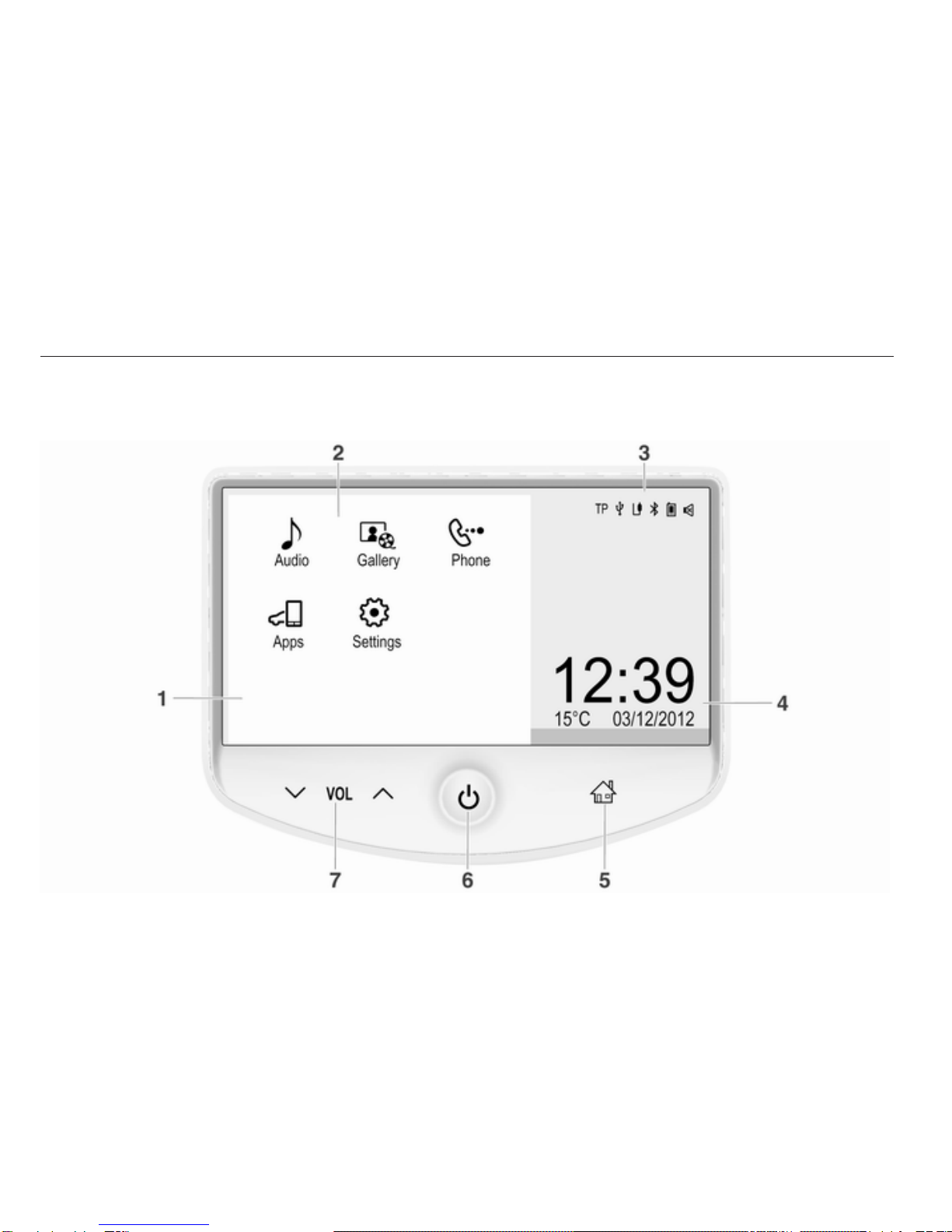

1Display / Touch screen ......... 11
2Home menu .......................... 11
Screen buttons for access to:
♪ Audio - audio functions
P Gallery - picture and
movie functions
h Phone - mobile phone
functions
K Apps - smartphone
applications
L Settings - system settings
3Function indicators
If symbol highlighted:
TP - radio traffic service
active ..................................... 24
M - external device
connected to USB port .......... 28
G - auxiliary device
connected to AUX input ........ 28
N - Bluetooth device
connected ............................. 28
g - smartphone application
active ..................................... 28
p - volume muted .................... 8
4Time and date, outside
temperature
Adjusting time and date,
see car manual.
5; button ............................... 11
Press: open Home menu
(see pos. 2)
6m button .................................. 8
Press: switch on/off
Infotainment system
7∨ VOL ∧ buttons ...................... 8
∨ : reduce volume
∧ : increase volume
Steering wheel audio controls
17 button
Short press: take phone call . 40
or dial number in call list ....... 45
Long press: open call list ...... 45
or switch handsfree mode
on/off ..................................... 45
2SRC (Source) .......................... 8
Press: select audio source ...... 8

8Introduction
If radio active: turn
upwards/downwards to
select next/previous
preset radio station ............... 18
If external device active:
turn upwards/downwards
to select next/previous
track/chapter/picture ............. 31
If Phone portal active and
call list open (see pos. 1):
turn upwards/downwards
to select next/previous
entry in call list ...................... 45
If Phone portal active and
calls waiting: turn
upwards/downwards to
switch between calls ............. 45
3Increase volume
4Reduce volume
5xn button
Press: end/decline call .......... 45
or close call list ...................... 45
or activate/deactivate
mute function .......................... 8
Usage
Control elements
The Infotainment system is operated
via function buttons, a touch screen
and menus that are shown on the
display.
Inputs are made optionally via:
■ the central control unit in the
instrument panel
■ audio controls on the steering
wheel
Switching the Infotainment
system on or off
Press the X button. After switching
on, the last selected Infotainment
source becomes active.
Automatic switch-off
If the Infotainment system has been
switched on using the X button while
the ignition is switched off, it will
switch off again automatically
10 minutes after the last user input.
Setting the volume
Press one of the ∨ VOL ∧ buttons. The
current setting is shown on the
display.
Optionally, using the touch screen:
move the volume slider with your
finger to the left or right.
When the Infotainment system is
switched on, the last selected volume
is set, if that volume is lower than the
maximum start up volume. Find a
detailed description 3 15.
Speed compensated volume
When the speed compensated
volume is activated 3 15 the volume
is adapted automatically to make up
for the road and wind noise as you
drive.
Volume of traffic announcements
(TA)
The volume of traffic announcements
can be set separately 3 15.
Mute
Press one of the ∨ VOL ∧ buttons and
then tap on the p screen button in the
volume menu displayed.

Introduction 9
To cancel the mute function again:
press one of the ∨ VOL ∧ buttons. The
last selected volume is set again.
Volume limitation at high
temperatures
At very high temperatures inside the
vehicle, the Infotainment system
limits the maximum adjustable
volume. If necessary, the volume is
decreased automatically.
Modes of operation
Press the ; button to display the
Home menu.
Note
Find a detailed description of menu
operation via touch screen 3 11.
Audio
Select the Audio screen button to
open the main menu of the last
selected audio mode.
Select the Source screen button in
the top line of the menu to open a drop
down list.
To change to another audio mode:
tap on one of the list items.
Find a detailed description of:
■ Radio functions (AM, FM, DAB)
3 18
■ External devices (USB, AUX,
Bluetooth) 3 31
Gallery
Select the Gallery screen button to
open the main menu of the last
selected picture or movie mode.
Tap on the Source in the top line of
the menu to open a drop down list.
To change to another picture or movie
mode: tap on one of the list items.

10 Introduction
Find a detailed description of:
■ Picture functions 3 34
■ Movie functions 3 36
Phone
Select the Phone screen button to
establish a Bluetooth connection
between the Infotainment system and
a mobile phone.
If a connection can be established,
the main menu of the phone mode is
displayed.
Find a detailed description of mobile
phone operation via the Infotainment
system 3 45.
If no connection can be established,
a corresponding message is
displayed. Find a detailed description
of preparing and establishing a
Bluetooth connection between the
Infotainment system and a mobile
phone 3 40.
Apps
Select the Apps screen button to
open a menu for selection and start of
approved smartphone applications
supported by the Infotainment
system.
Find a detailed description 3 28 and
3 38.
Settings
Select the Settings screen button to
open a menu for various system
related settings.
Time & date settings and Vehicle
settings are described in the car
manual.
All other settings are described by
theme in the respective chapters of
this manual.

Introduction 11
Basic operation
Controls for menu operation
Touch screen
The display of the Infotainment
system has a touch-sensitive surface
that allows direct interaction with the
displayed menu controls.
For example, you can activate an on-
screen button by tapping on it with
your finger or you can change the
position of an on-screen slider
element by moving it with your finger.
Caution
Do not use pointed or hard items
like ball pens, pencils or similar for
touch screen operation.
; button
Press the ; button to access the
Home menu.
Using the touch screen, you may then
access further menus and functions.
q screen button
When operating the menus, press the
q screen button in the respective
submenu to return to the next higher
menu level.
Menu operation (examples)
Selecting and activating a screen
button or menu item
Tap on a screen button or menu item.
The corresponding system function is
activated, a message is displayed, or
a submenu with further options is
displayed.

12 Introduction
Note
In subsequent chapters the
operating steps for selecting and
activating a screen button or menu
item via the touch screen will be
described as "...select the...screen
button..." or "...select the...menu
item...".
Messages
Before a system function is executed,
you are sometimes prompted with a
message. If requested, confirm the
message or select one of the options.
The selection and activation of a
screen button in a message function
are the same as described for screen
buttons in a menu.
Scrolling through a long list of menu
items
If there are more menu items
available than presentable on the
screen, a scroll bar is displayed.
To scroll through the list of menu
items:
■ Tap on the ▲ or ▼ screen buttons of
the scroll bar,
or
■ move the slider of the scroll bar with
your finger up or down
Adjusting a setting
The different setting types available in
the various settings menus are shown
and described below.

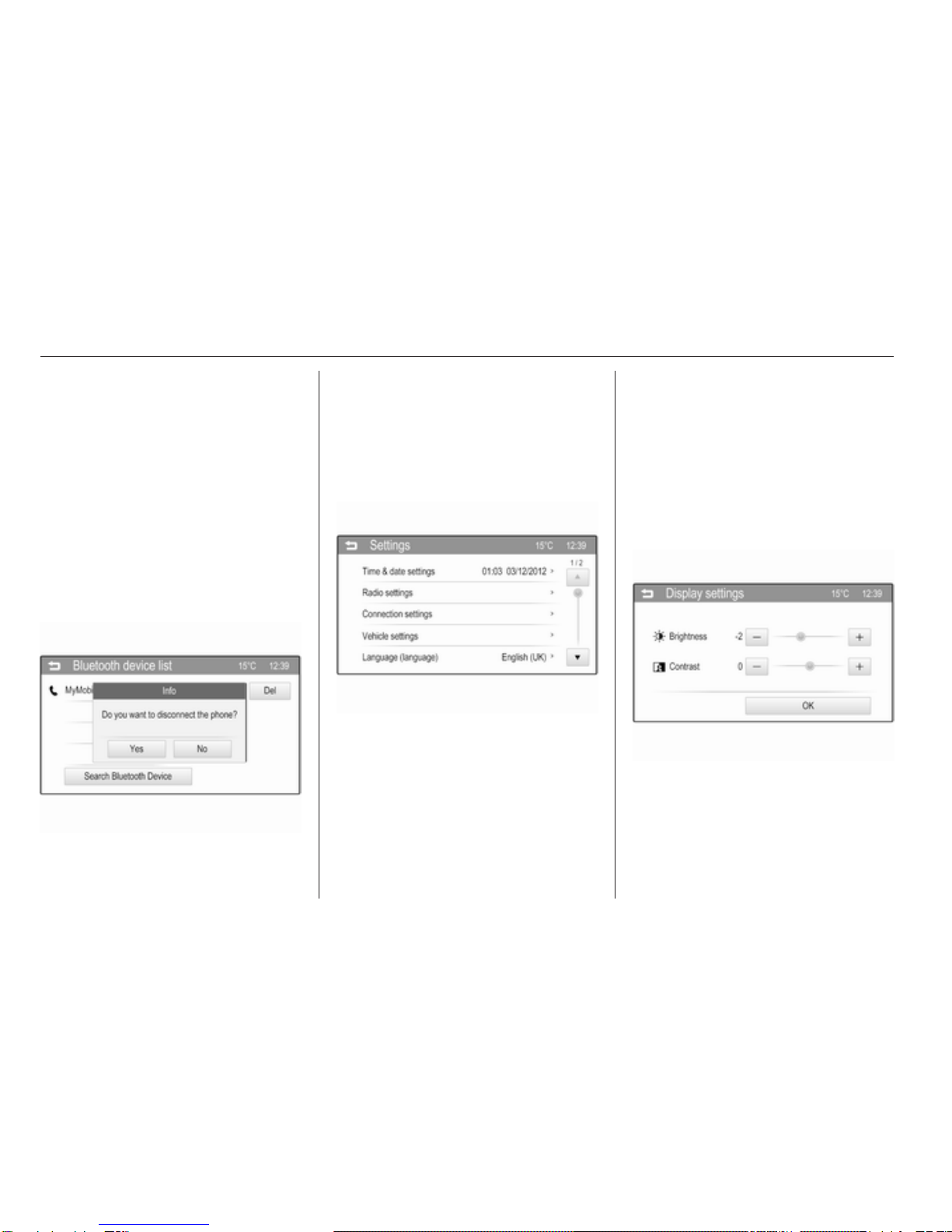

Example: Display settings
Tap on the - or + screen buttons or
move the slider beside a setting to
adjust this setting. Confirm your
choice by selecting the OK screen
button.

Introduction 13
Note
In subsequent chapters the
operating steps for adjusting a
setting via the touch screen will be
described as "...adjust
the...setting...".
Example: Radio settings
Tap on the < or > screen buttons
beside a setting to choose one of the
available options or to set a specific
value.
Note
In subsequent chapters the
operating steps for switching to
another option via the touch screen
will be described as
"...set...to...'option name'/'value'...".
Example: RDS option
Tap on the On screen button or the
Off screen button beside a setting to
activate or deactivate this option.
Note
In subsequent chapters the
operating steps for switching a
setting to On or Off via the touch
screen will be described as
"...set...to...On..." or
"...set...to...Off...".
Example: DAB category list
Tap on a list item to select or unselect
the option. If a list item is selected, a
checkmark appears within the box
beside the item.
Note
In subsequent chapters the
operating steps for choosing an
option via the touch screen will be
described as "...choose...'option
name'...".

14 Introduction
Tone settings
In the tone settings menu, the tone
characteristics can be set differently
for each radio waveband and each
external audio source. The menu may
be accessed from each individual
audio main menu.
To open the tone settings menu,
select the MENU screen button in the
bottom line of the respective main
menu. If necessary, scroll through the
list of menu items and select Tone
settings. The respective menu is
displayed.
EQ mode
(EQ: Equaliser)
Use this setting to optimise the tone
for the style of music, e.g. Rock or
Classical.
Select the desired sound style. If you
choose Manual, you can manually
adjust the following settings.
Bass
Use this setting to enhance or
attenuate the deep frequencies of the
audio sources.
Set Bass to a value between -12 and
12.
Mid
Use this setting to enhance or
attenuate the midrange frequencies
of the audio source.
Set Mid to a value between -12 and
12.
Treble
Use this setting to enhance or
attenuate the high frequencies of the
audio sources.
Set Treble to a value between -12 and
12.
Setting balance and fader
Use the illustration at the right side of
the menu to adjust balance and fader.
To define the point in the passenger
compartment where the sound is at its
highest level, tap on the
corresponding point in the illustration.
Alternatively, you can move the red
marker with your finger to the desired
point.
Note
The balance and fader settings are
valid for all audio sources. They
cannot be adjusted individually for
each audio source.
Resetting to factory defaults
Select the Reset screen button.
Saving current settings
Select the OK screen button.

Introduction 15
Volume settings
Adjusting the maximum startup
volume
Press the ; button and then select
the Settings screen button.
Scroll through the list to the Max
startup volume menu item.
Set Max startup volume to a value
between 13 and 37.
Adjusting the speed
compensated volume
Press the ; button and then select
the Settings screen button.

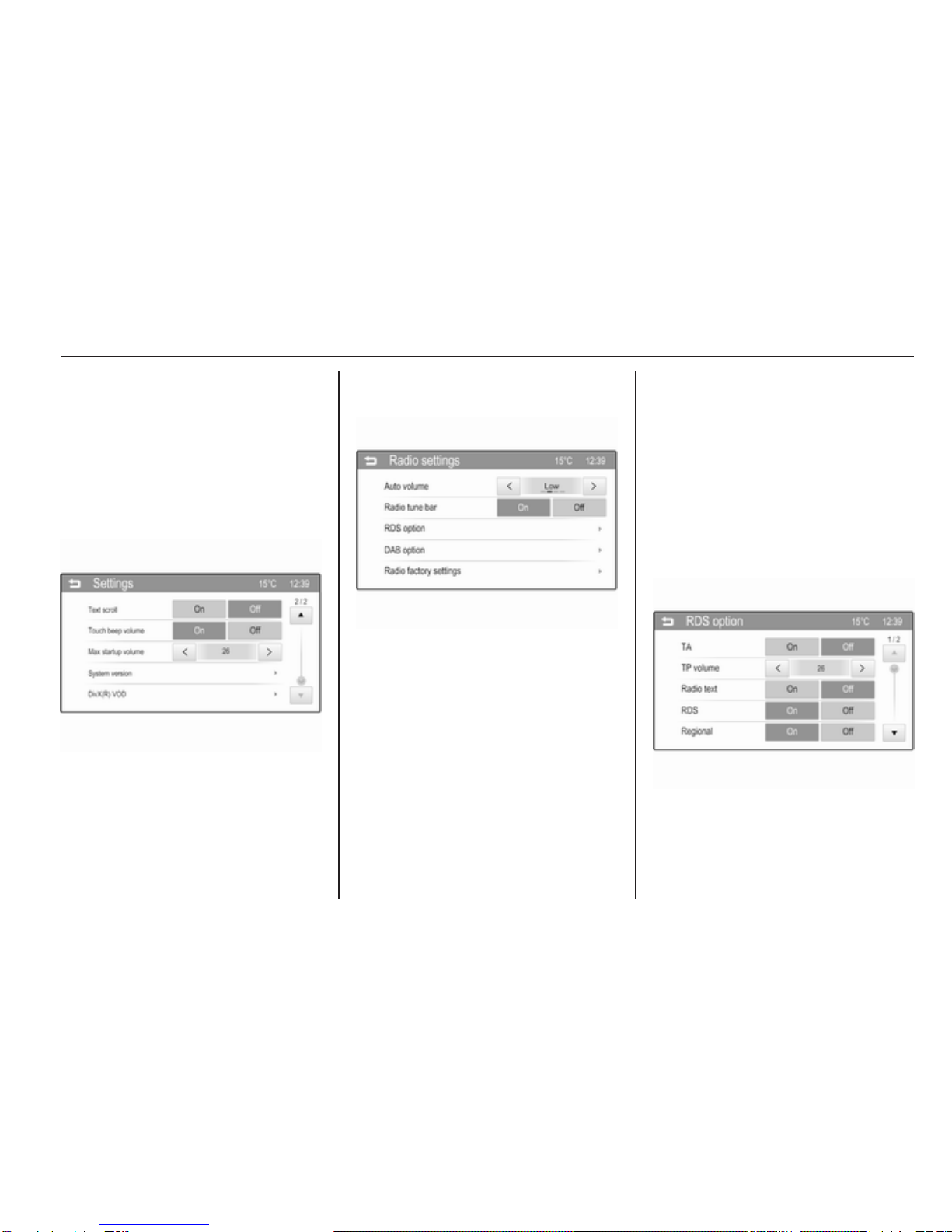

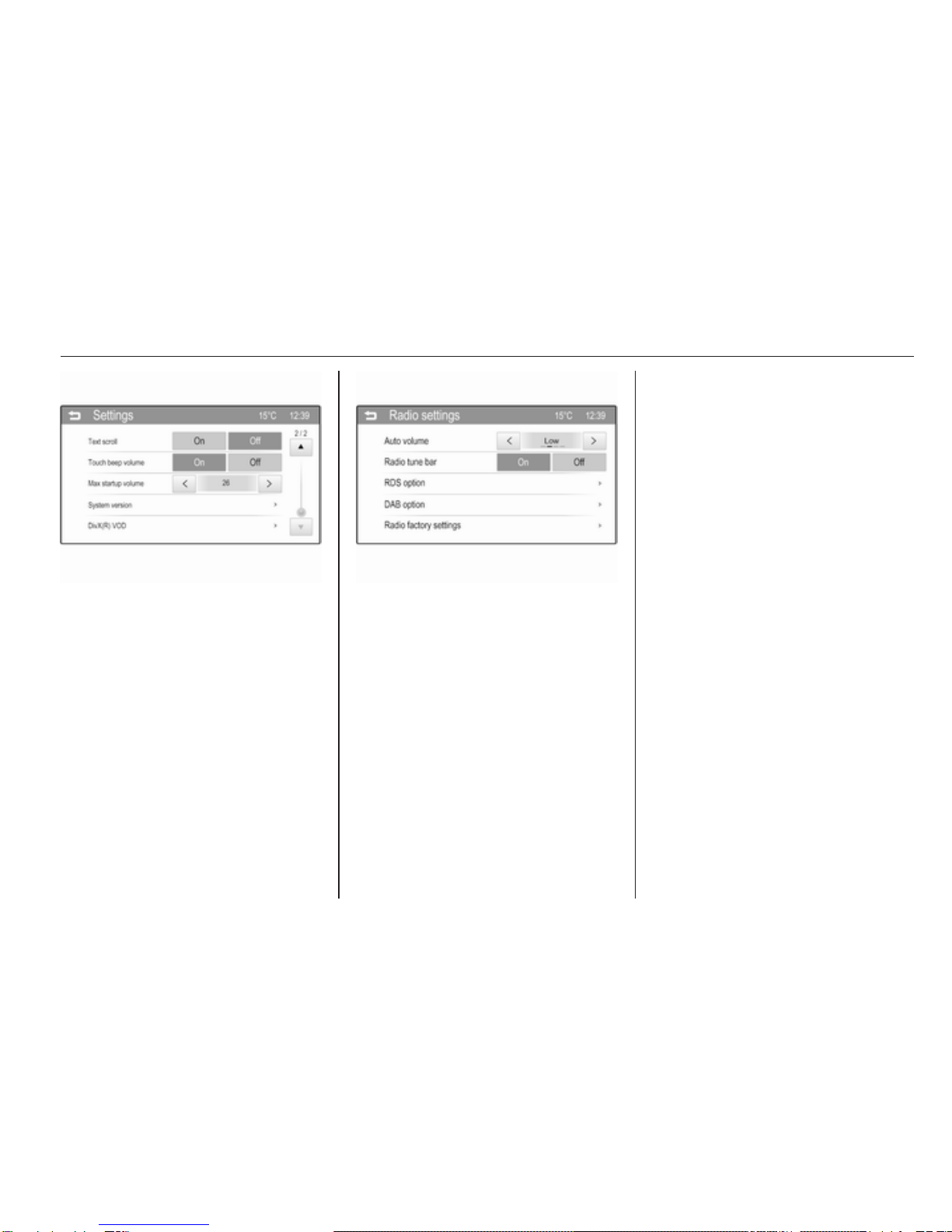

Select Radio settings to display the
respective menu.
To adjust the degree of volume
adaptation, set Auto volume to Off,
Low, Medium or High.
Off: no enhancement of volume with
increasing vehicle speed.
High: maximum enhancement of
volume with increasing vehicle
speed.
Adjusting the volume of traffic
announcements
The volume of traffic announcements
can be preset separately to a level
independent of the "normal" volume
level.
Press the ; button and then select
the Settings screen button.
Select Radio settings and then RDS
option to display the respective menu.
Set TP volume to a value between
0 and 63.

16 Introduction
Adjusting the ring tone volume
Press the ; button and then select
the Settings screen button.
Select Connection settings to display
the respective menu.
Set Ringtone volume to a value
between 0 and 63.
Activating or deactivating the
touch beep volume function
If the touch beep volume function is
activated, each tap on a screen
button or menu item is indicated by a
beeping sound.
Press the ; button and then select
the Settings screen button.
Scroll through the list to the Touch
beep volume menu item.
Set the function to On or Off.
System settings
Adjusting the language
Press the ; button and then select
the Settings screen button.
Select the Language (language)
menu item to display the respective
menu.
To adjust the language for the menu
texts: tap on the desired language.
Activating or deactivating the
text scroll function
If long text is displayed on the screen,
the text may either be scrolled
continually or it may be scrolled once
and displayed in truncated form.
Press the ; button and then select
the Settings screen button.
Scroll through the list to the Text
scroll menu item.

Introduction 17
If you wish the text to be scrolled
continually, set the function to On.
If you wish the text to be scrolled only
once, set it to Off.
Resetting to factory defaults
All settings, e.g. the volume and tone
settings, the favourite lists, or the
Bluetooth device list, can be reset to
the factory defaults.
Press the ; button and then select
the Settings screen button.
Select Radio settings to display the
respective menu.
To reset all settings: tap on the Radio
factory settings menu item and
confirm the messages subsequently
appearing.
Displaying the system version
Press the ; button and then select
the Settings screen button.
Scroll through the list and select the
System version menu item.

18 Radio
Radio
Usage .......................................... 18
Station search .............................. 18
Autostore lists .............................. 19
Favourite lists ............................... 20
Waveband menus ........................ 20
Radio data system (RDS) ............ 24
Digital audio broadcasting ........... 25
Usage

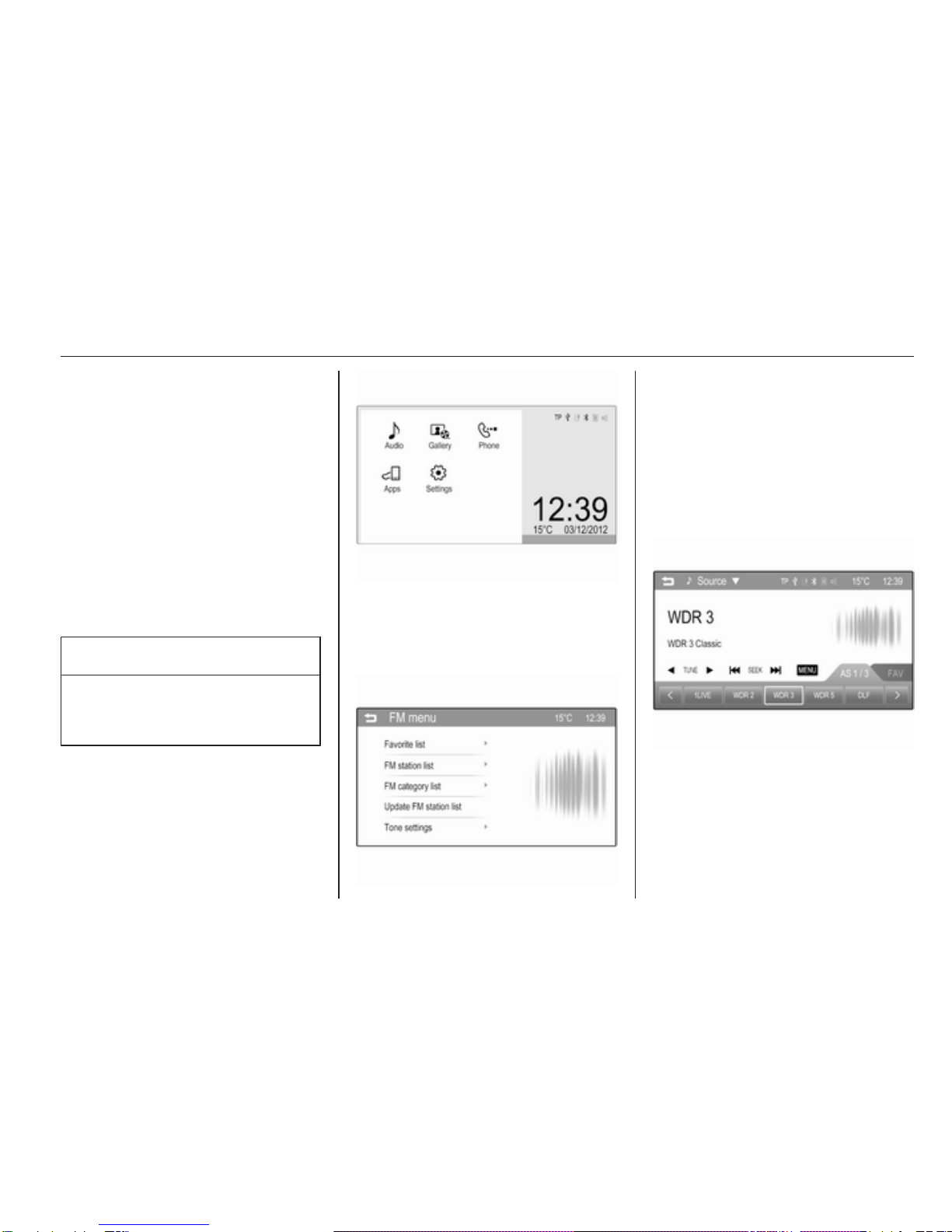

Activating the radio
Press the ; button and then select
the Audio screen button. The audio
main menu last selected is displayed.
Select the Source screen button to
open a drop down list.
Select AM, FM or DAB radio.
The station last played in the selected
waveband will be received.
Note
To display information on the
currently active radio station: tap on
the display.
Station search
Automatic station search
Briefly tap on one of the t SEEK
v screen buttons to play the
previous or next station in the station
memory.
Manual station search
Tap on and hold one of the t SEEK
v screen buttons. Release the
button when the required frequency
has almost been reached.

Radio 19
A search is made for the next station
that can be received and it is played
automatically.
Note
Manual station search: If the radio
does not find a station, it switches
automatically to a more sensitive
search level. If it still does not find a
station, the frequency that was last
active is set again.
Note
FM waveband: when the RDS
function is activated, only RDS
stations 3 24 are searched for, and
when the radio traffic service (TP) is
activated, only traffic service
stations 3 24 are searched for.

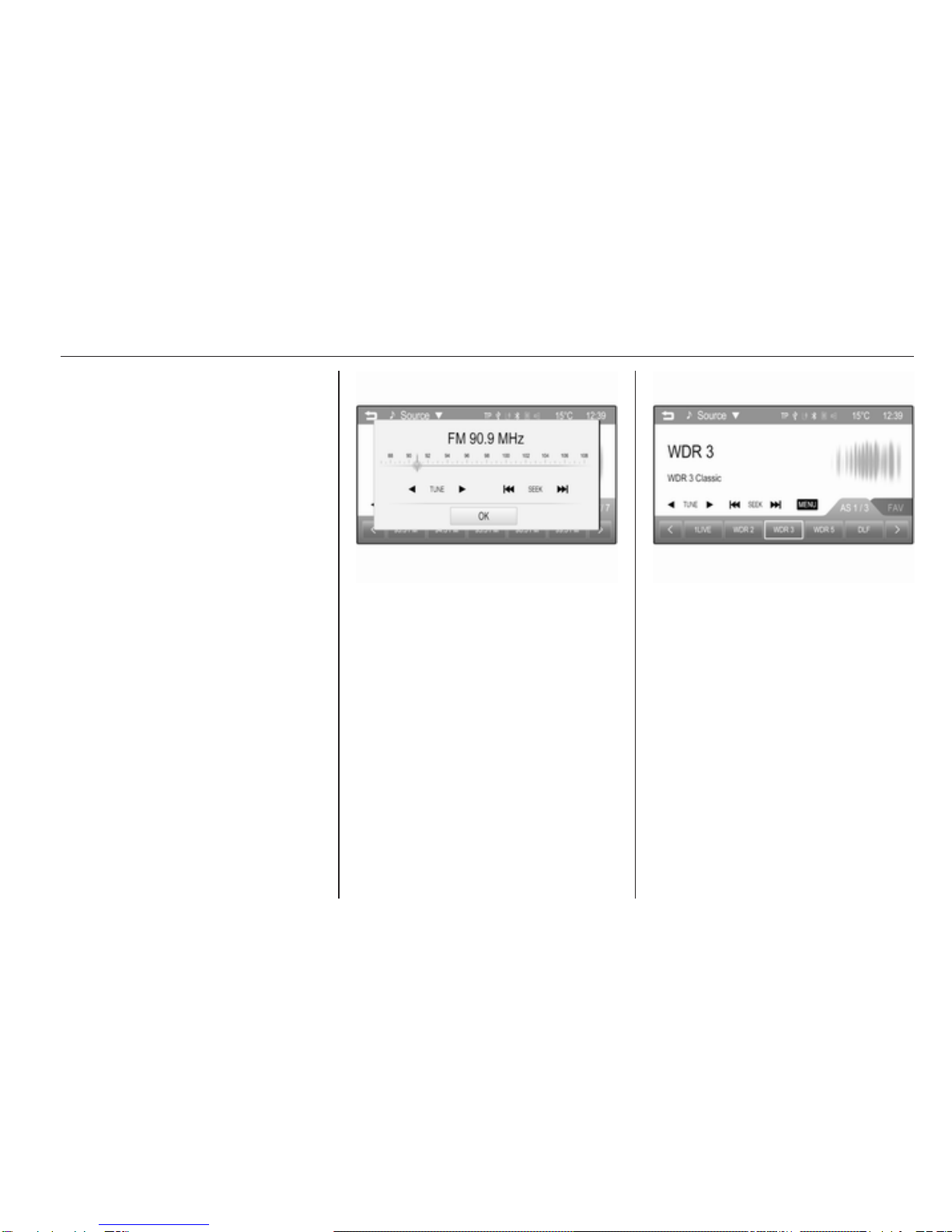

Station tuning
Tap on and hold or repeatedly tap on
one of the _ TUNE 6 screen buttons
to adjust the frequency of the desired
radio station.
If Radio tune bar in the Radio
settings menu (see note below) is set
to On, a tune bar is displayed when
tapping on one of the _ TUNE 6
screen buttons.
You may now manually tune or seek
for radio stations.
Note
To open the Radio settings menu:
press the ; button, select the
Settings screen button and then
select the Radio settings menu item.
Autostore lists
The stations received best in a
waveband can be searched for and
stored automatically via the autostore
function.
Each waveband has 3 autostore lists
(AS 1/3, AS 2/3 and AS 3/3), in each
of which 5 stations may be stored.
Note
If the FAV tab is currently shown in
the foreground: tap on the AS tab to
display the autostore lists.
Note
The currently received station is
highlighted.
Storing stations
If required, tap on the AS tab to
display the autostore lists.
