CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth® 24V
OWNER’S MANUAL
VDO_CDD728UB-BU_EN.indd 1 29/04/15 12:16

2
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
Safety Information
nSafety Information
iPRECAUTIONS
• Use only in a 24-volt DC negative-ground
electrical system.
• Disconnect the vehicle’s negative battery
terminal while mounting and connecting the
unit.
• When replacing the fuse, be sure to use one
with an identical amperage rating.
Using a fuse with a higher amperage rating
may cause serious damage to the unit.
• DO NOT attempt to disassemble the unit.
Laser beams from the optical pickup are
dangerous to the eyes.
• Make sure that pins or other foreign objects
do not get inside the unit, they may cause
malfunctions, or create safety hazards such
as electrical shock or laser beam exposure.
• If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating
the unit.
• Keep the volume at a level you can hear
outside warning sounds (horns sirens, etc.).

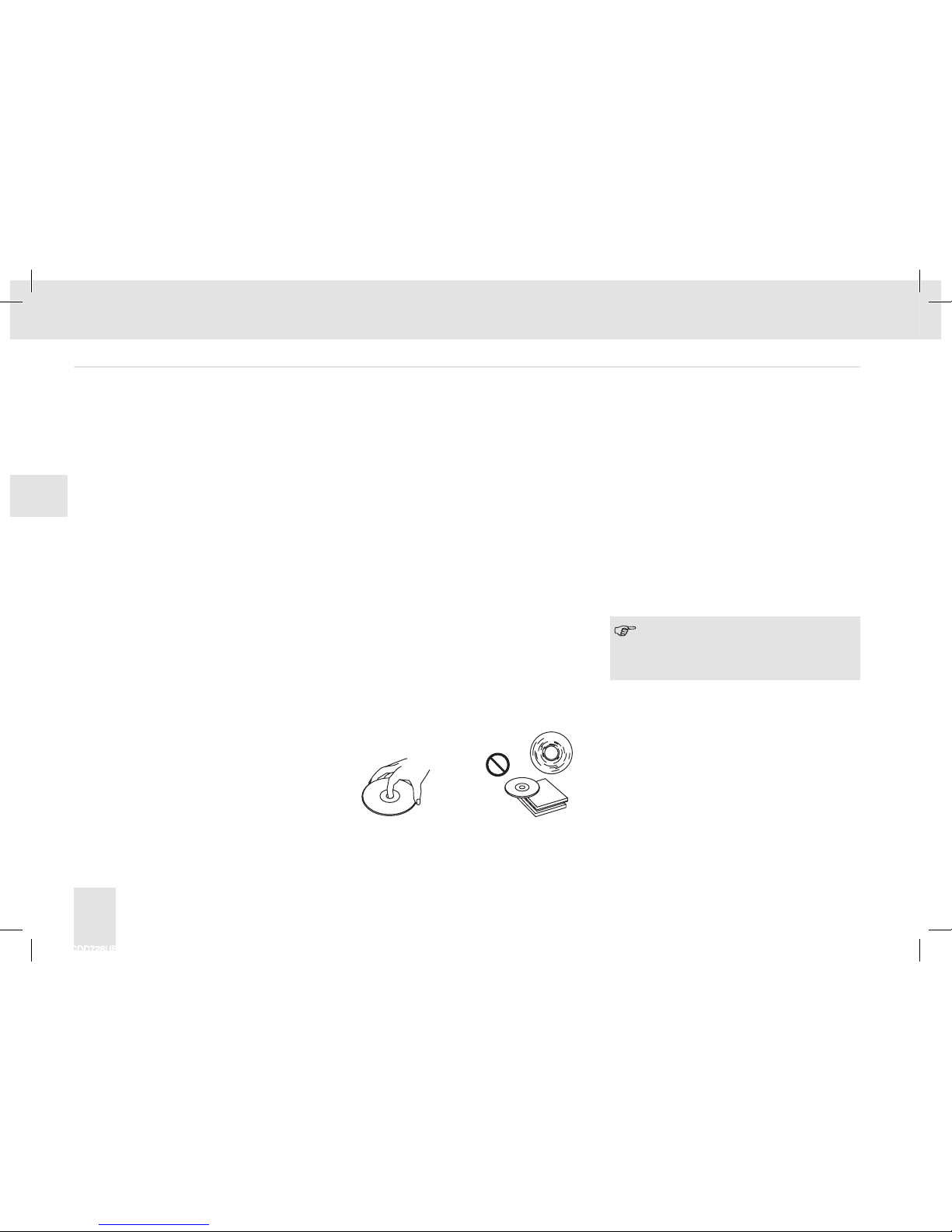

CD Notes
• Playing a defective or dusty CD can cause
dropouts in sound.
• Hold CDs as illustrated.
• Do not touch the unlabeled side.
• Do not attach any seal, label or data
protection sheet to either side of a disc.
• Do not expose a CD to direct sunlight or
excessive heat.
• Wipe a dirty CD from the center outward with
a cleaning cloth.
• Never use solvents such as benzine or
alcohol.
• This unit cannot play 3-inch (8 cm) CDs.
NEVER insert a 3-inch CD contained in the
adapter or an irregularly shaped CD. The
unit may not be able to eject it, resulting n a
malfunction.
• Disc can not have foreign body, the damage
caused by the disc with foreign body do not
belong to the warranty scope.
Before Operation
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous. Stop the car before performing
any complicated operation.
iCAUTION
• DO NOT open covers and do not repair
yourself. Consult the dealer or an experienced
technician for help.
* In addition to ordinary CDs, this unit can
playback CD - R or CD - RW, MP3.
Note:
The system just support the English and
number display, not all kinds letters are
compatible with the unit.
VDO_CDD728UB-BU_EN.indd 2 29/04/15 12:16

3
© Continental Trading GmbH

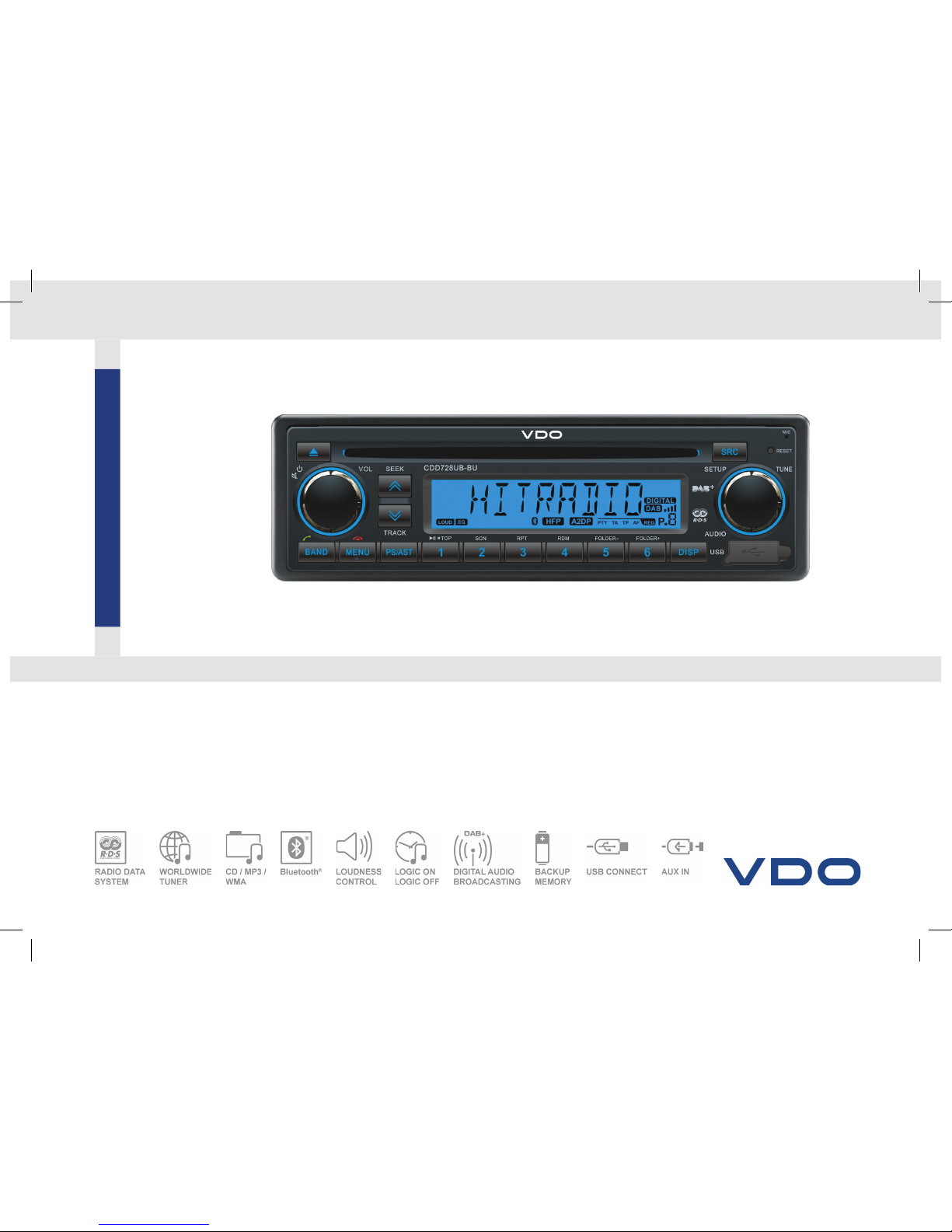

Panel Controls
nPanel Controls
(1) Disc eject
(2) Rotate to adjust volume
Radio: Mute
CD/MP3: Pause
Hold it to power off
(3) Band select
(4) 1-6 preset
Automatically search and save station
(5) Channel 1/Play/Stop/Top
(6) Channel 2/SCN
(7) Channel 3/RPT
(8) Channel 4/RDM
(9) Channel 5/FOLDER-
(10) Channel 6/FOLDER+
(11) Display paly time and clock in the CD state.
The LCD will display the ID3 TAG
information recycle: le name/folder name/
ID3 TAG/system time in the MP3 state.
Display PTY info and system time in the
Radio state.
(12) Menu select
(13) USB connector
(14) Seek+/Select the next track
(15) Seek-/Select the previous track
(16) Disc slot
(17) SCR button
Radio
Disc (when disc is in)
USB (when USB inserted)
AUX IN
(18) Reset hole
(19) Press to select VOL/BAS/TRE/BAL/LOUD/
FAD/AF/TA/PTY, rotate VOL knob to adjust
RADIO: Rotate to adjust radio tune
CD /MP3: Rotate to select the previous/next
track
(20) 1-6 preset:
Press to tune in a preset station.
Hold for more than 2 seconds to store a
desired station.
(21) Microphone
VDO_CDD728UB-BU_EN.indd 3 29/04/15 12:16

4
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
Operate Guide
nOperate Guide
Disc Load / Eject
Load: Insert the disc into the slot.
Eject: Press to eject the disc.
Band Mode
Press the button to change bands:
FM1 FM2 FM3 MW1 MW2 LW.
SRC
Press the [SRC] button to switch between and
select available sources, the mode as follows:
TUNER->CD/MP3/USB->AUX->DAB.
Auto Memory Store(Radio mode)
Press the [PS/AST] button to scan the preset
stations 1-6 for 10 seconds each.
Hold the [PS/AST] button more than 2 seconds,
the strongest available stations will be
automatically saved in the memory of preset
button 1-6.
Seek Mode
Disc/USB playback: Press the / to
select the next or previous track.
Hold the / to enter fast forward or
reverse back mode.
EQ Loud Mode
Press the [TUNE] Knob and rotate to select sound
effect EQ OFF POP ROCK CLASSIC
JAZZ CUSTOM.
Press the [TUNE] button and press
/ to select BAS/TRE, rotate the [TUNE]
knob to adjust value.
Clock Setting
If RDS clock (CT) doesn’t work, you can adjust
manually the Clock time.
Long press the [DISP] button to set the time.
Select [CLOCK] with the search buttons
/ .
Press [TUNE] knob and rotate it to adjust the
hours.
Press [TUNE] knob and rotate it to adjust the
minutes.
Press the [TUNE] knob to exit the clock setting.
System Setting
On the radio source hold the [DISP] to enter the
system setup menu, press the / to
select: TA TA RETUN AF REG CT
DX/LO ST/MONO CLOCK 12/24H
BEEP SWRC SET LOGIC AREA
SET, and rotate the [TUNE] to setting.
BEEP setting: The beep tone feature allows the
selection of an audible beep tone to be heard
each time the menu is accessed.
SWRC setting: Rotate the [TUNE] knob to select
ON or OFF.
DX/LO setting: Rotate the [TUNE] knob to select
DX or LO.
CT setting: Rotate the [TUNE] knob to select ON
or OFF.
REG setting: Rotate the [TUNE] knob to select ON
or OFF.
AF setting: Rotate the [TUNE] knob to select ON
or OFF.
TA RETUN setting: Rotate the [TUNE] knob to
select RETUNE S or L. Setting for “L”, Auto search
the TA time space for 180 sec,Setting for “S”, auto
search the TA time space for 45 sec.
TA setting: Rotate [TUNE] knob to select ON or
OFF.
AREA SEL setting: Rotate the [TUNE] knob to
select USA, EUROPE, NORTH AFRICA, ASIA,
JAPAN.
LOGIC ON/OFF: Logic ON to limit the use of the
set to one hour when the car ignition is switched
off. Logic OFF to prevent the set from turning on
when the car ignition is switched off.
SCROLL setting(CD SRC): Rotate the [TUNE]
knob to select ON or OFF.
VDO_CDD728UB-BU_EN.indd 4 29/04/15 12:16

5
© Continental Trading GmbH
Sound Setting
nSound Setting
Press the [TUNE] knob to enter sound effect
setting mode. First press shows current EQ.
Rotate the [TUNE] knob to changes BEAT EQ in
this order:
EQ OFF ->POP ->ROCK ->CLASSIC ->JAZZ
->CUSTOM
Rotate the [TUNE] knob to select CUSTOM, and
press the knob, then press the / button
to select: BAS-G -> TRE-G, rotate the knob to
select a value.
BAS-G / TRE-G: (-7)- (+7)
Press the [TUNE] button, and press /
button to select USER preset:
BALANCE ->FADER ->LOUD, rotate the [TUNE]
knob to select a value.
BALANCE: LEFT 1-7->CENTER->RIGHT 1-7
FADER: FRONT 1-7->CENTER->REAR 1-7
LOUD: ON/OFF
MP3 Track Search
CD/MP3 mode:
Press the [MENU] button to select “TRACK
SCH” mode, and press the [TUNE] knob to enter
searching mode. Then rotate and press the
[TUNE] knob to select a track number which you
want, then press the [TUNE] knob to conrm.
RDS(PTY SEEK)
Only the radio region is Europe and on the FM the
PTY can be seached. Press the [MENU] button to
PTY function, rotate the [TUNE] knob to display
the program types, and press [TUNE] to select the
desired.
Note:
If radio region isn’t Europe, RDS and DAB
FMLK won’t display.
VDO_CDD728UB-BU_EN.indd 5 29/04/15 12:16

6
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
System Setting Item List
nSystem Setting Item List
JAPANASIA
Radio source DAB source CD source BT source
Radio region: Europe
Radio region: USA/Asia/Japan
SETUP
DX/LO DX LO
CT
REG
AF
TA ON
ON
ON
ON
ON
ON
ON
OFFTA ON OFF TA ON OFF TA ON OFF
OFF
OFF
OFF
OFF
OFF
OFF
ST/MONO STEREO MONO
LOGIC
AREA SET EUROPE USA
JAPANASIA
AREA SET EUROPE USA
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
TA RETUN RETUNE L RETUNE S
SETUP
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
DAB FMLK
DAB LBND
DAB ANT ACTIVE PASSIVE
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
SETUP
ON
ON
ON
ON
OFF
OFF
OFF
OFF
SCROLL
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
SETUP
ON
ON
ON
ON
OFF
OFF
OFF
OFFAUTO CON
INTERNAL EXTERNAL
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
MIC SEL
Radio source DAB source CD source BT source
SETUP
DX/LO DX LO
ON
ON
ON
OFF
OFF
OFF
ST/MONO STEREO MONO
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
SETUP
ON
ON
ON
ON
OFF
OFF
OFF
OFF
DAB LBND
DAB ANT ACTIVE PASSIVE
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
SETUP
ON
ON
ON
ON
OFF
OFF
OFF
OFF
SCROLL
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
SETUP
ON
ON
ON
ON
OFF
OFF
OFF
OFFAUTO CON
INTERNAL EXTERNAL
LOGIC
CLOCK _ _:00 00:_ _
12/24H 24HOURS 12HOURS
BEEP
SWC SET
MIC SEL
VDO_CDD728UB-BU_EN.indd 6 29/04/15 12:16

7
© Continental Trading GmbH
USB MP3/WMA Overview
nUSB MP3/WMA Overview
Note on MP3
• MP3 is short for MPEG Audio Layer 3 and
refers to an audio compression technology
standard.
• This product allows playback of MP3 les on
CD-ROM, CD-R or CD-RW discs.
• The unit can read MP3 les written in the
format compliant with ISO 9660.
• However it does not support the MP3 data
written by the method of packet write.
• The unit can not read an MP3 le that has a
le extension other than “.mp3”.
• If you play a non-MP3 le that has the “.mp3”
extension, you may hear some noise.
• In this manual, we refer to what are called
“MP3 le” and “folder “ in PC terminology as
“track” and “Album,” respectively.
• Maximum number of directory level is 8,
including the root directory. Maximum number
of les and folders per disc is 256.
• The unit may not play tracks in the order of
Track numbers.
• The unit plays only the audio tracks if a disc
contains both audio tracks and MP3 les.
• When playing a disc of 8kbps or VBR*, the
elapsed playing time in the display window
will not be correct and also the intro play may
not function properly. *VBR: Variable Bit Rate
Note on creating your own CD-Rs or
CD-RWs containing MP3 les
• To enjoy high quality sound, we recommend
converting to MP3 les with a sampling
frequency of 44.1 kHz and a xed bit rate of
128 kbps.
• DO NOT store more than 256 MP3 les per
disc.
• For ISO 9660 -compliant format, the
maximum allowable depth of nested folders is
8, including the root directory (folder).
• When CD-R disc is used, playback is possible
only for discs which have been nalized.
• Make sure that when MP3 CD-R or CD-RW is
burned that it is formatted as a data disc and
NOT as an audio disc.
• You should not write non-MP3 les or
unneeded folders along with MP3 les on the
disc otherwise it takes a long time until the
unit starts to play MP3 les.
• With some CD-R or CD-RW media, data may
not be properly written depending on their
manufacturing quality.
In this case, data may not be reproduced
correctly. High quality CD-R or CD-RW disc is
recommended.
• Up to 16 characters are displayed for the
name of an Album or a Track. ID3 TAG
version 1.x is required.
• Note that the unit may not play Track in the
order that you wrote them to the disc.
USB Notes
USB functions (ash memory type) MP3 music
play.
(1) USB ash memory 2 in 1 support.
(2) FAT 12/FAT 16/FAT 32 format supported.
(3) File name: 64 byte/dir name: 64 byte/tag
name: 30 byte.
(4) Tag (id3 tag ver 2.0)
- title/artist/album: 32 byte support.
(5) USB 1.1 support, USB 2.0 support (For 2.0,
speed performance is as USB 1.1).
(6) Not all USB devices are compatible with the
unit.
(7) USB connector is support maximum work
power with 500 mA.
VDO_CDD728UB-BU_EN.indd 7 29/04/15 12:16

8
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
Bluetooth Operations
nBluetooth Operations
The Bluetooth allows you to utilize your car’s
built-in audio system for wireless mobile phone or
music handsfree communication. Some Bluetooth
mobile phones have the audio features, and
some portable audio players support Bluetooth
feature. This system can play audio data stored
in a Bluetooth audio device. The car stereo with
Bluetooth will be able to retrieve phonebook
contacts, received call, dialed call, missed call,
incoming calls, outgoing call and listen to music.
Notes:
• Do not leave the microphone of
Bluetooth handsfree in the places with
wind passing such as air outlet of the
air conditioner, etc. This may cause a
malfunction.
• If leave it in the places subjected to
direct sun, high temperature can cause
distortion, discoloration which may result
in a malfunction.
• This system will not operate or may
operate improperly with some Bluetooth
audio players.
• Cannot guarantee the compatibility of all
mobile phones together with unit.
• Audio playback will be set to the same
volume level as set during telephone call.
This might cause problems, if extreme
volume level is set during telephone call.
Handsfree Operations
Pairing
1. Turn on Bluetooth function of your mobile
phone.
2. Enter mobile phone’s Bluetooth setup menu.
3. Search for new Bluetooth devices.
4. Select Bluetooth devices from the pairing list on
the mobile phone.
5. Enter “1234” as the password (The password
default setting is “1234”).
6. After pairing successfully, BT and HPF icons will
light up.
A2DP icon will light up after A2DP connected.
Making a call
Operation from Bluetooth menu
Press the [SRC] button to switch the source to
“BT MUSIC”. When display «A2DP» press the
[MENU / ] button to to switch to “DIAL NUM”.
• Dial Number
1. Press the [TUNE] knob on the front panel to
conrm to dial number.
2. Rotate the [TUNE] knob to select a number,
press the knob to conrm, and continue to input
the next digit. Repeat above until all numbers
inputted.
3. Press the [BAND / ]button to dial.
4. Press the [MENU / ]button to terminate call.
• Dialled/Missed/ Received
You can search any Dialled/Missed/Received.
1. Rotate the [TUNE] knob to select “DIALLED”,
“MISSED”, “RECEIVED”.
2. Press the [TUNE] knob to enter the selected
call history.
3. Rotate the [TUNE] knob to scroll the contacts.
4. When the contact name or mobile phone No. is
displayed, press the [BAND / ]button to call
the mobile phone No. of that contact.
* Press the [MENU / ]button to end the call.
• Call from Phonebook
User can search the contact name in the
phonebook and make call.
1. Rotate the [TUNE] knob to select “USER PBK”.
2. Press the [TUNE] knob to enter the selected
phonebook.
3. Rotate the [TUNE] knob to scroll the contacts.
4. The phone number and the name to scroll
display.When the contact name is displayed,
press the [BAND / ]knob to call the mobile
phone No. of that contact.
*Press the [MENU / ]button to end the call.
Note:
Some mobile phones may not be able to
transfer data of Phonebook.
• Transfer Call
You can switch handsfree call and mobile phone
call. Press the [BAND / ]button during call.
VDO_CDD728UB-BU_EN.indd 8 29/04/15 12:16

9
© Continental Trading GmbH
Bluetooth Operations
nBluetooth Operations
• Answering a call
You can answer an incoming call by pressing the
[BAND / ]button.
* Press the [MENU / ]button to reject an
incoming call.
Audio Streaming Operations
What is audio streaming?
Audio streaming is a technique for transferring
audio data such that it can be processed as a
steady and continuous stream. Users can stream
music from their external audio player to their car
stereo wirelessly and listen to the tracks through
the car’s speakers. Please consult your nearest
dealer for more information on the product of
wireless audio streaming transmitter offered.
CAUTION
Please avoid operating your connected mobile
phone while audio streaming as this may
cause noise or sound choppy on the song
playback.
Audio streaming may or may not resume after
telephone interrupt as this is dependent on
mobile phone.
System will always return to Radio mode if
audio streaming is disconnected.
Note:
Be sure to read the chapter “Pairing”
before proceeding.
Play / Pause a track
1. Push the [1] button to pause audio playback.
2. To resume audio playback, push the [1] button
again.
Selecting a track
Track-up
Press the button to move to the beginning of
the next track.
Track-down
Press the button to move to the beginning of
the previous track.
Note:
Playing order will depend on Bluetooth
audio player. When the button is
pressed, some A2DP devices will restart
the current track depends on the duration
of playback.
During music streaming playback, “A2DP
and HFP” will be shown on the display.
When A2DP device is disconnected,
“DISCONN” will be shown on the display.
Some Bluetooth audio players may not
have play / pause synchronized with this
unit. Please make sure both device and
main unit are in the same play / pause
status in BT MUSIC mode.
VDO_CDD728UB-BU_EN.indd 9 29/04/15 12:16

10
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
Electrical Connections
nElectrical Connections

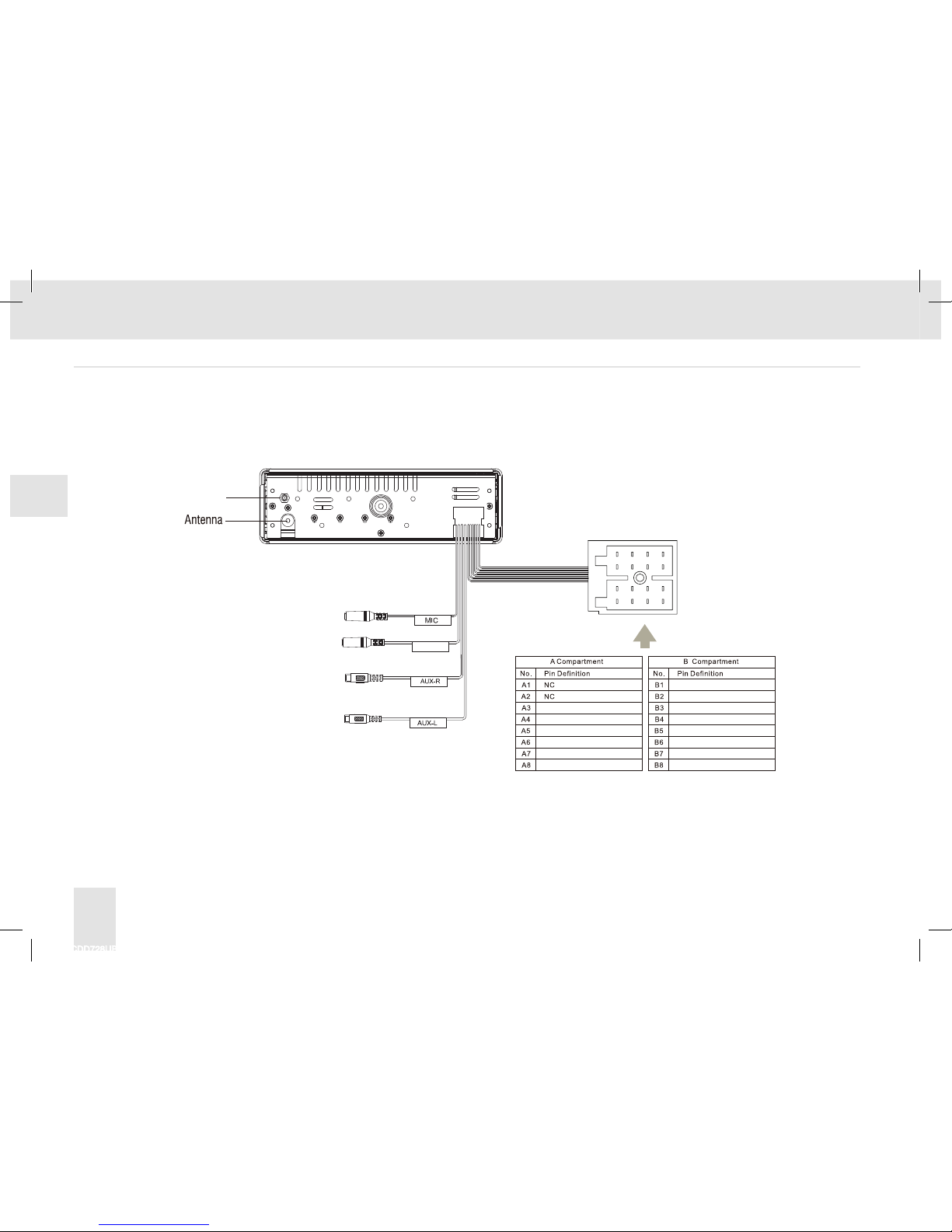

Wiring Diagram
ANT REMOTE/Blue and White
ILLUMINATION/Pink
Battery/Yellow
Ground/Black Rear Left-/Green and Black
Rear Left+/Green
Front Left-/White and Black
Front Left+/White
Rear Right-/Purple and Black
Rear Right+/Purple
Front Right-/Gray and Black
Front Right+/Gray
ACC-IN/Red
TeleMute/Brown and Black
A
B
7
2 4 6 8
13 5 7
24 6 8
135
White
Red
(SMB connector)
DAB connector
SWRC
VDO_CDD728UB-BU_EN.indd 10 29/04/15 12:16

11
© Continental Trading GmbH
Troubleshooting
nTroubleshooting
If you suspect something is wrong, immediately
switch power off. Do not use the unit in abnormal
condition, for example without sound, or with
smoke or foul smell, can cause re or electric
shock. Immediately stop using it and call the store
where you purchased it. Never try to repair the
unit yourself because it is dangerous to do so.
Note: If the set inserts a non-standard size disc or card.you may long press the button for 5 second,then it will be eiected forcibly.
Option Selectable values Function
General
No power or no sound
Car's engine switch is not on Turn your car's key to ACC or ON
Fuse is burnt Replace fuse
Volume is too low Check volume or mute on / off
If the above solutions cannot help Press the RESET button
Disc
Disc is inside but is no sound Disc is upside down Place disc in the correct direction, and the label side up
Disc is dirty or damaged Clean disc or change another disc
Disc sound is skips,tone quality is low Disc is dirty or damaged Clean CD or change another CD
Radio
Much noise in broadcasts Station is too far, or signals are too weak Select other stations of higher signal level
Preset station lost Battery cable is not correctly connected Connect the battery cable to the terminal that is always live.
Error Display Messages
CD ERR
Disc is upside down Place disc in the correct direction, and the label side up
Disc format is not support or le date is wrong Check the disc
Disc is wrong Press button more than 2 seconds to eject the disc. In case
that the disc cannot be ejected by pressing button, press the
RESET switch and press the button 2 seconds to eject the
disc. If still not ejecting, consult your dealer.
VDO_CDD728UB-BU_EN.indd 11 29/04/15 12:16

12
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
Specications
nSpecications
General
Power supply: 24 V DC negative ground
Maximum power output: 15 W x 4 channels (4 )
Suitable speaker impedance: 4
ESP: 10 s (CD-DA)/40 s (MP3)
Dimensions(WxDxH): 178x161x50 mm
Weight: 1.33 kg
Note:
For different bit-rate MP3, ESP time are different; 40 seconds only for
the bit-rate MP3 le of the 128 Kbps.
FM Stereo Radio
Frequency range: 87.5-108.0 MHz
Usable sensitivity: < 14 dBμ
Frequency response: 50 Hz - 10 KHz
Stereo separation: ≥ 22 dB (1 KHz)
Image response ratio: ≥ 40 dB
IF response ratio: ≥ 60 dB
Signal/noise ratio: ≥ 50 dB
AM(MW) Radio
Frequency range: 522-1620 KHz
Usable sensitivity(S/N=20dB): < 35 dBμ
Disc Player
System: Disc digital audio system
Frequency response: 20 Hz - 20 KHz
Signal/noise ratio: > 72 dB (dBA)
Total harmonic distortion: Less than 1% (1 KHz)
Channel separation: > 55 dB
NORTH
AFRICA
JAPAN
531- 1602KHz
153 - 252KHz
Depending on country, the change from a standard to another (DAB, or DAB+
or FM) shall be transparent to the user.
Digital (DAB) Radio
Frequency range: DAB Band III: 174.928MHz ~ 239.200MHz
DAB Band L:1452.960MHz ~ 1490.624MHz
Usable sensitivity (RF=-72 dBM): -95dBM
Frequency response: 20hz-20khz
Stereo separation: ≥50db
Signal/noise ratio:
≥60db
Item Min Max
Far off selectivity: 42dB 60dB
Adjacent channel rejection:
35dB 40dB
Note:
Specications and the design are subject to change without notice
due to improvements in technology.
VDO_CDD728UB-BU_EN.indd 12 29/04/15 12:16

13
© Continental Trading GmbH
FCC
nFCC
FCC STATEMENT
1. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference.
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
2. Changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20 cm
between the radiator & your body.
VDO_CDD728UB-BU_EN.indd 13 29/04/15 12:16

Continental Trading GmbH
Soderner Str. 9
65824 Schwalbach
Germany
Support & Download www.vdo.com
© 03.2015 Continental Trading GmbH
VDO_CDD728UB-BU_EN.indd 14 29/04/15 12:16

Continental Trading GmbH
Soderner Str. 9
65824 Schwalbach
Germany
Support & Download www.vdo.com
© 03.2015 Continental Trading GmbH
VDO_CDD728UB-BU_DE.indd 14 29/04/15 12:16

13
© Continental Trading GmbH
FCC
nFCC
FCC-RICHTLINIEN
1. Dieses Gerät erfüllt die Bedingungen von
Abschnitt 15 der FCC-Bestimmungen (FCC =
Federal Communication Commission:
amerikanische Zulassungsbehörde im
Fernmeldewesen).
Der Betrieb erfolgt unter den folgenden beiden
Bedingungen:
(1) Dieses Gerät darf keinerlei gefährliche
Störungen verursachen.
(2) Dieses Gerät muss jegliche Art von Störung
akzeptieren, einschließlich solcher, die
unerwünschte Betriebsfolgen haben können.
2. Bei Änderungen oder Modikationen am
Gerät, die nicht ausdrücklich von der für die
Konformität verantwortlichen Partei genehmigt
wurden, verliert der Benutzer die Berechtigung
zum Betrieb des Gerätes.
BITTE BEACHTEN: Dieses Gerät wurde getestet
und entspricht den Bestimmungen für ein digitales
Gerät der Klasse B gemäß Abschnitt 15 der
FCC-Bestimmungen. Diese Grenzwerte bieten
angemessenen Schutz vor schädlichen Störungen
beim Betrieb des Geräts in Wohngebieten.
Dieses Gerät erzeugt und verwendet
Hochfrequenzenergie und strahlt sie aus.
Wenn es nicht gemäß der Anleitung installiert
und verwendet wird, kann es Funkstörungen
verursachen. Es wird jedoch keinerlei Garantie
dafür übernommen, dass die Störungen bei einer
bestimmten Installation nicht auftreten. Sollte
dieses Gerät den Radio- und Fernsehempfang
stören, was sich durch Ein- und Ausschalten
des Geräts nachprüfen lässt, müssen Sie die
Störungen durch eine oder mehrere der folgenden
Maßnahmen beheben:
Empfangsantenne verlegen oder anders
ausrichten.
Abstand zwischen dem Gerät und dem
Empfänger vergrößern.
Gerät an eine Steckdose eines
Schaltkreises anschließen, der nicht mit dem
Empfangsgerät verbunden ist.
Händler oder erfahrenen Rundfunk-/
Fernsehtechniker zu Rate ziehen.
FCC-Erklärung zur Strahlenbelastung.
Dieses Gerät entspricht den von der
FCC festgelegten Grenzwerten für die
Strahlenbelastung in einer nicht kontrollierten
Umgebung.
Bei der Installation und Verwendung dieses
Geräts sollte ein Abstand von mindestens 20 cm
zwischen der Strahlungsquelle und Ihrem Körper
eingehalten werden.
VDO_CDD728UB-BU_DE.indd 13 29/04/15 12:16

12
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
Technische Daten
nTechnische Daten
Allgemein
Stromversorgung: 24 V DC Negative Erdung
Maximale Ausgangsleistung: 15 W x 4 Kanäle (4 )
Geeignete Lautsprecherimpedanz: 4
ESP: 10 s (CD-DA)/40 s (MP3)
Abmessungen (B x T x H): 178 x 161 x 50 mm
Gewicht: 1,33 kg
Bitte beachten:
Bei MP3 mit anderen Bitraten ändern sich die ESP-Zeiten;
40 Sekunden gelten nur für MP3-Dateien mit 128 kbps Bitrate.
FM (UKW) Stereoradio
Frequenzbereich: 87,5-108,0 MHz
Eingangsempndlichkeit: < 14 dBμ
Frequenzgang: 50 Hz-10 kHz
Stereo-Kanaltrennung: ≥ 22 dB (1 kHz)
Spiegelfrequenzverhältnis: ≥ 40 dB
Zwischenfrequenz: ≥ 60 dB
Signal-/Rauschverhältnis: ≥ 50 dB
AM (MW) Radio
Frequenzbereich: 522-1620 kHz
Eingangsempndlichkeit (S/N=20 dB): < 35 dBμ
Disc-Player
System: Disc Digital-Audiosystem
Frequenzgang: 20 Hz - 20 kHz
Signal-/Rauschverhältnis: > 72 dB (dBA)
Klirrfaktor: Unter 1 % (1 kHz)
Kanaltrennung: > 55 dB
NORTH
AFRICA
JAPAN
531- 1602KHz
153 - 252KHz
Der länderspezische Wechsel zwischen den einzelnen
Übertragungsstandards (DAB, DAB+ oder FM) soll für den Benutzer
transparent sein.
Digital (DAB) Radio
Frequency range: DAB Band III: 174.928MHz ~ 239.200MHz
DAB Band L:1452.960MHz ~ 1490.624MHz
Usable sensitivity (RF=-72 dBM): -95dBM
Frequency response: 20hz-20khz
Stereo separation: ≥50db
Signal/noise ratio:
≥60db
Item Min Max
Far off selectivity: 42dB 60dB
Adjacent channel rejection:
35dB 40dB
Bitte beachten:
Änderungen von technischen Daten und Design aufgrund technischer
Weiterentwicklungen vorbehalten.
VDO_CDD728UB-BU_DE.indd 12 29/04/15 12:16

11
© Continental Trading GmbH
Problembehandlung
nProblembehandlung
Wenn Sie Anzeichen für Fehlfunktionen vermuten,
das Gerät sofort ausschalten. Das Gerät nicht
verwenden, wenn kein normaler Betrieb möglich
ist, z. B. wenn keine Klangwiedergabe erfolgt oder
sich Rauch oder unangenehmer Geruch bilden;
dies kann zu Brand oder Stromschlag führen. Die
Verwendung des Gerätes sofort einstellen und
Kontakt mit dem Händler aufnehmen. Keinesfalls
versuchen, das Gerät selbst zu reparieren, dies ist
gefährlich.
Bitte beachten: Bei eingelegten Discs oder Karten, die nicht der Standardgröße entsprechen, die Taste für 5 Sekunden gedrückt halten, dies
erzwingt das Auswerfen.
Problem Mögliche Ursache Lösung
Allgemein
Keine Stromversorgung oder keine
Klangwiedergabe
Zündungsstromkreis ist nicht aktiv Den Zündschlüssel auf Position „Zündung ein„ (ACC) drehen
Die Sicherung ist durchgebrannt Die Sicherung ersetzen
Zu niedrige Lautstärke Lautstärkeregelung oder Stummschaltung ein/aus überprüfen
Wenn die angegebenen Lösungen nicht helfen Die RESET-Taste drücken
Disc
Disc ist eingelegt, es erfolgt aber keine
Klangwiedergabe
Disc ist verkehrt herum eingelegt Die Disc richtig herum einlegen (Beschriftungsseite oben)
Die Disc ist verschmutzt oder beschädigt Die Disc reinigen oder austauschen
Disc springt bei der Wiedergabe,
schlechte Tonqualität
Die Disc ist verschmutzt oder bescwhädigt Die CD reinigen oder austauschen
Radio
Starke Nebengeräusche beim Empfang Sender zu weit entfernt oder Signal zu schwach Anderen Sender oder stärkeres Signal wählen
Voreingestellter Sender ist verloren
gegangen
Batterie-Pluskabel ist nicht richtig angeschlossen Batteriepluskabel an Dauerplus anschließen.
Fehlermeldungsanzeigen
CD ERR
Disc ist verkehrt herum eingelegt Die Disc richtig herum einlegen (Beschriftungsseite oben)
Disc-Format wird nicht unterstützt oder Dateidaten
sind nicht korrekt
Die Disc überprüfen
Disc ist fehlerhaft Die -Taste mehr als 2 Sekunden gedrückt halten, um die Disc
auszuwerfen. Falls die Disc sich durch Drücken der Taste nicht
auswerfen lässt, den RESET-Schalter drücken und die Taste 2
Sekunden gedrückt halten, um die Disc auszuwerfen. Wenn sie immer noch
nicht ausgeworfen wird, nehmen Sie bitte Kontakt mit Ihrem Händler auf.
VDO_CDD728UB-BU_DE.indd 11 29/04/15 12:16

10
CDD728UB-BU CD RADIO / USB MP3 / WMA / DAB / DAB+ / DMB / Bluetooth®24V
ANT REMOTE/Blue and White
ILLUMINATION/Pink
Battery/Yellow
Ground/Black Rear Left-/Green and Black
Rear Left+/Green
Front Left-/White and Black
Front Left+/White
Rear Right-/Purple and Black
Rear Right+/Purple
Front Right-/Gray and Black
Front Right+/Gray
ACC-IN/Red
TeleMute/Brown and Black
A
B
7
2 4 6 8
13 5 7
24 6 8
135
White
Red
(SMB connector)
DAB connector
SWRC
Elektrische Verbindungen
nElektrische Verbindungen
Verkabelungsdiagramm
VDO_CDD728UB-BU_DE.indd 10 29/04/15 12:16

9
© Continental Trading GmbH
Bluetooth-Betrieb
nBluetooth-Betrieb
4. Die zu durchsuchenden Telefonnummern und
Namen der Kontakte werden angezeigt. Wird
der gewünschte Kontaktname angezeigt,
den [BAND / ]-Knopf drücken, um den
entsprechenden Kontakt unter seiner
Mobiltelefonnummer anzurufen.
* Die [MENU / ]-Taste drücken, um den Anruf
zu beenden.
Bitte beachten:
Bestimmte Mobiltelefone
unterstützen die Möglichkeit der
Telefonbuchdatenübertragung
möglicherweise nicht.
• Umschaltung
Sie können zwischen Freisprecheinrichtung und
Mobiltelefon umschalten.Die Taste [BAND / ]
während des Gesprächs drücken.
• Annehmen eines Anrufs
Die Taste [BAND / ]drücken, um einen
eingehenden Anruf entgegenzunehmen.
* Die [MENU / ]-Taste drücken, um einen
eingehenden Anruf abzuweisen.
Audio-Streaming-Betrieb
Was ist Audio-Streaming?
Audio-Streaming ist eine Technik, mit der
Audiodaten so übertragen werden, dass sie als
stabiler und stetiger Fluss verarbeitet werden
können. Benutzer können Audiodaten kabellos
per Streaming von einem externen Audioplayer
zum Fahrzeug-Audiogerät übertragen und die
Titel über die Fahrzeuglautsprecher wiedergeben.
Weitere Informationen zum kabellosen Audio-
Streaming-Sender erhalten Sie von Ihrem
Händler.
VORSICHT
Bitte verwenden Sie das angeschlossene
Mobiltelefon nicht während des Audio-
Streamings, da dies zu Rauschen bzw.
abgehackten Tönen bei der Musikwiedergabe
führen kann.
Nach einer Telefonunterbrechung wird das
Audio-Streaming je nach Mobiltelefon wieder
aufgenommen oder nicht.
Bei Unterbrechung des Audio-Streamings
wechselt das System automatisch in den
Radiomodus.
Bitte beachten:
Bevor Sie fortfahren bitte das Kapitel
„Pairing” durchlesen.
Titel wiedergeben/anhalten
1. Die [1] -Taste drücken, um die
Audiowiedergabe anzuhalten.
2. Um die Wiedergabe wieder aufzunehmen,
erneut die [1] ] -Taste drücken.
Auswählen eines Titels
Nächster Titel
Die Taste drücken, um zum Anfang des
nächsten Titels zu wechseln.
Vorheriger Titel
Die Taste drücken, um zum Anfang des
vorherigen Titels zu wechseln.
Bitte beachten:
Die Wiedergabereihenfolge hängt vom
Bluetooth -Audioplayer ab. Wenn die
Taste gedrückt wird, wechseln einige
A2DP-Geräte je nach Wiedergabedauer
zum Anfang des aktuellen Titels.
Musik-Streaming: Während der
Wiedergabe werden „A2DP und HFP” im
Display angezeigt. Wird die Verbindung
mit dem A2DP-Gerät getrennt, erscheint
„DISCONN” im Display. Bei einigen
Bluetooth -Audioplayern sind die
Wiedergabe-/Pause-Funktionen nicht
mit diesem Gerät synchronisiert. Bitte
vergewissern Sie sich, dass der Player
und das Steuergerät im BT MUSIC-Modus
im gleichen Wiedergabe-/Pause-Zustand
sind.
VDO_CDD728UB-BU_DE.indd 9 29/04/15 12:15
