VEKOOTO T8 User manual
VEKOOTO@outlook.com
1
Product use instructions
installation manual
T8
4 Channels Camera System with MP5
Thank You for Buying VEKOOTO Product.
Read This User Manual Before Installing and Using It.
Pls keep this instruction or write down our email VEKOOTO@Outlook.com
So you can find us once you have any question.
2
Contents
A. Product Introduction
B. Before Use Matters Needing Attention
C. Product Specifications
D. Product List
E. Product Structure
1.Product structure drawing 2.Host keys and interface description 3.Notes 4.wiring instructions
F. Initial Setting of Recorder
1.Main interface of touch screen 2.Touch screen button description
G. Main Interface System Operation Instructions
1.Video interface 2.System settings 3.File browsing 4.Play interface 5.Reverse pattern
H. Exception Problem Resolution
Disclaimer
The product is mainly for vehicle drivers provide vehicle surrounding road
show renderings, to assist drivers to drive better security, but because of the
complexity of the road and the driver of different driving habits, the company does
not undertake vehicle equipped with the product under any circumstances at the
time of the traffic accident related joint and several liability, Drivers please drive
carefully and obey the traffic safety regulations!
3
A、Product Introduction
Dear users, thank you for choosing our company to serve you. The more familiar you are
with your video monitoring, the easier it will be for you to use it. Therefore, please read this
manual carefully before using it.
This is a product that keeps you away from traffic accidents. It has many functions in one.
Four wide-angle cameras installed inside/outside the car body form a 360-degree surveillance
video. Directly and clearly displayed on the four-way split screen of the all-in-one machine. It
can not only directly see the obstacles and pedestrians in the blind area of the vehicle, but also
efficiently reduce the occurrence of traffic accidents such as collision, scraping and so on.
Moreover, the circular video is saved in the memory card of the all-in-one computer, which is
convenient for video forensics.
This product has MP5 multimedia function, support local music, video playback, support
Bluetooth connection, FM radio transmission.
This manual details the installation, operation, product parameters and matters needing
attention of the product; Before using the product, please carefully review this manual and
properly keep the product, so that it can better meet your needs and serve you for a long time.
B、Before Use Matters Needing Attention
1. Drivers are forbidden to operate this product while driving, so as not to distract their
attention and affect driving safety;
2, replace the accessories or refit the power line, please find a professional operation and
installation;
3. Do not disassemble and decompose the product privately to avoid affecting the
warranty scope;
4. As our company will continue to research and develop products and innovate
technologies, we may make some changes or upgrades to the software or hardware, which
may result in inconsistency with the instructions. We will not issue any change notice. The
Company reserves the right to change the technology directly without prior notice.
4
C、Product Specifications
Items
Function Brief
Performance Evaluation
System
Manipulation language
English/简体/繁体
Interface
Graphical menu operation
Mode of operation
Touch mode
Video input
Video input
4 channels AHD video input
Video mode
Default boot recording, no seconds lost
Video format
2K H.264 video, 4 channels of video are saved separately
Video display
Real-time display
10.36 inch IPS Screen，1600*720
Video display
10 multi-view display modes
Local playback
Local playback, check at any time
screen protector
Can be set to 1 minute/5 minutes/off
Local entertainment
Music
Support to play local music on U disk, multiple loop playback
methods
video
Supports playback of U disk local video, supports full-screen
playback
Trigger display
Touch screen display
Automatically switch to the corresponding camera view
Multimedia
Bluetooth
Support Bluetooth connection to mobile phones, play mobile
phone music and other functions
FM
Support FM transmission, connect to the car radio to play
music
Monitor
Parking monitoring
Optional 1 hour/3 hours/5 hours surveillance video
The video store
TF card
CLASS10 U1, minimum 32GB, maximum support 256GB
Audio part
microphone
Support microphone recording, the menu can be set to close
voice control
Support voice control, the menu can be set to close
Power part
Power input
Support 9V~36V wide voltage, with car-level surge, overload,
Overvoltage, undervoltage, short circuit and other power
supply protection circuits, suitable for various
The power environment of the vehicle.
Overall power
consumption
Engine detection
ACC detection line
4 CH recording
Less than 10W (screen display, 4-channel camera recording)
Others
Work Temperature
-20~65 ℃
Cooling method
Passive cooling
Reversing line
Adjustable
Video duration
Video recording duration can be set
Channel trigger delay
Turn signal delay can be set
Screen mirroring
The four-channel picture supports mirror display, and the
menu can be set
License plate setting
Support
5

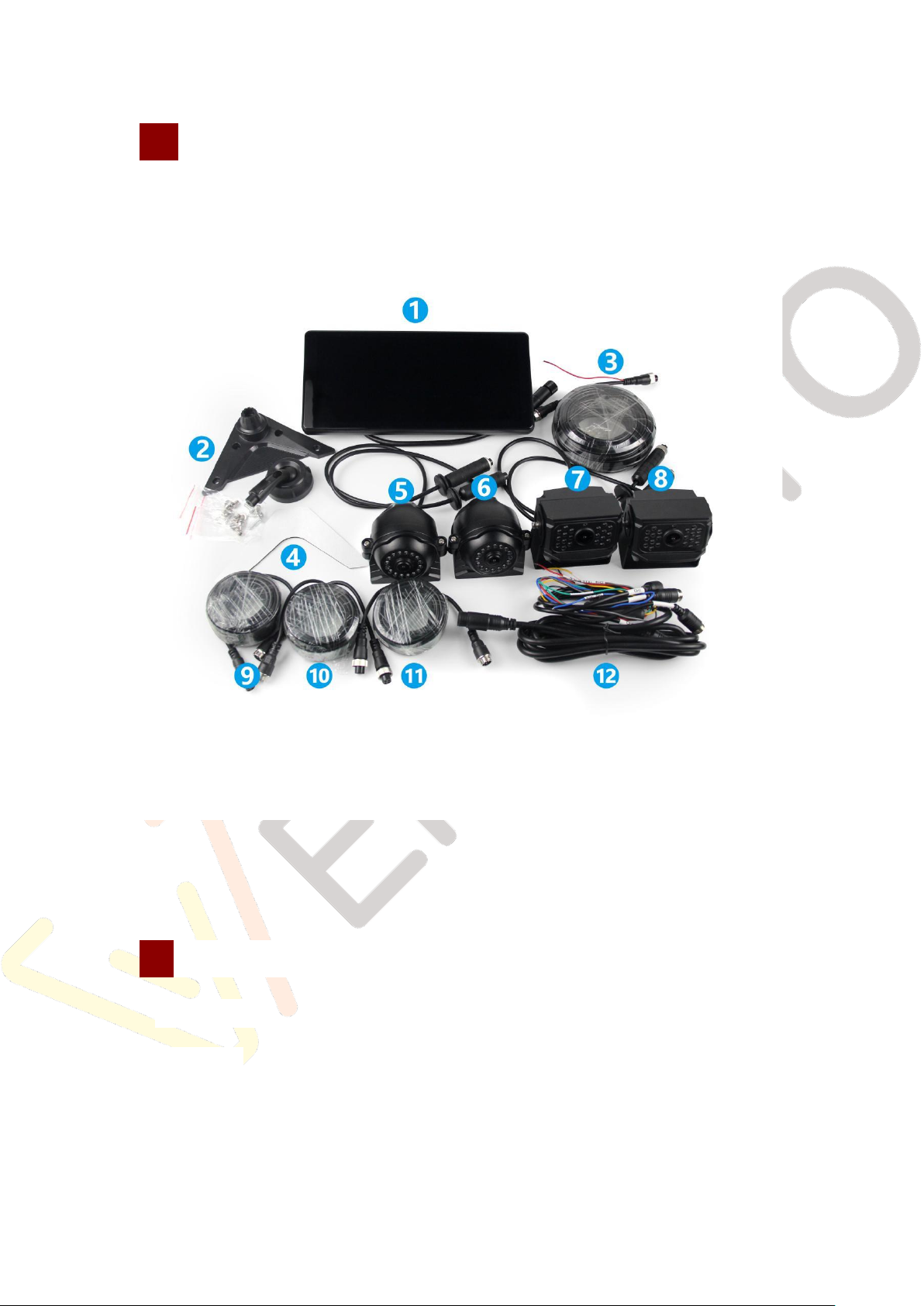

D、Product List
①10.36 Inch Monitor ②Bracket & Screws ③15m Cable ④Sticker ⑤Side
Camera ⑥Side Camera ⑦Front Camera ⑧Rear Camera ⑨5m Cable ⑩
5m Cable ⑪5m Cable ⑫Power Harness ⑬User Manual
E、Product Structure
1.Product Structure
※Product size：271x129x35mm ※Package size：380x270x120mm
6
2.Operating instructions for host keys and interfaces
NO
Name
operating instructions
1
TF Card Reader
TF memory card slot, please follow the correct direction
to install.
2
USB
U disk slot, after inserted can play its U disk video and
music.
3
Display
HD IPS display with touch function.
4
Power Button
Power ON / OFF
3. Precautions:
① Insert the memory card: Please insert the memory card in the correct direction as indicated by the memory
card gap on the device. Press the memory card until it is inserted in place with a click.
Because the recorder's video storage runs at a high speed on the card, note that the memory card must be a
high-speed card (CLASS10 U1 or above).
Note: Please format and match the new card with the machine for the first time.
② Take out the memory card: press the memory card to pop up the slot.
Note: Do not remove or insert the memory card when the device is turned on, in order to avoid damage to the
memory card or loss of files.
③ Recorder installation:
Please use the original factory standard power cord to take power from the auto power safe box for the
machine to work;
Note: the installation needs professional construction personnel to install the operation, non-professionals do
7
not refit without authorization; Otherwise, you will bear the consequences!
④ Recorder installation:
The quality of TF card has a great impact on the stability of video recording. In order to record video safely,
please use a SD card from a major brand such as SanDisk, Kingston, Toshiba, Samsung. Speed certification must
be at least U3
4. Wiring instructions:
Power cord: ACC, B+, GND, respectively connected to the corresponding fuse box interface;
（The red and yellow lines must be connected together to light the cigarette.）
Trigger line: AHD1, AHD2, AHD3 and AHD4 are respectively connected to the corresponding 9~ 36V trigger
Signal source, such as reverse, turn signal, and the corresponding camera wiring number,
Lens wiring: connect the camera according to the serial number on the line;
8
F、Initial setting of recorder
1、Main interface of touch screen：
Four-way monitoring, setting,and video playback (as shown in the figure below)
7
In standby state, tap the bottom of the four-way screen to display the function menu bar, which is :
1. In turn. Video recording 2. Brightness adjustment 3. Volume adjustment 4. Voice command
5.Recording 6. Multiple split screen switching 7. Music playback/pause.
2. Touch screen button description:
9
Tap the“video”button：Local (USB) entertainment video playback
•Tap the“Bluetooth”button：Bluetooth function connection Settings
Tap the“video playback”button：View the four-way surveillance
storage video
10

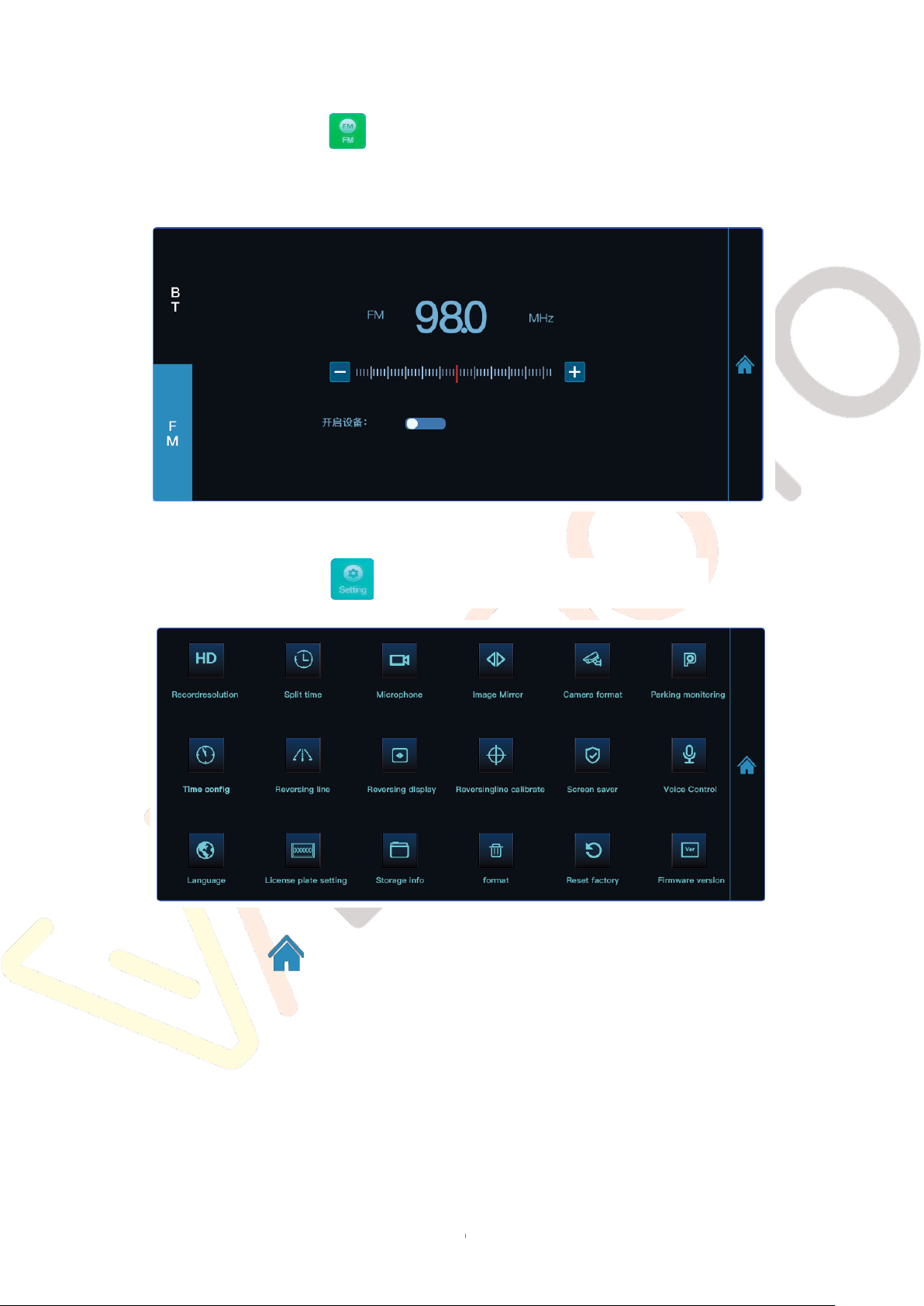

Tap the“FM”button：Enter FM emission regulation(Note: No FM
function now, we will update FM and GPS function in it in the near future)
Tap“Setting”button：Display system setting interface
Tap the button：Back to the main screen
11
G、Main Interface System Operation Instructions
1. Video setting
Tap the arrow recording button to Start/Stop recording;
When there is a memory card inserted, there will be a memory card icon; The small red dots
indicate that the video is being recorded.
2.Switch to split screen mode
Tap the split screen button of the arrow in the figure to switch different split
screen modes;
Quickly switch split screen mode, all modes are described as follows;

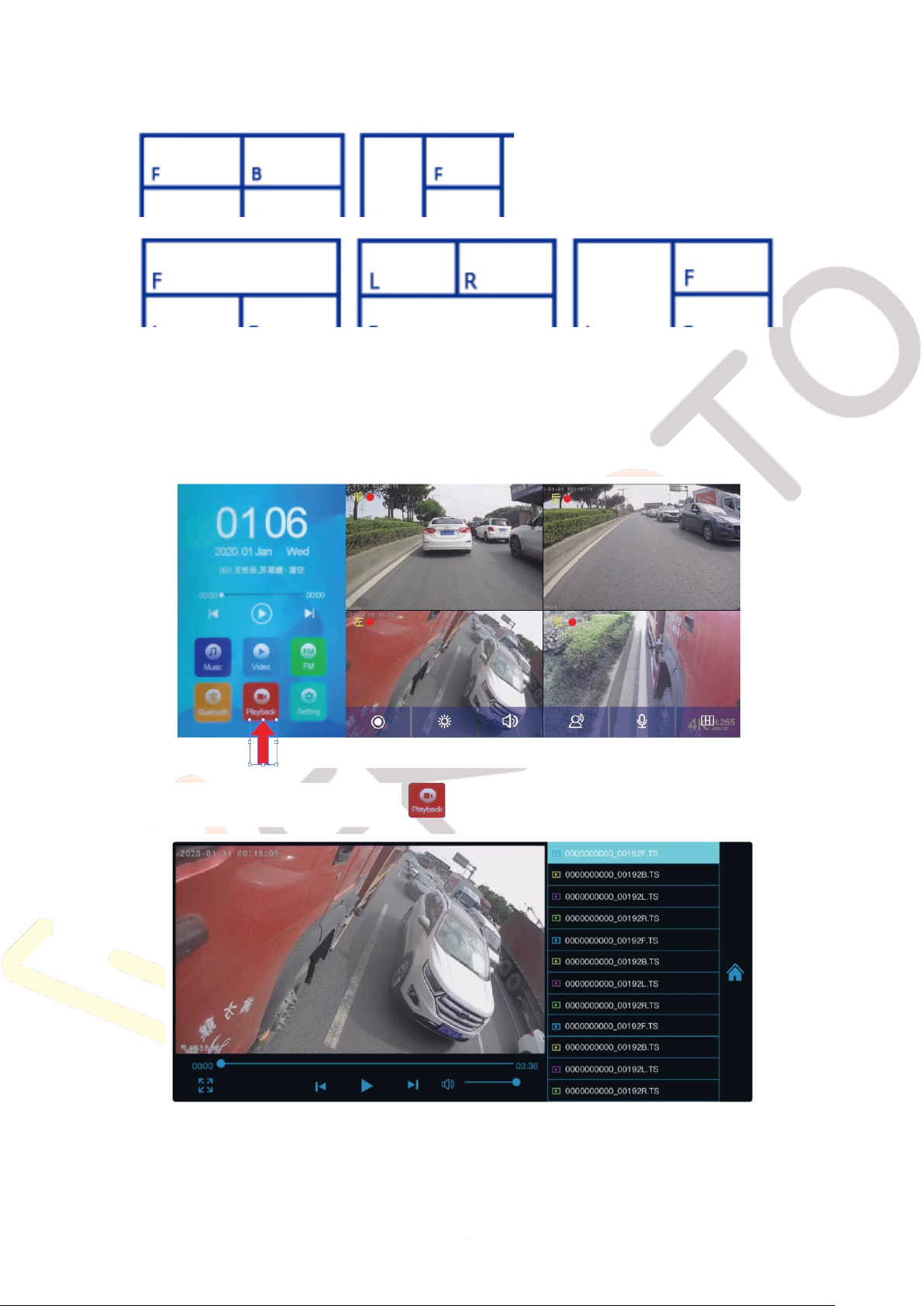

Dichotomy model：
Tripartite model：
12
Quadripartite model：
3. File browsing/playing interface:
Tap the arrow in the diagram“playback” button，View four-way surveillance video playback:
13
4. Reversing mode
When the reversing signal line is triggered, it will automatically display the rear view camera
view and the reversing line at the same time.
When the signal disappears, it switches back to the multi-camera display mode.
Reversing rod line adjustment:
Find it in the System Settings screen ico, Tap into the adjustable reversing wire.
Direct click and hold the reversing wire You can adjust the size and "save the
calibration" after completion.
14

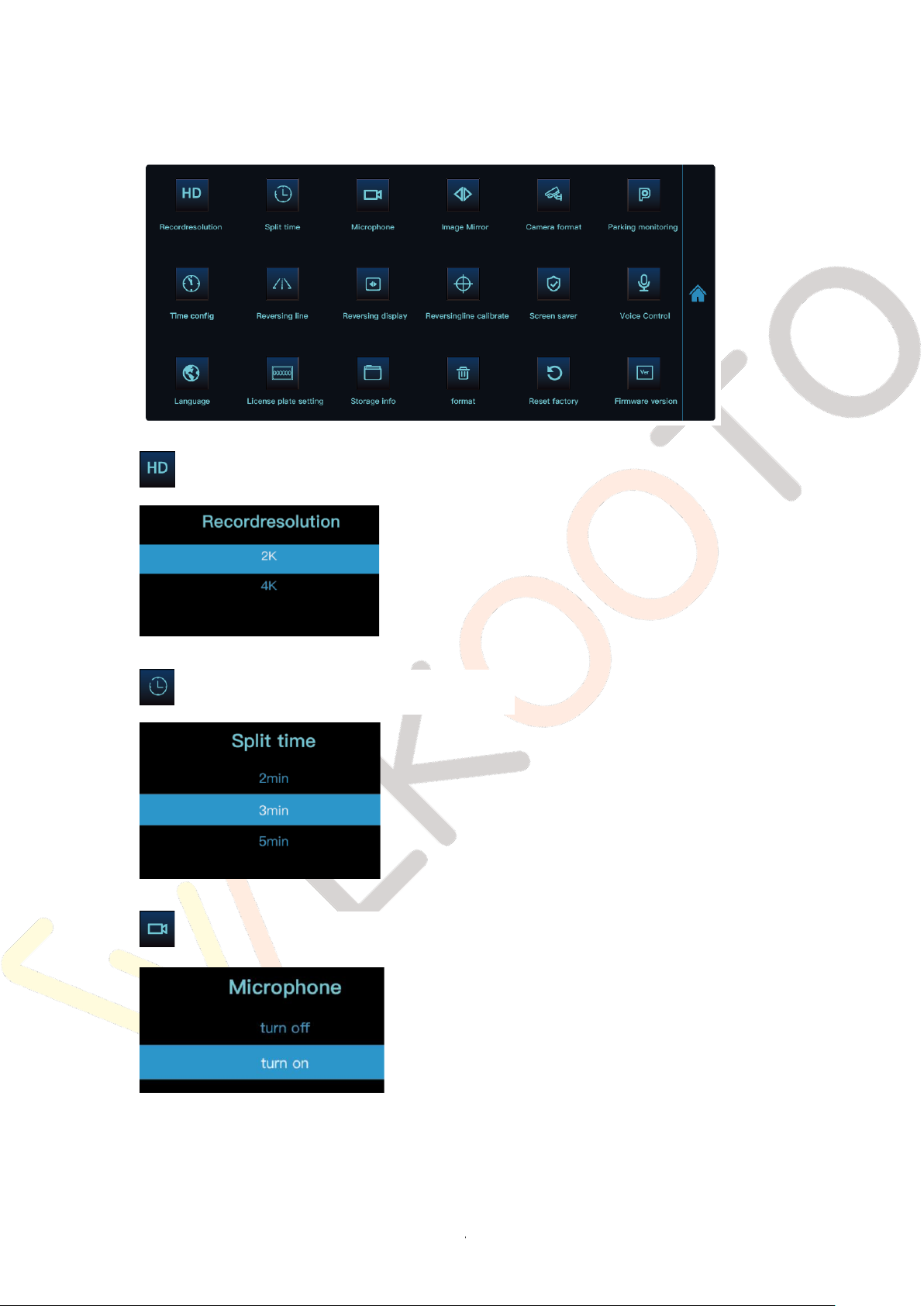

SystemSettings
Recordresolution：Set the resolution of the video;
Split time：Set the length of each video file;
Microphone：Sets whether to record sound;
15
Image Mirror：Turn ON/OFF the image mirror function of the front and back
viewing lens;
Camera Format：720P NTSC,720P PAL,1080P PAL(Default1080P PAL)
Parking Monitoring：Sets how long to delay shutdown without ACC;
Note: The function cannot be used when the car battery is completely disconnected.
Time Config：Set the date and time of the machine;
16
Reversing Line：Sets whether the reversing wire is displayed;
Reversing Display ：When setting reversing, multi-screen/single screen is
displayed, usually single screen is selected;
Reversingline Calibrate：The size of the reversing line can be manually edited.
After editing, press the "OK" button to save;
Screen Saver：Set the time when the screen will automatically turn off when there
is no operation;
17
Voice Control：Voice Command ON/OFF;（Without this Function）
Language：
License plate setting：Sets the license plate number displayed when recording;
Storage info：View the memory card's available capacity and total capacity;
Format：Format SD-CARD ;
Reset factory：Restore factory system Settings;
Firmware version：System Software Version;
H、Exception problem resolution
Under normal operation, if the product has abnormal problems, please refer to the method to solve
1. Unable to boot：
Check whether the line is installed correctly;Or take out the memory card and reboot.
2. The resulting film is not clear:
Please check the lens for dirt or finger marks. Please clean the lens surface before shooting and keep the lens
clean and tidy.
3. The results are sometimes mixed:
Camera-shooting effect and the light environment has a great relationship, such as the strength of the
18
backlight smooth light will cause the video effect is different.
4. Automatically stop the camera or do not cycle the camera:
Due to the huge data of HD video, the memory card may not be able to read and write fast enough. Please use
a high-speed TF card, such as the high-speed card of C10.
Warm Prompt：
1. Dash-recorder is an instrument for recording video and sound information of vehicles on the road. In case of
accidents, it is only used for auxiliary reference to avoid misunderstanding by users.
2. GY KWW：
The machine must be in normal working condition to record the audio and video recorded by the car recorder
for reference only. Our company shall not be jointly and severally liable for any loss caused by the loss of bad file
data under abnormal conditions.
3. The following circumstances, no warranty
①Human damage to product quality;
②Serious failure caused by failure to follow operation instructions;
③Failure caused by unauthorized dismantling of the original parts;
④Irresistible damage, such as voltage instability, water erosion, knock damage, etc.
Table of contents
Other VEKOOTO Digital Camera manuals
