EPD61 SERIES
HB0120
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 9 AND 10.
READ AND SAVE THESE INSTRUCTIONS
Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711
Venmar Ventilation ULC; Drummondville, Québec www.broan.ca 877-896-1119
REGISTER YOUR PRODUCT ONLINE AT: www.broan.com/register
SV20571 rev. 06
INSTALLATION INSTRUCTIONS
SUITABLE FOR USE IN DAMP LOCATIONS WHEN INSTALLED IN A
GFCI PROTECTED BRANCH-CIRCUIT.
INTENDED FOR OUTDOOR COVERED PATIO OR LANAI AREA.
! !
2
TO REDUCETHE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact
the manufacturer at the address or telephone
number listed in the warranty.
2. Before servicing or cleaning unit, switch
power off at service panel and lock service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be
done by qualified personnel in accordance with
all applicable codes and standards, including
fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards
such as those published by the National
Fire Protection Association (NFPA) and the
American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and
the local code authorities.
5. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any additional
solid-state speed control device.
8. To reduce the risk of fire, use only metal
ductwork.
9. This unit must be grounded and protected by a
GFCI.
10. Suitable for use in damp locations only when
installed in a GFCI PROTECTED branch-circuit.
11. This unit is not designed to be used with a
charcoal grill.
12. When applicable local regulations comprise
more restrictive installation and/or certification
requirements, the aforementioned requirements
prevail on those of this document and the installer
agrees to conform to these at his own expense.
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Always turn hood ON when cooking at high heat
or when flambeing food (i.e.: Crêpes Suzette,
Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan, filters or in
exhaust ducts.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
2. To avoid motor bearing damage and noisy and/
or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
3. Your hood motor has a thermal overload
which will automatically shut off the motor if
it becomes overheated. The motor will restart
when it cools down. If the motor continues to
shut off and restart, have the hood serviced.
4. For best capture of cooking impurities, the
bottom of the hood must be located at a minimum
distance of 36” above cooking surface.
5. Two installers are recommended because of
the large size and weight of this hood.
6. To reduce the risk of fire and to properly
exhaust air, be sure to duct air outside — Do
not exhaust air into spaces within walls or
ceiling or into attics, crawl space or garage.
7. This product is equipped with a thermostat
which may start blower automatically. To reduce
the risk of injury and to prevent power from
being switched on accidentally, switch power off
at service panel and lock or tag service panel.
8. Please read specification label on product for
further information and requirements.
WARNING
CAUTION
TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE,OBSERVETHE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting
lid, cookie sheet or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE
FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may
be burned.
3. DO NOT USEWATER, including wet dishcloths
or towels — This could cause a violent steam
explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you
know how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by
NFPA.
WARNING
!!
3

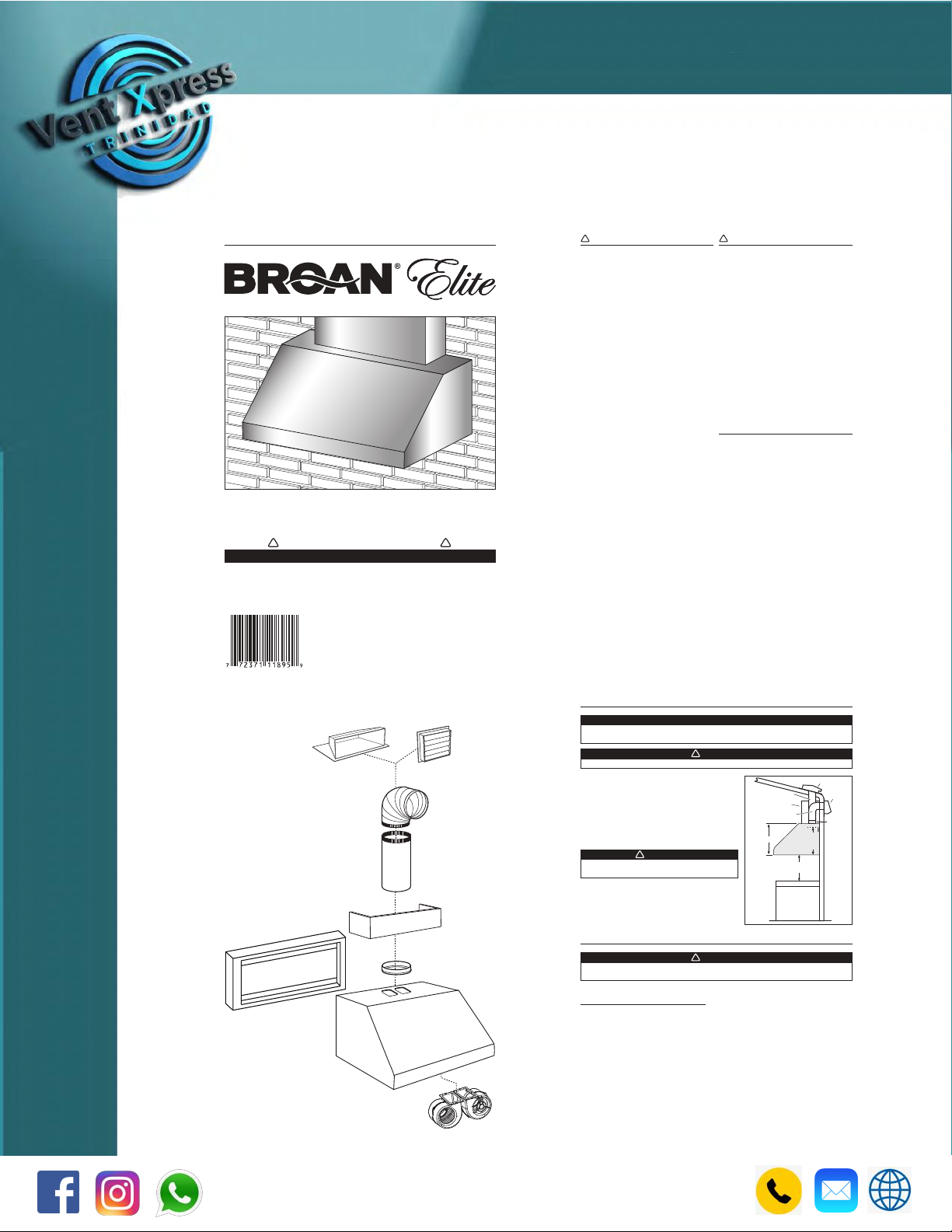

- EPD61 SERIES RANGE HOOD SYSTEM -
MODEL 437
(HIGH CAPACITY ROOF CAP)
HL0186
MODEL 441
(10’’ ROUND WALL CAP)
MODEL 418
(10” ROUND
ADJUSTABLE ELBOW,
OPTIONAL)
OPTIONAL
WALL EXTENSION
AWEPD SERIES
DUAL BLOWER
(INCLUDED)
EPD61 SERIES
RANGE HOOD
10” ROUND ADAPTER
(INCLUDED)
MODEL 410
(10” ROUND DUCT
— 2 FT. SECTIONS)
OPTIONAL
DECORATIVE FLUE
AEEPD SERIES
4
1. INSTALL DUCTWORK AND ELECTRICAL WIRING
Plan where and how the ductwork will be installed.
A straight, short duct run will allow the hood to perform most
efficiently.
Install proper-sized ductwork, elbows and roof or wall cap.
Connect metal ductwork to cap and work back towards the
hood location. Use 2” metal foil duct tape to seal duct joints.
Run 3-wire power supply cable to installation location.
For best capture of cooking impurities, the bottom of
the hood must be located at a minimum distance of 36”
above cooking surface.
18"
WALL CAP
36" MINIMUM ABOVE
COOKING SURFACE
16" TO
TOP OF WOOD
MOUNTING STRIP
OPTIONAL DECORATIVE
FLUE OR SOFFIT
HH0182A
ROOF CAP
10" ROUND DUCT
10" ROUND ELBOW
10" ROUND
ADAPTER
CAUTION
This range hood is intended for outdoor covered patio or lanai area.As with all electric
appliances, this unit must be protected from the effects of weather.
WARNING
!
This range hood is not designed for use with a charcoal grill.
WARNING
!
The power cable must be a GFCI protected
branch circuit.
2. PREPARE INSTALLATION
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or
damaged, contact the manufacturer.
Make sure that the following items are included:
- Range hood
- Wood strip (attached to back of hood)
- Installation manual
- Accessories including:
• Baffle filter with handles: 3 for 36” width model, 4 for 42” and 48” width models
and 5 for 60” width model
• 10” round adapter (taped inside the hood)
• Bag of parts: 3 waterproof wire connectors, 2 no. 8 x 5/8’’ screws, 6 no. 10 x 2’’ hex head screws,
4 no. 10 x 2” flat head screws, 2 wall anchors, 2 washers 3/16’’ ID x 3/4’’ OD
Included in parts bag, but not to be used (please discard): 2 wire clamps LP16-AP,
2 no. 8 x 3/8’’ zinc-plated screws, 8 no. 8 x 3/8’’ stainless steel screws,
4 stainless steel 10-32 locknuts, 4 washers 3/16’’ ID x 3/4’’ OD
WARNING
!
When performing installation, servicing or cleaning the unit, it is recommended to
wear safety glasses and gloves.
BROAN - EPD61 SERIES - RANGE HOODS
INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad
5
2. PREPARE INSTALLATION (CONT'D)
Parts sold separately:
- Shielded halogen bulbs (120 V, 50 W max., MR16 with GU10 base) (2 for 36” and 42” widths hood
and 3 for 48” and 60” widths hood)
- AEEPD Series Decorative Flue, to be installed over the hood (optional)
- AWEPD Series Wall Extension, 36’’, 42”, 48” and 60” widths (optional)
- Transitions, duct, elbows, dampers, wall and roof caps.
Refer to page 3 for a complete list of venting options and model numbers.
NOTE: During installation, protect countertop and/or cooktop.
3. INSTALL WOOD MOUNTING STRIP
1. Proper structural support is required to accommodate the weight of the hood. Construct the wall
framing using minimum 2” x 4” lumbers.
2. Mark the center location of the hood.
3. Measure and mark a level line on wall above cooktop location for the wood mounting strip (see
illustration on page 4). Install 2” x 4” blockings between wall studs where mounting strip will be
installed. Refer to illustration below.
4. Remove wood mounting strip from back of hood.
5. Position the wood mounting strip on the wall and secure to the wall studs and blockings using
4 no. 10 x 2’’ flat head screws (included in parts bag).
CAUTION
Due to the weight of this hood, ensure that the wood strip is attached to all of the
available studs and blocking; not into the wall alone.
HD0482A
Existing
Wall Studs
2" x 4"
Blocking
Back of Hood
Wood Mounting
Strip
14¼" 151⁄8"
16"
18"
6
4. REMOVE BAFFLE FILTERS, GREASE DRIP RAIL
AND ELECTRICAL COMPARTMENT COVER
A. Remove tape on filters.
Remove filters from hood and set aside.
NOTE: It is recommended to start with the center one(s).
B. Remove tape on grease drip rail (1). Lift out grease drip rail and set aside.
Remove electrical compartment cover (2).
5. REMOVE KNOCKOUT OPENING
Punch out the electrical knockout hole on the back of the
hood. Install the wire clamp (included in parts bag).
HR0073
HD1023
AB
1
2
6. INSTALL ADAPTER
Remove adapter from inside hood.
Using both no. 8 x 3/8” zinc-plated screws from parts bag,
assemble the adapter on the top of the hood.
Seal all joints with metal foil duct tape to eliminate air
leaks.
HJ0069
MOUNTING SCREWLOCATIONS
7
7. INSTALL WALL EXTENSION (OPTIONAL)
AWEPD Series
Wall extension must be installed before the hood (see instructions packed with wall extension).
8. INSTALL HOOD
Insert the house wiring in the hood through the wire clamp (previously installed in step 5) and tighten
the wire clamp to secure the wiring.
Rest the back cavity of the hood on
the wood mounting strip.
Attach 10” round duct to adapter.
Secure the hood to wood mounting
strip using 4 no. 10 x 2’’ hex head
screws (for 36’’ width hood) or
6 screws (for 42’,’ 48’’ and 60’’ width
hoods) at locations shown at right.
Drill two 3/16’’ diameter holes into
the wall for wall anchors through the
existing holes in the lower back of
the hood at locations shown at right.
Then, install both wall anchors with
both no. 8 x 5/8’’ screws and both
washers provided.
CAUTION
• Although not recommended, if blowers need to be removed, reinstall them using
10-32 locknuts included in parts bag (maximum torque of 20 lb.).
• Hold the hood until it is completely secured to the wood mounting strip.
HD0470
M
OUNTING
SCREW
LOCATIONS
W
ALL
ANCHOR
LOCATIONS
9. INSTALL DECORATIVE FLUE (OPTIONAL)
AEEPD Series
Refer to the instructions included with the optional decorative flue.
10. CONNECT WIRING
WATERPROOF WIRE CONNECTORS INSTRUCTIONS:
1. Strip wires 3/8’’.
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires together with ends even, but lead smaller stranded wires
slightly ahead of larger solid or stranded wire.
4. Twist connector onto wires pushing firmly until hand-tight. DO NOT over torque.
5. When inserting wires into connectors, some sealant may leak out. Wipe off excess sealant in and
around conductors. DO NOT REUSE.
WARNING
!
Risk of electric shock. Electrical wiring must be done by qualified personnel in
accordance with all applicable codes and standards. Before connecting wires,
switch power off at service panel and lock service disconnecting means to prevent
power to be switched on accidentally.
8
10. CONNECT WIRING (CONT'D)
Connect cable into electrical compartment
using provided waterproof wire connectors.
Connect BLACK to BLACK, WHITE to WHITE
and GREEN or bare wire under GREEN ground
screw.
Reinstall the wiring cover.
HE0138
11. REINSTALL GREASE DRIP RAIL AND BAFFLE FILTERS
CAUTION
Remove protective plastic film covering filters before installing them.
It is recommended to install side filters first and finish with center one(s).
Insert front end of the filter into the upper channel of the hood.
Raise the other end toward the inside of hood and insert in the grease drip rail of the hood.
HD0472
Reinstall grease drip rail. The illustration at right shows
how to reinsert the grease drip rail into the range hood.
1
HD0473
2
BROAN - EPD61 SERIES - RANGE HOODS
INSTALLATION GUIDE

#2 Chootoo Road, South Aranguez, San Juan, Trinidad
9
12. LIGHT BULBS REPLACEMENT
This range hood requires shielded halogen bulbs (120 V, 50 W, MR16 with GU10 base), not included
(2 for 36” and 42” width hood and 3 for 48” and 60” widths hoods).
1. To remove bulbs, gently push upwards and turn
counterclockwise to disengage bulb leads from
their grooves.
2. Install the new bulbs by placing the bulb leads
into their grooves in the socket.
3. Gently push upwards and turn clockwise until
secure.
NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb or use suction
cup tool available from Broan. Contact Broan Technical Support at 1-800-558-1711 to order
suction cup tool, part no. S99526707.
12 3
HO0089
WARNING
!
Do not touch lamps during or soon after operation. Burns may occur. In order to
prevent the risk of personal injury, only install shielded halogen lamps. Also,
never install a cool beam, a dichroic lamp, a lamp not suitable for use in recessed
luminaires or identified for use in enclosed fixtures.
13. CARE
Baffle Filters
The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your
cooking style generates greater grease like frying foods or wok cooking.
Remove baffle filters by pushing them towards the front of the hood and rotating filters downward.
Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them in the hood.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may
occur if using phosphate detergent or as a result of local water conditions—but this will not affect filter
performance. This discoloration is not covered by the warranty.
Grease Drip Rail
The grease drip rail should be cleaned frequently. Lift it out from the hood and use a warm detergent
solution. As for the baffle filters, wash more often if your cooking style generates greater grease like
frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it in the hood.
Hood cleaning
Stainless steel cleaning:
Do:
• Regularly wash with clean cloth or rag soaked
with warm water and mild soap or liquid dish
detergent.
• Always clean in the direction of original polish
lines.
• Always rinse well with clear water (2 or 3
times) after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
Don’t:
• Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the hood. During construction/
renovation, cover the hood to make sure no
dust sticks to stainless steel surface.
Avoid when choosing a detergent:
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are
highly explosive and should never be used close to a range.
10
14. OPERATION
BLOWER
A rotary 4-position knob (1) controls the blower (OFF - Low - Medium - High).
Turn the speed control knob clockwise to increase blower speed – counterclockwise to decrease speed.
COOKTOP LIGHTING (HALOGEN)
Use the on/off rocker switch (2) to turn the halogen lights ON or OFF.
HEAT SENTRY™
This hood is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will turn on the
blower if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to medium speed.
2) If blower is already ON speed will remain the same.
When the temperature level drops to normal, the blower will return to its original setting.
WARNING
!
The HEAT SENTRY can start the blower during a range top fire or other excessive
heat situations even if the hood is turned off. In this case, it is impossible to turn
the blower OFF using control panel switch. To stop the blower, do it from the main
electrical panel.
1)BLOWER SPEED CONTROL KNOB
2)HALOGEN LIGHT SWITCH
HC0059
12
11
15. WIRING DIAGRAM
16. WARRANTY
ONE YEAR LIMITED WARRANTY FOR BROAN ELITE PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Broan Elite products that
such products will be free from defects in materials or workmanship for a period of one year from the date
of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product
or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN
AND INCANDESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER
ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b)
any products or parts which have been subject to misuse, negligence, accident, improper maintenance or
repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation
instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty.
Some states or provinces do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL
BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE
SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to
state or province to another. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at one of the addresses or telephone
number stated below, (b) give the model number and part identification and (c) describe the nature of any
defect in the product or part. At the time of requesting warranty service, you must present evidence of the
original purchase date.
USA - Broan-NuTone LLC; 926 W. State Street, Hartford, Wisconsin 53027 www.broan.com 800-558-1711
Canada - Venmar Ventilation ULC; 550 Lemire Blvd., Drummondville, QC J2C 7W9 www.broan.ca 877-896-1119
LINE
NEUTRAL
GROUND
120 VAC
HE0137A
M
BLU
WHT
ORA
BLK
RED
GRY
BRN
M
BLU
WHT
ORA
BLK
RED
GRY
BRN
COLOR CODE
BLK BLACK
BLU BLUE
BRN BROWN
GRY GREY
ORA ORANGE
RED RED
WHT WHITE
YEL YELLOW
HEAT SENTRY
THERMOSTAT
RED RED
BLU
ORA
BLK
BLK
BLK
YEL
LAMP
SWITCH
MAIN SWITCH
MAIN SWITCH
OR
BLK BLK
BLK
WHT WHT
WHT
LAMP LAMP LAMP
WHT
WHT
WHT
WHT
YEL
YEL
YEL
A
B
1
2
3
4
BLU
ORA
BLK
BLU
BLU
WHT
WHT
BLK
BLK
ORA
ORA
OFF
12
17. SERVICE PARTS
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit
remains in good working condition,
you must use Broan-NuTone
genuine replacement parts only.
Broan-NuTone genuine replacement
parts are specially designed for each
unit and are manufactured to comply
with all the applicable certification
standards and maintain a high
standard of safety. Any third party
replacement part used may cause
serious damage and drastically
reduce the performance level of your
unit, which will result in premature
failing. Broan-NuTone recommends
to contact a certified service depot
for all replacement parts and repairs.
KEY
NO.PART NO.DESCRIPTION QTY. (RANGE HOOD WIDTH)
36” 42” 48” 60”
1 SV08541 10” ROUND ADAPTER 1111
2 SV16569 LIGHT SOCKET AND TRIM ASSEMBLY 2233
3 SV08582 BLOWER 2222
4 SV08337 FILTER SPRING (SET OF 6) 1111
5 SV60675 BAFFLE FILTER 11.84” X15.125” (SPRING AND HANDLE INCLUDED) 3245
SV60716 BAFFLE FILTER 8.84” X15.125” (SPRING AND HANDLE INCLUDED)2
6
SV60695 GREASE RAIL 36” 1
SV64678 GREASE RAIL 42” 1
SV60696 GREASE RAIL 48” 1
SV60697 GREASE RAIL 60” 1
7 SV02563 LIGHT ROCKER SWITCH 1111
8 SV08095 FAN KNOB 1111
9 SV03435 HEAT SENTRY™ THERMOSTAT 1111
10 SV21722 SPEED CONTROL 1111
11 SV08548 MAIN POWER SWITCH 1111
* SV06750 BROAN ELITE LOGO 1111
* SV20571 INSTALLATION GUIDE 1111
* SV04216
PARTS BAG: 3 WATERPROOF WIRE CONNECTORS, 2 NO. 8 X5/8” SCREWS,
6 NO. 10 X2” HEX. HEAD SCREWS, 4 NO. 10 X2” FLAT HEAD SCREWS,
2 WALL ANCHORS, 6 WASHERS 3/16” ID X3/4” OD, 4 STAINLESS STEEL 10-32
LOCKNUTS, 2 WIRE CLAMPS LP16-AP, 2 NO. 8 X3/8” ZINC-PLATED SCREWS,
8 NO. 8 X3/8” STAINLESS STEEL SCREWS
1111
* NOT SHOWN.
HL0187
B
C
D
E
F
G
H
I
J
L
K
BROAN - EPD61 SERIES - RANGE HOODS
INSTALLATION GUIDE
