This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
TT Silent-M unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should
be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the
territory of the country.
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND
TROUBLE-FREE OPERATION OF THE UNIT
CONTENTS
Safety requirements.......................................................................................................................................................................................................................... 3
Delivery set ............................................................................................................................................................................................................................................ 9
Operation guidelines ....................................................................................................................................................................................................................... 9
Brief description ................................................................................................................................................................................................................................. 9
Product sales ......................................................................................................................................................................................................................................... 9
Designation key ................................................................................................................................................................................................................................. 11
Installation and set-up..................................................................................................................................................................................................................... 12
Connection to power mains ....................................................................................................................................................................................................... 18
Electronics operation algorithm ............................................................................................................................................................................................... 23
Technical maintenance................................................................................................................................................................................................................... 25
Troubleshooting.................................................................................................................................................................................................................................. 26
Storage and transportation regulations............................................................................................................................................................................... 26
Manufacturer’s warranty................................................................................................................................................................................................................ 27

3
EN
All user’s manual requirements as well as the provisions of all the
applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and operating
the unit.
Disconnect the unit from the power supply prior to any connection,
servicing, maintenance, and repair operations.
Only qualied electricians with a work permit for electrical units
up to 1000 V are allowed for installation. The present user’s manual
should be carefully read before beginning works.
Check the unit for any visible damage of the impeller, the casing, and the
grille before starting installation. The casing internals must be free of any
foreign objects that can damage the impeller blades.
While mounting the unit, avoid compression of the casing! Deformation
of the casing may result in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
SAFETY REQUIREMENTS

4
EN
Transported air must not contain any dust or other solid impurities,
sticky substances, or fibrous materials.
Do not use the unit in a hazardous or explosive environment containing
spirits, gasoline, insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the
efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the
document’s preparation.
The Company reserves the right to modify the technical characteristics,
design, or configuration of its products at any time in order to
incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.

5
EN
This unit is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
unit.

6
EN
Connection to the mains must be made through a disconnecting
device, which is integrated into the fixed wiring system in accordance
with the wiring rules for design of electrical units, and has a contact
separation in all poles that allows for full disconnection under
overvoltage category III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified persons in order to avoid a safety
hazard.
CAUTION: In order to avoid a safety hazard due to inadvertent resetting
of the thermal cut-out, this unit must not be supplied through an
external switching device, such as a timer, or connected to a circuit that
is regularly switched on and off by the utility.

7
EN
Ensure that the unit is switched off from the supply mains before
removing the guard.
WARNING: If there are any unusual oscillating movements, immediately
stop using the unit and contact the manufacturer, its service agent or
suitably qualified persons.
The replacement of parts of the safety suspension system device shall
be performed by the manufacturer, its service agent or suitably qualified
persons.

8
EN
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
Fixing means for attachment to the ceiling such as hooks or other
devices shall be fixed with a sufficient strength to withstand 4 times the
weight of the appliance.
The mounting of the suspension system shall be performed by the
manufacturer, its service agent or suitably qualified persons.
The appliance is to be installed so that the blades are more than 2.3m
above the floor.
Precautions must be taken to avoid the back-flow of gases into the room
from the open flue of gas or other fuel-burning appliances.

9
EN
DELIVERY SET
Fan 1 pc.
Screws with dowels 4 pcs.
Plastic screwdriver (only for the models with a timer) 1 pc.
User’s manual 1 pc.
Packing box 1 pc.
OPERATION GUIDELINES
The fan is rated for connection to single-phase AC 220-240 V/50 Hz or 220 V/60 Hz power mains.
The unit is rated for continuous operation.
The arrow on the fan casing must match the air direction in the system.
The fan is rated as a class II electric appliance.
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The fan is rated for operation at the ambient air temperature from +1 °C up to +40 °C.
Power [V/Hz] Transported air temperature [°C]
220-240/50 -25...+60
220/60 -25...+40
BRIEF DESCRIPTION
The unit described herein is a mixed-flow duct fan for supply or exhaust ventilation of premises. The fan is designed for
connection to ø 100, 125, 150, 160, 200, 250 and 315 mm air ducts.
An external control unit can be connected to the fan.
The fan design is constantly being improved, thus some models may be slightly different from those described in this manual.
To comply with the ErP 2018 regulation, a local demand controller and speed controller must be used.

10
EN
Overall dimensions:
Ø D B H L M N
TT Silent-M 100 98 243 237 505 231 44
TT Silent-M 125 123 243 237 474 231 44
TT Silent-M 150 148 274 263 580 231 44
TT Silent-M 160 157 274 263 580 231 44
TT Silent-M 200 198 392 295 560 310 115
TT Silent-M 250 248 445 360 665 370 130
TT Silent-M 315 313 526 434 785 450 180
L L
øD H øD H
BM BM
NN

11
EN
DESIGNATION KEY
TT Silent M100 T220 V/60 Hz
Unit voltage:
_ — 220-240 V/50 (60) Hz (by default)
YYY V/ZZ Hz — mains parameters other than the default ones
Options:
T: timer
U: speed controller with an electronic thermostat and a temperature sensor integrated into
the air duct; power cord with a mains plug. Temperature-based operation logic
Un: speed controller with an electronic thermostat and external temperature sensor fixed
on 4 m cable; power cord with a mains plug. Temperature-based operation logic
U1: speed controller with an electronic thermostat and a temperature sensor integrated
into the air duct; power cord with a mains plug. Timer-based operation logic
U1n: speed controller with an electronic thermostat and external temperature sensor fixed
on 4 m cable; power cord with a mains plug. Timer-based operation logic
U2: speed controller with an electronic thermostat and a temperature sensor integrated
into the air duct; power cord with a mains plug. Temperature-based switching on/off
U2n: speed controller with an electronic thermostat and external temperature sensor fixed
on 4 m cable; power cord with a mains plug. Temperature-based switching on/off
P: smooth speed controller from 0 to 100 % and a power cord with a mains plug
R: power cord with a mains plug
V: speed switch
Outlet spigot diameter [mm]
Casing material:
M — metal
Casing design:
Silent – sound-insulated
Fan model
For a description of the fan options, see the «Electronics operation algorithm» section.

12
EN
INSTALLATION AND SET-UP
The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling.
While mounting the fan, provide extra protection against water ingress, such as:
• For the top mounting install an outer protecting hood above.
• For any mounting position connect an air duct on both sides of the fan.
3 x D
1 x D

13
EN
Cut off power supply and make sure electricity
has been turned off. Mark the holes for fixing the
fan and the power cable.
Lead the power cable to the ventilation hole, drill the
mounting holes and install the dowels.
Fix the fan with the screws. For any mounting position connect an air duct on both
sides of the fan.

14
EN

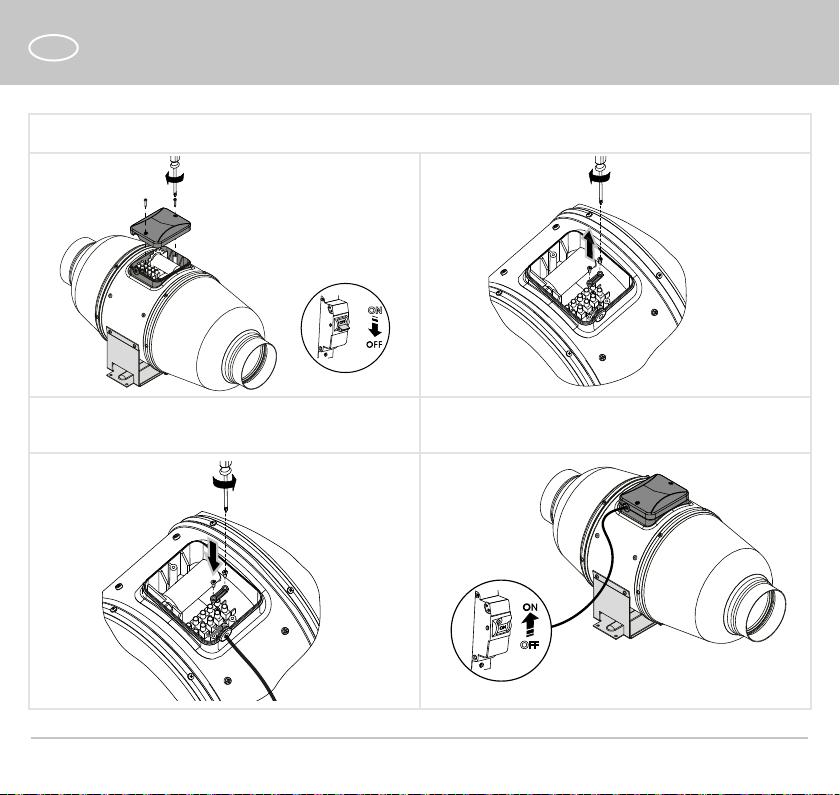

Cut off power supply and make sure electricity has been turned off. Remove the cover of the fan.
Connect the power cord wires to the terminal block and
assemble the fan in reverse order. Supply power to the fan.

15
EN
Mounting sequence for dierent fan models

16
EN

17
EN
TT Silent-M ... T TT Silent-M ... RV
-+
2 min 30 min
MIN
MAX
STOP
TT Silent-M ... U (U1, U2, Un, U1n, U2n) TT Silent-M ... P
Thermostat
control knob
Speed
control knob
Speed
control knob

18
EN
CONNECTION TO POWER MAINS
The fan is rated for connection to single-phase AC 220-240 V/50 (60) Hz power mains.
TERMINAL DESIGNATIONS ON WIRING DIAGRAMS
L1 — minimum speed terminal S — external speed controller
L2 — maximum speed terminal ST — external switch
QF — automatic circuit breaker SW — control mode switch
DO NOT USE A METAL SCREWDRIVER, KNIFE, ETC. FOR ADJUSTMENT
OPERATIONS NOT TO DAMAGE THE CIRCUIT BOARD
QF SS/ST
Automatic circuit breaker
designation in the wiring diagram
Automatic
circuit breaker
Designation of the external switch on
the wiring diagram
External switch

19
EN
TT Silent-M 100/125
N
L2
N
L
QF
~
X
Max
QF
N
L1
L2
S
N
L
~
X
Max/min
N
L1
N
L
QF
~
X
Min
L2
LL1
N
~
X

20
EN
TT Silent-M 150/160/200/250/315
N
L2
N
L
QF
~
X
Max
QF
N
L1
L2
S
N
L
X
~
Max/min
N
L1
N
L
X
QF
~
Min
L2
LL1
N
X
~
