INSTRUCTION MANUAL Seite 1
INSTRUCTION MANUAL
MODEL NO: VENTON SV-130 AC220-240V 50Hz-60Hz 50W
BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BEFORE FIRST USE
Read and follow all the instructions in this “Use And Care” manual even if you feel you are familiar with the products, and find a place to keep
it handy for future reference.
Your attention is drawn particularly to the sections concerning “IMPORTANT SAFEGUARDS”
IMPORTANT SAFEGUARDS
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.
When using the electrical appliance, the following basic safety precautions should always be
followed.
WARNING- to reduce the risk of fire, electric shock or injury to persons or property:
 Always operate the product from a power source of the same voltage, frequency and rating as
indicated on the product identification plate.
 Do not use this fan with any solid state speed control device to reduce the risk of electric
shock.
 The appliance is not intended for use by persons (including children) with reduced physical,
sensory, mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instructions concerning use of the appliance by a person responsible by
their safety.
 Children should be supervised to ensure that they do not play with the appliance.
 Do not leave the fan running unattended.
 Do not operate the product if it is dropped, damaged or showing signs of product malfunction.
Do not operate the product with a damaged plug or cord. Return the complete product to the
place of purchase for inspection, refund or replacement.
 If it is not working properly, contact a qualified electrician or service centre for examination and
repair, never try to dismantle it by yourself.
 Do not immerse or expose the product or flexible cord to rain, moisture or any other liquid.
 This product should not be used in the immediate vicinity of water, such as bathtubs,
washbowls, swimming pools etc. where the likelihood of immersion or splashing could occur.
 Never install the unit where it could be subject to:
 Heat sources such as radiators, heat registers, stoves or other products that produce heat
 Direct sunlight
 Mechanical vibration or shock
 Excessive dust
 Lack of ventilation, such as a cabinet or bookcase
 Uneven surface
 Switch off and unplug from outlet when the product is not in use, before assembling or
disassembling parts and before cleaning. Fully assemble the fan before switching on.
 Avoid contact with moving parts. Do not insert any body parts (e.g. finger) or objects through
the grill when the fan is operating.
 Do not cover the grille, or operate in close proximity to curtains, etc.
 This product is intended for normal domestic/household use only.
 Always disconnect the fan when moving it from one location to another.
 The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or
injuries.
 Be sure fan is on a stable surface when operating to avoid overturning.
 Do not immerse in water.
 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or similarly qualified person, in order to avoid a
hazard. I
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

www.venton.de
INSTRUCTION MANUAL Seite 2

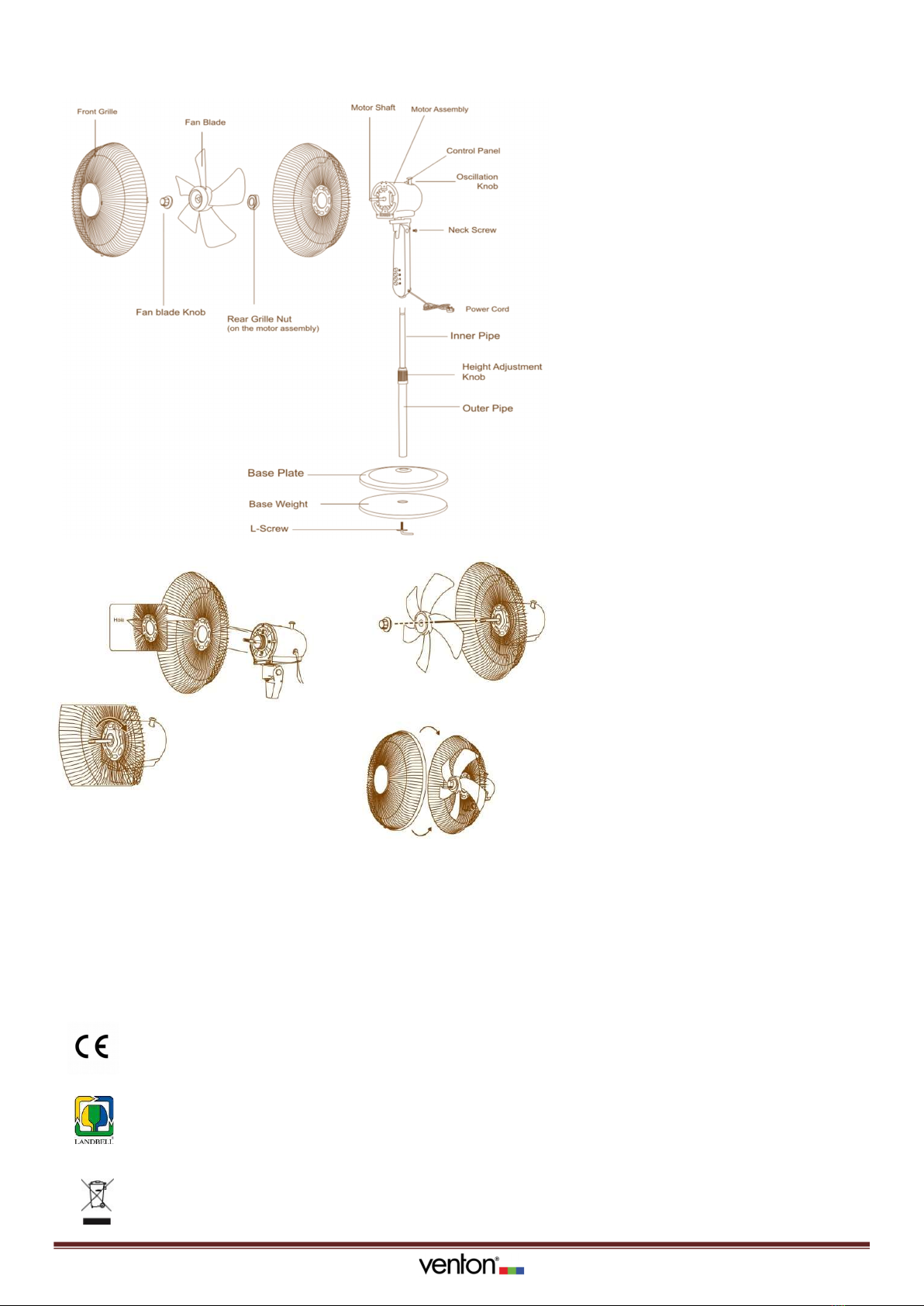

FEATURES OF THIS PRODUCT
PRODUCT ASSEMBLY
ASSEMBLE OF BASE
 Set the column in place on the base and secure it
using the "L" screw with washer while also
engaging the counterweight.
 Make sure column and base and counterweight are
firmly coupled.
 Loosen the Height Adjustment Collar on top of the
Inner Tube. Pull the Inner Tube out from the Outer
Tube to adjust the tube to the desired height and
tighten the collar.
 If necessary, slightly loosen the Set Screw by turning
it anticlockwise. Slide the Switch Box down over the
Inner Tube and tighten the Set Screw. Make sure the
Set Screw is tightly secured.
ASSEMBLE OF BLADE AND GRILLE
 Unscr0ew the plastic mounting nut from the front of
the motor housing by rotating it anticlockwise.
 Position the rear grille against the front of the motor
housing with the handle uppermost, ensuing that the
locating pegs on the motor housing are engaged
correctly in the holes of the rear grille.
 Tighten the Rear Grille Mounting Nut clockwise. DO
NOT OVERTIGHTEN IT.
 Push the fan blade onto the motor shaft, locating the
slot at the back of the blade on the drive pin that
passes through the motor shaft.
 Tighten the blade cap by turning it anticlockwise.
 Position the front grille against the rear grille so that
the holes in the rims that accept the small nut and bolt
are in line. Insert the bolt through the holes and screw
on the nut. Do not fully tighten at the stage.
 Push the grille retaining clips into position ensuring
that they engage correctly on the rim of the grille.
 Fully tighten the small nut and bolt that passes
through the rim of the grille.
OPERATION OF THE PRODUCT
Control Panel ，SPEED SETTING
Button 0-1-2-3
1. To change speed, press button “1” – “2” – “3”.
Speed will
change with each button stroke.
2. For oscillation, press the oscillation knob which
located in the motor housing, the fan starts oscillating.
To stop oscillation, pull up the oscillation knob.
3. To switch the fan off, press the button “0”.
4. Always unplug the appliance when it is not used.
CLEANING
 Switch off and unplug from the power supply before assembling or disassembling and cleaning.
 Keep the air vents at the rear of the main body free from dust or fluff– use a vacuum cleaner to remove these when necessary. Do not probe
any opening to remove fluff.
 Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter the
motor housing.
 Thoroughly remove soap film with clean water.
CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the fan
components.
