Vertical Express LD-16 User manual

LD-16 Door Operator
FOR MODERNIZATION

Every attempt has been made to ensure that this documentation is as accurate and up-to-
date as possible. However, Vertical Express assumes no liability for consequences, directly
or indirectly, resulting from any error or omission. The material contained herein is subject
to revision. Please report any problems with this manual to Vertical Express, P.O. Box 2019,
Memphis, Tennessee 38101.
Vertical Express • P.O. Box 2019 • Memphis, Tennessee 38101
© 2021 Vertical Express. All rights reserved.
Published October, 2021
First Edition
Printed in the United States of America
Manual Number: 88420 v.1.0

LD-16 Door Operator - Modernization Contents
October 2021 - 88420 v.1.0 1
Contents
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Static Protection Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Access and Egress Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Integral Cab Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Existing Cab Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Motor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Required Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Integral Cab Header Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Single-Speed Side-Opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Two-Speed Side-Opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Single-Speed Center-Opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Existing Cab Header Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Universal MOD Kit (200CJD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Separate Header Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
New/Existing Car Door Panel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Car Door Panel Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Set Eccentrics on the Car Door Hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Clutch Installation and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Adjust Door Contacts and Door Lock Contact (Relating Cable Adjustment) . . . . . . . . . . . 53
Adjust Car Door Interlock/Restrictor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Verify Running Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Block LD-16 Clutch Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Install Electronic Edge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Electronic Edge Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Electronic Setup & Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Learn Door Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Speed Pattern Adjustment with the Wittur Programming Tool (WPT) . . . . . . . . . . . . . . . . . 65
Closing Force Adjustment - 30 lbs. Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Contents LD-16 Door Operator - Modernization
2© Vertical Express
(continued)(continued)
Contents
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Fault Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Serial Communication for TKE Legacy Control Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Serial Interface Board Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Serial Interface Board LED Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Serial Interface Board Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Serial Communications Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Discrete Controller Interface for non-TAC Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Discrete Controller Interface Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
I/O Signal Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
I/O Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Calculate Minimum Door Closing Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Based on Kinetic Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Car or Hoistway Door Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Replace the Door Operator Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Replace the Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
APPENDIX
Clutch Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1
GAL Interlock Rollers (364AG_) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1
MAC Interlock Rollers (364AG_) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
TKE Interlock Rollers (364AG_) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Otis 6940 Interlock (364AJ_) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Westinghouse Interlocks Model E5A (364AK_) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
Westinghouse (364AL_) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
Clutch Operating Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Harness Assembly Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
COP Adapter Harness, 462AEM_ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
COP Extension, 462AEN_ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-14
Generic Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-16

LD-16 Door Operator - Modernization Safety Precautions
October 2021 - 88420 v.1.0 3
Safety Precautions
Read this page before any work is performed on elevator equipment.
The procedures contained in this manual are intended for the use of
qualified elevator personnel. In the interest of your personal safety and
the safety of others, do not attempt any procedure that you are not
qualified to perform.
All procedures must be accomplished in accordance with the applicable
rules in the latest edition of the National Electrical Code, the latest edition
of ASME A17.1, and any governing local codes.
Terms in This Manual
CAUTION statements identify conditions that may result in damage to
the equipment or other property if improper procedures are followed.
WARNING statements identify conditions that may result in personal
injury if improper procedures are followed.
General Safety
Before applying power to the controller, check that all manufacturing
wire connections are tight on relays, contactors, fuse blocks, resistors,
and terminals on boards and DIN rail terminals. Connections loosened
during shipment may cause damage or intermittent operation.
Other specific warnings and cautions are found where applicable and do not
appear in this summary. See the Employee Safety and Accident Prevention
Program Manual and the Elevator Industry Field Employees’ Safety Handbook
for electrical equipment safety information on installation and service.
Electrical Safety
All wiring must be in accordance with the National Electrical Code and be con-
sistent with all state and local codes.
Use the Proper Fuse
To avoid fire hazards, use only the correct type fuse, voltage, and current rating.
See the job specific drawings sheet (Power Supplies) for fusing information.
Electric shocks can cause personal injury or loss of life. Circuit breakers,
switches, and fuses may not disconnect all power to the equipment. Always
refer to the wiring diagrams. Whether the AC supply is grounded or not, high
voltage will be present at many points.

Safety Precautions LD-16 Door Operator - Modernization
4© Vertical Express
Electrical Safety
(continued) Printed Circuit Boards
Printed circuit boards may be damaged if removed or installed in the circuit
while applying power. Before installation and/or removing printed circuit
boards, secure all power. Always store and ship printed circuit boards in sepa-
rate static bags.
Mainline Disconnect
Unless otherwise directed, always Turn OFF, Lockout, and Tagout the mainline
disconnect to remove power from elevator equipment. Before proceeding, con-
firm that the equipment is de-energized with a volt meter. Refer to the Employ-
ees’ Safety and Accident Prevention Program Manual for the required
procedure.
When Power Is On
To avoid personal injury, do not touch exposed electrical connections or compo-
nents while power is ON.
Test Equipment Safety
Always refer to manufacturers’ instruction book for proper test equipment
operation and adjustments.
Buzzer-type continuity testers can damage electronic components. Connection
of devices such as voltmeters on certain low level analog circuits may degrade
electronic system performance. Always use a voltmeter with a minimum imped-
ance of 1 M Ohm/Volt. A digital voltmeter is recommended.
Mechanical Safety
See the Employees’ Safety and Accident Prevention Program Manual and
the Elevator Industry Field Employees’ Safety Handbook for mechanical
equipment safety information on installation and service.
Power Unit Fluid System
If working on the power unit fluid system, the static car weight is applying pres-
sure to the jack and valve system and this stored pressure is present at the
power unit.
Before working on any component of the power unit, do one of the following:
• Manually lower the car onto the buffers to relieve the stored pressure.
• Close the machine room oil line shutoff valve, and then release the power
unit pressure by momentarily opening the manual lowering adjuster
valve.

LD-16 Door Operator - Modernization Static Protection Guidelines
October 2021 - 88420 v.1.0 5
Arrival of Equipment
Receiving
Upon arrival of the equipment, inspect it for damage. Promptly report all vis-
ible damage to the carrier. All shipping damage claims must be filed with the
carrier.
Storing
During storage in a warehouse or on the job site, precautions should be taken to
protect the equipment from dust, dirt, moisture, and temperature extremes.
Static Protection Guidelines
Read this page before working with electronic circuit boards.
Elevator systems use electronic circuit boards to control various functions of
the elevator. These boards have components that are extremely sensitive to
electrostatic voltage, which can cause board damage or failure.
Proper handling and shipping of boards is important to ensure their reliability
and long-term operation. For this reason, manufacturing bases warranty deci-
sions on the guidelines below.
Handling • Store boards in separate, sealed, anti-static bags until time for installation.
• When handling boards, wear an anti-static wrist strap with ground wire.
Acceptable straps are available through local electronics parts suppliers.
Typical anti-static wrist straps are intended for applications below 240 VAC.
• Do not place boards on any surface without adequate static protection.
• Handle boards only by their edges using proper anti-static techniques.
Avoid touching components, traces, and connectors.
• Take extra care when handling individual components, such as integrated
chips, metal oxide semiconductors, and field-effect transistors. These com-
ponents can be destroyed with as little as 30 volts of electrostatic dis-
charge.
Shipping • Complete the included board discrepancy sheet.
• Any board returned to manufacturing must be packaged in a closed,
sealed anti-static bag designed for the board, and packaged in a sturdy
protective shipping carton.
• Clear bubble wrap and Styrofoam are unacceptable packing materials.
Failure to adhere to the above guidelines will void the board warranty.

Access and Egress Procedures LD-16 Door Operator - Modernization
6© Vertical Express
Access and Egress Procedures
The access and egress procedures that are used entering the hoistway
determine whether or not power is needed to perform the required task(s).
If not, Turn OFF, Lockout, and Tagout the mainline disconnect.
DO NOT stand on the car top emergency access cover.
Car Top Safety
Safety Precautions When Accessing/Egressing Car Tops
• Before opening the hoistway door, ensure that the correct hoistway has
been selected and that the car is at the proper floor (to avoid a fall hazard).
• Access car tops from the top terminal landing whenever possible.
• Never access a hoistway, unless a reliable method of controlling the
car has been determined.
• Locate the emergency stop switch.
• Before accessing the car top, place the stop switch in the STOP position,
and confirm the proper operation.
• Locate a safe refuge area.
• Always maintain control of the hoistways doors during access/egress.
• Fall protection is to be used when a fall hazard exists. The only exception to
this is when routine maintenance is being performed on top of complete,
operational elevator cars, Do Not use fall protection where there is a greater
risk of entanglement.
• When opening hoistway doors from the car top, do so slowly, so that no
one steps in from the landing thinking a car has arrived.
• Observe overhead clearances.
• Use extra care when working on car tops that are curved, domed, or
located in unenclosed hoistways.
DO NOT turn the following switches to Automatic Operation until the
hoistway door interlock is open–and remains open–and the hoistway
is empty.
• When egressing the hoistway/car top, ensure that the stop switch is in the
STOP position, and that the inspection switch is on Inspection Operation.

LD-16 Door Operator - Modernization Access and Egress Procedures
October 2021 - 88420 v.1.0 7
Access and Egress Procedures
(continued)
Safety Precautions When Working on Car Tops
DO NOT attach electrical cords on the car or counterweight ropes.
• Before beginning work, check the car top for oil or grease, and clean as
required.
• Locate the position and counterweights of the car being accessed, as
well as any other cars/counterweights in the vicinity. Take appropriate
measures to avoid hazards.
• Verify proper operation of the top-of-car inspection operating buttons.
Where outlets are provided, use a grounded, portable light with a suitable,
non-conductive; or use a grounded lamp guard and reflector.
Pit Safety
Before entering a pit, ensure that every employee is aware of the hazards.
Some common hazards are:
• Recognized refuge space
• Inadequate lighting
• Improper access
• Tripping hazards
• Improper use of pit ladders
• Moisture/water/fluid
• Moving equipment
Safety Precautions Before Entering a Pit
Take appropriate steps to minimize the following hazards and any others
that are identified, such as:
• Locate the position of the car being accessed, as well as any other cars
in the vicinity.
• Before accessing the pit, the car MUST be located high enough to allow
the placement of the pit prop pipe stands to be inserted into the buffers.
• Once the pit is initially accessed, the pit props must be installed and the
oil line shutoff valve closed to prevent car movement.
• Obtain control of the car.
• Identify a refuge space.
• If movement of the elevator is not needed to complete the work being per-
formed, Turn OFF, Lockout, and Tagout procedures are required.

Access and Egress Procedures LD-16 Door Operator - Modernization
8© Vertical Express
Access and Egress Procedures
(continued)
Safety Precautions Before Entering a Pit (continued)
• If notified by the building owner or representative that the pit and/or hoist-
way has been classified as a Permit Required Confined Space (this notifica-
tion could be verbal or the pit/hoistway may be labeled), contact the
appropriate person for authorization. In either case, do not enter the pit/
hoistway until authorization is received.
Safety Precautions When Working In Pits
• Before entering a pit, test and verify the door lock circuit and stop switch
circuit.
• Ensure that all portable lights and tools are connected through a ground
fault (GFCI).
• Take care to protect all lighting from damage.
• DO NOT work in a pit with standing water.
• Before climbing, always examine shoes for fluid/grease.
• Use both hands when working with ladders and also when accessing and
egressing a pit.
• Be aware of moving equipment (e.g., pump, motors, belts, and sheaves),
and ensure that clothing and hands cannot get caught in them.
• Avoid smoking or the use of open flames in the pit.

LD-16 Door Operator - Modernization Overview
October 2021 - 88420 v.1.0 3
Overview
Integral Cab Header

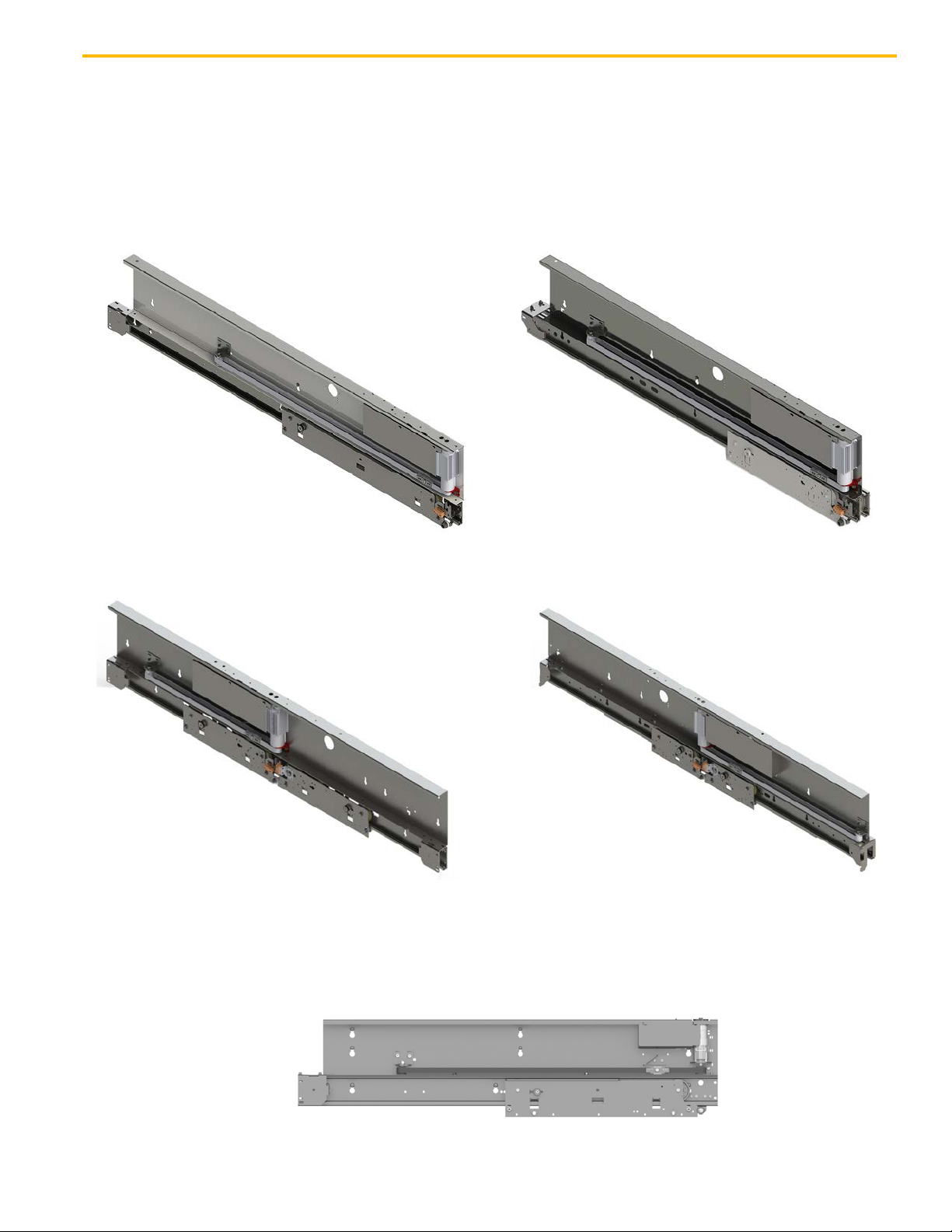

Center-Opening Two-Speed Assembly (3002BJ)Center-Opening Single-Speed Assembly (3002BF)
Side-Opening Two-Speed Assembly (3002BH)Side-Opening Single-Speed Assembly (3002BG)
Cimarron Assembly (3002BN)

Overview LD-16 Door Operator - Modernization
4© Vertical Express
Overview
(continued)
Existing Cab Header
See Universal MOD Kit (200CJD) Installation on page 28.
Mount Door
Operator on
this Side
End Clip
Rear Support Kit
To obtain clearance with existing equipment,
use the proper door angle for the job installation.
or
Door Mounting Angle
and Strut, 1Ƽ" X 1Ƽ", 20"
Door Mounting
Formed Angle
Center Opening, 32" - 60" shown

LD-16 Door Operator - Modernization Performance Specifications
October 2021 - 88420 v.1.0 5
Performance Specifications
MIDI+ SUPRA
All NI, SS, CO, and 2SPD
with elevator speed <=200 fpm.
and elevator travel <=100 feet.
• All NI with elevator travel >100 feet or
elevator speed >200 fpm.
• All 2SCO.
• All MOD operators with tracks/hangers.
Motor Characteristics Three-phase Permanent Magnet Synchronous Motor
Drive V3F-Converter (vector control)
Average power consumption 92W 170W
Maximum momentary power
consumption 475W 900W
Power supply Universal 115-230V+20% 50/60Hz
Protection class IP20
Storage temperature –45° to 70° C
Operating ambient temperature –20° to 50° C
Humidity range 98% maximum 40°C
Regulations and codes ASME A17.1/CSA B44, EN81
Electromagnetic compatibility Immunity and emission protection EN12015/16
Maximum movable masses 600 lbs. (270 kg) 1322 lbs. (600 kg)
Estimated lifetime More than 3 million cycles More than 5 million cycles
Safety device for cab egress Car door interlock
Door operator noise level*
*sound levels in a stopped car
Average 55 dBA
Maximum 60 dBA
Average 50 dBA
Maximum 55 dBA
Maximum door speed capability*
*actual top door speed for a
specific installation may be
different depending on door
mass or door travel.
2.16 ft/sec 2.96 ft/sec
Reopening device*
*on modernization installations:
door reversal could be greater if
the door edge bypasses the door
control board and is connected
to the elevator controller.
Safety light edge with door reversal capability less than 21/2"

Motor Specifications LD-16 Door Operator - Modernization
6© Vertical Express
Motor Specifications
Unit of Measure MIDI PMSM SUPRA PMSM
Motor Type — 57BL74 M763
Operation Mode — S1 S1
Insulation Class — B B
Protection Degree — IP40 IP40 (IP54 opt.)
Storage Temperature °C -45 to +70 -45 to +70
Operating Temperature °C -20 to +65 -25 to +55
Humidity %RH 93% @ 40° C 98% @ 40° C
Noise Level dBA 50 avg./55 max. 45 avg./50 max.
Door Cycles, Lifetime — 7,000,000 10,000,000
Hours, Lifetime Hours 12,000 20,000
NR Pole — 4 4
Rated Voltage V 36 42
Rated Speed rpm 4000 3300
Rated Torque Nm 0.22 0.41
Nominal Current A 3.45 4
Rated Output Power W 92 142
Efficiency % — 84.5
Overload (Imax/Irated) — 5 7
DC-Link Voltage V 18 to 42 18 to 75
Rotor Inertia gcm² 119 760
Max. Cogging Force Ncm < 85, 9 < 85, 9
Cogging Torque (Motor Only) Ncm < 4, 5 < 4, 5
Gear Rate — 8.2 6.43
Tooth Belt Diameter mm 38.2 38.2
Tooth Belt Tension N 800 1,100
Duty Starts/Hour 250 250
Top Speed ft/sec 1.96 2.96

LD-16 Door Operator - Modernization Required Tools and Materials
October 2021 - 88420 v.1.0 7
Required Tools and Materials
• Ratchet wrenches: 13 mm, 17 mm, 1/16", 3/4"
•3/8" ratchet & extension
• Sockets: 13 mm, 14 mm, 15 mm,1/64", 3/4"
• T-handle (Allen keys): 4 mm, 5 mm, 6 mm, 3/16"
•3/8" socketed-head Allen key
• Flat & Phillips screwdrivers
• Torpedo or tool box level
• Tape measure or folding ruler
• Door pressure gauge
•1/4" cordless impact with 12'' extension
• Sawsall with metal cutting blades (MOD applications)
• Pallet jack
• Hand trucks
• Tin snips
• Pry bar
• Claw hammer
• Tri square
• Small plumb bob
• Large channel locks
•5/16" nut driver for impact
•3/8" impact gun adapter
• Wire strippers
• Scribe
• Electrical tape
• Small straight slot screwdriver (plug wiring)
• Runbug
• Grinder
• Hack saw

Single-Speed Side-Opening Doors LD-16 Door Operator - Modernization
8© Vertical Express
Single-Speed Side-Opening Doors
Integral Cab Header Installation
1. Ensure that the car will run on runbug operation.
2. Remove the doors and the related door components and keep these items if they
will be reused. Keep all removed components until elevator is running. See Figure 1.
Figure 1 - Header Modifications
3. Remove the existing door operator wiring harness and the Car Top Station (CTS).
4. Remove all door operator parts and components that interfere with new equipment.
5. Remove part of the header (for clearance of the mounting angles) so that it is even
with the top of the header. See Figure 2 on page 9.
6. Use the included hardware to install the mounting angles. See Figure 3 on page 9
for Dimension C.
Other Installation Configurations Starts on
Single-Speed Center-Opening Doors Integral Cab Header page 21
Two-Speed Side-Opening Doors Integral Cab Header page 15
Existing Cab Not Integral Cab Header
“Universal MOD Kit (200CJD)” page 28
“Separate Header Installation” page 35
If MOD is on an existing TKE linear door
operator, retain the rear support cover and
the ¼" hardware used for the car top box.
• Header shown is for a TKE linear operator, 42'' opening width.
• Headers for HD and other widths will be different.

LD-16 Door Operator - Modernization Integral Cab Header Installation
October 2021 - 88420 v.1.0 9
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)

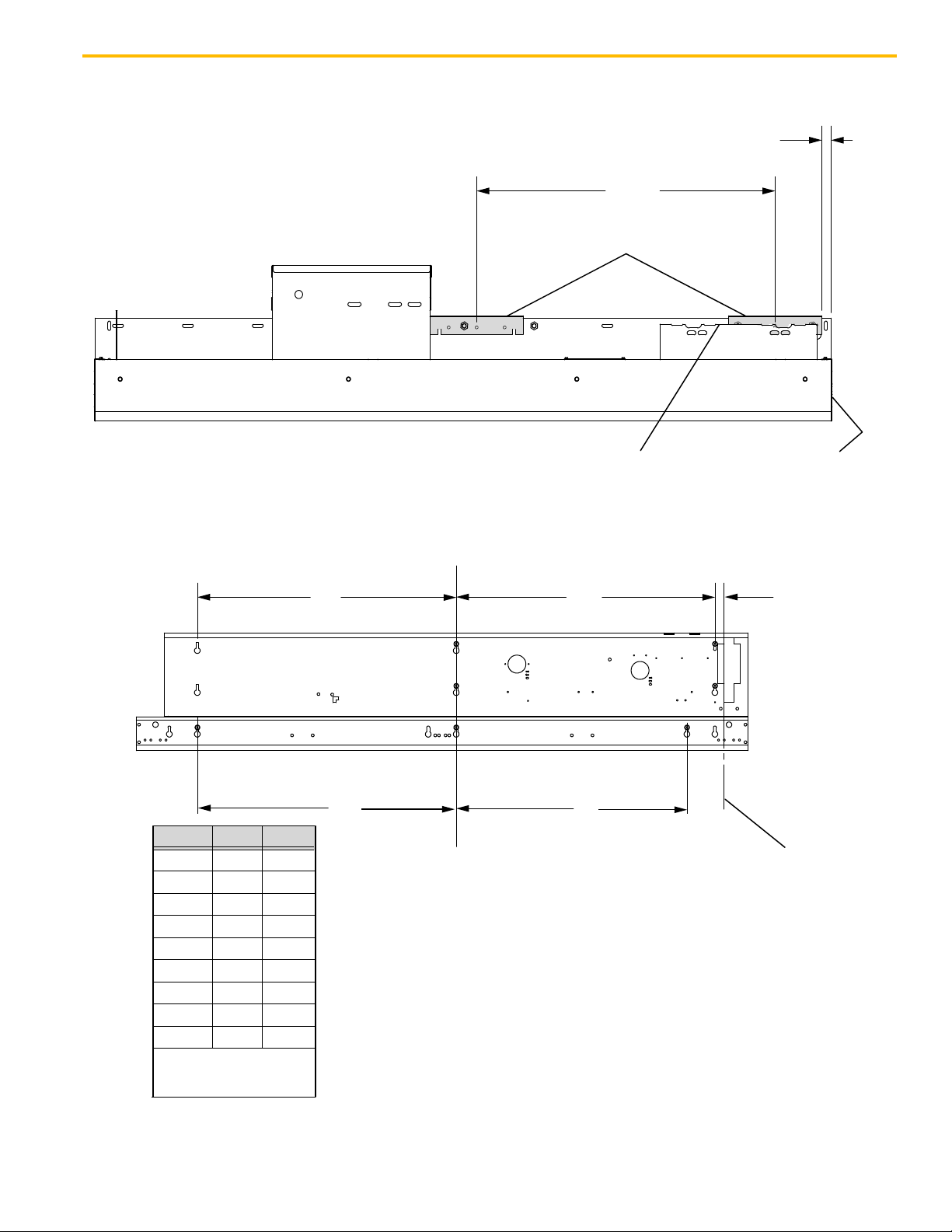

Figure 2 - Modify Header and Install Mounting Angles

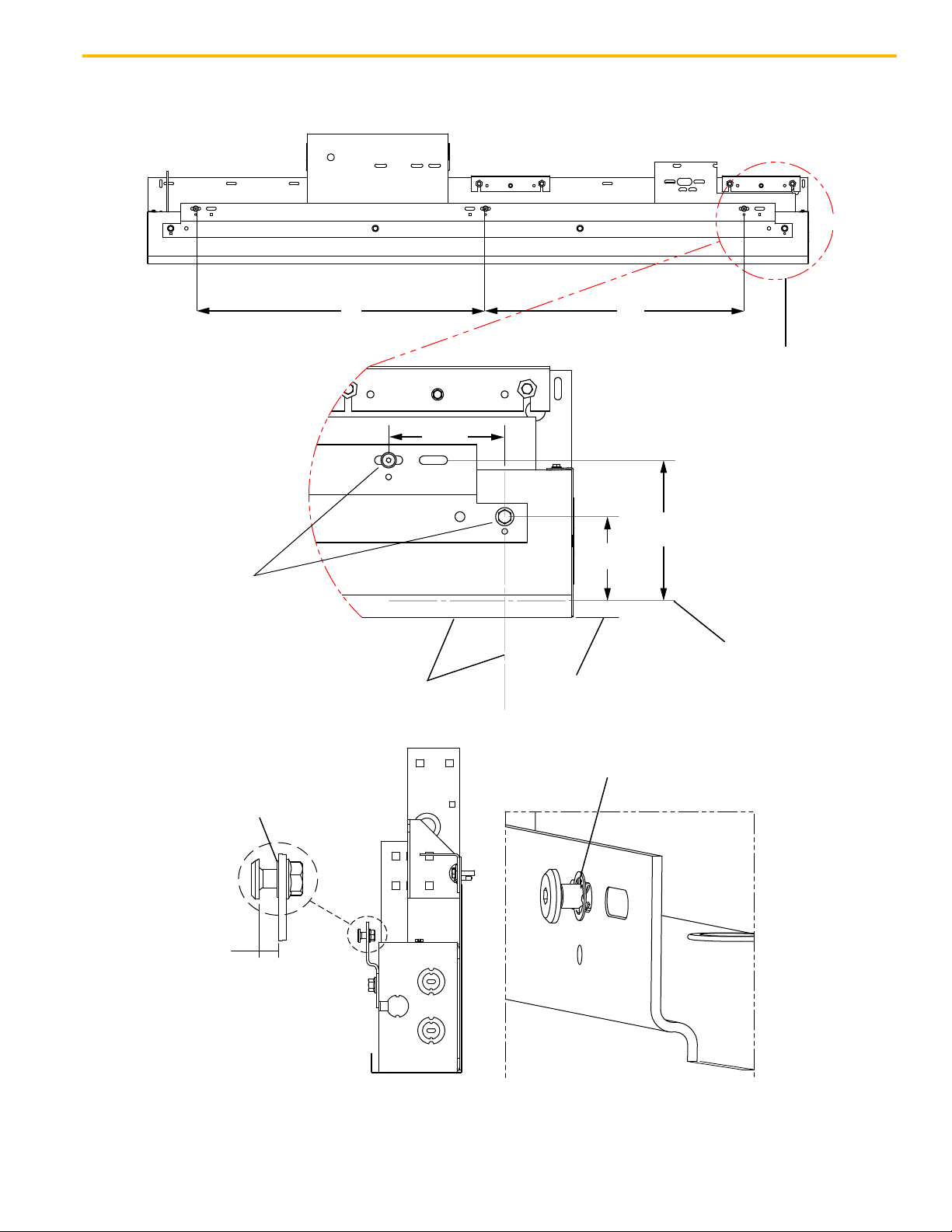

Figure 3 - Relationship of Keyslots and Door Operator Machine to Clear Opening
0ȻōȚ
Strike End
of the Header
C ɄŎȚ
Mounting Angles
Remove Part of the Header (if necessary)
for Clearance of the Mounting Angles
CC
1¼"
Clear Opening
ŐƽȚ
B
C
Primary location for keyslots used to brace the door operator
back to the cab start at 1¼" from the clear opening, and
spaced at Dimension C inches. See Chart for Dimension C.
(right-hand shown; left-hand opposite)
DOW B C
32 23 27
34 25 29
36 27 31
38 29 33
40 31 35
42 33 37
44 35 39
46 37 41
48 39 43
Dimension C = ±2''
(all dim. in inches)

Integral Cab Header Installation LD-16 Door Operator - Modernization
10 © Vertical Express
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
7. Use the existing door track holes to align the adapter angle. See Figure 4 below and
Figure 5 on page 11.
8. Use included hardware to attach the adapter angle to the header, but do not
tighten; leave hardware loose to allow adapter alignment with track keyslots.
a. Use low profile bolts at the following locations:
When looking from the strike end of the side opening,
• Small Hole/Slot = Right-Hand Openings
• No Hole/Slot = Left-Hand Openings
b. Use push nuts to help position the low profile bolts.
Figure 4 - Adapter Angle Installation (1 of 2)
Use the Existing Door Track Holes to Align the Adapter Angle
ƻȚ x ƳȚ Bolts

LD-16 Door Operator - Modernization Integral Cab Header Installation
October 2021 - 88420 v.1.0 11
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
Figure 5 - Adapter Angle Installation (2 of 2)
C B
Clear Opening
Clear Opening Door Lap
(standard door lap =
¾" )
6¼"
3¾"
(right-hand shown)
Top of Door Panel
qô°AáČZðáĦÔ°áÔûôǎ
•Small Hole/Slot = RH Opening*
•No Hole/Slot = LH Opening*
*From strike end of side opening
Use Push Nuts To Position
AáČZðáĦÔ°áÔûô Push Nut
Push Nut (right-hand shown)
ŐƽȚ
ŐƽȚ
ƜƭƂƇ"

Integral Cab Header Installation LD-16 Door Operator - Modernization
12 © Vertical Express
Single-Speed Side-Opening Doors Integral Cab Header Installation
(continued)
9. Route the door operator harness to the Car Operating Panel (COP).
See Maintenance on page 82 and the Generic Wiring Diagrams on page A-16.
• Do not install the plugs on the operator door card or on the COP.
• Before moving the car, replace the door card cover.
10. Install the door operator to the adapter angle. See Figure 6 below and Figure 7 on
page 13.
a. Align the door track bolts with the keyslots in the track, and attach the door
operator to the adapter.
b. Verify that the door operator is level.
c. Verify that there is 51/4" between the clear opening and the B dimension.
d. Use a 3/16" Allen wrench to tighten down the bolts.
11. Install the door operator mounting angles.
12. Add bolts to brace the cab to the door operator back.
13. Check for plumb.
14. Verify that the track-to-sill is parallel.

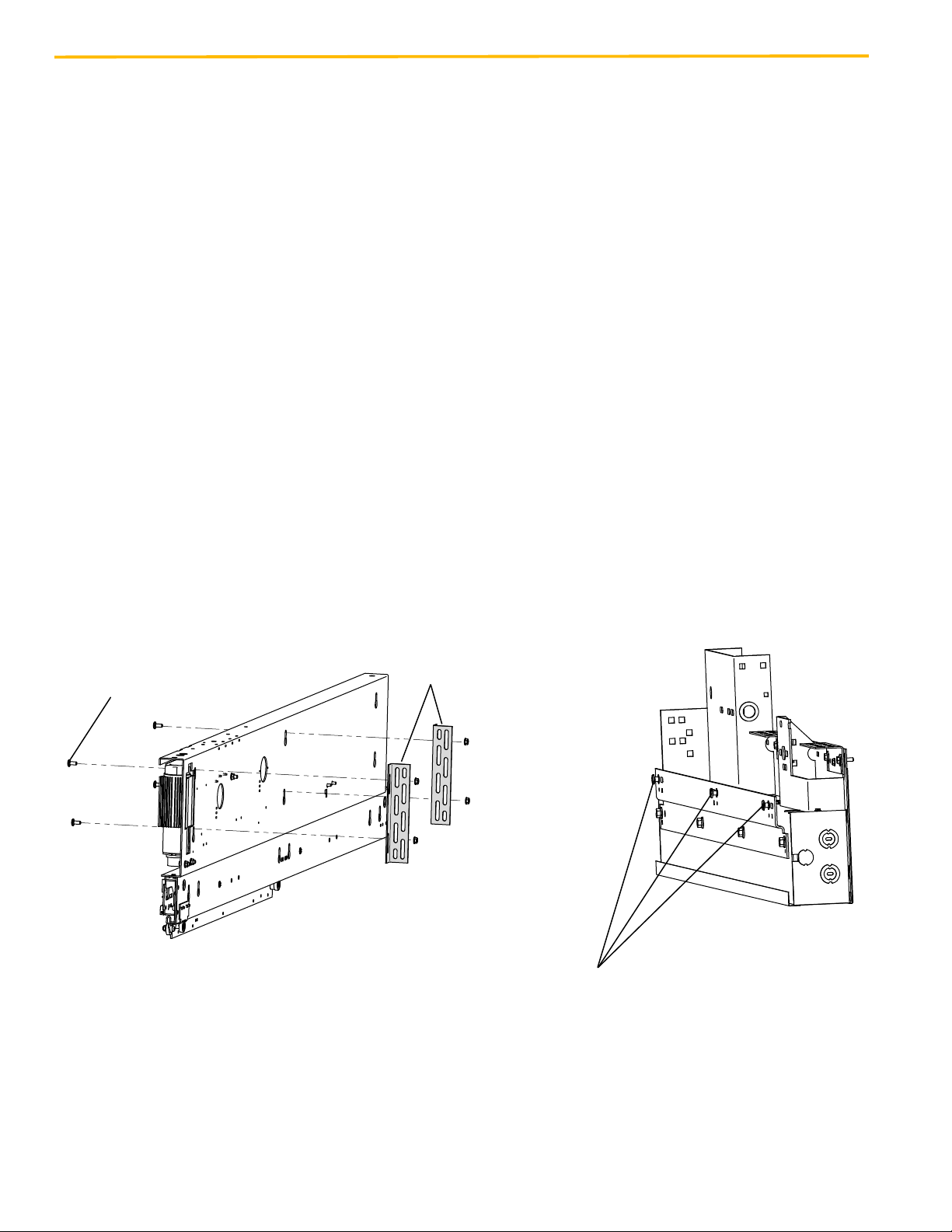

Figure 6 - Door Operator Machine Installation (1 of 2)
Door Track Bolts with Keyslots in Track
Door Operator Mounting Angles
AáČZðáĦÔ°áÔû
