DISPLAY REFRIGERATOR
MODEL:XC-78L(1R)
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:XC-78L(1R)
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
SHIPPING SCALE

- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
General
- General
- Structure and Parts
- Handle and Erection
- Preparation and Power Supply
- Use and Caution
- Maintenance
- Trouble Shooting
- Principle of Refrigeration System
- Circuit Diagram
- Major Parameters
General
1. Top brand fully enclosed compressor is used on the desk-top refrigerator.
The refrigerant R290 is of an environmentally friendly agent. It features a
rational configuration of refrigeration system with blower forced air cooling.
The temperature is quite even inside the refrigerator.
2. Double hollow transparent glasses are used on door and body. It
features an artistic and elegant appearance, perfect perspective and easy
access.
3. It has a wide application in department store and house as well as the
meeting room and sitting room

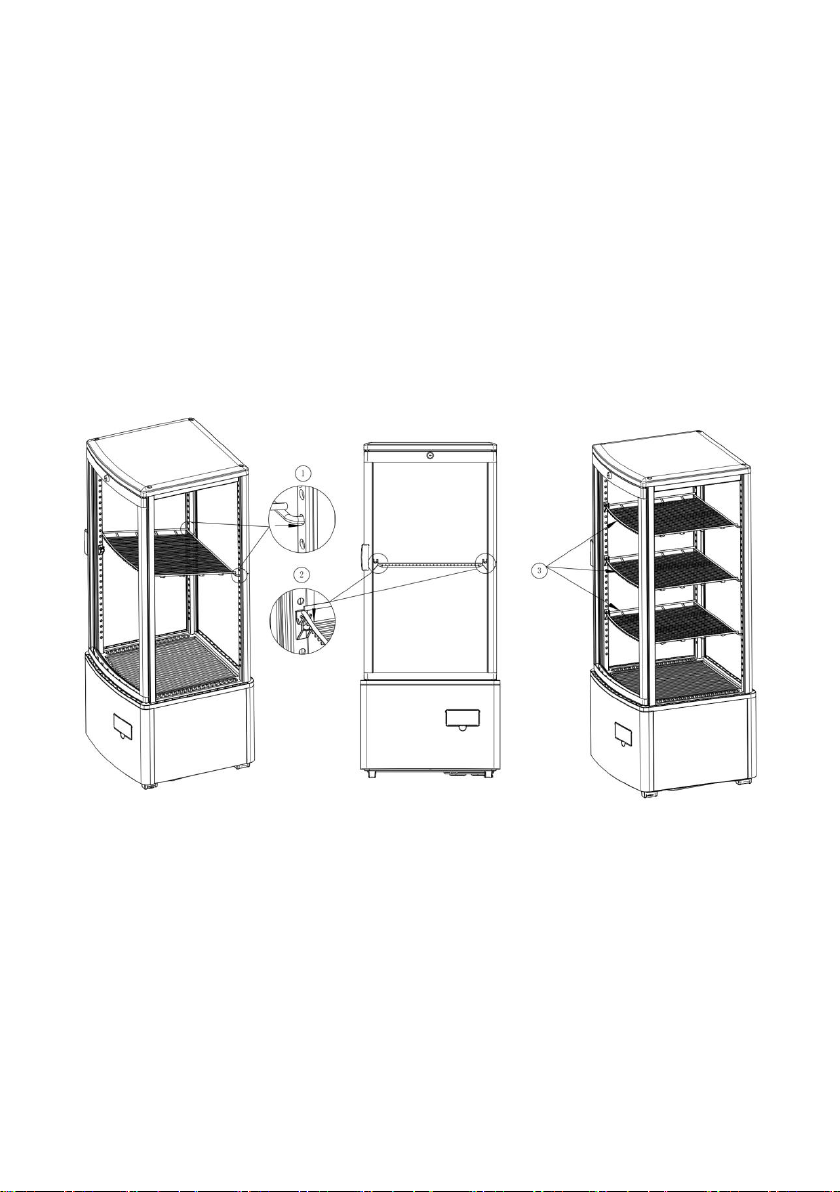

Structure and Parts

- 3 -
Handle and Erection
Handle with care
Unplug the wall socket first.
Never tilt it over 45 degree during
handling

- 4 -

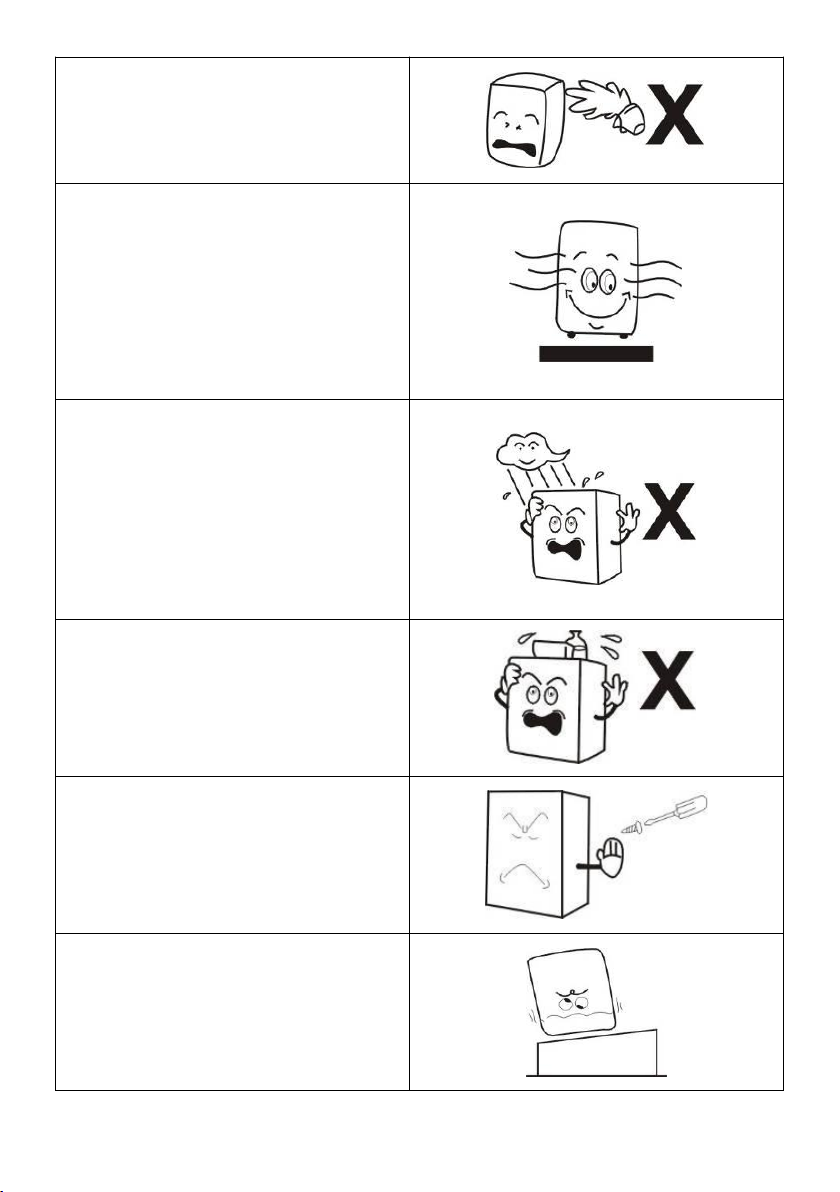

Dry place
Always locate the refrigerator at a
dry place.
Well ventilation
Always locate the refrigerator at a
place with fine ventilation. For the
first time use, wait for 2 hours
after handling and then plug the
wall socket and start it.
Far from heat source
Never place the refrigerator
directly under the sunshine .Never
locate it nearby any heat source
or heater to prevent it from
reducing refrigeration capability.
No heavy load
Never put any heavy load on the
top of the refrigerator.
No hole making
Never make hole on the
refrigerator. Never install other
matter on the refrigerator.
Stable location
Unpacking and locate the
refrigerator on a flat and solid
place.

- 5 -
Preparation and Power Supply
Exclusive power socket
Normally, the power supply should be 110-120V, single phase AC with
exclusive single phase three pin receptacle (125V 16A) and fuse (6A).The
power receptacle must have a reliable earth connection.
No share on socket
Never let the refrigerator share the common socket with other appliance,
otherwise the cable becomes hot and fire might be resulted.
Protect cables
Never break or damage the cables otherwise current leakage and fire
might be resulted.
No water flushing
Never give the refrigerator surface a flush otherwise current leakage might
be resulted.
Power receptacle
Earth bar

- 6 -

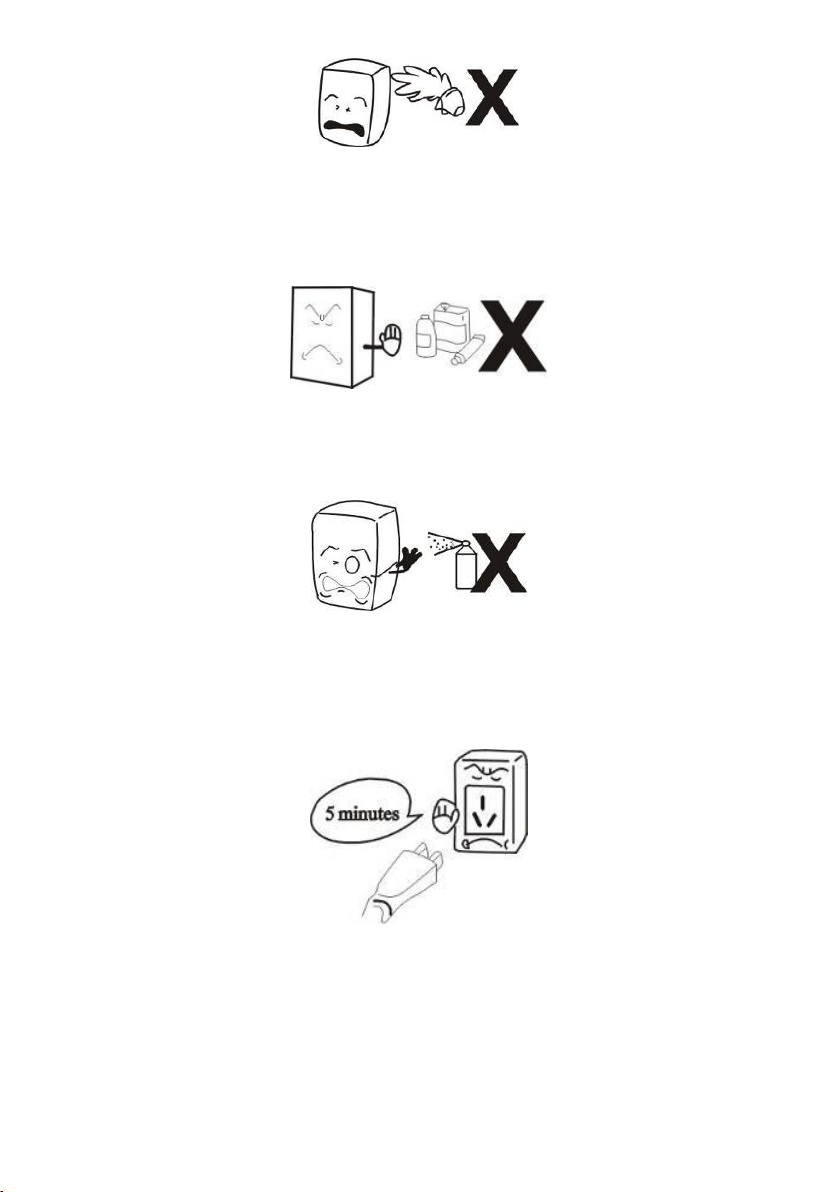

Prevent from flammables and explosive
Never put any flammable or explosive inside the refrigerator such as ether,
gasoline, alcohol, adhesive and explosive. Never put dangerous product
nearby the refrigerator.
No spray
To spray the flammables such as paint or coating nearby the refrigerator is
not allowed, otherwise fire might be resulted
After power break
After power break or unplugging the refrigerator, always wail at least 5
minutes and then you may plug the refrigerator and start it again.
No medicine
No medicine is allowed to keep inside the refrigerator.

- 7 -
Use and Caution
1. Before use:
Plug the refrigerator on 110-120V~ exclusive socket.After the refrigerator
running,put hand on the air suction to confirm it is sufficient cold. Then you
may put food inside the cold box.
2. Digital Temperature controller
Features Of Function
- It is a mini-sized and integrated intelligent controller and applicable to the
compressor of one Hp.
The main functions are:Temperature Display/Temperature Control/Manual,
automatic defrost by burning off/Illumination Control/Value Storing/self
Testing/parameter Locking
Front Panel Operation
1.Set temperature
Press „set“ button, the set temperature is displayed. Press or
button to modify and store the displayed value. Press „set“ button to exit
the adjustment and display the cold-room temperature.

- 8 -
2.If no more button is pressed within 10 seconds, the cold-room
temperature will be displayed.
3.Illumination:Press button, it lights; Press again, it stops.
Manual start/stop defrost:Press button and hold for 6 seconds to
defrost or stop defrost.
4.Refrigerant LED: During refrigeration, the LED is on; When the cold room
temp. is constant, the LED is off; During the delay start, the LED flashes.
5.Defrost LED: during defrosting, the LED is on; When is stops defrosting,
the LED is off, During the delay display of defrost, the LED flashes.
6."Turbo" function: long press for 3 seconds, the compressor is forced
to start for 2 hours, directly enter the defrost after 2 hours; under the forced
cooling state, long press for 3 seconds to exit forced cooling.
3. Cautions
Shorten the door open time and reduce open frequency is good to keep a
cold temperature inside the refrigerator.
Never block the air suction and outlet. Keep air circulation and refrigeration
capability.
Do not make food congested as it will influence the cooling effect. Adjust
the rack height for proper food storage.
Cool the hot food down to room temperature before you put it into the
refrigerator.
Try to reduce the open times and keep refrigerator inside cold in case the
power is cut off.
Only skilled service man is allowed to repair the damaged power cable with
special tools.
Never touch compressor to avoid from scald.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the

- 9 -
appliance.
The operation manual are not suitable for the persons (including children)
with reduced physical, sensory or mental capabilities,or lack of experience
and knowledge.
The maximum loading of the Shelf does not exceed 10 kg.
The climatic class of the appliance is 4,the Units are suggested to be used
at 16℃-32℃ambient temperature.
WARNING
Keep clear of obstruction all ventilation openings in the appliance
enclosure or in the structure for building-in
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer
Do not damage the refrigerant circuit
Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the
manufacturer
Maintenance
1.Notice
Often keep the refrigerator clean and periodical maintenance is necessary.
Always unplug the socket before maintenance
Never use damaged plug or loose socket to prevent from electric shock or
short circuit.
Never flush the refrigerator. Never use alkali detergent, soap, gasoline,
acetone or brush.
2.Clean outside
Dip soft cloth in neutral detergent(tableware detergent) to clean the outside
of the refrigerator and then wipe it with dry soft cloth.
3.Clean inside

- 10 -
Take rack out for cleaning with water
4.Shut down refrigerator for a long time
Take all food out and unplug the wall socket.
Clean both inside and outside of the refrigerator thoroughly and open the
door for sufficient dry.
The glass breaks easily. Keep the glass far from children.
Clean the condensate tray and wipe it dry.
Trouble Shooting
Trouble
Cause and Remedy
No
refrigeration
Is the plug in socket well?
Is the fuse broken?
Is there no power?
Unsatisfactory
refrigeration
Is it under the sunshine?Is there any heat source
nearby?
Is the surrounding ventilation bad?
Does the door close well? Does door open for a long
time?
Is the door seal strip deformed or damaged?
Is food congested or too much?
Does food block the air suction or outlet?
Regulate the temperature controller.
Much noise
The refrigerator does not level.
The refrigerator contacts wall or other matter.
There is loose part in refrigerator.
Contact local service agent for help if simple trouble shooting does not
solve the problems.
Note:
Following phenomena are not troubles

- 11 -
The murmur of water is heard when the refrigerator is working. It is a
normal phenomenon as the coolant is circulating in the system.
In wet season, condensation might be found on the outside of the
refrigerator. It is not a trouble, which is caused by high humidity. Simply use
cloth to wipe it.
Principle of Refrigeration System
The principle of compression refrigeration consists of “compression”,
“condensation”, “throttling” and “vaporization”. The compression is
undertaken by compressor, the condensation is completed by condenser,
the throttling valve is executed by capillary and the vaporization is
implemented by evaporator. When the coolant is circulating in the closed
refrigeration system, the compressor sucks coolant, which has absorbs
heat in evaporator, the coolant becomes a high pressure and high
temperature gas. In condenser, it dissipates heat in air, while the coolant is
re-liquefied and throttled in capillary and then enters into evaporator with
low pressure. The liquefied coolant quickly boils and vaporizes into gas
when the pressure suddenly drops. Meanwhile, it absorbs heat inside the
refrigerator. And the compressor sucks the low pressure and low
temperature gaseous coolant,……….It is circulating in this way up to
realization of intended refrigeration.

- 12 -
Circuit Diagram
Major Parameters
Model
XC-78L/(1R)
Coolant and injection quantity for NUT45NR
R290(1.4oz)
General Rated Input Power (W)
216

- 13 -
Kind of weather
4
Refrigeration temperature(℃)
2-8
Electric shock protection class
I
Rated Voltage(V)
115~
Rated Frequency(Hz)
60
Rated Current (A) for
2.1
Lamp Power (W)：
6.8
Total effective volume(L)
85
Net weight (kg)
40
Overall dimension(mm)
447*430*965
Note:
1. The electric circuit diagram and parameters on the product name plate
are final ones if they have been changed.
2. The design might be improved without notice.
3. The product is serve as a counter for transactions between sales
personnel and customers, the door is in the back of the appliance and
needs to be used by the sales staff, so that the sales staff can provide
goods to consumers.
4. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a
hazard.
Warning; Risk of fire / flammable materials
Warning: Refrigerant is facility burning of R290, please
protect against fire
Meaning of crossed out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste,use
separate collection facilities.

- 14 -
Contact you local government for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally
obligated to take back your old appliance for disposals at least free of
charge.
Shelves Installation Instructions
1. Insert the protruding part of the shelves frame into the rear column
mounting hole, and the number of mounting hole vacancies is the same as
the number of empty positions on the front column shelves foot.
2. Place the flat end of the shelves into the card slot of the grid leg.
3. Repeat the steps 1 and 2, install all the shelves frames (tip: the
following 2 grid frame rear column installation holes are spaced one more
than the hole between the two grid legs).
Made In China

- 15 -
Technical Support and E-Warranty Certificate
www.vevor.com/support

- 16 -
Technique Assistance et certificat de garantie électronique
www.vevor.com/support
RÉFRIGÉRATEUR D'AFFICHAGE
MODÈLE : XC-78L(1R)
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 17 -

- 1 -
MODÈLE : XC-78L(1R)
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
SHIPPING SCALE

- 2 -
Avertissement : Pour réduire le risque de blessure, l'utilisateur
doit lire attentivement le manuel d'instructions.
Général
- Général
- Structure et pièces
- Poignée et montage
- Préparation et alimentation
- Utilisation et prudence
- Entretien
- Dépannage
- Principe du système de réfrigération
- Schéma
- Paramètres majeurs
Général
1. Un compresseur entièrement fermé de marque supérieure est utilisé sur
le réfrigérateur de bureau . Le réfrigérant Le R 290 est un agent
respectueux de l'environnement. Il présente une configuration rationnelle
du système de réfrigération avec refroidissement à air pulsé par soufflante.
La température est assez homogène à l’intérieur du réfrigérateur.
2. Des verres transparents doubles creux sont utilisés sur la porte et le
corps. Il présente une apparence artistique et élégante, perspective
parfaite et accès facile.
3. Il a une large application dans les grands magasins et la maison ainsi
que dans la salle de réunion et le salon
Structure et pièces
