Vicko JBQ-01A User manual

12
Barbecue Grill
2200W
INSTRUCTIONS MANUAL
Model No: JBQ-01A
Ref. No: 888-214901

13
ATTENTION! - IMPORTANT SAFEGUARDS
1. This appliance is designed for domestic use only. No responsibility is
accepted for damage resulting from use non-compatible with the instructions.
2. This appliance is used only for grilling suitable food.
3. The appliance is only intended to be used indoors and not outdoors.
4. Do not operate the appliance if the power cord shows any signs of damage.
If the supply cord is damaged, it must be repaired by a qualified person in
order to avoid a hazard. Improper repairs may place the user at serious risk.
5. Always handle the power cord with care. Do not pull or strain the power cord.
The power cord may never be folded or pinched. Always pull the plug to
disconnect the power cord, never pull the cord to disconnect it.
6. Do not use the cord as a handle.
7. Do not let the cord wedged between a closed door.
8. Do not pull the cord near sharp corners.
9. Do not let the cable resting on a hot surface or hanging on the edge of the
table.
10. Do not use any accessories not recommended by the manufacturer. It may
cause injury and device destruction.
11. Do not use with a voltage converter.
12. Do not use an extension cord with the appliance.
13. Charcoal or similar combustible fuels must not be used with this appliance.
14. Do not place the appliance on or near a microwave oven, electric oven, gas
oven or washing machine.
15. Keep the appliance away from flammable objects or other heat source.
16. Do not use outdoors or where aerosol spray products are being used or
where oxygen is being administrated.
17. The appliance must not be located immediately below or above a socket-
outlet.
18. The unit must never be used under a running extractor fan or wall
cupboards.
19. The socket must be easily accessible at any time to ensure that the unit can
be disconnected quickly from the electricity supply.
20. Never use the appliance near a swimming pool, or any other place with
humidity and high temperature.
21. The appliance should not be exposed to extreme weather conditions (rain,
etc.) or any wet / humidity conditions. For this reason the use and storage of
this appliance should always be done indoors. The use of the appliance in
your veranda or any other appropriate (sheltered & roofed) outdoor area can
only be done if the conditions are such as to ensure that the device will not
be found in any case exposed to a sudden rain or in contact with water or
any other wet / humidity conditions or other extreme weather conditions.
22. Do not place or store the appliance where it can fall or be pulled into a tub of
sink.

14
23. Always leave enough space around the device when it is in use among other
items. Do not place the device near flammable materials such as furniture,
pillows, fabrics, curtains, etc. WARNING! If you use the device on a surface
that can be damaged by heating, it is recommended to place under the
device an insulation base.
24. Keep the appliance in a minimum distance of 1m from walls and other
objects.
25. Always use the device in an upright position.
26. Do not place the appliance on any heat sensitive surface when hot or when
plugged in.
27. Do not operate the appliance with wet hands.
28. Do not use while you are in contact with water.
29. Do not immerse the appliance in water or any other liquids.
30. Do not touch an appliance that has fallen into water. Just pull the plug off.
31. Do not use any plastic cutlery to put the food on the grill rack, turn it or
remove it.
32. Never put plastic parts or any other items except for the food to be grilled on
the grill rack.
33. Never cover the grill rack completely when it is operating, e.g .with aluminium
foil because otherwise the heat cannot be dissipated.
34. NEVER use the appliance without water in the tray. The water level must be
below the side holes of the tray in order to avoid overflow.
35. Do not drop or insert any objects into any opening.
36. Do not touch the heating element or the grill rack when the device is in
operation, as there is a risk of burns. Do not let bare skin or eyes touch
heated surfaces.
37. Do not touch any part of the device, other than the handles and the control
switch when you use the appliance as there is a risk of burns.
38. Do not move the appliance while it is operating.
39. The device should always be disconnected from the mains when not in use.
Always switch OFF (‘0’ position) and unplug the appliance if it is not in use
before moving, cleaning, assembling or disassembling and storing it.
40. Before disconnecting the device from the socket, turn the thermostat control
switch in position “0”.
41. Please note that the device is powered up when connected to the power
supply, even when the switch is in position “0”.
42. The device should be used only by adults.
43. Keep the appliance away from children. Children must be under supervision
when they are near the device.
44. The device is not a toy. Children should be supervised to ensure that they do
not play with the appliance.
45. Always supervise the device when it is in use.
46. The appliance should only be stored indoors in a dry place away from
moisture and high or very low temperature. Avoid direct exposure under
ultraviolet.

15
47. Always make sure the appliance is clean and dry before storing it.
48. Do not store the appliance while it is still warm.

16
CAUTION!
Read all the instructions carefully before you use the
appliance and keep them for future use.
CAUTION, HOT SURFACE!
Do not touch the heated surfaces when the device is in
operation, as there is a risk of burns.
CAUTION!
DO NOT COVER the appliance in any way in order to avoid
overheating and fire.
WARNING!
Never use, place or store the appliance near a swimming pool,
near bath tubs, showers, basins and other vessels containing
water, or any other place with humidity and high temperature.
Do not use, place or store the appliance where it can fall or be
pulled into a tub of sink.
WARNING!
Do not use the appliance without water in the tray.

17
WARNING!
The appliances are not intended to be operated by means of
an external timer or separate remote-control system.
WARNING!
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
CAUTION - RISK OF ELECTRIC SHOCK!
To reduce the risk of electric shock do not open this device,
there are not serviceable parts for customers. Please refer
any maintenance or repair to qualified personnel.

18
BEFORE USE
1. Ensure the packaging of this appliance is disposed of properly as all materials
are recyclable.
2. Keep plastic bags away from babies and children.
3. After you remove the device from its packing, clean it with a damp cloth.
4. Never put the appliance under running water, in order to clean it.
5. Wash the grill rack with warm, soapy water using a dish cloth. Rinse
thoroughly to remove any soapy residue. Do not use abrasive cleaners or
scouring pads.
6. Do not put the accessories in dish washer machine or disinfector machine.
7. Place the device on a flat and dry surface.
8. Before using the device, please unfold the cord completely and make sure
that it does not show any sign of damage.
9. Ensure that the main voltage rating of your power supply corresponds to the
voltage requirements of the appliance
10. Make sure that all parts of the device are properly mounted before using the
appliance.
11. If you notice that there is a little smell or smoke going out of the appliance
during the first use, do not worry, it is normal.

19

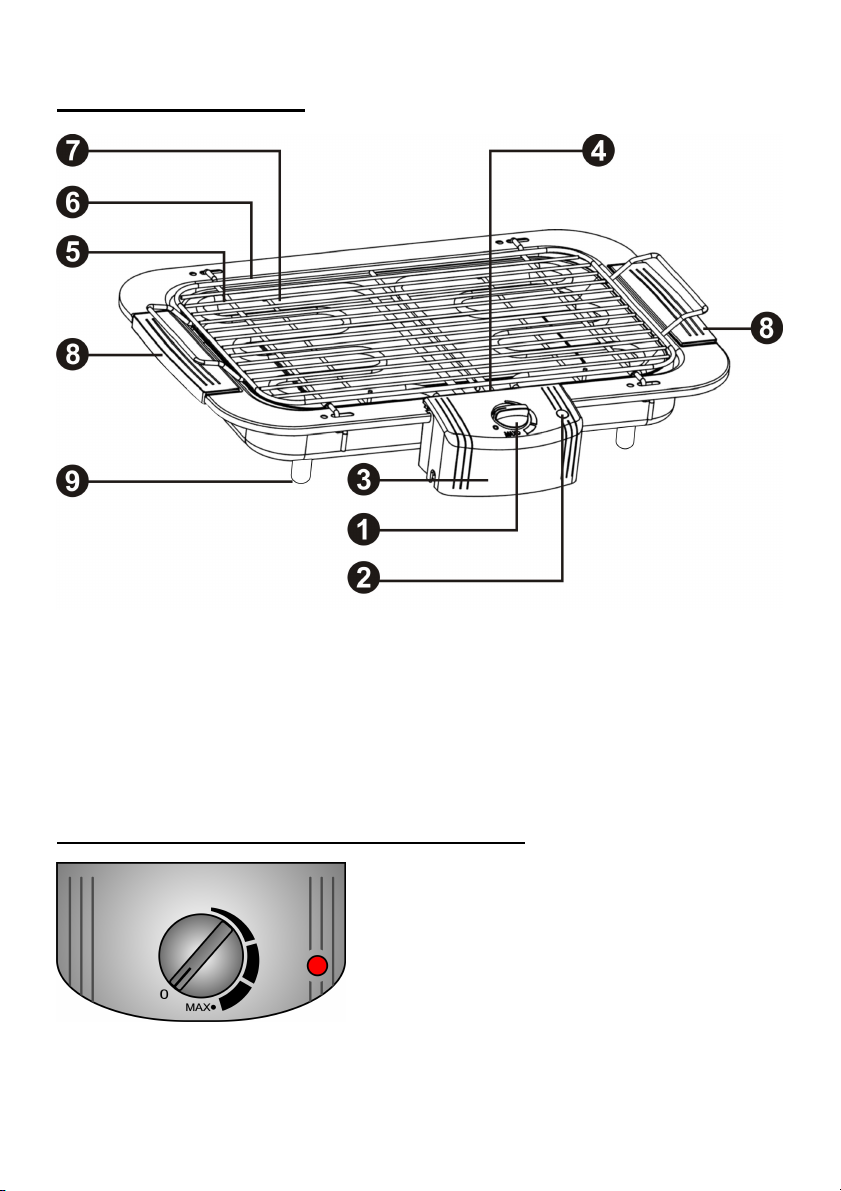

APPLIANCE DETAILS
1. THERMOSTAT CONTROL SWITCH
2. POWER INDICATION LIGHT
3. SCREW FOR FIXING THE CONTROL PANEL
4. PANEL
5. GRILL RACK
6. HEATING ELEMENT
7. REMOVABLE TRAY
8. HANDLES
9. FEET
Thermostat control switch settings and functions
Position “0”: Disable (Switch Off)
Position "MAX": Maximum temperature
setting

20
INSTALLING THE FEET
Please install the feet and screw them tight at the bottom of the device.
INSTRUCTIONS
Please follow the below instructions in order to use the appliance.
1. Make sure that all parts of the device are properly mounted before using the
appliance
2. Make sure the appliance is not connected to the power supply.
3. Fill in the tray (7) with water. Ensure that the water level is not reaching the
holes on the sides of the tray at all times during use in order to avoid
overflow.
ATTENTION: Always fill the pan with water BEFORE connecting the
device to the power supply.
ATTENTION: Be careful not to pour water on the heating element, the
thermostat control and the power cord.
4. Connect the appliance to the power supply.
5. Turn the thermostat control switch (1) to the highest temperature “max” and
the power indication light (2) will turn on.
6. Preheat the appliance for 5 minutes before using.
7. Adjust the thermostat control switch (1) to the desired temperature level and
place the food on the grill rack (5).
8. Turn the thermostat control switch (1) on low temperature or put the grill rack
(5) on the highest level when you want to cook sensitive food, or keep them
warm.
9. The water in the tray (7) is evaporated, so keep in mind to refill with water
whenever it is necessary.
10. When cooking is finished turn the thermostat control switch (1) to position “0”
and unplug the appliance from the outlet of power supply.
11. Let the appliance to be cool and empty the water from the plate.
12. Clean according to the following instructions and store the appliance.

21
CLEANNING AND STORING
Ensure that the appliance is thoroughly cleaned after use.
Unplug the appliance and let it cool before you clean it.
Remove the thermostat control switch along with the heating element, also
the grill rack and the removable tray from the appliance.
CAUTION: The thermostat control switch and the heating element are not
washed. Use a dry and soft cloth to clean them. Make sure that the heating
element is not connected to the power supply and that the cloth is not wet.
Clean the grill rack and the tray with warm water and soap and let them dry.
Do not use sharp objects, hard brushes or oven cleaners to clean any part of
the appliance.
After cleaning, the appliance should be stored indoors in a dry location. Do not
store the grill outdoors

22
TECHNICAL SPECIFICATIONS
Model: JBQ-01A
Ref. No: 888-214901
Power: 2200W
Rating: 230V
Frequency: 50Hz
Features: Ideal for easy cooking.
Large cooking surface (38x22cm).
Power switch with Thermostat control for various heat
operations.
Power indicator light.
2 different height levels available for the grill.
Stainless steel heating element.
Including oil container tray.
With heat proof handles.
Metal body.
Skid-resistant feet.
Removable parts available for easy cleaning
Modern ergonomic design.
RECYCLING OF USED ELECTRICAL OR ELECTRONIC APPLIANCES
This marking indicates that this product should not be disposed with
other household wastes throughout EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take
this product for environmental safe recycling.
PROTECT THE ENVIRONMENT
The product COMPLIES with EU directives WEEE (about recycling) and
ROHS (Restriction of the use of Certain Hazardous Substance
GUARANTEED QUALITY
All products are guaranteed for their quality.
