Victa VRO 4015HX Manual

RIDE ON MOWER
OWNER’S MANUAL AND
OPERATING INSTRUCTIONS
IMPORTANT
READ THIS BOOK CAREFULLY BEFORE
OPERATING MACHINE.
VRO 4015HX Part No. F–000741L

2
F–000741L

3
F–000741L
1
1
2
3
4 (17x192)
6
7 (17x195)
5 (30x49)
2
1
2
3
4 (17x47Z)
5 (94160) 1
23
7
6 (17x146)
4 (25x3)
3
5
1
3
426
8
6 (2x82)
7 (14x79)
4
3
6
1
24
5
7
5
1
2
6
1
2
34
56
7
7
1
8
2
1
2
3
4
5
910 11
3 (15x88)
2 (2x53)
1
4
54
6
1
2
3
7
1
2
34
5
6
7
12
2
3
1
13
1
2
14
8
8
3
1
2
15 16

4
F–000741L
1
23
6
4
5
17
3
2
1
18
2
3
1
19
4
432
1
20
4
2
1,3
1,2
21
1
2
2
22
1
2
3
3
4
4
5
6
7
8
9
23

5
F–000741L
MAX 90N
+MAX 150N +
12 354678
910 1211 13 14 15
16
24
17
1234567
89
10 11 12 13 14 15
25
26
94160
2x82 14x79
17x47
20729
30x49
17x195
17x192
2x53
15x88
25x3
17x146
94618
(Not Shown Full Size)
54148
(Not Shown Full Size)

GB
6
F–000741L
WARRANTY
Consumer Rights
The buyer should be aware that in relation to goods which are of a kind ordinarily acquired for personal, domestic or household use or consumption, certain
provisions such as the Trade Practices Act, 1074 (Aust) and the Consumer Guarantees Act, 1993 (NZ) apply. The terms set out below do not exclude rights
and remedies implied by a statue which are non – excludable and which may be more extensive than those provided by this warranty.
Warranty Service
Warranty Service under both the Express Warranty and the warranties implied by law is available at any VICTA Authorized Service Centre. These centres
are staffed and equipped to provide expert service.
The engine powering this unit is Warranted by the engine manufacturer whose warranty statement has been included with the operating manual. This war-
ranty may differ from the unit warranty.
VICTA Express Warranty
The Victa Express Warranty is additional to the conditions and warranties which are mandatorily implied by the laws and regulations of the individual States
and Territories of Australia and the Trade Practices Act, 1974 (Aust) and the Consumer Guarantees Act in New Zealand and any non – excludable laws.
Under Express Warranty the “Ride on Mower” is warranted for 12 months (Domestic Use) and 90 days (Commercial Use) from the date of purchase against
mechanical defects and faulty workmanship or material. Express Warranty covers only the replacement, repair or adjustment of parts which fail due to a
fault in manufacture. Defective parts will be replaced or serviced by an Authorized Victa representative without charge for materials or labor, subject to condi-
tions. Repairs or adjustments required by normal use or failure to follow the manufacturer’s instructions are chargeable to the owner.
VICTA Service Representatives or agents are authorized to determine whether a claim will be covered under warranty or payable by the owner on comple-
tion.
You should seek independent legal advice to determine whether a claim not covered by the Express Warranty is covered by any warranties implied by law.
Conditions
Express Warranty applies to the original purchaser only. Proof of purchase must be provided prior to Express Warranty Work.
Use of parts other than genuine VICTA Spare Parts cancels the Express Warranty.
Repairs other than by a VICTA Authorized Service Centre cancels the Express Warranty.
Altering the product (including governed speed) cancels the Express Warranty.
An engine run with incorrect fuel or oil or oil level, is not covered by the Express Warranty.
Failure to properly service cooling or air filtrations systems cancels the Express Warranty.
Failure to follow the instruction manual or labels attached cancels the Express Warranty.
Fair and reasonable wear is not covered by the Express Warranty.
Accidental damage, misuse or neglect is not covered by the Express Warranty.
Costs of transportation are to be paid by the owner.
Blades, belts and spark plugs are not covered by the Express Warranty.
Limitations of Warranty
Nothing in these terms shall exclude, restrict or modify any term, condition, warranty or liability implied into this contract by statute, where to do so would
be unlawful or would render any provision of this contract void. Subject to that, all warranties implied by statute in respect of the goods are hereby expressly
negated and VICTA’S liability for the goods is limited to any warranties issued in writing by VICTA and VICTA is excluded from any liability whether under
this contract or otherwise to the buyer of any third party for any loss, injury, cost or damage (direct, indirect, special, consequential, or otherwise and whether
or not arising from a negligent act or omission of VICTA), incurred or suffered by reason for the goods, their use, their design or any failure to deliver or delay
in delivering them.
Where it is legal to do so, any remaining liability implied by statute or resulting from breach of any term, condition or warranty implied by stature is limited
to at VICTA’S sole option:
the replacement of the goods or the supply of equivalent goods;
the repair of the goods;
the payment of the cost of replacing the goods or of acquiring equivalent goods; or
the payment of having the goods repaired.
In particular, your rights and remedies under the Trade Practice Act (Aust) and the
Consumer Guarantees Act (NZ) are not excluded.
Personal Records
Complete the details below for your own personal records.
Model Number:
Serial Number:
Purchase Date:
Where Purchased:
For Warranty Repairs Consult
the Above Dealer or Look For
The Store Displaying This
Sign in Your Area.
A Division of Sunbeam
Corporation LTD A.C.N. 000 006 771

GB
7
F–000741L
CONTENTS
WARRANTY 6
OWNER’S INFORMATION 7
INTERNATIONAL PICTORIALS 7
SAFE MOWING GUIDE 9
STEPS TO FOLLOW 11
ASSEMBLY 12
OPERATION 13
MAINTENANCE 14
TROUBLE SHOOTING CHART 18
OWNER’S INFORMATION
This instruction book is written for a person with
some mechanical ability. Like most service
books, not all the steps are described. Steps on
how to loosen or tighten fasteners are steps
anyone can follow with some mechanical abili-
ty. Read and follow these instructions before
you use the unit.
Know your product: If you understand the unit
and how the unit operates, you will get the best
performance. As you read this manual,
compare the illustrations to the unit. Learn the
location and the function of the controls. To
help prevent an accident, follow the operating
instructions and the safety rules. Keep this
manual for future reference.
IMPORTANT: Many units are not assembled
and are sold in cartons. It is the responsibility of
the owner to make sure the assembly instruc-
tions in this manual are exactly followed. Other
units are purchased in an assembled condition.
On assembled units, it is the responsibility of
the owner to make sure the unit is correctly as-
sembled. The owner must carefully check the
unit according to the instructions in this manual
before it is first used.
WARNING: Look for this symbol to indicate
important safety precautions. This symbol
indicates: “Attention! Become Alert! Your
Safety Is At Risk.”
RESPONSIBILITY OF THE OWNER
The responsibility of the owner is to
follow the instructions below.
1. Carefully read and follow the rules for safe
operation.
2. Follow all the assembly and preparation
instructions.
3. Inspect the unit.
4. Make sure that the operator of the unit
knows how to correctly use all standard
and accessory equipment.
5. Operate the unit only with guards, shields,
and other safety items in place and
working correctly.
6. Correctly adjust the unit.
7. Service the unit only with authorized or
approved replacement parts.
8. Complete all maintenance on the unit.
Environmental Awareness
Do not fill the engine’s fuel tank complete-
ly full.
Drain fuel for off–season storage.
Use only unleaded gasoline.
Service the air cleaner regularly.
Change oil regularly. Use 30W oil in
summer.
Tune–up the engine regularly.
Keep equipment in efficient operating
condition.
Dispose of used engine oil properly.
INTERNATIONAL PICTORIALS
IMPORTANT: The following pictorials are
located on your unit or on literature sup-
plied with the product. Before you operate
the unit, learn and understand the purpose
for each pictorial.
NOTE: Illustrations and pictorials
begin on page 3.
Safety Warning Pictorials (Figure 24)
1Warning
2Shield Eyes. Explosive Gases Can Cause
Blindness Or Injury.
3No Sparks, Flames or Smoking.
4Sulphuric Acid Can Cause Blindness Or
Severe Burns
5Flush Eyes Immediately With Water. Get
Medical Help Fast.
6IMPORTANT: Read Owner’s Manual
Before Operating This Machine.
7WARNING: Thrown Objects. Keep
Bystanders Away. Read User Instructions
Before Operating This Machine.
8WARNING: Do Not Use This Machine On
Slopes Greater Than 10 Degrees.
9DANGER: Keep People, Especially
Children, Away From Unit.
10 DANGER: No Step.
11 DANGER: Keep Feet And Hands Away
From Rotating Blade.
12 DANGER: Keep Hands Away From
Rotating Blade.
13 DANGER: Disconnect Spark Plug Wire
Before Servicing Unit.
14 WARNING: Hot Surface.
15 WARNING: Use Caution When
Connecting Or Disconnecting
Accessories.
16 WARNING: Crushed Fingers.
17 Deck Level Position Only.
Control And Operating Pictorials
(Figure 25)
1Engine Start
2Lights
3Engine Stop
4Engine Stop
5Engine Run
6Brake
7Parking Brake
8Clutch
9Slow
10 Fast
11 Choke
12 Oil
13 Blade Rotation Control
14 Raise
15 Fuel

GB
8
F–000741L
Safe Operation Practices for Ride–On Mowers.
This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could
result in serious injury or death.
I. General Operation
1. Read, understand and follow all instructions
in the Instruction Book, on the machine, the
engine and with any attachments before
starting.
2. Only allow responsible adults, who are famil-
iar with the instructions, to operate the ma-
chine.
3. Clear the area of objects such as rocks, toys,
wire, etc., which could be picked up and
thrown by the blade.
4. Be sure the area is clear of other people be-
fore mowing. Stop the machine if anyone en-
ters the area.
5. Never carry passengers.
6. Turn off power to the blades or any attach-
ments before backing up. Do not mow in re-
verse unless absolutely necessary. Always
look down and behind before and while back-
ing.
7. Be aware of the mower discharge direction
and do not point it at anyone. Do not operate
the mower without either the entire grass
bagger or the mower guard in place.
8. Slow down before turning.
9. Never leave a machine unattended with the
engine running. Always turn off the blade(s),
set the parking brake, stop the engine and
remove the key before dismounting.
10. Turn off power to attachment(s) when trans-
porting or not in use. Turn off the blade(s)
when not mowing.
11. Stop the engine before removing the grass
bagger or unclogging the chute.
12. Mow only in daylight or good artificial light.
13. Do not operate the machine while under the
influence of alcohol or drugs or when very
tired.
14. Watch for traffic when operating near or
crossing roadways.
15. Use extra caution when loading or unloading
the machine into a trailer or truck.
16. Turn off all attachment clutches before at-
tempting to start the engine.
17. Always wear goggles, safety glasses, or an
eye shield when you operate the unit to pro-
tect your eyes from foreign objects that can
be thrown from the unit. Always wear eye
protection when you make an adjustment or
repair to the machine.
18. Use care when pulling loads or using heavy
equipment.
a. Use only approved drawbar hitch points.
b. Limit loads to those you can safely con-
trol.
c. Do not turn sharply. Use care when back-
ing.
d. Use counterweights or wheel weights
when suggested in the Instruction Book.
19. Do not operate this machine if you are taking
drugs or other medication which can cause
drowsiness or affect your ability to operate
this machine.
20. Do not use this machine if you are mentally
or physically unable to operate this machine
safely.
21. Data indicates that operators, age 60 years
and above, are involved in a large percent-
age of riding mower related injuries. These
operators should evaluate their ability to op-
erate a riding mower safely enough to protect
themselves and others from serious injury.
II. Slope operation
Slopes and rough terrain are major factors
related to loss–of–control and tip–over acci-
dents, which can result in severe injury or
death. ALL slopes require extra caution. If
you cannot back up the slope or if you feel
uneasy on the slope, do not mow it. See the
“Slope Guide” in the back of this book to
check for safe operation.
DO
1. Mow up and down slopes, not across.
2. Remove obstacles such as rocks, limbs,
etc...
3. Watch for holes, ruts or bumps. Uneven ter-
rain could overturn the machine. Tall grass
can hide obstacles.
4. Use slow speed. Choose a low enough gear
so that you will not have to stop or shift while
on the slope.
5. Use slow speed on slopes. Do not make
sudden speed changes.
6. Follow the manufacturer’s recommendations
for wheel weights or counterweights to im-
prove stability.
7. Use extra care with grass baggers or other
attachments, they can change the stability of
the machine.
8. Keep all movement on the slopes slow and
gradual. Do not make sudden changes in
speed or direction.
9. Avoid starting or stopping on a slope. If tires
lose traction, turn off the blades and proceed
slowly straight down the slope.
DO NOT
1. Do not turn on slopes unless absolutely nec-
essary, then only turn slowly and gradually
downhill, if possible.
2. Do not mow drop–offs, ditches or embank-
ments. A wheel over the edge or an edge
caving in could cause a sudden overturn and
an injury or death.
3. Do not mow on wet grass. Reduced traction
could cause sliding.
4. Do not try to stabilize the machine by putting
your foot on the ground.
5. Do not use a grass bagger or other rear
mounted accessories on steep slopes (great-
er than 10 degrees).
III. Children
Tragic accidents can occur if the operator is
not alert to the presence of children. Chil-
dren are often attracted to the machine and
the mowing activity. NEVER assume that
children will remain where you last saw
them.
1. Keep children out of the mowing area and in
the watchful care of another responsible
adult.
2. Be alert and turn the engine off if children
enter the area.
3. Before and when backing, look behind and
down for small children.
4. Never carry children or any passengers,
even with the blades off. They may fall off
and be seriously injured or interfere with the
safe operation of the machine.
5. Never allow children to operate the machine.
Instruct children in the potential dangers of
the machine.
6. Use extra care when approaching blind cor-
ners, shrubs, trees or other objects that may
obscure vision.
IV. Service
1. Use extra care when handling gasoline and
other fuels. Fuels are flammable and the va-
pors are explosive.
a. Use only an approved container.
b. Never remove the gas cap or add fuel
with the engine running. Allow the engine to
cool for several minutes before refueling. Do-
not smoke.
c. Never refuel the machine indoors.
d. Never store the machine with fuel in the
tank or fuel container inside where there is
an open flame, such as a water heater.
2. Never start or run the engine inside a closed
area.
3. Keep all nuts and bolts, especially the blade
attachment nuts tight. Frequently check the
blade(s) for wear or damage such as cracks
and nicks. A blade that is bent or damaged
must be immediately replaced with an origi-
nal equipment blade from an authorized ser-
vice dealer. For safety, replace the blade
every two years. Keep the equipment in good
condition.
4. Never tamper with the safety devices. Check
their proper operation regularly.
5. To reduce fire hazards, keep the machine
free of grass, leaves or other debris build–up.
Clean up oil or fuel spills. Allow the machine
to cool before storing.
6. Stop and inspect the equipment if you strike
an object. Repair, if necessary, before re-
starting.
7. Never make adjustments or repairs with the
engine running. The carburetor can be ad-
justed with the engine running. Do not
change the engine governor settings or
over–speed the engine.
8. Grass bagger components are subject to
wear, damage and deterioration, which could
expose moving parts or allow objects to be
thrown. For storage, always make sure the
grass bag is empty. Frequently check com-
ponents and replace with manufacturer’s rec-
ommended parts when necessary.
9. Mower blade(s) are sharp and can cut. Wrap
the blade(s) or wear gloves and use extra
caution when servicing them or the blade
housing area.
10. Check the brake operation frequently. Adjust
and service as required.
11. Wait for all movement to stop before servic-
ing any part of the unit.

GB
9
F–000741L
SAFE MOWING GUIDE
Each person that operates power equipment
must learn to use correct and safe mowing pro-
cedures. To help you learn, carefully read the
following pages. Most of the time the operator
was not correctly shown or did not read the in-
structions on the unit or in the Instruction Book
before using the unit. Also, some operators do
not have enough experience. The result is un-
safe use, endangering the operator, bystanders
and the equipment. Another result can be a poor
appearance of the area mowed.
Read this book. Read the instructions on the
unit. Operate the mower according to the Safe
Mowing Guide. Follow all safety rules, cautions
or warnings in this book and on the unit. Make
sure anyone that uses the unit reads the instruc-
tions and is told how to safely operate the mow-
er.
The mower will give you good service and dura-
bility, if operated in normal conditions. If the
mower is not correctly serviced or is used where
the terrain is rough or unsuitable, product per-
formance and safety will be decreased.
Correct clothing is an important part of safe
mowing. Safety glasses will protect the eyes
from objects discharged by the mower. Safety
shoes with steel plates can protect a foot from
injury by the blade. For protection from objects
discharged from the mower, wear clothing that
will cover the arms and legs.
Before you start cutting the grass, practice using
the mower in a large open and level area. Learn
the location of the controls on the mower. Know
the purpose of the controls and how they work.
In an emergency, how fast you can stop the
blade is important. Learn how to control the
mower at all times.
Many engines are started by hand. When you
use a pull start or rope start, place your feet
apart and away from the blade(s). Hold the rope
handle tight. Never wrap the rope around your
arm or fingers for a “better grip”. To start the en-
gine, follow the instructions on the mower, in this
book and in the engine operating instructions.
For electric start engines, sit in the seat to start
the engine. The battery can be dangerous. Fol-
low the instructions on the battery, the acid con-
tainer, and in this book when working with the
battery. Even small batteries have enough volt-
age to cause an injury. Always be careful.
The mower is designed to be operated by one
person. Never let another person ride with you
on the unit or on any accessories. A passenger
will make the unit harder to control, block the
visibility or distract the operator and is danger-
ous to the operator, the passenger and the
equipment. Without a passenger seat, the pas-
senger can fall from the mower or contact dan-
gerous parts. A mower is not a toy for showing
off or for giving rides.
Never cut a wet lawn. Wet grass can cause an
accident, affect mower performance and can
cause problems with future lawn growth and ap-
pearance. Wet grass is slippery and can cause
the mower to slip. Someone can get injured by
touching the blade(s). Wet grass tends to clog
the mower, causing poor discharge. Cut wet
grass will collect on the lawn, retarding the
growth of the grass. Also, getting the mower wet
will cause parts to rust and decrease the life of
the unit.
When you look over the lawn, remember ob-
stacles that cannot be removed, like pipes,
stumps or rocks. Keep away from these ob-
stacles that can cause damage to the mower or
injury to the operator or a person near the mow-
er. Clear the area of rocks, toys, wire or other
loose objects. These items can damage the
mower or can be discharged by the mower
blade. The blade of a power mower rotates very
fast. It can discharge rocks and other objects
over a long distance which can be dangerous.
The force of the objects can break windows,
cause injuries or even put an eye out. Most of
the time the injury is to a person, like a child.
Keep every person completely away from the
area to be mowed. Make sure the grass is not
discharged toward anyone. Planning your mow-
ing pattern has a double advantage. It can de-
crease the possibility of an injury and make the
clean up after mowing easier.
Check the terrain of the area to be mowed. Mow
in a pattern that will keep you away from danger-
ous areas. Check the distance you need to stop
and the distance available to turn. Slopes and
rough terrain must be mowed carefully and
some areas must not be mowed at all. With rid-
ing mowers, mow up and down the hill. When
you must mow rough terrain or on slopes, drive
slowly and stop in these areas only in an emer-
gency. Before you ride up or down a slope, try
to back straight up the slope. Do not ride up or
down a slope that is too steep to back straight
up. See the “Guide” in the back of this Instruc-
tion Book to check any slopes.
Before you start cutting, make sure the mower
was completely assembled according to the In-
struction Book. If the mower was completely as-
sembled at the store, you must still check the
mower according to the assembly instructions.
Make sure the mower is correctly assembled
and that all fasteners are tight. Make sure the
engine has the correct amount of oil. Check
these items often during the life of the mower.
Your mower has a gasoline engine. Gasoline is
a dangerous fuel. Keep gasoline only in an ap-
proved safety gasoline container. Do not keep
large amounts of gasoline. When you add gaso-
line to the fuel tank, do not smoke. Store the
gasoline container and the mower in an area
that has good ventilation. Also, keep the gaso-
line away from any flames like the pilot light of a
furnace or any other source of ignition. If the
mower is to be stored for more than a few
weeks, remove the gasoline from the fuel tank.
When inside an enclosure, do not add gasoline
to the fuel tank. Before you add gasoline, move
the mower outside and add gasoline carefully.
Before you start the engine, remove any gaso-
line from the outside of the fuel tank or from the
mower. Warm gasoline will expand. Leave some
space in the fuel tank for the gasoline to expand.
Also, the fuel cap has a vent hole for fuel va-
pors. Always use the correct fuel cap. Failure to
follow safety rules about gasoline will cause fires
and explosions, injury to you and damage to the

GB
10
F–000741L
equipment and other property.
If you add gasoline to an engine that is running
or hot, the result can be an explosion. Before
you add gasoline, stop the engine and let the
engine cool for several seconds. Remove dry
grass and other debris from the mower. Keep
the mower clean to improve the performance,
help the engine and transmission run cooler,
extend the life of moving parts, and decrease
the danger of a fire.
Fires and explosions are not the only dangers
when working around a mower. The engine,
transmission, and the muffler will get hot in sev-
eral minutes when the engine is running. Do not
touch these parts of the mower. Stop the engine.
Let the engine and transmission cool before
servicing the mower. Remember, exhaust fumes
are dangerous. Never operate the engine inside
a building.
When you get a new mower, it can be a new
experience for the family. Tell each person how a
mower can be dangerous. Remember, a mower
is not a toy. A mower is not to be used by chil-
dren or anyone not old enough, strong enough
or that does not have experience.
If the mower is not correctly assembled, not op-
erated correctly, or not regularly serviced, the
mower can be dangerous. The most important
rule to follow is always use good judgement and
common sense. Mow safely and carefully.
Your mower will easily cut thick grass. Fingers,
feet and other parts can also be cut by the
blade. Injuries occur when the operator does not
think and reaches into the chute opening. Al-
ways operate the mower as if the blade is rotat-
ing. Do not service or make an adjustment,
except to the carburetor, while the engine is run-
ning.
Use only accessories that are factory approved
for your mower. The wrong accessory can de-
crease the safety of the mower and can even
damage the unit. Read and follow the instruc-
tions included with the accessory and the mow-
er.
Use only original equipment or replacement
parts that are factory approved for service. If you
need service, select an Authorized Service Cen-
ter for your mower. If you do the work on the
unit, follow the instructions in the Instruction
Book.
When you mow, remember that children are at-
tracted to the mower. Always use caution when
mowing around obstacles like trees or shrubs or
when moving backward. Only mow in a forward
direction if possible. Your visibility is decreased
when you mow backward. Also, the blades are
made to cut while the unit is moving forward. If
you mow backward, the cutting performance
decreases.
Before you leave the mower, stop the engine.
Remove the key. Disengage and lower any at-
tachment. Set the parking brake. Never mount
or dismount from the seat while the engine is
running. An accident can occur if you touch the
brake, speed control pedal, throttle, or blade
control while the engine is running. Mount and
dismount from the seat on the side of the unit
that is marked ENTER–EXIT.
Make sure you are in good condition when you
mow. When you mow for several hours your re-
flexes will decrease and your mind will not be as
alert. Take a short break or an accident can oc-
cur. If the temperature is hot, use caution to pre-
vent dehydration. If you are tired, angry or not
completely alert, do not operate the mower. If
you use alcohol, medication or drugs, do not use
the mower or any type of power equipment.
Engine speed is a key to safe mowing and to a
good looking lawn. The maximum speed of the
engine was set at the factory. Do not change the
setting of the engine governor.
Select the maximum engine and ground speed
that is right for the terrain and the height of the
grass. The blade cuts best when the engine is
operating at maximum speed. The engine and
transmission will also run cooler at maximum
engine speed. Also, the grass bagger will func-
tion better when the engine is operating at maxi-
mum speed. On slopes, decrease the ground
speed and use care making sure the mower
feels safe to operate.
If the weather conditions are bad, do not mow. If
weather conditions become bad, stop cutting
and finish later. It is dangerous to cut grass in
the rain. Always find protection in an electrical
storm. If the weather conditions are extra dry,
protect your eyes with safety glasses from the
dust and from the objects discharged by the
mower. Also, a dust or a pollen mask can help.
Your mower is equipped with a number of safety
devices which are important to the safety of the
operator and bystanders and must never be
changed or removed from the mower. If a safety
device is lost, damaged or no longer functions,
repair or replace the device before you operate
the mower.
It is best to mow during the day. If you must
mow at night, make sure there is enough light
for safe operation.
Your mower will require regular maintenance
and service. The maintenance schedule de-
pends on the hours of use. Also, mowing condi-
tions can change the schedule. Check the
Instruction Book for more information. Correct
maintenance will help the mower function safely.
Do not service the mower
(except for the carburetor
adjustment) while the en-
gine is running. Before you
service the unit, even with
the engine stopped, always
disconnect the wire from the
spark plug to prevent the
engine from starting.
If you hit a large object during operation, stop
the engine. Remove the wire from the spark
plug. Carefully inspect the mower for damage.
Before you start the engine again, make the
necessary repairs. If you feel new or excessive
vibration, immediately stop the engine and
check for the problem. Vibration can be a warn-
ing of a problem. Keep all nuts, bolts and screws
tight.
The blade is the most dangerous part of the
mower. Frequently check the blade and the
blade mounting fasteners. Keep the fasteners
tight. If the blade hits a solid object, stop the en-
gine. Remove the wire from the spark plug.
Check for a blade that is bent, cracked or for
other damages. Before you start the engine, re-
place a damaged blade(s). For safety, replace

GB
11
F–000741L
the blade every two years.
A sharp blade decreases the workload on the
engine and more evenly cuts grass. Frequently
sharpen the blade for a better looking cut. Use
the left side of the mower housing to trim near
an object.
A grass bagger is a good accessory for your
mower. For best performance and safety, make
sure the grass bagger is approved for use with
your mower. Follow the assembly and operation
instructions included with the grass bagger.
Some grass baggers require a special blade for
best performance. Before you attach, check, or
empty the grass bagger, always stop the engine.
Before each use of the grass bagger, check for
cracks, wear or deterioration. Before you use the
grass bagger, replace a damaged part with a
replacement part approved by the factory.
For you to have a good green lawn, follow the
mowing procedures below. Do not cut the grass
too short. If you cut the grass too short you can
cause the grass to become yellow or make the
lawn look brown. Use a lower height of cut in
cool months when the grass is thicker. Raise the
height of cut in hot dry periods. If you cut the
grass with a blade that is not sharp or at a slow
engine speed you can damage the grass. Move
the throttle control to the FAST position when
mowing and using the grass bagger. Also, use a
slower ground speed when using the grass bag-
ger.
If you change the direction or pattern of cut
slightly every time you mow will make the grass
grow stronger and thicker. Do not add oil or gas-
oline to the mower while on the lawn. Spilled oil
or gasoline can kill the grass. In high or thick
grass, do not try to cut all the grass the first time.
Raise the height of cut on the first cutting and
lower the height for the next cutting. Another
way is to cut only part of the width of the mower
and decrease your ground speed (not the en-
gine) to move more slowly so that the mower
can discharge the grass as it moves forward.
Understand the controls and how they work.
Learn the ground speed(s) of your mower.
Check the stopping distance required at different
travel speeds. Check the turning radius of the
mower. The controls on your riding mower are
different from an automobile. The throttle is op-
erated by hand and holds the engine speed con-
stant until it is changed. The location of the
travel speed control is different from that of an
automobile. Also, the brake and clutch systems
are different. Remember the procedures to fol-
low in an emergency. Remember, turning off the
engine ignition switch will stop the blade and the
drive mechanism. If the traction of the wheels is
lost or does not feel safe, disengage all systems
and stop the engine. Dismount from the mower.
Push the unit to a safe place before you begin
mowing again.
Your unit has an electrical system that includes
an operator presence switch in the seat. The
operator presence switch detects if the operator
is sitting on the seat. The engine will stop if the
operator leaves the seat when the blade en-
gagement control is engaged. This operator
presence switch is a safety device only. It must
not regularly be used to stop the engine or the
blade. There are other control systems on the
mower for this purpose. Always keep the opera-
tor presence switch and other safety devices
and controls in place and operating for your pro-
tection.
Remember, your mower is a tool that can be
dangerous if it is not correctly used. Follow the
instructions in this Instruction Book. Safe and
careful use of the mower will give you many safe
hours of problem free use.
STEPS TO FOLLOW
Before Mowing
Be sure to dress correctly. Wear hard shoes,
not sandals or tennis shoes.
Examine the blade. A blade that is bent,
cracked, or damaged must be replaced with
a factory replacement blade.
Fill the fuel tank outside. Clean off spilled
fuel.
Read and follow the Owner’s Manual, the
instructions with the engine, and the instruc-
tions with any attachments. Owner’s Manual
instructions are for your safety and the safety
of others.
Exhaust fumes are dangerous. Start the en-
gine outside.
Make sure all safety devices are in place and
working correctly.
Operation of the mower is only for a person
that has experience.
Wet grass can be dangerous. Let the grass
dry.
Instruct children and others to keep away
from the work area.
Never cut the grass without good light.
Pick up loose objects. Remove them from
the mowing area.
While Mowing
Watch for fixed objects and avoid them. They
can damage the mower or cause injury.
A hot engine, muffler and transmission will
cause a burn. Do not touch.
Inclines and slopes must be carefully
mowed. See the “Guide” in the back of this
book to check a slope.
Lack of daylight or good artificial light is
cause to stop mowing.
Examine the mower, the blade, and other
parts for damage after hitting a foreign object
or if the unit vibrates excessively.
Do not make adjustments or repairs without
stopping the engine (except for carburetor).
Disconnect the spark plug wire.
On or near roads, watch out for traffic. Direct
discharge away from roads.
When mowing, avoid areas where traction is
unsure. Before and while moving back-
wards, look behind and down for small chil-
dren.
In heavy grass, raise the cutting height. Cut
slower. Stop the engine to remove clogged
grass from the mower.
Never remove any safety related parts.
Do not pour gasoline into a engine that is hot
or running.
After Mowing
Always let the mower cool before storing in
an enclosed area.
Foreign material on the mower is dangerous.
Clean off grass, leaves, grease and oil be-
fore storing.
Tighten all loose nuts, bolts and screws be-
fore you use the unit.
Empty and clean any grass catcher or other
accessory.
Remove the key or disconnect the spark plug
wire to prevent unauthorized use.
Make sure the mower is not kept near a
source of ignition. Gas fumes can cause an
explosion.
Only original parts or factory approved sub-
stitutes can be used to service the mower.
When storing the mower for an extended pe-
riod, remove the fuel from the fuel tank.
Instruct children to leave the mower alone. It
is not a toy.
Never keep gasoline near a source of igni-
tion. Always use an approved container.
Keep gasoline away from children.
Lubricate according to the Instruction Book.
See “Lubrication”.
IMPORTANT––Read the Instruction
Book. Keep this book for future use and
reference.

GB
12
F–000741L
ASSEMBLY
All fasteners are in the parts bag. Do not discard
any parts or material until the unit is assembled.
WARNING: Before doing any as-
sembly or maintenance to the
mower, remove the wire from the
spark plug.
NOTE: In this instruction book, left and right
describe the location of a part with the oper-
ator on the seat.
NOTE: Illustrations and pictorials begin on
page 2.
NOTE: To assemble the following loose
parts, use the fasteners shown at full size in
Figure 26.
How To Install The Front Wheels
(Figure 1)
Use a knife and cut the four sides of the con-
tainer. Install the front wheels (1) in the con-
tainer.
NOTE: Use a piece of wood about 4 feet (1.25
meters) long to raise the front of the tractor.
If a piece of wood cannot be found, get
another person to help lift the tractor. Be
careful, do not let the tractor fall.
1. Raise the front of the tractor. Set a support
(block of wood) under the tractor.
2. Make sure the valve stem (2) is to the out-
side of the tractor. Slide the front wheel (1)
on the spindle (3).
3. Fasten each front wheel (1) with washer (4)
and cotter pin (5). Bend the ends of the
cotter pin (5) appart to keep the front wheel
(1) on the spindle (3).
4. After the front wheels (1) are installed, lift
the tractor from the support. Roll the tractor
off of the container.
5. If your tractor has hub caps (6), install the
hub caps (6). Make sure the washers (4)
hold the hub caps (6) in place.
How To Mount The Chute Deflector
(Figure 11)
For shipment, the chute deflector (1) is not
mounted in the operating position. Make sure
the chute deflector (1) is correctly mounted as
follows.
1. Put the chute deflector (1) in the operating
position.
2. Fasten the chute deflector (1) with bolt (2)
and nut (3).
3. Tighten the two nuts (3).
Check The Tyres
Check the air pressure in the tyres. Tyres with
too much air pressure will cause the unit to ride
rough. Also, the wrong air pressure will keep the
mower housing from cutting level. The correct
air pressure is: Front Tyres 0,97 BAR (14 PSI),
Rear Tyres 0,69 BAR (10 PSI). The tyres were
over inflated for shipment.
Check The Level Of The Mower
Housing
Make sure the level of cut is still correct. After
you mow a short distance, look at the area that
was cut. If the mower housing does not cut level,
see the instructions on “How To Level The
Mower Housing” in the Maintenance section of
this instruction book.
How To Install The Seat (Figure 2)
1. Carefully remove the plastic bag from the
seat (1).
2. Align the holes in the seat hinge (2) to the
holes in the seat (1). Fasten the seat (1) to
the seat hinge (2) with the fasteners (4) and
(5).
3. Check the operating position of the seat (1).
If the seat (1) needs to be adjusted, loosen
the two wing bolts (5). Slide the seat (1) for-
ward or backward along the seat adjusting
holes (3). Tighten the wing bolts (5).
How To Assemble The Steering Wheel
(Figure 3)
1. Make sure the front wheels point forward.
2. Slide the cover (3) over the steering post
(2). Make sure the collar of the cover (3) is
on top.
3. Slide the steering wheel (1) onto the steer-
ing post (2).
4. Attach the steering wheel (1) to the steer-
ing post (2) with screw (4) and washer (6).
5. Some models have an optional insert (7) in
the parts bag. Attach the insert (7) to the
center of the steering wheel (1).
Maintenance Free Battery (Figure 4)
IMPORTANT: Before you attach the battery
cables to the battery, check the battery date.
The battery date tells if the battery must be
charged.
1. Check the top of the battery (1) for the loca-
tion of the battery date.
2. If the battery (1) is put into service before
the , the battery cables can be attached with-
out charging the battery (1). See “How To
Install The Battery Cables”.
3. If the battery (1) is put into service after the ,
the battery (1) must be charged. See “How
To Charge The Maintenance Free Battery”.
How To Charge The Battery (Figure 4)
WARNING: When you charge the
battery, do not smoke. Keep the bat-
tery away from any sparks. The
fumes from the battery acid can cause an
explosion.
1. Remove the battery (1) and battery tray (3).
2. Remove the protective caps from the battery
terminals.
3. Use a 12 volt battery charger to charge the
battery (1). Charge at a rate of 6 amperes
for one hour. If you do not have a battery
charger, have an authorized service centre
charge the battery.
4. Install the battery (1) and battery tray (3).
Make sure the positive (+) terminal (4) is on
the left side.
How To Install The Battery Cables
(Figure 4)
WARNING: To prevent sparks, faste
n
the red cable to the positive (+) ter-
minal before you connect the black
cable.
1. Remove the protective caps from the battery
terminals.
2. Slide the terminal cover (2) onto the red
cable (5). Fasten the red cable (5) to the
positive (+) terminal (4) with the fasteners
(6) and (7).
3. Fasten the black cable 8 to the negative (–)
terminal with the fasteners (6) and (7).
How To Prepare The Engine
NOTE: The engine was shipped from the fac-
tory filled with oil. Check the level of the oil.
Add oil as needed.
See the engine manufacturer’s instructions for
the type of petrol and oil to use. Before you use
the unit, read the information on safety, oper-
ation, maintenance, and storage.
WARNING: Follow the engine manu-
facturer’s instructions for the type o
f
petrol and oil to use. Always use a
safety petrol container. Do not smoke when
adding petrol to the engine. When inside an
enclosure, do not fill with petrol. Before you
add petrol, stop the engine. Let the engine
cool for several minutes.
Important! Before You Start Mowing
Check the engine oil.
Fill the fuel tank with petrol.
Check the level of the mower hous-
ing.
Check the air pressure of the tyres.
Attach the battery cables.

GB
13
F–000741L
OPERATION
NOTE: Illustrations and pictorials begin on
page 2.
Location Of Controls (Figure 5)
Blade Rotation Control (1): Use the blade rota-
tion control to start and stop the rotation of the
blade.
Brake Pedal (2): Use the brake pedal to quickly
stop.
Headlight Switch (3): The headlight switch is
the first part of the ignition switch. To use the
lights with the engine running, turn the key to the
position for the lights.
Ignition Switch (3): Use the ignition switch to
start and stop the engine.
Speed Control Pedal (4): Use the speed con-
trol pedal to change the speed and the direction
of the unit.
Lift Lever (5): Use the lift lever to change the
height of cut.
Parking Brake Lever (6): Use the parking brake
lever to engage the brake when you leave the
unit.
Throttle Control Lever (7): Use the throttle
control lever to increase or decrease the speed
of the engine.
Automatic Drive disconnect (8): use the auto-
matic drive disconnect, located under the seat,
to disengage the transmission.
Attachments
This unit can use many different attachments.
This unit can pull attachments like a lawn
sweeper, a lawn aerator, or a hopper spreader.
This unit can not use attachments that engage
the ground like a plough, a disk harrow, or a
cultivator.
For trailer and pull–behind attachments, the
maximum weight is 113 kg (250 lbs.).
How To Use The Throttle Control
(Figure 5)
Use the throttle control (7) to increase or de-
crease the speed of the engine.
1. The FAST position is marked with a detent.
For normal operation and when using a
grass bagger, move the throttle control to the
FAST position. For maximum charging of the
battery and for a cooler running engine, oper-
ate the engine in the FAST position.
2. The engine governor is set at the factory for
maximum performance. Do not adjust the
governor to increase the speed of the en-
gine.
How To Use The Blade Rotation Control
(Figure 5)
Use the blade rotation control (1) to engage
the blade(s).
1. Before you start the engine, make sure the
blade rotation control (1) is in the DISEN-
GAGE position.
2. Move the blade rotation control (1) to the
ENGAGE position to rotate the blade(s).
NOTE: If the engine stops when you en-
gage the blade(s), the seat switch is not
activated. Make sure you sit in the middle
of the seat.
3. Move the blade rotation control (1) to the
DISENGAGE position to stop the blade(s).
Before you leave the operator’s position,
make sure the blade(s) has stopped rotating.
4. Before you ride the unit across a sidewalk or
a road, move the blade rotation control (1)
to the DISENGAGE position.
WARNING: Always keep your
hands and feet away from the
blade, deflector opening, and the
mower housing when the engine runs.
How To Use The Speed Control Pedal
(Figure 5)
The drive system uses a Hydrostatic Automatic
Drive transmission. The Hydrostatic trans-
mission is very easy to operate. This type of
drive system does not require a shift lever or a
clutch pedal.
The speed and direction of travel is controlled by
a single speed control pedal (4) operated with
your right foot. Do not use the left brake pedal in
normal operation. Only use the left brake pedal
to quickly stop in an emergency.
How To Drive Forward
1. (Figure 21) The automatic drive discon-
nect (1) must be in the DRIVE position (2).
2. Slowly release your left foot from the brake
pedal.
3. Move the throttle control to the FAST posi-
tion.
4. (Figure 20) Slowly push the speed control
pedal (1) forward (4) to the desired speed.
5. To increase forward speed, slowly move the
speed control pedal (1) forward. To reduce
forward speed, slowly release the speed
control pedal (1) until the unit slows to the
desired speed.
How To Drive In Reverse
1. Look to the rear.
2. Slowly push the speed control pedal (1) to
the REVERSE position (2).
How To Change Directions
CAUTION: To change directions, do not use
the left brake pedal. Use only the speed con-
trol pedal.
1. Slowly remove your foot from the speed
control pedal (1). The speed control pedal
(1) will automatically return to the NEUTRAL
position (3).
2. When the unit stops, slowly move the speed
control pedal (1) to the desired direction.
How To Disconnect The Transmission
(Figure 21)
To push the unit, use the automatic drive dis-
connect (1) to release the transmission. The
automatic drive disconnect (1) is under the
seat.
1. The engine must be off.
2. Raise the seat. The automatic drive dis-
connect (1) is under the seat.
3. Move and latch the automatic drive discon-
nect (1) in the PUSH position (3). The
transmission is now released and the unit
can be pushed.
NOTE: In cold weather, the heavy viscos-
ity oil in the transmission will make the
unit difficult to push.
4. To engage the transmission, unlatch the au-
tomatic drive disconnect (1). The trans-
mission is now connected and ready to
operate.
How To Use The Parking Brake
(Figure 5)
1. Completely push the brake pedal (2) for-
ward.
2. Lift the parking brake lever (6).
3. Remove your foot from the brake pedal (2)
and then release the parking brake lever
(6). Make sure the parking brake will hold the
unit.
4. To release the parking brake (6), completely
push the brake pedal (2) forward. The park-
ing brake will automatically release.
WARNING: Before you leave the
operator’s position, set the parking
brake. Move the blade rotation con-
trol to the DISENGAGE position. Stop the
engine and remove the ignition key.
How To Change The Cutting Height
(Figure 5)
To change the cutting height, raise or lower the
lift lever (5) as follows.
1. Move the lift lever (5) forward to lower the
mower housing and back to raise the mower
housing.
2. When you ride on a sidewalk or road, move
the lift lever (5) to the highest position and
move the blade rotation control to the DIS-
ENGAGE position.
How To Stop The Unit (Figure 5)
1. Slowly remove your foot from the speed
control pedal (4). The speed control pedal
(1) will automatically return to the NEUTRAL
position and the unit will stop.
2. Move the blade rotation control (1) to the
DISENGAGE position.
3. Set the parking brake (6).
WARNING: Make sure the parking
brake will hold the unit.
4. Move the throttle control (7) to the SLOW
position.
5. To stop the engine, turn the ignition key (3)
to the OFF position. Remove the key.
How To Transport The Unit
To transport the unit, follow the steps below.
1. Move the blade rotation control to the DIS-
ENGAGE position.
2. Raise the lift lever to the highest position.
3. Move the throttle control to a position be-
tween SLOW and FAST.

GB
14
F–000741L
4. Slowly push the speed control pedal forward
to the desired speed.
How To Operate With The Mower
Housing
IMPORTANT: When you operate with the
mower housing, always operate with the
throttle control in the FAST position.
1. Start the engine.
2. Move the lift lever to a height of cut position.
In high or thick grass, cut the grass in the
highest position first and then lower the
mower housing to a lower position.
3. Move the throttle control to the SLOW posi-
tion.
4. Slowly move the blade rotation control to the
ENGAGE position.
5. Move the throttle control to the FAST posi-
tion.
6. Slowly push the speed control pedal to the
desired speed.
NOTE: When you mow in heavy grass or
mow with a bagger, use a slow forward
speed.
7. Make sure the level of cut is still correct.
After you mow a short distance, look at the
area that was cut. If the mower housing does
not cut level, see the instructions on “How To
Level The Mower Housing” in the Mainten-
ance section.
WARNING: For better control of the
unit, select a safe speed.
How To Operate On Hills
WARNING: Do not ride up or down
slopes that are too steep to back
straight up. Never ride the unit
across a slope.
1. Control the speed only with the speed control
pedal. Do not use the brake pedal on a hill.
2. To help prevent an accident, slowly move the
speed control pedal. Avoid sudden turns or
changes in speed.
3. To reduce forward speed when going down a
hill, slowly release the speed control pedal
until the unit slows to the desired speed.
How To Stop On a Hill
1. Avoid stopping on a hill. If you must quickly
stop in an emergency, remove your right foot
from the speed control pedal and quickly de-
press the left brake pedal.
2. Set the parking brake.
3. Before you dismount from the seat, move the
throttle control to the SLOW position, move
the blade rotation control to the DISEN-
GAGED position, turn off the engine and set
the parking brake.
How To Start Operation On A Hill
1. Start the engine
2. Move the blade rotation control to the EN-
GAGED position.
3. Move the throttle control to the FAST posi-
tion.
4. Depress the brake pedal and release the
parking brake. As you release the parking
brake, push the speed control pedal to the
desired speed.
Slowly push the speed control
pedal as you release the parking
brake. The parking brake must be
disengaged before the speed control pedal
is able to engage the transmission.
Before Starting The Engine
Check the oil
NOTE: The engine was shipped from the fac-
tory filled with oil. Check the level of the oil.
Add oil as needed. See the engine manufac-
turer’s instructions for the type of petrol and
oil to use.
1. Make sure the unit is level.
NOTE: Do not check the level of the oil
while the engine runs.
2. Check the oil. Follow the procedure in the
engine manufacturer’s instructions.
3. If necessary, add oil until the oil reaches the
FULL mark on the dipstick. The quantity of oil
needed from ADD to FULL is shown on the
dipstick. Do not add too much oil.
Add Petrol
WARNING: Always use a safety
petrol container. Do not smoke
when adding petrol to the fuel tank.
Do not add petrol when you are inside an
enclosure. Before you add petrol, stop the
engine and let the engine cool for several
minutes.
(Figure 6) Fill the fuel tank (1) to the FULL (2)
position with regular unleaded petrol. Do not use
premium unleaded petrol. Make sure the petrol
is fresh and clean. Leaded petrol will increase
deposits and shorten the life of the valves.
How To Start The Engine
WARNING: The electrical system
has an operator presence system
that includes a sensor switch for
the seat. These components tell the
electrical system if the operator is sitting
on the seat. This system will stop the
engine when the operator leaves the seat if
the blade rotation control is engaged or if
the transmission is engaged. For your
protection, always make sure this system
operates correctly.
NOTE: The engine will not start unless you
depress the brake pedal or engage the park-
ing brake and move the blade rotation con-
trol to the DISENGAGE position.
1. Push the brake pedal completely forward.
Keep your foot on the pedal.
2. Make sure the blade rotation control is in the
DISENGAGE position.
3. Move the throttle control completely forward
to the CHOKE or FAST position. Some mo-
dels have a separate choke knob. Pull the
choke knob to the full CHOKE position.
4. Turn the ignition key to the START position.
NOTE: If the engine does not start after
four or five tries, move the throttle control
to the FAST position. Again try to start the
engine. If the engine will not start, see the
TROUBLE SHOOTING CHART.
5. Slowly move the throttle control to the SLOW
position.
6. To start a hot engine, move the throttle con-
trol to a position between FAST and SLOW.
Mowing And Bagging Tips
1. For a lawn to look better, check the cutting
level of the mower housing. See “How To
Level The Mower Housing” in the Mainten-
ance section.
2. For the mower housing to cut level, make
sure the tyres have the correct amount of air
pressure.
3. Every time you use the unit, check the blade.
If the blade is bent or damaged, immediately
replace the blade. Also, make sure the nut
for the blade is tight.
4. Keep the blade(s) sharpened. Worn blades
will cause the ends of the grass to turn
brown.
5. Do not cut or bag grass that is wet. Wet
grass will not discharge correctly. Let the
grass dry before cutting.
6. Use the left side of the mower housing to trim
near an object.
7. Discharge the cut grass onto the mowed
area. The result is a more even discharge of
cut grass.
8. When you mow large areas, start by turning
to the right so that the cut grass will dis-
charge away from shrubs, fences, driveways,
etc. After one or two rounds, mow in the op-
posite direction making left turns until fin-
ished.
9. If the grass is very high, cut two times to de-
crease the load on the engine. First cut with
the mower housing in the highest position
and then lower the mower housing for the
second cut.
10.For better engine performance and an even
discharge of the cut grass, always operate
the engine with the throttle in FAST position.
11.When you use a bagger, operate the engine
with the throttle in FAST position and the
speed control pedal pushed 1/3 to 1/2 for-
ward..
12.After each use, clean the bottom and top of
the mower housing for better performance.
Also, a clean mower housing will help pre-
vent a fire.
MAINTENANCE
NOTE: Illustrations and pictorials begin on
page 2.
General Recommendations
1. The owner’s responsibility is to maintain this
product. This will extend the life of the prod-
uct and is also necessary to maintain war-
ranty coverage.
2. Check the spark plug, drive brake, lubricate
the unit, and clean the air filter once a year.

GB
15
F–000741L
3. Check the fasteners. Make sure all fasteners
are tight.
4. Follow the Maintenance section to keep the
unit in good operating condition.
WARNING: Before you make an in-
spection, adjustment, or repair to
the unit, disconnect the wire to the
spark plug. Remove the wire from the
spark plug to prevent the engine from
starting by accident.
NOTE: Torque is measured in foot pounds
(metric Nm). This measurement describes
how tight a nut or bolt must be. The torque is
measured with a torque wrench.
Inspect Blade (Figure 7)
WARNING: Before you inspect or
remove the blade, disconnect the
wire to the spark plug. If the blade
hits an object, stop the engine. Check the
unit for damage. The blade has sharp
edges. When you hold the blade, use
gloves or cloth material to protect your
hands.
If you keep the blade (1) sharp and inspect the
blade for damage, the blade will cut better and
be more safe to operate. Frequently check the
blade for excessive wear, cracks, or other dam-
age. Frequently check the nut (3) that holds the
blade (1). Keep the nut (3) tight. If the blade hits
an object, stop the engine. Disconnect the wire
to the spark plug. See if the blade is bent or
damaged. Check the blade adapter (5) for dam-
age. Before you operate the unit, replace dam-
aged parts with original equipment parts. See
the authorized service centre in your area. Every
three years, have an authorized service person
inspect the blade or replace the old blade with
an original equipment part.
How To Remove And Install The Blade
(Figure 7)
1. Remove the mower housing. See the instruc-
tions on “How To Remove The Mower Hous-
ing”.
2. Use a piece of wood to keep the blade from
rotating.
3. Remove the nut (3) that holds the blade (1).
4. Check the blade (1) and the blade adapter
(5) according to the instructions for “Inspect
Blade”. Replace a badly worn or damaged
blade with an original equipment blade. See
an authorized service centre in your area.
5. Clean the top and bottom of the mower hous-
ing. Remove all the grass and debris.
6. Mount the blade (1) and blade adapter (5)
on the mandrel (6).
7. Mount the blade (1) so that the hi–lift edges
(7) are up. If the blade is upside down, the
blade will not cut correctly and can cause an
accident.
8. Fasten the blade (1) with the original
washers and nut (3). Make sure the outside
rim of the Belleville washer (2) is against
the blade (1).
WARNING: Always keep the nut (3)
tight that holds the blade (1). A
loose nut or blade can cause an
accident.
9. Tighten the nut (3) that holds the blade (1) to
a torque of 30 foot pounds (41,5 Nm).
10.Install the mower housing. See “How To Re-
move The Mower Housing”.
How To Adjust The Blade Rotation
Control
WARNING: To prevent an injury, the
blade rotation control must operate
correctly.
In normal usage, the blade rotation control will
not require an adjustment. However, if the cut-
ting performance decreases or the quality of cut
is poor, make the following changes.
1. When you mow, make sure the throttle con-
trol in in the FAST position.
2. (Figure 8 ) Move the blade rotation control to
the DISENGAGE position (1).
3. Stop the engine. Disconnect the wire from
the spark plug.
4. Check the blade(s). Keep a sharp edge on
the blade(s). A blade that is not sharp will
cause the tips of the grass to become brown.
5. (Figure 9) Disconnect the blade drive
spring (2) from the blade control rod (1).
Move the blade drive spring (2) to the
middle hole (4). This will increase the ten-
sion on the mower drive belt.
6. Attach the wire to the spark plug. Mow for a
short distance and again check the quality of
cut. If necessary, move the blade drive
spring (2) to the bottom hole (5)
7. Again check the quality of cut. If the quality of
cut has not improved, replace the mower
drive belt. See “How To Replace The Mower
Drive Belt”. If the replacing the belt does not
correct the problem, take the unit to an auth-
orized service centre.
8. Move the blade rotation control to the DIS-
ENGAGE position. Stop the engine.
9. (Figure 10) Check the operation of the blade
brake. Rotate the pulleys with your hand.
Make sure the brake pads (1) are pressed
tightly against the pulleys
WARNING: If the brake pads (1) do
not press tightly against the
pulleys, take the unit to an author-
ized service centre.
10. (Figure 8) Move the blade rotation control to
the ENGAGE position (2).
11. (Figure 10) Check the pads for the blade
brake (7). If the pads are excessively worn
or damaged, replace the brake pad assem-
blies. Correct replacement parts and assist-
ance are available from an authorized
service centre.
12.Attach the wire to the spark plug. Mow for a
short distance and again check the operation
of the blade rotation control.
13.When you move the blade rotation control to
the DISENGAGE position, all movement will
stop within five seconds. If there is move-
ment of the belt or the blades continue to ro-
tate, engage and disengage the blade
rotation control five times to remove any ex-
cess rubber from a new mower drive belt. If
you need assistance, take the unit to an
authorized service centre.
14. (Figure 9) If you replace the mower drive
belt, move the blade drive spring (2) to the
top hole (3).
How To Adjust The Speed Control Pedal
(Figure 19)
If the unit will not go into REVERSE or if the unit
moves very slowly in REVERSE, adjust the
speed control pedal (1) as follows.
1. Stop the engine.
2. Set the parking brake.
3. Remove the hair pin (3) from the adjuster
nut (2). Disconnect the adjuster nut (2)
from the yoke assembly (4).
4. Rotate the adjuster nut one turn in the direc-
tion shown in Figure 19.
NOTE: Too much adjustment will cause
the REVERSE speed to be too fast and
the FORWARD speed to be reduced.
5. Attach the adjuster nut (2) to the yoke as-
sembly (4) with the hair pin (3).
6. To check the adjustment, drive the unit. If
the adjustment is correct, the unit will now go
into REVERSE.
NOTE: if you need assistance, go to the
nearest authorized Service Centre. They
have the equipment and experience to make
the adjustment.
How To Check And Adjust The Motion
Drive Belt
(Figure 12 and Figure 19)
If the motion drive belt is loose, the belt will slip
when; going up a hill, pulling a heavy load, or the
unit will not move forward.
IMPORTANT: Always operate with the engine
speed in the FAST position. If the engine
speed is in a slow or moderate position, the
engine and transmission can become too hot
and cause problems that are similar to a
loose motion drive belt.
WARNING: Before you make an in-
spection, adjustment, or repair to
the unit, disconnect the wire to the
spark plug. Remove the wire from the
spark plug to prevent the engine from
starting by accident.
1. Check the routing of the motion drive belt.
Make sure the belt is installed correctly and
is inside all the belt guides.
2. (Figure 12) Remove the cotter pin (1),
washer (2), and brake spring (3) from the
adjustable nut (4).
3. Disconnect the adjustable nut (4) from the
brake lever assembly (5) and the parking
brake latch (6).
4. Use the cotter pin (1) removed in step 2.
Hold the cotter pin(1) at the back of the slot
and move the brake lever assembly rearward
against the cotter pin (1). This will set a 1/8
inch (3 mm) gap (8) between the brake
lever assembly and the back of the slot.
5. Turn the adjustable nut (4) until the nut will
fit through the hole in the brake lever (5).
6. Assemble the adjustable nut (4) to the
parking brake latch (6), brake lever (5) and
brake spring (3). Fasten with the washer (2)
and cotter pin (1).

GB
16
F–000741L
7. If the belt still slips after the belt has been
adjusted, then the motion drive belt is worn
or damaged and must be replaced. See
“How To Replace The Motion Drive Belt”.
How To Check And Adjust The Drive
Brake
(Figure 13)
Completely push the brake pedal forward. Move
the automatic drive disconnect to the PUSH
position. Push the unit. If the rear wheels rotate,
adjust or replace the brake pads. Adjust the
drive brake (1) as follows.
1. The location of the drive brake (1) is on the
right side of the gearbox (3).
2. Make sure the parking brake is set and the
automatic drive disconnect is in the PUSH
position.. Turn the hex nut (2) in a clockwise
direction until the rear wheels do not turn
when the unit is pushed forward.
3. Release the parking brake and push the unit.
If the unit does not roll, turn the hex nut (2)
in a counter–clockwise direction until the unit
rolls.
4. Set the parking brake. Push the unit. If the
rear wheels do not turn, the drive brake (1)
is correctly adjusted. Release the parking
brake.
WARNING: If you cannot correctly
adjust the drive brake, replace the
brake pads. Correct replacement
parts and assistance are available from an
authorized service centre.
How To Remove The Battery (Figure 4 )
To charge or clean the battery (1), remove the
battery (1) from the unit as follows.
WARNING: To prevent sparks, dis-
connect the black battery cable (8)
from the negative (–) terminal be-
fore you disconnect the red cable (5).
WARNING: The battery contains
sulphuric acid which is harmful to
the skin, eyes and clothing. If the
acid gets on the body or clothing, wash
with water.
1. Disconnect the black cable (8) from the
negative (–) terminal.
2. Disconnect the red cable (5) from the posi-
tive (+) terminal (4).
3. Lift the battery tray (3) and the battery (1)
out of the unit.
How To Charge The Battery (Figure 4)
WARNING: When you charge the
battery, do not smoke. Keep the
battery away from any sparks. The
fumes from the battery acid can cause an
explosion.
1. Before you charge the battery (1), remove
the battery (1).
2. To charge the battery (1), use a 12 volt bat-
tery charger. Charge at a rate of 6 amperes
for 1 hour.
3. Install the battery (1).
WARNING: To prevent sparks,
fasten the red cable to the positive
(+) terminal before you connect the
black cable.
4. Fasten the red cable (5) to the positive (+)
terminal (4) with the fasteners as shown.
5. Fasten the black cable (8) to the negative
(–) terminal with the fasteners as shown.
How To Level The Mower Housing
(Figure 14 and Figure 15)
If the mower housing is level, the blade will cut
easier and the lawn will look better.
WARNING: Before you make an in-
spection, adjustment, or repair to
the unit, disconnect the wire to the
spark plug. Remove the spark plug wire to
prevent the engine from starting by acci-
dent
1. Make sure the unit is on a hard flat surface.
2. Check the air pressure in the tyres. If the air
pressure is incorrect, the mower housing will
not cut level. Make sure the tyres are inflated
to: Front Tyres 0,97 BAR (14 PSI), Rear
Tyres 0,69 BAR (10 PSI).
3. (Figure 14) Move the lift lever (1) to the
lowest cut position (2).
WARNING: The lifter lever (3) is
spring loaded. Make sure the lift
lever (3) is locked in the lowest cut
position (2).
4. (Figure 15) Loosen the left and right ad-
juster knobs (1). Push down on each side of
the mower housing. Make sure both sides of
the mower housing are setting on a flat sur-
face. Also, make sure the lift links are loose
and can easily move up or down.
5. Push down on the lift links (2) and tighten
the left and right adjuster knobs (1). Make
sure the adjuster knobs (1) are tight. If
necessary, use a wrench to tighten the ad-
juster knobs (1).
6. (Figure 14) Raise the lift lever (1).
7. Mow for a short distance. If the height of cut
is not level, repeat the above steps.
Where To Lubricate (Figure 16)
Lubricate the areas shown
with engine oil.
Apply grease with a brush to
the areas shown.
Models with grease fittings:
Lubricate with grease gun.
NOTE: Apply grease to the steering gear as-
sembly.
CAUTION: If the unit is operated in dry areas
that have sand, use a dry graphite spray to
lubricate the unit.
Check The Tyres
Check the air pressure in the tyres. Tyres with
too much air pressure will cause the unit to ride
rough. Also, the wrong air pressure will keep the
mower housing from cutting level. The correct
air pressure is: Front Tyres 0,97 BAR (14 PSI),
Rear Tyres 0,69 BAR (10 PSI).
How To Replace The Motion Drive Belt
1. Remove the mower housing. See the instruc-
tions on “How To Remove The Mower Hous-
ing”.
2. Completely push the pedal forward and en-
gage the parking brake.
3. (Figure 17) Remove the idler pulley (1).
4. Disengage the parking brake.
5. Remove the V–idler pulley (5).
6. Remove the belt guides (3) at the middle
idler pulley (4).
7. (Figure 17) Remove the motion drive belt
(2) from the drive pulley (6).
8. (Figure 18) To remove the motion drive belt
(1) from the stack pulley (2), pull the front
end of the belt under the stack pulley (2)
and then back between the stack pulley and
the steering plate (3).
9. Remove the motion drive belt. A correct re-
placement part or assistance is available
from an Authorized Service Centre in your
area.
10.To install the motion drive belt, reverse the
above steps.
11. (Figure 22) Check the routing of the motion
drive belt (1). Make sure the motion drive
belt is installed correctly on the idler pulleys
(2).
How To Replace The Mower Drive Belt
(Figure 10)
1. Remove the mower housing. See the instruc-
tions on “How To Remove The Mower Hous-
ing”.
2. Pull the belt retainer (1) away from the idler
pulley (2) and remove the mower drive belt
(3).
3. Pull the belt retainer (4) away from the right
mandrel pulley (5) and remove the mower
drive belt (3).
4. Pull the belt retainer (4) away from the left
mandrel pulley (6) and remove the mower
drive belt (3). A correct replacement part or
assistance is available from an Authorized
Service Centre in your area.
5. To install the mower drive belt, reverse the
above steps.
How To Remove The Mower Housing
(Figure 23)
1. Move the blade rotation control (1) to the
DISENGAGE position.
2. Move the lift lever (2) to the level adjust-
ment position.
3. Remove the hair pins and the washers from
the adjuster arms (3). See illustrations “C”
and “D”.
4. Remove the hair pins and washers from the
suspension links (4). See illustrations “A”
and “B”.

GB
17
F–000741L
5. Disconnect the extension spring (5) from
the blade control rod (6). See illustration
“E”.
6. Disconnect the front hanger (9) from the
axle support. See illustration “F”.
7. Remove the mower drive belt (7) from the
stack pulley (8).
8. Pull the mower housing away from the right
side of the unit.
9. To install the mower housing, reverse the
above steps.
How To Replace The Fuse
If the fuse is blown, the engine will not start.
Remove the fuse and replace with a 15 amp.
automotive fuse.
Storage (over 30 days)
At the end of each year, prepare the unit for stor-
age as follows.
1. Drain the fuel from the carburettor and the
fuel tank. Change the engine oil. See the en-
gine manufacturer’s instructions.
2. Clean the entyre unit.
3. Charge the battery.
How To Order Replacement Parts
The replacement parts are shown either on the
back pages of this Instruction Book or in a sep-
arate Parts List Book.
Use only manufacturer’s authorized or approved
replacement parts. The letter placed on the end
of the part number denotes the type of finish for
the part, C for chrome, Z for zinc, a PA for pur-
chased assembly. It is important that you include
this when ordering a part. Do not use attach-
ments or accessories not specifically recom-
mended for this unit. In order to obtain proper
replacement parts you must supply the model
number of your mower (see nameplate).
Replacement parts, except for the engine, trans-
mission, transaxle or differential, are available
from the store where the mower was purchased
or a service shop recommended by the store.
If you are unable to obtain parts or service in the
manner outlined above, then contact:
AUSTRALIA
Holdings LTD of Campsie, NSW
Wade Street
Campsie, N.S.W. 2194
NEW ZEALAND
Sunbeam Victa Corporation LTD
1043 Tremaine Avenue
Palmerston North Wellington
Collect telephone calls will not be accepted.
Replacement parts for the engine, transaxle, or
transmission, are available from the manufac-
turer’s authorized service centre found in the
commercial pages of the telephone directory.
Also, see the individual engine or transmission
warranties to order replacement parts.
When ordering the following information is re-
quired: (1) The Model Number
(2) Serial Number
(3) Part Number
(4) Quantity

GB
18
F–000741L
TROUBLE SHOOTING CHART
PROBLEM: The engine will not start.
1. Follow the steps, “How To Start The Engine”
in this book.
2. Electric–Start Models: Clean the battery ter-
minals. Tighten the cables.
3. Check for a loose wire. Tighten the limit
switches. (See the wiring diagram.)
4. Drain the fuel tank. Clean the fuel line. Re-
place the fuel filter.
5. Remove the spark plug(s). Move the throttle
to the SLOW position. Turn the ignition key to
the ON position. Try to start the engine sev-
eral times. Install the spark plug.
6. Replace the spark plug.
7. Adjust the carburettor.
PROBLEM: The engine will not turn
over.
1. Follow the steps, “How To Start The Engine”
in this book.
2. Electric–Start Models: Charge the battery.
3. Replace the fuse.
4. Check the wiring harness for damage or a
loose connection. Repair the damaged wire.
5. Electric–Start Models: replace the solenoid.
Recoil–Start Models: replace the module.
PROBLEM: The engine is difficult to
start.
1. Adjust the carburettor.
2. Replace the spark plug.
3. Replace the fuel filter.
PROBLEM: The engine does not run
smooth or has a loss of power.
1. Check the oil.
2. Clean the air filter.
3. Clean the air screen.
4. Replace the spark plug.
5. The engine is working too hard. Use a lower
gear.
6. Adjust the carburettor.
7. Replace the fuel filter.
PROBLEM: The engine does not run
smooth at fast speed.
1. Replace the spark plug.
2. Adjust the throttle control.
3. Clean the air filter.
4. Replace the fuel filter.
PROBLEM: The engine stops when the
blades are engaged.
1. Check the wiring harness for damage or a
loose connection. Repair the damaged wire.
2. Grass bag must be installed (applies only to
model with rear discharge grass bag).
PROBLEM: On slopes, the engine
stops.
1. Mow up and down slopes. Never mow
across a slope.
PROBLEM: The engine will not idle.
1. Replace the spark plug.
2. Clean the air filter.
3. Adjust the carburettor.
4. Adjust the throttle control.
5. Drain the fuel tank. Clean the fuel line. Re-
place the fuel filter.
PROBLEM: A hot engine causes a de-
crease in power.
1. Clean the air screen.
2. Check the oil.
3. Adjust the carburettor.
4. Replace the fuel filter.
PROBLEM: Excessive vibration.
1. Replace the blade.
2. Check for loose engine bolts.
3. Decrease the air pressure in the tyres.
4. Adjust the carburettor.
5. Check for a damaged belt or damaged
pulley. Replace the damaged parts.
PROBLEM: The grass does not dis-
charge correctly.
1. Stop the engine. Clean the mower housing.
2. Raise the height of cut.
3. Replace or sharpen the blade(s).
4. Move the shift lever to a slower speed.
5. Move the throttle control to the FAST posi-
tion.
6. Replace the spring for the blade idler.
7. Clean the extension tube and the connector
tube (applies only to model with rear dis-
charge grass bag).
PROBLEM: The mower housing does
not cut level.
1. Check the air pressure in the tyres.
2. Adjust the level of the mower housing.
3. Check the front axle. If the front axle does
not freely pivot, loosen the axle bolt(s).
PROBLEM: The mower blades will not
rotate.
1. Check the mower drive belt. Make sure the
belt is installed correctly.
2. Replace the mower drive belt.
PROBLEM: The unit will not move when
the brake is released and the speed
control pedal is depressed.
1. Check the motion drive belt. Make sure the
belt is installed correctly.
2. Adjust the clutch.
3. Replace the motion drive belt.
4. Release the Automatic Drive Disconnect
under the seat.
PROBLEM: The unit moves slower or
stops when the speed control pedal is
depressed.
1. Adjust the clutch.
2. Replace the motion drive belt.
PROBLEM: When the brake pedal is re-
leased, belt noise can be heard.
1. Temporary belt noise does not change the
operation of the unit. If belt noise is continu-
ous, check the routing of the belt. Make sure
the belt is inside all belt guides.
2. If the noise is continuous, adjust the clutch.
PROBLEM: The rear wheels spin over
uneven terrain.
1. Check the front axle. If the front axle does
not freely pivot, loosen the axle bolt(s).

19
F–000741L
REPAIR PARTS

REPAIR PARTSMODEL 40564x88B (VRO 4015HX)
20
F–000741L

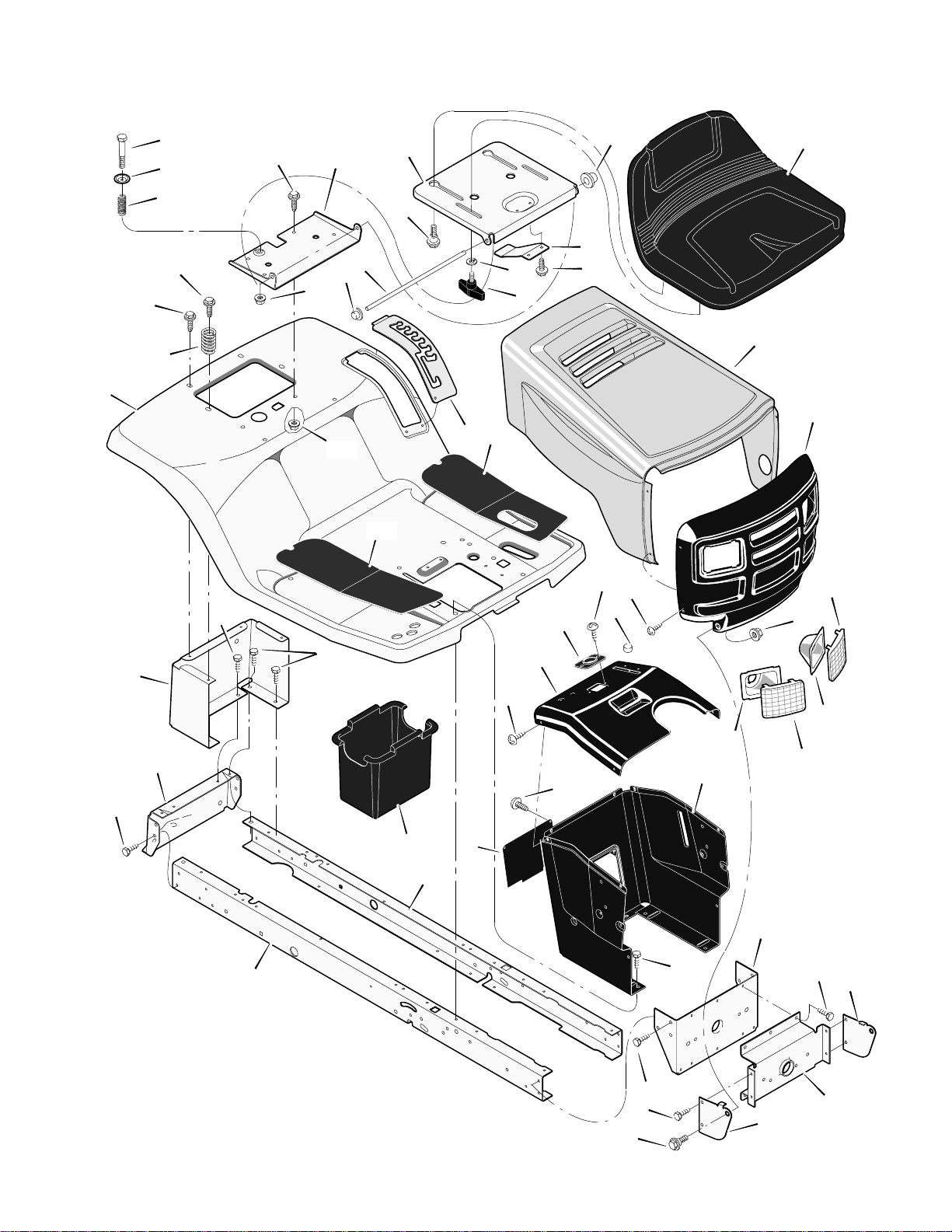

CHASSIS & HOOD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
24
21 23
25
26
27
28
29
28
35
31
32
33
34
31
31
36
37
38
16 39
40
41
42
16
16
16
43
44
45
16
46
47
16
16
2
30
