Videotec NVX User manual

EN
English - Instruction manual
IT
Italiano - Manuale di istruzioni
FR
Français - Manuel d’instructions
DE
Deutsch - Bedienungsanleitung
RU
Русский - Руководство по эксплуатации
ITALIANO
NVX, NTX
Stainless steel camera

EN
English - Instruction manual
ENGLISH
NVX, NTX
Stainless steel camera

Instruction manual - English - EN
3MNVCNVX_1915_EN
Contents
ENGLISH 1
1 About this manual ....................................................................................................................5
1.1 Typographical conventions ................................................................................................................................................ 5
2 Notes on copyright and information on trademarks.............................................................5
3 Note on data security ...............................................................................................................5
3.1 Introduction ............................................................................................................................................................................. 5
4 Safety rules................................................................................................................................6
5 Identification.............................................................................................................................8
5.1 Product description and type designation................................................................................................................... 8
5.1.1 NVX ...............................................................................................................................................................................................................8
5.1.2 NTX................................................................................................................................................................................................................8
5.2 Product Overview................................................................................................................................................................... 8
5.3 Product marking..................................................................................................................................................................... 9
5.3.1 Checking the markings.......................................................................................................................................................................... 9
6 Versions .....................................................................................................................................9
6.1 NVX.............................................................................................................................................................................................. 9
6.1.1 Version with integrated wiper............................................................................................................................................................. 9
6.1.2 Version without wiper............................................................................................................................................................................ 9
6.2 NTX ............................................................................................................................................................................................10
6.2.1 Germanium window.............................................................................................................................................................................10
7 Preparing the product for use ...............................................................................................10
7.1 Unpacking...............................................................................................................................................................................10
7.2 Safely disposing of packaging material .......................................................................................................................10
7.3 Contents ..................................................................................................................................................................................10
7.4 Preparatory work before installation.............................................................................................................................11

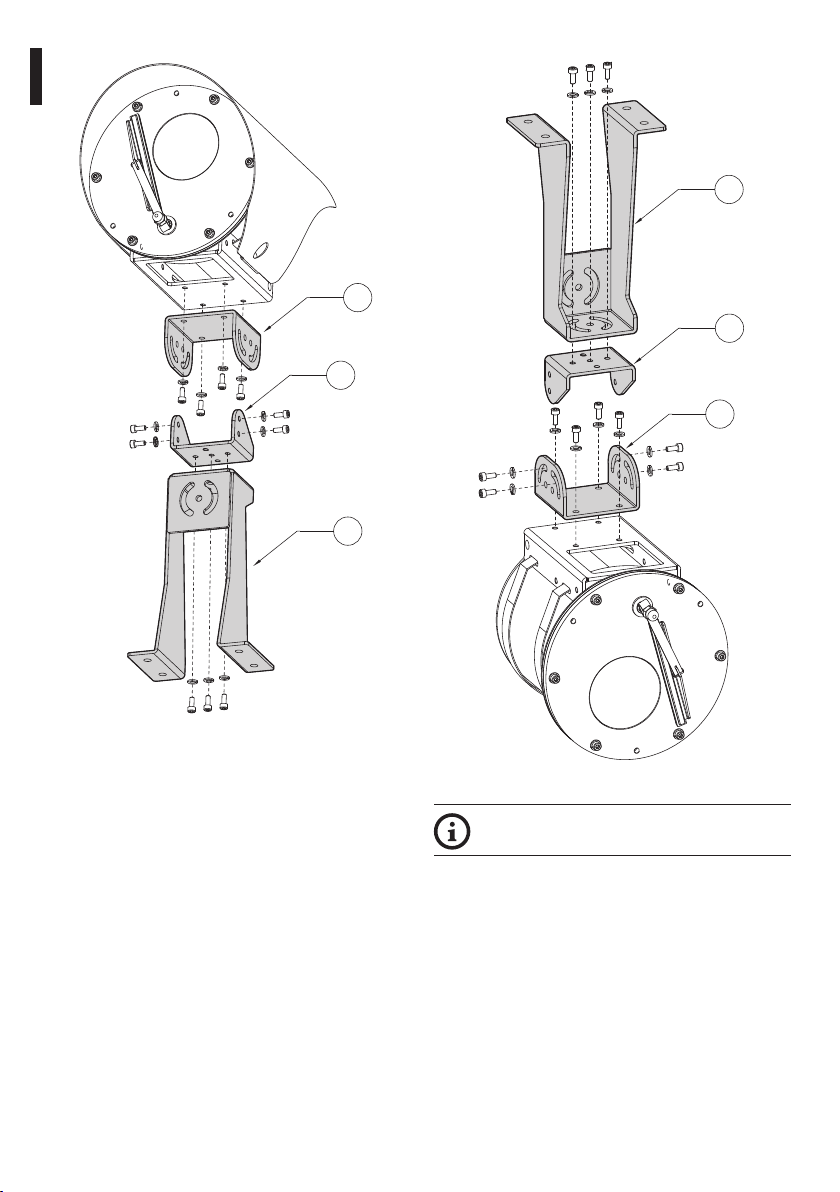

7.4.1 Wall, railing or ceiling fastening........................................................................................................................................................11

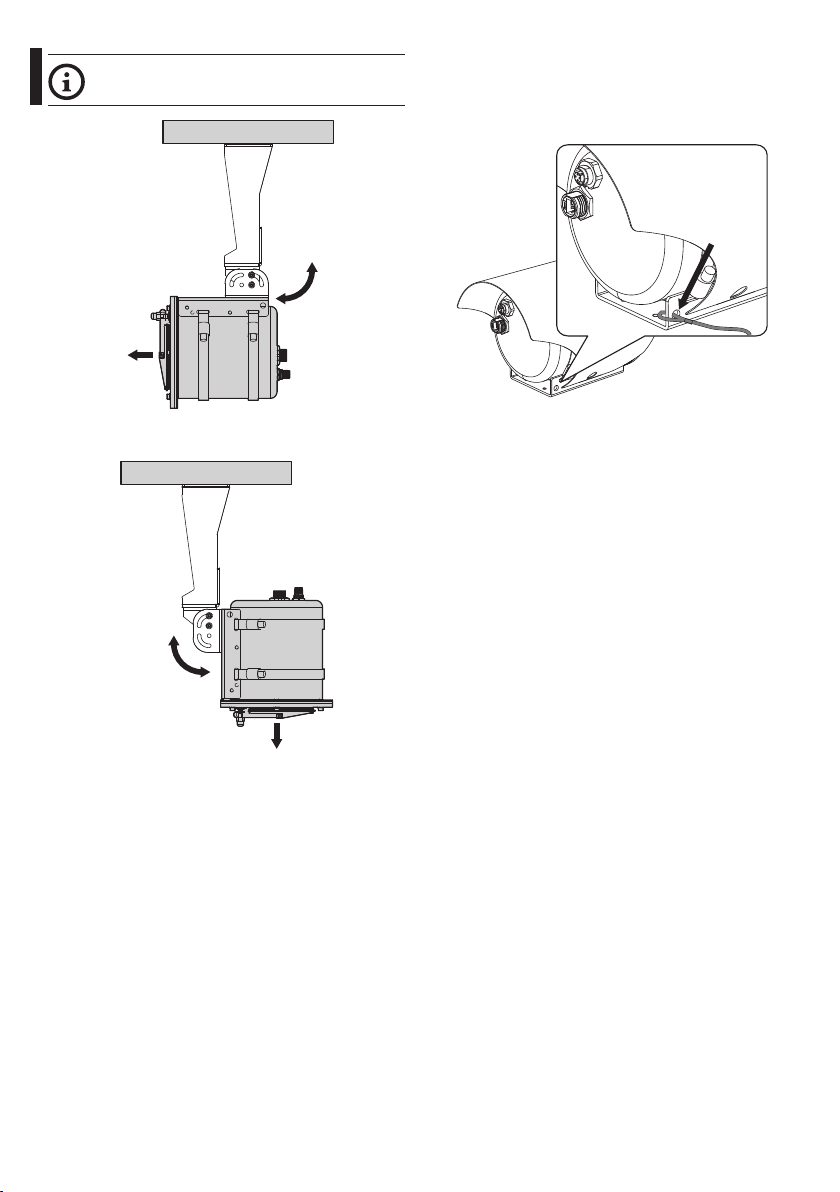

7.4.2 Installation options ...............................................................................................................................................................................13
8 Installation ..............................................................................................................................15

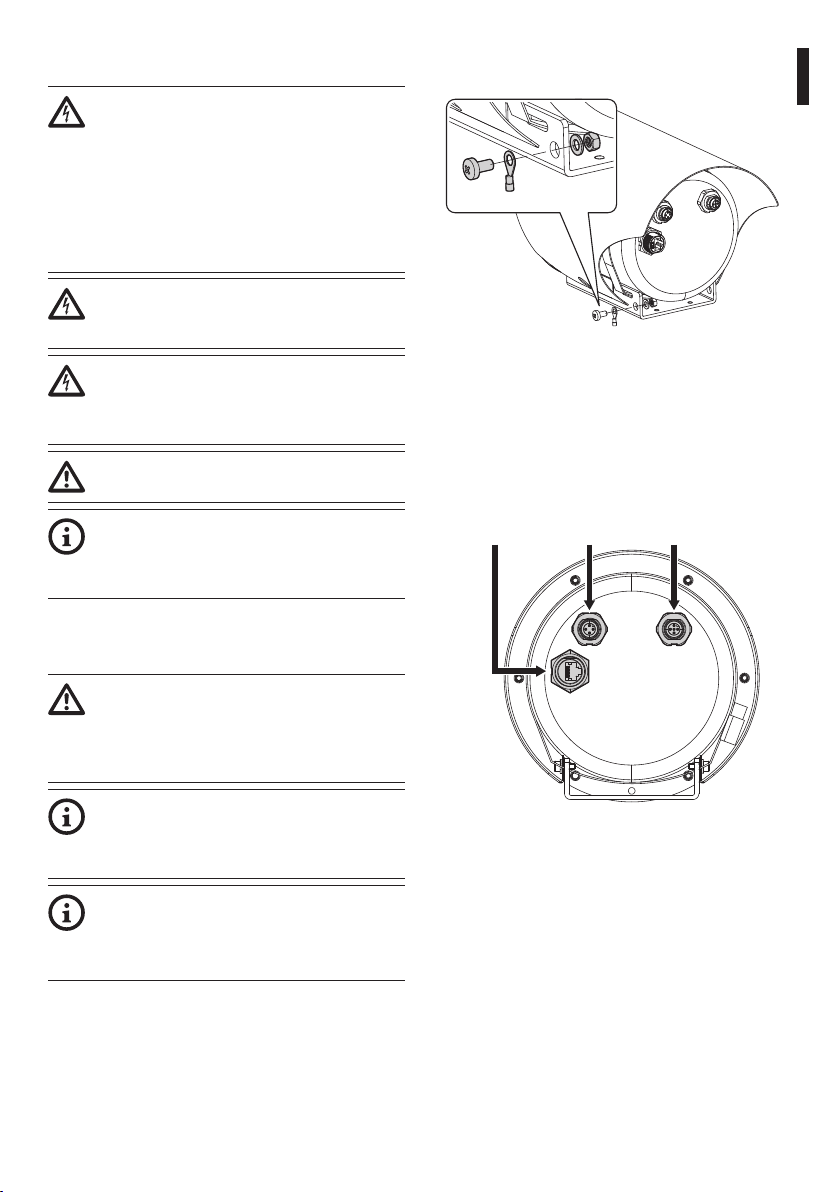

8.1 Connection of the power supply line............................................................................................................................15
8.2 Quick connectors cabling..................................................................................................................................................15
8.2.1 Mobile connectors cabling (power supply, I/O)..........................................................................................................................16
8.2.2 Relays connection..................................................................................................................................................................................17
8.2.3 Mobile connectors cabling (Ethernet) ...........................................................................................................................................18
8.2.4 Connection of the Ethernet cable....................................................................................................................................................19
9 Switching on ...........................................................................................................................19
10 Configuration........................................................................................................................20
10.1 Default IP address..............................................................................................................................................................20
10.2 Web interface ......................................................................................................................................................................20
10.2.1 First access to the web pages .........................................................................................................................................................20
11 Accessories and Supports....................................................................................................20
11.1 Washer....................................................................................................................................................................................20
11.2 Mounting bracket for LED illuminator........................................................................................................................21

EN - English - Instruction manual
4 MNVCNVX_1915_EN
11.3 LED illuminator ...................................................................................................................................................................21
11.4 Corner mount adaptor.....................................................................................................................................................21
11.5 Pole mount adaptor..........................................................................................................................................................21
11.6 Counter-plate ......................................................................................................................................................................22
11.7 Dust protection frontal shield.......................................................................................................................................22
12 Maintenance .........................................................................................................................22
12.1 Sunshield removal.............................................................................................................................................................22
12.2 Opening and closing the camera.................................................................................................................................23
12.3 Camera board description..............................................................................................................................................23
12.4 Fuse replacement...............................................................................................................................................................24
12.5 Factory Default ...................................................................................................................................................................24
12.5.1 Factory Default, NVX (version with wiper), NTX.......................................................................................................................24
12.5.2 Factory Default, NVX (version without wiper) ..........................................................................................................................24
13 Cleaning ................................................................................................................................25
13.1 Cleaning the window .......................................................................................................................................................25
13.2 Cleaning the germanium window...............................................................................................................................25
14 Information on disposal and recycling...............................................................................25
15 Technical data .......................................................................................................................26
15.1 NVX..........................................................................................................................................................................................26
15.1.1 General....................................................................................................................................................................................................26
15.1.2 Mechanical.............................................................................................................................................................................................26
15.1.3 Windows for camera...........................................................................................................................................................................26
15.1.4 Electrical .................................................................................................................................................................................................26
15.1.5 Network ..................................................................................................................................................................................................26
15.1.6 Video ........................................................................................................................................................................................................26
15.1.7 I/O interface...........................................................................................................................................................................................26
15.1.8 Cameras ..................................................................................................................................................................................................27
15.1.9 Environment..........................................................................................................................................................................................27
15.1.10 Certifications.......................................................................................................................................................................................27
15.1.11 Certifications - Railway applications..........................................................................................................................................27
15.1.12 Certifications - Marine applications ...........................................................................................................................................27
15.2 NTX..........................................................................................................................................................................................28
15.2.1 General....................................................................................................................................................................................................28
15.2.2 Mechanical.............................................................................................................................................................................................28
15.2.3 Windows for camera...........................................................................................................................................................................28
15.2.4 Electrical .................................................................................................................................................................................................28
15.2.5 Network ..................................................................................................................................................................................................28
15.2.6 Video ........................................................................................................................................................................................................28
15.2.7 I/O interface...........................................................................................................................................................................................28
15.2.8 Cameras ..................................................................................................................................................................................................29
15.2.9 Environment..........................................................................................................................................................................................31
15.2.10 Certifications.......................................................................................................................................................................................31
15.2.11 Certifications - Railway applications..........................................................................................................................................31
15.2.12 Certifications - Marine applications ...........................................................................................................................................31
16 Technical drawings ...............................................................................................................32

Instruction manual - English - EN
5MNVCNVX_1915_EN
1 About this manual
Read all the documentation supplied carefully before
installing and using this unit. Keep the manual in a
convenient place for future reference.
1.1 Typographical conventions
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
DANGER!
Mechanical hazard.
Risk of crushing or shearing.
DANGER!
Hot surface.
Avoid contact. Surfaces are hot and may
cause personal injury if touched.
CAUTION!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The mentioned names of products or companies are
trademarks or registered trademarks.
Microsoft Edge®, Windows XP®, Windows Vista®,
Windows 7®, Windows 8®, Windows 10® are the
property of Microsoft Corporation.
Google Chrome® is a trademark of Google LLC.
Mozilla Firefox® is a trademark of Mozilla Foundation.
INTEL® Core™ 2 Duo, INTEL® Core™ 2 Quad, INTEL®
Xeon® are the property of Intel Corporation.
ONVIF® is a trademark of Onvif, Inc.
3 Note on data security
3.1 Introduction
VIDEOTEC S.p.A. manufactures video surveillance
products exclusively for professional use. VIDEOTEC
S.p.A. products can be used in technical contexts
and for wide-ranging purposes, from controlling the
security of citizens to monitoring product processes
in risk areas to application for environmental
monitoring and protection.
Some of these uses can involve processing of
personal data by those using a video surveillance
system within which VIDEOTEC S.p.A. products are
installed and integrated.
The wide-ranging application scenarios prevent
definition of standard IT safety measures set by
default on products compatible with any use scenario
and technical context. In particular, certain security
measures (including measures composing a sector
standard in devices intended for non-professional
use) may be incompatible or unnecessary in
particular technical contexts or, on the contrary,
insufficient.

EN - English - Instruction manual
6 MNVCNVX_1915_EN
It is therefore indispensable that risk analysis linked
to IT security aspects, also in relation to applicable
local standards on personal data protection, are
performed by specialist staff responsible for end use
of the product.
The user of the product therefore, availing of
specialist staff in IT security, has to decide under his/
her exclusive responsibility whether to:
• Enable certain or all security functionalities offered
by the VIDEOTEC S.p.A. device;
• Implement different security measures at system
level;
• Combine the two options.
The aforementioned choice should be made based
on the specific technical and legislative context, as
well as the type of data processed using the video
surveillance system.
Given the type of technical contexts within which
VIDEOTEC S.p.A. devices are typically used, it is
not possible or would it ever be advisable that the
firmware for these devices automatically upgrades via
the Internet. Over time, VIDEOTEC S.p.A. could release
security upgrades for its devices, which should be
manually installed by the user, always by specialist
staff, if certain or all the security functionalities for
the device provided are enabled. The user is obliged
to be updated viaVIDEOTEC S.p.A. institutional
communication channels on the availability of
firmware security upgrades.
4 Safety rules
CAUTION! The electrical system to which
the unit is connected must be equipped
with a 10A max automatic bipolar circuit
breaker. This circuit breaker must be of
the Listed type. The minimum distance
between the circuit breaker contacts must
be 3mm (0.1in). The circuit breaker must be
provided with protection against the fault
current towards the ground (differential)
and the overcurrent (magnetothermal).
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
CAUTION! TNV-1 installation type. The
installation is type TNV-1, do not connect it
to SELV circuits.
CAUTION! For continued protection against
risk of fire, replace only with same type and
rating of fuse. Fuses must be replaced only
by service personnel.
• The manufacturer declines all responsibility
for any damage caused by an improper use
of the appliances mentioned in this manual.
Furthermore, the manufacturer reserves the right
to modify its contents without any prior notice.
The documentation contained in this manual has
been collected and verified with great care. The
manufacturer, however, cannot take any liability
for its use. The same thing can be said for any
person or company involved in the creation and
production of this manual.
• Before starting any operation, make sure the
power supply is disconnected.
• Be careful not to use cables that seem worn or old.

Instruction manual - English - EN
7MNVCNVX_1915_EN
• Never, under any circumstances, make any
changes or connections that are not shown in
this handbook. Improper use of the appliance
can cause serious hazards, risking the safety of
personnel and of the installation.
• Use only original spare parts. Non-original spare
parts could cause fire, electrical discharge or other
hazards.
• Before proceeding with installation, check the
supplied material to make sure it corresponds
to the order specification by examining the
identification labels (5.3 Product marking, page 9).
• Since the user is responsible for choosing the
surface to which the unit is to be anchored, we
do not supply the fixing devices for attaching the
unit firmly to the particular surface. The installer is
responsible for choosing fixing devices suitable for
the specific purpose on hand. Use methods and
materials capable of supporting at least 4 times the
weight of the device.
• Choose an installation surface that is strong
enough to sustain the weight of the device, also
bearing in mind particular environmental aspects,
such as exposure to strong winds.
• This device was designed to be permanently
secured and connected on a building or on a
suitable structure. The device must be permanently
secured and connected before any operation.
• Make sure the appliance is securely anchored
before supplying power.
• Equipment intended for installation in Restricted
Access Location performed by specialist technical
staff.
• Handle the product with care to avoid accidental
contacts, sharp edges and corners.
• The main insulation must be set up externally to
the product by a safety transformer and/or an
insulated direct current power supply unit.
• To feed the product use a safety transformer
and/or a voltage isolated power supply with the
appropriate characteristics. The characteristics
of output power must not exceed the following
values. Supply voltage: 24Vac (±10%) or 24Vdc
(±5%).
• A power disconnect device must be included
in the electrical installation, and it must be very
quickly recognizable and operated if needed.
• For technical services, consult only and exclusively
authorized technicians.
• Use adequate personal protective equipment
during installation.
• Comply with all the national standards during the
device installation.
• This is a Class A product. In a domestic
environment this product may cause radio
interference. In this case the user may be required
to take adequate measures.
• Connect the device to a power source
corresponding to the indications given on the
marking label. Before proceeding with installation
make sure that the power line is properly isolated.
• To comply with the main supply voltage dips and
short interruption requirements, use a suitable
Uninterruptable Power Supply (UPS) to power the
unit.
• Power the device using a mains power supply
24Vac, 24Vdc or, for models without a board for
video analysis, a PSE (Power Sourcing Equipment)
in compliance with IEEE 802.3at (PoE+).
• In the case of a 24Vac power supply, you must
provide for adequate separation from the AC
power supply line using double or reinforced
insulation between the main power supply line
and the secondary circuit.

EN - English - Instruction manual
8 MNVCNVX_1915_EN
5 Identification
5.1 Product description and type
designation
5.1.1 NVX
NVX is an IP FULL HD super low-light camera with
high corrosion resistance. This camera incorporates
the DELUX imaging and encoding technology for
recording incredibly clear colour video day or night.
The NVX external housing is made entirely from
AISI 316L stainless steel and has a compact and
lightweight design that, along with the quick
connectors, helps installation and maintenance.
The modular support for wall, ceiling or parapet
mounting is a standard feature.
It is available a version with integrated wiper and a
version with polycarbonate window for applications
in the food industry.
NVX has exceptional corrosion resistance, a wide
operational temperature range and IP66/IP67/IP68/
IP69 protection. These features mean it is well suited
to marine and industrial areas, motorway tunnels and
rail applications.

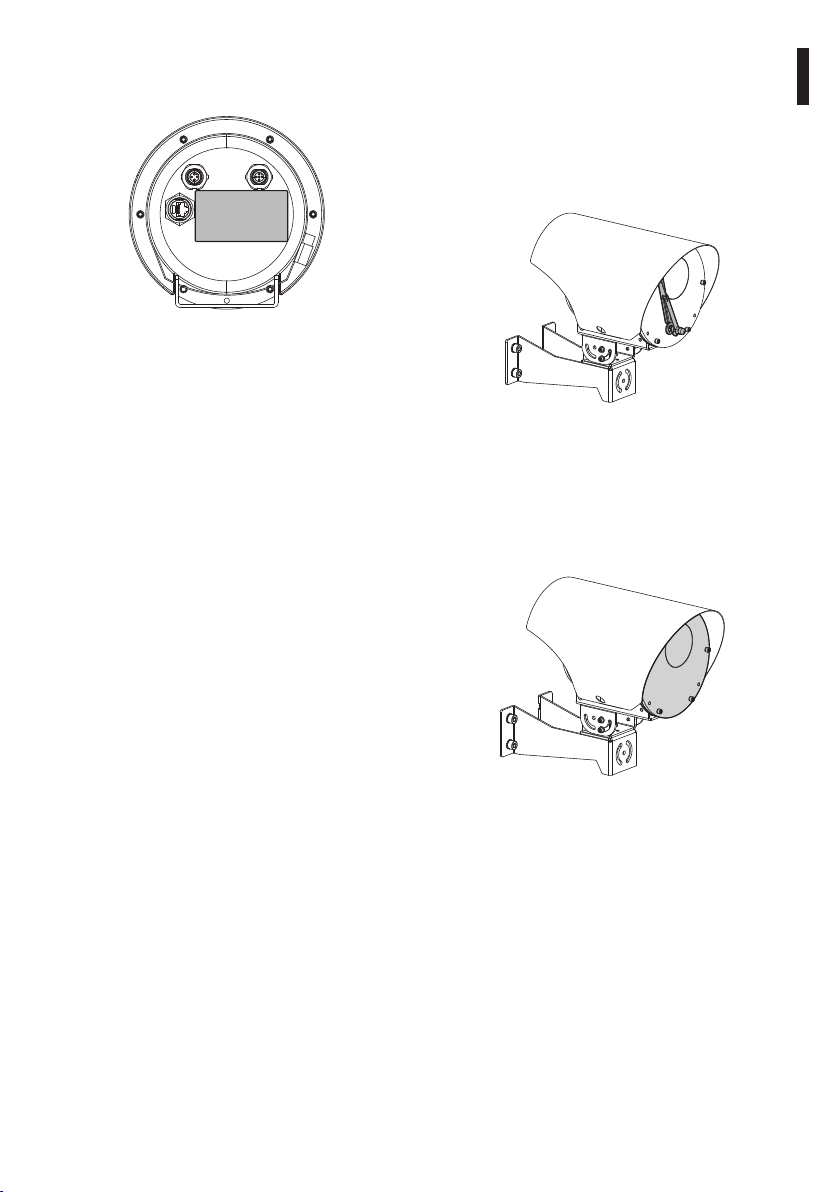

Fig. 1NVX.
5.1.2 NTX
NTX is a thermal IP camera with high corrosion
resistance.
The thermal camera provides vision in fog, rain,
smoke, across long-range distances or even in
complete darkness.
The germanium window has non-scratch treated,
antireflection, Hard Carbon Coating (DLC) on the
outside and antireflection inside; the spectral range
is from 7.5μm to 14μm.

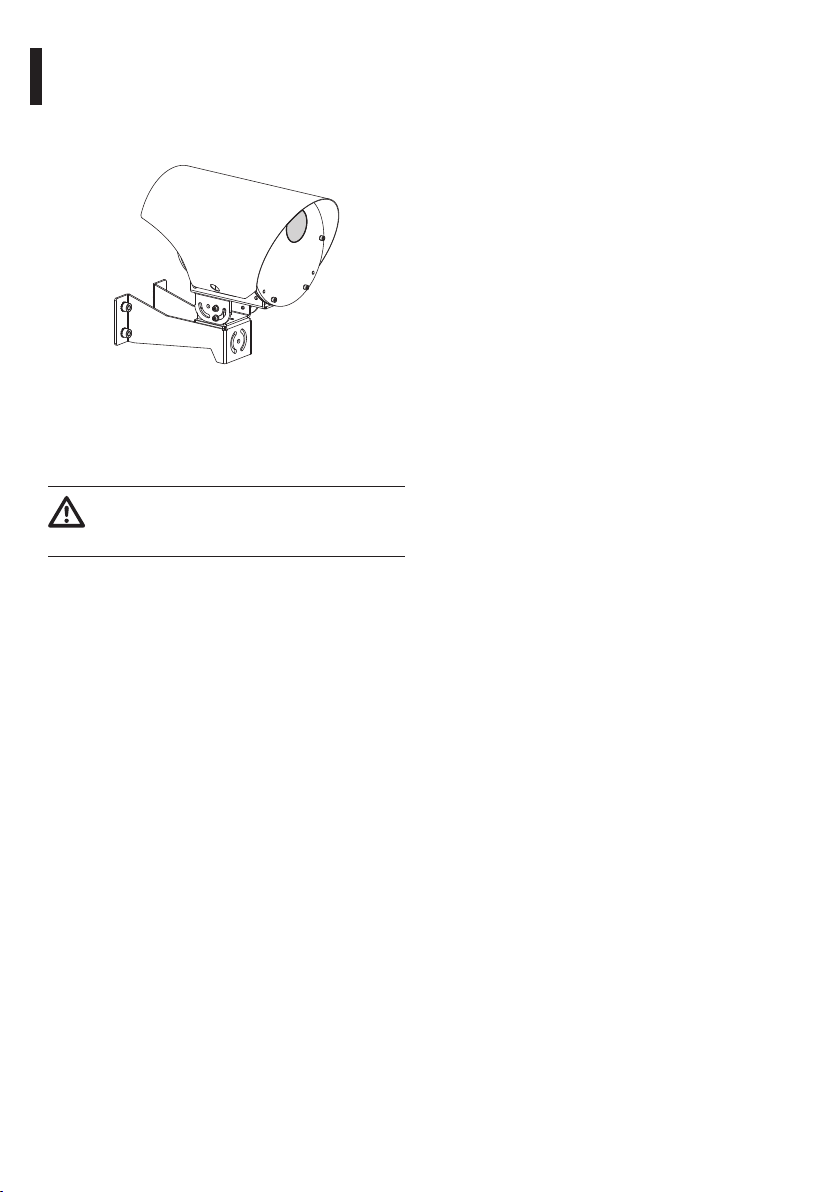

Fig. 2NTX.
5.2 Product Overview
The main parts of the product are illustrated below.
1. Fastening support.
2. Rotation support.
3. Camera support.
4. Sunshield.
5. Camera.
01
02
03
04
05
Fig. 3
