Viesta Viesta C2Z User manual

Self-su󰀩cient glass ceramic hob
Autarkes Glaskeramik-Kochfeld
Table vitrocéramique auto-su󰀩sante
Piano cottura vetroceramico independiente
Placa vitrocerámica independiente
Autarkische keramische kookplaat
MODEL
Viesta C2Z
Viesta C3Z
Viesta C4Z
Viesta C5Z
Instruction manual / Gebrauchsanleitung / Manuel d‘utilisation
Istruzioni per l’uso / Manual de instrucciones / Handleiding
KEN001ACK
21.08.2017 • v09
[English] [Deutsch] [Français] [Italiano] [Español] [Nederlands]
[p. 2 - 36] [S. 37 - 71] [p. 72 - 106] [p. 107 - 141] [p. 142 - 176] [p. 177 - 211]

[2]
[English]KEN001AKC 21.08.2017 • v09
Content
Content ...............................................................................................................2
Safety warnings .................................................................................................3
Product information ..........................................................................................7
Before using your new ceramic hob..............................................................12
Using your ceramic hob
Using the touch controls for Viesta C2Z, Viesta C3Z, Viesta C4Z.....................14
Locking the controls ..................................................................................... 16
Using the timer .............................................................................................17
Using the touch controls for Viesta C5Z ............................................................20
Locking the controls ..................................................................................... 22
Using the timer .............................................................................................23
Cooking guidelines .........................................................................................26
Heat settings ....................................................................................................27
Care and cleaning............................................................................................28
Hints and Tips ..................................................................................................29
Technical Specications .................................................................................29
Installation ........................................................................................................30
Before locating the xing brackets ............................................................... 33
Connecting the hob to the mains power supply ........................................... 35

[3]
[English]KEN001AKC 21.08.2017 • v09
Electrical shock hazard during installation
• Disconnect the appliance from the mains electricity supply before carrying out
any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualied
electrician.
• Failure to follow this advice may result in electrical shock or death.
Cut hazard
• Take extra precaution - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any
time.
• Please make this information available to the person responsible for installing
the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably
qualied person.
• This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or
liability claims.
Safety warnings
Your safety is important to us. Please read this information before using your
cooktop.
Please note that the induction hob must be installed by a qualie
technician.
Do not install yourself, as your warranty expires immediately when
not properly installed.

[4]
[English]KEN001AKC 21.08.2017 • v09
Electrical shock hazard during operation and maintenance
• Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance o󰀨 immediately at the mains power supply
(wall switch) and contact a qualied technician.
• Switch the cooktop o󰀨 at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.
Hot surface hazard
• During use, accessible parts of this appliance will become hot enough to
cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact
the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on
the hob surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other cooking zones that are on.
Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.
Health hazard
• This appliance complies with electromagnetic safety standards.

[5]
[English]KEN001AKC 21.08.2017 • v09
Important safety instructions
• Never leave the appliance unattended when in use.
Boil over causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn o󰀨 the cooking zones and the cooktop as described in
this manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is
in use.
• Children or persons with a disability which limits their ability to use the
appliance should have a responsible and competent person to instruct them in
its use.
The instructor should be satised that they can use the appliance without
danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specically
recommended in the manual.
All other servicing should be done by a qualied technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the ceramic glass
surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the ceramic glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications
such as:
-sta󰀨 kitchen areas in shops, o󰀩ces and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.

[6]
[English]KEN001AKC 21.08.2017 • v09
Important safety instructions
• WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously
supervised.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
• Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re.
NEVER try to extinguish a re with water, but switch o󰀨 the appliance
and then cover ame e.g. with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch o󰀨 the appliance to avoid
the possibility of electric shock, for hob surfaces of glass-ceramic or
similar material which protect live parts
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.

[7]
[English]KEN001AKC 21.08.2017 • v09
Congratulations on the purchase of your new Ceramic Hob.
We recommend that you spend some time to read this Instruction / Installation
Manual in order to fully understand how to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this Instruction /
Installation Manual for future reference.
Product information
Viesta C5Z
1. max. 1200 W zone
2. max. 2300/1600/800 W zone
3. max. 2000/1100 W zone
4. max. 1200 W zone
5. max. 1800 W zone
6. Glass plate
7. Control panel
Control panel
1. ON/OFF control
2. Cooking zone indicator
3. Power/Timer regulating controls
4. Oval Zone control
5. Dual/Triple Zone control
6. Timer Indicator
7. Keylock control
Top view

[8]
[English]KEN001AKC 21.08.2017 • v09
Power limitation function for C5Z
Group A
Group B (no limitation)
The 5 zones were divided into Group A and Group B. See above picture.
Power management function on Group A
If both zones are working on/above power stage 7, the two zones will be
automatically switched on and o󰀨 in turns, this is controlled by the software.
If only one zone is switched on or two zones are on below power level 7,
there will be no limitation by the software.
In Group B all zones work without limitation.

[9]
[English]KEN001AKC 21.08.2017 • v09
Product information
Viesta C4Z
Top view
1. max. 2000 W zone
2. max. 1200 W zone
3. max. 2200 W zone
4. max. 1200 W zone
5. Glass plate
6. Control panel
Control panel
1. Cooking zone selecting
2. Timer function
3. Power or timer regulating controls
4. Dual/oval ring control
5. Keylock control
6. ON/OFF control

[10]
[English]KEN001AKC 21.08.2017 • v09
Viesta C3Z
Top view
1. max. 1800 W zone
2. max. 1200 W zone
3. max. 2300 W zone
4. Glass plate
5. Control panel
Control panel
1. Cooking zone selecting
2. Timer Function
3. Power or timer regulating controls
4. Dual/oval ring control
5. Keylock control
6. ON/OFF control
Product information

[11]
[English]KEN001AKC 21.08.2017 • v09
Product information
Viesta C2Z
Top view
1. Glass plate
2. max. 1800 W zone
3. max. 1200 W zone
4. Control panel
Control panel
1. Cooking zone selecting
2. Timer function
3. Power or timer regulating controls
4. Key/lock control
5. ON/OFF control

[12]
[English]KEN001AKC 21.08.2017 • v09
A word on ceramic hob
The microcomputer ceramic cooker hob can meet di󰀨erent kinds of cuisine
demands because of resistance wire heating, micro-computerized control and
multi-power selection, really the optimal choice for modern families.
The ceramic cooker hob centers on customers and adopts personalized
design.
The hob has safe and reliable performances, making your life comfortable and
enabling to fully enjoy the pleasure from life.
Before using your new ceramic hob
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective lm that may still be on your ceramic hob.

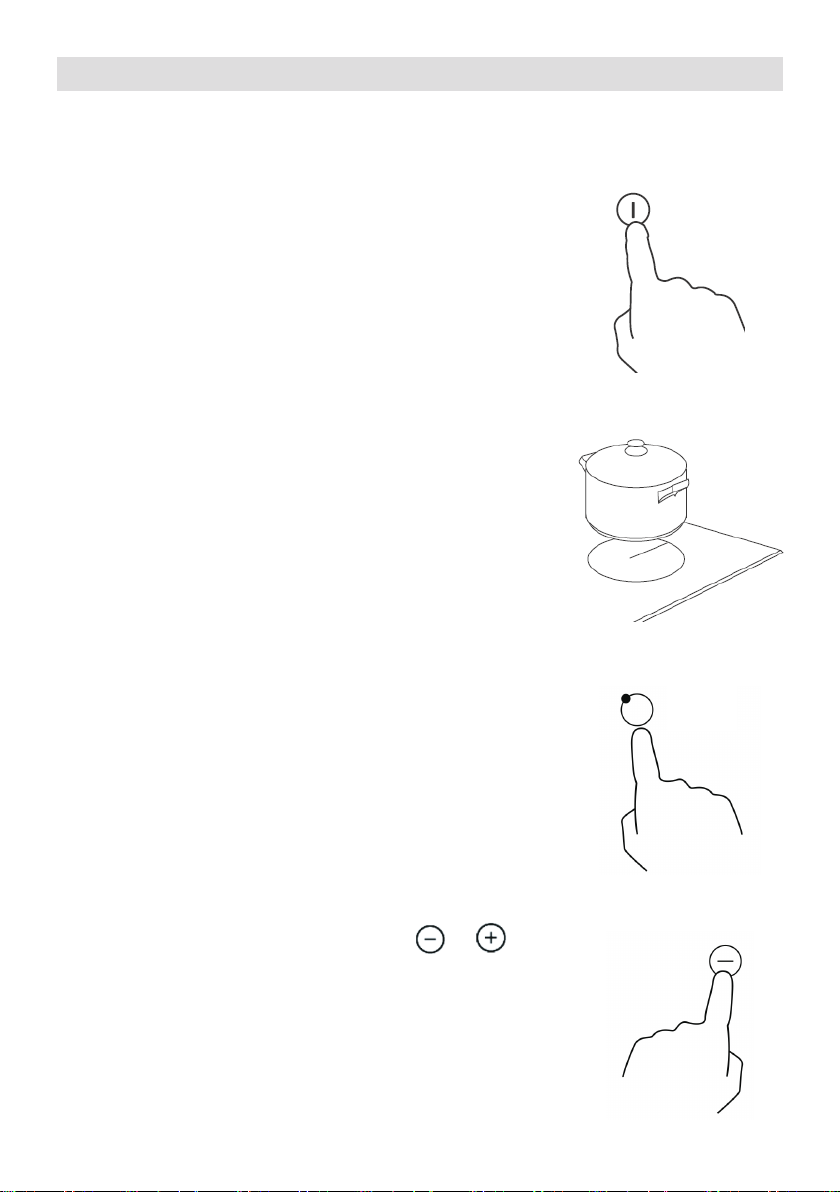

Using the touch controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your nger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object
(e.g. a utensil or a cloth) covering them.
Even a thin lm of water may make the controls di󰀩cult to operate.

[13]
[English]KEN001AKC 21.08.2017 • v09
Choosing the right cookware
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits at against the glass,
and is the same size as the cooking zone.
Always centre your pan on the cooking zone.
Always lift pans o󰀨 the ceramic hob – do not slide, or they may scratch the glass.

[14]
[English]KEN001AKC 21.08.2017 • v09
Using your ceramic hob
To start cooking
1. Touch the ON/OFF control, the buzzer beeps once,
all the indicators light up for 1 second then go out,
indicating that the ceramic hob has entered the state
of standby mode.
2. Place a suitable pan on the cooking zone that
you wish to use.
• Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
4. Select a heat setting by touching the or
control.
• If you don’t choose a heat setting within 1 minute, the
ceramic hob will automatically switch o󰀨.
You will need to start again at step 1.
• You can modify the heat setting at any time during
cooking.
• By holding down either of these buttons, the value will
adjust up or down.
3. Touching the heating zone selection control
for Viesta C2Z, Viesta C3Z and Viesta C4Z

[15]
[English]KEN001AKC 21.08.2017 • v09
Using your ceramic hob
2. Turn the cooking zone o󰀨 by touching the “-“ and scrolling down to “0 “.
3. Turn the whole cooktop o󰀨 by touching the “ON/OFF”
control.
4. Beware of hot surfaces
“H” will show which cooking zone is hot to touch.
It will disappear when the surface has cooled down to a
safe temperature.
It can also be used as an energy saving function if you
want to heat further pans, use the hotplate that is still hot.
5. Touch the heating zone selection control, then touch the or key,
dual ring zone will begin to work.
The LED indicator will light up, which is on the left side of the double re key.
When you have nished cooking
1. Touch the heating zone selection control that you wish
to switch o󰀨.

[16]
[English]KEN001AKC 21.08.2017 • v09
Locking the controls
• You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are
disabled.
Zum Sperren der Tasten
Touch the keylock control .
The timer indicator will show “Lo”.
To unlock the controls
1. Make sure the ceramic hob is turned on.
2. Touch and hold the keylock control for a while.
3. You can now start using your ceramic hob.
When the hob is in the lock mode,all the controls are disable except the
ON/OFF , you can always turn the ceramic hob o󰀨 with the
ON/OFF control in an emergency, but you shall unlock the hob rst in
the next operation.
Over-temperature protection
A temperature sensor equipped can monitor the temperature inside the
ceramic hob.
When an excessive temperature is monitored, the ceramic hob will stop
operation automatically.
Residual heat warning
When the hob has been operating for some time,there will be some residual
heat. The letter “H” appears to warn you to keep away from it.
Auto shutdown
Another safety feature of the hob is auto shutdown.
This occurs whenever you forget to switch o󰀨 a cooking zone.
The default shutdown times are shown in the table below.
Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8 8 4 4 4 2 2 2

[17]
[English]KEN001AKC 21.08.2017 • v09
Using the timer
Using the timer as a minute minder
You can use the timer in two di󰀨erent ways:
• You can use it as a minute minder. In this case, the timer will not turn any
cooking zone o󰀨 when the set time is up.
• You can set it to turn one cooking zone o󰀨 after the set time is up.
• You can set the timer up to 99 minutes.
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: you can use the minute minder even if you’re not selecting any cooking
zones.
2. Touch the timer control
3. Adjust the timer setting by touching
the „-“ oder „+“ controls.
The minute minder indicator will start ashing
and will show in the timer display.
Hint: Touch the “-” or “+” control of the timer once will decrease or increase by
1 minute.
Touch and hold the “-” or “+” control of the timer will decrease or increase by
10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically return to
0 minute.
4. Touch the heating zone selection control, and then touch the ‘timer’, the timer
is cancelled, and the ”--“ will show in the minute display.

[18]
[English]KEN001AKC 21.08.2017 • v09
Setting the timer to turn one cooking zone o󰀨
1. Touching the heating zone selection control
2. Touch the timer control, the timer indicator will start
ashing and “30” will show in the timer display
3. Set the time by touching the control of the timer
Hint: Touch the “-” or “+” control of the timer once will decrease or increase by
1 minute.
Touch and hold the “-” or “+” control of the timer will decrease or increase by
10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically return to
0 minute.
4. Touch the heating zone selection control, and then touch the ‘timer’, the timer
is cancelled, and the ”--“ will show in the minute display.
5. When the time is set, it will begin to count down
immediately.
The display will show the remaining time and the timer
indicator will ash for 5 seconds.
6. Buzzer will beep and the timer indicator will
show “- - “ when the set time nished.

[19]
[English]KEN001AKC 21.08.2017 • v09
Setting the timer to turn more than one cooking zone o󰀨
1. If more than one heating zone use this function, the timer indicator will show
the lowest time.
NOTE: The red dot next to power level indicator will ash.
5. When the time is set, it will begin to count down
immediately. The display will show the remaining time
and the timer indicator ash for 5 seconds.
Note: The red dot next to power level indicator
will illuminate indicating that zone is selected.
(set to 15 minutes)
(set to 45 minutes)
2. When cooking timer expires, the corresponding
cooking zone will be switch o󰀨 automatically.
NOTE: If you want to change the time after the timer is set, you have to start
from step 1

[20]
[English]KEN001AKC 21.08.2017 • v09
Using your ceramic hob
To start cooking
1. Touch the ON/OFF control, the buzzer beeps once,
all the indicators light up for 1 second then go out,
indicating that the ceramic hob has entered the state
of standby mode.
2. Place a suitable pan on the cooking zone that
you wish to use.
• Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
4. Select a heat setting by touching the “-” or “+” control.
Then touch the or , key, dual ring zone will begin to work.
Touch the key again, the triple ring zone will begin to work.
The LED indicator will light up, which is on the left side of the dual/triple ring
key.
3. Select a heat setting by touching the or
control.
Then touch the or to adjust the heating stage.
• If you don’t choose a heating stage within 1 minute,
the ceramic hob will automatically switch o󰀨.
You will need to start again at step 1.
• You can modify the heat setting at any time during
cooking.
for Viesta C5Z
