Viewpro Great Shark User manual

Great Shark F320 Manual
Great Shark
VTOL UAV
M o d e l N o : F 3 2 0
ViewproUAV Tech. Ltd
Official website: www.viewprotech.com / Shop website: www.viewprouav.com

Great Shark F320 Manual
ViewproUAV Tech. Ltd 1
Content
Content........................................................................................................................................1
Disclaimer................................................................................................................................... 3
Safety Caution.............................................................................................................................3
Ⅰ. Introduction.......................................................................................................................... 5
Ⅱ. Warning.................................................................................................................................6
Ⅲ. Installation............................................................................................................................ 7
1. Packing list........................................................................................................................8
2. Left and right VTOL arm................................................................................................... 9
3. Form partition.................................................................................................................. 9
4. Center wing.................................................................................................................... 10
5. Left and right wing......................................................................................................... 11
6. Tail wing..........................................................................................................................12
7. Fastening screws.............................................................................................................12
8. Other Accessories...........................................................................................................13
9. Install center wing.......................................................................................................... 14
10. Insert reinforced carbon tube...................................................................................... 15
11. Install left and right VTOL arm......................................................................................15
12. Install left and right wing..............................................................................................16
13. Install tail wing..............................................................................................................17
14. Install propeller............................................................................................................ 18
15. Install battery ............................................................................................................. 19
16. Install gimabl................................................................................................................ 21
Ⅳ. RC........................................................................................................................................ 23
Ⅴ. Ground Control Station...................................................................................................... 26
1. Ground station introduction.......................................................................................... 26

Great Shark F320 Manual
ViewproUAV Tech. Ltd 2
2. Ground station software................................................................................................ 27
3. Ground station connection............................................................................................ 28
4. Ground station function expansion................................................................................29
Ⅵ. Basic Flight.......................................................................................................................... 30
1. Compass calibration....................................................................................................... 30
2. Aircraft power up........................................................................................................... 34
3. RC action and flight attit ...............................................................................................37
Ⅶ. Batteries Useing Method....................................................................................................38
Ⅷ. Charger................................................................................................................................43

Great Shark F320 Manual
ViewproUAV Tech. Ltd 3
Disclaimer
Thank you very much for choosing this product. If you want to know more about this product
beyond the user manual, please visit our website or contact with our sales. The user manual is
subject to update without prior notice.
To use this product before , please read this statement carefully. Once used, this statement will be
deemed to have been fully accepted and accepted internally. Please strictly comply with the user
manual to install and operate this product. Viewpro will not be liable for any damage or damage
caused by improper installation and use of the product.
Safety Caution
1) When this product works, the high-speed rotation of the propeller will bring different degrees
of damage and damage to people and articles. Therefore, when you use this product, please
do not use it in places with many people or complicated environment.
2) Please abide by local laws and regulations when using any products of our company.
3) Before use, please read the operation manual carefully and watch the video of the aircraft
operation process. Our company will not be liable for any loss caused by violation of the
relevant operation process.
4) Do not modify the parameters of the remote control. When it is used, the remote control
must be turned on before the aircraft is powered on. When power is cut off, the remote
control must be turned off before the aircraft is powered off.
5) Do not overcharge or put the battery. The two connectors should be connected to the charger
at the same time to charge the battery. The red light is always on during charging, and the
green light is on after charging;The storage voltage of a single battery is controlled at about
3.85V, the total voltage of a 3S battery is controlled at about 11.55V, the total voltage of a 4S
battery is controlled at about 15.4V, and the total voltage of a 6S battery is controlled at
about 23.1V.
6) Before the flight mission, please confirm the battery voltage;
7) Keep away from unsafe factors, such as obstacles, people, children, buildings, high-voltage
lines, trees, etc.
8) Do not get close to or touch the rotating motor or propeller to avoid being cut by the rotating
propeller.
9) Be sure to fly under the safe take-off weight in case of danger.
10) Before flight, please check whether the propeller and arm are properly installed and firmly.
11) When using the ground station to operate the UAV, the captain and pilot should have relevant
operating qualifications.
12) The operator must have relevant experience in aircraft operation.Novices must be trained in
simulators to operate the training machine after they have mastered the simulated aircraft.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 4
Ⅰ. Product Introduction
The Great Shark F320 is a typical vertical take-off and landing (VTOL) UAV. Fuselage
structure adopts 4-axis vertical take-off and landing and fixed wing tail push. The
aircraft is made of carbon fiber composite material. A lighter body with a larger
battery capacity. It determines that the aircraft has a relatively long flight time.
It is widely used in investigation, monitoring, tracking, power grid detection, pipeline
inspection, maritime patrol, mapping，aerial photograph and other fields.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 5
Ⅱ. Warning
Please read this instruction carefully before using it.
Installation Precautions
When installing the motor arm, be sure to correspond to the number of the motor arm and
the body. Pay attention to vertical mating to ensure reliable insertion.
Be sure to use the supporting equipment provided by our company during installation, such
as landing gear and batteries.
When the installation is complete, check whether the appearance of the drone is obviously
damaged or abnormal. Pay special attention to whether the propeller is worn.
It is prohibited to disassemble unmanned aerial vehicles, handheld ground stations and
other equipment without the guidance of professionals.
Flight Precautions
Beginners try to avoid operating alone, and it is recommended to fly under the guidance of
professionals.
Keep away from unsafe factors such as obstacles and children when flying.
Before takeoff, flight controllers and assistants are obliged to ask surrounding personnel to
take off and land at a safe distance of 10 meters. Do not approach or touch the rotating
motor or propeller to avoid being cut by the rotating propeller.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 6
Before flying, please check whether the motor arm is installed correctly and firmly. Make
sure to check whether the parts of the drone are in good condition. If the parts are aging or
damaged, please do not fly.
The drone's flight attitude is disordered during flight, indicating that it is severely interfered
by the magnetic field. Please quickly switch to manual mode, and manually stabilize the
attitude before landing the drone safely.
If you encounter problems that cannot be solved during use, please contact our customer
service staff.
Please strictly observe the above precautions, otherwise you will be responsible for all
the consequences.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 7
Ⅲ. F320 Installation
1. Packing list
①
Left VTOL arm
②
Right VTOL arm
③
Center wing
④
Left wing
⑤
Right wing
⑥
Left tail wing
⑦
Right tail wing
⑧
RC
⑨
Propeller
⑩
Charger
Other
Screw pack, Receiver antenna, Antenna sucker, Image Receiver,

Great Shark F320 Manual
ViewproUAV Tech. Ltd 8
2. Take out left and right VTOL arm
3. Take out 2 form partition

Great Shark F320 Manual
ViewproUAV Tech. Ltd 9
4. Take out center wing

Great Shark F320 Manual
ViewproUAV Tech. Ltd 10
5. Take out left and right wing

Great Shark F320 Manual
ViewproUAV Tech. Ltd 11

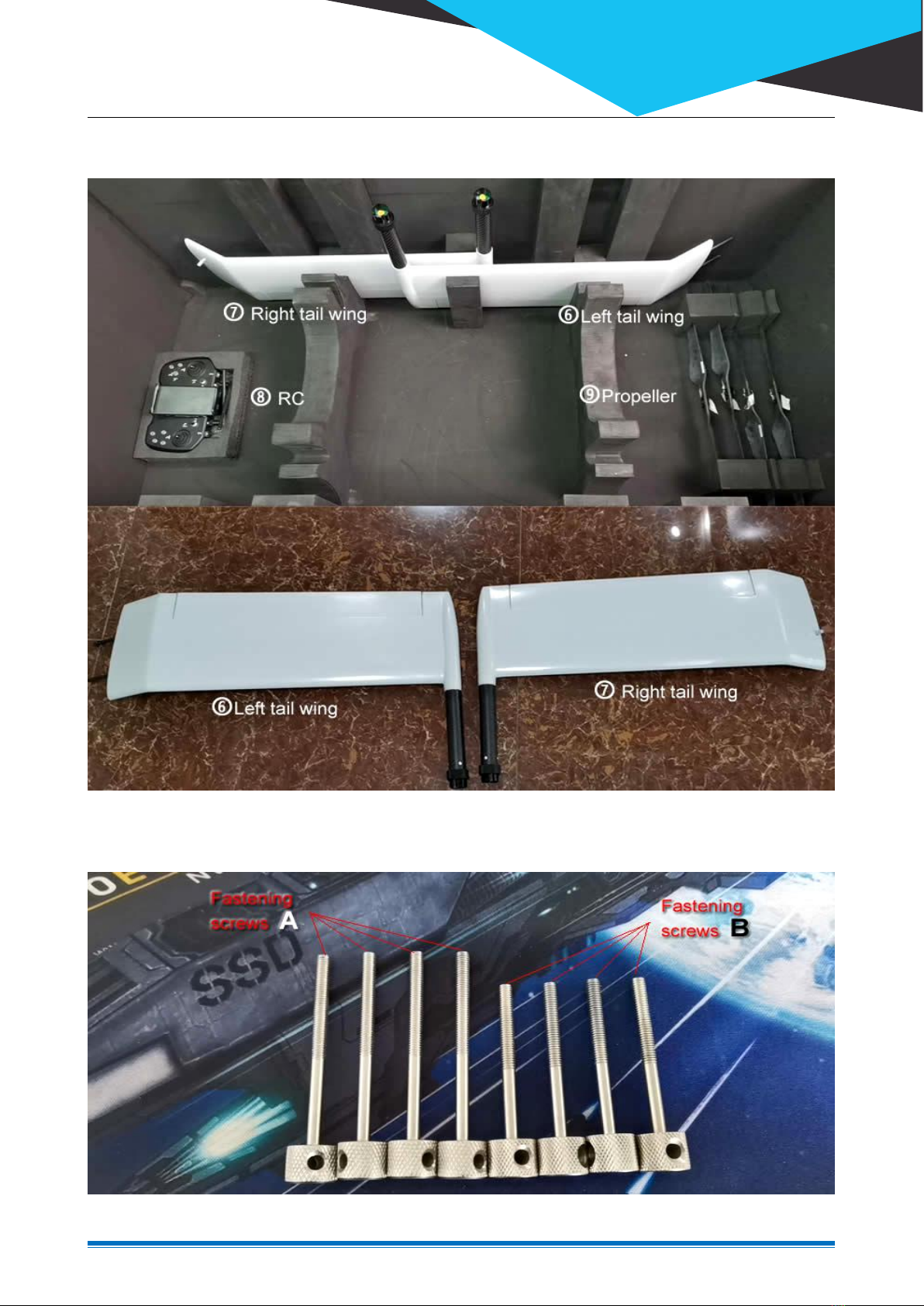

6. Take out left and right tail wing
7. Take out fastening screws

Great Shark F320 Manual
ViewproUAV Tech. Ltd 12

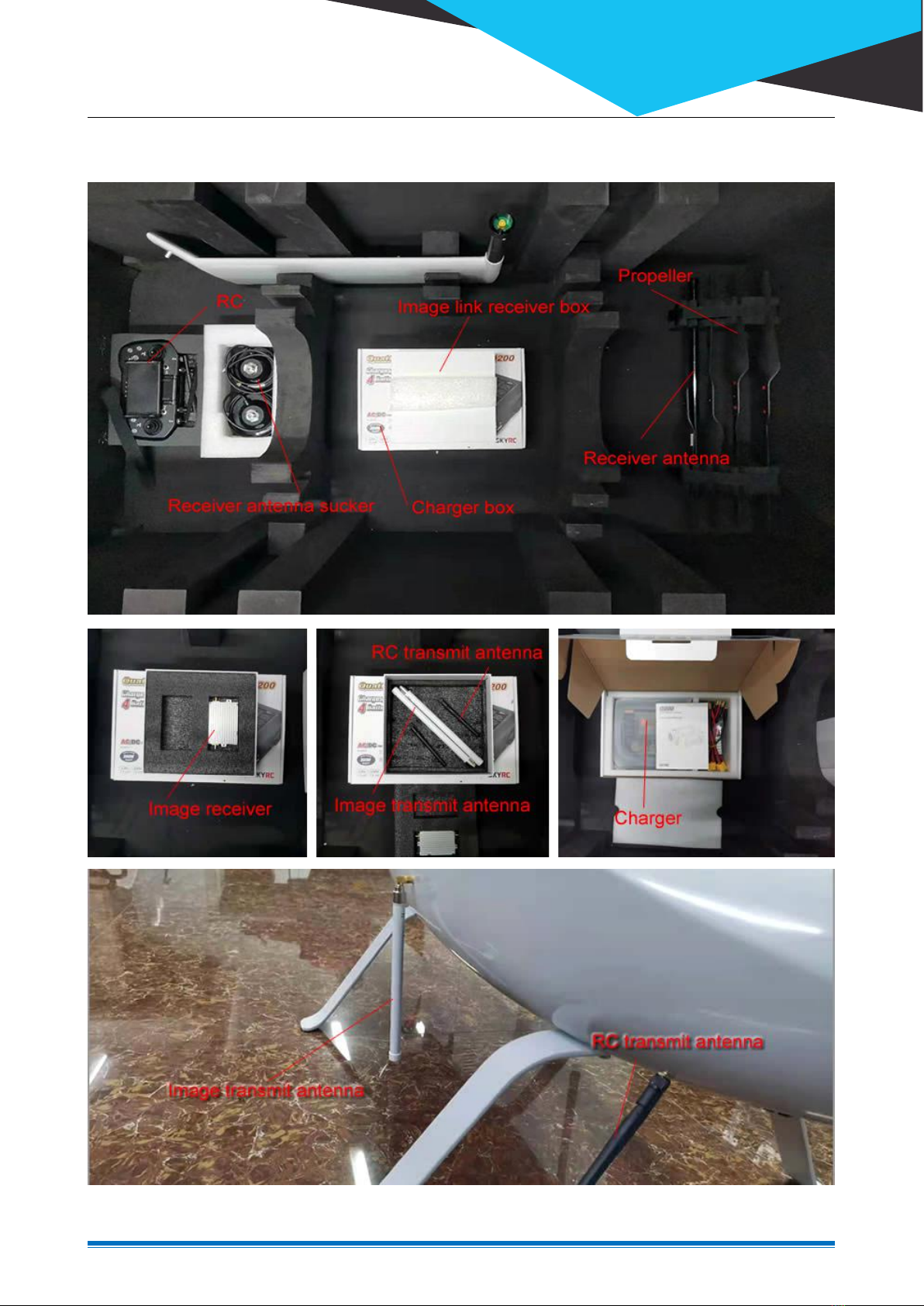

8. Other Accessories

Great Shark F320 Manual
ViewproUAV Tech. Ltd 13

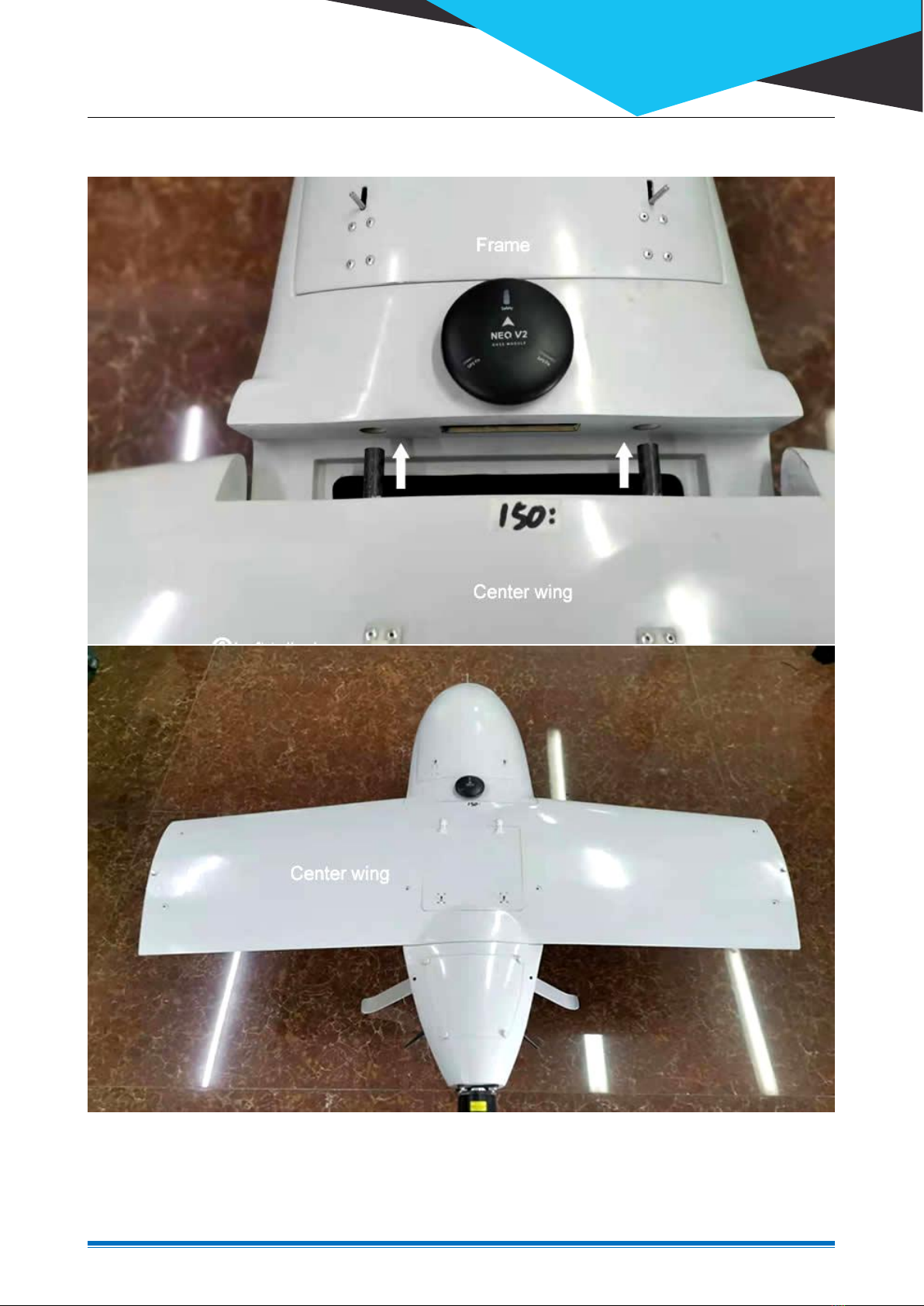

9. Install center wing

Great Shark F320 Manual
ViewproUAV Tech. Ltd 14
Insert two long Fastening screws A into the corresponding screw holes of the center
wing according to the figure, and fix the center wing on the fuselage.
10. Insert left and right wing reinforced carbon tube
11. Install left and right VTOL arm
Left VTOL arm installation

Great Shark F320 Manual
ViewproUAV Tech. Ltd 15
Right VTOL arm installation
12. Install left and right wing
Left wing installation:
Step 1: Connect the signal cables of aileron.
Step 2: Insert the left wing to the end. You will hear the sound of the fastener
bounce.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 16
Right wing installation:
Step 1: Connect the signal cables of aileron.
Step 2: Insert the left wing completely. You will hear the sound of “click” which
means it is well fasten.
13. Install tail wing
Step1: Insert the connector of tail wing completely. You will hear the sound of “click”
which means it is well fasten.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 17
Step 2: Insert the assembled tail wing into the tail of the left and right VTOL arms.
Step 3: Fasten the fasten rings.
14. Install propeller

Great Shark F320 Manual
ViewproUAV Tech. Ltd 18
15. Install battery
When the battery is placed in the corresponding area, fix the battery with a
fastening belt.

Great Shark F320 Manual
ViewproUAV Tech. Ltd 19
Note：
1.The battery installation area is determined by testing, please do not change it at
will.
2. make sure that the side with the anti-slip tape on the battery is facing down.
