Viking ACL-383V User manual

IGNITION-DOOR LOCK/UNLOCK
When the ignition is turned ON doors will automatically lock after 2 seconds.
When ignition is turned OFF doors will automatically unlock. This feature cannot be disabled.
VALET MODE (bypasses alarm functions but still operates doors remotely)
Entering valet mode: Turn IGN.ON & press valet switch for 5 seconds, LED will be constantly on to indicate
valet mode is active. While in valet mode lights flash 2x when doors unlock & once when doors lock.
Exiting valet mode: while IGN.ON press & hold valet switch for 5 seconds, LED turns off to indicate system
has exited valet mode.
SHOCK SENSOR
When the vehicle receives a light shock while armed, siren will chirp 5x & lights flash 2x as a warning, if
vehicle receives a heavy or continuous shock siren will sound & parking lights for 30 seconds.
CODE LEARNING(program up to 3 remotes)
Turn on ignition, press reset/valet button 5x, siren chirps 3x indicating it has entered code-learning mode,
within 10 seconds press any button on ALL remotes, you should hear a chirp for each one. Turn off ignition,
you should hear two LONG chirps indicating it has stopped code-learning mode.
LED STATUS INDICATIONS
a.) ARMED: LED flashes steady approximately 1x per second.
b.) DISARMED: LED flashes fast to indicate 30 second auto-arm mode, turn IGN.ON or open door to stop.
c.) VALET MODE: LED is continuously ON, does not flash.
TROUBLE SHOOTING
ALARM SYSTEM WON’T STOP, non-responsive to all remote buttons.
POSSIBLE CAUSE, anti-carjacking mode active, turn IGN.ON & press reset button once, system should return
to default mode. Replace jumper J2 if has been removed & problem persists.
DISARM BUTTON NOT ALWAYS WORKING, when pressing disarm siren only chirps 1x & doesn’t unlock.
POSSIBLE CAUSE, pressing disarm immediately after arming, alarm only arms after 3 seconds of pushing
button 1 even though the doors lock immediately, you must wait 3 secs or more to disarm after arming.
SHOCK SENSOR TO SENSITIVE. If shock sensor is triggering even when it is turned nearly all the way to
minimum, try hanging it under the dash or move to a less sensitive mounting position.
ENGINE IMMOBILISER NOT WORKING, engine starts when alarm is armed.
POSSIBLE CAUSE, +12v yellow wire to relay terminal 86 is not continuous supply when ignition is at START
position. Connect yellow wire to a +12v continuous supply when ignition is at start.

Connecting the remote boot release
When connecting the boot release wire a relay is required as the
signal has a low current which can cause the boot release solenoid
to operate ineffectively. The diagram to the right shows how to
wire both 4 pin & 5 pin relays.
4 pin & 5 pin relays.
a.) Connect relay pins 86 & 87 to a +12v CONSTANT power source
b.) Connect alarms GRAY(-) boot release wire to relay pin 85.
c.) Connect boot release(+) terminal to relay pin 30.
How it works:
Relay 86 & 87 pins have a +12v supply all the time, when the relay
terminal 85 receives the (-) neg. signal from the alarm module it
momentarily connects terminals 87 & 30 which powers the boot
release solenoid to release the boot latch.
www.viking-au.com/docs/acl-383-manual.pdf

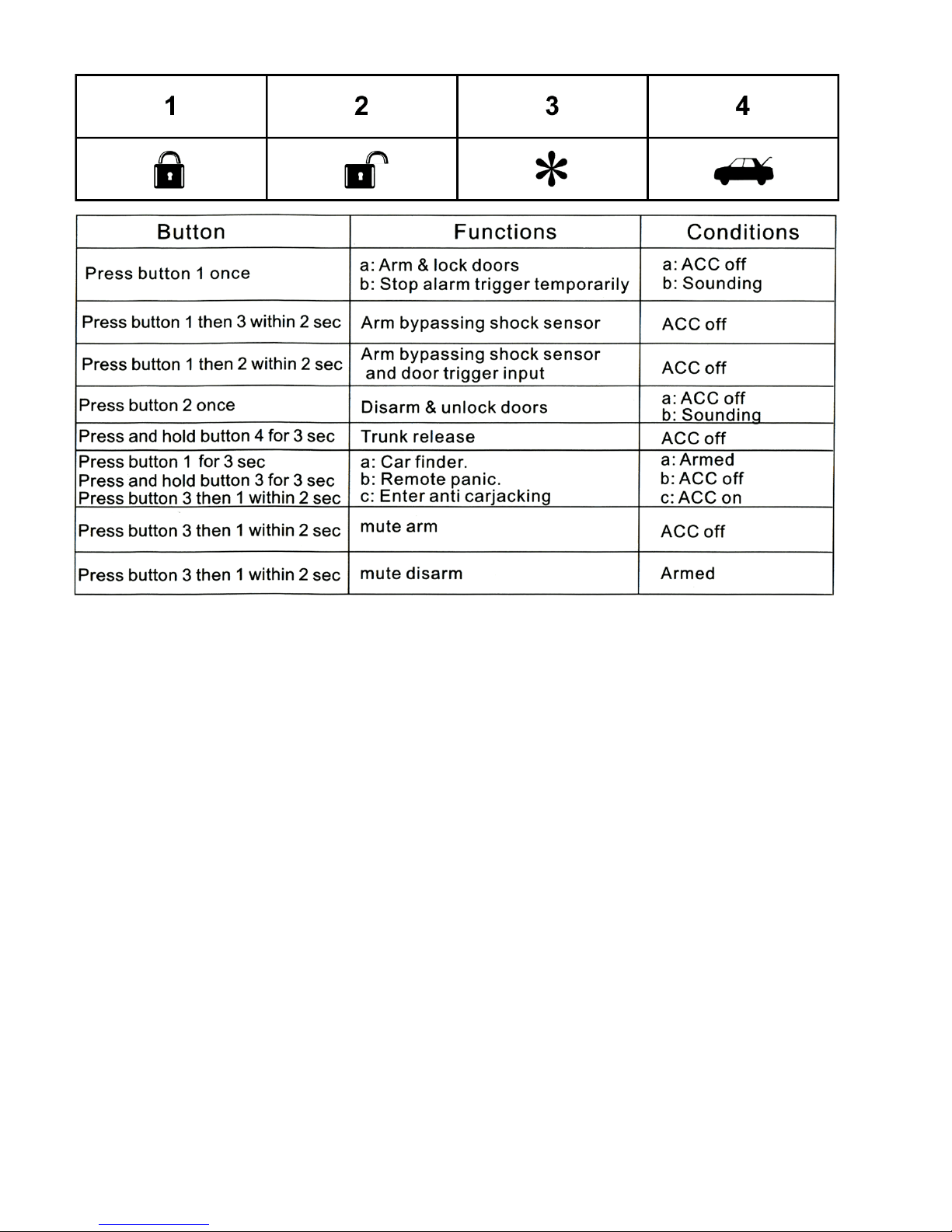

REMOTE FUNCTIONS
ARMING
Press button 1, siren will chirp & lights flash 1x, doors lock after 0.5 or 3.5 seconds(see jumper functions).
LED flashes 1x per second, engine immobiliser enabled & window raiser (-)output will be active for 30
seconds. If any door is left open, LED flashes fast & siren chirps 4x to alert you then door trigger will be
bypassed. After 3 seconds alarm will be armed.
DISARMING
Press button 2, siren will chirp & lights flash 2x, doors unlock after 0.5 or 3.5 secs(see jumper functions).
LED flashes fast indicating system will automatically re-arm after 30 seconds, open door or turn ignition ON to
disable. Engine immobiliser disabled, dome light (-)output will be active for 30 seconds or until ignition is
turned on or system armed. NB: If pressing button 2 within 3 seconds of arming, system won’t disarm
which can seem like a fault but you need to wait at least 3 seconds after arming before disarming.
SILENT ARMING/DISARMING
a.) Press button 3 once then press button 1 within 2 seconds to enter silent arming mode.
b.) Press button 3 once then press button 2 within 2 seconds to enter silent disarming mode.
PANIC MODE
With ignition OFF, press & hold button 3 for 3 seconds, lights flash & siren sounds for 30 seconds.
Press button 1 or button 2 to stop panic mode.
CAR FINDER
While armed, press button 1 for 3 seconds, siren chirps & lights flash 6x, press button 1 or button 2 to stop.
BOOT/HATCH RELEASE
While system is disarmed press button 4 for 3-5secs to release boot/hatch. If system is armed alarm will be
disarmed & doors unlocked as well.

JUMPER FUNCTIONS
Jumper
Jumper (ON)
Default
Jumper (OFF)
Variant
J1:
MODE 1
MODE 2
J2:
NO
YES
J3:
0.5 secs
3.5 secs
J4:
PASSIVE
ACTIVE
J1: ANTI CARJACKING MODE, 1 OR 2
There are 2 anti-carjacking modes, MODE 1 has 2 ways to enter.
a.) After turning IGN.ON the system will enter anti carjacking mode, within 10 seconds pressing remote
button 1 once or press & hold valet/reset switch for 1 sec will bypass the action of turning IGN.ON & the
system will exit anti carjacking mode. Parking lights flash & siren chirps 1x to confirm exit of anti-
carjacking mode. NOTE: If you fail to exit anti carjacking mode within 10 seconds, you can only exit by
EMERGENCY DISARMING procedure. Parking lights will flash & siren will chirp 4x for confirmation.
b.) With IGN.ON, press remote button 3 & hold for 3 seconds to activate anti carjacking mode.
MODE 2 has one way to enter anti carjacking mode, refer to procedure b.) of MODE 1.
J2: ANTI CARJACKING FUNCTION, YES OR NO
WHEN THE SYSTEM ENTERS ANTI CARJACKING MODE:
a.) From 0-15 seconds nothing happens. From 16-30 seconds LED will flash slowly. From 31-45 seconds LED
will flash fast & siren will chirp 1x every 2 seconds. From 46-70 seconds LED will flash fast & siren will chirp
1x every second. After 70 seconds siren will sound & parking lights flash continuously.
b.) After turning IGN.OFF, siren will sound & parking lights flash continuously for 3 mins. before stopping.
J3: DOOR LOCK & UNLOCK TIMER, 0.5 OR 3.5 SECONDS
You can choose between 0.5 second or 3.5 seconds for central locking signal, typically 0.5 second is used for
electronic central locking and 3.5 seconds for pneumatic central locking.
J4: PASSIVE OR ACTIVE ARMING
PASSIVE:
a.) Once alarm is disarmed if ignition is not turned on & a door is not opened, LED will flash rapidly to signify
auto re-arm is set, then after 30 seconds the system will re-arm & lock doors automatically.
b.) If ignition is not turned on LED will flash rapidly & system will automatically re-arm & lock doors 30
seconds after the last door is closed.
ACTIVE:
a.) Once alarm is disarmed if ignition is not turned on & a door is not opened, LED will flash rapidly to signify
auto re-arm is set, then after 30 seconds the system will re-arm & lock doors automatically.
b.) If a door is opened LED will stop flashing & system will remain disarmed & doors unlocked.
