Vintage Audio M72 User manual

Vintage Audio
M72
Dual Channel Class A
Discrete Preamplifier

Vintage Audio

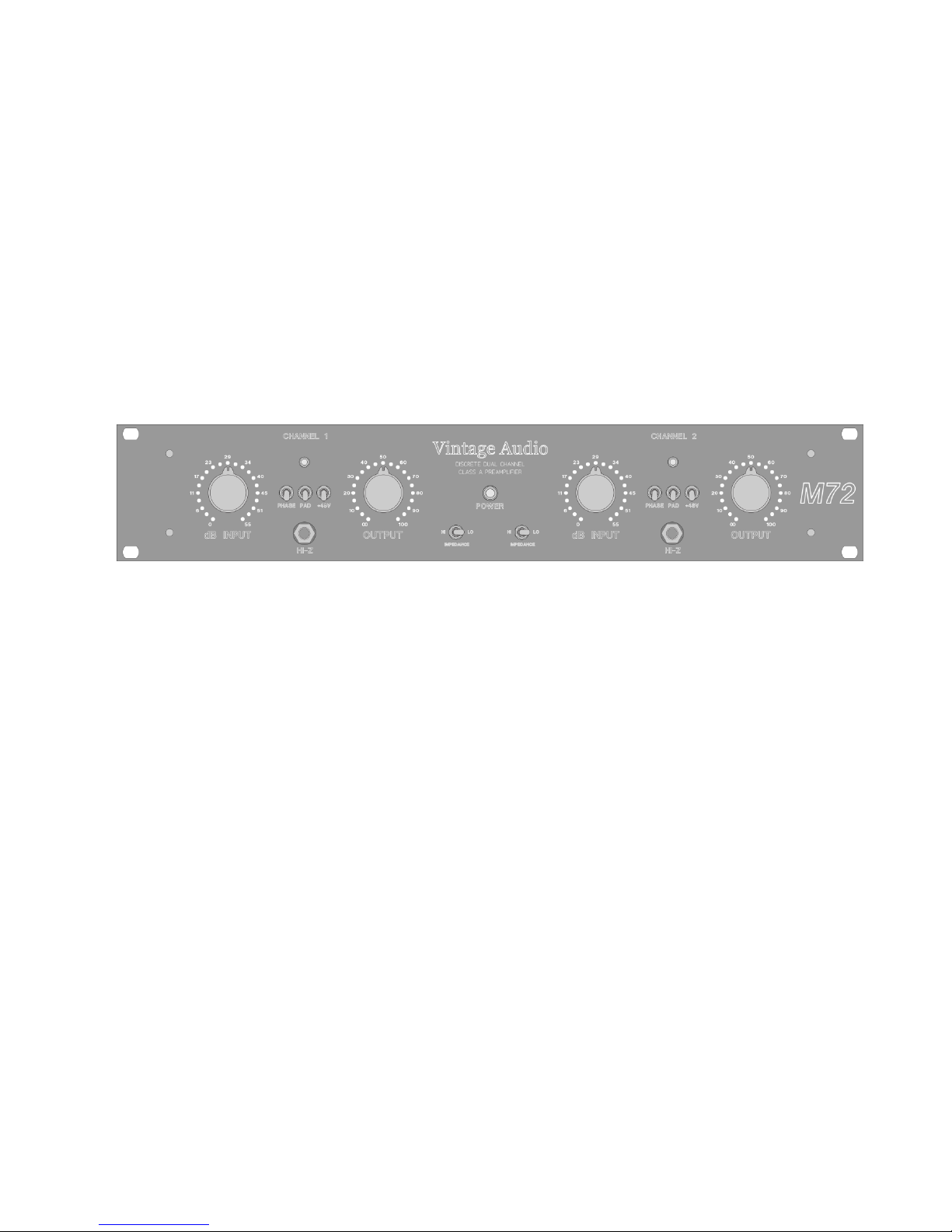

M72 Dual Channel Discrete Preamplifier
Congratulations on your purchase of your new Vintage Audio M72 Dual Channel
all discrete Microphone Preamplifier
The M72 is based on the British classic 1272 (BA283) preamp and is a faithful
reproduction using original Carnhill/St Ives input and output transformers coupled
an all discrete design.
We put tremendous effort into all of our preamps and compressors to make your
music more enjoyable and your sessions less droll. Each unit is hand built to our
specifications and is constructed of nothing but the highest quality parts. As with
all of our preamps the M72 uses remote relay switching which shortens the signal
path and lowers noise making the preamps performance even better. Excellent
filtering is also provided to lower ripple and thus lower the noise floor even further
making them extremely quiet in terms of self noise.
Our M72 model comes with a full one year warranty and is built to the highest
standard using the highest quality components.

Caution!
As with all professional equipment, please be sure to read all necessary
literature prior to hooking devices up and powering them on. All units are
set for voltage based on the original sale destination. Please consult the tag
below the AC inlet if you purchased a unit “used” or second hand to make
sure it is set for the right voltage before applying AC voltage.
About Vintage Audio
Vintage Audio is a small group of folks who love electronics and music. All are
musicians and nerds at heart. Johnny Five is a screen saver and Star Wars and Star
Trek share the airspace. We have been building pro audio gear for years and have a
real passion for offering affordable, extremely well made reproductions to the
audio community.
Note!
We are not re-inventing the wheel; Vintage Audio’s mission is to recreate the best
sounding modern reproductions of some of the most sought after classic circuits in
the world. We have a lot of experience on what it takes to make an excellent
sounding preamp or compressor. We hand select all of our components, pieces and
parts based on the character they impart, reliability. Most parts are Mil Spec, are
designed to last and provide years of unparalleled performance.
On to the good stuff!
All of our designs are set up to be extremely simple to use and to obtain great
results.

So about your new preamp
The M72 is a 1272 style, dual channel, discrete, Class A, transformer coupled
preamp. The M72 offers a Direct Input on channel one and two as well as
Phantom, Phase, Pad and Impedance switching.
The M72 is a dual stage preamp that offers fantastic headroom and a ton of
character making them a favorite on guitars, vocals, you name it.
The two stages of amplification provide the user with 55db of gain at the output.
The M72 offers an impedance switch at the microphone input between 300 ohms
and 1.2k. The variable impedance is really nice for Ribbon microphones but works
well as a color option as well. The use of Carnhill UK transformers keep the sound
as close as is possible to the original and simply sound beautiful.
They impart a thick footprint a make everything sound large and focused. People
just love the M72 sound on vocals!
These beautiful Dual Channel Class A Hot Rod preamps are handmade here in our
shop in the USA and are completely hand wired like all of our models.
The Vintage Audio M72 utilizes our custom designed MU72 dual channel preamp
board and has excellent on board filtering and Ac ripple knockdown.
The design is very simple and easy to use to obtain excellent results.
In the next section you will find a list of all controls to help
you get started.

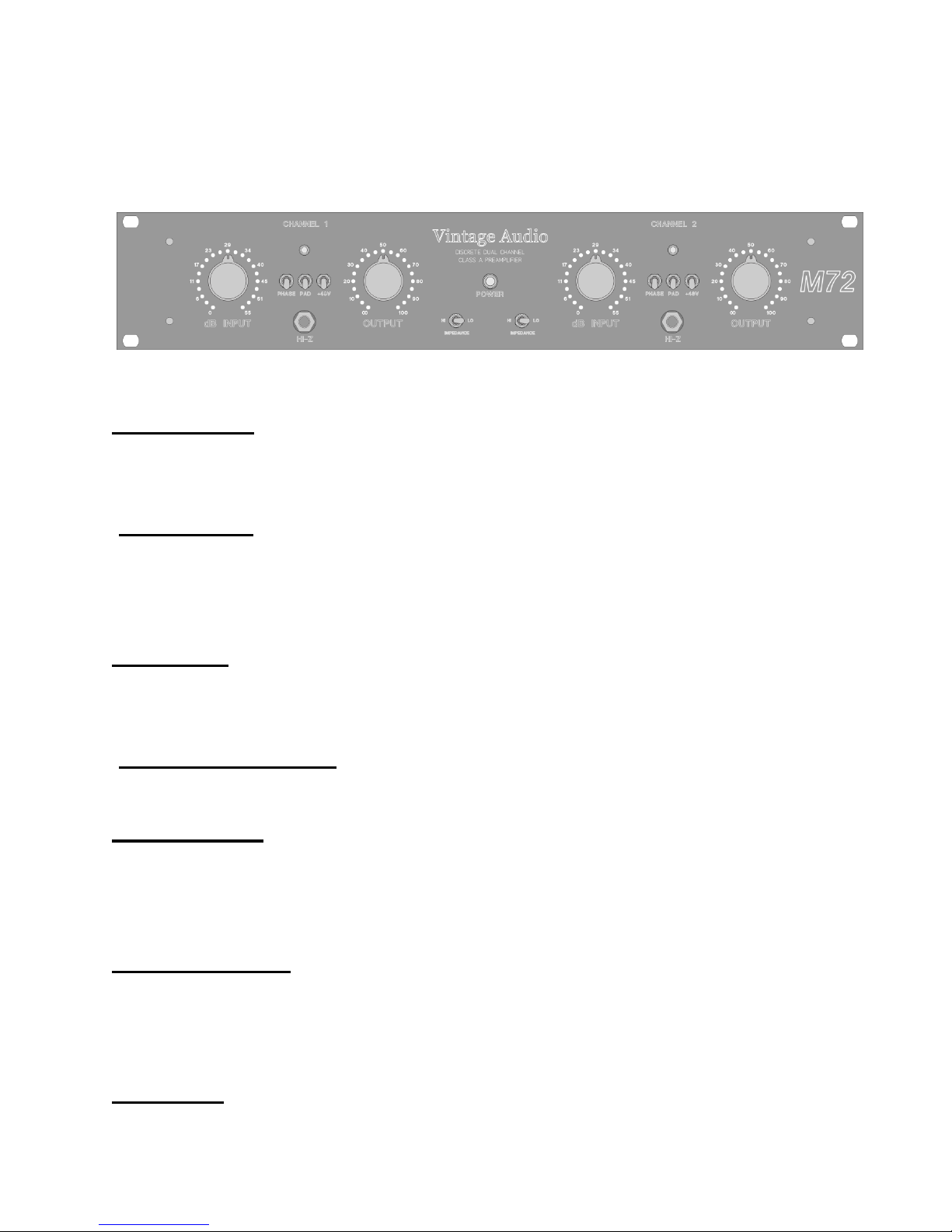

Front Panel Controls Overview
Input Control: The input control determines the amount of signal hitting the line
amp after the transformer stage and is very simple to use. The user simply needs to
rotate the control until the desired input level is reached.
Phase Switch: This switch, when engaged, flips the polarity of the input pre input
transformer and essentially switches pins 2 and 3 for 180 degrees of phase
correction. This is particularly nice on drums and other instrument where this type
of phase correction is necessary.
Pad Switch: This switch engages a 20db pad pre input transformer for those
instruments with a high dynamic range. Your converters and ears will thank you to
have the pad engaged when miking drums!
48V (Phantom switch): This switch simply engages the 48V on board phantom
for condenser microphones requiring a phantom power supply.
Output control: The output control is set up to control the amount of level sent to
the last stage of the amplifier and output transformer. This allows the user to
effectively drive the preamp harder without clipping the input of your converter,
Tape machine etc.
Impedance switch: This switch in its normal (low) position sets the input
impedance that the microphone sees at 300ohms. When engaged to the high
position, the impedance is switched to 1.2K, which also increases the amount of
gain capable of the preamp on higher impedance microphones.
Hi-Z input: HI-Z direct inputs on the M72 for instruments and line signal.

Back Panel Overview
Input: Signal input for channel one and channel two respectively. Microphone as
well as line signals can be inputted into the M72. When using line level signals
make sure to have the 20 db pad engaged.
Outputs: Signal output for channel one and channel two. The signal here, as well
as at the input, is transformer balanced and isolated.
Please note: that transformer coupled outputs (as in the M72) require a balanced
connection either: electronically, with a transformer or Psuedo-balanced. Failure to
use a balanced connection to interface with the output of your M72 will result in
the absence of audio and “no worky” like condition when it comes to tracking
time. Please consult you owners manual of any devices you are planning on
interfacing with the M72*.
AC power inlet: Please consult the tag by the Ac power inlet for the correct
voltage and fuse rating. Voltages are set upon assembly and the label will indicate
which voltage it is set for as well as the appropriate fuse rating.
*Psuedo-balancing is fairly simple and merely requires that pins 1 and 3 be tied
together in either the cabling or at the jack. For ¼ and TT connections this equates
to Ring and Sleeve. This is the easiest and most cost effective solution though
balancing is best for the lowest noise and best performance

Specifications
Input Impendence: 300-1.2k Ohm Floating, transformer coupled.
Output Impedance: 600 Ohm Floating transformer coupled
Gain: 55 db of total gain
Pad: -20db
Fuse: 250V Slow Blow 5x20mm, 315ma (120vac), 175ma (240vac).
Dimensions: 19x3.5x12 inches
Weight: 14 lbs boxed
Note: Mains voltages are set when the unit is constructed. All units are wired for
their Destination.
The Serial label contains information on what voltage the unit is wired for as
well as the correct 250v fuse rating.
DO NOT CONNECT AC MAINS IF THE VOLTAGE LISTED ON THE LABEL IS
DIFFERENT THAN YOUR LOCAL MAINS VOLTAGE!

Vintage Audio
All Vintage Audio products come with a full One Year
warranty against defect and are built to the highest
standard. For more info on this or other Vintage Audio
products or to request service, please see us at
ReviveAudio.com
Again, Thanks for your purchase!
We are confident that you will enjoy your new Vintage
Audio unit for years to come.
Made in the USA
Vintage Audio
Idaho
83605
208-473-2245
Copy write 2013
