Vision 10LF
PAN AND TILT HEAD
3390
MAINTENANCE MANUAL
AND
ILLUSTRATED PARTS LIST
PUBLICATION PART No. 3390-9
ISSUE 3
Copyright  Vinten Broadcast Limited 1999
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or
other record without the prior agreement and permission in writing of Vinten Broadcast Limited.
Vinten, Vision and Quickfit are registered trademarks of Vinten Broadcast Limited.

3
Contents
Previous
Page
First
Page Next Page Previous View
Foreword
This manual provides full and detailed maintenance and spare parts information for the Vinten®Vision® 10LF
pan and tilt head.
It is recommended that this manual is read carefully and the illustrations studied prior to operating or servicing
the pan and tilt head. Attention to the details contained herein will ensure that the pan and tilt head will
operate efficiently with the minimum of attention over a long service life. Particular attention must be paid to
cleaning, especially after use in adverse conditions.
To order spare parts or to obtain further information, application should be made to Vinten Broadcast Limited
or to your local distributor.
WARNING!:Read the Safety Section on page 8 before using this pan and tilt head or
attempting any adjustment or repair.
NOTE: Information contained in this document is subject to change.
Vinten Broadcast Ltd reserves the right, without notice, to make changes in equipment
design or performance as progress in engineering, manufacturing or technology may
warrant.

4
Contents
Previous
Page
First
Page Next Page Previous View
Notes to readers
This is the on-line version of ‘Vision 10LF Pan and Tilt Head Maintenance Manual’ (3390-9). Readers should
be aware that the pagination differs between on-line and printed versions.
Navigation
Clicking the mouse on any blue text will move you around the document. For example, if you click on one of
the blue call-outs on an exploded drawing, you will be taken to the appropriate line in the relevant parts list.
Clicking here will take you to the Contents Page.
Clicking here will take you to the first page.
Clicking here will take you to the previous page.
Clicking here will take you to the next page.
Click here to go back to the previous view.
Alternatively, you may use the Acrobat Reader navigation buttons.
Contents

5
Contents
Page
Previous
Page
First
Page Next Page Previous View
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Notes to readers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety - Read This First!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Design Improvements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Section 1 - Introduction and Description
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Section 2 - Installation and Operation
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the head on a tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mounting the camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mounting the camera (optional Quickfit adaptor). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Balancing the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pan and tilt brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pan and tilt drag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 3 - Tools and Materials
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Special tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Consumable materials. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Section 4 - Servicing
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adjustments
Drag control knob adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Brake knob adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

6
Contents (Cont) Page
Previous
Page
First
Page Next Page Previous View
Section 5 - Repair
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Tilt mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Balance mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Pan mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Mechanism housing assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mechanism housing assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Pan mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Tilt mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Balance mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Final assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Section 6 - Illustrated Parts List
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Ordering spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Main assembly part numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7
Contents
Previous
Page
First
Page Next Page Previous View
Illustrations Page
Fig 1.1 Vision 10LF Pan and Tilt Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fig 2.1 Mounting the Camera (Optional Quickfit Adaptor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

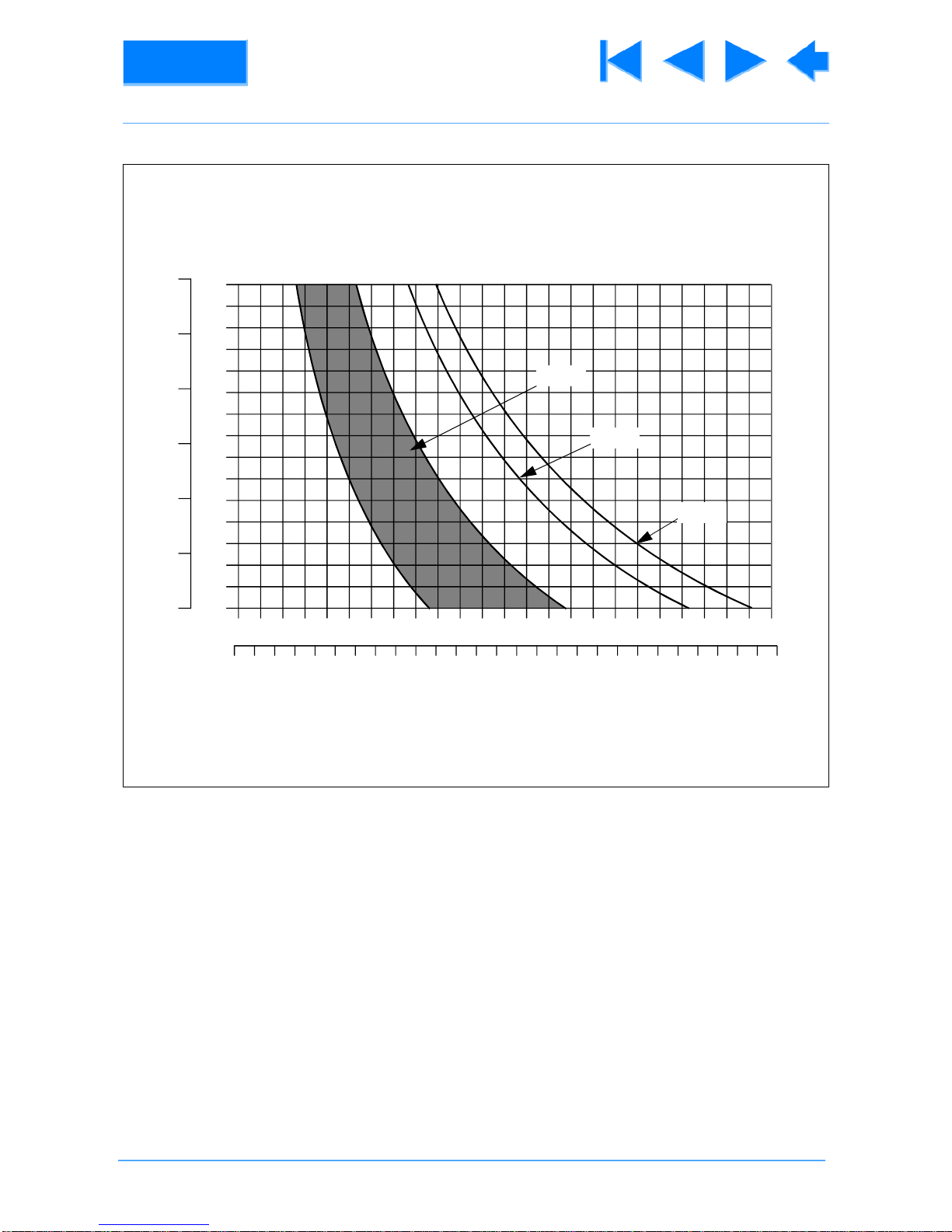

Fig 2.2 Balance Graph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fig 4.1 Drag Control Knob Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fig 4.2 Brake Knob Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fig 6.1 Vision 10LF Pan and Tilt Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Fig 6.2 Vision 10LF Pan and Tilt Head - Mechanism Housing Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Fig 6.3 Vision 10LF Pan and Tilt Head - Platform and Balance Mechanism. . . . . . . . . . . . . . . . . . . . . . . . . 41
Fig 6.4 Vision 10LF Pan and Tilt Head - Tilt Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fig 6.5 Vision 10LF Pan and Tilt Head - Pan Mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fig 6.6 Vision 10LF Pan and Tilt Head - Pan Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Associated Publication
Vision LF Series Pan and Tilt Heads Operators Guide - Publication Part No. 3390-8

8
Contents
Previous
Page
First
Page Next Page Previous View
Safety - Read This First!
Warning symbols in this maintenance manual
Where there is a risk of personal injury, injury to others, or damage to the pan and tilt head
or associated equipment, comments appear, highlighted by the word WARNING! and
supported by the warning triangle symbol.
Critical data
Mass
Mass 3 kg (6.6 lb)
Load
Typical payload 13 kg (28 lb)

9
Contents
Previous
Page
First
Page Next Page Previous View
Abbreviations
The following abbreviations are used in this publication:
ac alternating current
AAmps
AF across flats
A/R as required
ASME American Society of Mech Engineers
assy assembly
BS British Standard
BA British Association thread
BSF British Standard Fine thread
BSP British Standard Parallel Pipe thread
BSW British Standard Whitworth thread
btn button
chs cheese
C of G centre of gravity
comp compression
csk countersunk
cu cubic
c/w complete with
dc direct current
dia diameter
ft foot
hd head
hex hexagon
Hz Hertz (frequency)
IC integrated circuit
ID inside diameter
in. inch
kg kilogram
lb pound(weight)
LF Lubricated Friction
LH left hand
MISO metric thread
mmetre
mm millimetre
NNewton
NPT National Pipe thread
NI not illustrated
No. number
OD outside diameter
PCB printed circuit board
PCD pitch circle diameter
pozi Pozidriv
psi pounds per square inch
pt point
PTFE Polytetrafluoroethylene
PVC Polyvinyl chloride
RH right hand
sect section
skt socket
SWG standard wire gauge
thk thick
UNC Unified Coarse thread
UNF Unified Fine thread
VVolts
W Watts

10
Contents
Previous
Page
First
Page Next Page Previous View
Technical Specification
Weight (complete with pan bar and bowl clamp) 3 kg (6.6 lb)
Height to mounting face 150 mm (5.9 in.)
Length 145 mm (5.7 in.)
Width 185 mm (7.3 in.)
Load capacity See balance graph
Tilt range ±90°
Pan range 360°
Pedestal/tripod fixing 100 mm ball
Operating temperature -40°C to +60°C

11
Contents
Previous
Page
First
Page Next Page Previous View
Design Improvements
DETAILS SERIAL No. INFORMATION
Improvements to pan and tilt drag unit seals 1197
Improvements to brake shafts 3282
Bowl clamp - improved clamping efficiency 5330

12
Contents
Previous
Page
First
Page Next Page Previous View
Section 1
Introduction and Description
Contents Para
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction
1 The Vision 10LF pan and tilt head is part of a range designed for broadcast professional, corporate and
educational use. It is largely constructed in aluminium alloy to produce a robust, lightweight unit. The unique
counterbalance system enables a wide variety of camera/lens combinations to be maintained in perfect
balance over the range of tilt movements. A maximum tilt angle of ±90° is available at intermediate loadings,
whilst at higher loadings the range of tilt motion is progressively reduced to ±40°. A graph is provided in
Section 2 which illustrates the relationship between load and centre-of-gravity (C of G) and may be used to
ascertain the suitability of the head for any given combination of camera, lens and accessories.
2 Drag is provided by the Vinten lubricated friction (LF) system which allows wide variation of the drag
setting on both pan and tilt axes to suit operator preference, and permits “whip” movements to be executed,
irrespective of drag setting. Pan and tilt movements are each provided with a brake.
Description
3 The Vision 10LF pan and tilt head embodies a spring counterbalance mechanism, lubricated friction
drag assemblies and brakes on the pan and tilt mechanisms and a camera mounting plate.
4 The balance system is easily adjusted by a knob (1) on the rear of the head. Maximum and minimum
payloads that can be balanced, and tilt ranges, are dependent on the weight of the camera and accessories
and on the centre-of-gravity (C of G) height. The control compensates for differing platform loads by varying
the compressive force on the counterbalance spring.
5 Both the pan and tilt mechanisms incorporate the Vinten LF system to ensure smooth movement of the
camera about these axes and are fitted with control knobs (7)(11) to adjust the drag setting. The whip-pan
facility is unaffected by the pan drag setting. Both drag knobs are provided with scales.
6 Friction brakes on each axis allow the head to be locked at any chosen position. The operating levers
for both brakes (10)(12) are fitted at the left-hand side of the head.
7 Pan bar mounting points (3) are located at the rear of the head, on either side of the camera mounting
platform. A pan bar (6) is supplied and is attached using a pan bar clamp, with angular adjustment available
on the mount serrations. A second pan bar may be fitted.
8 The camera is attached to the head by means of a slide plate (1) or by using the optional Quickfit
adaptor. A clamp (5) is provided to hold the slide plate in position and a lock (13) prevents its inadvertent
removal from the head.
9 A ball base and clamp (9) for mounting on a 100 mm bowl is provided. Adaptors are available which
permit installation on other mounts.

13
Contents
Previous
Page
First
Page Next Page Previous View
Fig 1.1 Vision 10LF Pan and Tilt Head
(1)
(3)
(2)
(6)
(4)
(8)
(5)
(7)
(9)
(10)
(11)
(13)
(12)

14
Contents
Previous
Page
First
Page Next Page Previous View
Section 2
Installation and Operation
Contents Para
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installing the head on a tripod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mounting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mounting the camera (optional Quickfit adaptor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Balancing the head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pan and tilt brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pan and tilt drag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General
1 To identify components, please refer to Fig 1.1. For further operating instructions, please refer to Vision
LF Series Pan and Tilt Heads Operators Guide, Publication Part No. 3390-8.
Installing the head on a tripod
2 The Vision 10LF head is supplied with an integral 100 mm ball mount and is designed for installation on
a compatible Vinten Vision tripod.
3 Adaptors are available which enable the heads to be installed on tripods or pedestals fitted with other
mountings.
4 To install the head, remove the bowl clamp assembly (9) from the head, position the head on the tripod
and refit the bowl clamp assembly from below. Level the head with the aid of the level bubble (4) and tighten
the bowl clamp.
Mounting the camera
5 Remove the slide plate (1) from the head by releasing the slide clamp (5), pressing the slide lock
release (13) and pulling the plate to the rear.
6 Attach the slide plate to the camera or camera mounting plate under the approximate centre of the
camera's weight using both fixing screws (8). Position the screws as far apart as possible.
7 Set the platform level and apply both the pan and tilt brakes (10)(12).
8 Push the slide plate and camera into the track in the platform, ensuring slide release (13) snaps into
position.

15
Contents
Previous
Page
First
Page Next Page Previous View
Mounting the camera (optional Quickfit adaptor)
9 To mount the camera using the optional Quickfit adaptor, proceed as follows (Fig 2.1):
9.1 If not already attached, secure the Quickfit Adaptor (16) to the slide plate (1) with the two screws
provided (8).
9.2 Free the Quickfit wedge (15) from the adaptor by simultaneously pushing in on the safety catch
(18) and operating the wedge release (17).
9.3 Fit the Quickfit wedge (15) to the camera with the two screws provided (19).
9.4 Insert the forward end of the wedge into the forward end of the adaptor, pushing against the
spring tension of the lock. Lower the rear of the wedge into the adaptor until an audible click indicates
that the wedge is engaged with the adaptor.
Fig 2.1 Mounting the Camera (Optional Quickfit Adaptor)
(15)
(16)
(17)
(1)(8)
(18)
(19)

16
Contents
Previous
Page
First
Page Next Page Previous View
Balancing the head
10 Balancing the Vision 10 head achieves two objectives. Firstly, when a head is correctly balanced the
operator will need a minimum amount of even effort to move the head. Secondly, once balanced, the head
and its payload can be set to any tilt position and the head will maintain this position with “hands off”.
11 The graph (Fig 2.2) illustrates the relationship between load and centre-of-gravity (C of G) height and
may be used to ascertain the suitability of the head for any given combination of camera, lens and
accessories. The shaded area of the graph corresponds to those loads/C of G heights that can be balanced
over the full tilt range. The areas to the right indicate the progressively reducing tilt range over which the head
can balance higher loads.
12 Prior to balancing the head ensure that the pan bars and any ancillary equipment have been fitted in
order to prevent upsetting the balance once it has been achieved.
Fig 2.2 Balance Graph
200
180
160
140
8
7
6
5120
100
4
80
60
3
22 4 6 8 10 12 14 16 18 20 22 24 26
484644424038322824201284
in. mm
kg
lb
± 90°
± 60°
± 40°
TOTAL LOAD
C of G HEIGHT
16

17
Contents
Previous
Page
First
Page Next Page Previous View
12.1 Release the tilt brake (12). Turn the balance knob (2) counter-clockwise until the head falls away
from horizontal under the weight of the camera.
12.2 Release the slide clamp (5) and slide the camera backwards or forward until it balances
horizontally. Apply the slide clamp (5).
12.3 Turn the balance knob (2) clockwise until the camera does not fall away when the head is tilted
and released.
12.4 Repeat Para 12.2 and Para 12.3 until perfect balance is achieved, when the camera will remain
set at any angle from +90° to –90° without falling away or springing back. Re-apply the tilt brake (12).
Pan and tilt brakes
13 Friction brakes on each axis allow the head to be locked at any chosen position. The operating levers
for the pan brake (10) and tilt brake (12) are fitted at the left-hand side of the head.
14 To apply the brake, turn the lever fully clockwise. To release the brake, turn the lever fully counter-
clockwise.
Pan and tilt drag
15 Both the pan and tilt mechanisms incorporate the Vinten liquid friction (LF) system to ensure smooth
movement of the camera about these axes. and are fitted with control knobs to adjust the drag setting.
16 The tilt drag adjustment knob (11) is on the left-hand side of the head, the pan drag knob (7) is on the
right -hand side. Both drag knobs are provided with scales, graduated from 0 to 9. The whip-pan facility is
unaffected by the pan drag setting.
17 To increase drag, turn the knob clockwise, towards a higher graduation. To decrease drag, turn the
knob anti-clockwise, towards a lower graduation.
NOTE: Maximum tilt angle is less than 90° for heavy payloads with high C of G - see balance
graph.

18
Contents
Previous
Page
First
Page Next Page Previous View
Section 3
Tools and Materials
General
1 The following special tools and consumable materials will be required for servicing, disassembly, repair,
assembly and adjustment.
Special tools
Consumable materials.
ITEM PART No. PROCEDURE
Centralizing fixture (pan) 3390-904TL Centralizing pan drag shoe
Centralizing fixture(tilt) 3390-905TL Centralizing tilt drag shoe
Spring insertion tool 3390-909TL Assembly of platform
Pin press 3431-912TL Installing dowel pin to
connect actuator shaft and
adjustment slide
NOTE: Adhesives and lubricants are not supplied by Vinten Broadcast Ltd and should be
obtained under local arrangements.
ITEM PART No. USE
Grease, Rocol M240G Z150-072 Adjustment threads
Grease, GP50, Moly-Paul Z150-081 Moving contact surfaces EXCEPT drag faces
Grease, white bearing Z150-085 Bearing and general lubrication

19
Contents
Previous
Page
First
Page Next Page Previous View
Grease, Chesterton Z150-105 Actuator shaft
Grease, Castrol LM Z150-123 Thrust races
Vinten Fluid No. 3 3051-25 Drag housings
Loctite 221 Z002-026 Screw locking
Loctite 222E* Z002-075 Screw locking
Loctite 241 Z002-022 Screw locking
Loctite 270 Z002-034 Screw locking
Loctite 380* Z002-078 Adhesive
Loctite 406 Z002-086 Adhesive
Loctite 415 Z002-062 Adhesive
Loctite 495* Z002-059 Spring cap buffer
Loctite 601* Z002-020 Adhesive
Loctite 638* Z002-058 Adhesive
Loctite 641* Z002-074 Bearing retainer
Loctite primer N Z002-011 Primer for Loctite 222E
Loctite primer T Z002-019 Primer for Loctite 221
Silcoset 153* Z002-036 Brake knob caps
ITEM PART No. USE

20
Contents
Previous
Page
First
Page Next Page Previous View
Section 4
Servicing
Contents Para
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Adjustments
Drag control knob adjustment
Normal conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operation in low ambient temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Brake knob adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
General
1 The Vision 10LF head requires a minimum of periodic servicing. Its rotational and drag mechanisms are
totally enclosed to prevent the ingress of dirt or foreign bodies. If the head becomes faulty reference should be
made to Section 5 of this manual, or the unit may be returned to Vinten Broadcast Limited or your local
distributor for overhaul.
Cleaning
2 During indoor use, the only cleaning required should be a regular wipe over with a lint-free cloth. Dirt
accumulated during storage may be removed using a semi-stiff brush. Particular attention should be paid to
the levelling ball and mounting face of the head and to the space between the tilting assembly and the base.
3 The Vision 10LF head is weatherproof. However, use out-of-doors under adverse conditions will require
special attention. Salt spray should be washed off with fresh water at the earliest opportunity. Sand and dirt
acts as an abrasive and should be removed using a semi-stiff brush or vacuum cleaner.
Lubrication
4 The bearings in the pan and tilt head are packed with grease. Under normal operating conditions they
will only require re-greasing if there is any harshness or stiffness in movement. Refer to Section 5 to dismantle
the head for re-greasing.
NOTE: Use only detergent-based cleaners. DO NOT use solvent- or oil-based cleaners, abrasives
or wire brushes to remove accumulations of dirt, as these damage the protective surfaces.
