VISIO BW-903 RGBW User manual

BW-903 RGBW
UserManual
Please read the instructions carefully before use

CONTENTS
1. Safety Instruction ......................................................................................................2
2.Techical Specfications................................................................................................3
3. How To Set The Fixture ............................................................................................5
3.1 Control Panel.....................................................................................................5
3.2 Main Functions..................................................................................................6
4. How To Control The Unit........................................................................................12
4.1 DMX Controller...............................................................................................12
4.3 DMX 512 Configuration .................................................................................14
5. DMX512 Connections.............................................................................................15
6. Troubleshooting.......................................................................................................16
7. Fixture Cleaning......................................................................................................17

2B
1. Safety Instruction
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Caution:
yAll fixtures are intact from the manufacturer, please operate follow up the user manual, artificial
fault are not under guarantee repair.
yUnpack and check carefully there is no transportation damage before using the unit.
yDO install and operate by operator.
yUse safety chain when fixes the unit.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
yBefore operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
yMaximum ambient temperature Ta: 40℃. Don’t operate it where the temperature is higher than
this.
yDO NOT connect the device to any dimmer pack.
yMake sure there are no flammable materials close to the unit while operating, as it is fire
hazard.
yLook over power wires carefully, replace immediately if there is any damage.
yUnit surface temperature may reach up to 60℃. DO NOT touch the housing bare-hand during
its operation.
yAvoid any inflammable liquids, water or metal objects entering the unit. Once it happen, cut off
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3B
the mains power immediately.
yDO NOT operate in dirty and dusty environment, also cleaning fixtures regularly.
yDO NOT allow children to operate the fixture.
yDO NOT touch any wire during operation as there might be a hazard of electric shock.
yAvoid power wires together arounding other cables.
yReplace fuse only with the same type.
yIn the event of serious operating problem, stop using the unit immediately.
yThe housing, the lenses must be replaced if they are visibly damaged.
yDO NOT open the unit as there are no user serviceable parts inside. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center.
Installation:
The unit should be mounted via its screw holes on the bracket.Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture in the air.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people and has no one pass by or under it.
2.Techical Specfications
- New member of Visio architectural lightings, specially designed to replacing the traditional
outdoor 400W discharge fixtures.
- Great heat ventilation and heavy duty design to ensure reliable performance under harsh
environment
- It features 90pcs×3W CREE LEDs provides powerful output
If using a 230V 50Hz power supply, DO NOT connect in series more than 18 units; use
another main supply for the next 18 fixtures.
If using a 120V 60Hz power supply, DO NOT connect in series more than 9 units; use
another main supply for the next 9 fixtures.

4B
- Various beam angles, ideal for different applications – for the illumination of buildings, bridges,
stadium, landscapes, theme parks and more.
Key Facts:
Die-cast housing and thermal control for the reliable performance
9000 Lumen Output
1KHz refreshing frequency, flicker-free under HD camera
Special design of ventilation system, BW-903 RGBW running full duty cycle
yInput Voltage：AC 100-240V 50/60Hz
yPower Consumption：267W
yLight Source: 90×3W CREE RGBW LEDs
Red: 18pcs, Green: 24pcs, Blue: 24pcs, White: 24pcs
yBeamAngle: 6°, 15°, 25°, 40°, 60°, 80°
yLumen Output: >9000 lm
yIPRating: IP66
yDimension：399×400×195mm
yWeight：16.4Kgs

5B
3. How To Set The Fixture
3.1 Control Panel
1. Display:
To show the various menus and the selected functions
Button:
2. MENU To select the programming functions
3. DOWN To go backward in the selected functions
4. UP To go forward in the selected functions
5. ENTER To confirm the selected functions
6. POWER IN:
Water proof connectors for power input
7. POWER OUT:
Water proof connectors for power output
8. DMX IN:
Water proof 3-pin XLR connectors for DMX 512 operation
9. DMX OUT:
Water proof connectors for DMX 512 operation with 3-pin XLR plug

6B
3.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by the ENTER button and the display will blink. Use the DOWN and UP
button to change the mode. Once the required mode has been selected, press the ENTER button to
setup or it will automatically return to the main functions without any change after idling one
minute. Back to the functions without any change press the MENU button. The main functions are
shown below:
Once you set to , after running in show mode for 5 minutes
without any change or restarting the unit, the key board become locked.
Press the ENTER button to enable the menu, the display will show ,
press the UP and DOWN button until it shows , then press the
ENTER to unlock.

7B

8B
DMX 512 Address Setting
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to change the DMX 512 address. Once the address has been selected, press the ENTER
button to setup or automatically exit menu mode without any change after one minute. Back to the
previous functions without any change press the MENU button.

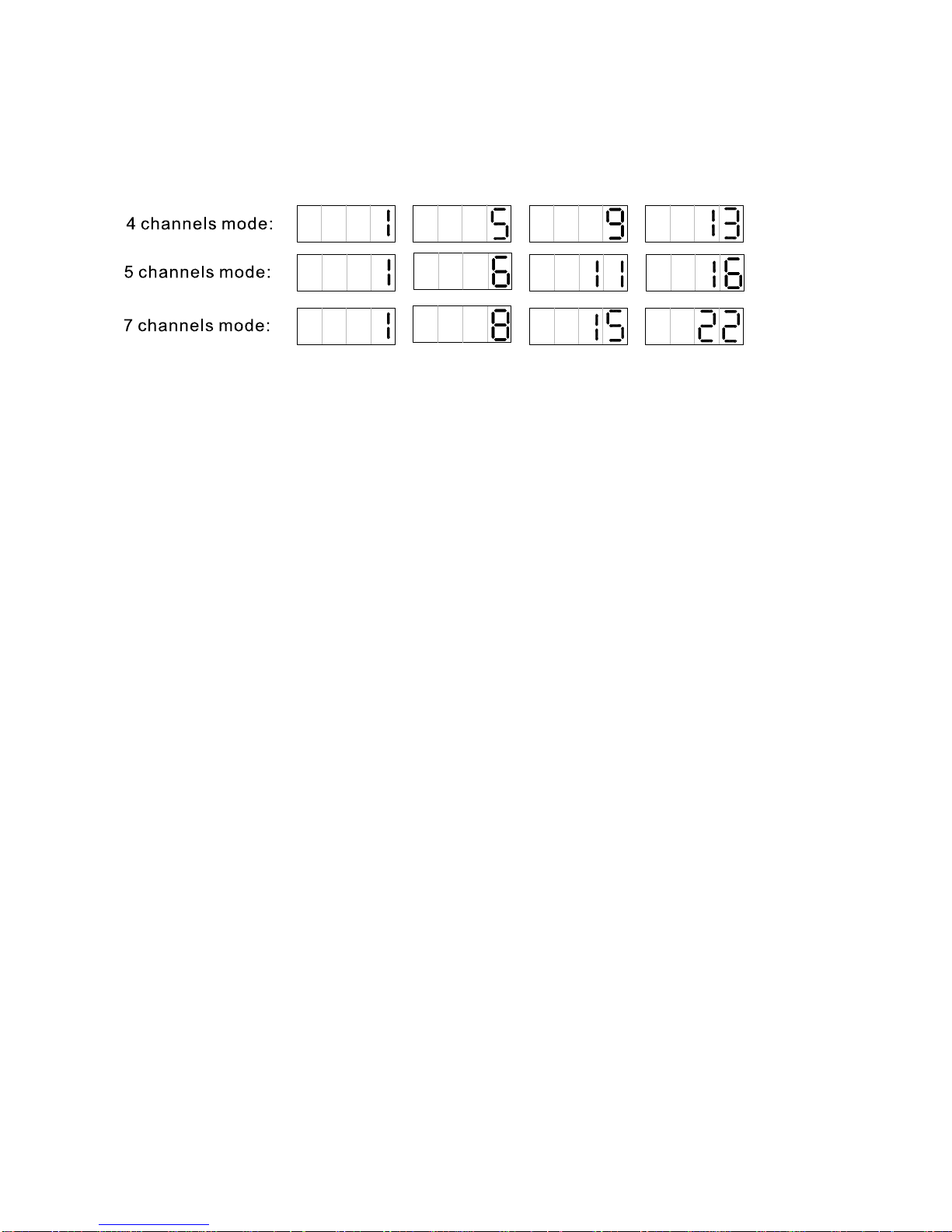

Channel mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (4 Channels), (5 Channels）or (7 Channels)
Mode. Once select, press the ENTER button to setup or automatically exit menu mode without any
change after one minute. To go back to the functions without any change press the MENU button.
Show mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (show 1)…. (show 19). Once select, press the ENTER
button to setup. press the ENTER button，will blinking on the display, use DOWN and
UP button adjust the fade time (0~255), press the ENTER button to store and will
blinking on the display, use the DOWN and UP button adjust the white time (0~255), press the
ENTER button to store or automatically return to the main functions without any change after one
minute. To go back to the previous functions without any change press the MENU button.
Blackout mode
Select the , press the ENTER button and the display will blink. Use the DOWN and
UP button to select the (blackout) or (normal). Once selected, press the
ENTER button to setup or automatically exit menu mode without any change after one minute. To
go back to the functions without any change press the MENU button.

9B
Program Shows
Press the MENU button up to when the is shown on the display. Press the ENTER
button and select the mode, Press the ENTER button and the display will blink. Use
the DOWN and UP button to select the (Show 17) , （Show 18）or
（Show 19）. Once the show has been selected, press the ENTER button to enter program setting.
Use the DOWN and UP button to select (length, the steps, you choose from the total
amount of steps, you want to run, for example, if the total amount of steps you set is 50, you can
choose only first 1-10 steps to run). (step), select to set (color) and
(white) and (dimmer) for every step. Automatically return to the main functions without
any change after one minute. To go back to the previous functions without any change press the
MENU button.
Manual Mode
Press the MENU button up to when the is shown on the display. Press the ENTER button
and the display will blink. Use the DOWN and UP button to select the （Red）,
（Green）,（Blue）,（White）, （Dimmer）or （Strobe）.
Once selected, press the ENTER button to setup, then use the DOWN and UP button to adjust the
value (0~255) or automatically exit menu mode without any change after one minute. To go back to
the functions without any change press the MENU button.
White Balance
Press the MENU button up to when the is showing on the display. Pressing the
ENTER button and the display will blink. Use the DOWN and UP button to select the
（Red）， （Green），or （Blue）mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change after one
minute. To go back to the previous functions without any change press the MENU button.

10B
Display Inversion
Press the MENU button up to when the is showing on the display. Press the ENTER
button and the display will blink. Use the DOWN and UP button to select the （normal）
or （inversion），Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after one minute. To go back to the
previous functions without any change press the MENU button.
DMX Control Mode
Press the MENU button up to when the is shown on the display. Press the ENTER button
and the display will blink. Use the DOWN and UP button to select the （DMX control）
or （manual control），Once select, press the ENTER button to setup。If is
selected, use the DOWN and UP button to select （Flash mode）， （Red），
（Green）， （Blue）， （White）， （Yellow）， （Purple），
（Cyan）， （White）， （Macro）or （fade），press the ENTER button
to confirm, then use the DOWN and UP button to adjust the dimmer(1…9).
Notice：
If （flash mode）is selected，press the ENTER button to confirm, then use the DOWN and
UP button to select the (wait time) or (shutter), Once select, press the ENTER
button to confirm. then use the DOWN and UP button to adjust the the wait time or shutter
speed(solw ,midum, fast)(1…..9). Once select, press the ENTER button to store or automatically
return to the main functions without any change after one minute. To go back to the previous
functions without any change press the MENU button.
1. If （flash mode）is selected，press the ENTER button to confirm, then use the DOWN
and UP button to select the (wait time) or (strobe), Once select, press the
ENTER button to confirm. then use the DOWN and UP button to adjust the the wait time or
strobe speed (solw ,middle, fast) (1…..9). Once select, press the ENTER button to store or
automatically return to the main functions without any change after one minute. To go back to

11B
the previous functions without any change press the MENU button。
2. If （flash mode）is selected, press the ENTER button to confirm, then use the DOWN
and UP button to adjust the type of the rotation(1…..9). Once select, press the ENTER button
to store or automatically return to the main functions without any change after one minute. To
go back to the previous functions without any change press the MENU button.
3. If （fade）is selected, press the ENTER button to confirm, then use the DOWN and
UP button to adjust rotation time(1…..9). Once select, press the ENTER button to store or
automatically return to the main functions without any change after one minute. To go back to
the previous functions without any change press the MENU button.
Key Board Lock
Press the MENU button up to when the is showing on the display. Press the ENTER
button and the display will blink. Use the DOWN and UP button to select the （lock the
key board）or （normal），Once select, press the ENTER button to setup or automatically
return to the main functions without any change after one minute. Back to the previous functions
press the MENU button.
Auto Test
Press the MENU button up to when the，is blinking on the display. Press the ENTER
button and the unit will run self-test by built-in program. To go back to the functions press the
MENU button again.
LED
Press the MENU button up to when the is shown on the display. Press the ENTER button
and the display will blink. Use DOWN and UP button to select （display on）or
（display off 20 seconds after exit menu）mode. Once select, press ENTER button to setup or exit
menu mode without any change after one minute. Back to the functions without any change press
MENU button again.

12B
Temperature Test
Press the MENU button up to when the is blinking on the display. Press the ENTER
button and the display will show the temperature of the unit. To go back to the functions press the
MENU button again.
Fixture Hours
Press the MENU button up to when the is blinking on the display. Press the ENTER
button and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button.
Software version
Press the MENU button up to when the is blinking on the display. Press the ENTER
button and the display will show the version of software of the unit. To go back to the functions
press the MENU button again.
4. How To Control The Unit
You can operate the unit by DMX controller:
No need to turn the unit off when you change the DMX address, as new DMX address setting will
be affected at once. Every time you turn the unit on, it will show on the displayAfter that
the unit will be ready to receive DMX signal or run the built in programs.
4.1 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing ENTER button
and the display will blink. Use DOWN and UP button to change the DMX512 address. Once the
address has been selected, press and keep ENTER button pressed up to when the display stops
blinking or storing automatically 8 seconds later. To go back to the functions without any change

13B
press the MENU button again.
Please refer to the following diagram to address your DMX512 channel for the first 4 units：

14B
4.3 DMX 512 Configuration
4/5/7 Channels Mode:

15B
5. DMX512 Connections
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’power is disconnected.
4. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pin XLR.

16B
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not
used.
6. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
Problem Possible Cause Action
Incorrect power cable
connection.
Check the connection of power.
The unit does not work, no light.
Incorrect mains voltage. Measure the mains voltage
on the main connector.
Incorrect DMX cable
connection.
Check DMX connectors and
cables to see if link properly.
Repair or replace damaged wires
.
Incorrect address assignment to
the units.
Check the addresses of the units
and the protocol settings.
Unfinished data connection. Insert a terminal plug in the
output jack of the last unit of the
connection.
It has been set up an operating
mode different from the DMX
mode used.
Check the operating mode set up
.
The unit does not respond
properly to the DMX control.
Try to use another DMX
controller.

17B
7. Fixture Cleaning
The cleaning of outside glass must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or particularly
dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days.

18B
Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
