Vision Plus STATUS 560 User manual

STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom

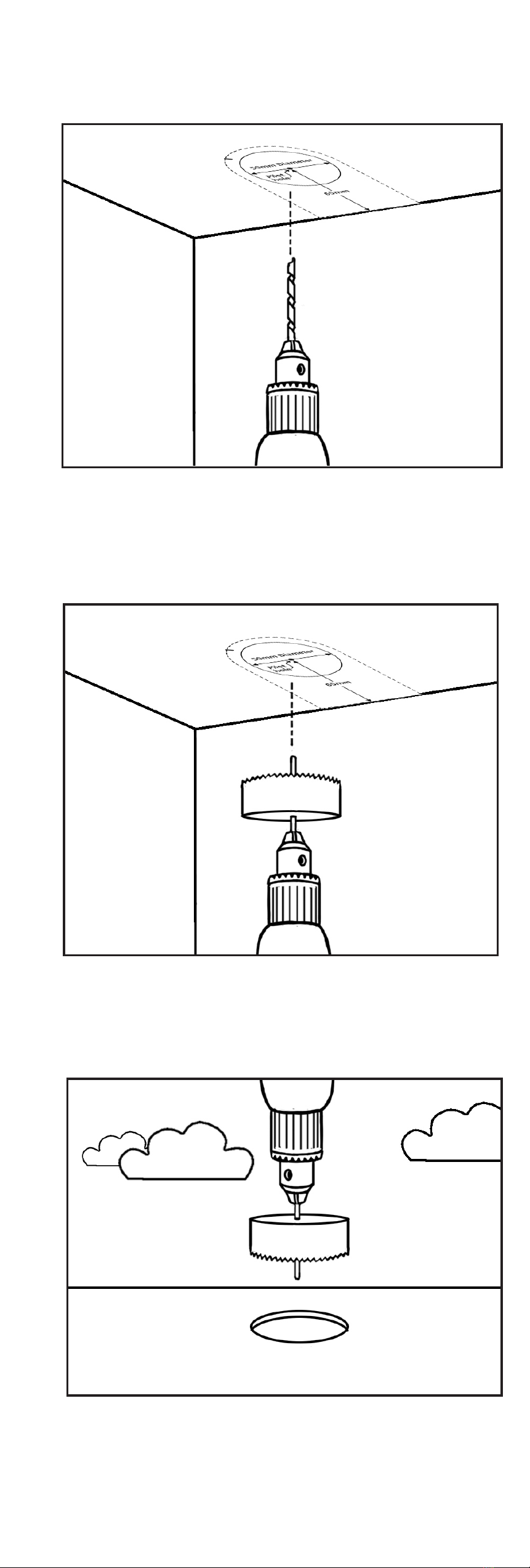

Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited

STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom
Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited
STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom
Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited

STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom
Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited

Antenna & Mast

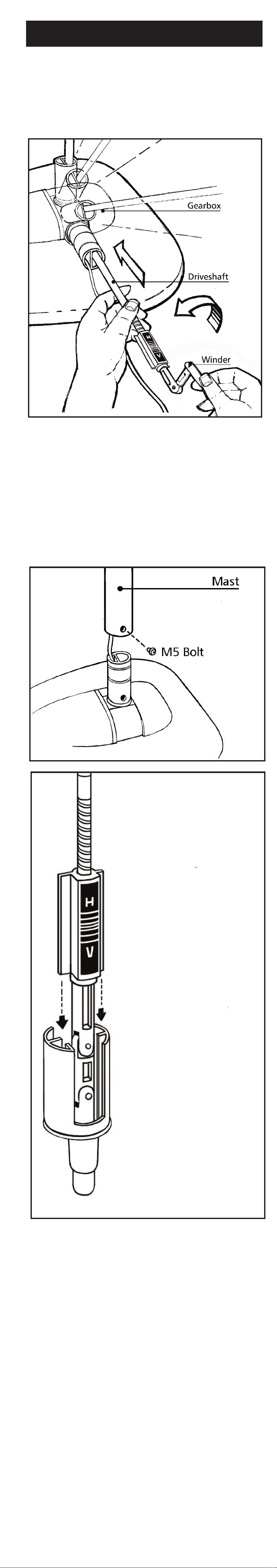

1. Insert the driveshaft into the gearbox and
turn the handle anti-clockwise until the
gearbox has rotated through 900and
is vertical. Now remove the driveshaft.
ASSEMBLY & INSTALLATION
2. Whilst feeding through the coaxial cable,
lower the mast onto the gearbox and
gently over the three O-rings with a
twisting motion, being careful not to
trap or damage the O-rings. If necessary
use a soapy water solution as a lubricant
(DO NOT use anything oil based).
3. Secure the mast with the M5 bolt using
the Allan key supplied.
5. Now slide the whole
assembly down the
mast ensuring the
drive shaft locates in
the gearbox and the
‘H’ indicator is centred
in the window.
6. Once in place secure
with the M5 bolt
using the Allan key
supplied
VERY IMPORTANT –
When fitting the two
M5 bolts, the heads
must be flush with the
mast to prevent
damage to the gaiter.
4. Next ensure the H/V
Indicator is threaded
fully down the threaded
winder handle
mechanism. Then slide
the whole assembly
into the Mast End Cap.
Positioning
When positioning the Antenna & Mast, please
consider the following:-
1. Position in a suitable wardrobe or locker,
away from the edge of the roofline to
reduce the possibility of damage when
travelling.
2. Ensure there is sufficient space to allow
the mast to fully retract.
3. The mast needs to mount against a wall
for fixing of the Wall Bracket.
4. Ensure there are no obstructions on the
roof that would obstruct either the
lowering or rotation of the antenna.
5. Wherever possible, mount on the offside
of the vehicle to reduce the possibility of
collision with overhead obstructions.
6. You must ensure there is enough space
for the mast to retract fully and for the
location of the Amplifier.
7. Position so the Antenna Dome is not
shielded from incoming TV signals when
raised.
8. Check there are no electrical cabl es
before drilling the mounting hole.
Fitting
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
To give extra stability and a professional finish
an Antenna Blanking Plate is available should
the antenna you’re replacing have a larger
footprint.
1. Using the enclosed Template against the
ceiling, position the centre of the hole for
the mast 50mm from the wall and drill a
50mm diameter hole. It is crucial that the
mast runs VERTICAL through the roof.
The Amplifier
Positioning & Fitting
1. Locate the Amplifier in the wardrobe or
locker close to the ceiling, adjacent the
mast, where it is easily accessible.
2. Fix in place using the two 38mm screws
Power Supply
1. The Amplifier requires a 12-24 volt power
supply from a fused auxiliary outlet fed
from the battery. If wiring direct to a battery
we recommend an in-line fuse (max 5 amp)
on the positive wire. If unsure please consult
with a qualified installer.
RED STRIPE +VE, BLACK –VE
DO NOT connect into any other 12-24 volt power
cables as they may carry electrical interference
which will cause picture pixillation.
Connecting Up the System
1. Plug the Antenna into the ‘ANT.IN’ socket.
DO NOT secure the cable, which must be
left loose.
2. Plug your lead into the ‘TV’ socket of the
Amplifier and into your TV antenna socket.
3. Should your TV position be a greater distance
than the fly lead provided you will require
a length of coaxial cable and two coaxial
plugs, which are available from our Vision
Plus Range.
IMPORTANT – Do not over tighten the F-Connectors
when fitting to your amplifier. The same applies
when de-coupling too.
1. Loosen the Mast Locking Collar and Wall
Bracket to raise the antenna.
2. Determine whether the TV transmissions are
horizontal or vertical and position accordingly.
OPERATING THE SYSTEM
Removing the Antenna
A permanently fitted Status can be easily
removed leaving only the Mounting Foot and
rubber gaiter.
1. Unplug the antenna lead from the Amplifier.
2. Loosen the Mast Locking Collar and Wall
Bracket, lift off whilst feeding out the mast,
coaxial cable and plug.
3. Push the Blanking Cap supplied into place.
IMPORTANT - The Blanking Cap is a temporary
seal and is not recommended for long term use.
3. Switch ON the Amplifier and the LED will
illuminate and check the gain is set to MIN
by rotating the button anti-clockwise.
4. Rotate the antenna.
RED – Poor signal - keep turning.
YELLOW – getting better - slow down.
GREEN – Signals located, ready to GO.
5. If there’s no GREEN increase the Gain and
repeat the 360 degree rotation.
6. Once the transmitter has been located
increase the Gain to MAX.
7. Turn on your television set and tune in.
This will be necessary at all new locations.
8. Secure the Antenna by hand tightening the
Mast Locking Collar and Wall Bracket.
IMPORTANT
You may detect more than one transmitter.
Choose the position that gives you the most
channels when tuning in your TV.
In poor signal areas the LED may only glow
YELLOW.
In strong signal areas you may need to reduce
the gain by rotating the Control anti-clockwise.
Antenna Dome
Mounting Foot
Mast Locking Collar
Amplifier
Winder
Wall Bracket
2. On the roof, screw into place the Mounting
Sleeve with foam seal with the four 16mm
screws supplied.
3. On the inside, thread the Locking Plate up
the sleeve to the ceiling and hand tighten.
Secure with the three 16mm screws.
4. Position the Wall Bracket approximately
250mm down from the ceiling and secure
in place with the four 38mm screws supplied.
5. Feed the Antenna and Mast through the
Roof Assembly and the Wall Bracket
and lower into place.
6. Tighten the Mast Locking Collar and the Wall
Bracket to secure.
When looking directly at the H/V window on
the bottom of the mast you are looking in the
same direction the antenna is pointing.
DAB & FM Radio Connection
Status is designed to receive DAB & FM when
connected to a radio with DAB/FM facility.
1. This will require a coaxial car radio plug,
coaxial connectors and a length of coaxial
cable, which are available from our Vision
Plus Range www.gradeuk.co.uk
2. Once the cable has been installed plug into
the ‘Radio’ socket of the Amplifier and into
your Radio.
Dependant on location DAB & FM Radio
reception may be improved by setting the
antenna to Vertical.
DO NOT connect into any other 12 volt power
cables as they may carry electrical interference
which will cause picture distortion
Should your external mounting surface be
angled, we have an alternative Adjustable
Mounting Foot that accommodates angles up
to a maximum of 15 degrees.
For more information and availability, please
contact www.visionplus.co.uk or call 0115 986
7151.
ANGLE ADJUSTABLE MOUNTING FOOT

Antenna & Mast
1. Insert the driveshaft into the gearbox and
turn the handle anti-clockwise until the
gearbox has rotated through 900and
is vertical. Now remove the driveshaft.
ASSEMBLY & INSTALLATION
2. Whilst feeding through the coaxial cable,
lower the mast onto the gearbox and
gently over the three O-rings with a
twisting motion, being careful not to
trap or damage the O-rings. If necessary
use a soapy water solution as a lubricant
(DO NOT use anything oil based).
3. Secure the mast with the M5 bolt using
the Allan key supplied.
5. Now slide the whole
assembly down the
mast ensuring the
drive shaft locates in
the gearbox and the
‘H’ indicator is centred
in the window.
6. Once in place secure
with the M5 bolt
using the Allan key
supplied
VERY IMPORTANT –
When fitting the two
M5 bolts, the heads
must be flush with the
mast to prevent
damage to the gaiter.
4. Next ensure the H/V
Indicator is threaded
fully down the threaded
winder handle
mechanism. Then slide
the whole assembly
into the Mast End Cap.
Positioning
When positioning the Antenna & Mast, please
consider the following:-
1. Position in a suitable wardrobe or locker,
away from the edge of the roofline to
reduce the possibility of damage when
travelling.
2. Ensure there is sufficient space to allow
the mast to fully retract.
3. The mast needs to mount against a wall
for fixing of the Wall Bracket.
4. Ensure there are no obstructions on the
roof that would obstruct either the
lowering or rotation of the antenna.
5. Wherever possible, mount on the offside
of the vehicle to reduce the possibility of
collision with overhead obstructions.
6. You must ensure there is enough space
for the mast to retract fully and for the
location of the Amplifier.
7. Position so the Antenna Dome is not
shielded from incoming TV signals when
raised.
8. Check there are no electrical cabl es
before drilling the mounting hole.
Fitting
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
To give extra stability and a professional finish
an Antenna Blanking Plate is available should
the antenna you’re replacing have a larger
footprint.
1. Using the enclosed Template against the
ceiling, position the centre of the hole for
the mast 50mm from the wall and drill a
50mm diameter hole. It is crucial that the
mast runs VERTICAL through the roof.
The Amplifier
Positioning & Fitting
1. Locate the Amplifier in the wardrobe or
locker close to the ceiling, adjacent the
mast, where it is easily accessible.
2. Fix in place using the two 38mm screws
Power Supply
1. The Amplifier requires a 12-24 volt power
supply from a fused auxiliary outlet fed
from the battery. If wiring direct to a battery
we recommend an in-line fuse (max 5 amp)
on the positive wire. If unsure please consult
with a qualified installer.
RED STRIPE +VE, BLACK –VE
DO NOT connect into any other 12-24 volt power
cables as they may carry electrical interference
which will cause picture pixillation.
Connecting Up the System
1. Plug the Antenna into the ‘ANT.IN’ socket.
DO NOT secure the cable, which must be
left loose.
2. Plug your lead into the ‘TV’ socket of the
Amplifier and into your TV antenna socket.
3. Should your TV position be a greater distance
than the fly lead provided you will require
a length of coaxial cable and two coaxial
plugs, which are available from our Vision
Plus Range.
IMPORTANT – Do not over tighten the F-Connectors
when fitting to your amplifier. The same applies
when de-coupling too.
1. Loosen the Mast Locking Collar and Wall
Bracket to raise the antenna.
2. Determine whether the TV transmissions are
horizontal or vertical and position accordingly.
OPERATING THE SYSTEM
Removing the Antenna
A permanently fitted Status can be easily
removed leaving only the Mounting Foot and
rubber gaiter.
1. Unplug the antenna lead from the Amplifier.
2. Loosen the Mast Locking Collar and Wall
Bracket, lift off whilst feeding out the mast,
coaxial cable and plug.
3. Push the Blanking Cap supplied into place.
IMPORTANT - The Blanking Cap is a temporary
seal and is not recommended for long term use.
3. Switch ON the Amplifier and the LED will
illuminate and check the gain is set to MIN
by rotating the button anti-clockwise.
4. Rotate the antenna.
RED – Poor signal - keep turning.
YELLOW – getting better - slow down.
GREEN – Signals located, ready to GO.
5. If there’s no GREEN increase the Gain and
repeat the 360 degree rotation.
6. Once the transmitter has been located
increase the Gain to MAX.
7. Turn on your television set and tune in.
This will be necessary at all new locations.
8. Secure the Antenna by hand tightening the
Mast Locking Collar and Wall Bracket.
IMPORTANT
You may detect more than one transmitter.
Choose the position that gives you the most
channels when tuning in your TV.
In poor signal areas the LED may only glow
YELLOW.
In strong signal areas you may need to reduce
the gain by rotating the Control anti-clockwise.
Antenna Dome
Mounting Foot
Mast Locking Collar
Amplifier
Winder
Wall Bracket

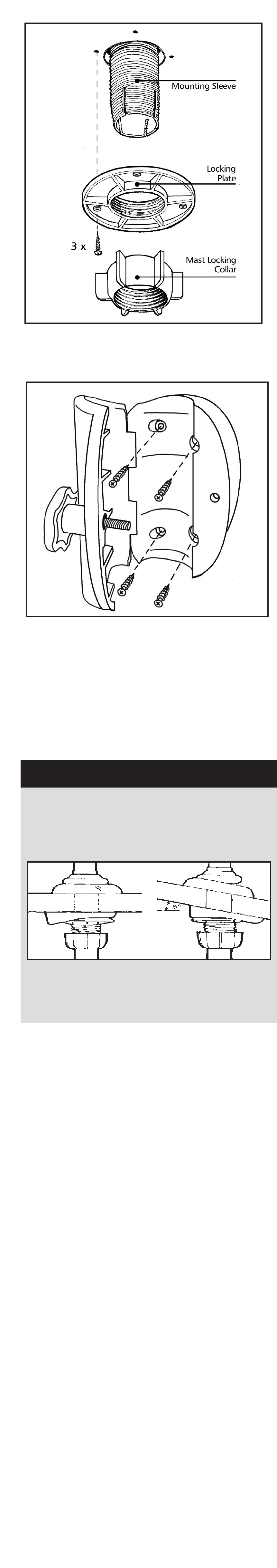

2. On the roof, screw into place the Mounting
Sleeve with foam seal with the four 16mm
screws supplied.
3. On the inside, thread the Locking Plate up
the sleeve to the ceiling and hand tighten.
Secure with the three 16mm screws.
4. Position the Wall Bracket approximately
250mm down from the ceiling and secure
in place with the four 38mm screws supplied.
5. Feed the Antenna and Mast through the
Roof Assembly and the Wall Bracket
and lower into place.
6. Tighten the Mast Locking Collar and the Wall
Bracket to secure.
When looking directly at the H/V window on
the bottom of the mast you are looking in the
same direction the antenna is pointing.
DAB & FM Radio Connection
Status is designed to receive DAB & FM when
connected to a radio with DAB/FM facility.
1. This will require a coaxial car radio plug,
coaxial connectors and a length of coaxial
cable, which are available from our Vision
Plus Range www.gradeuk.co.uk
2. Once the cable has been installed plug into
the ‘Radio’ socket of the Amplifier and into
your Radio.
Dependant on location DAB & FM Radio
reception may be improved by setting the
antenna to Vertical.
DO NOT connect into any other 12 volt power
cables as they may carry electrical interference
which will cause picture distortion
Should your external mounting surface be
angled, we have an alternative Adjustable
Mounting Foot that accommodates angles up
to a maximum of 15 degrees.
For more information and availability, please
contact www.visionplus.co.uk or call 0115 986
7151.
ANGLE ADJUSTABLE MOUNTING FOOT

Antenna & Mast
1. Insert the driveshaft into the gearbox and
turn the handle anti-clockwise until the
gearbox has rotated through 900and
is vertical. Now remove the driveshaft.
ASSEMBLY & INSTALLATION
2. Whilst feeding through the coaxial cable,
lower the mast onto the gearbox and
gently over the three O-rings with a
twisting motion, being careful not to
trap or damage the O-rings. If necessary
use a soapy water solution as a lubricant
(DO NOT use anything oil based).
3. Secure the mast with the M5 bolt using
the Allan key supplied.
5. Now slide the whole
assembly down the
mast ensuring the
drive shaft locates in
the gearbox and the
‘H’ indicator is centred
in the window.
6. Once in place secure
with the M5 bolt
using the Allan key
supplied
VERY IMPORTANT –
When fitting the two
M5 bolts, the heads
must be flush with the
mast to prevent
damage to the gaiter.
4. Next ensure the H/V
Indicator is threaded
fully down the threaded
winder handle
mechanism. Then slide
the whole assembly
into the Mast End Cap.
Positioning
When positioning the Antenna & Mast, please
consider the following:-
1. Position in a suitable wardrobe or locker,
away from the edge of the roofline to
reduce the possibility of damage when
travelling.
2. Ensure there is sufficient space to allow
the mast to fully retract.
3. The mast needs to mount against a wall
for fixing of the Wall Bracket.
4. Ensure there are no obstructions on the
roof that would obstruct either the
lowering or rotation of the antenna.
5. Wherever possible, mount on the offside
of the vehicle to reduce the possibility of
collision with overhead obstructions.
6. You must ensure there is enough space
for the mast to retract fully and for the
location of the Amplifier.
7. Position so the Antenna Dome is not
shielded from incoming TV signals when
raised.
8. Check there are no electrical cabl es
before drilling the mounting hole.
Fitting
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
To give extra stability and a professional finish
an Antenna Blanking Plate is available should
the antenna you’re replacing have a larger
footprint.
1. Using the enclosed Template against the
ceiling, position the centre of the hole for
the mast 50mm from the wall and drill a
50mm diameter hole. It is crucial that the
mast runs VERTICAL through the roof.
The Amplifier
Positioning & Fitting
1. Locate the Amplifier in the wardrobe or
locker close to the ceiling, adjacent the
mast, where it is easily accessible.
2. Fix in place using the two 38mm screws
Power Supply
1. The Amplifier requires a 12-24 volt power
supply from a fused auxiliary outlet fed
from the battery. If wiring direct to a battery
we recommend an in-line fuse (max 5 amp)
on the positive wire. If unsure please consult
with a qualified installer.
RED STRIPE +VE, BLACK –VE
DO NOT connect into any other 12-24 volt power
cables as they may carry electrical interference
which will cause picture pixillation.
Connecting Up the System
1. Plug the Antenna into the ‘ANT.IN’ socket.
DO NOT secure the cable, which must be
left loose.
2. Plug your lead into the ‘TV’ socket of the
Amplifier and into your TV antenna socket.
3. Should your TV position be a greater distance
than the fly lead provided you will require
a length of coaxial cable and two coaxial
plugs, which are available from our Vision
Plus Range.
IMPORTANT – Do not over tighten the F-Connectors
when fitting to your amplifier. The same applies
when de-coupling too.
1. Loosen the Mast Locking Collar and Wall
Bracket to raise the antenna.
2. Determine whether the TV transmissions are
horizontal or vertical and position accordingly.
OPERATING THE SYSTEM
Removing the Antenna
A permanently fitted Status can be easily
removed leaving only the Mounting Foot and
rubber gaiter.
1. Unplug the antenna lead from the Amplifier.
2. Loosen the Mast Locking Collar and Wall
Bracket, lift off whilst feeding out the mast,
coaxial cable and plug.
3. Push the Blanking Cap supplied into place.
IMPORTANT - The Blanking Cap is a temporary
seal and is not recommended for long term use.
3. Switch ON the Amplifier and the LED will
illuminate and check the gain is set to MIN
by rotating the button anti-clockwise.
4. Rotate the antenna.
RED – Poor signal - keep turning.
YELLOW – getting better - slow down.
GREEN – Signals located, ready to GO.
5. If there’s no GREEN increase the Gain and
repeat the 360 degree rotation.
6. Once the transmitter has been located
increase the Gain to MAX.
7. Turn on your television set and tune in.
This will be necessary at all new locations.
8. Secure the Antenna by hand tightening the
Mast Locking Collar and Wall Bracket.
IMPORTANT
You may detect more than one transmitter.
Choose the position that gives you the most
channels when tuning in your TV.
In poor signal areas the LED may only glow
YELLOW.
In strong signal areas you may need to reduce
the gain by rotating the Control anti-clockwise.
Antenna Dome
Mounting Foot
Mast Locking Collar
Amplifier
Winder
Wall Bracket
2. On the roof, screw into place the Mounting
Sleeve with foam seal with the four 16mm
screws supplied.
3. On the inside, thread the Locking Plate up
the sleeve to the ceiling and hand tighten.
Secure with the three 16mm screws.
4. Position the Wall Bracket approximately
250mm down from the ceiling and secure
in place with the four 38mm screws supplied.
5. Feed the Antenna and Mast through the
Roof Assembly and the Wall Bracket
and lower into place.
6. Tighten the Mast Locking Collar and the Wall
Bracket to secure.
When looking directly at the H/V window on
the bottom of the mast you are looking in the
same direction the antenna is pointing.
DAB & FM Radio Connection
Status is designed to receive DAB & FM when
connected to a radio with DAB/FM facility.
1. This will require a coaxial car radio plug,
coaxial connectors and a length of coaxial
cable, which are available from our Vision
Plus Range www.gradeuk.co.uk
2. Once the cable has been installed plug into
the ‘Radio’ socket of the Amplifier and into
your Radio.
Dependant on location DAB & FM Radio
reception may be improved by setting the
antenna to Vertical.
DO NOT connect into any other 12 volt power
cables as they may carry electrical interference
which will cause picture distortion
Should your external mounting surface be
angled, we have an alternative Adjustable
Mounting Foot that accommodates angles up
to a maximum of 15 degrees.
For more information and availability, please
contact www.visionplus.co.uk or call 0115 986
7151.
ANGLE ADJUSTABLE MOUNTING FOOT

Antenna & Mast
1. Insert the driveshaft into the gearbox and
turn the handle anti-clockwise until the
gearbox has rotated through 900and
is vertical. Now remove the driveshaft.
ASSEMBLY & INSTALLATION
2. Whilst feeding through the coaxial cable,
lower the mast onto the gearbox and
gently over the three O-rings with a
twisting motion, being careful not to
trap or damage the O-rings. If necessary
use a soapy water solution as a lubricant
(DO NOT use anything oil based).
3. Secure the mast with the M5 bolt using
the Allan key supplied.
5. Now slide the whole
assembly down the
mast ensuring the
drive shaft locates in
the gearbox and the
‘H’ indicator is centred
in the window.
6. Once in place secure
with the M5 bolt
using the Allan key
supplied
VERY IMPORTANT –
When fitting the two
M5 bolts, the heads
must be flush with the
mast to prevent
damage to the gaiter.
4. Next ensure the H/V
Indicator is threaded
fully down the threaded
winder handle
mechanism. Then slide
the whole assembly
into the Mast End Cap.
Positioning
When positioning the Antenna & Mast, please
consider the following:-
1. Position in a suitable wardrobe or locker,
away from the edge of the roofline to
reduce the possibility of damage when
travelling.
2. Ensure there is sufficient space to allow
the mast to fully retract.
3. The mast needs to mount against a wall
for fixing of the Wall Bracket.
4. Ensure there are no obstructions on the
roof that would obstruct either the
lowering or rotation of the antenna.
5. Wherever possible, mount on the offside
of the vehicle to reduce the possibility of
collision with overhead obstructions.
6. You must ensure there is enough space
for the mast to retract fully and for the
location of the Amplifier.
7. Position so the Antenna Dome is not
shielded from incoming TV signals when
raised.
8. Check there are no electrical cabl es
before drilling the mounting hole.
Fitting
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
To give extra stability and a professional finish
an Antenna Blanking Plate is available should
the antenna you’re replacing have a larger
footprint.
1. Using the enclosed Template against the
ceiling, position the centre of the hole for
the mast 50mm from the wall and drill a
50mm diameter hole. It is crucial that the
mast runs VERTICAL through the roof.
The Amplifier
Positioning & Fitting
1. Locate the Amplifier in the wardrobe or
locker close to the ceiling, adjacent the
mast, where it is easily accessible.
2. Fix in place using the two 38mm screws
Power Supply
1. The Amplifier requires a 12-24 volt power
supply from a fused auxiliary outlet fed
from the battery. If wiring direct to a battery
we recommend an in-line fuse (max 5 amp)
on the positive wire. If unsure please consult
with a qualified installer.
RED STRIPE +VE, BLACK –VE
DO NOT connect into any other 12-24 volt power
cables as they may carry electrical interference
which will cause picture pixillation.
Connecting Up the System
1. Plug the Antenna into the ‘ANT.IN’ socket.
DO NOT secure the cable, which must be
left loose.
2. Plug your lead into the ‘TV’ socket of the
Amplifier and into your TV antenna socket.
3. Should your TV position be a greater distance
than the fly lead provided you will require
a length of coaxial cable and two coaxial
plugs, which are available from our Vision
Plus Range.
IMPORTANT – Do not over tighten the F-Connectors
when fitting to your amplifier. The same applies
when de-coupling too.
1. Loosen the Mast Locking Collar and Wall
Bracket to raise the antenna.
2. Determine whether the TV transmissions are
horizontal or vertical and position accordingly.
OPERATING THE SYSTEM
Removing the Antenna
A permanently fitted Status can be easily
removed leaving only the Mounting Foot and
rubber gaiter.
1. Unplug the antenna lead from the Amplifier.
2. Loosen the Mast Locking Collar and Wall
Bracket, lift off whilst feeding out the mast,
coaxial cable and plug.
3. Push the Blanking Cap supplied into place.
IMPORTANT - The Blanking Cap is a temporary
seal and is not recommended for long term use.
3. Switch ON the Amplifier and the LED will
illuminate and check the gain is set to MIN
by rotating the button anti-clockwise.
4. Rotate the antenna.
RED – Poor signal - keep turning.
YELLOW – getting better - slow down.
GREEN – Signals located, ready to GO.
5. If there’s no GREEN increase the Gain and
repeat the 360 degree rotation.
6. Once the transmitter has been located
increase the Gain to MAX.
7. Turn on your television set and tune in.
This will be necessary at all new locations.
8. Secure the Antenna by hand tightening the
Mast Locking Collar and Wall Bracket.
IMPORTANT
You may detect more than one transmitter.
Choose the position that gives you the most
channels when tuning in your TV.
In poor signal areas the LED may only glow
YELLOW.
In strong signal areas you may need to reduce
the gain by rotating the Control anti-clockwise.
Antenna Dome
Mounting Foot
Mast Locking Collar
Amplifier
Winder
Wall Bracket
2. On the roof, screw into place the Mounting
Sleeve with foam seal with the four 16mm
screws supplied.
3. On the inside, thread the Locking Plate up
the sleeve to the ceiling and hand tighten.
Secure with the three 16mm screws.
4. Position the Wall Bracket approximately
250mm down from the ceiling and secure
in place with the four 38mm screws supplied.
5. Feed the Antenna and Mast through the
Roof Assembly and the Wall Bracket
and lower into place.
6. Tighten the Mast Locking Collar and the Wall
Bracket to secure.
When looking directly at the H/V window on
the bottom of the mast you are looking in the
same direction the antenna is pointing.
DAB & FM Radio Connection
Status is designed to receive DAB & FM when
connected to a radio with DAB/FM facility.
1. This will require a coaxial car radio plug,
coaxial connectors and a length of coaxial
cable, which are available from our Vision
Plus Range www.gradeuk.co.uk
2. Once the cable has been installed plug into
the ‘Radio’ socket of the Amplifier and into
your Radio.
Dependant on location DAB & FM Radio
reception may be improved by setting the
antenna to Vertical.
DO NOT connect into any other 12 volt power
cables as they may carry electrical interference
which will cause picture distortion
Should your external mounting surface be
angled, we have an alternative Adjustable
Mounting Foot that accommodates angles up
to a maximum of 15 degrees.
For more information and availability, please
contact www.visionplus.co.uk or call 0115 986
7151.
ANGLE ADJUSTABLE MOUNTING FOOT

STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom
Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited

STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom
Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited

STATUS 560 Digital Antenna System
Please read these instructions carefully. Incorrect
installation will affect the performance of your Status
Dimensions:
Antenna Dome Length 530 mm
Width 340 mm
Height 125 mm
Mounting Foot & Gaiter Diameter 122mm
Height 35 mm
Amplifier 157 x 45 x 29mm
Technical:
Frequency Range UHF 470-860 MHz
FM 88-108 MHz
DAB 175-230 MHz
Antenna Forward Gain 7 db
Amplifier Gain 16 db
Gain Adjustment 15 db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 92 dbuv
Power Supply 12-24 vDC
Power Consumption 90 ma
Signal Outputs 3 TV 1 Radio
RETAIL
The following are some of the key areas we suggest
you check which generally solve the most common
problems encountered with the operation of the
Status antenna.
Coaxial Connections
It is critical that all connections in the system are
fitted correctly and only quality plugs have been
used.
Coaxial Cable
Sharp bends, kinks and hot surfaces can easily damage
coaxial cable and should be avoided. Coaxial cable,
if placed in close proximity to electrical cables,
transformers or other pieces of electrical equipment,
may pick up electrical interference causing picture
quality to deteriorate, especially in poor reception
areas. Excess cable should be removed and NOT
coiled as this may cause picture distortion. An
inspection of the routing of the cable is highly
recommended to ensure all is correct.
Gain Control
In normal use the button should be rotated
clockwise for maximum. In strong signal areas the
amplification may need to be reduced. To reduce
amplification rotate the button anti-clockwise
until picture quality improves. The button rotates
through 270 degrees from MAX to MIN.
LED Light
Should the LED on the Amplifier not light, firstly
check there is power to the unit. Secondly check the
polarity is correct. Otherwise contact ourselves for
further assistance.
Short Hook Up - Test 1
This test isolates the wiring from the Amplifier
through to your TV/Radio points.
Unplug the coaxial plugs from the ‘TV’ sockets of
the Amplifier and using your TV fly lead with
Convertor 1 supplied. Connect your TV to the
Amplifier.
Please ensure the Antenna Dome is plugged directly
into the ‘ANT-IN’ socket of the Amplifier and switch
on. Tune in your TV for the strongest signal.
If the picture quality improves the fault lies with the
wiring of the system between the Amplifier and the
TV outlet socket.
Short Hook Up - Test 2
This test isolates the Amplifier by connecting your
TV direct to the Antenna.
Fault Finding
MAINTENANCE
Gaiter
We suggest you periodically check the gaiter for
any signs of damage or for wear.
If the rubber is caught by overhead obstructions it
may rip or tear which would allow water to work
its way into the fabric of the roof.
Over an extended period of time the gaiter will
wear at the contact area with the mast. Should the
gaiter begin to fail the signs will be small amounts
of water dripping down the outside of the mast,
however, the design of the Gaiter and Mounting
Foot ensures that water cannot work its way into
the fabric of the roof. Should this problem occur
contact ourselves for a replacement unit.
Spares & Repairs
Should you require any parts for replacements
or repair please log on to www.gradeuk.co.uk or
contact ourselves on 0115 986 7151.
GUARANTEE
The Status Antenna has a return to base guarantee
against defective parts and workmanship for
two years from date of purchase*. This does not
include any malfunction resulting from improper
use, incorrect installation, accidental or malicious
damage. To support your guarantee claim a dated
Proof of Purchase will be required.
*This does not affect your statutory rights. Any queries
concerning warranty please contact ourselves.
Maintenance
cable end. Using your TV Fly lead connect the
antenna directly to your TV. Tune in your TV for the
strongest signal.
If the picture quality improves, the fault lies with
the Vision Plus Amplifier.
Unplug the Antenna from the Amplifier and
connect Convertor 2 supplied to the plug on the
Signal Action
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Moderate pixilation and sound distortion
Minor pixilation, will not receive all
channels
Stable picture, good sound quality, will
receive all channels
Possible pixilation, picture break up and
drop out
No picture or sound, TV freezing, severe
pixilation, break up and picture drop out
Check the amplifier gain is set to maximum (rotate
clockwise). Check antenna alignment which must
be directed at the transmitter. Ensure the antennas
polarity is correct, whether horizontal or vertical.
Bypass the amplifier by following “Short Hook-Up
Test 1”.
N / A
Reduce the amplifier gain (rotate anti-clockwise).
Rotate antenna AWAY from the transmitter.
Rotate antenna AWAY from the transmitter.
Switch ‘OFF’ the amplifier and turn the gain control
to maximum (rotate clockwise).
Very Poor
Poor
Medium
Good
Strong
Very Strong
After performing any of the ‘Actions’ above you must re-tune your TV
Symptom
Position the template in place and drill a
pilot hole from the inside, clean through
the roof. The hole MUST BE VERTICAL.
First drill from the inside using a 50mm
hole cutter.
Next drill from the outside using the same
50mm hole cutter to create a through
hole. File down any rough edges.
TEMPLATE FOR HOLE CUTTING
50mm
Antenna Dome Co-axial Cable
Check the routing of the coaxial cable from the
Antenna Dome to the Amplifier. Check to ensure
there are no kinks or trapped cable or if there are
loops of surplus cable which could be affecting
performance.
Customer Help Line
Should you still be experiencing difficulties and
require assistance, please do not hesitate to
contact us at the address below.
You must ensure that there is sufficient
strength in the roof structure to support the
antenna and mast.
Travelling
When positioning the Antenna Dome please
allow for the following:-
DO NOT TRAVEL:-
• WiththeAntennaraised
• WiththeAntennasetforverticalsignals
To reduce the possibility of damage when
travelling, have the antenna pointing towards
the rear of your caravan/motor home.
Routing Coaxial Cable
Coaxial Cable is quite fragile and must be
handled with care. Please comply with the
following as failure to do so will severely affect
performance.
1. Do not crush, kink or over-bend the coaxial
cable which has a minimum bend radius of
25mm.
2. Any excess cable should be removed and
MUST NOT be coiled.
3. Avoid increasing the number of
connections or breaks in the coaxial
cable as they will reduce performance,
especially in weak signal areas.
4. Do not run coaxial cable next to mains
cable, leave a minimum distance of
120mm to prevent interference.
5. Do not allow the cable to come into
contact with any hot surfaces as this could
melt the insulation of the cable.
6. Keep away from fluorescent lighting.
7. Do not add excessive lengths of coaxial
cable, this will result in increased signal
losses and a reduction in picture quality.
8. Should the cable need to be lengthened,
use high quality cable and connectors
which are available from our Vision
Plus Range through our dealers or directly
from ourselves at www.gradeuk.co.uk.
IMPORTANT GUIDELINES
VISION PLUS
8 Finch Close
Lenton Lane
Nottingham NG7 2NN
0115 986 7151
[email protected]
www.visionplus.co.uk
VISION PLUS is a trading name of Grade UK Limited
