VISIOR GAMES VISIDODGE User manual

Version 1.0 / 2021
Installation
manual

Warning!
Important Safety Instructions
CAUTION!
OPENING THE DEVICE MIGHT RESULT IN
ELECTRICAL SHOCK
Do not distract others while they
are installing the product.
Any changes or modications to the
devices hardware or software will
void the warranty of the device and
may cause the device not to work
properly.
The trampoline and its
surroundings must always comply
with local standards for trampolines.
If the instructions contradict the
local regulations please disregard
them.
Keep the device away from any
contact with water. Warranty void
after water damage.
For indoor use only.
Keep the device away from re.
Warranty void after re damage.
Installation should be performed by
authorized personnel.
Be sure to take all anti-static
precautions.
Optimum operating temperature
is from 5°C to 30°C. Avoid extreme
uctuations of temperature.
Wear appropriate clothing: Do not
wear loose clothing or jewellery.
These instructions apply to the
device itself. Please read the manual
before operation.
Long hair should be tied back. Visually check the product for any
signs of damage, component failure
and/or missing parts.
Tidy back any loose cables that
could become a tripping hazard.
Always use designated buttons on
the designated system.
Immediately inform Visior games
for maintenance advice if you have
concerns.
VISI DODGE – INSTALLATION MANUAL
2

Contents
What’s in the box? 4
Full setup 5
First time setup 6
Installation checklist 9
Powering on for the first time 10
In play safety guidelines 10
Maintenance 10
Game objective 11
Troubleshooting 12
www.visiorgames.com 3

What’s in the box?
FOR MONITOR MOUNT
FOR BUTTONS
Wing nuts
8 to 16 x
Spacers
8 to 16 x
Start button
1 x
A
Agregator box
2 x
D
Euro power cord
2 x
G
Can Bus cable
2 x
E
AC/DC power supply
1 x
H
Computer
1 x
C
Monitor
1 x
F
HDMI cable
1 x
J
Monitor mount
2 x
P
Left targets
2 to 4 x
S
Right targets
2 to 4 x
T
Installation manual
Screws
4 x
Spacers
4 x
L
N
M
O
R
L
R
VISI DODGE – INSTALLATION MANUAL
4

Full setup
Computer inputs
Full setup
4 lines / 8 targets
AC/DC power supply
CAN connection to
aggregator box
CAN connection to
aggregator box
USB
HMDI
Ethernet
Start button
Left targets Right targets
Ethernet
cable (not
included)
Monitor
Computer
Agregator box
AC/DC power
supply
HMDI cable
Euro power
cord
Euro power
cord
Agregator box
Can Bus cable
Ethernet cable
(not included)
Can Bus cable
L R
~220 V
~220 V
www.visiorgames.com 5

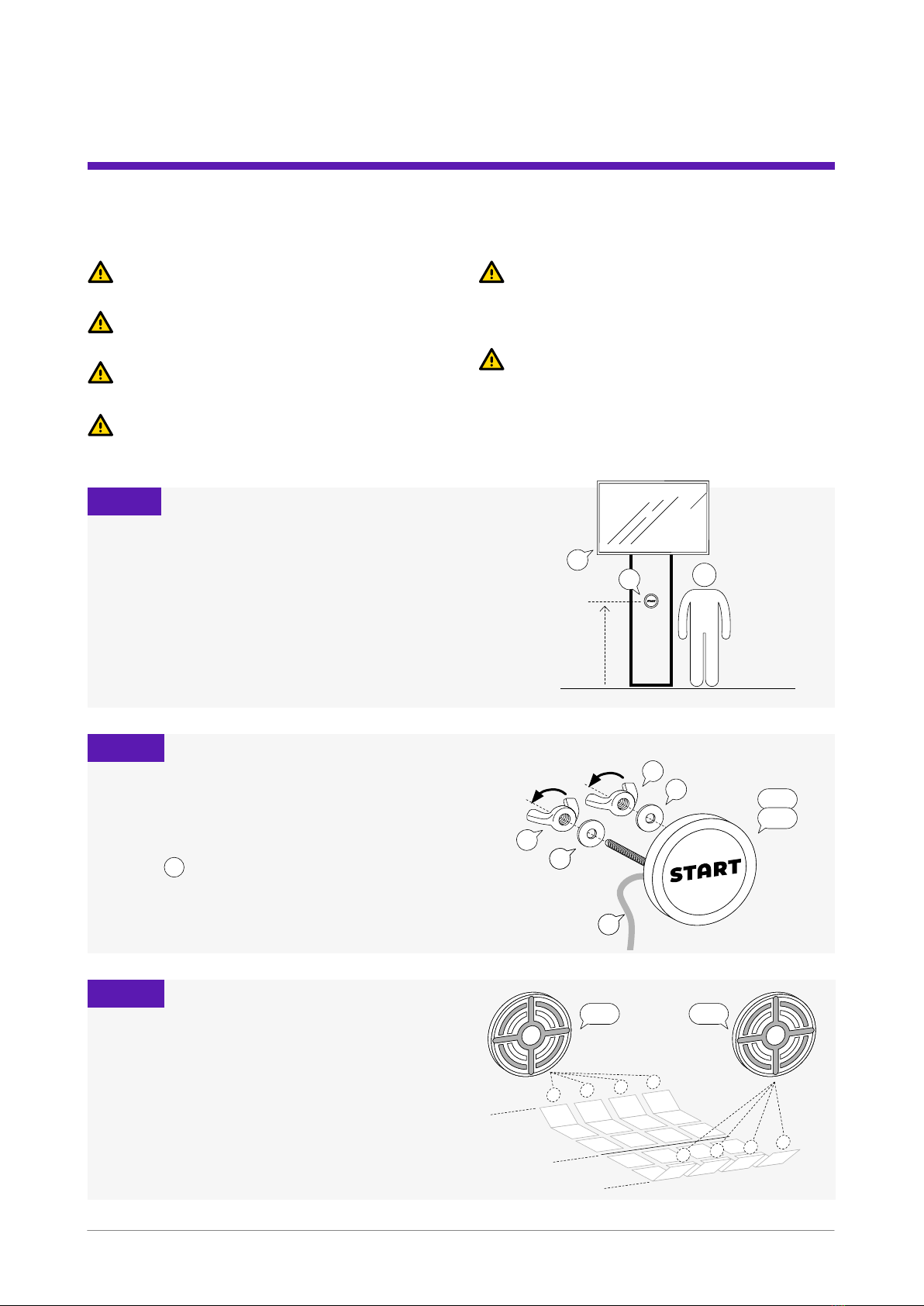

First time setup
A typical installation should take 2 people around 90 minutes.
Insure there is nobody on the trampoline when
installing the device.
Make sure that the targets are on the correct
side they are marked on the back side.
Make sure that the buttons and targets are
correctly oriented and clear of any obstructions.
Make sure the electrical power is off during
installation.
The buttons and targets are pre assigned to
only one computer that came with the game
set, you can’t switch them with other systems.
And they are also assigned to the correct side.
Follow the labels on the dodge targets for
correct installation (L is left, R is right 1-4 is the
position, 1 is closest to the monitors)
STEP 03
STEP 01
STEP 02
Install the Start button (A) below
the display. Approximate 150cm
(4.9 feet) from ground.
Fasten Start button (A) to the
construction with the provided wing
nuts (N) and spacers (O).
Avoid trapped and pinched cables.
150 cm
A
!
N
O
N
O
3xB
3xA
O
!!
F
Install the targets (S)(T) on their correct
side.
The target side preset is written on
the back of the target. Follow the
labels on the dodge targets for correct
installation (L is left, R is right 1-4 is the
position, 1 is closest to the monitors).
4xS 4xT
Right side
of court
Left side
of court
1L
1R
2L
2R
3L
3R
4L
4R
VISI DODGE – INSTALLATION MANUAL
6

STEP 04
Fasten targets (S)(T) with provided
wing nuts (N) and spacers (O) to the
construction.
Avoid trapped and pinched cables.
STEP 06
Connect the buttons (S)(T) to the
aggregator boxes (D) according to the
labels.
Be careful to tighten all connectors
to the aggregator boxes (D).
STEP 05
Mount the display on the construction.
STEP 07
Connect the computer (C) to aggregator
boxes with the Can Bus cable (E).
Aggregators are labeled L 0001, R 0001.
When connecting the cables be
careful to tighten all connectors
to the aggregator boxes and the
computer.
!
!
!
N
O
N
O
4xS
4xT
O
!
L 0001
D
L
L
!
1L
1R
S
T
D
1
GO
2
GO
3
GO
L 0001
1
GO
2
GO
3
GO
R 0001
C
INPUTS
E
E
SERIAL NUMBER
2105-02-*0001*
www.visiorgames.com 7

STEP 08
Connect the monitor (F) to the wall
power with Euro power cord (G).
Connect HDMI cable (J) from the
computer to the monitor.
STEP 09
FG
J
Connect LAN and DC power connection
to the computer
STEP 10
Cables should be mounted every 50cm.
Secure loose cables.
!
50 cm
Connect the ethernet cable with
internet access (cable not included) to
computer’s (C) ethernet port. Connect
the AC/DC power supply (H) to the
computer.
The computer should be mounted so
that the HDMI port points upward.
SERIAL NUMBER
2105-02-*0001*
C
J
H
Ethernet
cable
VISI DODGE – INSTALLATION MANUAL
8

CHECK 1
Pre-power up checkups
Mounted onto a construction designed for the game and in the right positions.
All buttons and targets are connected to the correct aggregator boxes.
Tighten all the connectors, the can bus cables and target cables.
Make sure the ethernet cable and DC power is connected to the computer.
Make sure the display is connected with HDMI and power cables.
All xings are tight and secure.
No signs of damage, component failure and/or missing parts.
No trapped and/or pinched cables.
No loose cables that could become a tripping hazard.
Make sure there is no strain on the cables and the connectors.
All electrical components are away from contact with water and heat sources.
CHECK 2
Power up
All targets light up for a brief moment.
The display is turning on.
Game start screen appears on the display after around 1 minute.
Go! sound is heard at startup.
All targets are dim before the start of the game.
The start button lights up.
CHECK 3
Final check
The clock starts the countdown on the display.
All targets ash when hit.
Sounds can be heard when the targets are hit.
The score is registered on the display.
Hit every target and check if the score is added to the correct side.
CHECK 4
Ready for use
Play area is clear.
Installation checklist
www.visiorgames.com 9

In play safety guidelines
Before beginning any exercise program, it is recommended that you consult with your doctor.
Children under the age of 8 must always be supervised by an adult when using the equipment.
Visually check the equipment before using it, for any signs of damage, component failure or loose
cables that could become a tripping hazard.
Wear appropriate clothing. Anti slip socks must be worn while using the equipment.
Remove all items from your pockets prior to participation.
Practice being in control of your bounce before using the equipment. Be aware of how to bend your
knees to control or stop your bounce. Always stay in control. Uncontrolled jumps or falls are likely to
result in injuries to yourself and others.
Don’t drink or eat while playing the game.
Powering on for the first time
Make sure that all cables are connected to
the aggregator boxes and the computer and
connectors tightened.
Make sure that the targets are on the correct
side of court relative to the monitor.
When you power the system on the buttons
go over the programmed sequence and light
up RGB for a brief moment when the power is
provided by the computer.
After the rst sequence the buttons go dim and
are awaiting the game to start.
Monitor must power on by itself when
connected to power.
It usually takes around 1min for the system
to boot up. When ready you will hire the GO
sound.
At this time the game is set for the rst test.
Press start button and check that the targets
are in the right positions by playing one game.
1
2
5
7
4
3
6
8
Maintenance
• The device is easily damaged if you put excessive pressure on the display or other components.
• If not in use for a long period of time please disconnect the device from power.
• Disconnect the device when cleaning with a slight damp cloth. The display and buttons may be cleaned
with slightly damp cloth, but do not use any organic solvents to clean the device.
VISI DODGE – INSTALLATION MANUAL
10

1. This is the start screen.
3. Hit the opponents targets with the ball.
5. The player with the most points after ve
minutes wins.
2. Press the start button to start the game.
4. When the targets are hit the score changes
on the display.
+1
+1
Game objective
www.visiorgames.com 11

Troubleshooting
The system doesn’t power on:
• Check the power connection to the system.
• Check the display power and HDMI connection
One or more of the targets are not assigned to the right side of the game:
• Check the labels on the targets, one or more targets must be in a wrong position
• Check the L and R markings on the targets.
One or more targets doesn’t light up:
• Check if the system is turned on.
• Check the connection from the target to the aggregator box and the connection to the
computer. DO NOT PLUG OR UNPLUG CAN BUS CABLES WHEN THE SYSTEM IS TURNED ON!
• If the connections are ok please contact us at: [email protected]
The start button does not start the game:
• Check the CANBUS cable connection.
• If everything seems in order contact us at: [email protected]
There is no picture on the display:
• Check the display power cable.
• Check if the system is turned on.
• Check the HDMI connection from the PC to the display
• If everything seems in order but no picture is displayed please contact us at
[email protected]
VISIOR GAMES d.o.o.
Dolga Reber 9, 6000 Koper, Slovenia
E: [e-mail]
T: [phone]
SUPPORT24/7/365
We are happy to answer any of your questions and solve
all your problems regarding our products.
E: [email protected]
T: [phone]
We are also reacheable via Viber, WhatsApp
and Telegram.
