vita NICO Installation instructions

WARNING : PLEASE READ THE ENTIRE MANUAL
BEFORE YOU INSTALL AND USE YOUR NEW FIREPLACE.
FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN
SERIOUS INJURY, DEATH OR PROPERTY DAMAGE.
WARNING : DO NOT OVERFIRE THE FIREPLACE. IF
FIREPLACE OR CHIMNEY CONNECTOR GLOWS,YOU
ARE OVERFIRING.
WARNING : DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
WARNING : OPEN THE DAMPER BEFORE STARTING
THE FIRE.
WARNING : IF THE FIREPLACE IS NOT PROPERLY
INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE
THE RISK OF FIRE, FOLLOW THE INSTALLATION
INSTRUCTIONS.
WARNING :THE FIREPLACE MUST BE CONNECTED TO
A CHIMNEY COMPLYING WITH THE REQUIREMENTS
FOR TYPE HT CHIMNEYS IN THE STANDARD FOR
FACTORY-BUILT CHIMNEYS FOR RESIDENTIAL TYPE
AND BUILDING HEATING APPLIANCES, UL 103.
CAUTION : RISK OF FIRE DO NOT ENCLOSE THE
SHIELD. REMOVE THE INSULATION SHIELD BEFORE
ENCLOSING CHIMNEY IN ATTIC SPACE.
North American Designed & Manufactured by:
NICO | Suspended Hood with Base
Wood Burning replace
MODEL: NICO
SERIAL NO.: YYMMDD-VNCO4SF-XXX
INSTALLER: Leave this manual with the appliance. Custom Fireplace Design Inc.
CONSUMER: Retain this manual for future reference. 5230 Harvester Rd., Burlington, ON Canada, L7L 4X4
Fireplace has been tested and certied to
meet the standards of:
UL 737- Standard for Fireplace Stoves.
CAN/ULC - S610 - Standard for Factory-built
Fireplace Systems
Certied under : ICC-ES PMG-1574
WARNING : IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION,SERVICE, OR MAINTENANCE CAN CAUSE
INJURY OR PROPERTY DAMAGE.
FOR USE WITH SOLID FUEL ONLY (WOOD OR COAL).
BURN DRY, SPLIT, SEASONED WOOD FUEL.
WARNING : FIREPLACE EQUIPPED WITH DOORS
SHOULD BE OPERATED ONLY WITH DOORS FULLY
OPEN OR DOORS FULLY CLOSED. IF DOORS ARE LEFT
PARTLY OPEN, GAS AND FLAME MAY BE DRAWN OUT
OF THE FIREPLACE OPENING, CREATING RISKD FROM
BOTH FIRE AND SMOKE.
Gas connection and installation (if applicable) shall comply
with the National Fuel Gas Code ANSI Z223.1.
The construction of the masonry hearth must comply to NFPA
211,CAN/CSA A405 (Design and Construction of Masonry
Chimneys and Fireplaces) or to National Building Code of
Canada.
Install and use only in accordance with Custom Fireplace
Design Inc.’s installation and operating instructions.
Follow manufacturer’s installation instructions for precautions
required for passing a chimney or chimney connector through
a combustible wall or ceiling and follow the local building
codes.
Contact Local Building or Fire ofcials about restrictions and
installation inspection requirements in your area.
INSTALLATION | OWNER'S MANUAL
*THE IMAGE SHOWN HERE IS FOR FIREPLACE DESIGN PURPOSE ONLY,
GLASS ACCESSORIES NOT TO BE USED FOR WOOD BURNING. *

SAFETY WARNINGS & OPERATING INSTRUCTIONS
CAUTION :BEFORE COMMENCINGTHE INSTALLATION
REFER TO THE LABEL LOCATED INSIDE THE FIREBOX
FIRE CHAMBER AND THE MANUFACTURER’S
INSTALLATION INSTRUCTIONS PACKAGEDTOGETHER
WITH THIS UNIT. DO NOT REMOVE THIS STICKER
UNTIL THE INSTALLATION HAS BEEN APPROVED BY
THE AUTHORITY HAVING JURISDICTION.
CAUTION : BURN UNTREATED WOOD ONLY. OTHER
MATERIALS SUCH AS WOOD PRESERVATIVES, METAL
FOIL, PLASTIC, GARBAGE, SULPHUR OR OIL MAY
DAMAGE THE FIREPLACE.
CAUTION: THE WARRANTY OF THE FIREPLACE
WILL BE NULL & VOID IF MAKING COMPROMISES
DURING INSTALLATION & OPERATION. FOLLOW
THE INSTRUCTIONS AND GUIDELINES IN THE
INSTALLATION MANUAL.
WARNING: DO NOT USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER
FLUID, OR SIMILAR LIQUIDS TO START OR FRESHEN
UP A FIRE. KEEP ALL LIQUIDS WELL AWAY FROM THE
FIREPLACE WHILE IT IS IN USE.
CAUTION: HOT WHILE IN OPERATION. DO NOT
TOUCH. SEVERE BURNS MAY RESULT. KEEP CHILDREN,
CLOTHING, FURNITURE, GASOLINE AND OTHER
LIQUIDS HAVING FLAMMABLE VAPORS AWAY. GLOVES
MAY BE NEEDED FOR FIREPLACE OPERATION AND
MAINTENANCE.
WARNING : TO AVOID THE RISK OF DAMAGING
FIREPLACE MATERIALS AND INCREASING THE RISK OF
SPREADING A FIRE, DO NOT USE THE FIREPLACE TO
COOK OR WARM FOOD.
WARNING: DO NOT PACK OR BLOCK THE REQUIRED
AIR SPACESWITH INSULATION OR OTHER MATERIALS.
WARNING: RISK OF FIRE. DO NOT BLOCK HOLES OR
INSULATE TOP OF THE FIREPLACE.
WARNING: THIS FIREPLACE HAS NOT BEEN TESTED
WITH AN UNVENTED GAS LOG SET. TO REDUCE RISK
OF FIRE OR INJURY, DO NOT INSTALL AN UNVENTED
GAS LOG SET INTO FIREPLACE.
WARNING: DO NOT POKE OR STIR THE LOGS WHILE
THEY ARE BURNING. USE ONLY FIRE LOGS THAT
HAVE BEEN EVALUATED FOR THE APPLICATION IN
FIREPLACE AND REFER TO FIRE LOG WARNINGS AND
CAUTION MARKINGS ON PACKAGING PRIOR TO USE.
WARNING : CANCER AND REPRODUCTIVE HARM
www.P65Warnings.ca.gov.
DO NOT use Composite/Bio logs as this can cause extreme
temperatures and cause severe damage within the replace,
which will also null and void the warranty.
Due to high temperatures, the appliance should be located out
of trafc and away from furniture and draperies.
Children and adults should be alerted to the hazards of high
surface temperature and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised when they are
in the same room as the appliance. Toddlers, young children,
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at-risk individuals
in the house.
To restrict access to a replace or stove, install an adjustable
safety gate to keep toddlers, young children, and other at-risk
individuals out of the room and away from hot surfaces.
Clothing or other ammable material should not be placed on
or near the appliance.
Any safety screen, guard, or barrier removed for servicing an
appliance must be replaced prior to operating the appliance.
Ensure there is enough ventilation air within the home for safe
operation of all the appliances at the same time.
Improper supply or restricting the combustion air can result in
back drafting, negative pressure and nuisance outages.
The Fireplace comes with a re screen which helps prevent the
spark from lodging in the room and resulting into re hazard.
Do not use a replace insert or other products not specied
for use with this product.
(IF APPLICABLE) The installation of a gas pipe intended only for
connection to a vented decorative gas appliance incorporating
an automatic shutoff device shall comply with Standard for
Decorative Gas Appliances for Installation in Vented Fireplaces,
ANSI Z21.60 (1991) or American Gas Association draft
requirements for Gas Fired Log Lighters for Wood Burning
Fireplaces, Draft No. 4 dated August, 1993.
Inspect and Clean Chimney Frequently – Under Certain
Conditions of Use, Creosote Buildup May Occur Rapidly.
CO detector is highly recommended for possible carbon
monoxide poisoning.
Always use the Hearth Gloves provided with the unit while
operating the unit to prevent possible burn hazard.
The fuel can be burned directly on the steel hearth or on the
Heavy gauge Metal Grate supplied with the unit or on Heavy
gauge metal grates and metal andirons (by others) as long as
they are suitable for wood burning applications.

SAFETY WARNINGS & OPERATING INSTRUCTIONS
DO NOT BURN
• Unseasoned and treated wood.
• Any kind of cardboard or paper products.However, you
can still use it if it is only meant for starting the re and
not as a burning fuel.
• Garbage, trash, yard or animal waste.
• Solvents or Chemical products. For instance, paint.
• Material containing rubber or plastics. For instance, tires
and empty plastic bottles.
• Petroleum products or cosmetics.
• Spray bottles and textile materials. Burning such kind of
materials can result in explosion, and/or release of toxic
fumes and can over re the replace causing too much of
smoke inside the house.
RECOMMENDED WOOD FEATURES
• Use dry, natural, seasoned wood with an acceptable
moisture content below 20%.
• The wood logs shall be split in quarters and 16"-20" in
length with 6-8 pieces at a time.
• It is recommended to buy the moisture meter to test
the moisture in the rewood every time. If the moisture
content is more than 20% DO NOT USE as it may result
in smouldering and will cause too much of smoke.
• Please refer to the attached GUIDE TO RESIDENTIAL
WOOD HEATING for more information and safety
practices in operating this replace.
DISPOSAL OF ASHES
• Ashes should be placed in a metal container with a tight-
tting lid. The closed container of ashes should be placed
on a noncombustible oor or on the ground, well away
from all combustible materials, pending nal disposal. If the
ashes are disposed of by burial in soil or otherwise locally
dispersed, they should be retained in the closed container
until all cinders have thoroughly cooled.
CREOSOTE - FORMATION AND NEED FOR
REMOVAL
• When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled moisture
to form creosote. The creosote vapors condense in the
relatively cool chimney ue of a slow-burning re. As a
result, creosote residue accumulates on the ue lining.
When ignited this creosote makes an extremely hot re.
The chimney shall be inspected at least· once every 2
months during the heating season to determine when
a creosote buildup has occurred. When creosote has
accumulated it shall be removed to reduce the risk of a
chimney re.
CHIMNEY REQUIREMENTS
• A total of 15 ft. minimum in length in required from
the opening of the replace to the ue exit, to produce
stronger drafts.

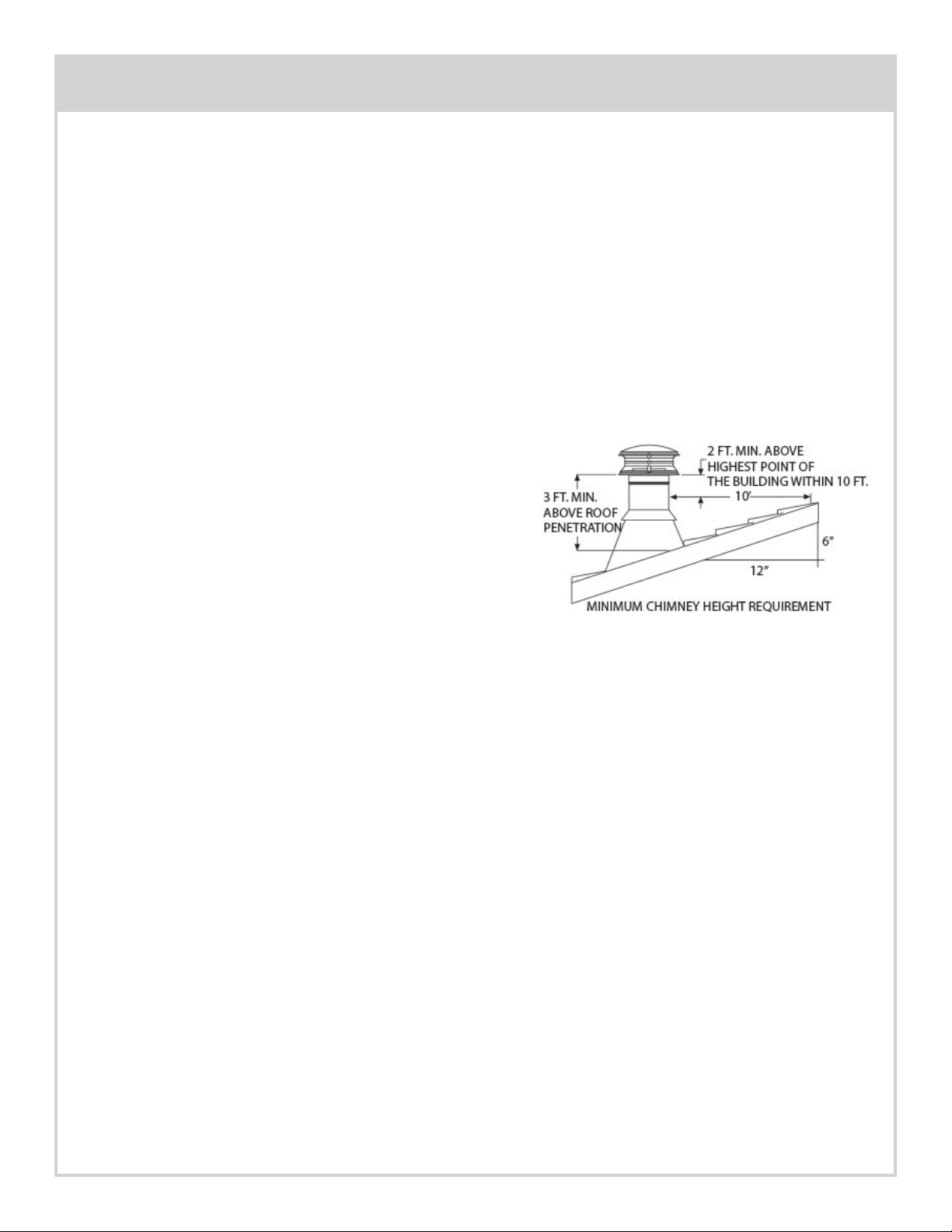

• The chimney shall exit a minimum of 3 ft. above roof
penetration and/or 2 ft. minimum above any surface or
structure within 10 ft. of radius.
• Only Type HT chimneys certied to UL 103 shall be used.
• To avoid heat traps the chimney connector shall not pass
through an attic or roof space, closet or similar concealed
space. Passage through an attic, roof frame oor or ceiling
must be done using an insulated chimney respecting all the
chimney manuafacturer clearances.

Our entire team joins me in thanking you for purchasing the NICO |
Suspended Hood with Base Wood Burning Fireplace, North American designed and
manufactured by CF + D | custom fireplace design. We are proud of our quality
workmanship, our creativity in designing functional art pieces and our commitment to
technical innovation. We welcome the challenges that come across our designers' desks,
keeping our creative minds working on developing new ideas with our clients to build
their dream fire feature.
Upon receiving this letter your fireplace has now been shipped and received.
The installation, technical and service manuals are included in the package and our
Technical Team is available with assistance throughout the installation and start-up of
your new fireplace.
The Management, Designers and our Metal Craftsman, thank you again for
the opportunity of being a part of your project. We value our clients greatly and are
available for consultation before, during and after the installation of your fireplace.
Vince Volpe
President and CEO
CF + D | custom replace design
5230 Harvester Rd. Unit #2 Burlington, Ontario Canada
L7L 4X4 t. 1-866-909-3070 t. 905-681-3070
www.customreplacedesign.com
Quality Creativity Innovation
LETTER FROM PRESIDENT

TABLE OF CONTENTS
APPENDIX - A
1. General Information..................................................................................... Page 1
2. Name Plate..................................................................................................... Page 2
3. Fireplace Characteristics.............................................................................. Page 3
4. Clearance to Combustibles......................................................................... Page 4
5. Installation Breakdown................................................................................. Page 5
6. Fireplace Specications................................................................................. Page 6
7. Fireplace Installation...................................................................................... Page 7
8. Warranty.......................................................................................................... Page 13
APPENDIX - B
1. Chimney System Installation........................................................................ Page 15

APPENDIX - A

GENERAL INFORMATION
KEEP THIS MANUAL HANDY FOR EASY REFERRAL.
This installation manual is to serve as a guidebook to the installation of your replace system. It is not
intended to replace skilled trades and/or expertise that may be required to perform installations. All chimney
components must be installed by qualied persons in accordance with local building codes and chimney and
vent system manuals. Components described herein are intended as an indication of the components required
and/or supplied.
All standard safety practices as indicated by local codes, laws, or OSHA standards must be followed
to prevent accident or injury. Some of the components supplied cannot be installed by a single person nor
should they be installed from a ladder. All site safety arrangements are the responsibility of the Site Supervisor,
General Contractor and/or Fireplace Installers, and not CF + D.
USING MAKE-SHIFT COMPROMISES DURING INSTALLATION CAN CAUSE DAMAGE.
Such an installation is not covered under CF + D limited warranty.
CF + D specializes in creating one-of-a-kind, hand-made artistic replaces. While these re features
are generally developed for their aesthetic presence they are also a functional heating appliance. As such,
natural variations in the material forming processes and patina are part of the sculptural spirit of the replace,
adding to the beauty and uniqueness of the design.
KEEP PACKAGING AND FOAM on the unit until installation is complete. Once the installation
is complete, remove the rest of the packaging material. Small marks and smudges may be touched up with
supplied touch-up paint if necessary.
Thank you for choosing CF + D | custom replace design.
PAGE - 1

RATING/NAME PLATE
PAGE - 2
Manufactured by
5230 Harvester Rd., Unit B2 Burlington, ON L7L 4X4
Ph: 905-681-3070 Toll: 1-866-909-3070
The fireplace has been tested and certified to meet the
standards of UL 737
-
Standard for Fireplace Stoves. &
CAN/ULC
-S610 - Standard for Factory-
Built Fireplace
Systems.
Certified Under
– ICC ES PMG-1574
CLIENT: xxxx
MODEL: AIDAN
SERIAL NO.: xxxx
NOT CERTIFIED FOR MOBILE HOMES. FOR USE WITH SOLID WOOD FUEL ONLY. (WOOD OR COAL)
DO NOT OVERFIRE
– IF FIREPLACE OR CHIMNEY CONNECTOR GLOWS, YOU ARE OVERFIRING.
OPEN THE DAMPER BEFORE STARTING THE FIRE.
CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. MAY
CAUSE SKIN BURNS.
Install and use only in accordance with CF + D’s installation and operating instructions. Contact local building or fire
officials about restrictions and installation inspection in your area.
Follow CF + D’s Installation instructions and your
local
building codes for precautions required for passing a chimney or chimney connector through a combustible
wall or
ceiling. Only UL 103 certified Type HT chimney connectors shall be used. Inspect and clean chimney
frequently, under certain conditions of use
, creosote buildup may occur rapidly. Do not connect this unit chimney
flue serving
another appliance. Improper supply or restricting the combustion air can result in back drafting,
negative pressure, and nuisance outages. The Fireplace comes with a fire s
creen which helps prevent the spark
from lodging in the room and resulting in fire hazard. Fireplaces have been tested using the base criteria as
noted
in the ICC International Code Council Regulations.
If supplied with doors, operate only with door fully closed or fully
open. Combustible’s materials are not permitted on the face of the unit. Do not use products that are not specified
to use with this product.
WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR
INJURY, DO NOT INSTALL AN UNVENTED GAS LOG SET INTO FIREPLACE.
WARNING: DO NOT USE THE
FIREPLACE TO COOK OR WARM THE FOOD.
WARNING: AREAS OF THE FIREPLACE INCORPORATING WARM OR COLD AIR DUCTS SHALL BE ENCLOSED IN
ACCORDANCE WITH THE MANUFACTURER’S INSTALLATION INSTRUCTIONS.
NICONICO

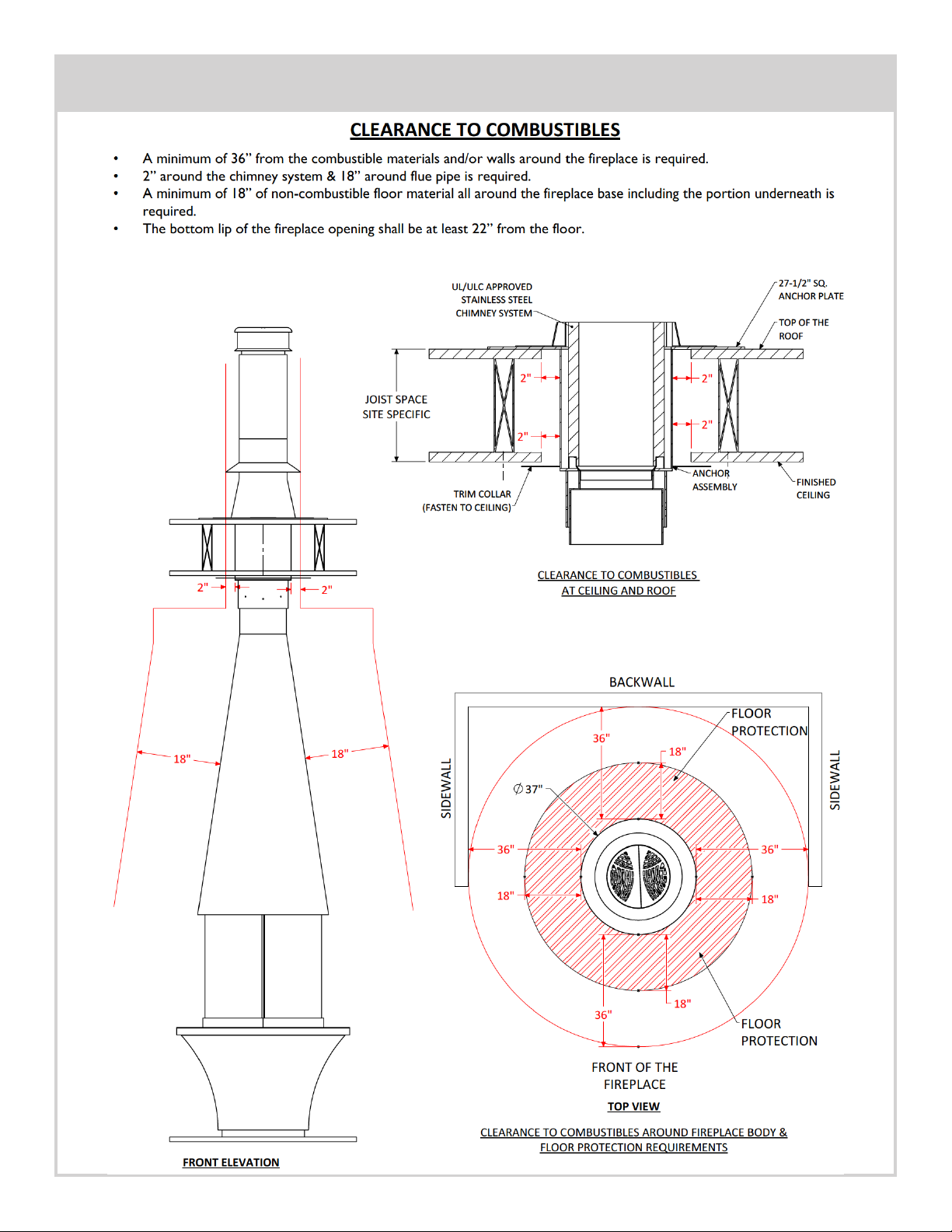

CLEARANCE TO COMBUSTIBLES
PAGE - 3

GIOIA | SUSPENDED WOOD BURNING FIREPLACE
COMPONENT DESCRIPTION
FIREPLACE HEARTH SIZE Ø 37"
FIREPLACE MATERIAL CARBON STEEL
FLUE SIZE Ø 10"
FLUE LENGTH PROJECT SPECIFIC
FLUE WEIGHT 11 lbs per foot
ANCHOR PLATE SIZE 27-1/2" SQ.
ANCHOR PLATE WEIGHT 47 lbs. approx.
ANCHOR PIPE SIZE Ø 12"
ANCHOR PIPE LENGTH PROJECT SPECIFIC
ANCHOR PIPE WEIGHT 19 lbs. per foot
TOTAL FIREPLACE WEIGHT 400 lbs. approx. for a 9 ft. ceiling application
CHIMNEY SYSTEM UL 103 certied HT chimney
FIREPLACE CHARACTERISTICS
PAGE - 4
FIREPLACE CHARACTERISTICS

Required tools
• Drill
• M8 Allen key, and M12 Allen key
• Level
• Screw drivers
• 2 persons minimum are required for
installation.
• Lifting equipment
• Scaffolding and/or appropriate man-lift(s)
• Hand tools
• Measuring Tools
• Sealants and caulking
This is an overview of the steps involved
in the installation of your replace and may not be
all-encompassing. Refer to drawings (Prints) where
appropriate.
NOTE: Some steps may have been performed
previously if your anchor was shipped prior to your
replace.
1. Install the Anchor
2. Install the Chimney system
3. Install the Functional Flue section(s), Trim
collar, and ue pipe extension(s)-if applicable.
4. Install the replace body
5. Door and Damper Instructions
6. Maintenance and Warranty
INSTALLATION BREAKDOWN
PAGE - 5

PAGE - 6
FIREPLACE SPECIFICATIONS
JOIST SPACE
SITE SPECIFIC
27
1
2
" SQ. ANCHOR
PLATE
17
5
8
"
19
3
8
"
37"
28"
5
5
8
"
STORM COLLAR
FLASHING W/
ROOF SUPPORT
& COLD AIR STOP
12" ANCHOR
BODY
TRIM COLLAR
(FASTEN TO CEILING)
FIREPLACE HOOD
FIREPLACE BASE
TOP OF ROOF
FINISHED CEILING
REMOVABLE
SPARK SCREEN
103
4
" ANCHOR
COLLAR
RAIN CAP WITH
SPARK ARRESTOR 8"I.D. & 10" O.D.
UL/ULC APPROVED
STAINLESS STEEL
CHIMNEY SYSTEM
7"
1"
6"
12"
10
3
4
"
3FT. MIN. ABOVE
ROOF PENETRATION
& 2FT. MIN. ABOVE
ANY OBSTRUCTION
WITHIN 10FT. RADIUS
MINIMUM 15FT
TO PRODUCE
REQUIRED DRAFT
23
1
2
"
72
1
2
"
24"
120"
FINISHED FLOOR
TO
FINISHED CEILING
HEIGHT
FINISHED FLOOR

Figure-1
1. Install the Anchor Plate
The anchor is the rst piece to be installed. It
will hold the pipe sections' weight and the replace
body while suspending the unit from the ceiling
or roof. The chimney system builds up from the
anchor, and the ue and replace body suspends
from the anchor. The anchor is mounted and
supported by the anchor plate on the support frame
constructed solely for this purpose. A supported
opening in the roof or ceiling to accommodate the
anchor plate is required. Adequate and approved
structural methods must be in use when mounting
the anchor to carry its designated load.
CAUTION :
THE SUPPORT OF THE ANCHOR PLATE
(ROOF STRUCTURE, SLAB, ETC.)
MUST BE SIZED PER THE STATIC AND
DYNAMIC LOADS OF THE FIREPLACE.
THE SIZE CALCULATION FOR THE
SUPPORT IS NOT THE RESPONSIBILITY
OF CF + D OR ITS AFFILIATES. IT ISYOUR
RESPONSIBILITYTO CONSULTWITH AN
ENGINEER OR ARCHITECT FOR YOUR
PROJECT.
Before starting Verify the location of the
ue pipe and replace body. Verify the point at
which the anchor plate will be position. Lift the
anchor plate into a position to be placed in the
prepared supported ceiling or roof. Depending
on your application, refer to your specic layout
drawing for custom anchor plate installation. Place
the anchor in the desired location and mount it
to the roof/ceiling using ½” screws. Screws must
mount into studs or solid substrate.
The anchor plate should be secured in place
and the pipe below should hang level and straight.
PAGE - 7
FIREPLACE INSTALLATION

2. Chimney System Installation
Once the anchor is in position, the roof-
top venting is installed to “close” the roof
openings. CF + D has recommended a setup for
ease of installation based on best practices, shown
in your layout drawing and the following pages of
this manual. It is possible that eld changes may be
required, which should be communicated back to
CF + D.
NOTE: ONLY UL/ULC APPROVED
CHIMNEY MUST BE INSTALLED
NOTE: Only a high heat sealant must be used
to seal each connection. Connectors should
always be in good condition and kept clean.
Your anchor has been equipped with a
stop-disc, through which the ue extension (slip
connector) protrudes. When looking down into the
body of the anchor from the opening at the top, you
will see this plate.This plate acts as both a heat-stop
and as a rest for the bottom of the chimney system.
Install the chimney as per the
instructions provided in APPENDIX-B.
Refer to the layout drawing supplied for the
location of supports and bracing if applicable.
NOTE: APPLY HIGH HEAT
SILICONE AND SEAL ALL THE
GAPS BETWEEN A-VENT AND STORM
COLLAR. APPLY SILICONE TOTHE SEAM
OF THE A-VENT ABOVE THE STORM
COLLAR.
PAGE - 8
FIREPLACE INSTALLATION
3. Chimney Top Damper Installation
The Chimney Top Damper is installed on top of
the A-Vent components. Refer to APPENDIX-B for
more details on installation of damper.
DO NOT CUT THE METAL CORD IN
CHIMNEY TOP DAMPER.
4. Rain Cap Installation
Fasten the Rain cap on top of the damper already
installed. Use Tek Screws for fastening the rain
cap with the damper. Refer to APPENDIX-B for
more details on installation of Rain Cap. Refer to
APPENDIX-B for more details on the installation
of Rain Cap.

5. Install the Functional Flue
Section(s)
NOTE: Only STOVE CEMENT must be used
to seal the ue pipe with chimney adapter already
installed. Connectors should always be in good
condition and kept clean. BEFORE installing the
ue pipe to the anchor body, make sure to apply
the Stove cement to the inside of the top of the
ue pipe that engages with the chimney adapter
already installed.The chimney adapter goes inside
the ue pipe.
Feed the metal cord from the Manual Damper
down the ue pipe section(s) for connection to
the metal clip inside the replace body. Do not
cut the metal cord.
Using your layout drawing as a guide, review the
number of ue pipes you have been supplied with
and ensure that you are installing them in the
correct order. Install the rst piece of ue pipe
into the anchor body and work your way down
to the last ue pipe, ensuring that each pipe is
properly engaged at each connection point. Some
replace installations only require one ue pipe.
The ue pipe(s) have already been cut to the
proper installation length(s).
There are 8, pointed load bearing set screws
installed into the anchor body and 2 stainless split
pins included in the package. The 8 set screws are
staggered in position. Begin by loosening each set
screw in the anchor body to maximize space for
the ue pipe to enter the anchor.
Raise the ue pipe up to meet the anchor body
that has now been positioned. The ue pipe is
designed to t directly onto the anchor body (See
Diagram Right).
Use a 5/32 Allen key to tighten one screw until
resistance is felt, then tighten the screw directly
opposite on the other side of the ue until
resistance is felt and continue.
When all 8 screws are half tightened, check the
position of the ue pipe and continue adjusting
until perfectly straight and level and is the desired
distance from the oor. Once the ue is in perfect
position, completely tighten each of the 8 set
screws rmly securing the ue pipe into the
anchor.
Locate the two 1/8” pilot holes directly opposite
each other in the anchor body. Once the cramping
screws have been tightened, the two stainless
steel split pins (provided) must be inserted into
the anchor collar.
There are two holes drilled into the anchor collar
The mating holes are not pre-drilled and will
require drilling at the assembly.
Using the holes in the anchor as guides, pass a
1/8” drill bit through each pilot hole and through
the ue pipe Carefully hammer the split pins into
place through the anchor wall into the ue pipe
until ush which will permanently lock the ue
pipe to the anchor.
PAGE - 9
FIREPLACE INSTALLATION

6. Install the Trim Collar
Fit the trim collar around the rst piece
of pipe sections and slide it upwards to meet the
nished ceiling. Afx the trim collar to the nished
ceiling, either using four screws (not provided) or
other means of attachment, depending on your
requirements.
NOTE: You will not be able to install the
trim collar once the replace body has been
attached!
7. Install the Hood
CAUTION! Use multiple people,
or portable crane to move hood into
position.
A ½" round rod is welded into the bottom
of the Lower Functional Flue.The top of the Hood
has cut outs to accommodate the rod in the Lower
Functional Flue. Line up the rod and cut outs. Then
lift and turn the Hood clockwise.
Then insert a 3/16" split pin into the holes
on each side of the ue pipe to lock it in place.
Remove any supports. The Hood is now connected
FIREPLACE INSTALLATION
PAGE - 10
NOTE : If your application requires multiple
functional ue sections above hood, please
follow the same step of hood installation for
all the functional ues to be installed except
the rst and topmost ue. The topmost ue
engages with the Anchor.

8. Install the Fireplace Body/Base
NOTE: ENSURE THAT YOU HAVE
READYOUR MANUALTOAVOID DAMAGE
TO THE FIREPLACE BODY! This operation
will require multiple people.
Once the hood is in position, the heavy
gauge steel base will be placed and centered directly
underneath the hood. Level and lag the replace
base to the ground using the provided leveling feet
and lag bolts.
NOTE: Fresh air required under base.
DO NOT BLOCK!
Note the base must be centered under
the hood. Use the leveling feet to level the
unit and adjust the height if necessary.
Screen Panels. The unit comes with four Screen
panels. Install the panels by inserting into the
channels in the hood and slowly straighten the
Screen Panel. You can now lower the screens into
the bottom channel slots in the base
PAGE - 11
FIREPLACE INSTALLATION
Fireplace body/
base
Screen Panel
Operating the Fresh Air Intake. The replace
base/body comes with a preinstalled fresh air
intake collar and a connecting rod that helps adjust
fresh air intake. The collar is located just below the
grate, and the connecting rod is located beside the
wood grate. Rotating it clockwise will fully open
the fresh air intake. If the fresh air is taken from
the room, ensure no blockage under the base for
fresh air movement. If the fresh air is coming from
outside, ensure there is a fresh air duct roughed-
in where the base will be installed; the grate is
removable so you can connect the roughed-in duct
with the preinstalled fresh air intake collar of the
replace. Please see the image below.

PAGE - 12
Maintenance
CAUTION! DO NOT SCRUB SURFACES!
• Establish a routine for the fuel, wood burning
and ring technique. Check daily for creosote
buildup until experience shows how often you
need to clean to be safe.
• Do not store wood within replace installation
clearances, or within the space required for
fuel loading and ash removal. Keep the area
around the replace clean and free of loose
combustibles, furniture, newspapers, etc.
• Instruct all members of your family on the
safe operation of the heater. Ensure they have
enough knowledge of the entire system if they
are expected to operate it.
• Inspect and clean your chimney system at the
beginning of the burning season before your
rst re and at least every two months during
the burning season. Inspect the interior and
exterior of the pipe for defects and/or damage.
• Remove and inspect the rain cap. Refer to the
chimney system manufacturer’s installation
instructions for the procedure to remove and
or replace any necessary components to the
chimney system.
Replacements:
CAUTION! DO NOT USE SUBSTITUTE
MATERIALS!
For ordering replacement parts, please
contact CF + D | Custom Fireplace Design Inc.
Closing
If there are any questions regarding any
aspect of the work to be undertaken, please
contact your Technical Representative at CF + D
for assistance. We thank you for your support
and your business!
MAINTENANCE | REPLACEMENTS | CLOSING

WARRANTY
Quality Creativity Innovation
Warranty
All CF + D and VITA Fireplace models are guaranteed against any defect in design, construction, or
manufacture, and guaranteed to function properly for ve (5) years from date of receipt of goods. The electrical
and electronic components within the replace are warranted against any defect in design, construction, or
manufacture, and guaranteed to function properly for one (1) year from date of commissioning. Our product
guarantees are applicable only when our Fire Features have been installed with respect to all local building
codes and with strict attention to the technical details outlined in our Plan Study as well as our installation,
maintenance, and user’s manuals. Our guarantee excludes accidental damages such as those occurring during
transport without written notication upon receipt, damages incurred during installation, and damages
resulting from improper use and is limited to the replacement of the defective part or unit in its entirety
at the sole discretion of CF + D the manufacturer. This warranty does not include the reimbursement of
labor cost or related costs incurred to conduct the replacement of parts or entire unit should it be deemed
necessary.
We thank you for your support and your business!
North American Designed and Manufactured by:
CF + D | custom replace design
5230 Harvester Rd. #2 Burlington, Ontario L7L 4X4
T: 905-681-3070 Toll Free: 1-866-909-3070 F: 905-681-8697
www.customreplacedesign.com
PAGE - 13

APPENDIX - B
