Vivadens MCR 24/28 BIC PL User manual

Vivadens EN
Wall-hung gas condensing boilers
MCR 24/28 BIC PLUS
User Guide
300024112-001-06

Contents
1 Safety ...........................................................................................................4
1.1 General safety instructions .................................4
1.2 Recommendations ................................................5
1.3 Liabilities ...............................................................6
1.3.1 Manufacturer’s liability .............................................6
1.3.2 Installer’s liability .....................................................6
1.3.3 User’s liability ..........................................................7
2About this manual ......................................................................................8
2.1 Symbols used .......................................................8
2.2 Abbreviations ........................................................8
3Technical specifications ............................................................................9
3.1 Homologations ......................................................9
3.1.1 Certifications ...........................................................9
3.2 Technical specifications ......................................9
4Description of the product ......................................................................12
4.1 General description ............................................12
5 Operation ..................................................................................................13
5.1 Control panel .......................................................13
5.2 Commissioning the boiler ..................................14
5.3 Stopping the boiler .............................................14
5.4 Turning on the antifreeze function ....................15
5.5 Changing the settings ........................................16
5.5.1 Changing the heating temperature ........................16
5.5.2 Modifying the comfort setting (ECO) .....................16
5.5.3 Stopping the central heating or activating the Summer
mode .....................................................................17

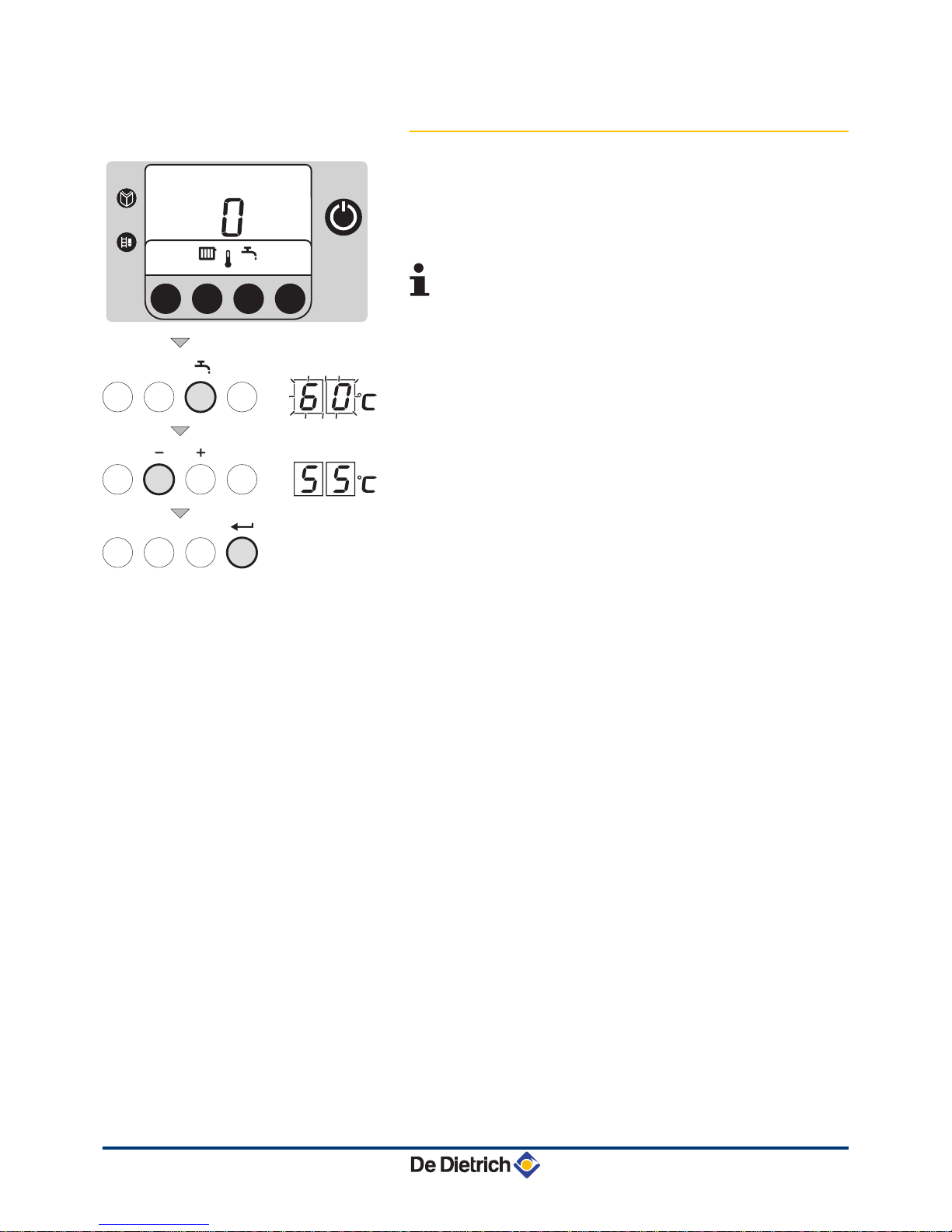

5.5.4 Changing the domestic hot water
temperature ...........................................................18
5.5.5 Stopping domestic hot water production ...............19
5.5.6 Other settings ........................................................19
1170915 - 300024112-001-06

5.6 Reading out measured values ...........................21
6 Checking and maintenance .....................................................................22
6.1 General instructions ...........................................22
6.2 Periodic checks ..................................................22
6.3 Filling the system ...............................................23
6.4 Bleeding the heating system .............................24
7 Troubleshooting .......................................................................................27
7.1 Error codes ..........................................................27
7.1.1 e01 - e02 - e07 - e09 ......................27
7.1.2 e04 ...................................................................27
7.1.3 Other error codes ..................................................27
7.1.4 Before contacting the installer ...............................28
7.2 Incidents and solutions ......................................29
8 Disposal ....................................................................................................30
8.1 Disposal/Recycling .............................................30
9 Energy savings .........................................................................................31
9.1 Energy savings ...................................................31
9.1.1 Energy-saving advice ............................................31
9.1.2 Room thermostat and settings ..............................31
10 Warranty ....................................................................................................33
10.1 General ................................................................33
10.2 Warranty terms ...................................................33
11 Appendix ...................................................................................................34
11.1 ErP information ...................................................34
11.1.1 Product fiche .........................................................34
11.1.2 Package fiche ........................................................35
Contents
2170915 - 300024112-001-06

3170915 - 300024112-001-06

1 Safety
1.1 General safety instructions
DANGER
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
CAUTION
Only qualified persons are authorised to
assemble, install and maintain the installation.
DANGER
If you smell gas:
1. Do not use a naked flame, do not smoke, do
not operate electrical contacts or switches
( doorbell, light, motor, lift, etc..).
2. Shut off the gas supply.
3. Open the windows.
4. Evacuate the premises.
5. Call your fitter.
DANGER
If you smell flue gases:
1. Switch the appliance off.
2. Open the windows.
3. Evacuate the premises.
4. Call your fitter.
MCR 24/28 BIC PLUS 1. Safety
170915 - 300024112-001-06 4

WARNING
Depending on the settings of the appliance:
4The temperature of the flue gas conduits
may exceed 60°C.
4The temperature of the radiators may reach
85°C.
4The temperature of the domestic hot water
may reach 65°C.
CAUTION
Do not neglect to service the appliance:
4For completely safe and optimum operation,
you must have your boiler regularly serviced
by an approved installer.
1.2 Recommendations
WARNING
Only qualified professionals are authorised to
work on the appliance and the installation.
4Regularly check the water pressure in the installation
(minimum pressure 0.8 bar, recommended pressure
between 0.8 and 1.5 bar).
4Keep the appliance accessible at all times.
4Never remove or cover labels and rating plates affixed
to the appliance. Labels and rating plates must be
legible throughout the entire lifetime of the appliance.
4The appliance should be on Summer or Antrifreeze
mode rather than switched off to guarantee the
following functions:
-Anti blocking of pumps
-Antifreeze protection
1. Safety MCR 24/28 BIC PLUS
5170915 - 300024112-001-06

1.3 Liabilities
1.3.1. Manufacturer’s liability
Our products are manufactured in compliance with the
requirements of the various applicable European
Directives. They are therefore delivered with [ marking
and all relevant documentation.
In the interest of customers, we are continuously
endeavouring to make improvements in product quality.
All the specifications stated in this document are therefore
subject to change without notice.
Our liability as the manufacturer may not be invoked in the
following cases:
4Failure to abide by the instructions on using the
appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the
appliance.
1.3.2. Installer’s liability
The installer is responsible for the installation and
commissioning of the appliance. The installer must
respect the following instructions:
4Read and follow the instructions given in the manuals
provided with the appliance.
4Carry out installation in compliance with the prevailing
legislation and standards.
4Perform the initial start up and carry out any checks
necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the
obligation to check the appliance and maintain it in
good working order.
4Give all the instruction manuals to the user.
MCR 24/28 BIC PLUS 1. Safety
170915 - 300024112-001-06 6

1.3.3. User’s liability
To guarantee optimum operation of the appliance, the
user must respect the following instructions:
4Read and follow the instructions given in the manuals
provided with the appliance.
4Call on qualified professionals to carry out installation
and initial start up.
4Get your installer to explain your installation to you.
4Ensure the Appliance is serviced in accordance with
the manufacturer’s instructions by a suitable qualified
person.
4Keep the instruction manuals in good condition close
to the appliance.
This appliance is not intended to be used by persons
(including children) whose physcial, sensory or mental
capacity is impaired or persons with no experience or
knowledge, unless they have the benefit, through the
intermediary of a person responsible for their safety, of
supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children
do not play with the appliance.
If the mains power lead is damaged it must be replaced
by the original manufacturer, the manufacturer’s dealer or
another competent person to prevent hazardous
situations.
1. Safety MCR 24/28 BIC PLUS
7170915 - 300024112-001-06

2 About this manual
2.1 Symbols used
In these instructions, various danger levels are employed to draw the
user’s attention to particular information. In so doing, we wish to
safeguard the user’s safety, highlight hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼Signals a referral to other instructions or other pages in the
instructions.
2.2 Abbreviations
4DHW: Domestic hot water.
4IRC: Interactive remote control.
4CRC: Communicating remote controller.
4Hi: Lower heating value LHV (Nett).
4Hs: Higher heating value HHV (Gross).
MCR 24/28 BIC PLUS 2. About this manual
170915 - 300024112-001-06 8

3 Technical specifications
3.1 Homologations
3.1.1. Certifications
CE identification no PIN 0063BQ3009
NOx < 60 mg/kWh
3.2 Technical specifications
Boiler type MCR BIC PLUS
Nominal output (Pn)
Heating System (80/60 °C)
minimum-maximum kW 5,5 - 23,8
Factory setting kW 17,8
Nominal output (Pn)
Heating System (50/30 °C)
minimum-maximum kW 6,3 - 25,0
Factory setting kW 19,4
Nominal useful output (Pn) DHW minimum-maximum kW 5,5 - 27,4
Factory setting kW 27,4
Gas flow rate at nominal output (15 °C - 1013 mbar ) (max) Natural gas G20 m3/h 2,96
Natural gas G25 m3/h 3,45
Propane (G31) m3/h 1,15
Heating efficiency under full load (Hi) (80/60 °C) (92/42/EEG) % 99,1
Heating efficiency under full load (Hi) A/R=50/30 °C (EN15502) % 104,4
Heating efficiency under partial load (Hi) (Return temperature 60°C) % 94,3
Heating efficiency under partial load (Hi) ( 92/42/EEG)(Return temperature 30°C) % 110,2
Heating efficiency under full load (Hs) (80/60 °C) (92/42/EEG) % 89,3
Heating efficiency under full load (Hs) (50/30 °C) (EN15502) % 94,0
Heating efficiency under partial load (Hs) (Return temperature 60°C) % 84,9
Heating efficiency under partial load (Hs) ( 92/42/EEG)(Return temperature 30°C) % 99,3
Weight empty, without mounting frame, without front cover kg 67
Heating circuit
Manometric height central heating circuit (ΔT = 20 K) mbar(1) 240
Flow temperature °C 75
Maximum temperature (Safety thermostat cut-off) °C 110
Stand-by losses (ΔT = 30 °C) W 86
Water operating pressure PMS max bar (MPa) 3
Expansion vessel litres 8
Initial pressure of the expansion vessel bar (MPa) 1
(1) 1 mbar = 100 Pa, 1 daPa = 1 mmWG
(2) Low temperature means for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C return temperature (at
heater inlet)
(3) High temperature regime means 60°C return temperature at heater inlet and 80°C feed temperature at heater outlet
3. Technical specifications MCR 24/28 BIC PLUS
9170915 - 300024112-001-06

Boiler type MCR BIC PLUS
Minimum operating pressure bar (MPa) 0,8
Water content litres 1,8
Domestic hot water circuit
Instruction set outlet temperature °C 60
Nominal max cold water pressure bar (MPa) 8
Minimum pressure for 11 l/min bar (MPa) 0,5
Water capacity litres 40
Combustion products circuit
Connection diameter mm 60/100
Mass flue gas flow rate (min / max) Kg/h 10/47
Flue gas temperature 80/60 °C 95
Pressure available at the flue gas nozzle Pa(1) 100
Condensation water pH 50/30 1 - 7
Electricity characteristics
Power supply voltage (50 Hz) V 230
Power consumption W 153
Electrical power circulating pump W 128
Auxiliary electrical power (nominal output, ex heating pump) W 25
Electrical protection index IPX4D
Technical parameters
Condensing boiler Yes
Low-temperature boiler(2) No
B1 boiler No
Cogeneration space heater No
Combination heater Yes
Rated heat output
Prated kW 24
Useful heat output at rated heat output and high temperature regime(3)
P4 kW 23,8
Useful heat output at 30% of rated heat output and low temperature
regime(2)
P1 kW 7,9
Seasonal space heating energy efficiency
ƞs %94
Useful efficiency at rated heat output and high temperature regime(3)
ƞ4
% 89,3
Useful efficiency at 30% of rated heat output and low temperature
regime(2)
ƞ1
% 99,3
Auxiliary electricity consumption
Full load elmax kW 0,025
Partial load elmin kW 0,025
Standby mode
PSB
kW 0,003
Other items
Standby heat loss
Pstby
kW 0,057
Ignition burner power consumption
Pign
kW -
Annual energy consumption
QHE
kWh
GJ 73
Sound power level, indoors
LWA
dB 47
Emissions of nitrogen oxides NOxmg/kWh 59
Domestic hot water parameters
Declared load profile XXL
Daily electricity consumption
Qelec
kWh 0,231
(1) 1 mbar = 100 Pa, 1 daPa = 1 mmWG
(2) Low temperature means for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C return temperature (at
heater inlet)
(3) High temperature regime means 60°C return temperature at heater inlet and 80°C feed temperature at heater outlet
MCR 24/28 BIC PLUS 3. Technical specifications
170915 - 300024112-001-06 10

Boiler type MCR BIC PLUS
Annual energy consumption AEC kWh 51
Water heating energy efficiency
ƞwh
% 74
Daily fuel consumption
Qfuel
kWh 32,373
Annual fuel consumption AFC GJ 26
(1) 1 mbar = 100 Pa, 1 daPa = 1 mmWG
(2) Low temperature means for condensing boilers 30°C, for low temperature boilers 37°C and for other heaters 50°C return temperature (at
heater inlet)
(3) High temperature regime means 60°C return temperature at heater inlet and 80°C feed temperature at heater outlet
See the back cover for contact details.
3. Technical specifications MCR 24/28 BIC PLUS
11 170915 - 300024112-001-06

4 Description of the product
4.1 General description
Wall-hung gas condensing boilers
4Heating and domestic hot water production with integrated DHW
tank.
4High efficiency heating.
4Low pollutant emissions.
4Installation and connection facilitated by the mounting frame
delivered with the appliance.
4Flue gas discharge via a forced flue, chimney, bi-flow or 3CE type
connection.
MCR 24/28 BIC PLUS 4. Description of the product
170915 - 300024112-001-06 12

5 Operation
5.1 Control panel
AMenu key
BDisplay
CMain ON/OFF switch
DPressure gauge
ESweep key
F( or RESET key
GHeating temperature key or -
HDHW temperature key or +
JSERVICE or U key
The display indicates the state of the boiler and any errors. The
symbols located above the function keys indicate their current
function.
Pressing on any key will display the current status of the boiler and
the current command code. If there is a fault, the corresponding code
continues to be displayed.
5. Operation MCR 24/28 BIC PLUS
13 170915 - 300024112-001-06

5.2 Commissioning the boiler
1. Check the water pressure in the installation.
2. Open the gas valve.
3. Throw the boiler’s ON / OFF switch.
4. The start-up cycle begins. It lasts 2 minutes and cannot be
interrupted.
During the start-up cycle, the display shows the following
information:
fK[xx: Software version
pK[xx: Parameter version
The version numbers are displayed alternately.
5. When the start-up cycle is finished, the display shows 0. The
boiler is now operational.
5.3 Stopping the boiler
1. Throw the boiler’s ON / OFF switch.
2. Switch off the boiler electrical power supply.
T000164-B
A000785-A
A000787-A
A000786-A
MCR 24/28 BIC PLUS 5. Operation
170915 - 300024112-001-06 14

3. Close the gas valve.
5.4 Turning on the antifreeze function
We recommend setting the boiler thermostat to a value off 10°C if
using a classic installation.
Set the boiler to ECO mode using parameter p4, this action will
switch off the standby setting.
Installation and room antifreeze protection is guaranteed if you are
absent.
If the temperature of the central heating water in the boiler falls too
much, the integrated protection device switches itself on:
4If the water temperature is lower than 7°C, the circulating pump is
activated.
4If the water temperature is lower than 3°C, the boiler is activated.
4When the water temperature is above 10 °C, the boiler is switched
off and the circulation pump runs for another 15 minutes.
CAUTION
This function is a protection device for the boiler only, not
for the system or buiding fabric.
CAUTION
If a room thermostat, connected via connectors 7 and 8,
is activated, the boiler will operate permanently until it
reaches the flow setting point.
T000179-A
5. Operation MCR 24/28 BIC PLUS
15 170915 - 300024112-001-06

5.5 Changing the settings
5.5.1. Changing the heating temperature
If an outside temperature sensor or an OpenTherm control
system is fitted, the heating flow temperature is adjusted
automatically.
In summer, it is possible to reduce the heating flow temperature whilst
maintaining comfort. To do this, proceed as follows:
1. Press the D key.
The symbol D and the current temperature are displayed.
2. Use the [+] and [-] keys to change the parameter value.
3. To confirm the new value, press the key S.
It also possible to modify this setting using the parameter
p1. ¼See chapter: "Other settings", page 19.
5.5.2. Modifying the comfort setting (ECO)
The user can consult or modify the following 3 settings:
4ON = Activation of the energy-saving setting.
4OFF = Activation of the comfort setting.
4AUTO = Setting dependent on the control unit (Factory setting).
1. Press the f key 1 times. The symbol Q flashes.
2. Press the f key a second time. The symbol ECO flashes.
3. To confirm, press the S key.
4. The current operating status is shown on the display:AUTO.
5. Use the + and - keys to change the parameter value.
6. To confirm, press the S key.
7. Press the > key 2 times to return to the current operating
mode.
It also possible to modify this setting using the parameter
p4.
T000147-A
GA,
HF,
Ajj
2x
T000148-B
MCR 24/28 BIC PLUS 5. Operation
170915 - 300024112-001-06 16

5.5.3. Stopping the central heating or activating
the Summer mode
1. Press the D key.
The symbol D and the current temperature are displayed.
2. Press the key [-] several times until the value 0ff is displayed.
3. To confirm the new value, press the key S.
The symbol C appears.
4It also possible to modify this setting using the
parameter p3. ¼See chapter: "Other settings",
page 19.
4Domestic hot water production is maintained.
HF,
Ajj
T000141-A
5. Operation MCR 24/28 BIC PLUS
17 170915 - 300024112-001-06

5.5.4. Changing the domestic hot water
temperature
1. Press the N key.
The symbol N and the current temperature are displayed.
2. Use the [+] and [-] keys to change the parameter value.
3. To confirm the new value, press the key S.
It also possible to modify this setting using the parameter
p2.
T000143-A
MCR 24/28 BIC PLUS 5. Operation
170915 - 300024112-001-06 18

5.5.5. Stopping domestic hot water production
1. Press the N key.
The symbol N and the current temperature are displayed.
2. Press the key [-] several times until the value 0ff is displayed.
3. To confirm the new value, press the key S.
The symbol T appears.
It also possible to modify this setting using the parameter
p3. ¼See chapter: "Other settings", page 19.
5.5.6. Other settings
Parameter Description Adjustment range Factory setting
p1 Flow temperature 20 to 85 °C 75 °C
p2 Domestic hot water temperature 40 to 65 °C 60 °C
p3 Heating / DHW mode
0 = Heating deactivated (C) / DHW deactivated (T)
1
1 = Heating activated (D) / DHW activated (N)
2 = Heating activated (D) / DHW deactivated (T)
3 = Heating deactivated (C) / DHW activated (N)
p4 ECO mode
0 = Comfort mode
01 = Energy-saving mode
2 = Management using a programmable thermostat
p5 Anticipation resistance 0 = No anticipation resistance for the ON/OFF thermostat 0
1 = Anticipation resistance for the ON/OFF thermostat
p6 Display screen
0 = The screen stays off
2
1 = The screen stays on
2 = The screen switches off automatically after 3 minutes
GA,
Ajj
T000142-A
5. Operation MCR 24/28 BIC PLUS
19 170915 - 300024112-001-06
