Remote Control User’s Guide
Read this guide to learn how to:
 Identify the remote control buttons
 Insert the batteries
 Program the remote control
 Use the remote control
 Troubleshoot typical problems

Universal Remote Control Buttons

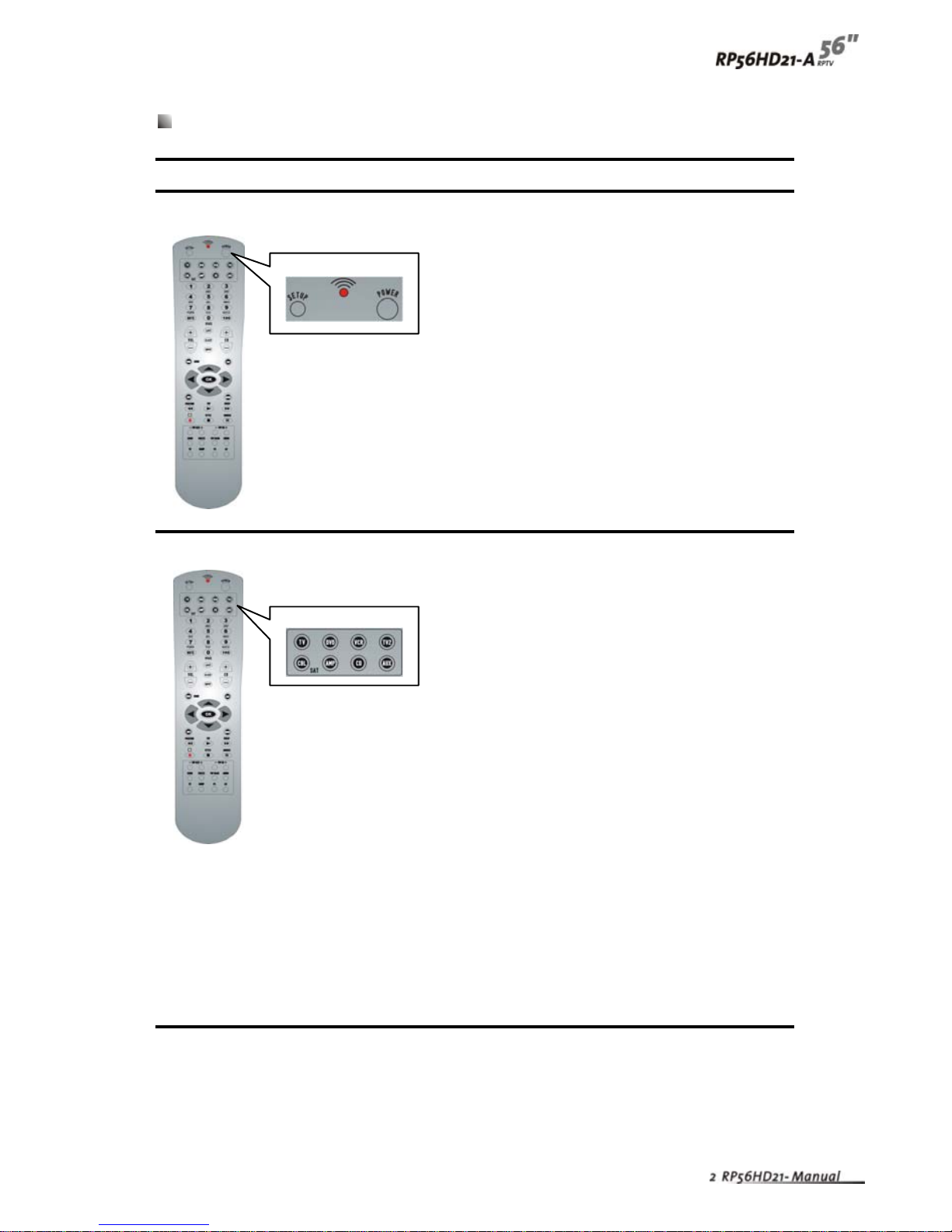

Button Function
SETUP. Starts all programming sequences.
Remote LED. Blinks when the remote is being
programmed or is sending a signal to your
RPTV.
POWER. Turns your RPTV or other selected
component on and off.
Programs the remote control to recognize a
component. For programming instructions, see
“Programming the Universal Remote Control”
on page 12.
TV. Selects a programmed TV.
Pre-programmed for Micro Chip Display
Projection TV.
DVD. Selects a programmed DVD player.
VCR. Selects a programmed VCR.
TV2. Selects a second programmed TV.
CBL/SAT. Selects a programmed cable TV
set-top box or selects a programmed satellite
TV set-top box.
AMP. Selects a programmed amplifier.
CD. Selects a programmed CD player.
AUX. Selects a programmed component.

Button Function
Number button pad. Selects a channel or
password.
MUTE. Turns the sound on and off.
100. Enters channel numbers greater than 100
in TV mode.
VOL. Turns volume up or down.
LAST. Recalls the previously viewed channel.
SLEEP. Turns on the sleep timer.
INPUT. Changes the input source.
CH. Changes the channel.

Button Function
WIDE. Cycles through standard and
widescreen viewing modes or accesses
programming guides, such as the one that
comes with a satellite dish. GUIDE does not
work in TV mode.
EXIT. Exits the component, guide, or OSD
menus.
U, V,Y, ZNavigates the on-screen display
（OSD）menus.
OK：Works as the Enter button.
INFO. Shows the current status of your RPTV,
such as the video input source, audio status,
and channel number.
MENU. Enters the OSD menus.
POSITION/Reverse. Moves the PIP window.
Rewinds the CD, DVD, or VCR when the
component is activated with the remote control.
PIP/Play. Turns PIP (picture-in-picture) mode
and POP (picture-on-picture) mode on and off.
Plays the CD, DVD, or VCR when the
component is activated with the remote control.
SWAP/Forward. Swaps the main picture and
the sub-picture under PIP and POP modes.
Forwards the CD, DVD, or VCR when the
component is activated with the remote control.
CC/Record. Turns Closed Caption mode on
and off. Records the CD, DVD, or VCR when
the component is activated with the remote
control.
STYLE/Stop. Selects the style of the PIP mode.
Stops the CD, DVD, or VCR when the
component is activated with the remote control.
SOURCE/Pause. Changes the video input
source for the PIP or POP sub-picture. Pause
the CD, DVD, or VCR when the component is
activated with the remote control.

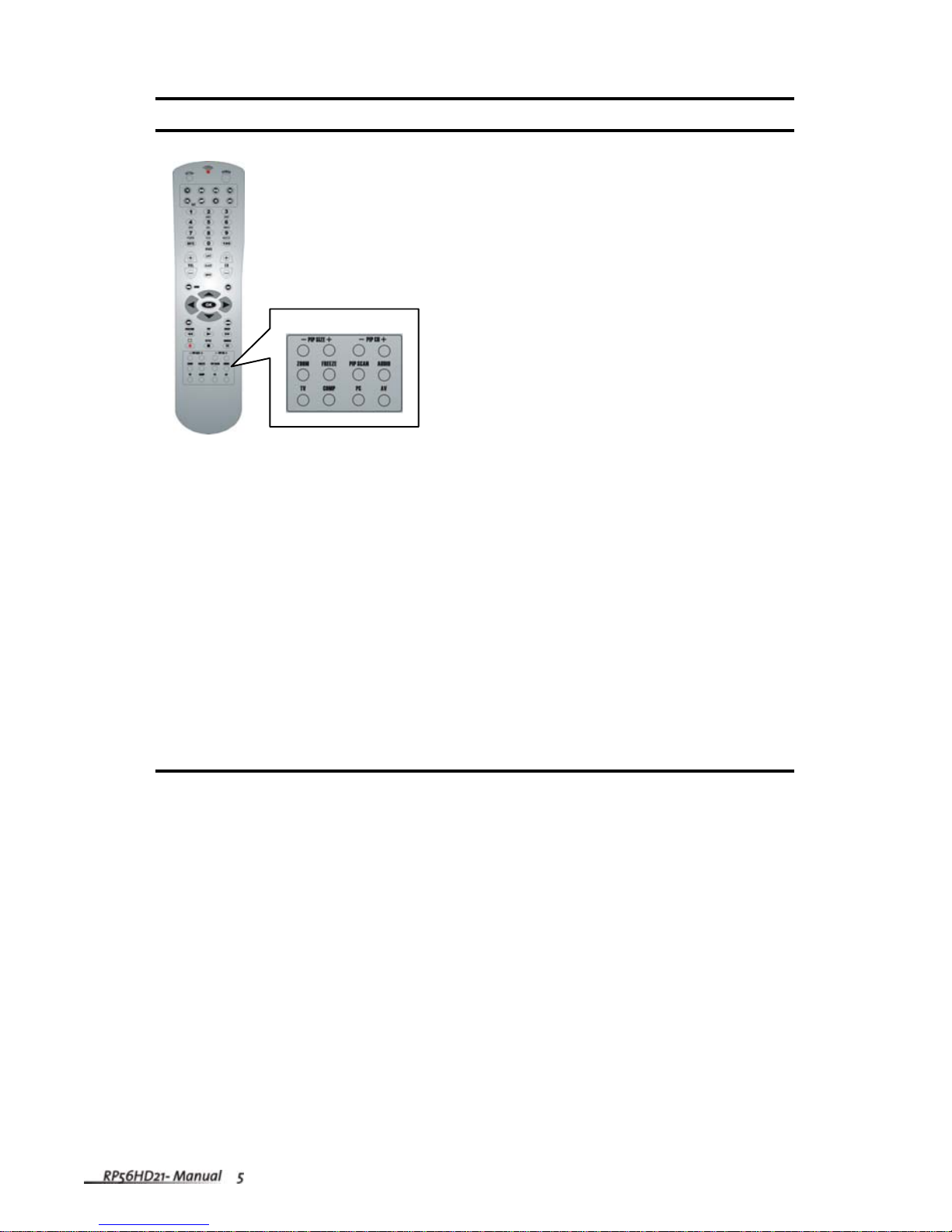

Button Function
- PIP SIZE +. Increases and decreases the size
of the PIP window.
- PIP CH +. Changes the channel for the PIP
window when TV mode is selected as the PIP
video input source.
ZOOM. Turns ZOOM mode on and off.
FREEZE. Freezes the video display.
PIP SCAN. Turns PIP SCAN off and on in
multi-PIP modes. PIP SCAN displays a TV
channel for approximately 4 seconds, then
automatically goes to the next channel.
AUDIO. Selects the audio mode.
TV. Selects TV as the video input source.
COMP. Switches between the components
connected to COMP1 and COMP2 as the
video input source.
PC. Switches between the components
connected to the back RGB, front RGB, or DVI
connector as the input source.
AV. Switches between the components
connected to AV1, AV2, or front AV as the input
source.

PIP Remote Control Buttons (OPTIONAL)
Button Function
SOURCE. Changes the input source for the
PIP window.
SCAN. Turns PIP SCAN off and on in multi-PIP
modes. PIP SCAN displays a TV channel for
approximately 4 seconds, then automatically
goes to the next channel.

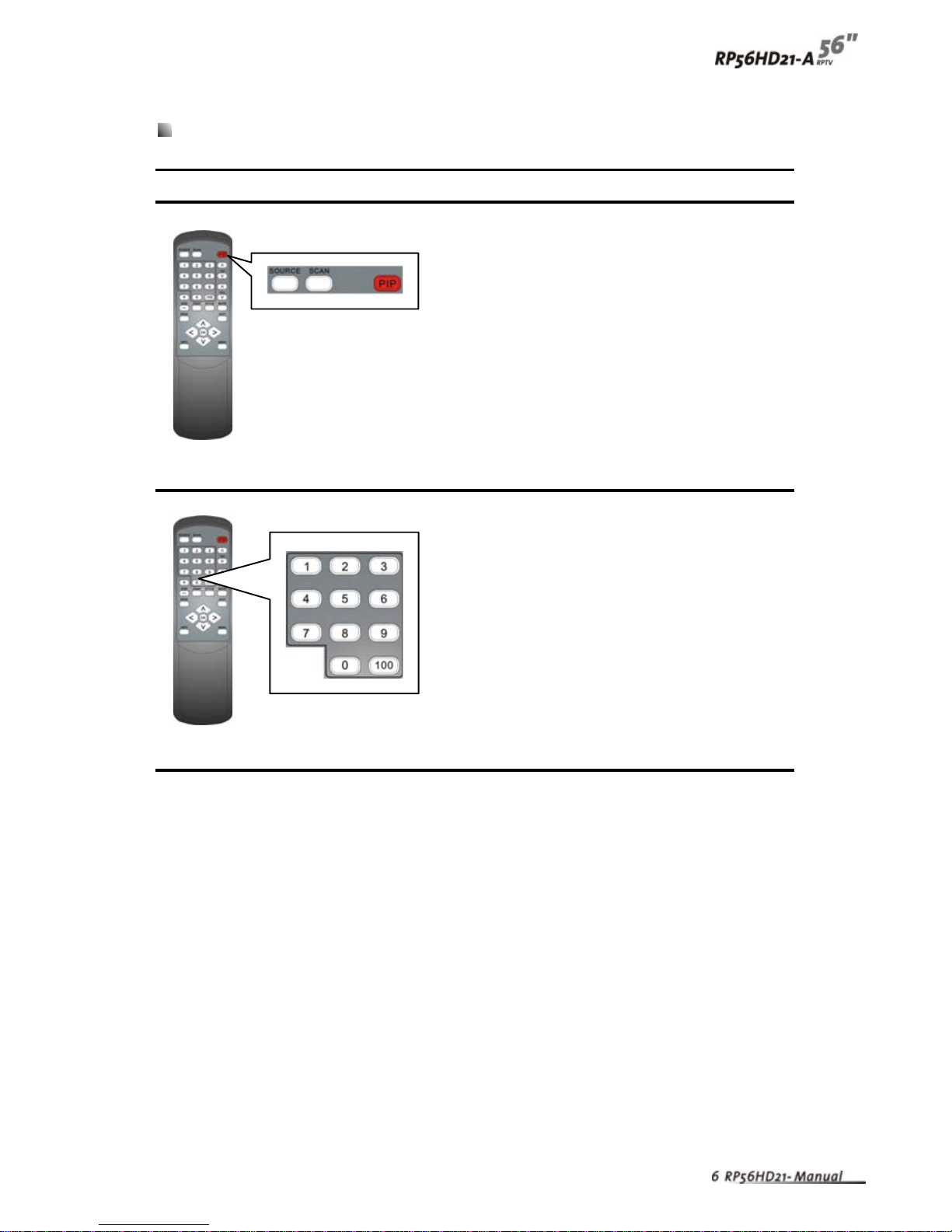

PIP. Turns PIP mode on and off.
Number button pad. Selects a channel for the
currently active PIP window.
100：Enters channel numbers greater than 100
in TV mode.

Button Function
CH. Changes the channel in the PIP window.
VOL. Turns volume of the PIP window up or
down.
+ SIZE –：Adjusts the size of the PIP window.
SWAP. Swaps the main picture and
sub-picture.
STYLE. Changes the styles of PIP window.
MUTE. Turns the sound in the PIP window on
and off.

Button Function
WIDE. Cycles through standard and
widescreen viewing modes for the PIP
window.
EXIT. Exits the PIP menus.
U, V, Y, ZNavigates the on-screen
display(OSD) PIP menus.
OK. Works as the Enter button.
INFO. Shows the current status of your
RPTV PIP mode, such as the video input
source, audio status, and channel number.
MENU. Enters the OSD menu.

Inserting Batteries

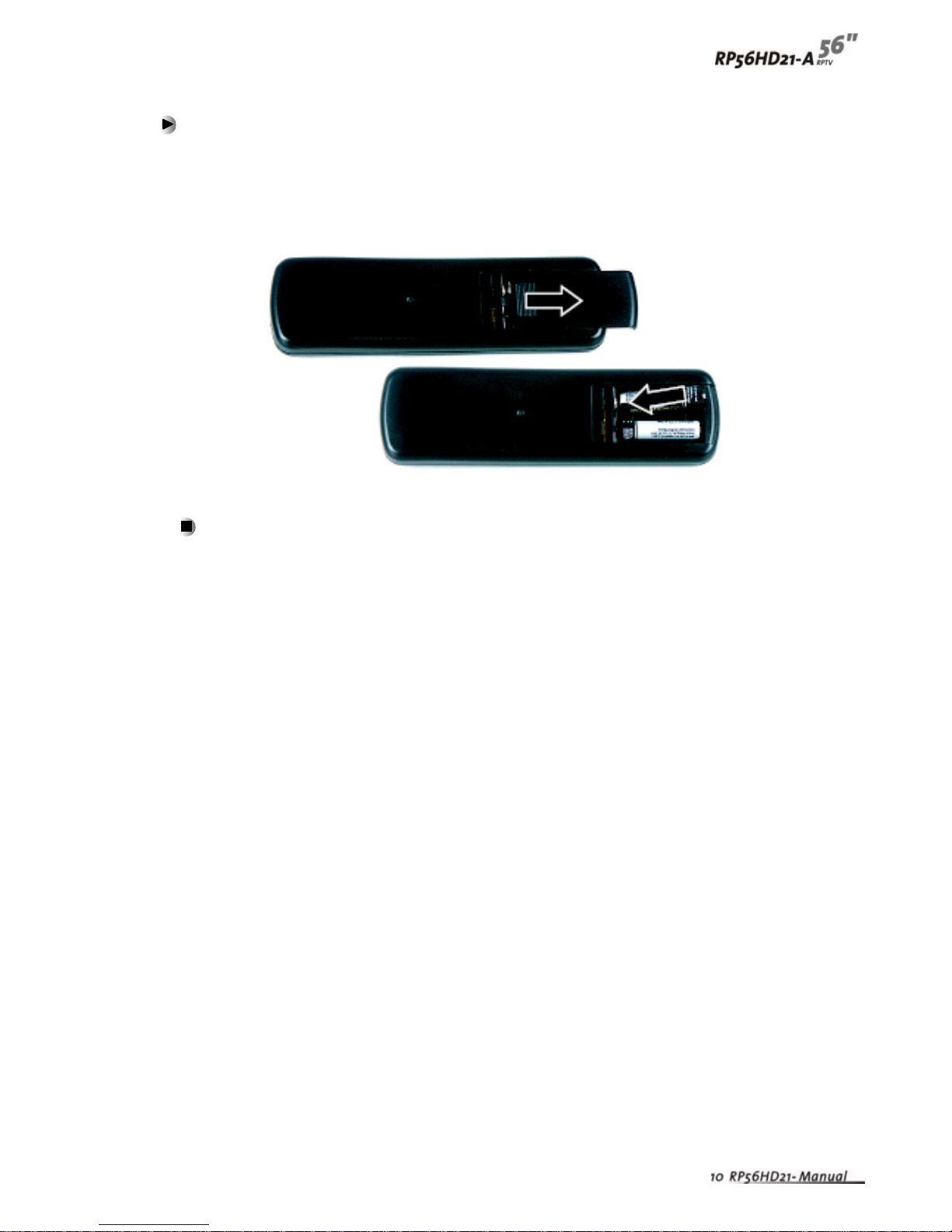

To install batteries in the universal remote:
Insert two AA batteries into the remote control. Make sure that you match the + and –
on the batteries with the + and – symbols inside the battery compartment.

To install batteries in the PIP remote: (OPTIONAL)
Insert two AAA batteries into the remote control. Make sure that you match the + and
– on the batteries with the + and – symbols inside the battery compartment.

Using the PIP Remote Control (OPTIONAL)
Use the PIP remote control to control all PIP mode options.
To control PIP mode using the PIP remote control:
1 Press the PIP button on the PIP remote control once to turn on PIP mode. A small
window appears in one corner of the screen. The picture on the full screen is the
main picture. The picture in the window is the sub-picture.
2Press the STYLE button to select one of the other preset PIP modes. See the
user guide that came with your RPTV for additional information.
3Press the SIZE button one or more times to change the size of the PIP window.
4Press the SWAP button to swap the main picture and the sub-picture.
5Press the SOURCE button on the PIP remote control one or more times to
change the video input source for the sub-picture.
Go to “PIP Remote Control Buttons” on page 6 for information about the other
buttons on the PIP remote.

Programming the Universal Remote Control
The TV component button has been preset to work with your Micro Chip Display
Projection TV (program code 0080). You can program the remote control to work with
as many as seven other components.
To program the remote to control other components:
1Turn on the component.
2Press the matching component button on the remote control.
3Press and hold the SETUP button until the LED flashes twice.
4Enter the programming code for the component and manufacturer. For a list of
component programming codes, see “Component Program Codes” on page 13.
If the code is accepted, the LED flashes twice after the last digit is entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for
the component and manufacturer.
Important If there is more than one code listed for the component and
manufacturer, make sure that you try all the codes listed to find the
one that works for the component.
5Point the remote control at the component and press the POWER
button. The component should turn off.
Tips & Tricks If you cannot find your manufacturer in the component list or the
program code does not work, you can use the remote control to
search for the correct component code. See “Searching for
Component Codes” on page 24.
3


Component Program Codes
Use the codes in the following tables to program the remote control to work with your
existing audio and video components.
Amplifier and tuner codes
Manufacturer Program Code Manufacturer Program Code
Bose 0674 Polk Audio 0892
GE 0078 Realistic 0395
Harman/Kardon 0892 Sony 0689
JVC 0331 Soundesign 0078
Marantz 0892 Victor 0331
Optimus 0395 Wards 0078
Philips 0892 Yamaha 0354
Cable set-top box codes
Manufacturer Program Code Manufacturer Program Code
ABC 0003、0017 Philips 0305、0317
Americast 0899 Pioneer 0144、0533、0877
Bell South 0899 Pulsar 0000
General Instrument 0276、0476、0810 Quasar 0000
Goldstar 0144 Regal 0273、0279
Hamlin 0009、0273 Runco 0000
Jerrold 0003、0276、0476、Samsung 0144
0810
Memorex 0000 Scientific Atlanta 0017、0477、0877
Motorola 1106 Starcom 0003
Pace 0237 Toshiba 0000
Panasonic 0107、0000 Zenith 0000、0525、0899
Paragon 0000

CD Player codes
Manufacturer Program Code Manufacturer Program Code
Aiwa 0157 Parasound 0420
Burmester 0420 Philips 0157、0626
California Audio Labs 0029 Pioneer 0032、0468、0305、
1062、1063
Carver 0157、0179 Polk Audio 0157
DKK 0000 Proton 0157
Denon 0003、0873 QED 0157
Emerson 0305 Quasar 0029
Fisher 0179 RCA 0053、0032、1062、
0468、0305、0179
Garrard 0420 Realistic 0179、0420
Genexxa 0032、0305 Rotel 0157、0420
Harman/Kardon 0157、0173 SAE 0157
Hitachi 0032 Sansui 0157、0305
JVC 0072 Sanyo 0179
Kenwood 0028、0190、0826、Scott 0305
0037、0626、0681
Krell 0157 Sears 0305
LXI 0305 Sharp 0037、0861
Linn 0157 Sherwood 1067
MCS 0029 Sonic Frontiers 0157
MTC 0420 Sony 0000、0490
Magnavox 0157、0305 Soundesign 0145
Marantz 0157、0626、0029 Tascam 0420
Mission 0157 Teac 0420
NSM 0157 Technics 0029
Onkyo 0101、0868 Victor 0072
Optimus 0032、0468、0420 Wards 0053、0157
0179、0305、1063、
0000、0037、0145
Panasonic 0029 Yamaha 0036、0888

DVD Player codes
Manufacturer Program Code Manufacturer Program Code
Apex 0672 Optimus 0571
Denon 0490 Oritron 0651
Fisher 0670 Panasonic 0490、0677、0632
Gateway 0081 Philips 0539、0503
GE 0522 Pioneer 0571、0525、0632
Gradiente 0651 Proscan 0522
Hitachi 0573、0664 RCA 0522、0571
Hiteker 0672 Samsung 0573
JVC 0623、0558 Sharp 0630
Kenwood 0682、0534 Sony 0533
Konka 0719、0711、0720、Technics 0490
0721
Magnavox 0503、0675 Theta Digital 0571
Marantz 0539 Toshiba 0503
Mitsubishi 0521 Yamaha 0490、0545
Onkyo 0503 Zenith 0591、0503
Computer and Home automation codes
Manufacturer Program Code Manufacturer Program Code
Gateway 1272 Security System 0167
GE 0240 Universal X10 0167
One For All 0167 X10 0167
Radio Shack 0240

Receiver codes
Manufacturer Program Code Manufacturer Program Code
ADC 0531 Panasonic 0039、1518
Aiwa 0121、1405、1089 Philips 1089、1189、1269
Bose 0238、0639、1229、Pioneer 0150、0531、0630、
1253、1355、1356、1023
1357
Capetronic 0531 Proscan 1254
Carver 1089、1189 Quasar 0039
Denon 1160、1104 RCA 1254、0531、1023
Harman/Kardon 0110 Sansui 1089
JBL 0110 Sharp 0186
JVC 0074 Sony 1158、1058、1258
Kenwood 1027、0186、1313、Soundesign 0670
1569、1570
MCS 0039 Sunfire 1313
Magnavox 1089、0531、1189 Technics 0039、1308、1518、
1309
Marantz 1189、1089、0039 Thorens 1189
Onkyo 0135 Victor 0074
Optimus 1023、0186、0531、Yamaha 0176、0186、1176
0670

Satellite set-top box codes
Manufacturer Program Code Manufacturer Program Code
AlphaStar 0772 Next Level 0869
Chaparral 0216 Panasonic 0247、0701
Echostar 0775、1005 Philips 1076、1142、
0722、0724、
0749
Expressvu 0775 Proscan 0392
GE 0566 RCA 0566、0392、
0143、0855
General Instrument 0869 Radio Shack 0869
HTS 0775 Samsung 1109
Hitachi 0819 Sony 0639
Hughes Network 0749、1142、1749 Star Choice 0869
Systems
JVC 0775 Toshiba 0749、0790
Magnavox 0722、0724 Uniden 0724、0722
Memorex 0724 Zenith 0856
Mitsubishi 0749
TV codes
Manufacturer Program Code Manufacturer Program Code
AOC 0019、0030 Memorex 0179、0463、0178、
0016、0056、0150、
0154、0250
Admiral 0093、0463 Midland 0017、0047、0051
Aiko 0092 Mitsubishi 0150、0178、0019、
0093
Aiwa 0701 Motorola 0093
Akai 0030 Multitech 0180
Alaron 0179 NAD 0156、0166、0178
America Action 0180 NEC 0030、0019、0056
Anam 0180 NTC 0092

Manufacturer Program Code Manufacturer Program Code
Audiovox 0092、0180、0451、Nikko 0178、0030、0092
0623
Baysonic 0180 Onwa 0180
Belcor 0019 Optimus 0250、0166、0154
Bell & Howell 0016、0154 Optonica 0093
Bradford 0180 Orion 0463、0179、0236
Brockwood 0019 Panasonic 0051、0250
Broksonic 0236、0463 Penney 0047、1347、0060、
0030、0178、0051、
0019、0056、0156
CXC 0180 Philco 0145、0019、0030、
0054、0463
Candle 0030、0056 Philips 0054
Carnivale 0030 Pilot 0019、0030
Carver 0054 Pioneer 0166、0679
Celebrity 0000 Portland 0019、0092
Cineral 0451、0092 Princeton 0717
Citizen 0056、0030、0060、Prism 0051
0092
Concerto 0056 Proscan 0047
Contec 0180 Proton 0178
Craig 0180 Pulsar 0017、0019
Crosley 0054 Quasar 0051、0250
Crown 0180 RCA 0047、1347、1147、
0679、1247、0019、
0051、0090、0093、
1047、1447
Curtis Mathes 0060、0030、0016、Radio Shack 0180、0030、0178、
0047、0051、0054、0154、0019、0047、
0056、0093、0145、0056
0154、0166、0451、
1147、1347
Daewoo 0092、0623、0019、Realistic 0180、0154、0030、
0624、0451 0178、0019、0056
