VOGUE APPLIANCES 352432 User manual

VOGUE UPRIGHT FRIDGE FREEZER 432L
352432

PART NAMES AND LOCATIONS
No Description
1 Light
2 Lighting switch
3 Fridge glass shelves
4 Vegetable and fruit crisper cover
5 Vegetable and fruit crisper
6 Freezing drawers
7 Fridge door shelves
IN ACCESSORY BAG: USER MANUAL, WARRANTY CARD & Door reversal parts(top
hinge and hinge cover)****
As the manufacturer holds the authority to redesign or modify its products without notice:
Any modifications or upgrades of our products will result in this refrigerator varying
slightly from this manual. Still, the functionality will remain the same as set out within
this manual.

1
IMPORTANT SAFETY INSTRUCTIONS

WARNING

Follow these basic precautions to reduce the risk of fire,
electrical shock hazards or injury when operating the
refrigerator:
•This product has been designed for use in a normal domestic environment. It is not
intended for commercial use, which will avoid warranty, such as supermarket, food
shop, pharmacy, commercial kitchen & etc.
•Persons with a lack of experience and knowledge of reduced physical or mental
capabilities need to be given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
Children shall not do cleaning and user maintenance without supervision.
•It is critical to use this appliance safely. Read all instructions before operating the
refrigerator, and do not attempt to repair or modify this unit in any way as it can cause
harm or void the warranty.
•Please ensure all persons using this appliance are informed and comply with the
details set out within this manual and the product Terms and Conditions.
•When unpacking the appliance for the first time, keep all cardboard and plastic
packaging out of reach from children.
•Keep all packaging materials in a safe location until the unit has been installed
properly. Report any notable defects with the appliance to the retailer as soon as it is
noted. Failure to do so can result in a non-warranty claim.
•If the power cable is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons to avoid a hazard. It is recommended the power
cord is situated in a safe location when operating or transporting the appliance to
prevent any damage that may cause electrical shock or fire hazards.
•DANGER or WARNING:
Service of this unit
The installation or any appliance service is recommended by a qualified technician or
service company.
Ventilation Hazards
Never clean the refrigerator or refrigerator parts with flammable fluids, or store gasoline
or any other flammable vapours and liquids in the vicinity of this or any other
refrigerator as the gas and/or vapour can cause a fire hazard, explosion or inhalation.
Electrical Connection
When installing or moving the unit that the power outlet has been connected to, it has
been fitted by a qualified electrician, and the ground wire has been connected properly
to meet the Australian Electrical Standards.

2
–WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
–WARNING: Do not locate multiple portable socket outlets or portable power supplies
at the rear of the appliance
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.

3
R600a WARNINGS
NOTE: This model uses R600a flammable refrigerant in its sealed system.
The following must be observed for your safety:
R600a Refrigerant Warning
• This appliance contains 0.053kg R600a refrigerant, which is
environmentally friendly but flammable. It does not damage the ozone
layer or increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the
refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage occurs, avoid exposure to open fires and any
device that creates a spark. Disconnect the appliance from the mains'
power.
• Thoroughly ventilate the room where the appliance is located for several
minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per
8 grams of refrigerant. The refrigerant quantity contained in this
appliance is listed above in grams; it is also noted on the appliance's
Rating Plate.
* Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
It is hazardous for anyone other than an Authorised Service Person to carry out
servicing or repair this appliance. The authorised person must hold a Gas Work
Authorisation for hydrocarbon refrigerants before carrying out servicing or repairs
that involve removing
Warning: Risk of fire/flammable materials
1. Keep ventilation openings in the appliance enclosure or the built-in structure clear of
obstruction.
2. Other than those recommended by the manufacturer, do not use mechanical devices
or other means to accelerate the defrosting process.
3. Do not damage the refrigerant circuit.
4. Do not use electrical appliances inside the food storage compartments of the
appliance unless they are of the type recommended by the manufacturer.
5. Do not store explosive substances such as aerosol cans with a flammable propellant
in the appliance.
Disposal
The environment and personal safety must be considered when disposing of this
appliance. Please ensure the appliance is taken to a recycling centre for safe recycling.
DO NOT dispose of the appliance in a landfill as the insulation and refrigerant gas
contained in these appliances are flammable.

4
INSTALLATION INSTRUCTIONS
Before Using the Refrigerator
•Remove the outer and interior packing.
•Before connecting the refrigerator to a power source, let the unit stand upright for
approximately 4 hours to mitigate the possibility of a malfunction in the cooling
system from improper handling during transportation.
•Clean the interior surface with warm water using a soft cloth.
Installing the Refrigerator
•This appliance is designed to be freestanding only and should not be recessed or
built-in.
•Allow at least 5cm of space between the back and sides of the refrigerator to
allow proper air ventilation. Insufficient space will result in cooling and working life
issues and voiding the warranty.
•Place the refrigerator on a levelled/even floor surface that is strong enough to
support the weight of the refrigerator when it is fully loaded to prevent vibrations.
•The fridge will produce defrost water or condensation moisture. It might cause
water damage in some extreme circumstances. Place the refrigerator on
concrete, tile floor or waterproof floor is recommended.
•The front feet can be adjusted to level the appliance properly. Adjust the two
front feet to keep the refrigerator levelled or elevated.
•Situate the refrigerator away from direct sunlight and direct heat sources (stove,
heater, radiator, etc.). Direct sunlight may also affect the acrylic coating, and heat
sources may cause an increase in power consumption.
•This unit is not designed for outdoor installation.
•Avoid situating the refrigerator in moist OR pest infestation areas.
•Plug the refrigerator into a dedicated, properly installed-grounded wall outlet. Do not
cut or remove the third (ground) prong from the power cord under any circumstances.
Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorised service centre.
•After plugging the appliance into a wall outlet, turn the unit on and allow the unit to
cool down for 4-6 hours before placing food in the refrigerator.
•Do not place heavy items on the top of this appliance.
ENERGY-SAVING TIPS
•Allow hot foods to cool to room temperature before placing them in the refrigerator.
Overloading the refrigerator forces the compressor to work harder. Foods that freeze
too slowly may lose quality or spoil.
•Be sure to wrap foods properly and wipe containers dry before placing them in the
refrigerator. This cuts down on frost build-up inside the refrigerator.
•Organise and label food to reduce door openings and extended searches. Remove as
many items as needed at one time, and close the door as soon as possible.

5
OPERATING INSTRUCTIONS
START
When the refrigerator system is connected to the power
supply for the first time, all icons on the display panel will
be on for 2s, and the system runs in the Smart ECO
mode by default.
When all the doors are close, the display will turn off
automatically if there is no key operation within 3
minutes.
If the refrigerator door is opened or any key is pressed, it
will light up.
Smart Eco Mode
When the smart mode is on, the temperature of the fridge
compartment is set at 4℃, and the freezer compartment
at - 18℃.
Under the Smart mode, the refrigerator runs more
efficiently and with better performance.
The fridge and freezer temperature settings can't be
changed when the smart mode is active.
Turn on the Smart function
Press the Function key until the Smart symbol flashes,
then quickly press the OK key to confirm. If the OK key is
not pressed within 5s, the setting won't be changed. The
smart symbol will stay on when it is active properly.
Turn off the Smart function
Press the Function key under the Smart mode until the
Smart symbol is flashing, then quickly press the OK key
to confirm. The smart symbol will disappear when it is
turned off.
Fast Freezing mode
When the Fast Freeze function is enabled, the freezer
temperature will be set at -32℃, and after 26 hours of
running, the Fast Freeze function will automatically turn
off. Cooling down the freezer temperature rapidly is beneficial to preventing food
nutrition from loss and preserving freshness.
Turn on Fast Freeze mode
Press the Function key until the Fast Freeze flashes, then quickly press the OK key to
confirm. If the OK key is not pressed within 5s, the setting won't be changed. The Fast
Freeze symbol will stay on when it is active properly.

6
Turn off Fast Freeze mode
After a cumulative running period of 26 hours, the Fast Freeze function will
automatically turn off.
Or press the Function key till the Fast Freeze is flashing, then quickly press the OK key
to confirm. The smart symbol will disappear when it is turned off.
Fast cooling mode
When the Fast cooling function is enabled, the fridge temperature will be set at 2℃,
Turn on Fast cooling mode
Press the Function key until the Fast cooling flashes, then quickly press the OK key to
confirm. If the OK key is not pressed within 5s, the setting won't be changed. The Fast
cooling symbol will stay on when it is active properly.
Turn off Fast cooling mode
Press the Function key until the Fast cooling flashes, then quickly press the OK key to
confirm. The fast cooling symbol will disappear when it is turned off.
Temperature setting
The number only shows the set temperature, which might vary to the exact temperature
inside the unit.
Fridge compartment temperature setting
Please make sure Smart ECO mode or fast cooling mode isn't on before the temp
setting can be changed.
Keep pressing the fridge key to set temperature setting cycles as following:5℃→6℃→7℃
→8℃→OF→2℃→3℃→4℃→5℃. Stop pressing the key when it reaches the desired temp.
After 5 seconds, the set temperature will be active.
OF indicates the fridge compartment is switched off, and when the OF function takes effect, the
fridge compartment will stop cooling.
Take all food out of the fridge compartment before setting this function.
Freezer compartment temperature setting
Please make sure Smart ECO mode or fast freezing mode isn't on before the temp
setting can be changed.
Keep pressing the freezer key to set temperature setting cycles as follows:
-18℃→-17℃→-16℃→-24℃→-23℃→-22℃→-21℃→-20℃→-19℃→-18℃.
Stop pressing the key when it reaches the desired temp. After 5 seconds, the set
temperature will be active.
Vacation Mode
Under vacation mode, the fridge compartment is set to 14℃,and the temperature

7
setting cannot be changed.
Take all food out of the fridge compartment before setting this function.
Turn on vacation mode
Press the function key until the vacation symbol flashes, and then click "OK" to enter
this function.
Turn off vacation mode
Press the function key until the vacation symbol flashes, and click "OK" to quit this
function.
Door open alarm
If the refrigerator door is opened for more than 3 minutes, the buzzer alarm will be
continuously beeping. It can be stopped by pressing any key button but will be restored
after 3 minutes if the door keeps opening.
The alarm will stop when the door is closed properly.
Power cut memory
In the case of power failure, the refrigerator will maintain the previous setting when the
power supply is restored.
Power-on delay
To protect the compressor from being damaged in the case of short-time power failure
(i.e., less than 5 minutes), the compressor will not be started immediately after it is
powered on. But it will restart after the power comes back on for more than 5 minutes.
Over-temperature alarm (only after a power outage)
When the refrigerator system is powered on, if the freezer sensor temperature is higher
than -10℃, digits of the freezer zone get flickering on display. The freezer temperature
can be displayed when any key is pressed, and the normal display will be restored when
any key is pressed again or after 10s.
Fault alarm
If E0, E1, E2, EH, or EC is displayed on the display panel, it indicates a fault with the
refrigerator. Please get in touch with the retailer for a service call.
Notes
Large quantities of food stored in the appliance or directly in front of the air vent will
hinder the cooling efficiency of the appliance as this can affect the airflow.
Change the thermostat settings in the fridge or freezer compartment, allowing 6 hours
for the temperature to stabilise between adjustments.
Do not keep opening and closing the door, which will increase the temperature in the
unit.
Please note different sections of the refrigerator compartment may be warmer
or cooler than others – typically, the back wall and bottom lowest shelf will be
the coolest, and the top door rack will be the warmest. Please don't put raw
vegetables too close to the coolest area to avoid frostbite.

8
GENERAL CARE AND MAINTENANCE
Cleaning the Refrigerator
•Upon installing your new appliance, it is recommended to clean it thoroughly and
properly maintain it after that.
•Turn off the refrigerator and then unplug the unit from the wall outlet.
•Remove all food content before washing the inside with a damp cloth soaked in
lukewarm water and dishwasher liquid. Don't use any chemical detergent that
might damage the fridge's coating.
•Keep the door gasket (seal) clean to keep the unit running efficiently, as improper
cleaning can cause the seal to dislodge and tear.
•Dry the interior and exterior with a soft cloth.
Vacation Time
•Turn off the refrigerator first, and then unplug the unit from the PowerPoint.
•Remove all food.
•Clean the refrigerator.
•Leave the lid open slightly to avoid the possible formation of condensation, mould, or
odours.
•Use extreme caution in the case of children. The unit should not be accessible for
child's play.
•Short vacations: Leave the refrigerator operating during vacations of less than three
weeks.
•Long vacations: If the appliance is not used for several months, remove all food and
unplug the power cord. Clean and dry the interior thoroughly. To prevent odour and
mould growth, leave the door open slightly: blocking it open if necessary.
Repositioning and Relocating the Refrigerator
•Unplug the power cord from the wall outlet.
•Remove all the food and drinks.
•Securely tape down all loose items inside your refrigerator.
•Tape the doors to be closed securely.
•It is recommended that the refrigerator stays in the upright position during
transportation. But if it is laid down for transport purposes, please lift it immediately
after the job is done. Please wait for at least 24 hours before putting the power.

9

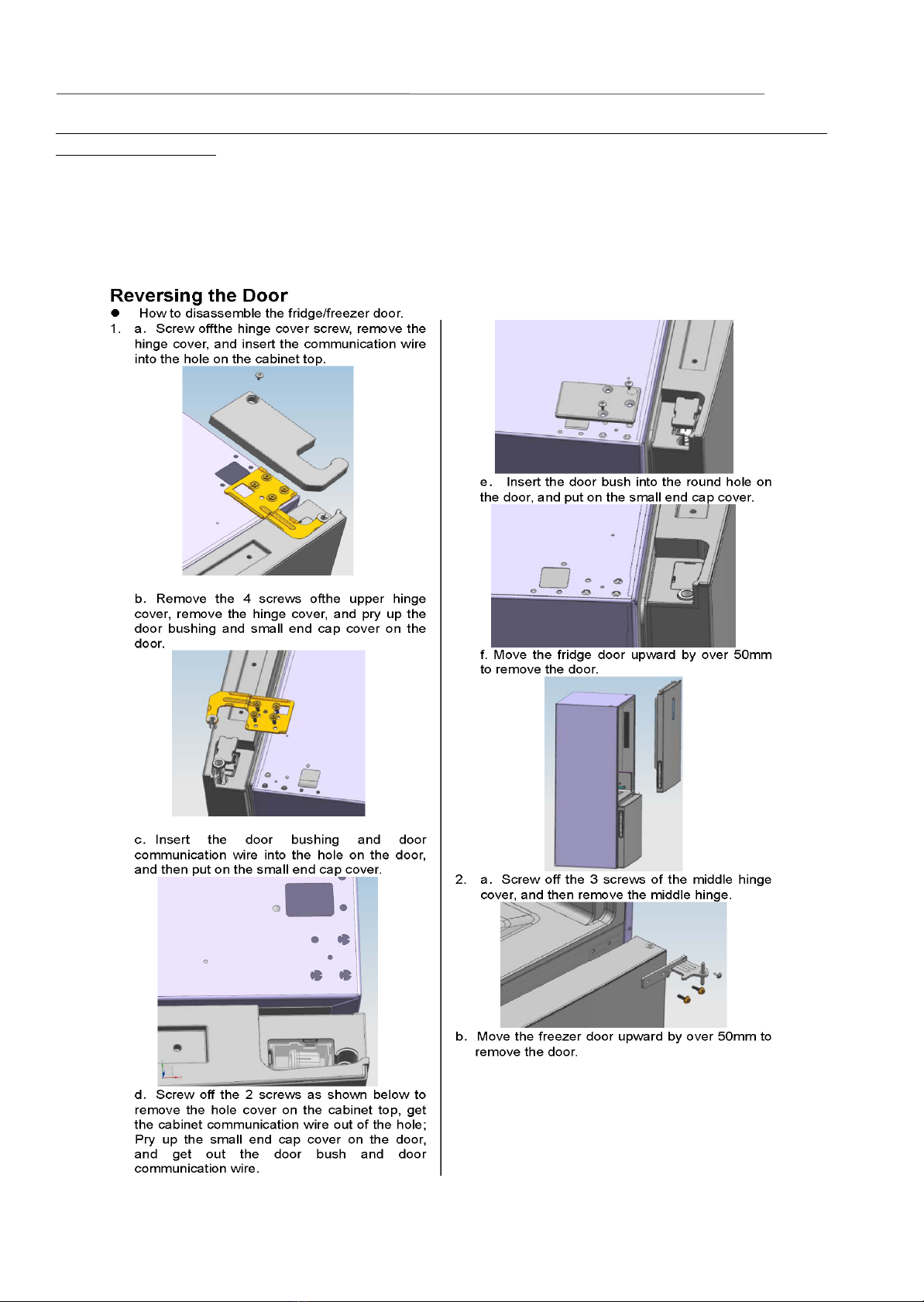

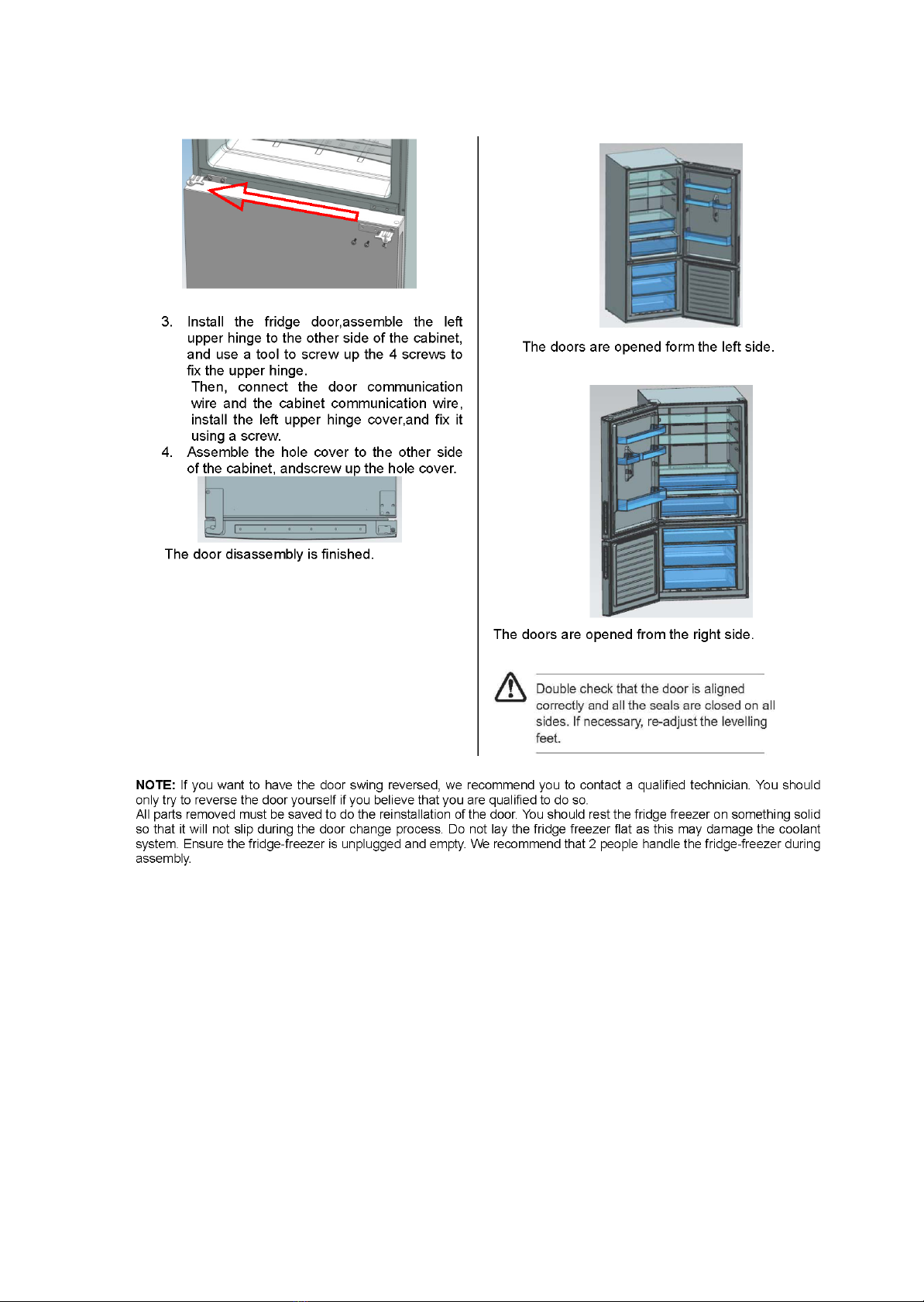

Door reversal instruction
The door reversal job requests some spare parts in the accessory bag, top hinge
and hinge cover.
The following tool is required, flat screwdriver, Phillips screwdriver, adjustable spanner,
socket wrench and 8mm socket.

10

11

12
TROUBLESHOOTING GUIDE
Problem Solution
The fridge has no power
The power cord isn't plugged in properly.
The circuit breaker tripped or a blown a fuse.
Try a different PowerPoint.
The light is not working.

There is no light in the freezer compartment. The only
fridge compartment has light.
Make sure the power is connected to the unit.
The compressor runs all the
time
The room temperature is hotter than normal.
A large amount of food has been added to the
refrigerator.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The refrigerator does not have the correct clearances.
The refrigerator has recently been disconnected for a
while. 6+ hours are required for the refrigerator to cool
down completely pending operating conditions.
The freezer is too cold, and
the refrigerator is too warm
Change freezer airflow setting to min position
The fridge might need a manual to defrost because
too much moisture went into the freezer and blocked
the air channel.
To do so,
Keep food in a container with an ice bag or another
fridge if available.
Keep both doors opening and unplug the power
cord for 24 hours.
Then turn on the unit, and it will work properly
again.
The temperature inside the
refrigerator is too warm.
Temperature control is set incorrectly. Turn the control
to a cooler setting and allow several hours for the
temperature to stabilise.
Change freezer airflow setting to min position.
The door is kept open too long or is opened too
frequently. Warm air enters the refrigerator every time
the door is opened). Open the door less often.
The door is not closed completely.
The door gasket does not seal properly.

13
The temperature inside the
refrigerator is too cold.
Freezer control was incorrectly set. Set back to mid
position.
Temperature control is set too cold. Turn the control to a
warmer setting and allow several hours for the
temperature to stabilise. For example, change the setting
to No. 1.
The temperature of the
external refrigerator side
walls is warm.
The exterior refrigerator walls can be as 15-20 degrees
warmer than room temperature.
This is normal while the compressor works to transfer
heat from inside the refrigerator cabinet to the condenser
behind the refrigerator sidewalls.
Popping or cracking sound
when compressor comes on.
Metal parts undergo expansion and contraction, as in
hot water pipes. This is normal. The sound will level off
or disappear as the refrigerator continues to run.
Bubbling or gurgling sound,
like water boiling.
Refrigerant (used to cool refrigerator) is circulating
throughout the system. This is a normal operation.
Vibrations.
Check the refrigerator is on a level/even surface.
Refrigerator rocks on the floor when it is moved slightly.
Be sure the floor can adequately support the
refrigerator.
Level the refrigerator by putting wood or metal shims
under the part of the refrigerator.
The refrigerator is touching the wall. Re-level the
refrigerator and move it from the wall. See "Installation
Instructions".
Moisture forms inside
refrigerator walls.
The weather is hot and humid, increasing the internal
frost build-up rate. This is normal.
The door is slightly open.
The door is kept open too long or is opened too
frequently. Open the door less often.
The door is not sealed properly.
Moisture forms on the
outside of the refrigerator.
The door is slightly open, causing cold air from inside
the refrigerator to meet warm moist air from the outside.
The doors will not close
properly.
The refrigerator is not on a level surface.
The gasket/s may be dirty or not properly maintained.
Clean the seals and make sure they are dry before
closing the door/s.
The storage basket and/or shelves are out of position.

14
